Nissan Pathfinder (2006 year). Manual - part 267





POWER WINDOW SYSTEM

GW-17

C

D

E

F

G

H

J

K

L

M

A

B

GW

2006 Pathfinder

to front power window motor RH terminal 1.

Then, the motor raises the window until the switch is released.
WINDOW DOWN
When the main power window and door lock/unlock switch (front RH) is pressed in the down position, power is
supplied

through main power window and door lock/unlock switch terminal 11

to power window and door lock/unlock switch LH terminal 11

through power window and door lock/unlock switch LH  terminal 6

to front power window motor RH terminal 1.

Ground is supplied

through main power window and door lock/unlock switch terminal 8

to power window and door lock/unlock switch RH terminal 12

through power window and door lock/unlock switch LH terminal 7

to front power window motor RH terminal 2.

Then, the motor lowers the window until the switch is released.

Rear Door (LH or RH)

REAR POWER WINDOW SWITCH LH OR RH OPERATION
WINDOW UP
When the rear power window switch LH or RH is pressed in the up position, power is supplied

through rear power window switch LH or RH terminal 7

to rear power window motor LH or RH terminal 2.

Ground is supplied

through rear power window switch LH or RH terminal 6

to rear power window motor LH or RH terminal 1.

Then, the motor raises the window until the switch is released.
WINDOW DOWN
When the rear power window switch LH or RH is pressed in the down position, power is supplied

through rear power window switch LH or RH terminal 6

to rear power window motor LH or RH terminal 1.

Ground is supplied

through rear power window switch LH or RH terminal 7

to rear power window motor LH or RH terminal 2.

Then, the motor lowers the window until the switch is released.
MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH OPERATION
WINDOW UP
When the main power window and door lock/unlock switch (rear LH) is pressed in the up position, power is
supplied

through main power window and door lock/unlock switch terminal 1

to rear power window switch LH terminal 4

through rear power window switch LH terminal 7

to rear power window motor LH terminal 2.

Ground is supplied

through main power window and door lock/unlock switch terminal 3

to rear power window switch LH terminal 5

through rear power window switch LH  terminal 6

to rear power window motor LH terminal 1.

Then, the motor raises the window until the switch is released.
When the main power window and door lock/unlock switch (rear RH) is pressed in the up position, power is
supplied

through main power window and door lock/unlock switch terminal 7

to rear power window switch RH terminal 4

GW-18

POWER WINDOW SYSTEM

2006 Pathfinder

through rear power window switch RH terminal 7

to rear power window motor RH terminal 2.

Ground is supplied

through main power window and door lock/unlock switch terminal 5

through rear power window switch RH terminal 5

to rear power window switch RH terminal 6

to rear power window motor RH terminal 1.

Then, the motor raises the window until the switch is released.
WINDOW DOWN
When the main power window and door lock/unlock switch (rear LH) is pressed in the down position, power is
supplied

through main power window and door lock/unlock switch terminal 3

to rear power window switch LH terminal 5

through rear power window switch LH  terminal 6

to rear power window motor LH terminal 1.

Ground is supplied

through main power window and door lock/unlock switch terminal 1

to rear power window switch LH terminal 4

through rear power window switch LH terminal 7

to rear power window motor LH terminal 2.

Then, the motor lowers the window until the switch is released.
When the main power window and door lock/unlock switch (rear RH) is pressed in the down position, power is
supplied

through main power window and door lock/unlock switch terminal 5

to rear power window switch RH terminal 5

through rear power window switch RH  terminal 6

to rear power window motor RH terminal 1.

Ground is supplied

through main power window and door lock/unlock switch terminal 7

to rear power window switch RH terminal 4

through rear power window switch RH terminal 7

to rear power window motor RH terminal 2.

Then, the motor lowers the window until the switch is released.

AUTO OPERATION

The power window AUTO feature enables the driver to open the window without holding the window switch in
the down position.

POWER WINDOW LOCK

The power window lock is designed to lock operation of all windows except for front door window LH.
When in the lock position, the power window lock disables power window and door lock/unlock switch RH and
rear power window switch LH and RH by disconnecting switch ground signal. This prevents the power window
motors from operating.

RETAINED POWER OPERATION

When the ignition switch is turned to the OFF position from ON or START position, power is supplied for 45
seconds

through BCM terminal 68

to main power window and door lock/unlock switch terminal 10

to power window and door lock/unlock switch RH terminal 8

to rear power window switches LH and RH terminal 8.

When power and ground are supplied, the BCM continues to be energized, and the power window can be
operated.

POWER WINDOW SYSTEM

GW-19

C

D

E

F

G

H

J

K

L

M

A

B

GW

2006 Pathfinder

The retained power operation is canceled when the front LH or front RH door is opened.
Retained power operation period can be changed by CONSULT-II. Refer to

GW-27, "CONSULT-II Function

(BCM)"

 .

CAN Communication System Description

EIS007RD

Refer to

LAN-25, "CAN COMMUNICATION"

 .

GW-20

POWER WINDOW SYSTEM

2006 Pathfinder

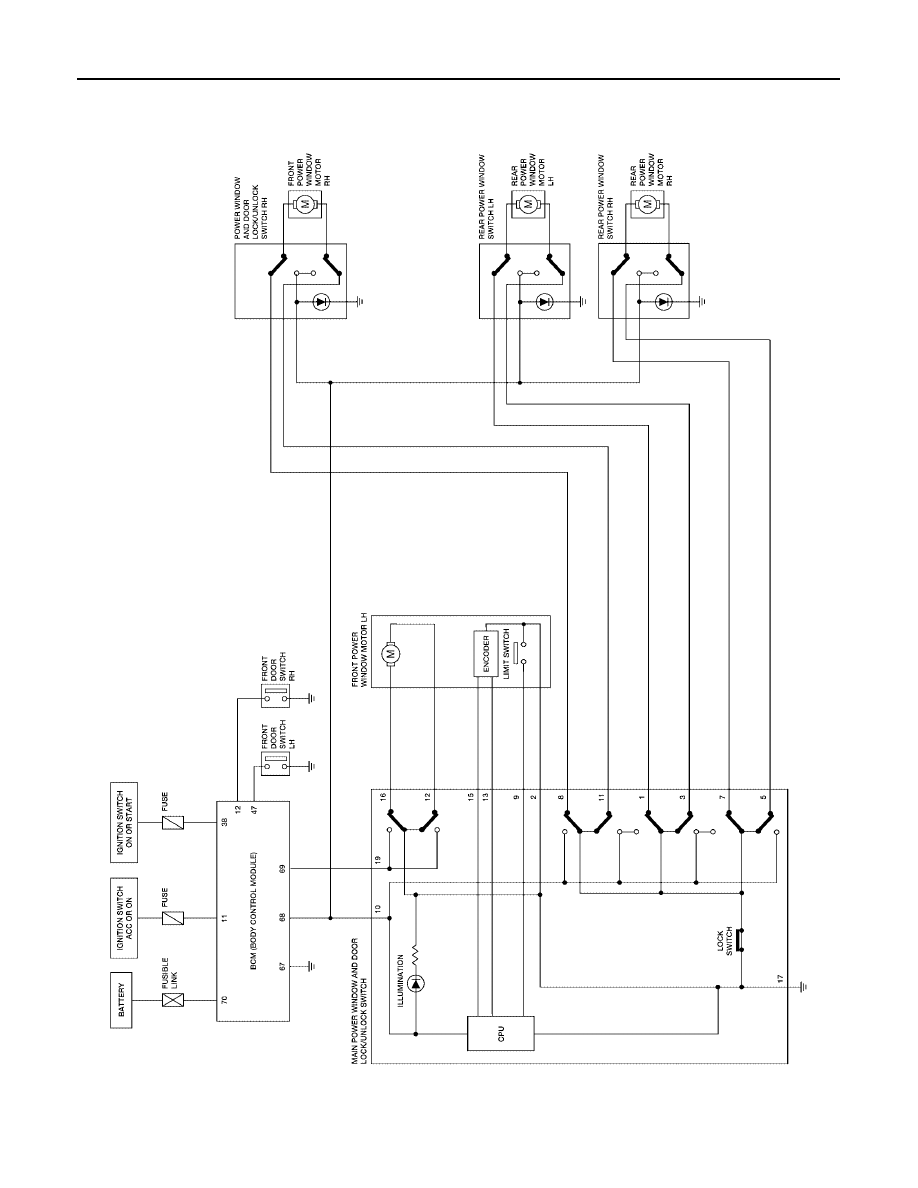

Schematic

EIS007RE

WIWA0524E

POWER WINDOW SYSTEM

GW-21

C

D

E

F

G

H

J

K

L

M

A

B

GW

2006 Pathfinder

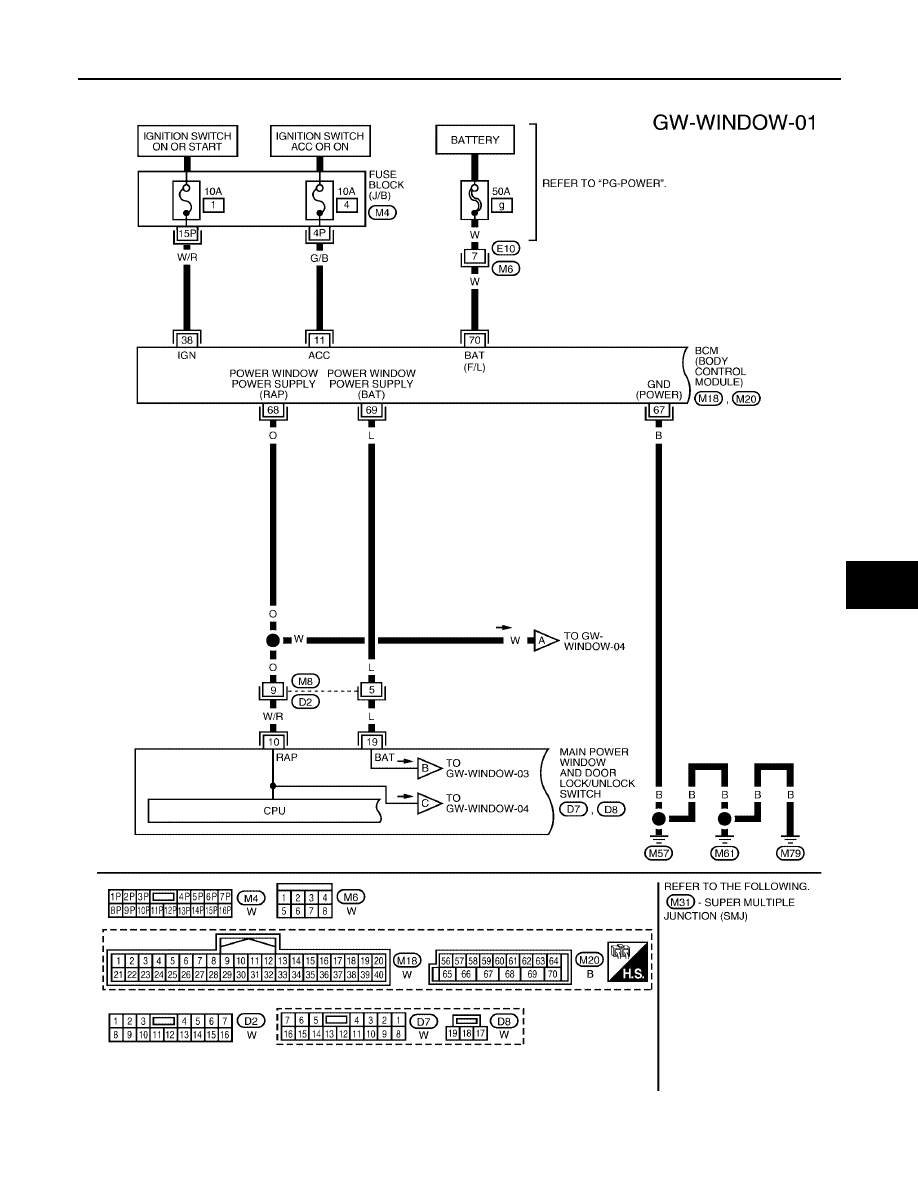

Wiring Diagram — WINDOW —

EIS007RF

WIWA1605E

GW-22

POWER WINDOW SYSTEM

2006 Pathfinder

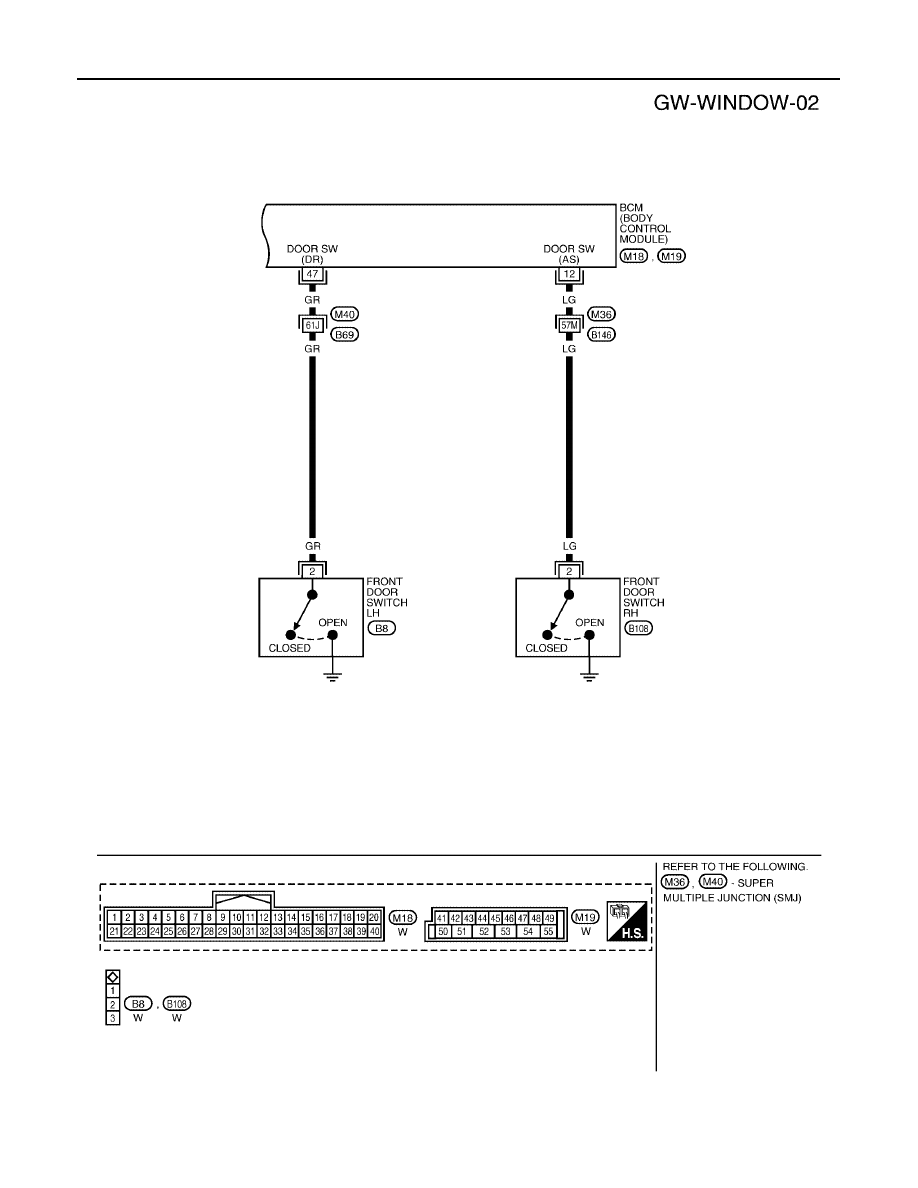

WIWA0737E

POWER WINDOW SYSTEM

GW-23

C

D

E

F

G

H

J

K

L

M

A

B

GW

2006 Pathfinder

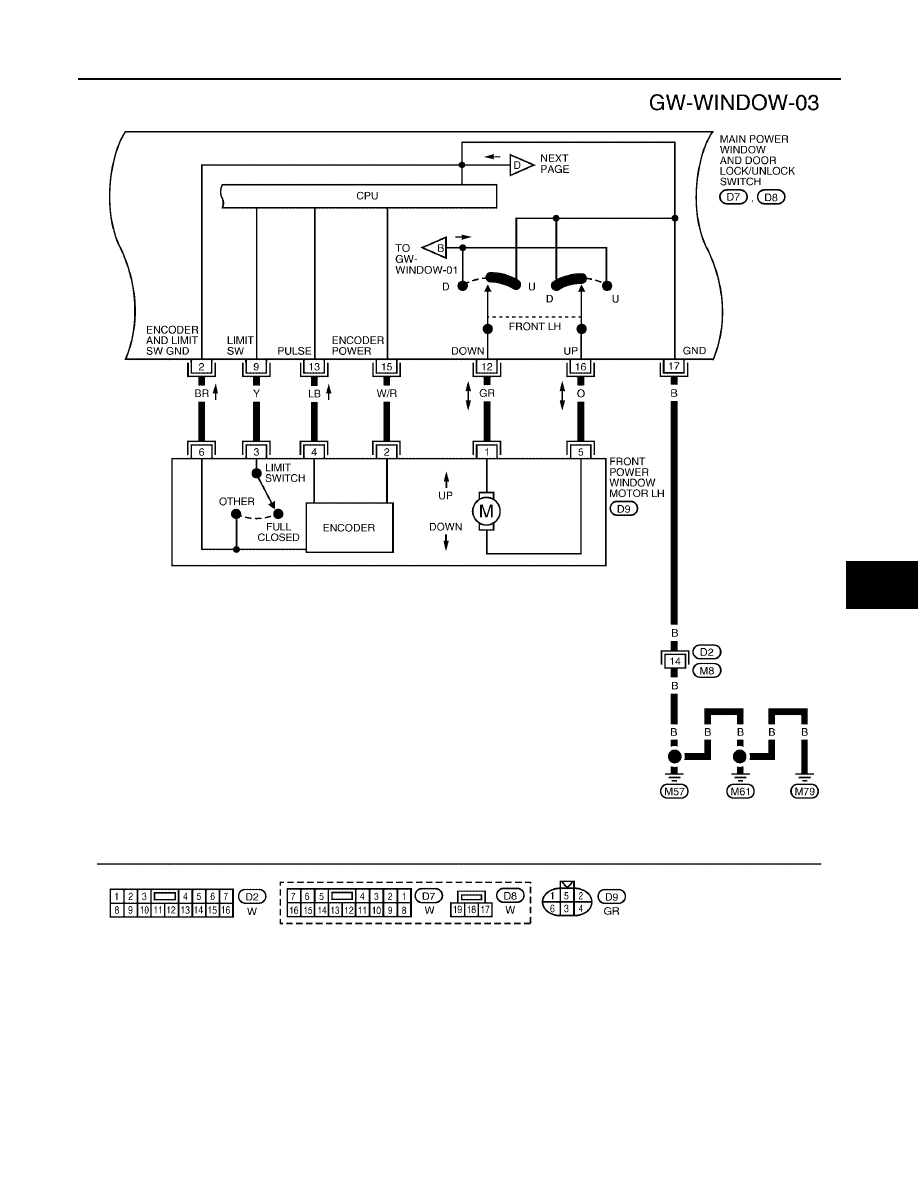

WIWA1037E

GW-24

POWER WINDOW SYSTEM

2006 Pathfinder

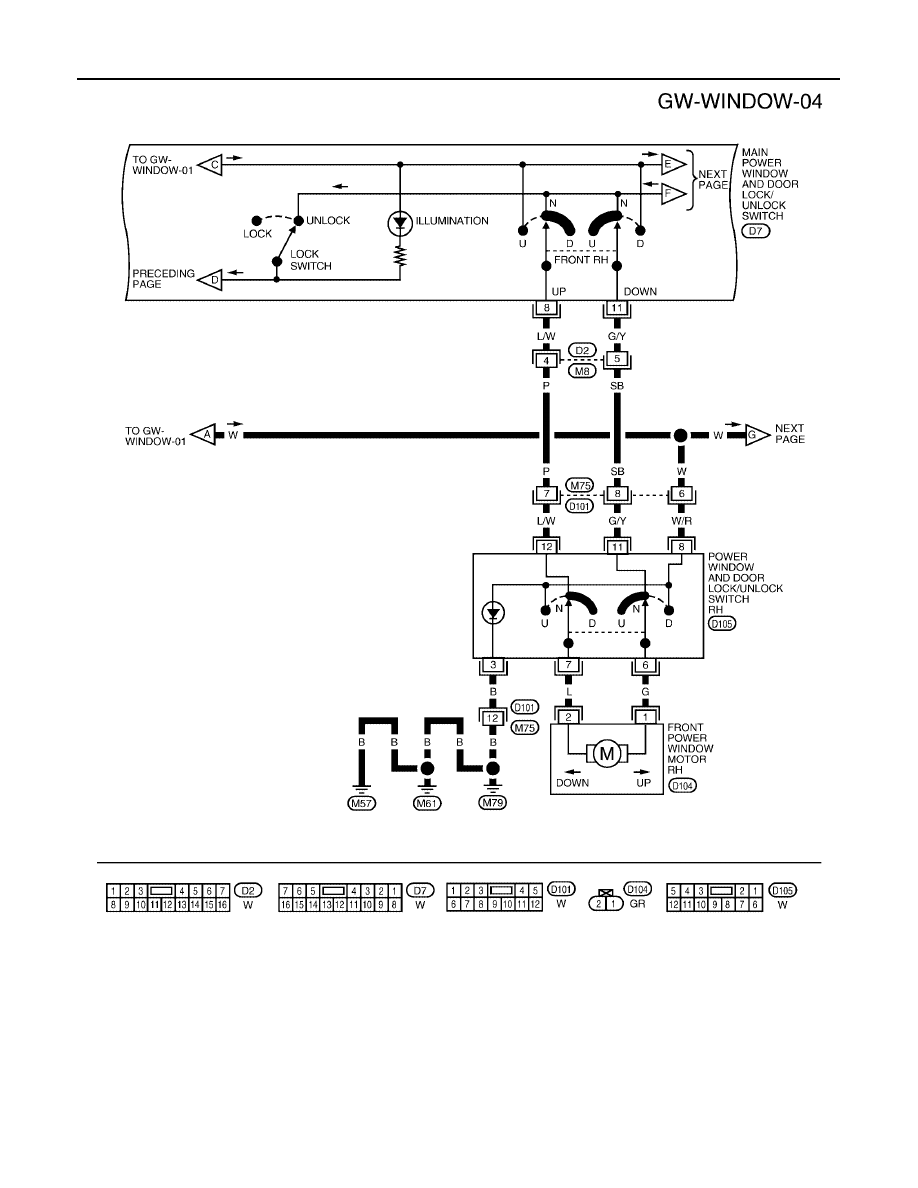

WIWA1038E
