SQUEAK AND RATTLE TROUBLE DIAGNOSES

GW-9

C

D

E

F

G

H

J

K

L

M

A

B

GW

2006 Pathfinder

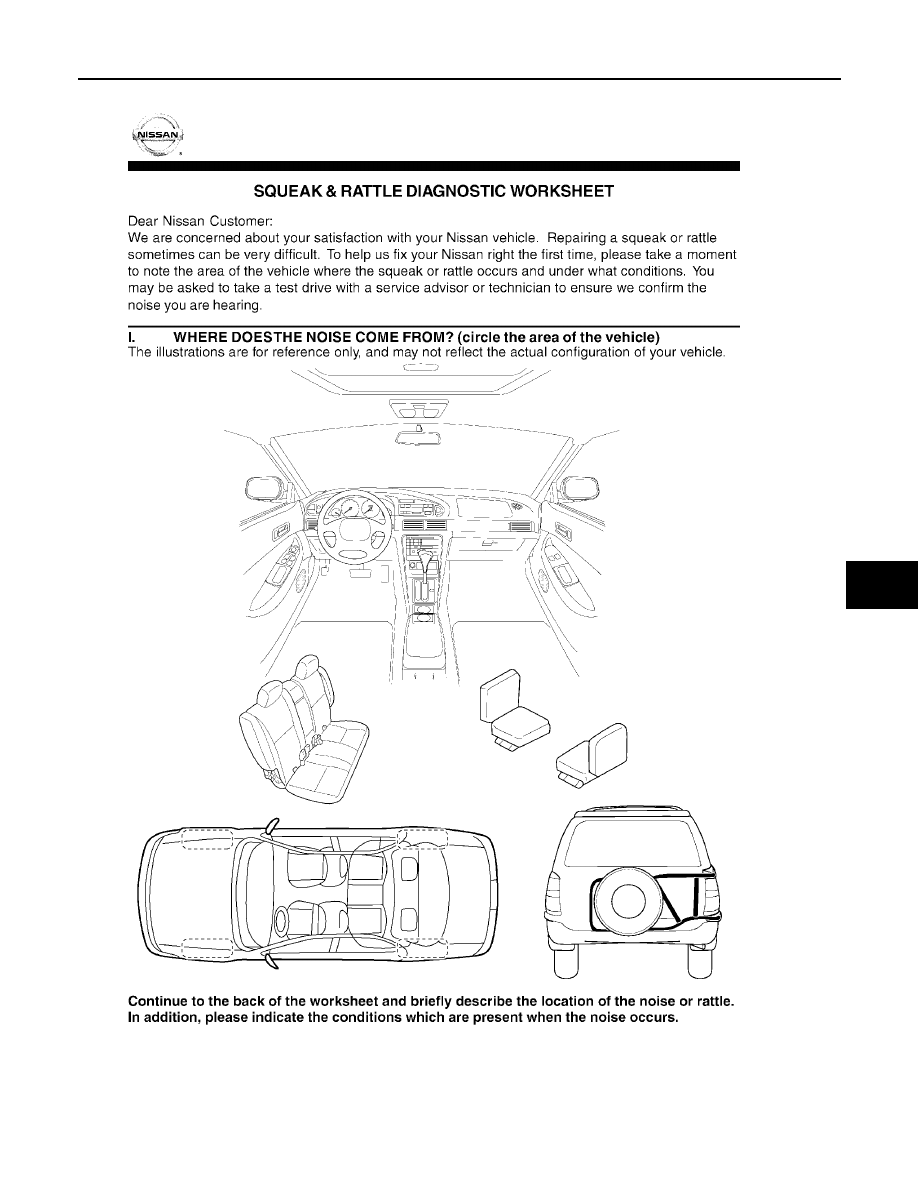

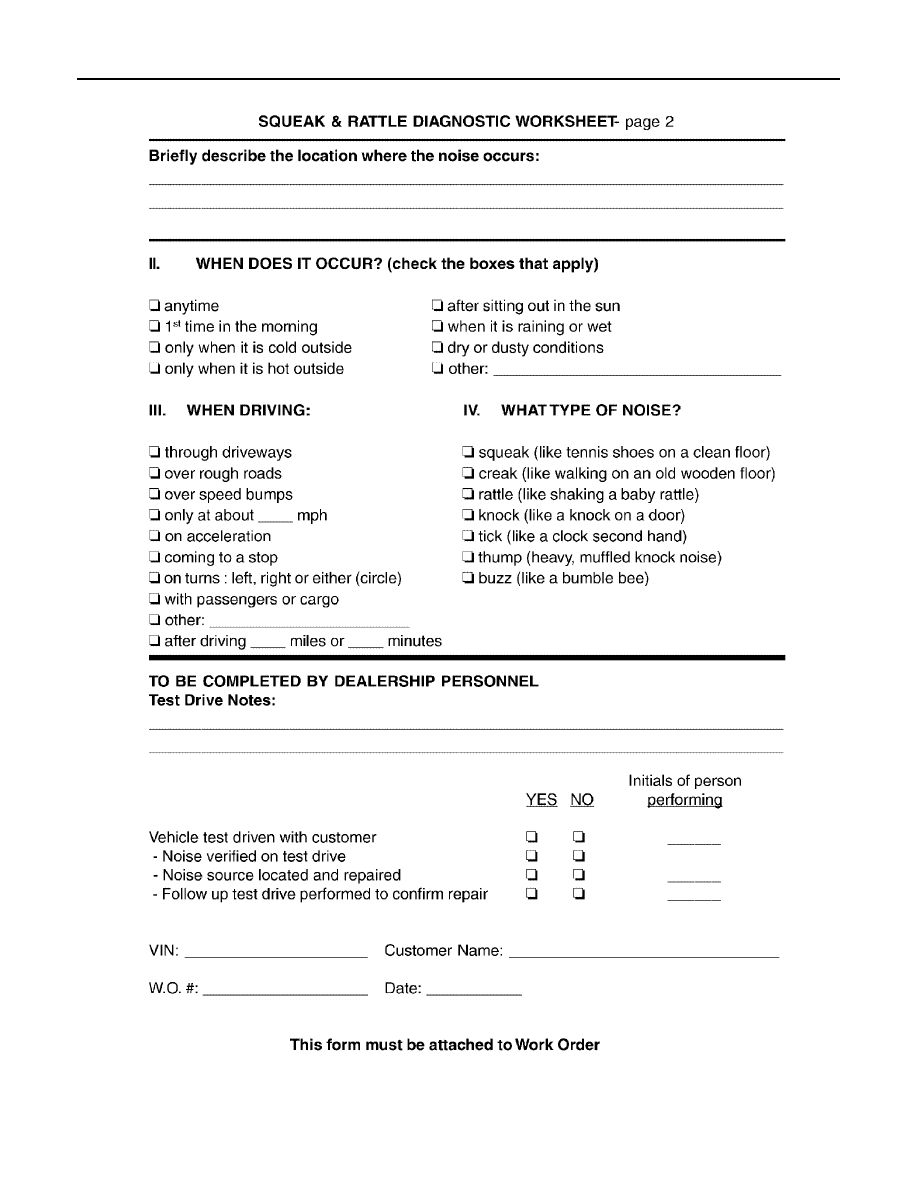

Diagnostic Worksheet

EIS007R9

LIWA0276E

GW-10

SQUEAK AND RATTLE TROUBLE DIAGNOSES

2006 Pathfinder

SBT844

WINDSHIELD GLASS

GW-11

C

D

E

F

G

H

J

K

L

M

A

B

GW

2006 Pathfinder

WINDSHIELD GLASS

PFP:72712

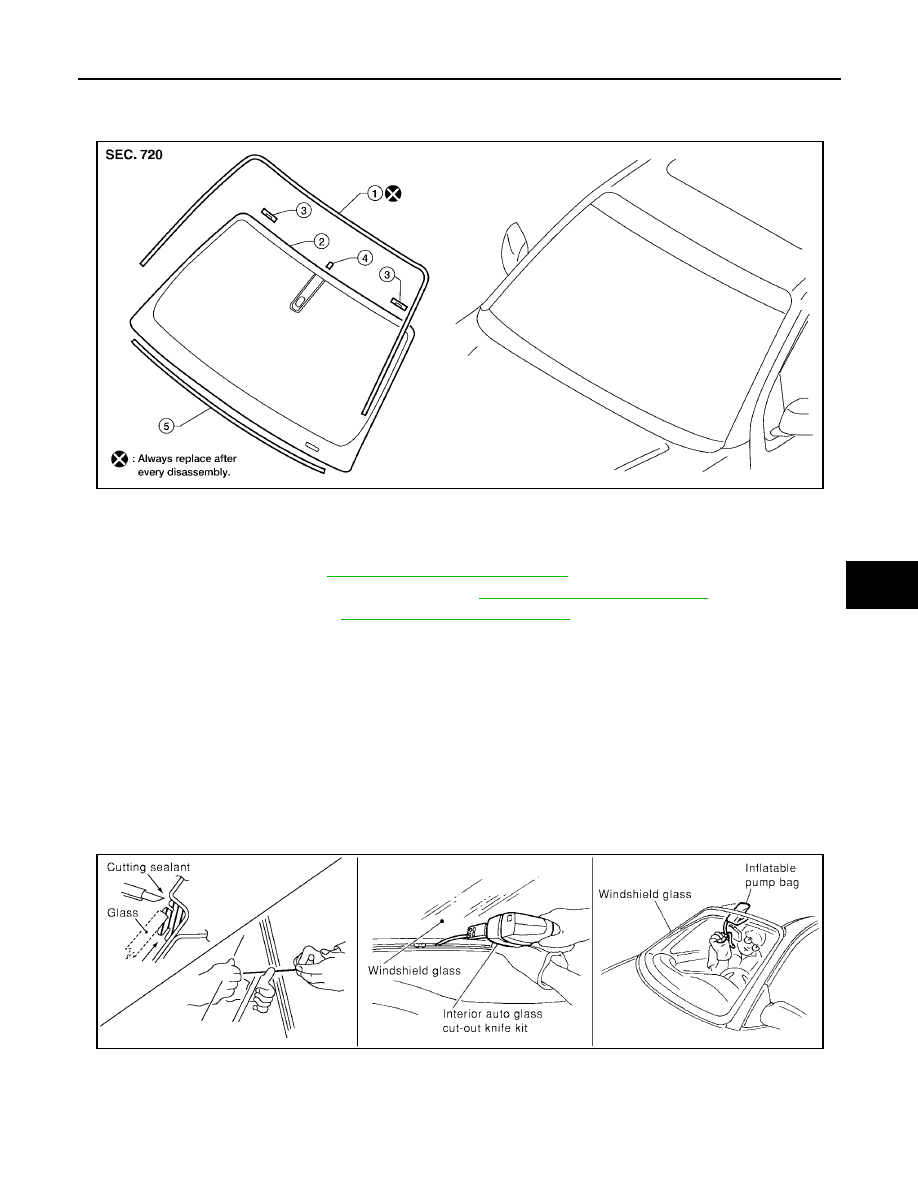

Removal and Installation

EIS007RA

REMOVAL

1.

Remove inside mirror. Refer to

GW-69, "Removal and Installation"

 .

2.

Partially remove the headlining (front edge). Refer to

EI-30, "Removal and Installation"

 .

3.

Remove cowl top cover. Refer to

EI-17, "Removal and Installation"

 .

4.

Apply a protective tape around the windshield glass to protect the painted surface from damage.

If the windshield glass is to be reused, mark the body and the glass with mating marks.

Remove glass using piano wire or power cutting tool and an inflatable pump bag.

WARNING:

When cutting the glass from the vehicle, always wear safety glasses and heavy gloves to help prevent
glass splinters from entering your eyes or cutting your hands.

CAUTION:

When the windshield glass is to be reused, do not use a cutting knife or power cutting tool.

Be careful not to scratch the glass when removing.

Do not set or stand glass on its edge. Small chips may develop into cracks.

INSTALLATION

Use a genuine NISSAN Urethane Adhesive Kit (if available) or equivalent and follow the instructions fur-
nished with it.

1.

Molding

2.

Windshield

3.

Windshield position pins

4.

Mirror base

5.

Insulator

LIIA1684E

PIIA0186E

GW-12

WINDSHIELD GLASS

2006 Pathfinder

While the urethane adhesive is curing, open a door window. This will prevent the glass from being forced
out by passenger compartment air pressure when a door is closed.

The molding must be installed securely so that it is in position and leaves no gap.

Inform the customer that the vehicle should remain stationary until the urethane adhesive has completely
cured (preferably 24 hours). Curing time varies with temperature and humidity.

Install parts removed.

WARNING:

Keep heat and open flames away as primers and adhesive are flammable.

The materials contained in the kit are harmful if swallowed, and may irritate skin and eyes. Avoid
contact with the skin and eyes.

Use in an open, well ventilated location. Avoid breathing the vapors. They can be harmful if
inhaled. If affected by vapor inhalation, immediately move to an area with fresh air.

Driving the vehicle before the urethane adhesive has completely cured may affect the perfor-
mance of the windshield in case of an accident.

CAUTION:

Do not use an adhesive which is past its usable term. Shelf life of this product is limited to six
months after the date of manufacture. Carefully adhere to the expiration or manufacture date
printed on the box.

Keep primers and adhesive in a cool, dry place. Ideally, they should be stored in a refrigerator.

Do not leave primers or adhesive cartridge unattended with their caps open or off.

The vehicle should not be driven for at least 24 hours or until the urethane adhesive has com-
pletely cured. Curing time varies depending on temperature and humidities. The curing time will
increase under lower temperatures and lower humidities.

WINDSHIELD GLASS

GW-13

C

D

E

F

G

H

J

K

L

M

A

B

GW

2006 Pathfinder

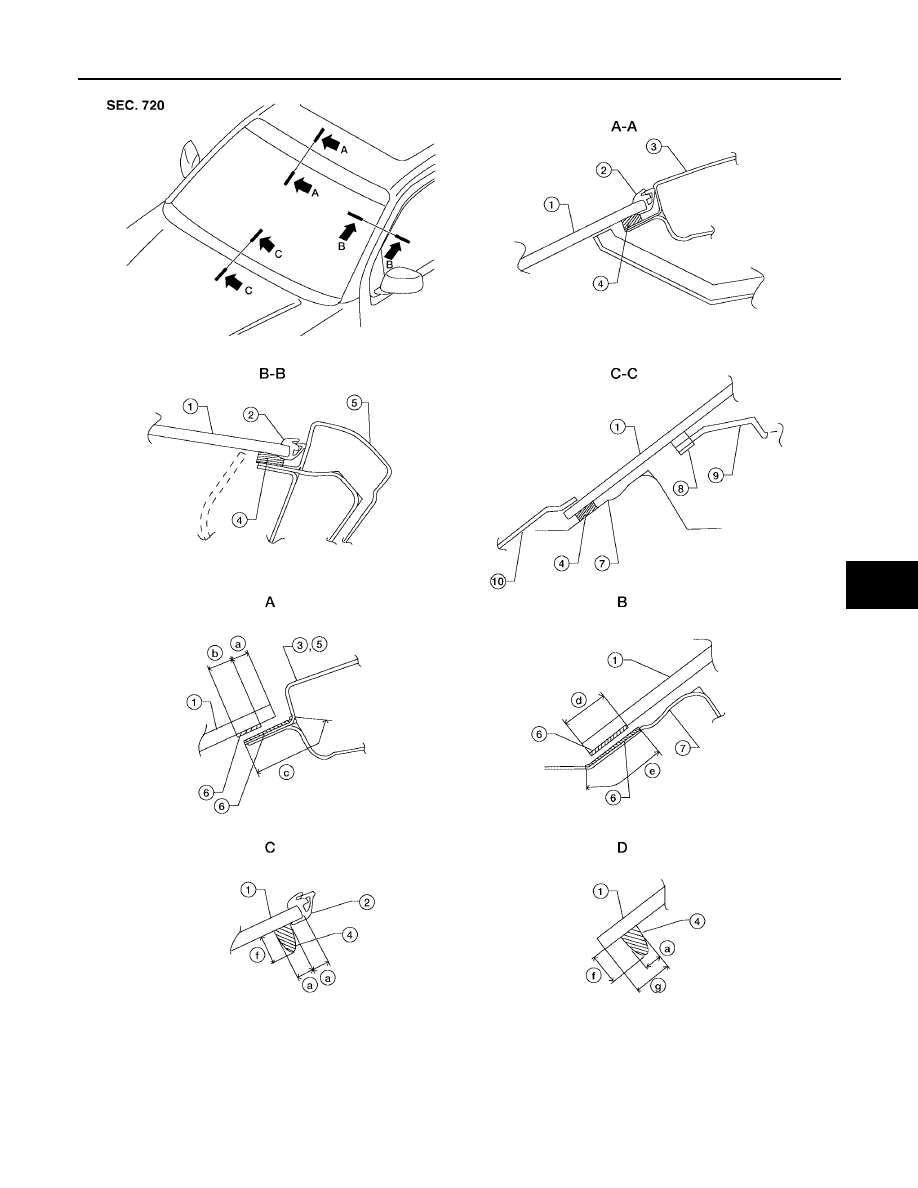

1.

Windshield glass

2.

Molding

3.

Roof

4.

Urethane

5.

A-pillar

6.

Primer

7.

Cowl top panel

8.

Insulator

9.

Instrument panel

WIIA1032E

GW-14

WINDSHIELD GLASS

2006 Pathfinder

Repairing Water Leaks for Windshield

Leaks can be repaired without removing and reinstalling glass.
If water is leaking between the urethane adhesive material and body or glass, determine the extent of leakage.
This can be done by applying water to the windshield area while pushing glass outward.
To stop the leak, apply primer (if necessary) and then urethane adhesive to the leak point.

10. Cowl top cover

A.

Primer area (top and sides)

B.

Primer area (bottom)

C.

Bond area (top and sides)

D.

Bond area (bottom)

a.

7.0 mm (0.27 in)

b.

10.0 mm (0.39 in)

c.

22.0 mm (0.78 in)

d.

20.0 mm (0.78 in)

e.

28.0 mm (1.10 in)

f.

12.0 mm (0.47 in)

g.

15.0 mm (0.59 in)

POWER WINDOW SYSTEM

GW-15

C

D

E

F

G

H

J

K

L

M

A

B

GW

2006 Pathfinder

POWER WINDOW SYSTEM

PFP:25401

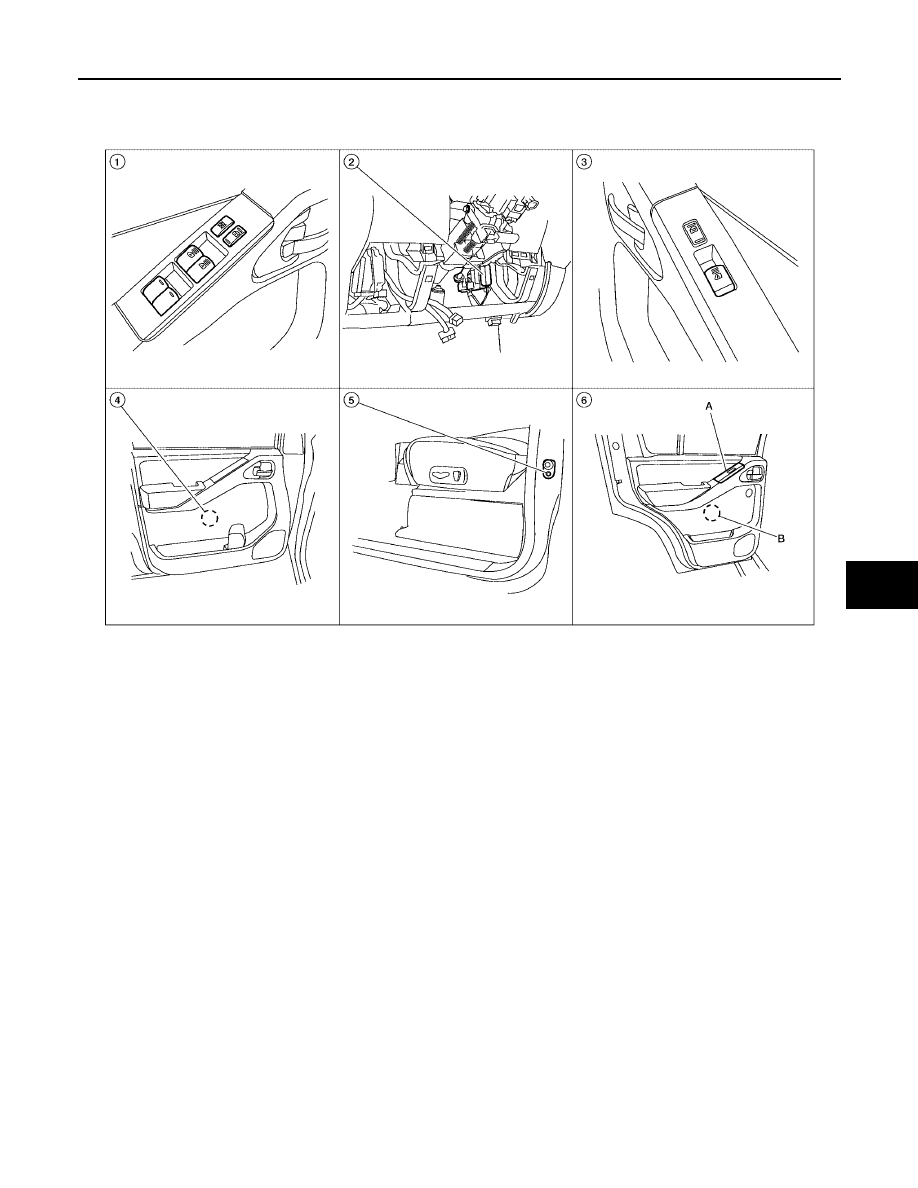

Component Parts and Harness Connector Location

EIS007RB

System Description

EIS007RC

Power is supplied at all times

from 50A fusible link (letter g , located in the fuse and fusible link box)

to BCM terminal 70

With ignition switch in ON or START position, power is supplied

through 10A fuse [No. 1, located in the fuse block (J/B)]

to BCM terminal 38

through BCM terminal 68

to main power window and door lock/unlock switch terminal 10

to power window and door lock/unlock switch RH terminal 8

to rear power window switches LH and RH terminal 8.

Ground is supplied

to BCM terminal 67

to main power window and door lock/unlock switch terminal 17

to power window and door lock/unlock switch RH terminal 3

through body grounds M57, M61 and M79.

With ignition switch in ACC or ON position, power is supplied

through 10A fuse [No. 4, located in the fuse block (J/B)]

1.

Main power window and door lock/
unlock switch D7, D8

2.

BCM M18, M19, M20 (view with
instrument lower panel LH removed)

3.

Power window and door lock/unlock
switch RH D105

4.

Front power window motor LH D9,
RH D104

5.

Front door switch LH B8, RH B108

6.

A. Rear power window switch LH
D203, RH D303
B.Rear power window motor LH
D204, RH D304

LIIA2390E

GW-16

POWER WINDOW SYSTEM

2006 Pathfinder

to BCM terminal 11.

MANUAL OPERATION
Front Door LH

WINDOW UP
When the front LH switch in the main power window and door lock/unlock switch is pressed in the up position,
power is supplied

through main power window and door lock/unlock switch terminal 16

to front power window motor LH terminal 5.

Ground is supplied

through main power window and door lock/unlock switch terminal 12

to front power window motor LH terminal 1.

Then, the motor raises the window until the switch is released.
WINDOW DOWN
When the front LH switch in the main power window and door lock/unlock switch is pressed in the down posi-
tion, power is supplied

through main power window and door lock/unlock switch terminal 12

to front power window motor LH terminal 1.

Ground is supplied

through main power window and door lock/unlock switch terminal 16

to front power window motor LH terminal 5.

Then, the motor lowers the window until the switch is released.

Front Door RH

POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH OPERATION
WINDOW UP
When the power window and door lock/unlock switch RH is pressed in the up position, power is supplied

through power window and door lock/unlock switch RH terminal 7

to front power window motor RH terminal 2.

Ground is supplied

through power window and door lock/unlock switch RH terminal 6

to front power window motor RH terminal 1.

Then, the motor raises the window until the switch is released.
WINDOW DOWN
When the power window and door lock/unlock switch RH is pressed in the down position, power is supplied

through power window and door lock/unlock switch RH terminal 6

to front power window motor RH terminal 1.

Ground is supplied

through power window and door lock/unlock switch RH terminal 7

to front power window motor RH terminal 2.

Then, the motor lowers the window until the switch is released.
MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH OPERATION
WINDOW UP
When the main power window and door lock/unlock switch (front RH) is pressed in the up position, power is
supplied

through main power window and door lock/unlock switch terminal 8

to power window and door lock/unlock switch RH terminal 12

through power window and door lock/unlock switch RH terminal 7

to front power window motor RH terminal 2.

Ground is supplied

through main power window and door lock/unlock switch terminal 11

to power window and door lock/unlock switch RH terminal 11

through power window and door lock/unlock switch LH  terminal 6
