Nissan Pathfinder (2006 year). Manual - part 260





HOW TO USE THIS MANUAL

GI-17

C

D

E

F

G

H

I

J

K

L

M

B

GI

2006 Pathfinder

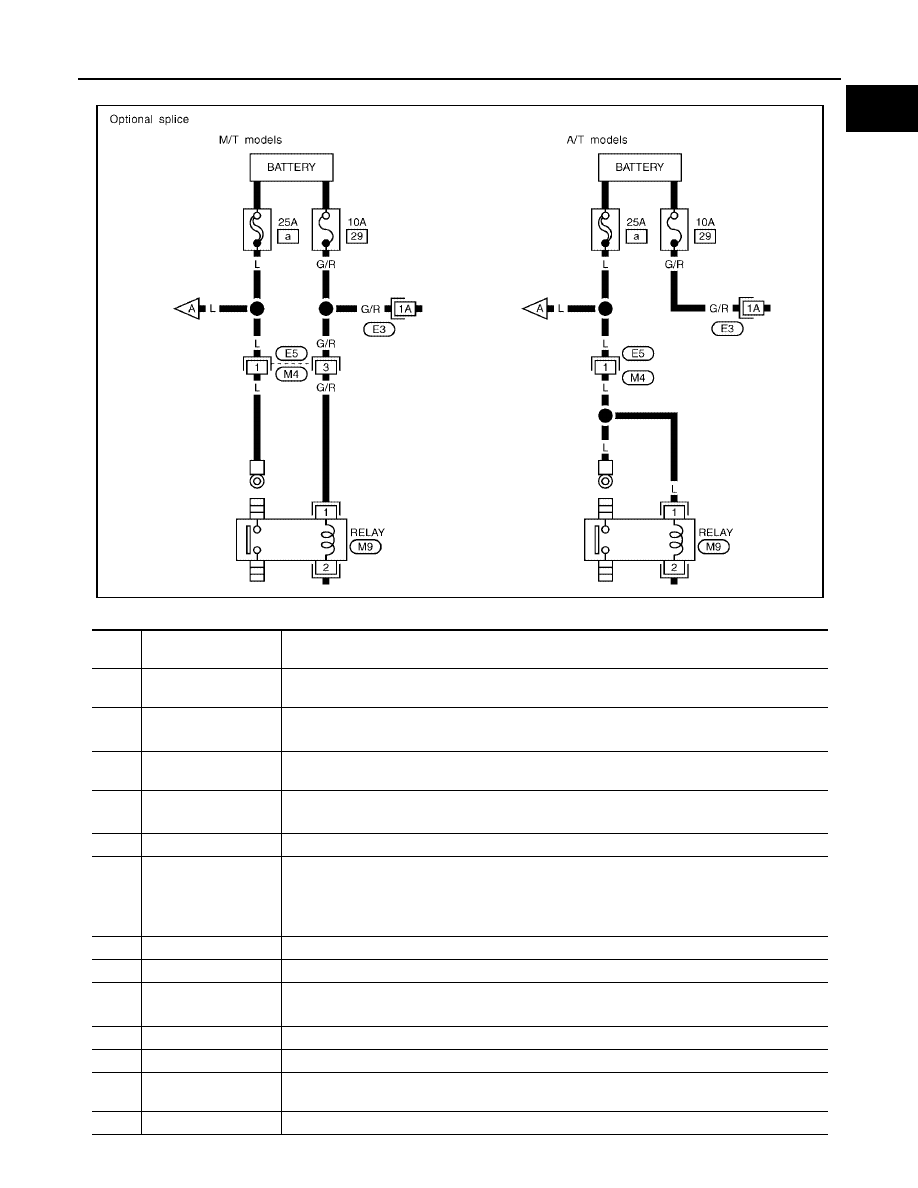

Optional Splice

DESCRIPTION

SGI942

Num-

ber

Item

Description

1

Power condition

This shows the condition when the system receives battery positive voltage (can be oper-
ated).

2

Fusible link

The double line shows that this is a fusible link.

The open circle shows current flow in, and the shaded circle shows current flow out.

3

Fusible link/fuse loca-
tion

This shows the location of the fusible link or fuse in the fusible link or fuse box. For arrange-
ment, refer to PG section, POWER SUPPLY ROUTING.

4

Fuse

The single line shows that this is a fuse.

The open circle shows current flow in, and the shaded circle shows current flow out.

5

Current rating

This shows the current rating of the fusible link or fuse.

6

Connectors

This shows that connector E3 is female and connector M1 is male.

The G/R wire is located in the 1A terminal of both connectors.

Terminal number with an alphabet (1A, 5B, etc.) indicates that the connector is SMJ connec-
tor. Refer to PG section,  SMJ (SUPER MULTIPLE JUNCTION).

7

Optional splice

The open circle shows that the splice is optional depending on vehicle application.

8

Splice

The shaded circle shows that the splice is always on the vehicle.

9

Page crossing

This arrow shows that the circuit continues to an adjacent page.

The A will match with the A on the preceding or next page.

10

Common connector

The dotted lines between terminals show that these terminals are part of the same connector.

11

Option abbreviation

This shows that the circuit is optional depending on vehicle application.

12

Relay

This shows an internal representation of the relay. For details, refer to PG section, STAN-
DARDIZED RELAY.

13

Connectors

This shows that the connector is connected to the body or a terminal with bolt or nut.

GI-18

HOW TO USE THIS MANUAL

2006 Pathfinder

14

Wire color

This shows a code for the color of the wire.

B = Black
W = White
R = Red
G = Green
L = Blue
Y = Yellow
LG = Light Green

BR = Brown
OR or O = Orange
P = Pink
PU or V (Violet) = Purple
GY or GR = Gray
SB = Sky Blue
CH = Dark Brown
DG = Dark Green

When the wire color is striped, the base color is given first, followed by the stripe color as shown
below:
Example: L/W = Blue with White Stripe

15

Option description

This shows a description of the option abbreviation used on the page.

16

Switch

This shows that continuity exists between terminals 1 and 2 when the switch is in the A posi-
tion. Continuity exists between terminals 1 and 3 when the switch is in the B position.

17

Assembly parts

Connector terminal in component shows that it is a harness incorporated assembly.

18

Cell code

This identifies each page of the wiring diagram by section, system and wiring diagram page
number.

19

Current flow arrow

Arrow indicates electric current flow, especially where the direction of standard flow (vertically
downward or horizontally from left to right) is difficult to follow.

A double arrow “

 ” shows that current can flow in either direction depending on cir-

cuit operation.

20

System branch

This shows that the system branches to another system identified by cell code (section and
system).

21

Page crossing

This arrow shows that the circuit continues to another page identified by cell code.

The C will match with the C on another page within the system other than the next or preced-
ing pages.

22

Shielded line

The line enclosed by broken line circle shows shield wire.

23

Component box in
wave line

This shows that another part of the component is also shown on another page (indicated by
wave line) within the system.

24

Component name

This shows the name of a component.

25

Connector number

This shows the connector number.

The letter shows which harness the connector is located in.

Example: M : main harness. For detail and to locate the connector, refer to PG section "Main
Harness", “Harness Layout”. A coordinate grid is included for complex harnesses to aid in
locating connectors.

26

Ground (GND)

The line spliced and grounded under wire color shows that ground line is spliced at the
grounded connector.

27

Ground (GND)

This shows the ground connection. For detailed ground distribution information, refer to
"Ground Distribution" in PG section.

28

Connector views

This area shows the connector faces of the components in the wiring diagram on the page.

29

Common component

Connectors enclosed in broken line show that these connectors belong to the same compo-
nent.

30

Connector color

This shows a code for the color of the connector. For code meaning, refer to wire color codes,
Number 14 of this chart.

31

Fusible link and fuse
box

This shows the arrangement of fusible link(s) and fuse(s), used for connector views of
"POWER SUPPLY ROUTING" in PG section.
The open square shows current flow in, and the shaded square shows current flow out.

32

Reference area

This shows that more information on the Super Multiple Junction (SMJ) and Joint Connectors
(J/C) exists on the PG section. Refer to "Reference Area" for details.

Num-

ber

Item

Description

HOW TO USE THIS MANUAL

GI-19

C

D

E

F

G

H

I

J

K

L

M

B

GI

2006 Pathfinder

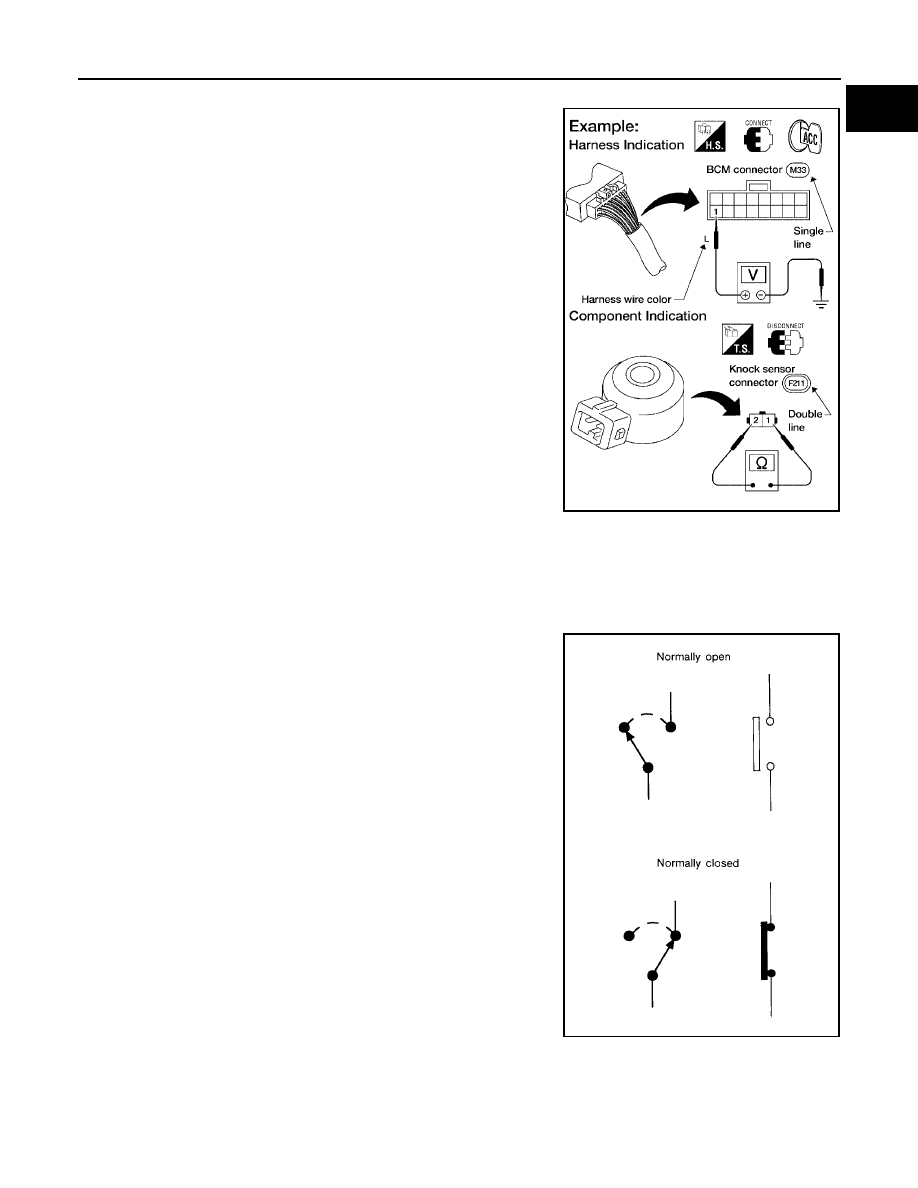

Harness Indication

Letter designations next to test meter probe indicate harness
(connector) wire color.

Connector numbers in a single circle M33 indicate harness con-
nectors.

Component Indication

Connector numbers in a double circle F211 indicate component connectors.

Switch Positions

Switches are shown in wiring diagrams as if the vehicle is in the “normal” condition.
A vehicle is in the “normal” condition when:

ignition switch is “OFF”,

doors, hood and trunk lid/back door are closed,

pedals are not depressed, and

parking brake is released.

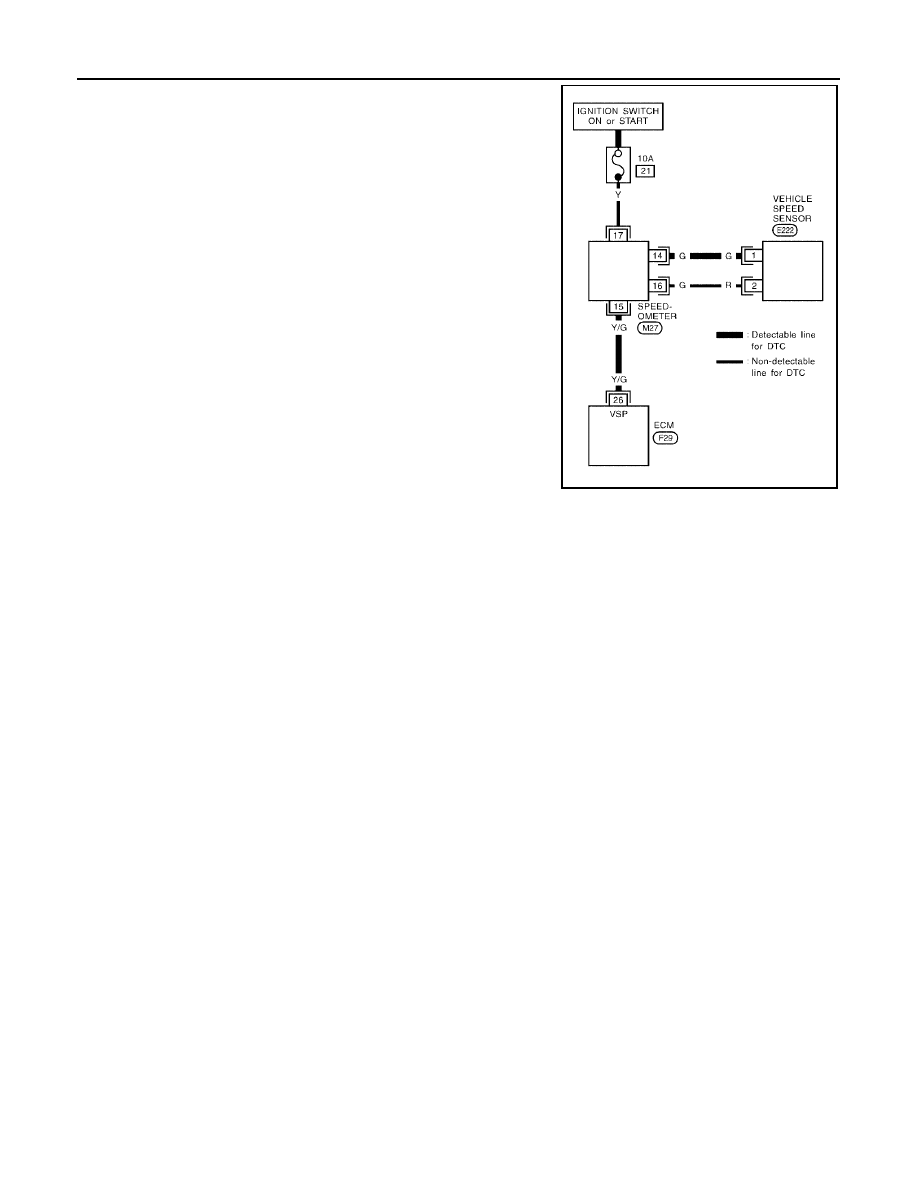

Detectable Lines and Non-Detectable Lines

In some wiring diagrams, two kinds of lines, representing wires, with different weight are used.

AGI070

SGI860

GI-20

HOW TO USE THIS MANUAL

2006 Pathfinder

A line with regular weight (wider line) represents a “detectable
line for DTC (Diagnostic Trouble Code)”. A “detectable line for
DTC” is a circuit in which ECM can detect its malfunctions with
the on board diagnostic system.

A line with less weight (thinner line) represents a “non-detect-
able line for DTC”. A “non-detectable line for DTC” is a circuit in
which ECM cannot detect its malfunctions with the on board
diagnostic system.

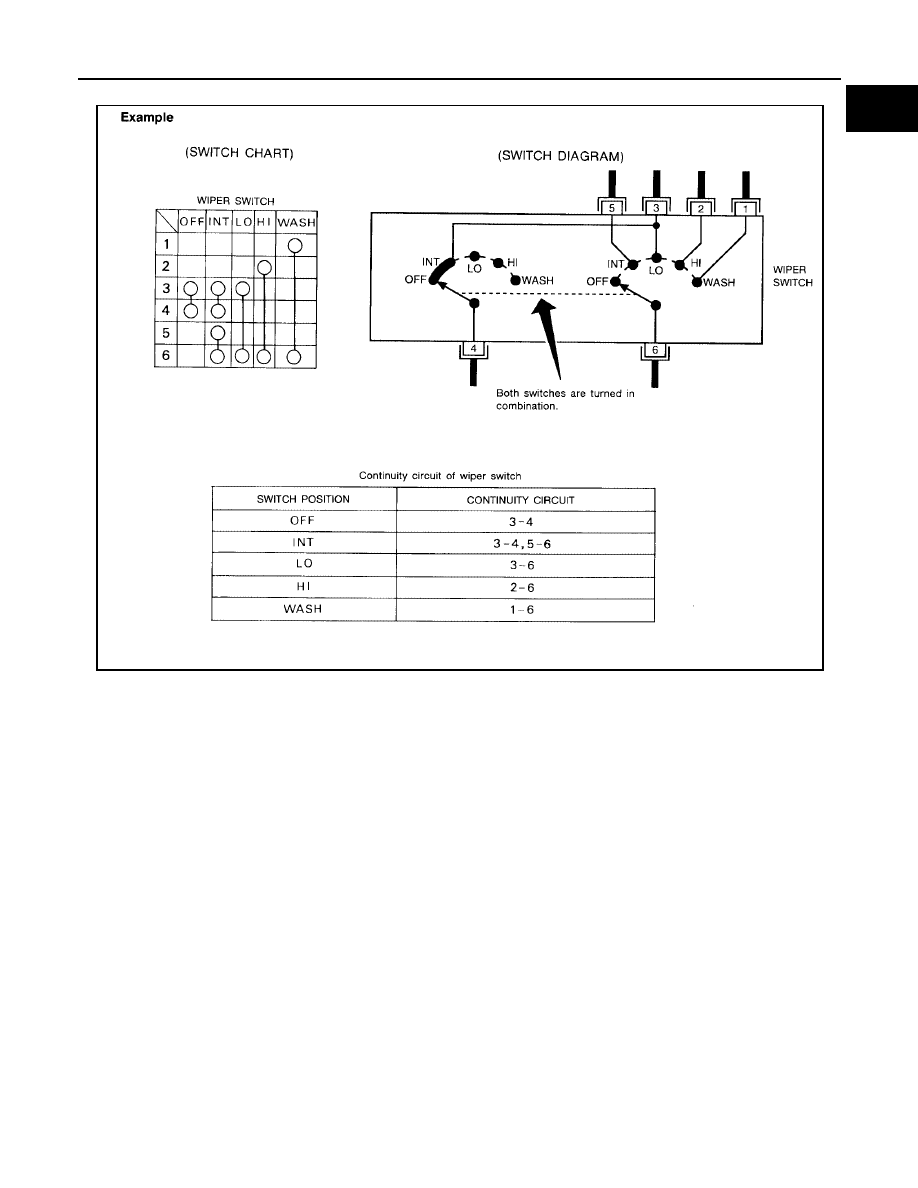

Multiple Switch

The continuity of multiple switch is described in two ways as shown below.

The switch chart is used in schematic diagrams.

SGI862-B

HOW TO USE THIS MANUAL

GI-21

C

D

E

F

G

H

I

J

K

L

M

B

GI

2006 Pathfinder

The switch diagram is used in wiring diagrams.

SGI875

GI-22

HOW TO USE THIS MANUAL

2006 Pathfinder

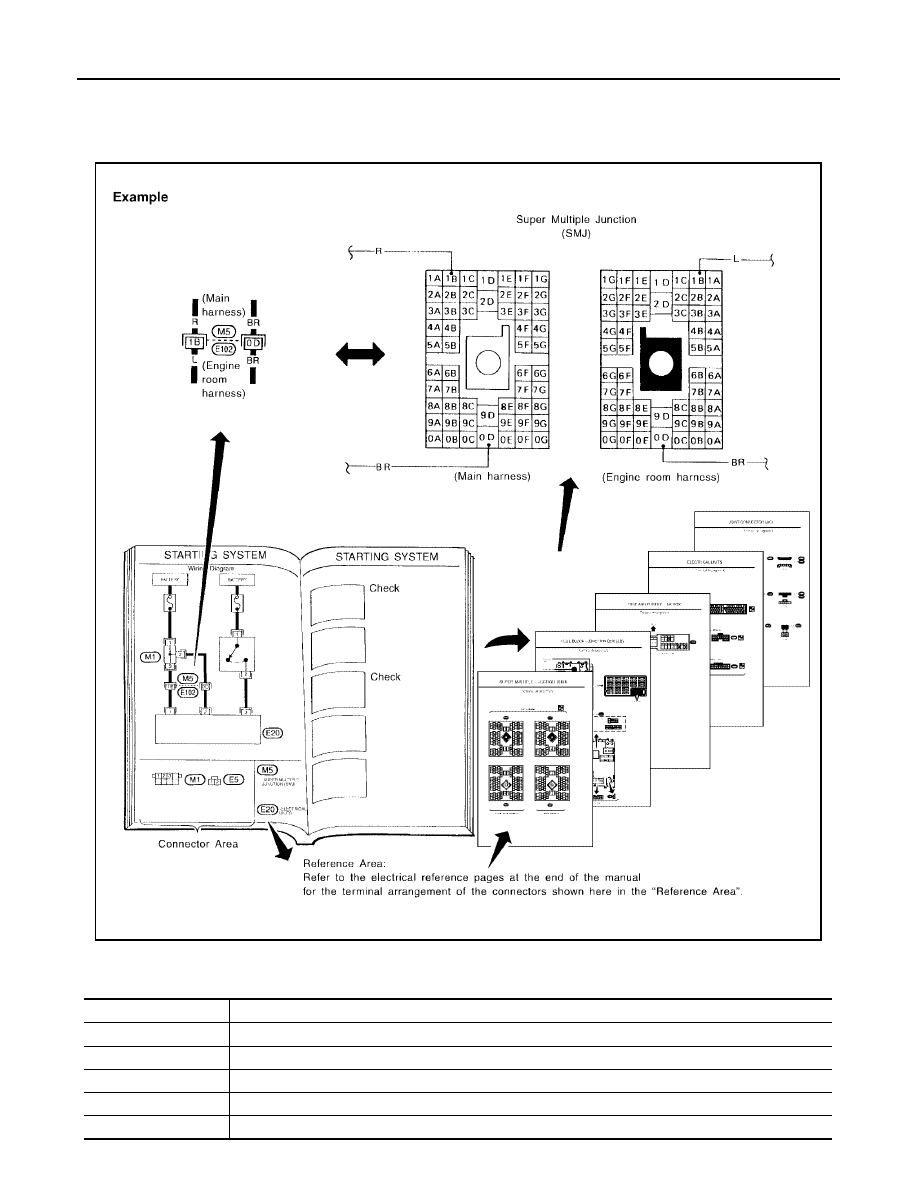

Reference Area

The Reference Area of the wiring diagram contains references to additional electrical reference pages at the
end of the manual. If connector numbers and titles are shown in the Reference Area of the wiring diagram,
these connector symbols are not shown in the Connector Area.

Abbreviations

EAS001RY

The following ABBREVIATIONS   are used:

SGI092A

ABBREVIATION

DESCRIPTION

A/C

Air Conditioner

A/T

Automatic Transaxle/Transmission

ATF

Automatic Transmission Fluid

D

1

Drive range 1st gear

D

2

Drive range 2nd gear

HOW TO USE THIS MANUAL

GI-23

C

D

E

F

G

H

I

J

K

L

M

B

GI

2006 Pathfinder

D

3

Drive range 3rd gear

D

4

Drive range 4th gear

FR, RR

Front, Rear

LH, RH

Left-Hand, Right-Hand

M/T

Manual Transaxle/Transmission

OD

Overdrive

P/S

Power Steering

SAE

Society of Automotive Engineers, Inc.

SDS

Service Data and Specifications

SST

Special Service Tools

2WD

2-Wheel Drive

2

2

2nd range 2nd gear

2

1

2nd range 1st gear

1

2

1st range 2nd gear

1

1

1st range 1st gear

ABBREVIATION

DESCRIPTION

GI-24

SERVICE INFORMATION FOR ELECTRICAL INCIDENT

2006 Pathfinder

SERVICE INFORMATION FOR ELECTRICAL INCIDENT

PFP:00000

How to Check Terminal

EAS001RZ

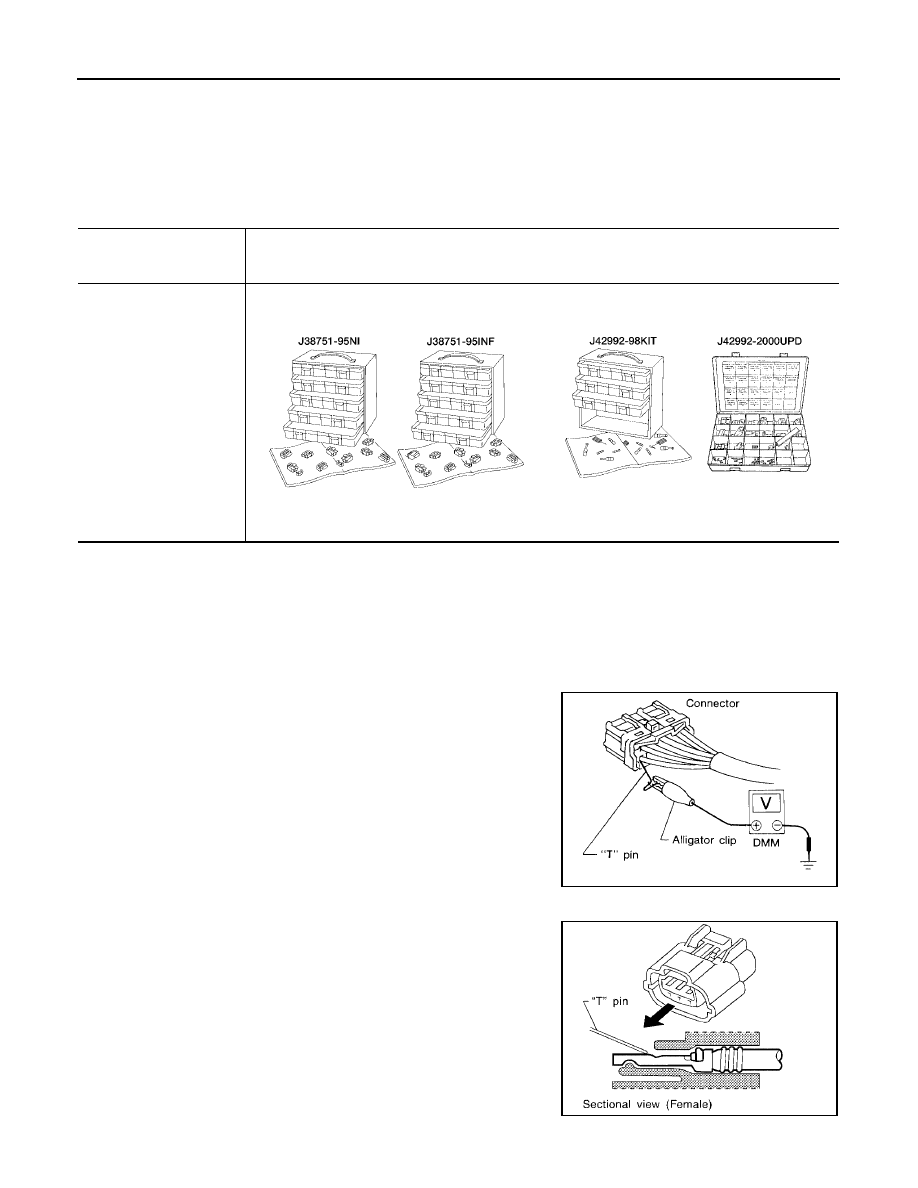

CONNECTOR AND TERMINAL PIN KIT

Use the connector and terminal pin kits listed below when replacing connectors or terminals.
The connector and terminal pin kits contain some of the most commonly used NISSAN/INFINITI connectors
and terminals. For detailed connector and terminal pin replacement procedures, refer to the latest NISSAN/
INFINITI CONNECTOR AND TERMINAL PIN SERVICE MANUAL.

HOW TO PROBE CONNECTORS

Connector damage and an intermittent connection can result from improperly probing of the connector during
circuit checks.
The probe of a digital multimeter (DMM) may not correctly fit the connector cavity. To correctly probe the con-
nector, follow the procedures below using a “T” pin. For the best contact grasp the “T” pin using an alligator
clip.

Probing from Harness Side

Standard type (not waterproof type) connector should be probed
from harness side with “T” pin.

If the connector has a rear cover such as a ECM connector,
remove the rear cover before probing the terminal.

Do not probe waterproof connector from harness side. Damage
to the seal between wire and connector may result.

Probing from Terminal Side

FEMALE TERMINAL

There is a small notch above each female terminal. Probe each
terminal with the “T” pin through the notch.
Do not insert any object other than the same type male terminal
into female terminal.

Tool number

(Kent-Moore No.)

Tool name

Description

-
(J38751-95NI)
Connector and terminal
pin kit (NISSAN)
-
(J38751-95INF)
Connector and terminal
pin kit (INFINITI)
-
(J42992-98KIT)
OBD and terminal repair
kit
-
(J42992-2000UPD)
OBD-II Connector Kit Up-
date

WAIA0004E

WAIA0005E

SGI841

SEL265V
