FRONT TIMING CHAIN CASE

EM-51

C

D

E

F

G

H

I

J

K

L

M

A

EM

2006 Pathfinder

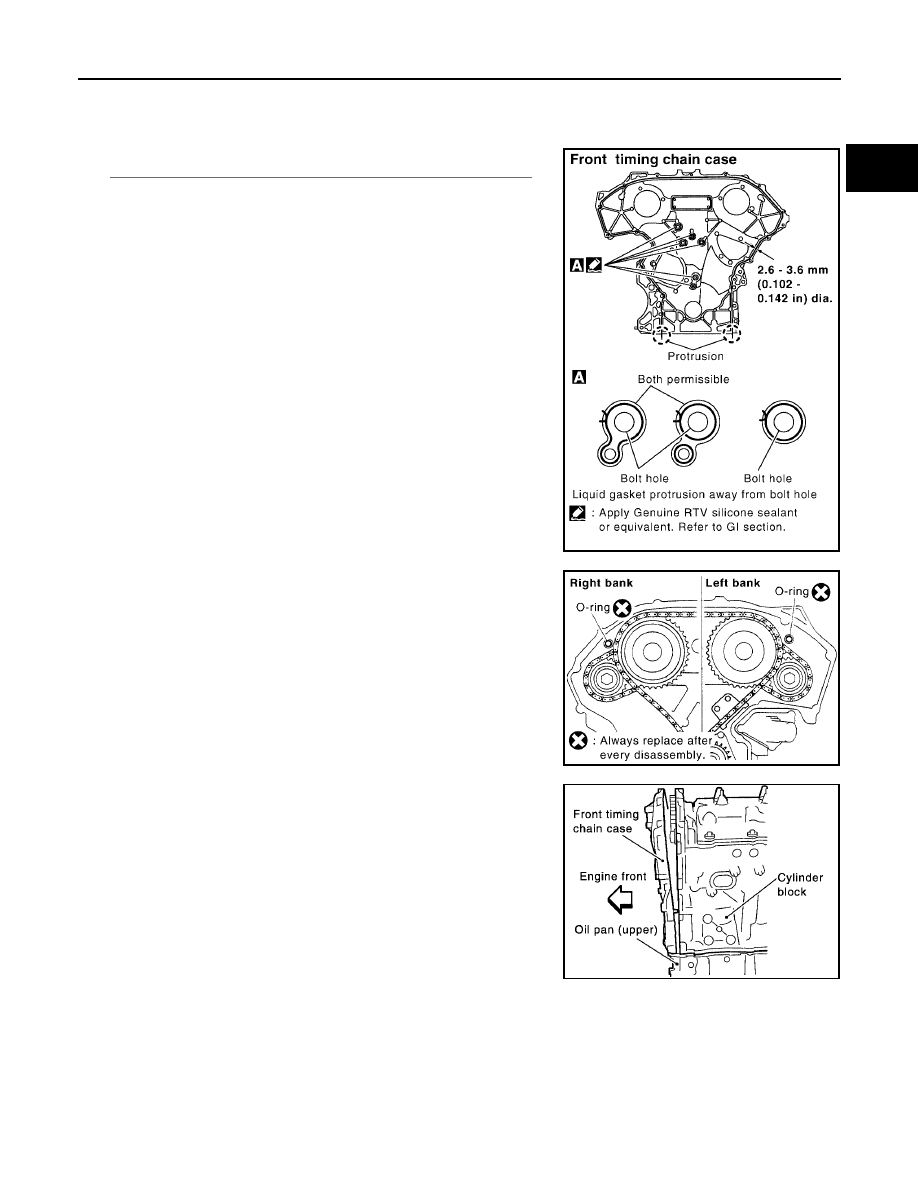

4.

Install front timing chain case as follows:

a.

Apply a continuous bead of liquid gasket using Tool to front timing chain case back side as shown.

Use Genuine RTV Silicone Sealant or equivalent. Refer to

GI-47, "Recommended Chemical Products and Sealants"

 .

b.

Install new O-rings on rear timing chain case.

c.

Assemble front timing chain case as follows:

i.

Fit lower end of front timing chain case tightly onto top face of oil
pan (upper). From the fitting point, make entire front timing chain
case contact rear timing chain case completely.

PBIC2913E

PBIC2548E

PBIC1100E

EM-52

FRONT TIMING CHAIN CASE

2006 Pathfinder

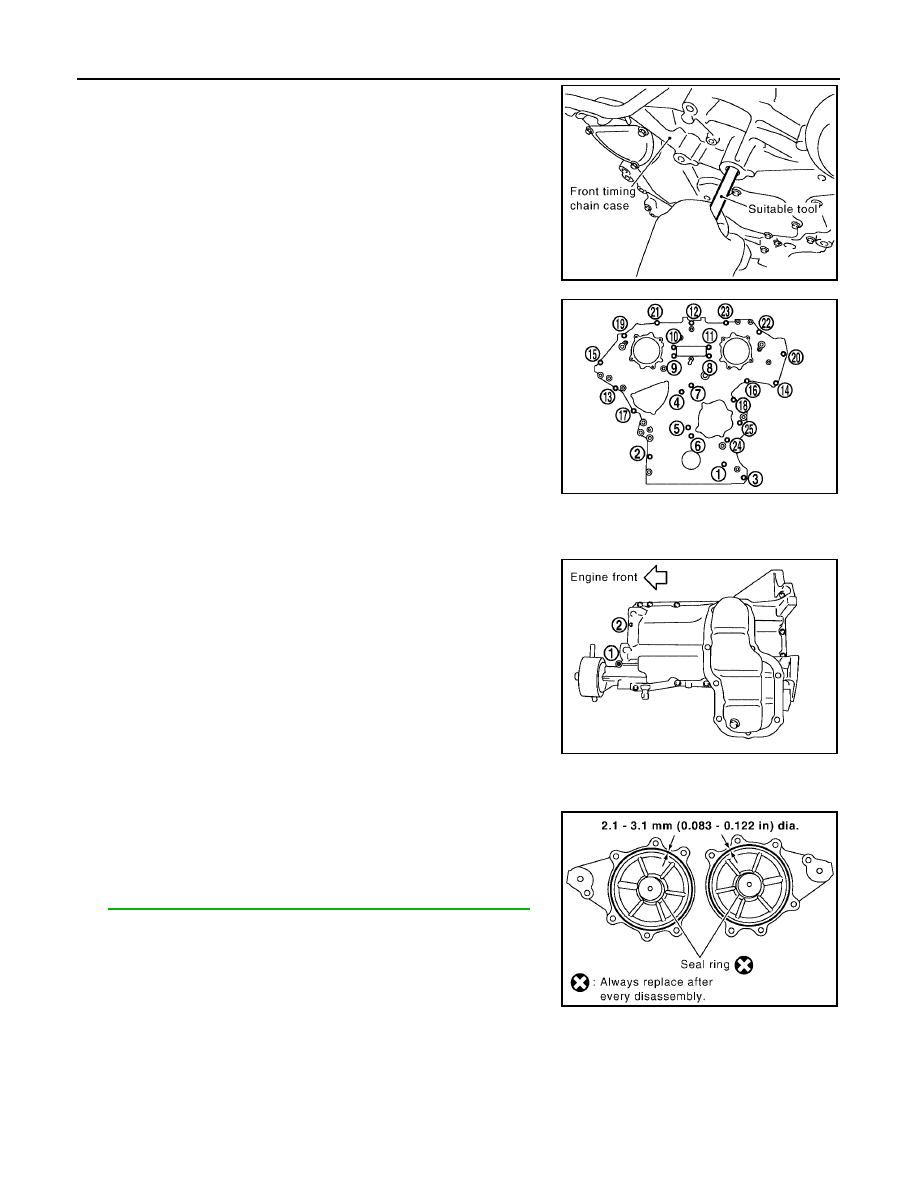

ii.

Since front timing chain case is offset for difference of bolt holes,
tighten bolts temporarily while holding front timing chain case
from front and top as shown.

iii.

Same as the previous step, insert dowel pin while holding front
timing chain case from front and top completely.

d.

Tighten bolts to the specified torque in numerical order as
shown.

There are four type of bolts. Refer to the following for locating
bolts.

e.

After all bolts tightened, retighten them to the specified torque in numerical order as shown.

5.

Install two bolts in front of oil pan (upper) in numerical order as
shown.

6.

Install right and left intake valve timing control covers as follows:

a.

Install new seal rings in shaft grooves.

b.

Apply a continuous bead of liquid gasket using Tool to intake
valve timing control covers as shown.

Use Genuine RTV Silicone Sealant or equivalent. Refer to

GI-47, "Recommended Chemical Products and Sealants"

 .

PBIC2915E

Bolt position

Bolt diameter

1 - 5

: 10 mm (0.39 in)

6 – 25

: 6 mm (0.24 in)

Bolt position

Tightening specification

1 - 5

: 55.0 N·m (5.6 kg-m, 41 ft-lb)

6 – 25

: 12.7 N·m (1.3 kg-m, 9 ft-lb)

Front oil pan bolt torque

: 22.0 N·m (2.2 kg-m, 16 ft-lb)

PBIC2908E

PBIC2907E

Tool number

: WS39930000 (

)

SBIA0492E

FRONT TIMING CHAIN CASE

EM-53

C

D

E

F

G

H

I

J

K

L

M

A

EM

2006 Pathfinder

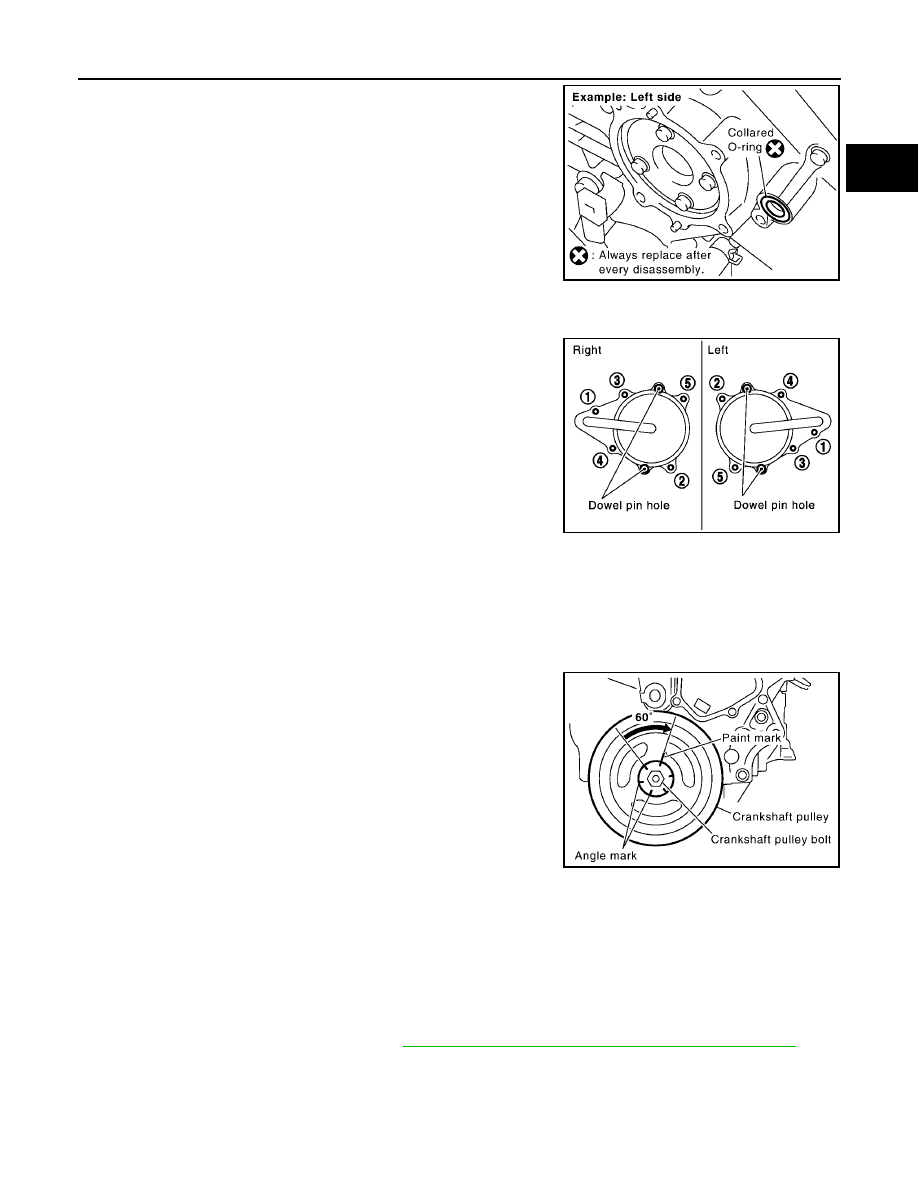

c.

Install new collared O-rings in front timing chain case oil hole
(left and right sides).

d.

Being careful not to move seal ring from the installation groove, align dowel pins on front timing chain
case with the holes to install intake valve timing control covers.

e.

Tighten bolts in numerical order as shown.

7.

Install crankshaft pulley as follows:

a.

Install crankshaft pulley, taking care not to damage front oil seal.

When press-fitting crankshaft pulley with plastic hammer, tap on its center portion (not circumference).

b.

Tighten crankshaft pulley bolt.

c.

Put a paint mark on crankshaft pulley aligning with angle mark
on crankshaft pulley bolt. Then, further retighten bolt by 60
degrees (equivalent to one graduation).

8.

Rotate crankshaft pulley in normal direction (clockwise when viewed from front) to confirm it turns
smoothly.

9.

Installation of the remaining components is in the reverse order of removal after this step.

INSPECTION AFTER INSTALLATION
Inspection for Leaks

The following are procedures for checking fluid leaks, lubricant leaks and exhaust gases leaks.

Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required
quantity, fill to the specified level. Refer to

MA-11, "RECOMMENDED FLUIDS AND LUBRICANTS"

 .

Use procedure below to check for fuel leakage.

Turn ignition switch “ON” (with engine stopped). With fuel pressure applied to fuel piping, check for fuel
leakage at connection points.

Start engine. With engine speed increased, check again for fuel leakage at connection points.

PBIC2631E

PBIC0918E

Crankshaft bolt torque

: 44.1 N·m (4.5 kg-m, 33 ft-lb)

PBIC2916E

EM-54

FRONT TIMING CHAIN CASE

2006 Pathfinder

Run engine to check for unusual noise and vibration.
NOTE:
If hydraulic pressure inside timing chain tensioner drops after removal/installation, slack in the guide may
generate a pounding noise during and just after engine start. However, this is normal. Noise will stop after
hydraulic pressure rises.

Warm up engine thoroughly to make sure there is no leakage of fuel, exhaust gases, or any oil/fluids
including engine oil and engine coolant.

Bleed air from lines and hoses of applicable lines, such as in cooling system.

After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to the
specified level, if necessary.

Summary of the inspection items:

* Transmission/transaxle/CVT fluid, power steering fluid, brake fluid, etc.

Item

Before starting engine

Engine running

After engine stopped

Engine coolant

Level

Leakage

Level

Engine oil

Level

Leakage

Level

Other oils and fluid*

Level

Leakage

Level

Fuel

Leakage

Leakage

Leakage

TIMING CHAIN

EM-55

C

D

E

F

G

H

I

J

K

L

M

A

EM

2006 Pathfinder

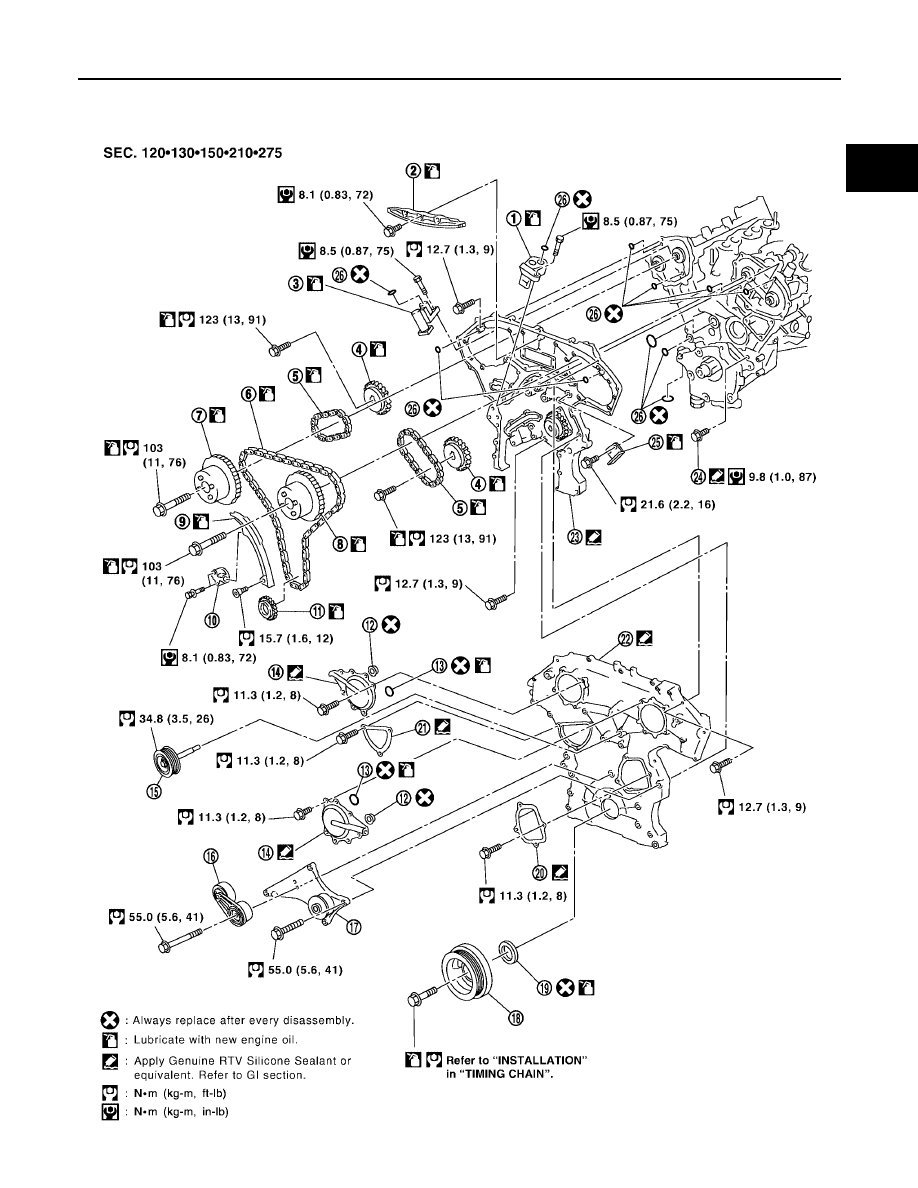

TIMING CHAIN

PFP:13028

Removal and Installation

EBS00QBZ

PBIC2917E

EM-56

TIMING CHAIN

2006 Pathfinder

NOTE:

This section describes procedures for removing/installing front timing chain case and timing chain related
parts, and rear timing chain case, when oil pan (upper) needs to be removed/installed for engine overhaul,
etc.

To remove/install front timing chain case, timing chain, and its related parts without removing oil pan
(upper), refer to

EM-46, "FRONT TIMING CHAIN CASE"

 .

REMOVAL

1.

Remove engine cover with power tool. Refer to

EM-13, "REMOVAL"

 .

2.

Release the fuel pressure. Refer to

EC-79, "FUEL PRESSURE RELEASE"

 .

3.

Drain engine oil. Refer to

LU-9, "Changing Engine Oil"

 .

CAUTION:

Perform this step when engine is cold.

Do not spill engine oil on drive belts.

4.

Drain engine coolant from radiator. Refer to

MA-13, "Changing Engine Coolant"

 .

CAUTION:

Perform this step when engine is cold.

Do not spill engine coolant on drive belts.

5.

Remove radiator cooling fan assembly. Refer to

CO-17, "ENGINE COOLING FAN"

 .

6.

Separate engine harnesses removing their brackets from front timing chain case.

7.

Remove drive belts. Refer to

EM-14, "Removal"

 .

8.

Remove power steering oil pump from bracket with piping connected, and temporarily secure it aside.
Refer to

PS-21, "REMOVAL"

 .

9.

Remove power steering oil pump bracket. Refer to

PS-21, "REMOVAL"

 .

10. Remove alternator. Refer to

SC-30, "REMOVAL"

 .

11. Remove water bypass hose, water hose clamp and idler pulley bracket from front timing chain case.

12. Remove right and left intake valve timing control covers.

Loosen bolts in reverse order as shown.

Cut liquid gasket for removal using Tool.

CAUTION:

Shaft is internally jointed with camshaft sprocket (INT) cen-
ter hole. When removing, keep it horizontal until it is com-
pletely disconnected.

1.

Timing chain tensioner (secondary)
(left bank)

2.

Internal chain guide

3.

Timing chain tensioner (secondary)
(right bank)

4.

Camshaft sprocket (EXH)

5.

Timing chain (secondary)

6.

Timing chain (primary)

7.

Camshaft sprocket (INT)

8.

Camshaft sprocket (INT)

9.

Slack guide

10. Timing chain tensioner (primary)

11. Crankshaft sprocket

12.

Collared O-ring

13. O-ring

14. Intake valve timing control cover

15.

Idler pulley

16. Drive belt auto tensioner

17. Cooling fan bracket

18.

Crankshaft pulley

19. Front oil seal

20. Water pump cover

21.

Chain tensioner cover

22. Front timing chain case

23. Rear timing chain case

24.

Water drain plug (front)

25. Tension guide

26. O-ring

Tool number

: KV10111100 (J-37228)

SEM728G

TIMING CHAIN

EM-57

C

D

E

F

G

H

I

J

K

L

M

A

EM

2006 Pathfinder

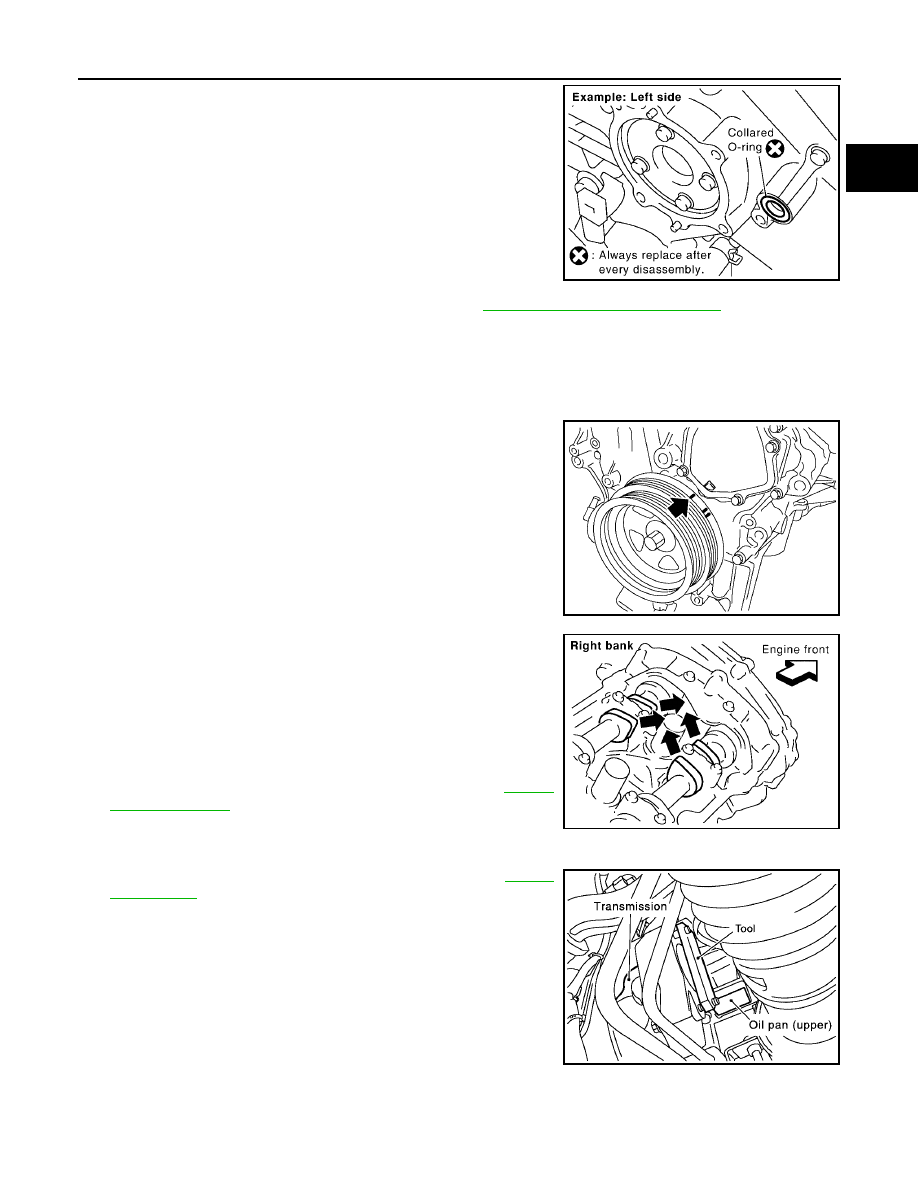

13. Remove collared O-rings from front timing chain case (left and

right side).

14. Remove rocker covers (right and left banks). Refer to

EM-41, "Removal and Installation"

 .

NOTE:
When only timing chain (primary) is removed, rocker cover does not need to be removed.

15. Obtain No. 1 cylinder at TDC of its compression stroke as follows:

NOTE:
When timing chain is not removed/installed, this step is not required.

a.

Rotate crankshaft pulley clockwise to align timing mark (grooved
line without color) with timing indicator.

b.

Make sure that intake and exhaust cam noses on No. 1 cylinder
(engine front side of right bank) are located as shown.

If not, turn crankshaft one revolution (360

°

) and align as

shown.

NOTE:
When only timing chain (primary) is removed, rocker cover does
not need to be removed. To make sure that No. 1 cylinder is at
its compression TDC, remove front timing chain case first. Then
check mating marks on camshaft sprockets. Refer to

EM-64,

"INSTALLATION"

 .

16. Remove crankshaft pulley as follows:

a.

Remove starter motor and set Tool. Refer to

SC-17,

"REMOVAL"

 .

PBIC2631E

KBIA1717J

SEM418G

Tool number

: KV10117700 (J-44716)

WBIA0580E

EM-58

TIMING CHAIN

2006 Pathfinder

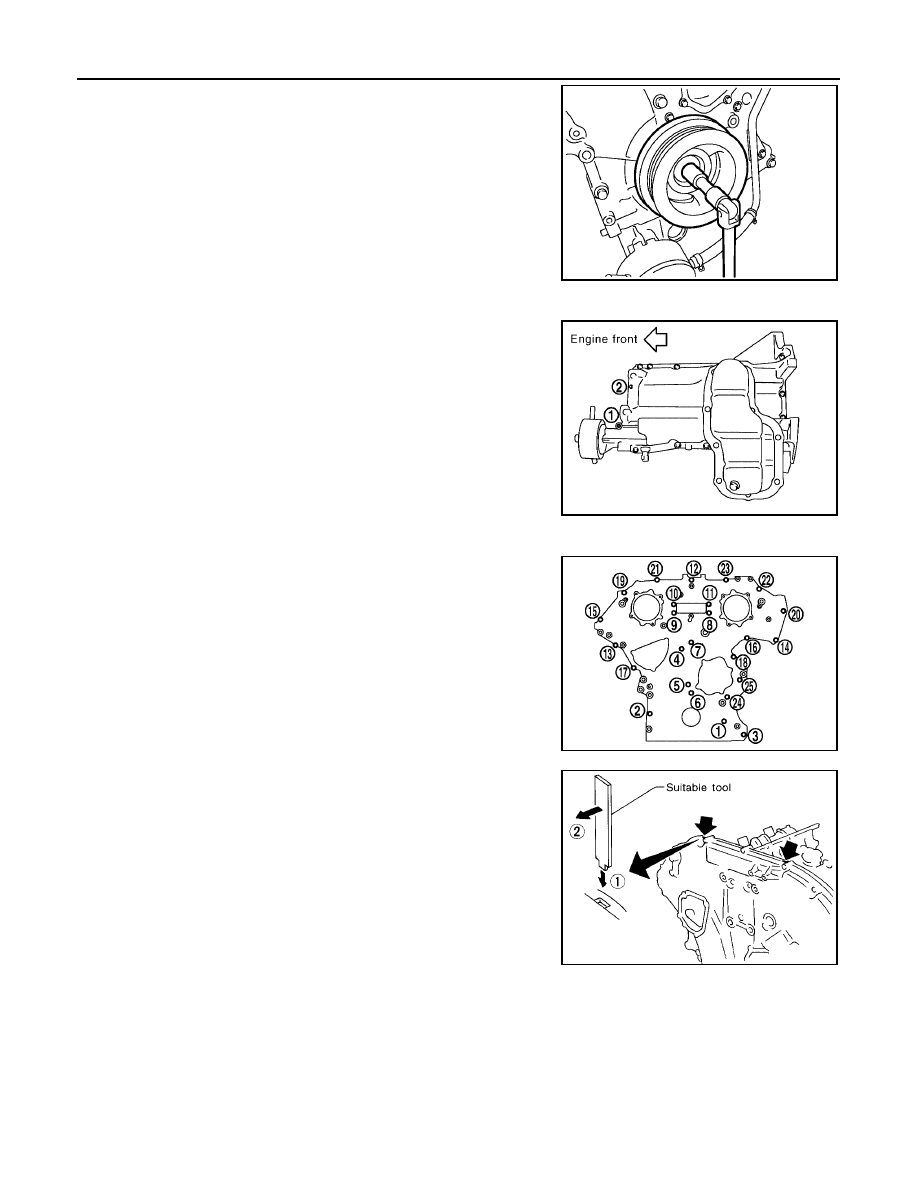

b.

Loosen crankshaft pulley bolt and locate bolt seating surface as
10 mm (0.39 in) from its original position.

CAUTION:

Do not remove crankshaft pulley bolt. Keep loosened
crankshaft pulley bolt in place protect removed crankshaft
pulley from dropping.

c.

Pull crankshaft pulley with both hands to remove it.

17. Loosen two bolts in front of oil pan (upper) in reverse order as

shown.

18. Remove front timing chain case as follows:

a.

Loosen bolts with power tool in reverse order as shown.

b.

Insert suitable tool into the notch at the top of the front timing
chain case as shown (1).

c.

Pry off case by moving tool as shown (2).

Cut liquid gasket for removal using Tool.

CAUTION:

Do not use screwdriver or something similar.

After removal, handle front timing chain case carefully so
it does not tilt, cant, or warp under a load.

PBIC2918E

PBIC2907E

PBIC2908E

Tool number

: KV10111100 (J-37228)

SEM156F
