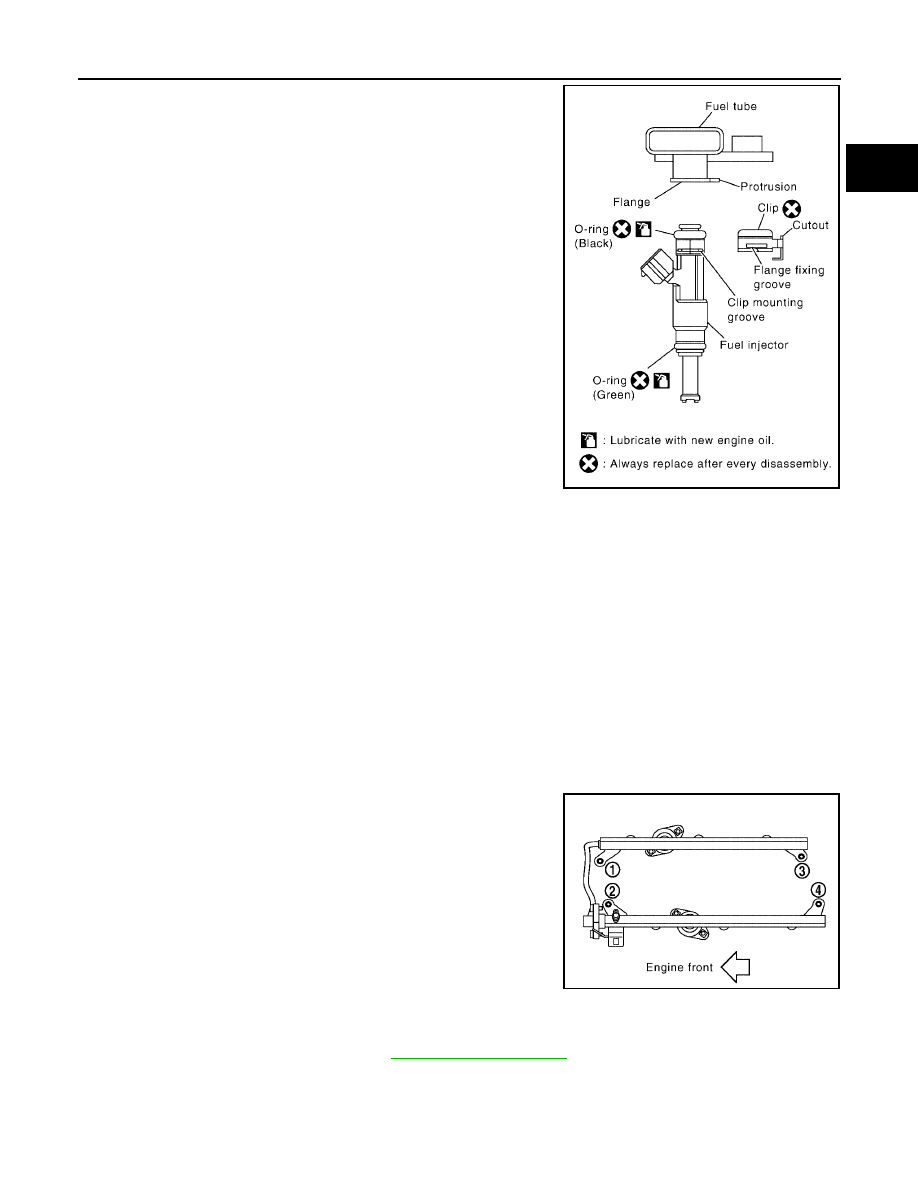

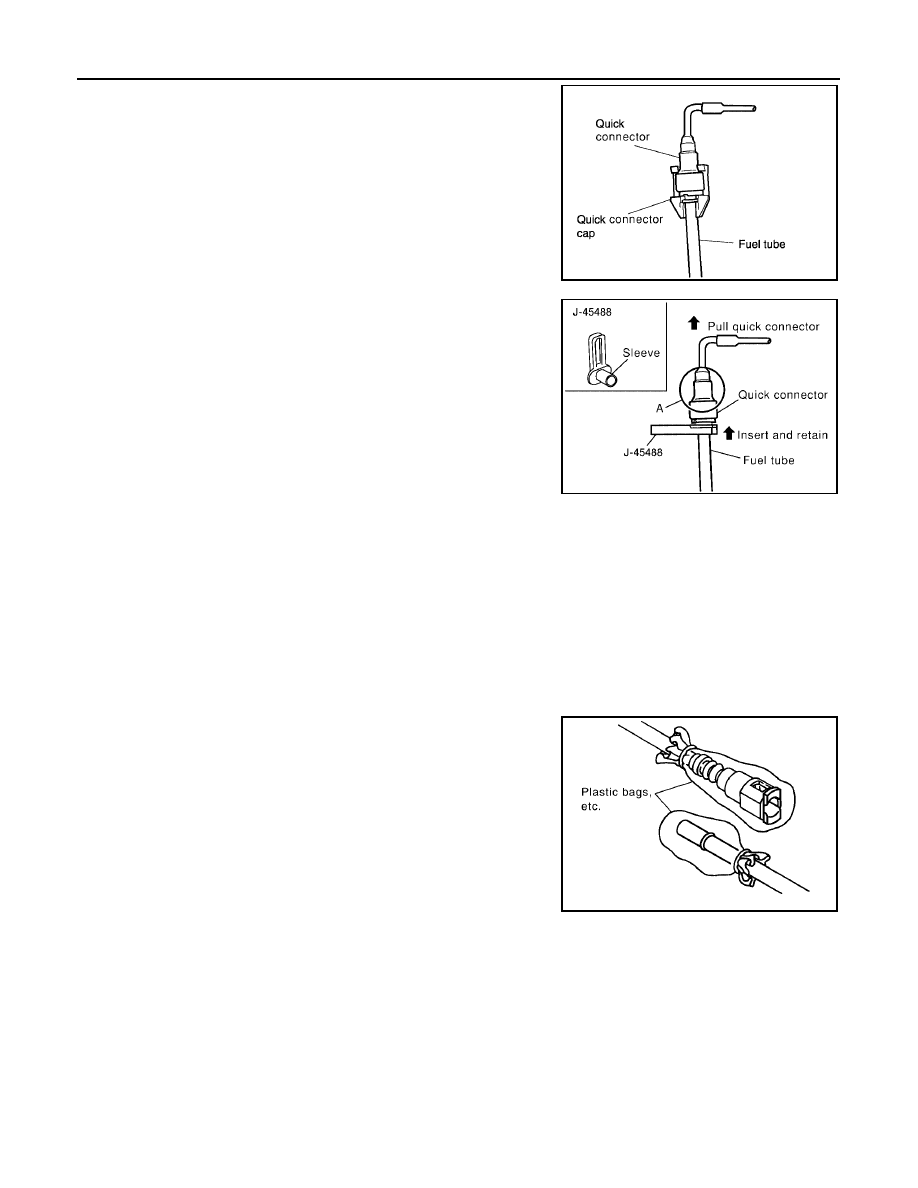

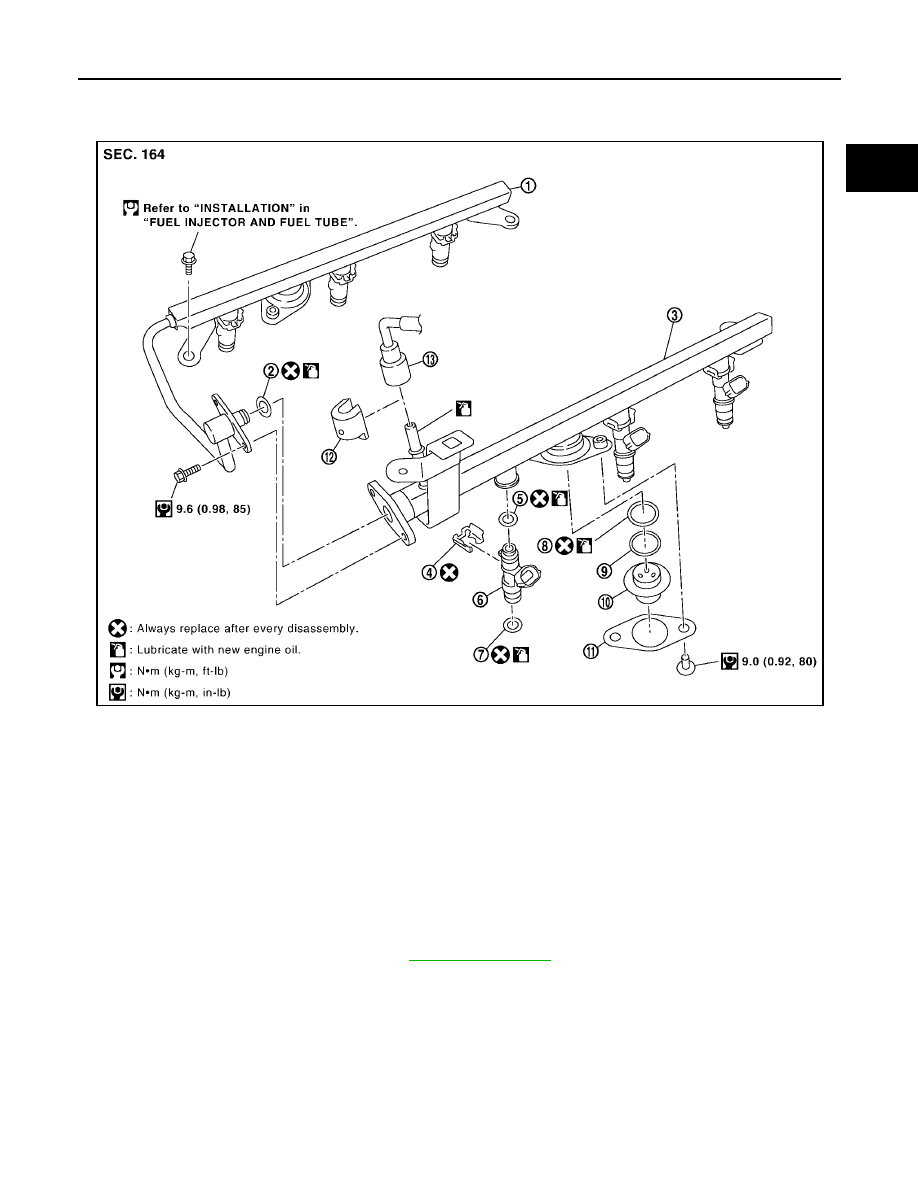

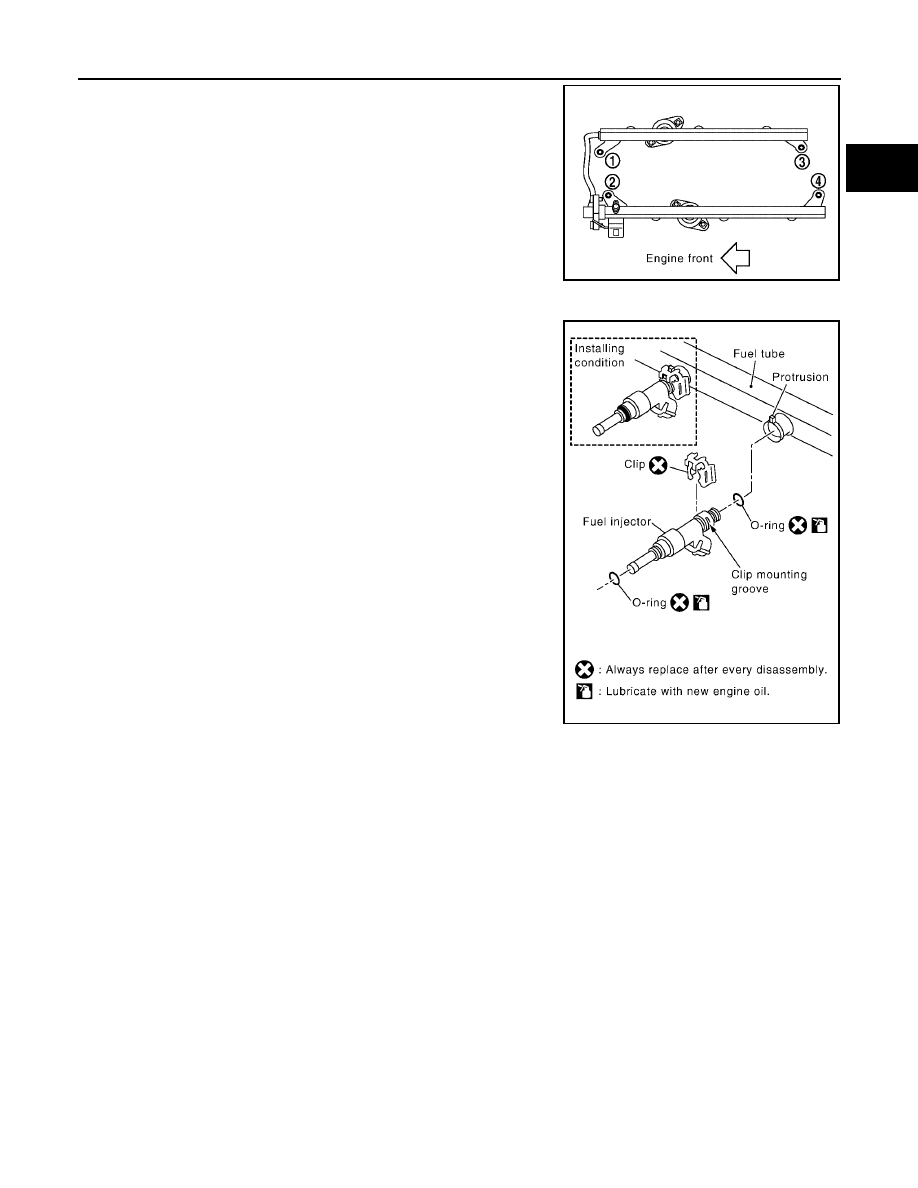

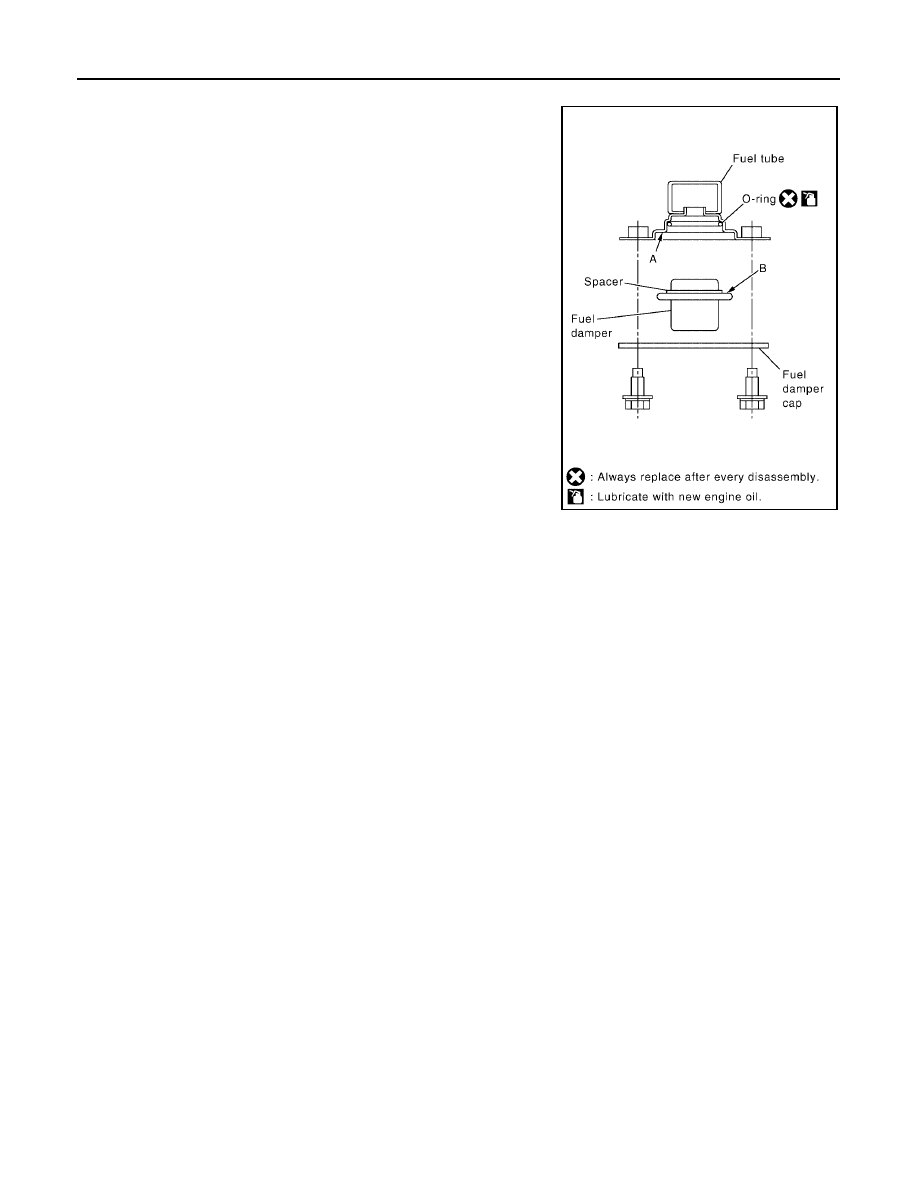

FUEL INJECTOR AND FUEL TUBE EM-35 C D E F G H I J K L M A EM 2006 Pathfinder FUEL INJECTOR AND FUEL TUBE PFP:16600 Removal and Installation EBS00QBW REMOVAL WARNING: ● Put a “CAUTION INFLAMMABLE” sign in the workshop. ● Be sure to work in a well ventilated area and furnish workshop with a CO 2 fire extinguisher. ● Do not smoke while servicing fuel system. Keep open flames and sparks away from the work area. ● To avoid the danger of being scalded, do not drain engine coolant when engine is hot. 1. Remove intake manifold collector. Refer to CAUTION: Perform this step when engine is cold. 2. Disconnect the fuel quick connector on the engine side. ● Using Tool perform the following steps to disconnect the quick connector. 1. Fuel tube (RH) 2. O-ring 3. Fuel tube (LH) 4. Clip 5. O-ring (blue) 6. Fuel injector 7. O-ring (brown) 8. O-ring 9. Spacer 10. Fuel damper 11. Fuel damper cap 12. Quick connector cap 13. Fuel feed hose PBIC2957E Tool number : — (J-45488) |
