OIL PAN AND OIL STRAINER

EM-27

C

D

E

F

G

H

I

J

K

L

M

A

EM

2006 Pathfinder

OIL PAN AND OIL STRAINER

PFP:11110

Removal and Installation

EBS00QBT

REMOVAL (LOWER)

WARNING:

To avoid the danger of being scalded, do not drain engine oil when engine is hot.
1.

Drain engine oil. Refer to

MA-17, "Changing Engine Oil"

 .

2.

Remove oil pan (lower) as follows:

a.

Loosen bolts with power tool in reverse order as shown to
remove.

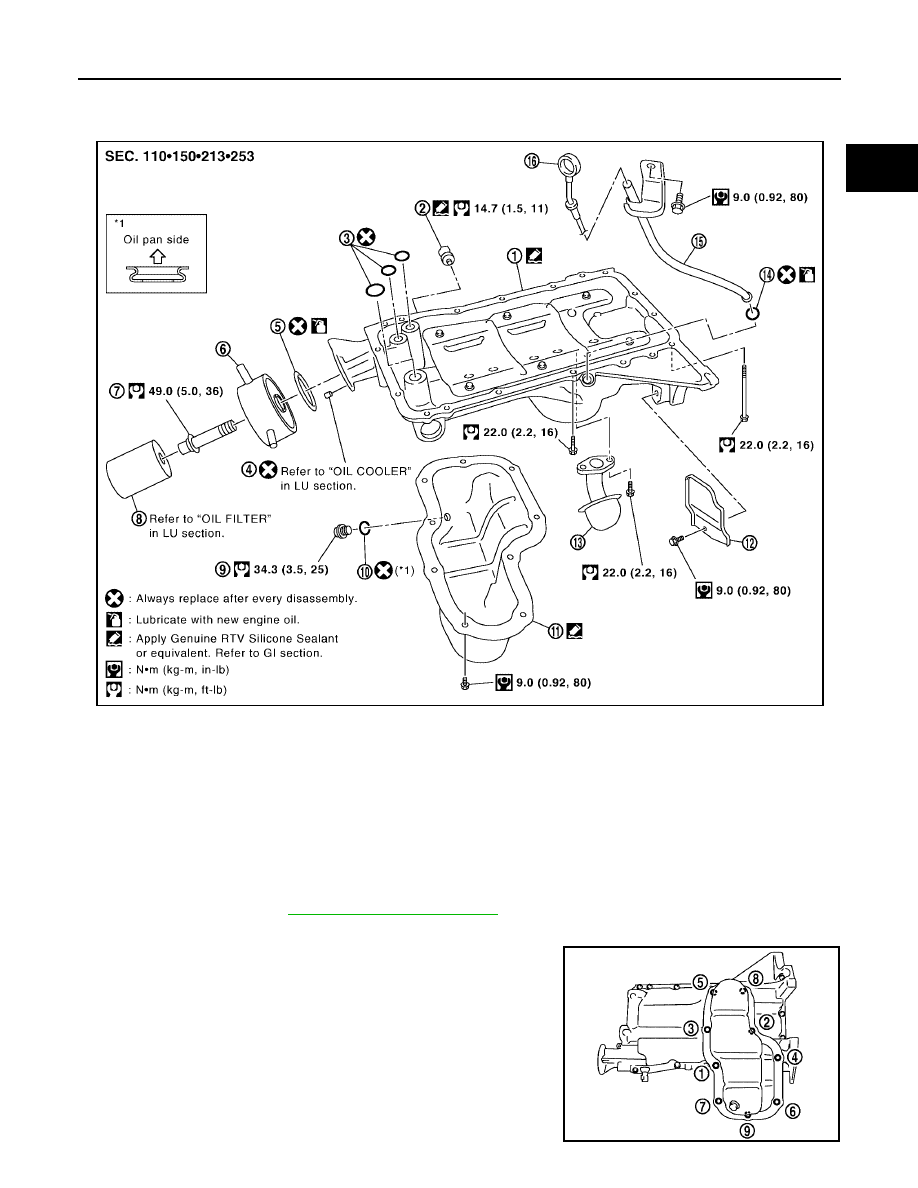

1.

Oil pan (upper)

2.

Oil pressure sensor

3.

O-ring

4.

Relief valve

5.

O-ring

6.

Oil cooler

7.

Connector bolt

8.

Oil filter

9.

Drain plug

10. Drain plug washer

11.

Oil pan (lower)

12. Rear cover plate

13. Oil strainer

14

O-ring

15. Oil level gauge guide

16. Oil level gauge

PBIC2883E

PBIC2890E

EM-28

OIL PAN AND OIL STRAINER

2006 Pathfinder

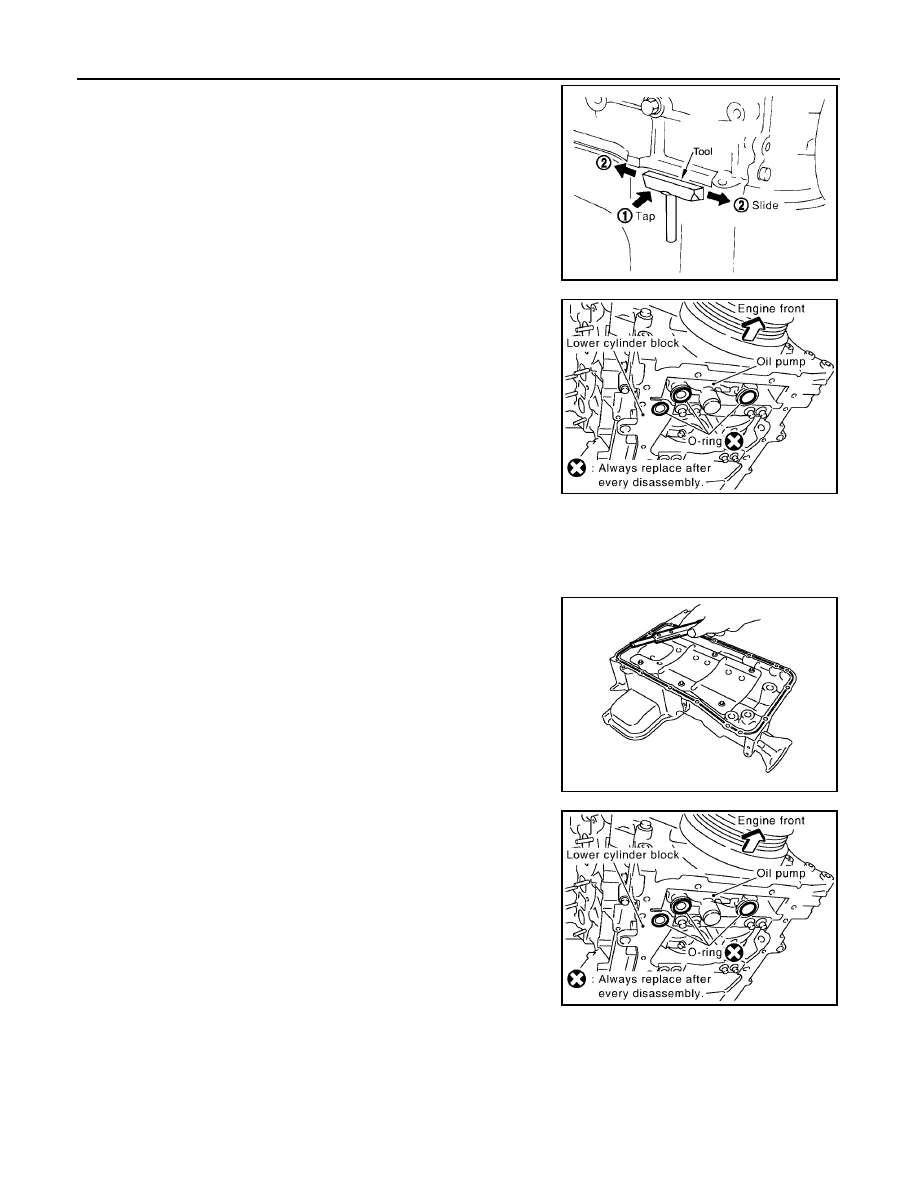

b.

Remove oil pan (lower) using Tool.

CAUTION:

Be careful not to damage the mating surfaces.

Do not insert screwdriver, this will damage the mating
surfaces.

NOTE:
Slide seal cutter (1) by tapping on the side (2) of the tool with
hammer.

INSPECTION AFTER REMOVAL

Clean oil strainer if any object attached.

INSTALLATION (LOWER)

1.

Install oil pan (lower) as follows:

a.

Use scraper to remove old liquid gasket from mating surfaces.

Also remove old liquid gasket from mating surface of oil pan
(upper).

Remove old liquid gasket from the bolt holes and thread.

CAUTION:

Do not scratch or damage the mating surfaces when clean-
ing off old liquid gasket.

b.

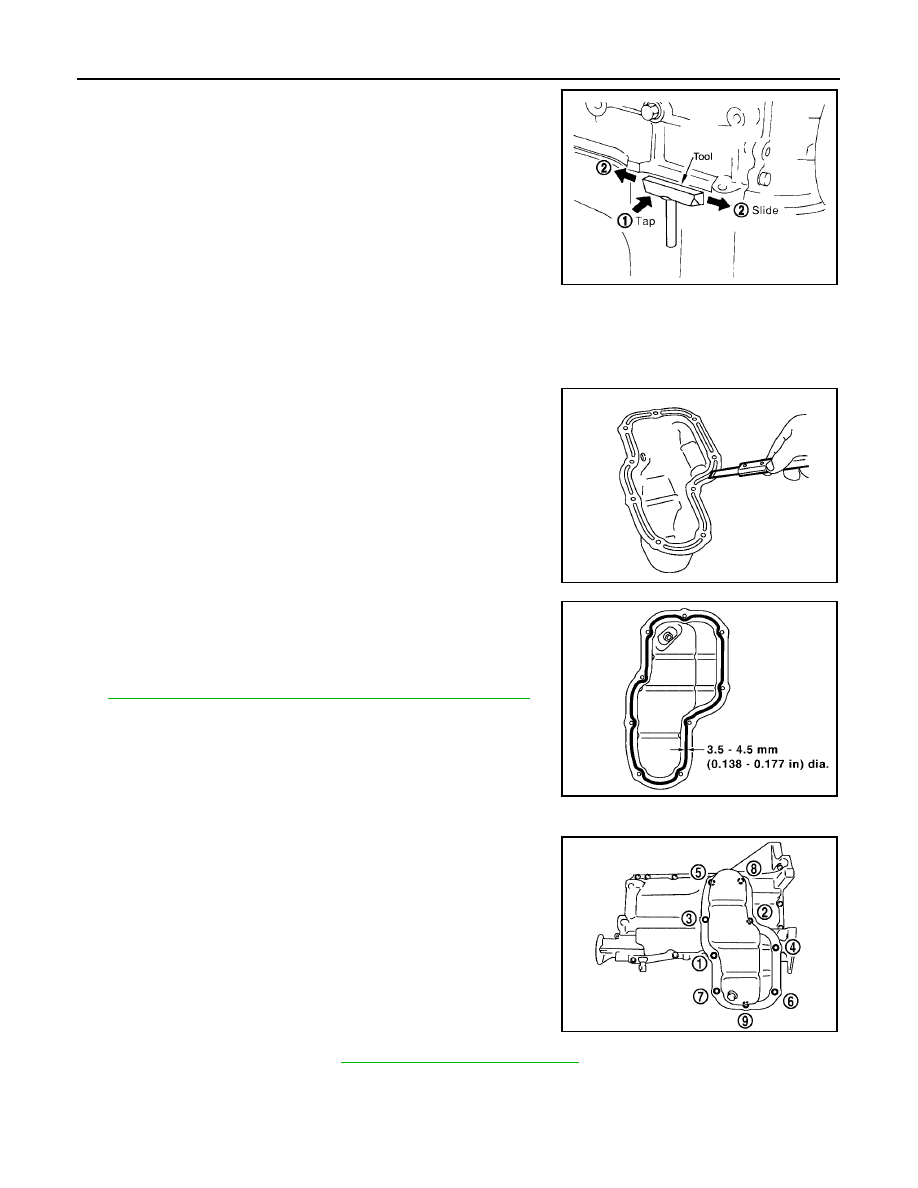

Apply a continuous bead of liquid gasket using Tool to the oil
pan (lower) as shown.

Use Genuine RTV Silicone Sealant or equivalent. Refer to

GI-47, "Recommended Chemical Products and Sealants"

 .

CAUTION:

Attaching should be done within 5 minutes after coating.

c.

Install oil pan (lower).

Tighten bolts in numerical order as shown.

2.

Install oil pan drain plug. Refer to

EM-27, "Removal and Installation"

 .

3.

Installation is in the reverse order of removal.

NOTE:
At least 30 minutes after oil pan is installed, pour engine oil.

Tool number

: KV10111100 (J-37228)

WBIA0566E

PBIC2888E

Tool number

: WS39930000 (

)

PBIC2889E

PBIC2890E

OIL PAN AND OIL STRAINER

EM-29

C

D

E

F

G

H

I

J

K

L

M

A

EM

2006 Pathfinder

INSPECTION AFTER INSTALLATION

1.

Check engine oil level and adjust engine oil. Refer to

LU-7, "ENGINE OIL"

 .

2.

Start engine, and check there is no leak of engine oil.

3.

Stop engine and wait for 10 minutes.

4.

Check engine oil level again. Refer to

LU-7, "ENGINE OIL"

 .

REMOVAL (UPPER)

WARNING:

To avoid the danger of being scalded, do not drain engine oil when engine is hot.

1.

Remove engine cover with power tool. Refer to

EM-13, "REMOVAL"

 .

2.

Remove air duct. Refer to

EM-16, "REMOVAL"

 .

3.

Drain engine oil. Refer to

LU-9, "Changing Engine Oil"

 .

CAUTION:

Perform this step when engine is cold.

Do not spill engine oil on drive belts.

4.

Drain engine coolant. Refer to

MA-13, "Changing Engine Coolant"

 .

CAUTION:

Perform this step when engine is cold.

Do not spill engine coolant on drive belts.

5.

Remove front final drive (4X4). Refer to

FFD-14, "REMOVAL"

 .

6.

Disconnect steering gear lower joint shaft bolt and steering gear mounting nuts and bolts, position out of
the way. Refer to

PS-15, "REMOVAL"

 .

7.

Remove starter motor. Refer to

SC-17, "REMOVAL"

 .

8.

Disconnect A/T fluid cooler tube brackets and position out of the way. Refer to

AT-246, "TRANSMISSION

ASSEMBLY"

 .

9.

Remove oil filter, as necessary. Refer to ! Hyper-link Error ! .

10. Remove oil cooler. Refer to

LU-11, "REMOVAL"

 .

11. Remove oil pan (lower). Refer to

EM-27, "REMOVAL (Lower)"

 .

12. Remove oil strainer.

13. Remove transmission joint bolts which pierce oil pan (upper). Refer to

AT-246, "TRANSMISSION ASSEM-

BLY"

 .

14. Remove rear cover plate.

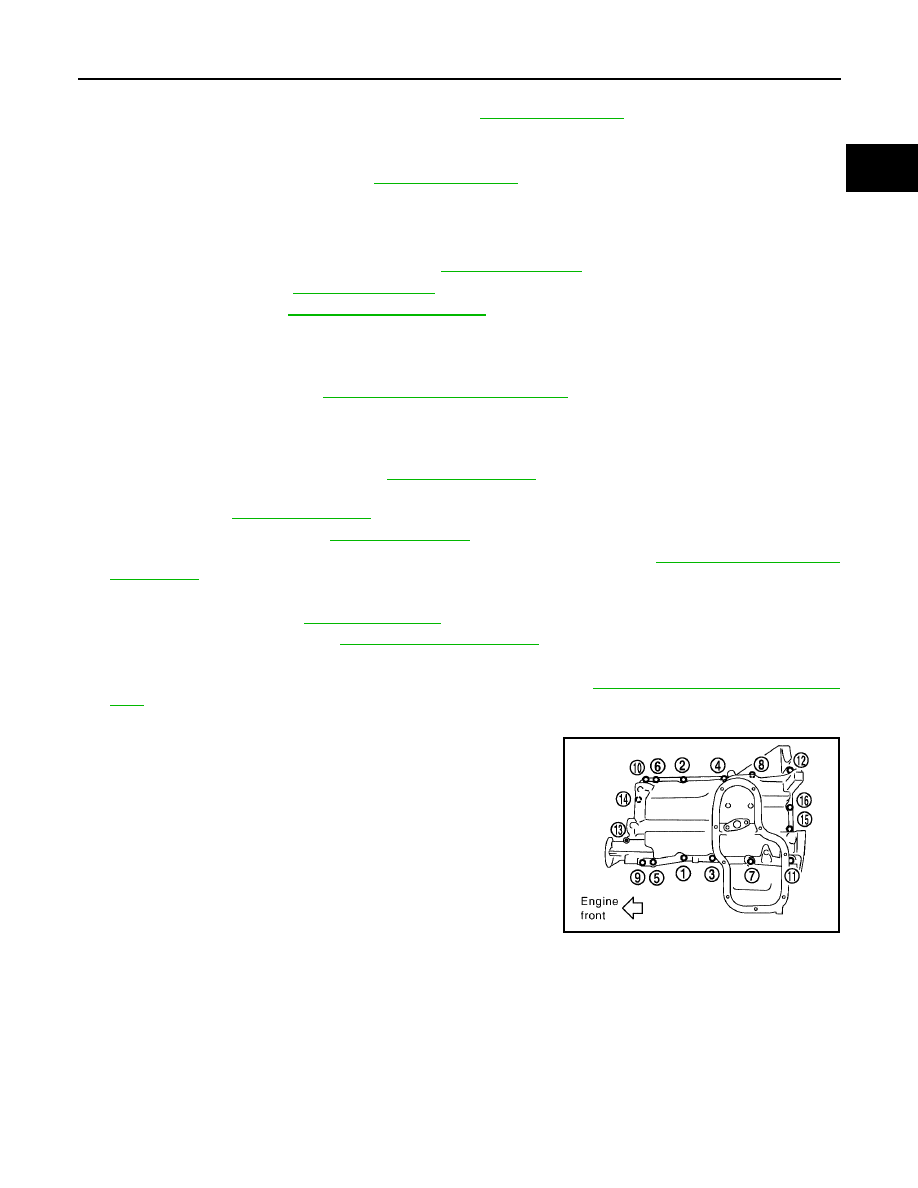

15. Loosen bolts with power tool in reverse order as shown to

remove.

PBIC2887E

EM-30

OIL PAN AND OIL STRAINER

2006 Pathfinder

Insert Tool between oil pan (upper) and lower cylinder block.
Slide Tool by tapping on the side of Tool with hammer.
Remove oil pan (upper).

CAUTION:

Be careful not to damage mating surfaces.

16. Remove O-rings from bottom of lower cylinder block and oil

pump.

INSPECTION AFTER REMOVAL

Clean oil strainer if any object attached.

INSTALLATION (UPPER)

1.

Install oil pan (upper) as follows:

a.

Use scraper to remove old liquid gasket from mating surfaces.

Also remove the old liquid gasket from mating surface of
lower cylinder block.

Remove old liquid gasket from the bolt holes and threads.

CAUTION:

Do not scratch or damage the mating surfaces when clean-
ing off old liquid gasket.

b.

Install new O-rings on the bottom of lower cylinder block and oil
pump.

Tool number

: KV10111100 (J-37228)

WBIA0566E

PBIC2885E

PBIC2884E

PBIC2885E

OIL PAN AND OIL STRAINER

EM-31

C

D

E

F

G

H

I

J

K

L

M

A

EM

2006 Pathfinder

c.

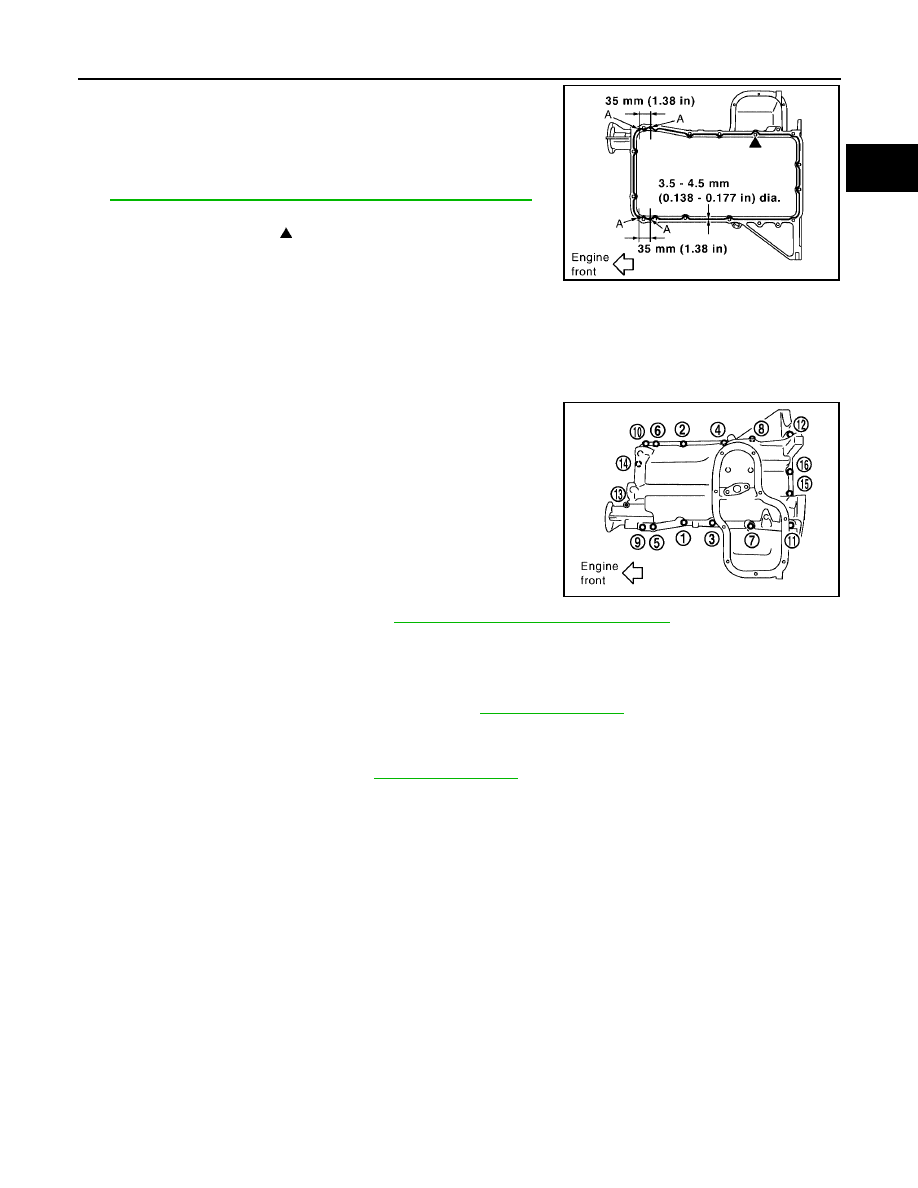

Apply a continuous bead of liquid gasket using Tool to the lower
cylinder block mating surfaces of oil pan (upper) to a limited por-
tion as shown.

Use Genuine RTV Silicone Sealant or equivalent. Refer to

GI-47, "Recommended Chemical Products and Sealants"

 .

CAUTION:

For bolt holes with   mark, apply liquid gasket outside
the hole.

Apply a bead of 4.5 to 5.5 mm (0.177 to 0.217 in) in diame-
ter to area “A”.

Attaching should be done within 5 minutes after coating.

d.

Install oil pan (upper).

CAUTION:

Install avoiding misalignment of both oil pan gaskets and O-rings.

Tighten bolts in numerical order as shown.

There are two types of bolts. Refer to the following for locating
bolts.

e.

Tighten transmission joint bolts. Refer to

AT-246, "TRANSMISSION ASSEMBLY"

 .

2.

Install oil strainer to oil pan (upper).

3.

Installation of the remaining components is in the reverse order of removal.

INSPECTION AFTER INSTALLATION

1.

Check engine oil level and adjust engine oil. Refer to

LU-7, "ENGINE OIL"

 .

2.

Start engine, and check there is no leak of engine oil.

3.

Stop engine and wait for 10 minutes.

4.

Check engine oil level again. Refer to

LU-7, "ENGINE OIL"

 .

Tool number

: WS39930000 (

)

PBIC2886E

M8

×

 100 mm (3.97 in)

: 7, 11, 12, 13

M8

×

 25 mm (0.98 in)

: Except the above

PBIC2887E

EM-32

IGNITION COIL

2006 Pathfinder

IGNITION COIL

PFP:22448

Removal and Installation

EBS00QBU

REMOVAL (LEFT BANK)

1.

Remove engine cover with power tool. Refer to

EM-13, "REMOVAL"

 .

2.

Remove air cleaner case and air duct. (At the left bank side, remove ignition coil) Refer to

EM-16,

"REMOVAL"

 .

3.

Move aside harness, harness bracket, and hoses located above ignition coil.

4.

Disconnect harness connector from ignition coil.

5.

Remove ignition coil.

CAUTION:

Do not shock it.

INSTALLATION (LEFT BANK)

Installation is in the reverse order of removal.

REMOVAL (RIGHT BANK)

1.

Remove intake manifold collector with power tool. Refer to

EM-18, "REMOVAL"

 .

2.

Move aside harness, harness bracket, and hoses located above ignition coil.

3.

Disconnect harness connector from ignition coil.

4.

Remove ignition coil.

CAUTION:

Do not shock it.

INSTALLATION (RIGHT BANK)

Installation is in the reverse order of removal.

1.

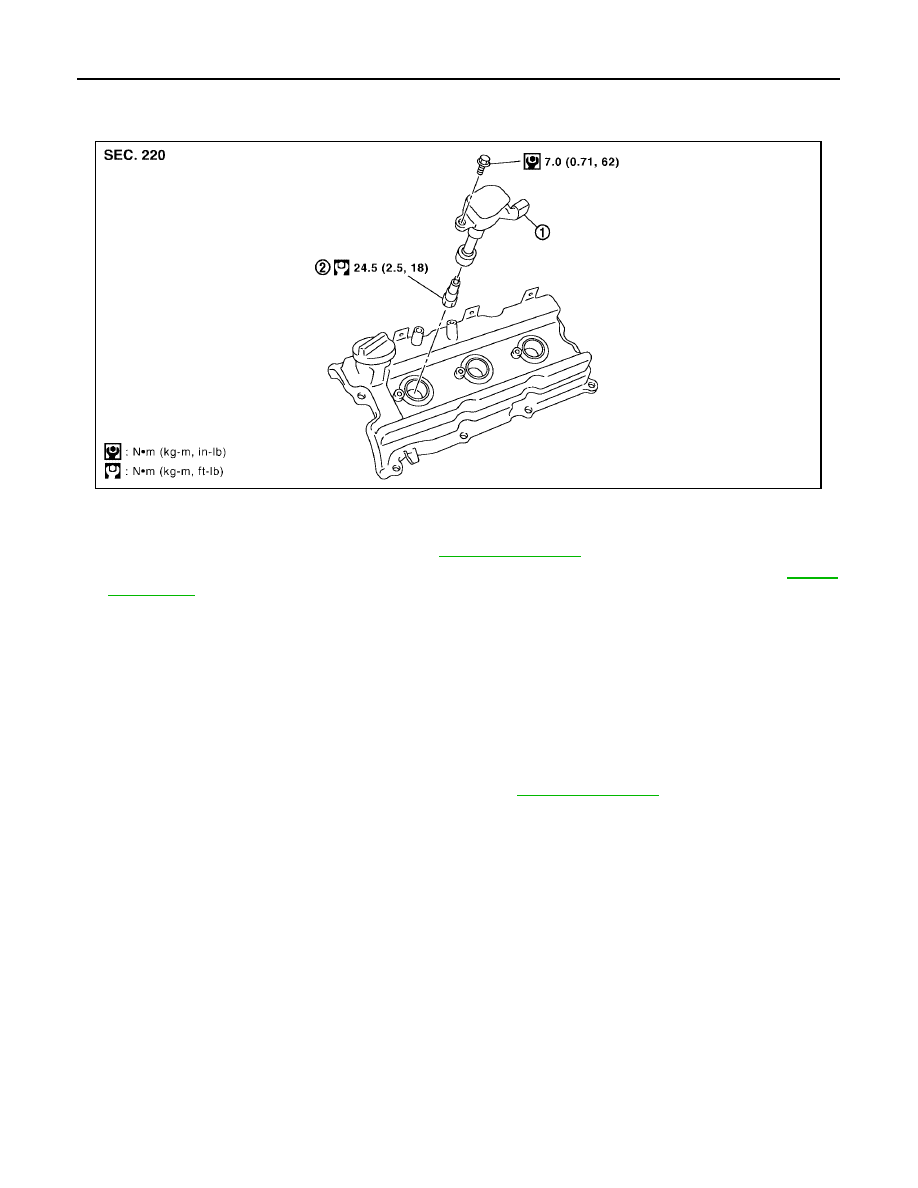

Ignition coil

2.

Spark plug

PBIC2901E

SPARK PLUG (PLATINUM-TIPPED TYPE)

EM-33

C

D

E

F

G

H

I

J

K

L

M

A

EM

2006 Pathfinder

SPARK PLUG (PLATINUM-TIPPED TYPE)

PFP:22401

Changing Spark Plugs (Platinum - Tipped Type)

EBS00T32

REMOVAL

1.

Remove the ignition coil. Refer to

EM-32, "Removal and Installation"

 .

2.

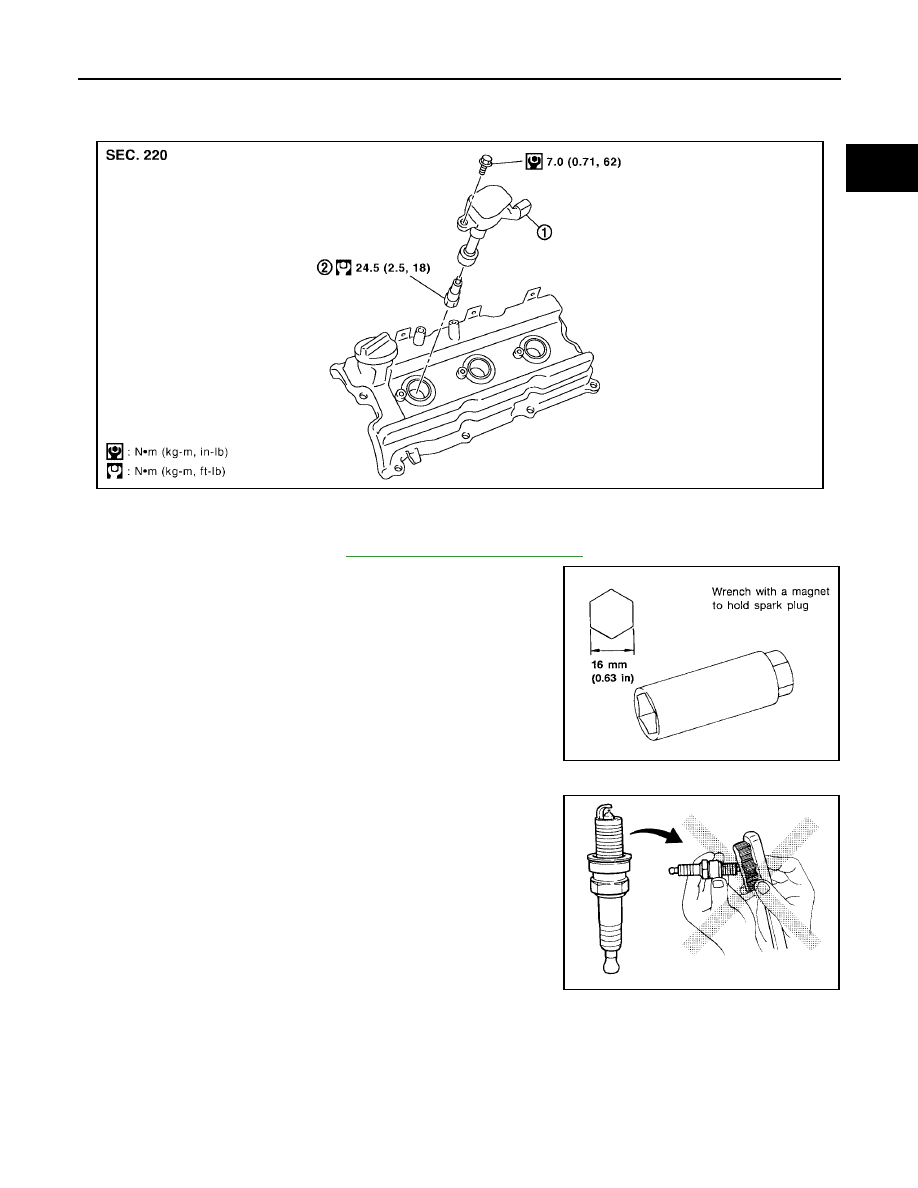

Remove the spark plug using a suitable tool.

CAUTION:

Do not drop or shock it.

INSPECTION AFTER REMOVAL

Do not use a wire brush to clean the spark plug.

If plug tip is covered with carbon, spark plug cleaner may be used.

1.

Ignition coil

2.

Spark plug

PBIC2901E

SEM294A

SMA773C

Cleaner air pressure

: Less than 588 kPa (5.9 bar, 6 kg/cm

2

 , 85 psi)

Cleaning time

: Less than 20 seconds

EM-34

SPARK PLUG (PLATINUM-TIPPED TYPE)

2006 Pathfinder

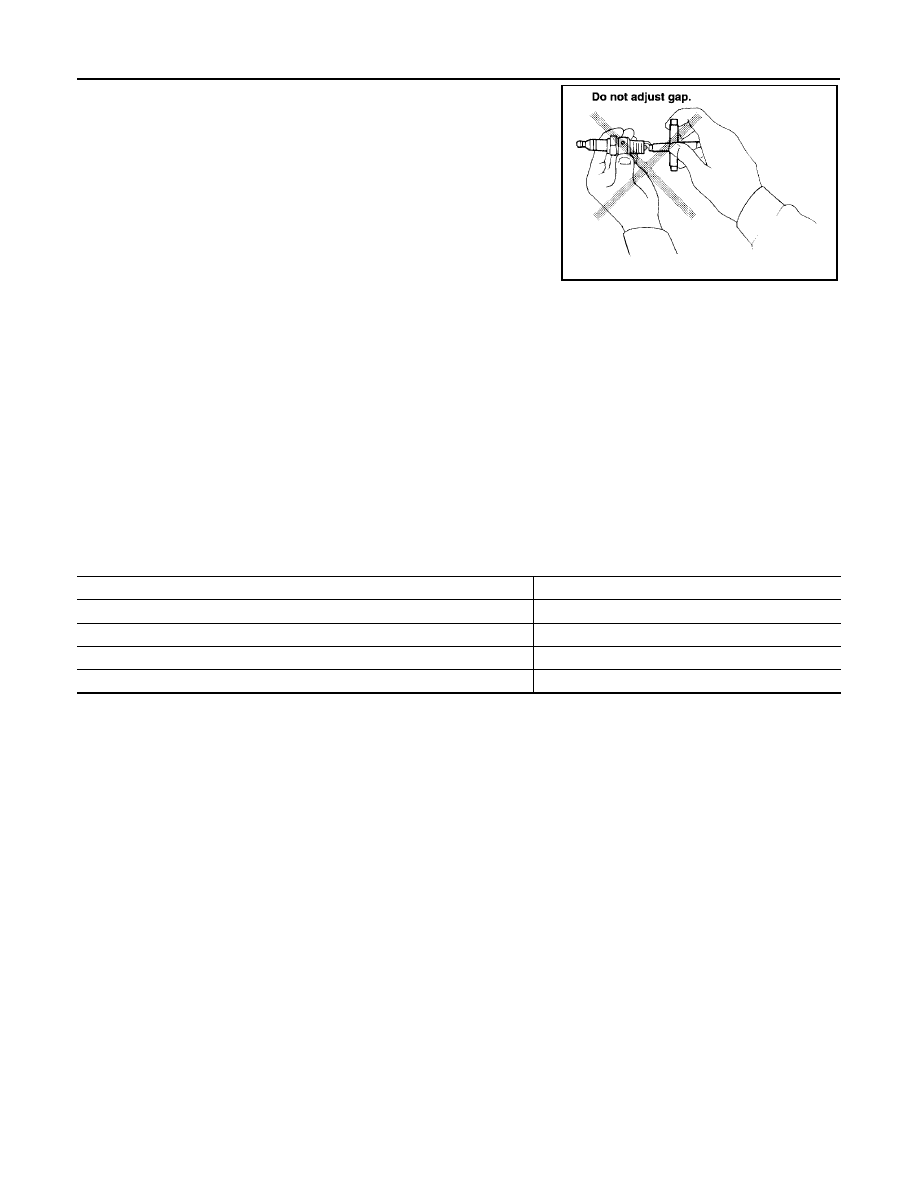

Checking and adjusting plug gap is not required between
change intervals.

CAUTION:

Do not drop or shock the spark plug.

INSTALLATION

Installation is in the reverse order of removal.

Use standard type spark plug for normal conditions.

The hot type spark plug is suitable when fouling occurs with the standard type spark plug under conditions
such as:

Frequent engine starts

Low ambient temperatures

The cold type spark plug is suitable when spark knock occurs with the standard type spark plug under
conditions such as:

Extended highway driving

Frequent high engine revolution

CAUTION:

Do not drop or shock the spark plug.

SMA806CA

Make

NGK

Standard type

PLFR5A-11

Hot type

PLFR4A-11

Cold type

PLFR6A-11

Gap (nominal)

1.1 mm (0.043 in)
