REAR BUMPER

EI-15

C

D

E

F

G

H

J

K

L

M

A

B

EI

2006 Pathfinder

REAR BUMPER

PFP:H5022

Removal and Installation

EIS007TS

REMOVAL

1.

Remove LH and RH rear fascia struts.

2.

Remove rear fascia lower stay bolts.

3.

Remove fascia front upper bolts near wheel opening.

4.

Release left pinch rail clips and remove LH side of rear bumper fascia from quarter panel.

5.

Release right pinch rail clips and remove RH side of rear bumper fascia from quarter panel.

6.

Remove fascia rear upper bolts near combination lamp.

7.

Remove rear bumper fascia.

8.

Disconnect harness on left side of tow hitch.

9.

Remove rear bumper reinforcement.

10. Remove drafter duct from lower side of LH quarter panel.

INSTALLATION

Installation is in the reverse order of removal.

●

Apply sealant to clips securing upper step pad during installation.

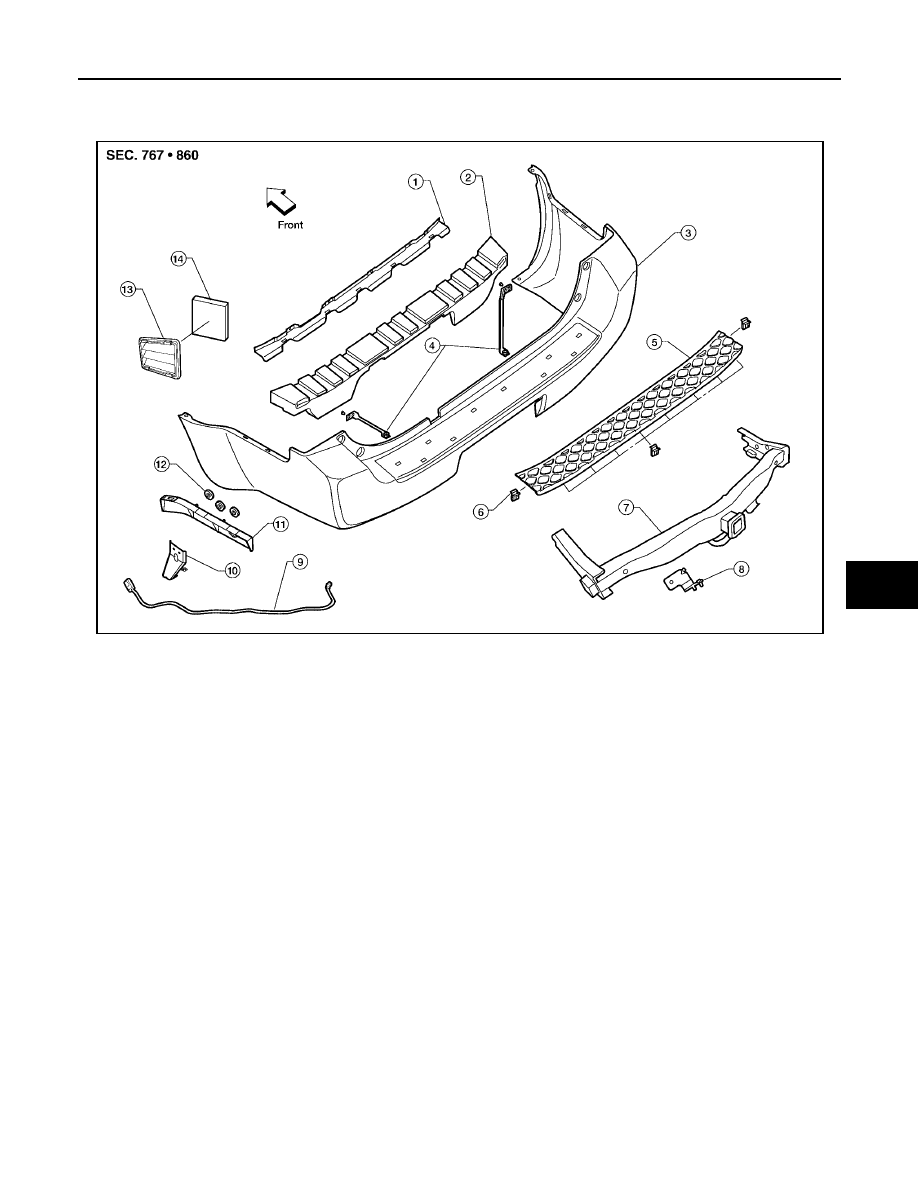

1.

Rear valance

2.

Rear bumper reinforcement

3.

Rear bumper fascia

4.

Rear fascia strut LH/RH

5.

Step pad

6.

Clip

7.

Tow hitch

8.

Tow harness bracket

9.

Tow hitch harness

10. Rear fascia lower stay

11.

Pinch rail

12. Washer

13. Drafter duct

14. Filter element

LIIA1750E

EI-16

FRONT GRILLE

2006 Pathfinder

FRONT GRILLE

PFP:62310

Removal and Installation

EIS007TT

REMOVAL

1.

Release upper clips from front grille.

2.

Twist and release LH and RH side clips and remove front grille from member.

INSTALLATION

Installation is in the reverse order of removal.

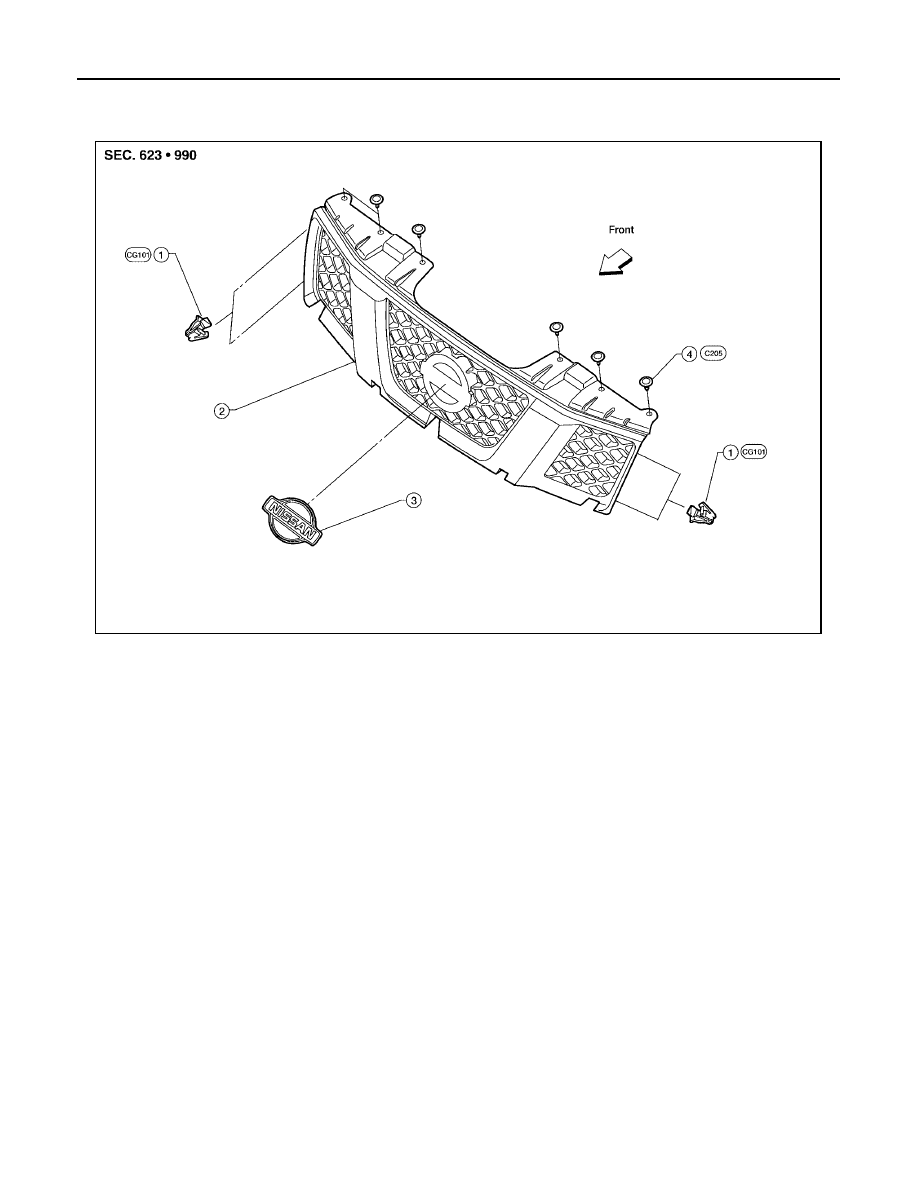

1.

Slide clips

2.

Front grille

3.

Front emblem

4.

Clips

LIIA1760E

COWL TOP

EI-17

C

D

E

F

G

H

J

K

L

M

A

B

EI

2006 Pathfinder

COWL TOP

PFP:66100

Removal and Installation

EIS007TU

REMOVAL

1.

Remove the front wiper arms. Refer to

WW-26, "FRONT WIPER ARMS"

 .

2.

Remove cowl top seal.

3.

Release clips and remove LH and RH cowl top extensions.

4.

Disconnect washer tubes from washer nozzles.

5.

Remove cowl top clips and remove cowl top from the cowl.

INSTALLATION

Installation is in the reverse order of removal.

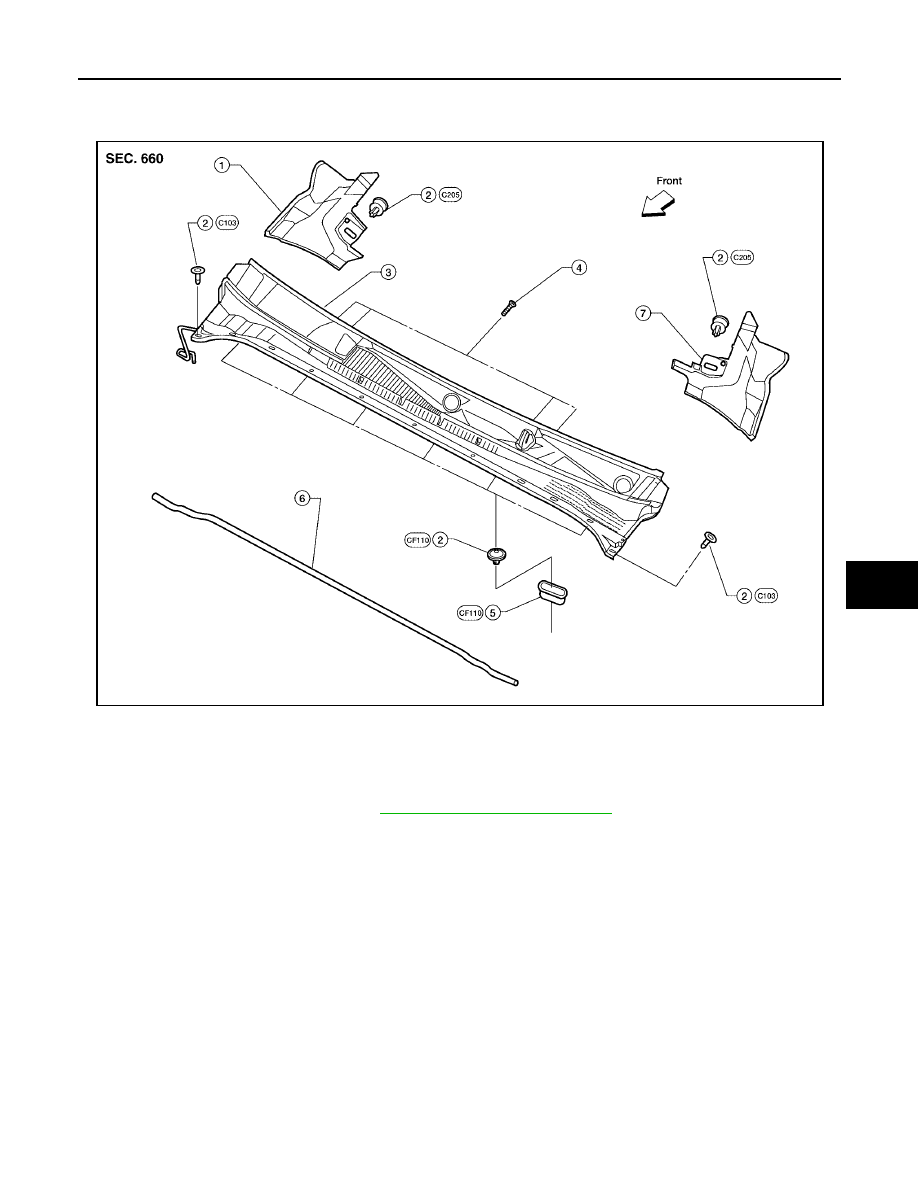

1.

Cowl top extension RH

2.

Clips

3.

Cowl top

4.

Washer nozzle screws

5.

Grommet

6.

Cowl top seal

7.

Cowl top extension LH

LIIA1761E

EI-18

FRONT FENDER

2006 Pathfinder

FRONT FENDER

PFP:63100

Removal and Installation

EIS007TV

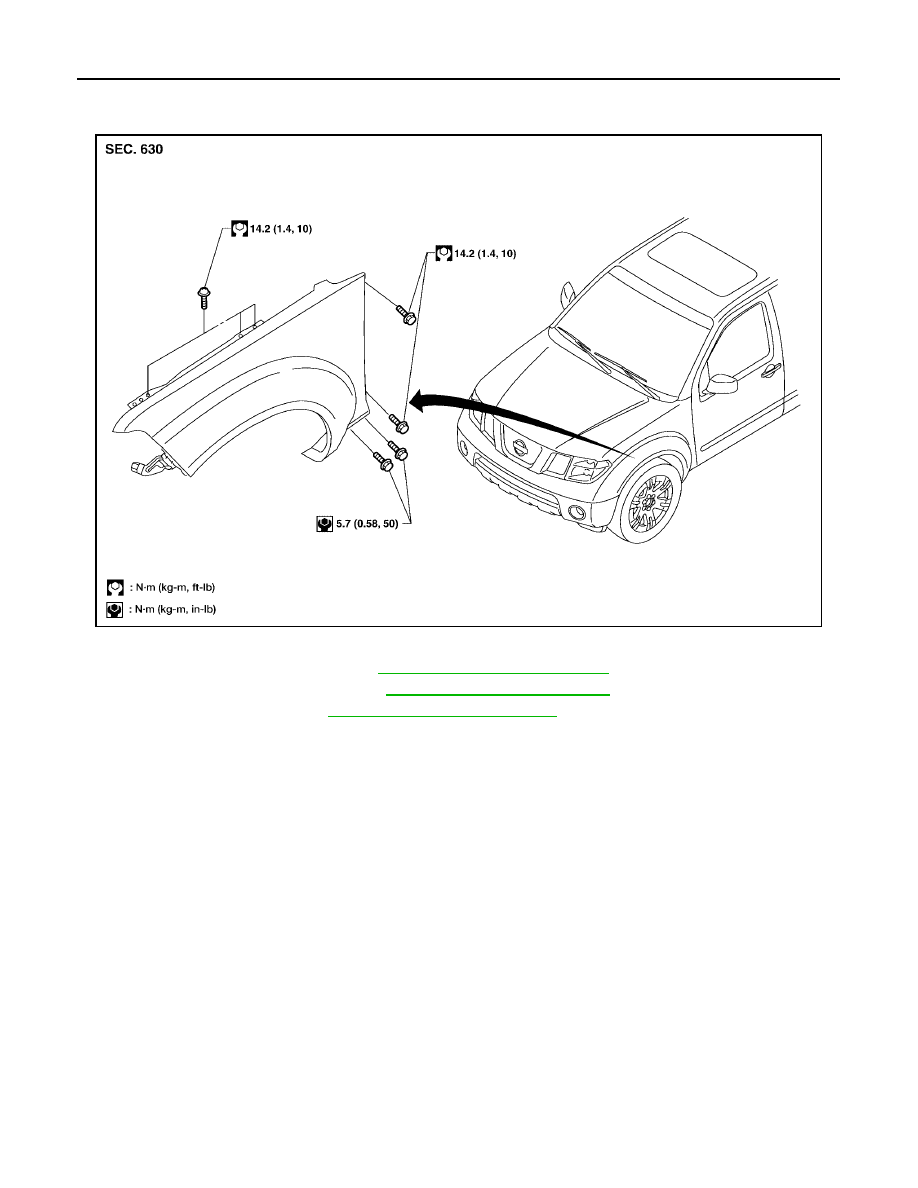

REMOVAL

1.

Remove headlamp assembly. Refer to

LT-27, "Removal and Installation"

 .

2.

Remove front fender protector. Refer to

EI-20, "FENDER PROTECTOR"

 .

3.

Remove front bumper. Refer to

EI-14, "Removal and Installation"

 .

4.

Remove front fender bolts from hoodledge and dash panel.

5.

Remove front fender bolts from rocker panel and radiator core support member.

6.

Remove front fender.

INSTALLATION

Installation is in the reverse order of removal.

LIIA1752E

LICENSE LAMP FINISHER

EI-19

C

D

E

F

G

H

J

K

L

M

A

B

EI

2006 Pathfinder

LICENSE LAMP FINISHER

PFP:84810

Removal and Installation

EIS007TW

REMOVAL

1.

Remove back door finisher. Refer to

EI-35, "BACK DOOR TRIM"

 .

2.

Remove nuts and license lamp finisher.

INSTALLATION

Installation is in the reverse order of removal.

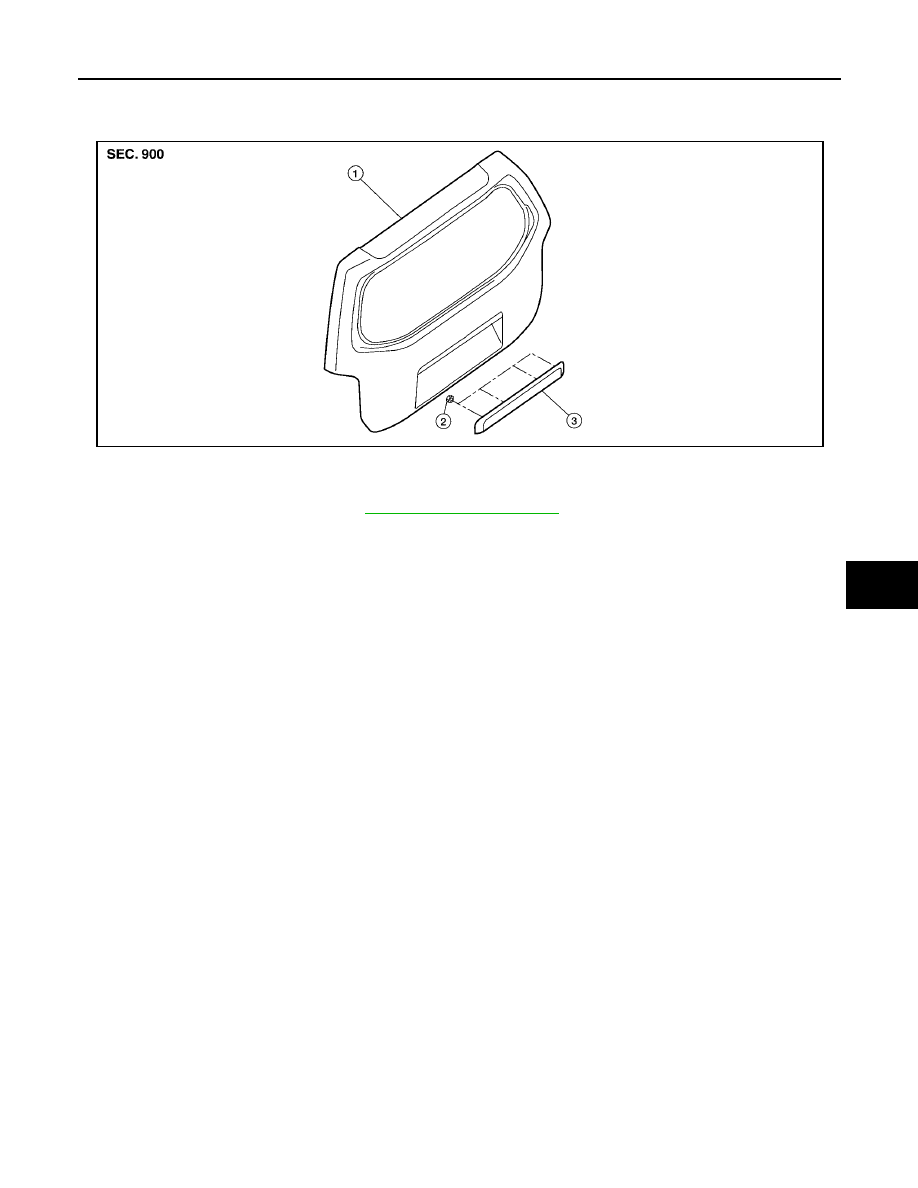

1.

Back door

2.

Nut

3.

License lamp finisher

LIIA1781E

EI-20

FENDER PROTECTOR

2006 Pathfinder

FENDER PROTECTOR

PFP:63840

Components

EIS007TX

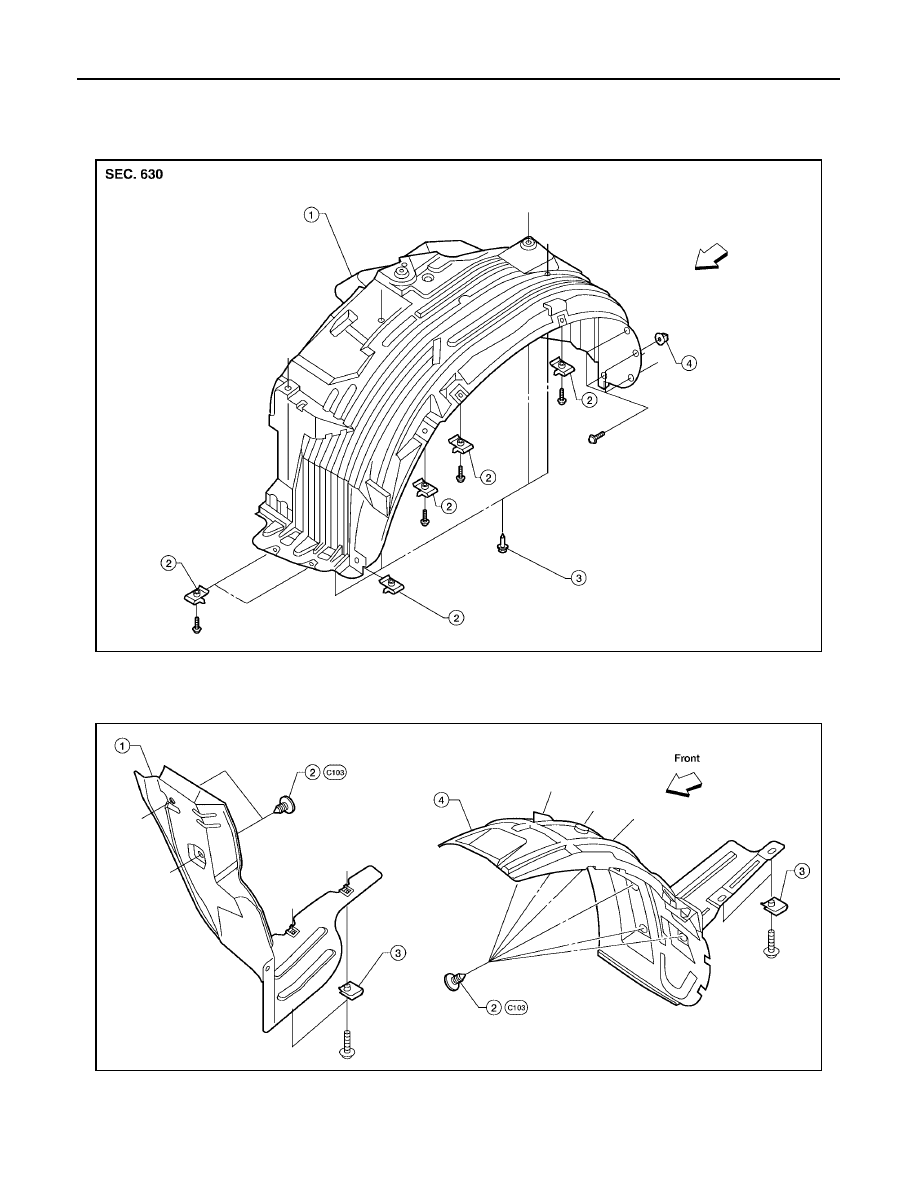

Front Fender Protector

Rear Fender Protector

WIIA1078E

1.

Fender protector LH

2.

Nut

3.

Clip C205

4.

Grommet

⇐

Vehicle front

LIIA1764E

1.

Fender protector RH

2.

Clips

3.

Nuts

4.

Fender protector LH

FENDER PROTECTOR

EI-21

C

D

E

F

G

H

J

K

L

M

A

B

EI

2006 Pathfinder

Removal and Installation of Front Fender Protector

EIS007TY

REMOVAL

1.

Remove screws.

2.

Remove plastic clips.

3.

Remove pushpins.

4.

Remove front fender protector.

INSTALLATION

Installation is in the reverse order of removal.

Removal and Installation of Rear Fender Protector

EIS007TZ

REMOVAL

1.

Remove screws.

2.

Remove plastic clips.

3.

Remove pushpins.

4.

Remove rear fender protector.

INSTALLATION

Installation is in the reverse order of removal.

EI-22

RUNNING BOARDS

2006 Pathfinder

RUNNING BOARDS

PFP:96110

Removal and Installation

EIS007U0

REMOVAL

1.

Remove mud flaps (if equipped).

2.

Remove bolts and remove running board from running board brackets.

3.

Remove nuts and remove running board brackets from chassis.

4.

Remove screw and clip and remove wind deflector.

INSTALLATION

Installation is in the reverse order of removal.

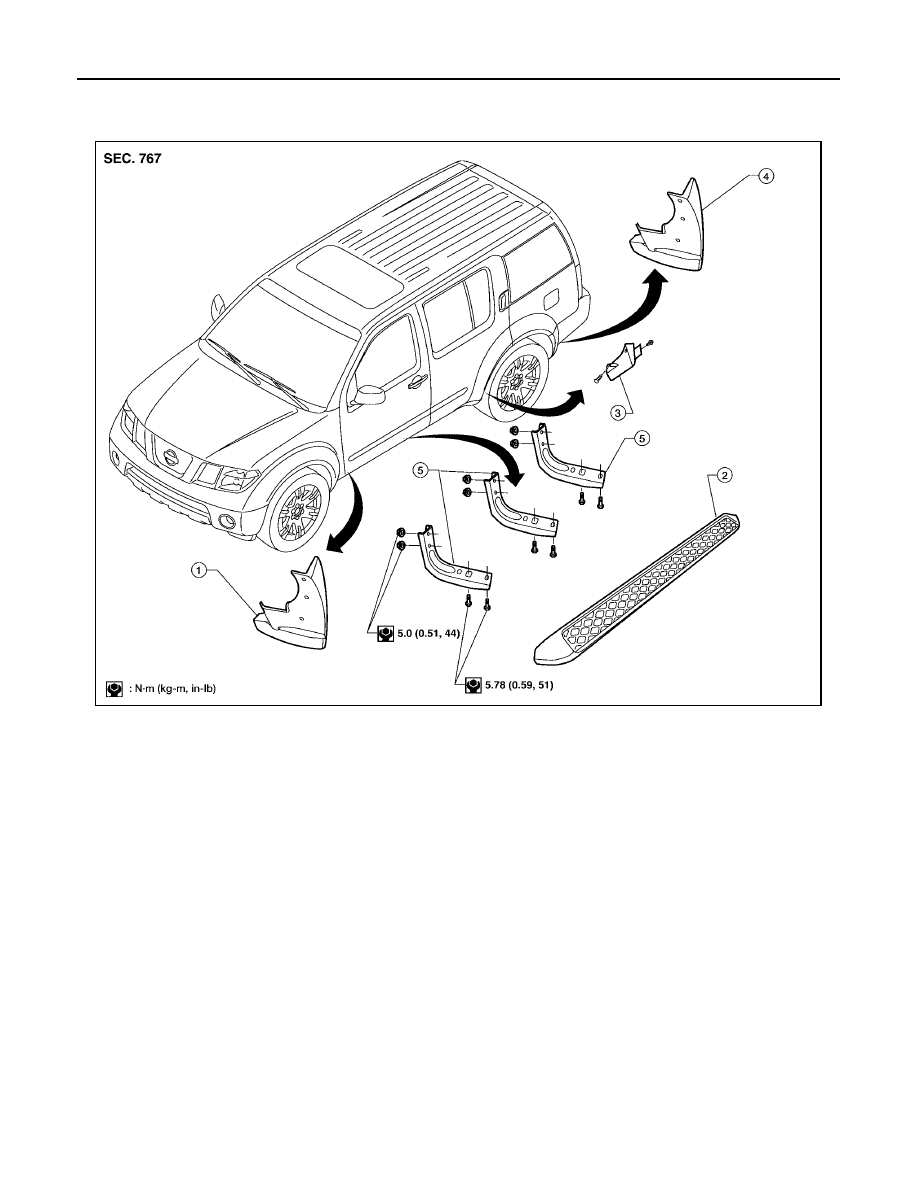

1.

Front mud flap (if equipped)

2.

Running board

3.

Rear wheel wind deflector

4.

Rear mud flap (if equipped)

5.

Running board bracket

LIIA1779E
