Nissan Pathfinder (2006 year). Manual - part 173

DTC P0131, P0151 A/F SENSOR 1

EC-243

C

D

E

F

G

H

I

J

K

L

M

A

EC

2006 Pathfinder

2.

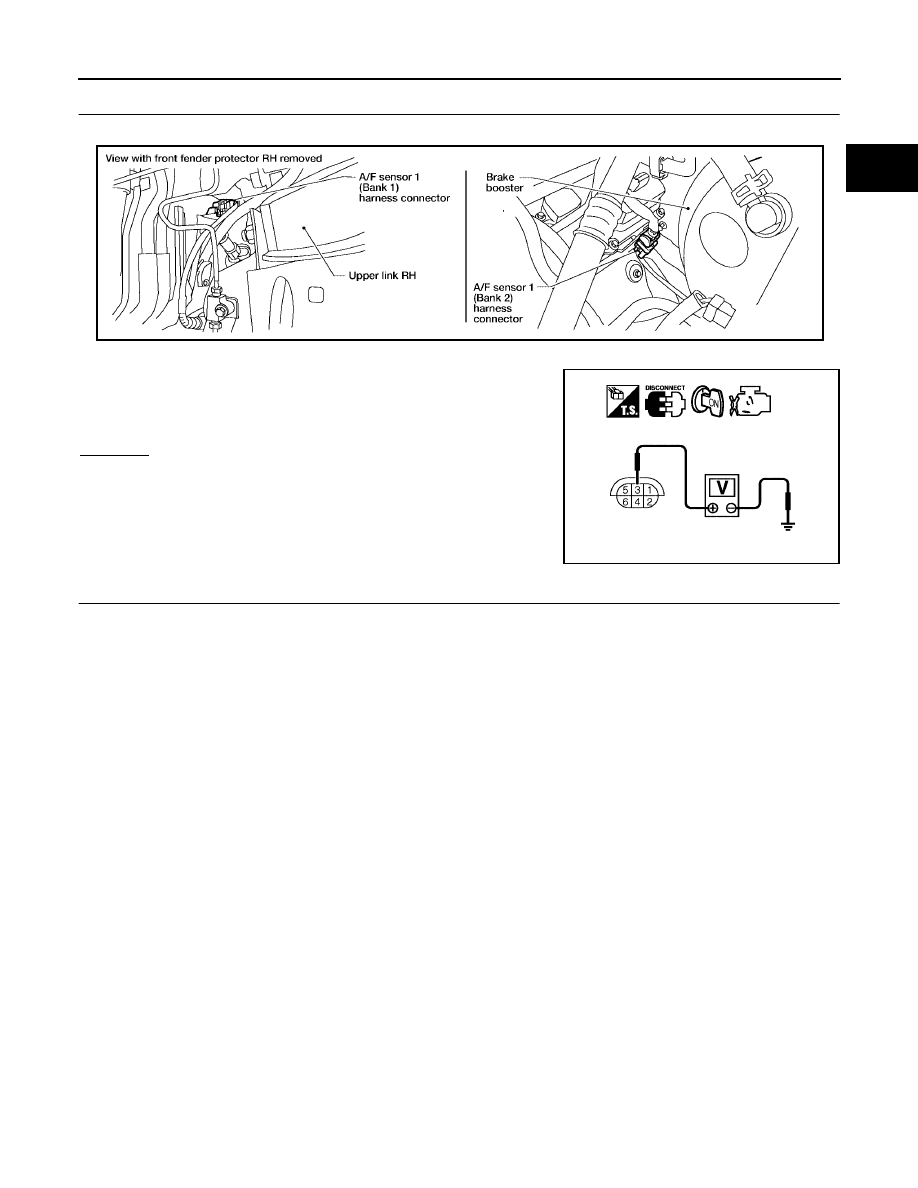

CHECK AIR FUEL RATIO (A/F) SENSOR 1 POWER SUPPLY CIRCUIT

1.

Disconnect A/F sensor 1 harness connector.

2.

Turn ignition switch ON.

3.

Check voltage between A/F sensor 1 terminal 3 and ground with
CONSULT-II or tester.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 3.

3.

DETECT MALFUNCTIONING PART

Check the following.

●

Harness connectors E5, F14

●

IPDM E/R connector E119

●

10A fuse

●

Harness for open or short between A/F sensor 1 and fuse

>> Repair or replace harness or connectors.

Voltage: Battery voltage

BBIA0544E

PBIB1683E

EC-244

DTC P0131, P0151 A/F SENSOR 1

2006 Pathfinder

4.

CHECK A/F SENSOR 1 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check harness continuity between A/F sensor 1 terminal and ECM terminal as follows.
Refer to Wiring Diagram.

4.

Check harness continuity between the following terminals and ground.
Refer to Wiring Diagram.

5.

Also check harness for short to power.

OK or NG

OK

>> GO TO 5.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

5.

CHECK INTERMITTENT INCIDENT

Perform

EC-144, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

 .

OK or NG

OK

>> GO TO 6.

NG

>> Repair or replace.

6.

REPLACE A/F SENSOR 1

Replace A/F sensor 1.

CAUTION:

●

Discard any A/F sensor which has been dropped from a height of more than 0.5 m (19.7 in) onto a
hard surface such as a concrete floor; use a new one.

●

Before installing new A/F sensor, clean exhaust system threads using Heated Oxygen Sensor
Thread Cleaner tool J-43897-18 or J-43897-12 and approved anti-seize lubricant.

>> INSPECTION END

A/F sensor 1 terminal

ECM terminal

Bank1

1

16

2

75

5

35

6

56

Bank 2

1

76

2

77

5

57

6

58

Continuity should exist.

Bank 1

Bank 2

A/F sensor 1 terminal

ECM terminal

A/F sensor 1 terminal

ECM terminal

1

16

1

76

2

75

2

77

5

35

5

57

6

56

6

58

Continuity should not exist.

DTC P0131, P0151 A/F SENSOR 1

EC-245

C

D

E

F

G

H

I

J

K

L

M

A

EC

2006 Pathfinder

Removal and Installation

UBS00KE8

AIR FUEL RATIO (A/F) SENSOR 1

Refer to

EM-22, "EXHAUST MANIFOLD AND THREE WAY CATALYST"

 .

EC-246

DTC P0132, P0152 A/F SENSOR 1

2006 Pathfinder

DTC P0132, P0152 A/F SENSOR 1

PFP:22693

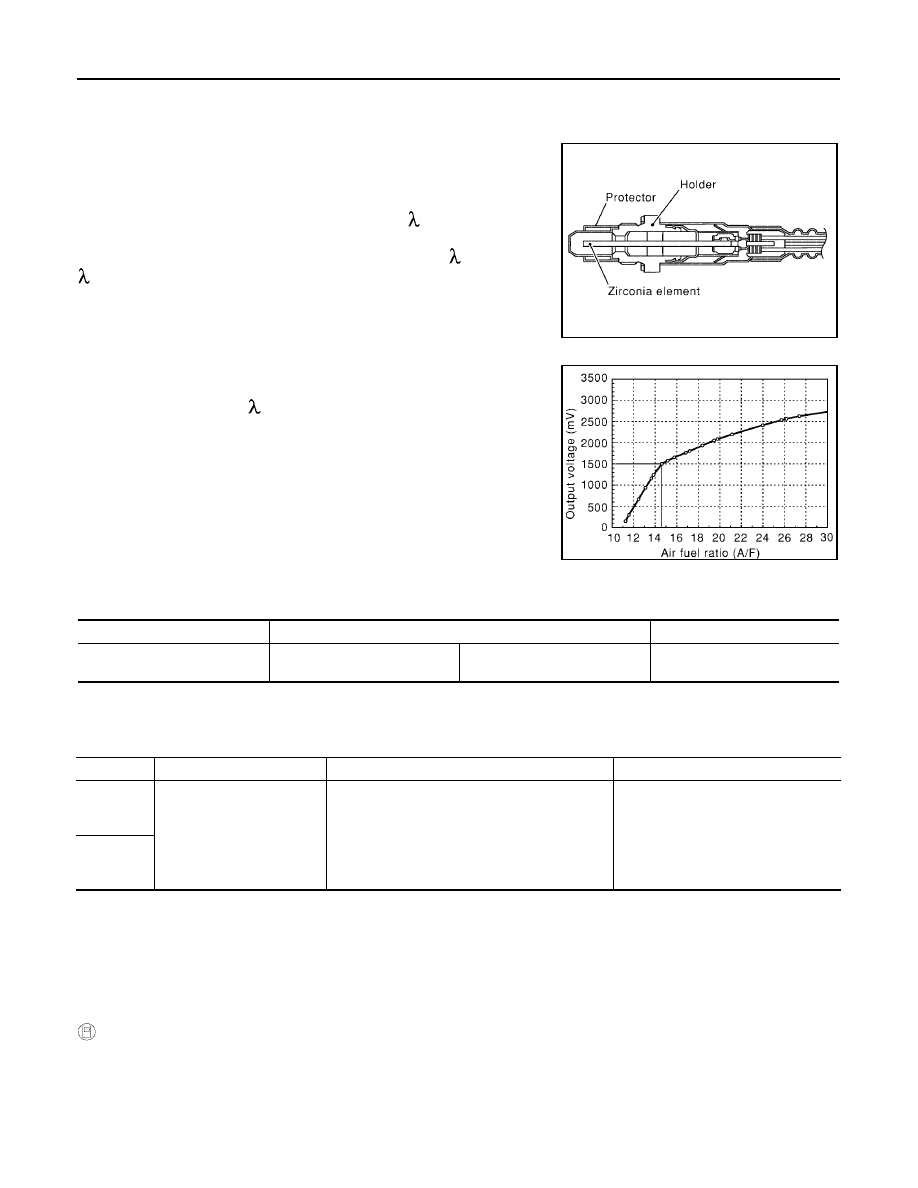

Component Description

UBS00KE9

The air fuel ratio (A/F) sensor 1 is a planar dual-cell limit current sen-
sor. The sensor element of the A/F sensor 1 is the combination of a
Nernst concentration cell (sensor cell) with an oxygen-pump cell,
which transports ions. It has a heater in the element.
The sensor is capable of precise measurement   = 1, but also in the
lean and rich range. Together with its control electronics, the sensor
outputs a clear, continuous signal throughout a wide   range (0.7 <

 < air).

The exhaust gas components diffuse through the diffusion gap at the
electrode of the oxygen pump and Nernst concentration cell, where
they are brought to thermodynamic balance.

An electronic circuit controls the pump current through the oxygen-
pump cell so that the composition of the exhaust gas in the diffusion
gap remains constant at   = 1. Therefore, the A/F sensor 1 is able to
indicate air/fuel ratio by this pumping of current. In addition, a heater
is integrated in the sensor to ensure the required operating tempera-
ture of 700 - 800

°

C (1,292 - 1,472

°

F).

CONSULT-II Reference Value in Data Monitor Mode

UBS00KEA

Specification data are reference values.

On Board Diagnosis Logic

UBS00KEB

To judge the malfunction, the diagnosis checks that the A/F signal computed by ECM from the A/F sensor 1
signal is not inordinately high.

DTC Confirmation Procedure

UBS00KEC

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 11V at idle.

 WITH CONSULT-II

1.

Start engine and warm it up to normal operating temperature.

2.

Select “A/F SEN1 (B1)” or “A/F SEN1 (B2)” in “DATA MONITOR” mode with CONSULT-II.

SEF579Z

SEF580Z

MONITOR ITEM

CONDITION

SPECIFICATION

A/F SEN1 (B1)
A/F SEN1 (B2)

●

Engine: After warming up

Maintaining engine speed at
2,000 rpm

Fluctuates around 1.5V

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible Cause

P0132
0132
(Bank 1)

Air fuel ratio (A/F) sensor 1
circuit high voltage

●

The A/F signal computed by ECM from the A/F
sensor 1 signal is constantly approx. 5V.

●

Harness or connectors
(The A/F sensor 1 circuit is open or
shorted.)

●

A/F sensor 1

P0152
0152
(Bank 2)

DTC P0132, P0152 A/F SENSOR 1

EC-247

C

D

E

F

G

H

I

J

K

L

M

A

EC

2006 Pathfinder

3.

Check “A/F SEN1 (B1)” or “A/F SEN1 (B2)” indication.
If the indication is constantly approx. 5V, go to

EC-251, "Diag-

nostic Procedure"

 .

If the indication is not constantly approx. 5V, go to next step.

4.

Turn ignition switch OFF, wait at least 10 seconds and then
restart engine.

5.

Drive and accelerate vehicle to more than 40 km/h (25 MPH)
within 20 seconds after restarting engine.

6.

Maintain the following conditions for about 20 consecutive sec-
onds.

NOTE:

●

Keep the accelerator pedal as steady as possible during the cruising.

●

If this procedure is not completed within 1 minute after restarting engine at step 4, return to step
4.

7.

If 1st trip DTC is displayed, go to

EC-251, "Diagnostic Procedure"

 .

 WITH GST

Follow the procedure “WITH CONSULT-II” above.

ENG SPEED

1,000 - 3,200 rpm

VHCL SPEED SE

More than 40 km/h (25 MPH)

B/FUEL SCHDL

1.5 - 9.0 msec

Gear position

Suitable position

SEF581Z

EC-248

DTC P0132, P0152 A/F SENSOR 1

2006 Pathfinder

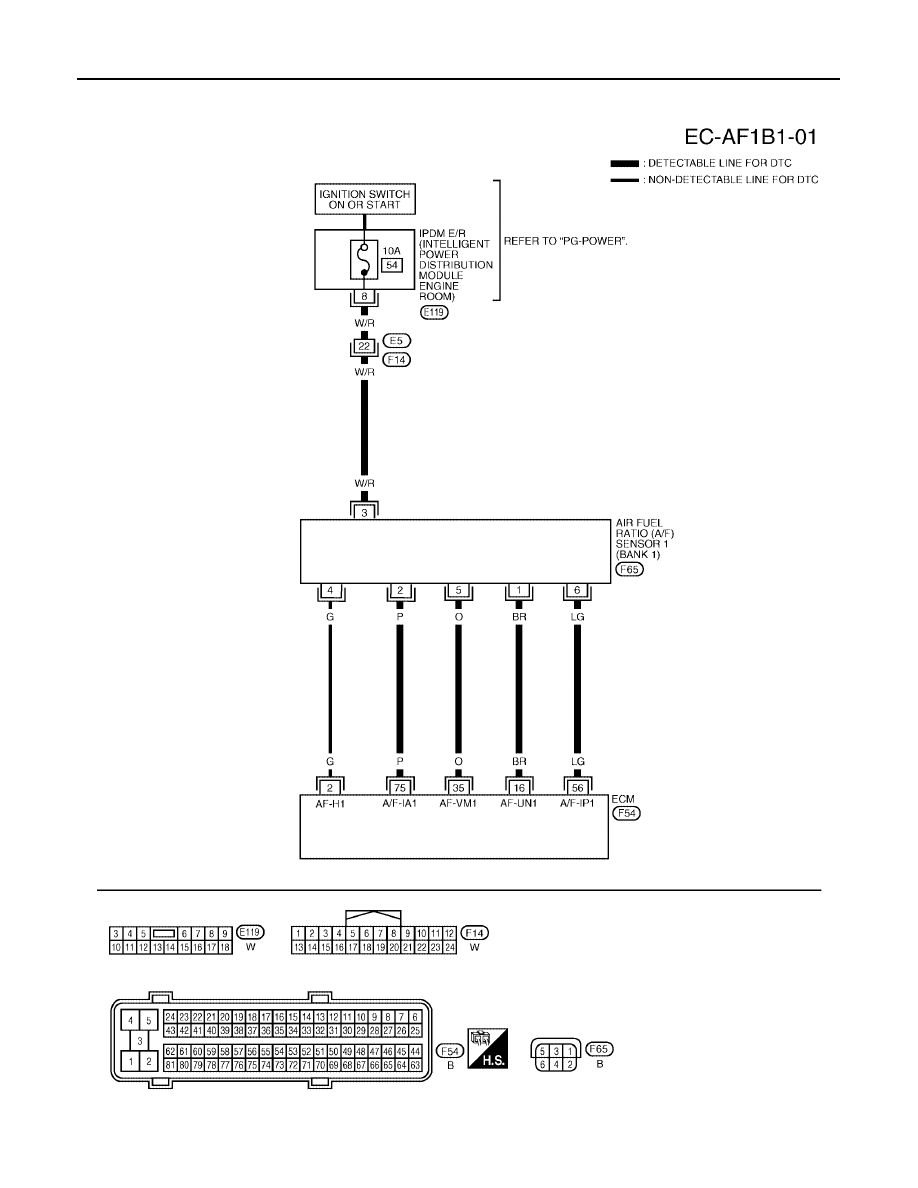

Wiring Diagram

UBS00KED

BANK 1

BBWA2360E

DTC P0132, P0152 A/F SENSOR 1

EC-249

C

D

E

F

G

H

I

J

K

L

M

A

EC

2006 Pathfinder

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

2

G

A/F sensor 1 heater
(Bank 1)

[Engine is running]

●

Warm-up condition

●

Idle speed

Approximately 5V

16

BR

A/F sensor 1 (Bank 1)

[Engine is running]

●

Warm-up condition

●

Idle speed

Approximately 3.1V

35

O

Approximately 2.6V

56

LG

Approximately 2.3V

75

P

Approximately 2.3V

PBIB1584E

EC-250

DTC P0132, P0152 A/F SENSOR 1

2006 Pathfinder

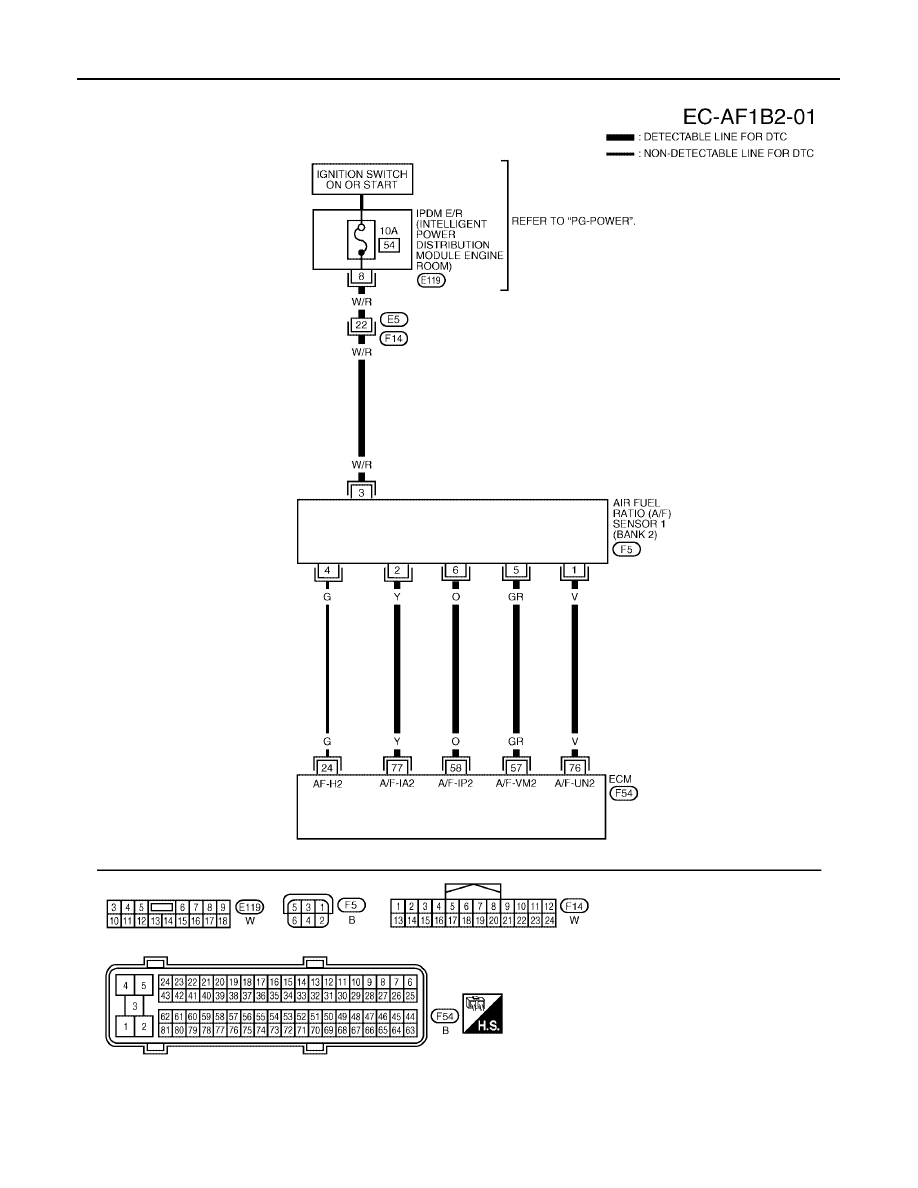

BANK 2

BBWA2361E
