DTC P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATER

EC-163

C

D

E

F

G

H

I

J

K

L

M

A

EC

2006 Pathfinder

 WITH GST

Follow the procedure “WITH CONSULT-II” above.

EC-164

DTC P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATER

2006 Pathfinder

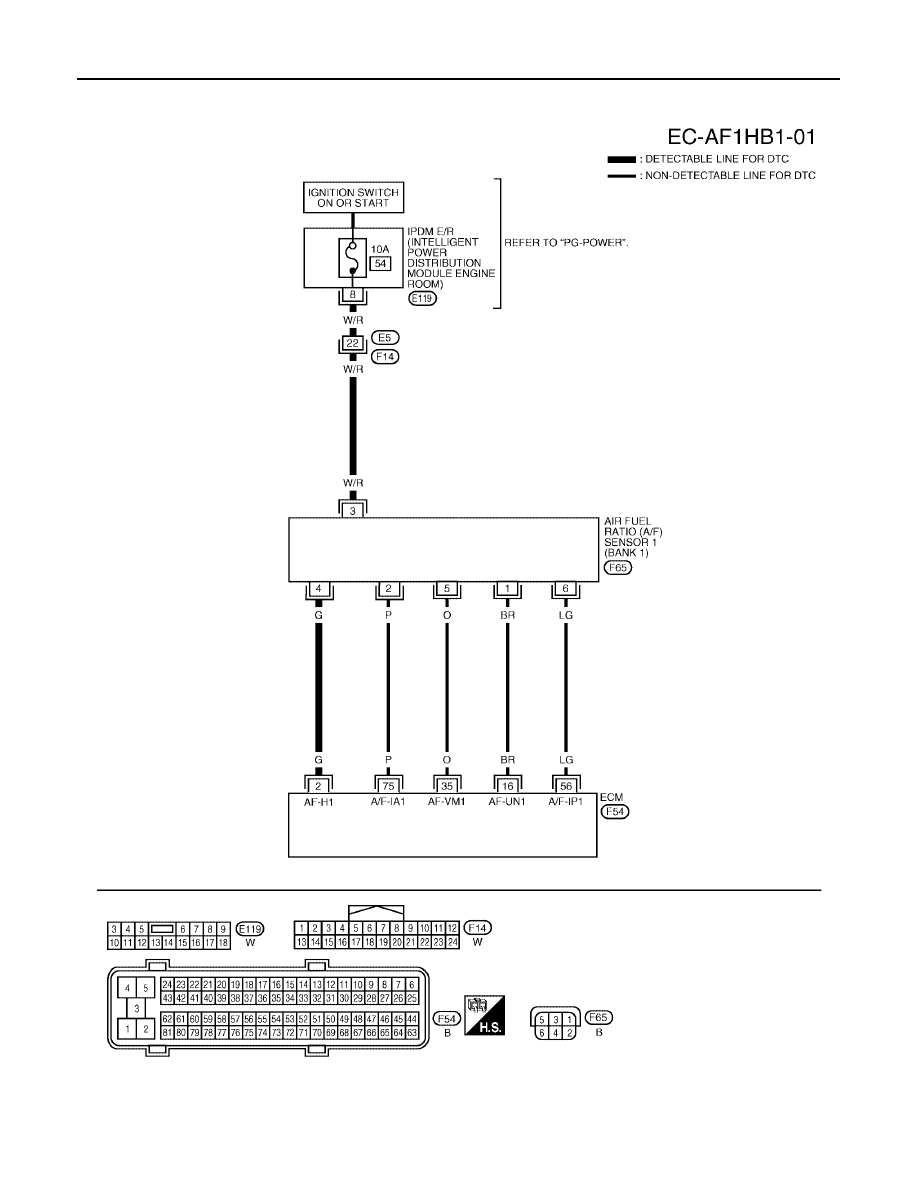

Wiring Diagram

UBS00KBK

BANK 1

BBWA2362E

DTC P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATER

EC-165

C

D

E

F

G

H

I

J

K

L

M

A

EC

2006 Pathfinder

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

2

G

A/F sensor 1 heater
(Bank 1)

[Engine is running]

●

Warm-up condition

●

Idle speed

Approximately 5V

16

BR

A/F sensor 1 (Bank 1)

[Engine is running]

●

Warm-up condition

●

Idle speed

Approximately 3.1V

35

O

Approximately 2.6V

56

LG

Approximately 2.3V

75

P

Approximately 2.3V

PBIB1584E

EC-166

DTC P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATER

2006 Pathfinder

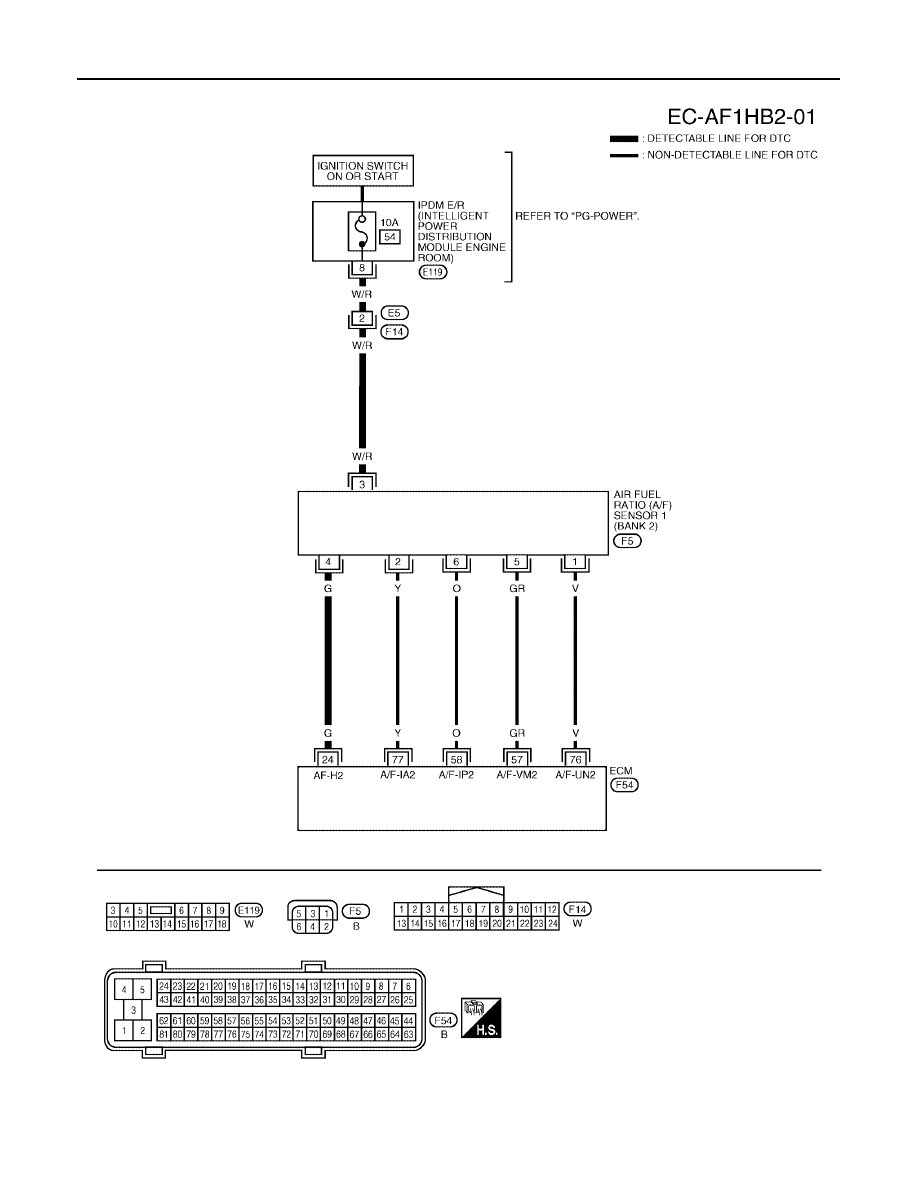

BANK 2

BBWA2363E

DTC P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATER

EC-167

C

D

E

F

G

H

I

J

K

L

M

A

EC

2006 Pathfinder

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

Diagnostic Procedure

UBS00KBL

1.

CHECK GROUND CONNECTIONS

1.

Turn ignition switch OFF.

2.

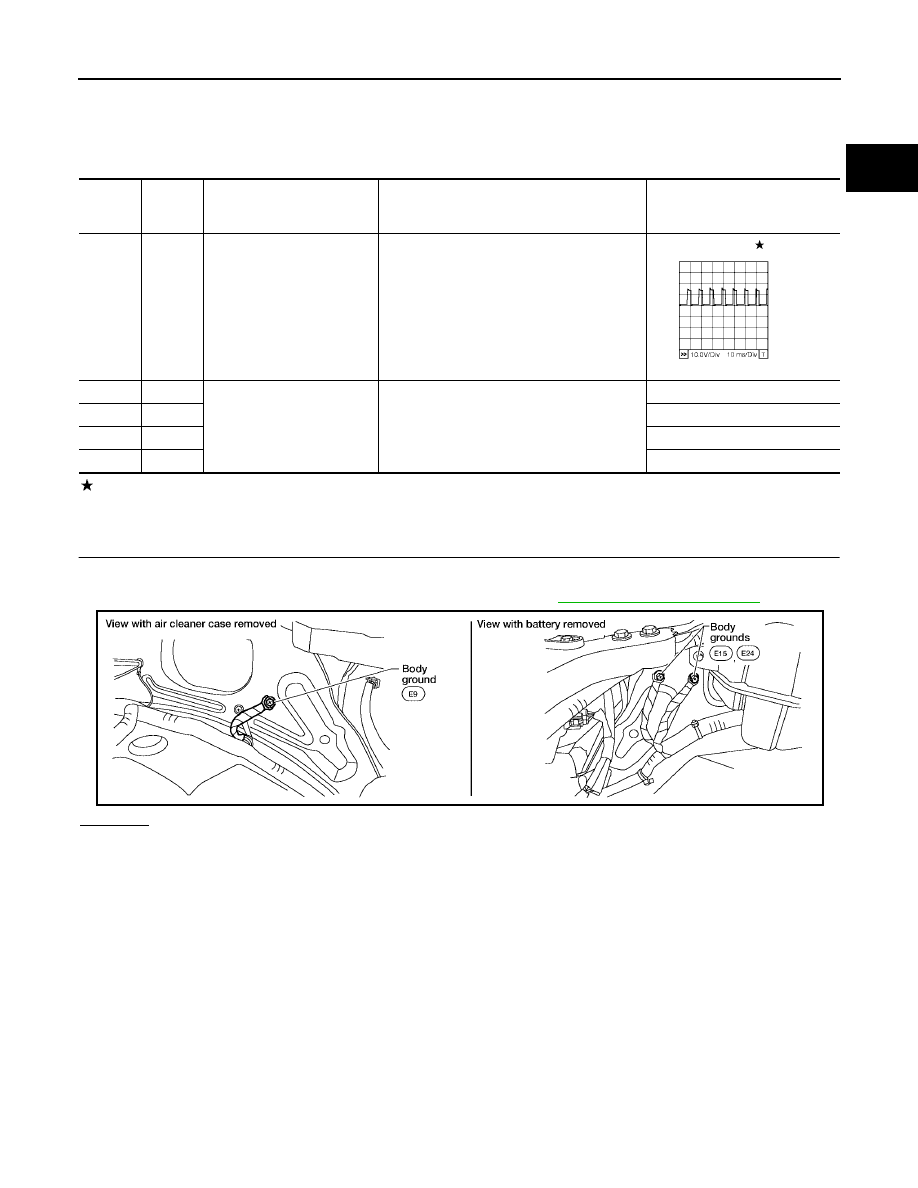

Loosen and retighten three ground screws on the body. Refer to

EC-151, "Ground Inspection"

 .

OK or NG

OK

>> GO TO 2.

NG

>> Repair or Replace ground connections.

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

24

G

 A/F sensor 1 heater
(Bank 2)

[Engine is running]

●

Warm-up condition

●

Idle speed

Approximately 5V

57

GR

A/F sensor 1 (Bank 2)

[Engine is running]

●

Warm-up condition

●

Idle speed

Approximately 2.6V

58

O

Approximately 2.3V

76

V

Approximately 3.1V

77

Y

Approximately 2.3V

PBIB1584E

BBIA0539E

EC-168

DTC P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATER

2006 Pathfinder

2.

CHECK AIR FUEL RATIO (A/F) SENSOR 1 POWER SUPPLY CIRCUIT

1.

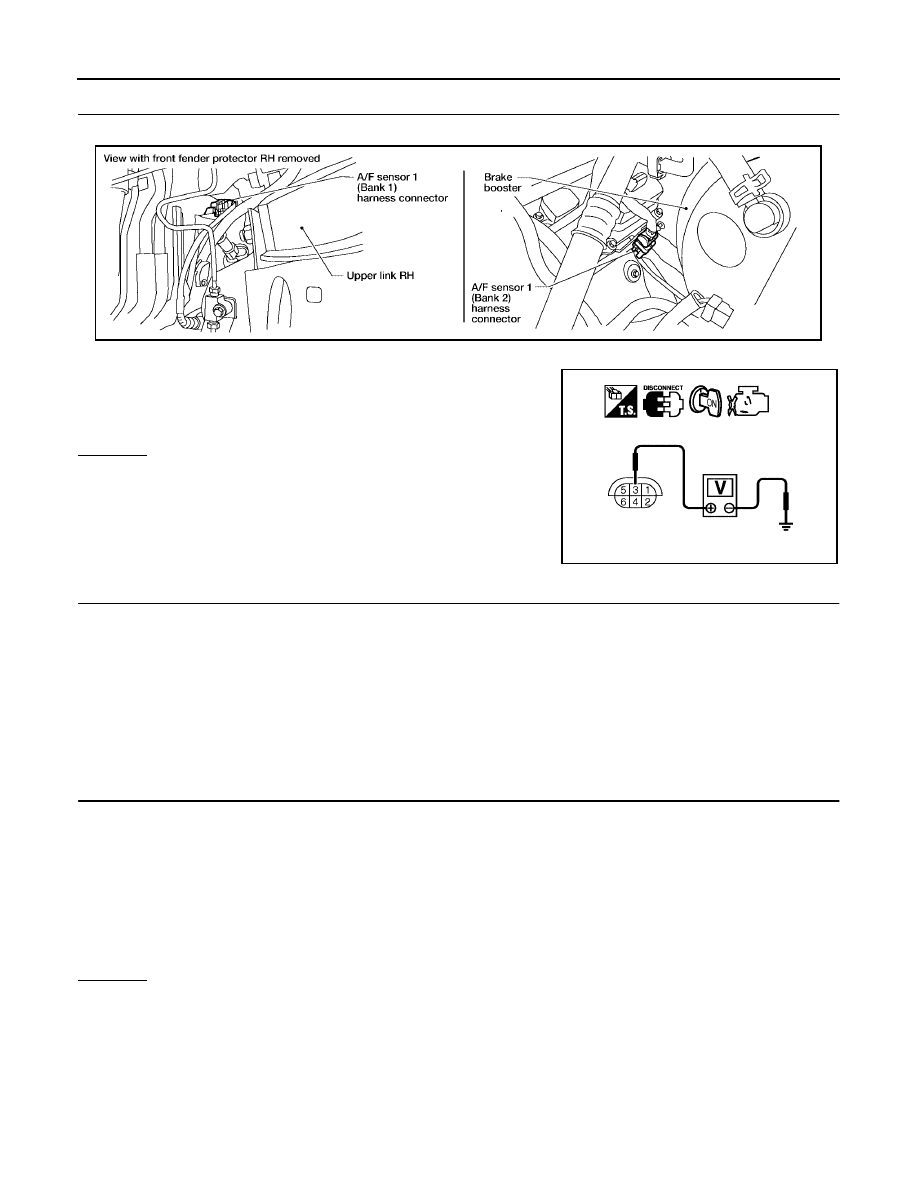

Disconnect air fuel ratio (A/F) sensor 1 harness connector.

2.

Turn ignition switch ON.

3.

Check voltage between air fuel ratio sensor 1 terminal 3 and
ground with CONSULT-II or tester.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 3.

3.

DETECT MALFUNCTIONING PART

Check the following.

●

Harness connectors E5, F14

●

IPDM E/R harness connector E119

●

10A fuse

●

Harness for open or short between air fuel ratio sensor 1 and fuse

>> Repair or replace harness or connectors.

4.

CHECK AIR FUEL RATIO (A/F) SENSOR 1 HEATER OUTPUT SIGNAL CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check harness continuity between ECM terminal 2 (bank 1) or 24 (bank 2) and air fuel ratio (A/F) sensor
1 terminal 4.
Refer to Wiring Diagram.

4.

Also check harness for short to ground or short to power.

OK or NG

OK

>> GO TO 5.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

Voltage: Battery voltage

BBIA0544E

PBIB1683E

Continuity should exist.

DTC P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATER

EC-169

C

D

E

F

G

H

I

J

K

L

M

A

EC

2006 Pathfinder

5.

CHECK AIR FUEL RATIO (A/F) SENSOR 1 HEATER

Refer to

EC-169, "Component Inspection"

 .

OK or NG

OK

>> GO TO 6.

NG

>> GO TO 7.

6.

CHECK INTERMITTENT INCIDENT

Perform

EC-144, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

 .

OK or NG

OK

>> GO TO 7.

NG

>> Repair or replace.

7.

REPLACE AIR FUEL RATIO (A/F) SENSOR 1

Replace air fuel ratio (A/F) sensor 1.

CAUTION:

●

Discard any air fuel ratio (A/F) sensor which has been dropped from a height of more than 0.5 m
(19.7 in) onto a hard surface such as a concrete floor; use a new one.

●

Before installing new air fuel ratio (A/F) sensor, clean exhaust system threads using Heated Oxy-
gen Sensor Thread Cleaner tool J-43897-18 or J-43897-12 and approved anti-seize lubricant.

>> INSPECTION END

Component Inspection

UBS00KBM

AIR FUEL RATIO (A/F) SENSOR 1 HEATER

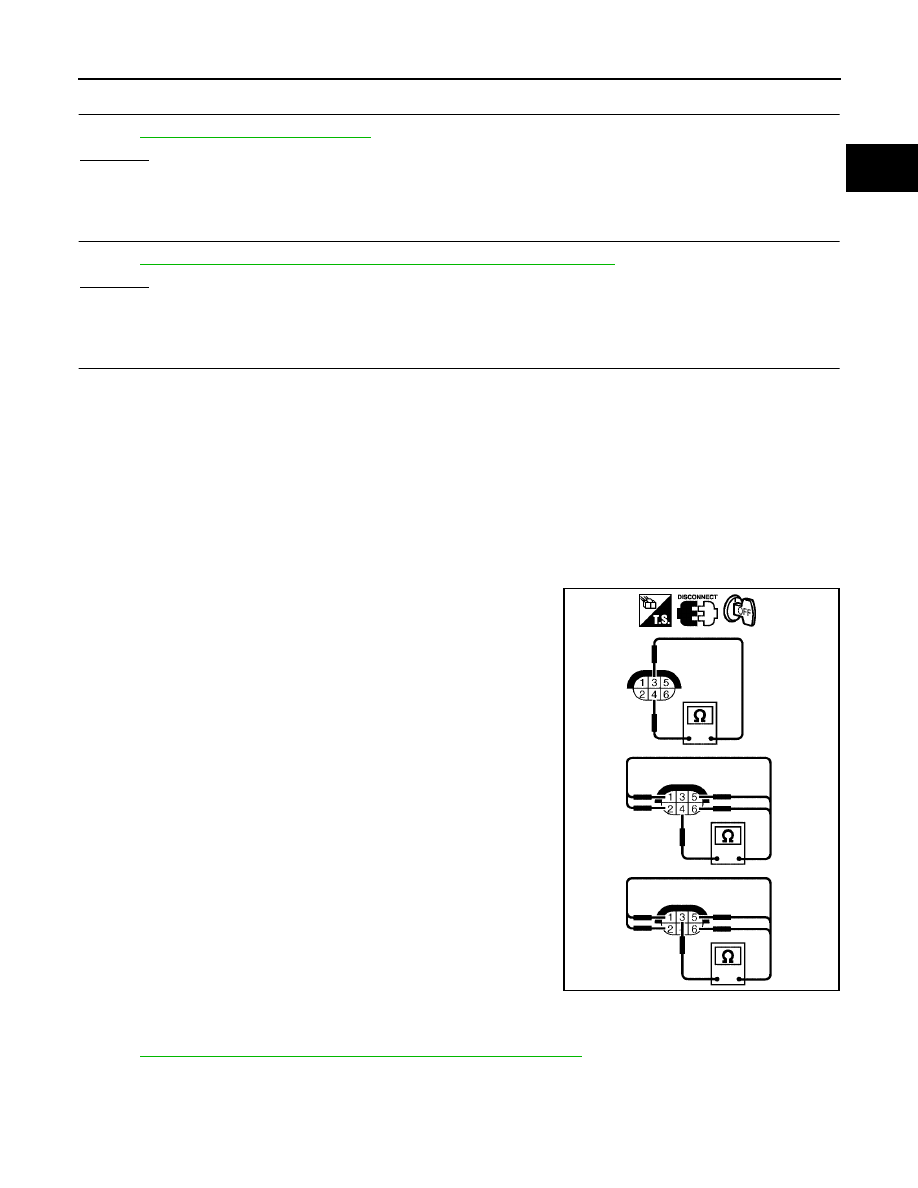

Check resistance between terminals 3 and 4.

Check continuity between terminals 3 and 1, 2, 5, 6, terminals 4 and
1, 2, 5, 6.

If NG, replace the air fuel ratio (A/F) sensor 1.

CAUTION:

●

Discard any air fuel ratio (A/F) sensor which has been
dropped from a height of more than 0.5 m (19.7 in) onto a
hard surface such as a concrete floor; use a new one.

●

Before installing new air fuel ratio (A/F) sensor, clean
exhaust system threads using Heated Oxygen Sensor
Thread Cleaner tool J-43897-18 or J-43897-12 and approved
anti-seize lubricant.

Removal and Installation

UBS00KBN

AIR FUEL RATIO (A/F) SENSOR 1

Refer to

EM-22, "EXHAUST MANIFOLD AND THREE WAY CATALYST"

 .

Resistance: 2.3 - 4.3

Ω

 at 25

°

C (77

°

F)

Continuity should not exist.

PBIB1684E

EC-170

DTC P0037, P0038, P0057, P0058 HO2S2 HEATER

2006 Pathfinder

DTC P0037, P0038, P0057, P0058 HO2S2 HEATER

PFP:226A0

Description

UBS00K51

SYSTEM DESCRIPTION

The ECM performs ON/OFF control of the heated oxygen sensor 2 heater corresponding to the engine speed,
amount of intake air and engine coolant temperature.

OPERATION

CONSULT-II Reference Value in Data Monitor Mode

UBS00K52

Specification data are reference values.

On Board Diagnosis Logic

UBS00K53

Sensor

Input signal to ECM

ECM function

Actuator

Camshaft position sensor (PHASE)
Crankshaft position sensor (POS)

Engine speed

Heated oxygen sensor 2
heater control

Heated oxygen sensor 2 heater

Engine coolant temperature sensor

Engine coolant temperature

Mass air flow sensor

Amount of intake air

Engine speed rpm

Heated oxygen sensor 2 heater

Above 3,600

OFF

Below 3,600 rpm after the following conditions are met.

●

Engine: After warming up

●

Keeping the engine speed between 3,500 and 4,000 rpm for 1
minute and at idle for 1 minute under no load

ON

MONITOR ITEM

CONDITION

SPECIFICATION

HO2S2 HTR (B1)
HO2S2 HTR (B2)

●

Engine speed: Below 3,600 rpm after the following conditions are met.

–

Engine: After warming up

–

Keeping the engine speed between 3,500 and 4,000 rpm for 1 minute and
at idle for 1 minute under no load

ON

●

Engine speed: Above 3,600 rpm

OFF

DTC No.

Trouble diagnosis

name

DTC detecting condition

Possible cause

P0037
0037
(Bank 1)

Heated oxygen
sensor 2 heater
control circuit low

The current amperage in the heated oxygen sen-
sor 2 heater circuit is out of the normal range.
(An excessively low voltage signal is sent to ECM
through the heated oxygen sensor 2 heater.)

●

Harness or connectors
(The heated oxygen sensor 2 heater circuit is
open or shorted.)

●

Heater oxygen sensor 2 heater

P0057
0057
(Bank 2)

P0038
0038
(Bank 1)

Heated oxygen
sensor 2 heater
control circuit high

The current amperage in the heated oxygen sen-
sor 2 heater circuit is out of the normal range.
(An excessively high voltage signal is sent to
ECM through the heated oxygen sensor 2
heater.)

●

Harness or connectors
(The heated oxygen sensor 2 heater circuit is
shorted.)

●

Heater oxygen sensor 2 heater

P0058
0058
(Bank 2)
