NVIS(NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS)

BL-117

C

D

E

F

G

H

J

K

L

M

A

B

BL

2006 Pathfinder

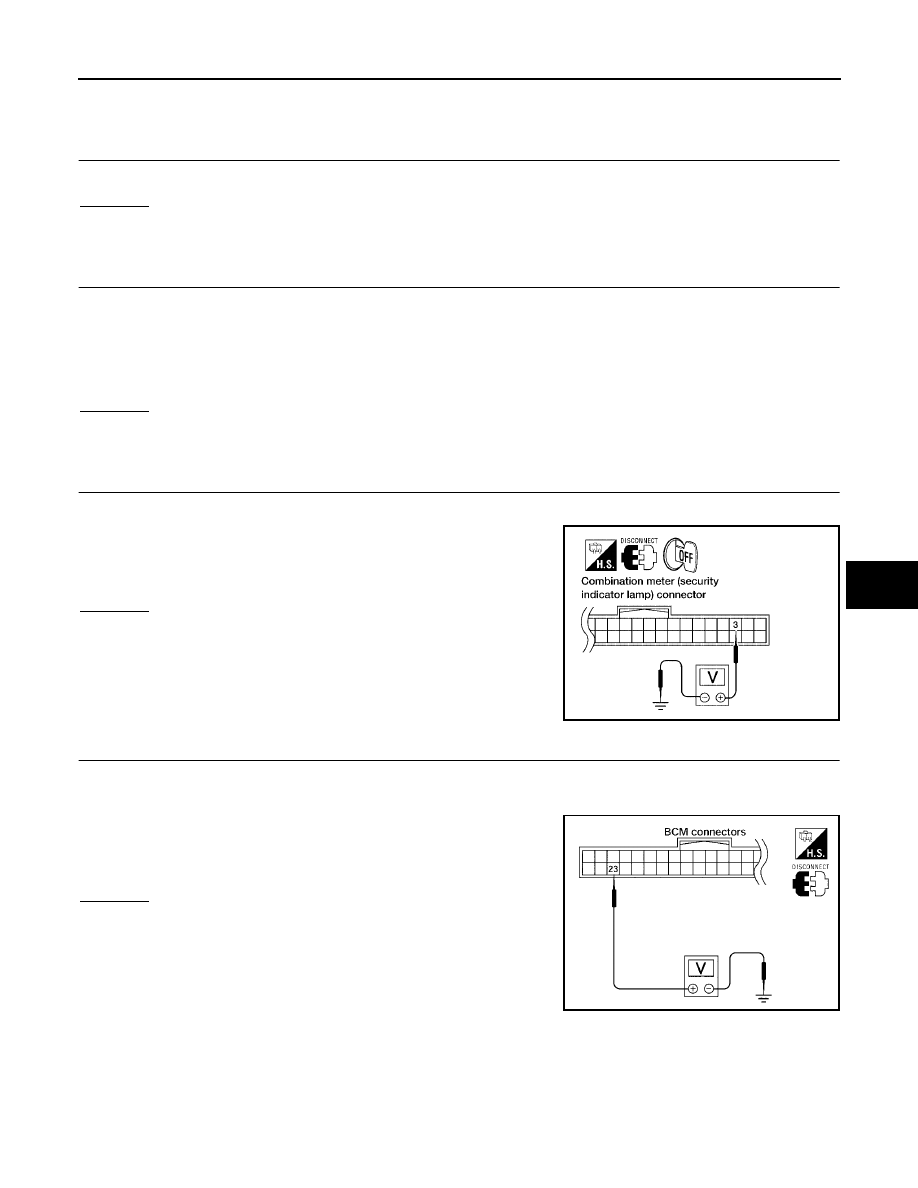

Diagnostic Procedure 6

EIS007QN

“SECURITY INDICATOR LAMP DOES NOT LIGHT UP”

1.

CHECK FUSE

Check 10A fuse [No.19, located in the fuse block (J/B)].

OK or NG

OK

>> GO TO 2.

NG

>> Replace fuse.

2.

CHECK SECURITY INDICATOR LAMP

1.

Install 10A fuse.

2.

Start engine and turn ignition switch OFF.

3.

Check the security indicator lamp lights up.

OK or NG

OK

>> Inspection End.

NG

>> GO TO 3.

3.

CHECK SECURITY INDICATOR LAMP POWER SUPPLY CIRCUIT

1.

Disconnect combination meter.

2.

Check voltage between combination meter connector M24 ter-
minal 3 and ground.

OK or NG

OK

>> GO TO 4.

NG

>> Repair or replace harness.

4.

CHECK BCM (NATS CONTROL UNIT) FUNCTION

1.

Connect combination meter.

2.

Disconnect BCM.

3.

Check voltage between BCM connector M18 terminal 23 and
ground.

OK or NG

OK

>> BCM is malfunctioning.

●

Replace BCM.
Ref. part No. A

●

Perform initialization with CONSULT-II.

●

For initialization, refer to “CONSULT-II Operation
Manual NATS-IVIS/NVIS”.

NG

>> Check the following:

●

Harness for open or short between combination meter and BCM (NATS control unit).

●

Combination meter

 Security indicator lamp should light up.

3 - Ground

: Battery voltage

WIIA0467E

23 - Ground

: Battery voltage

LIIA0523E

BL-118

NVIS(NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS)

2006 Pathfinder

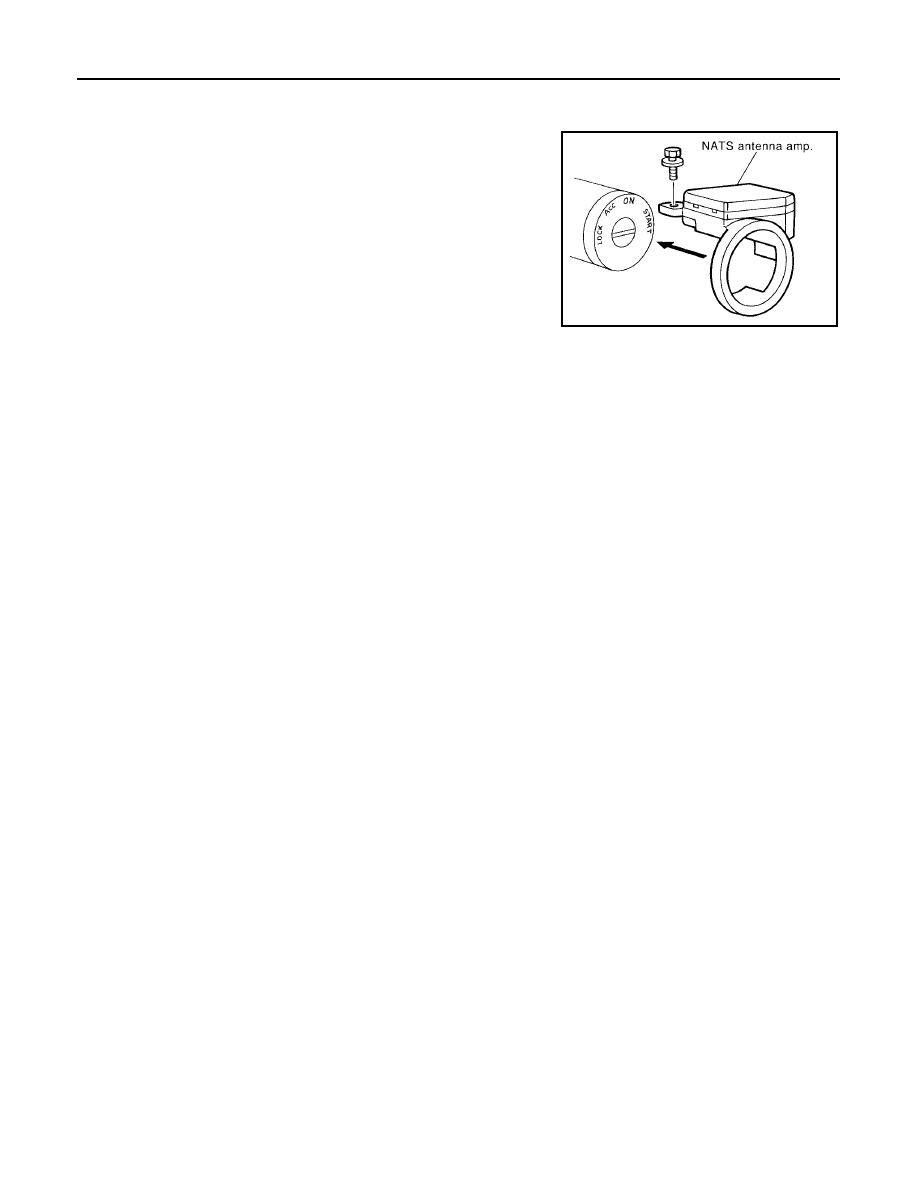

How to Replace NATS Antenna Amp.

EIS007QO

NOTE:

●

If NATS antenna amp. is not installed correctly, NVIS (NATS)
system will not operate properly and SELF-DIAG RESULTS
on CONSULT-II screen will show “LOCK MODE” or “CHAIN
OF IMMU-KEY”.

●

Initialization is not necessary when only NATS antenna
amp. is replaced with a new one.

SIIA1683E

HOMELINK UNIVERSAL TRANSCEIVER

BL-119

C

D

E

F

G

H

J

K

L

M

A

B

BL

2006 Pathfinder

HOMELINK UNIVERSAL TRANSCEIVER

PFP:96401

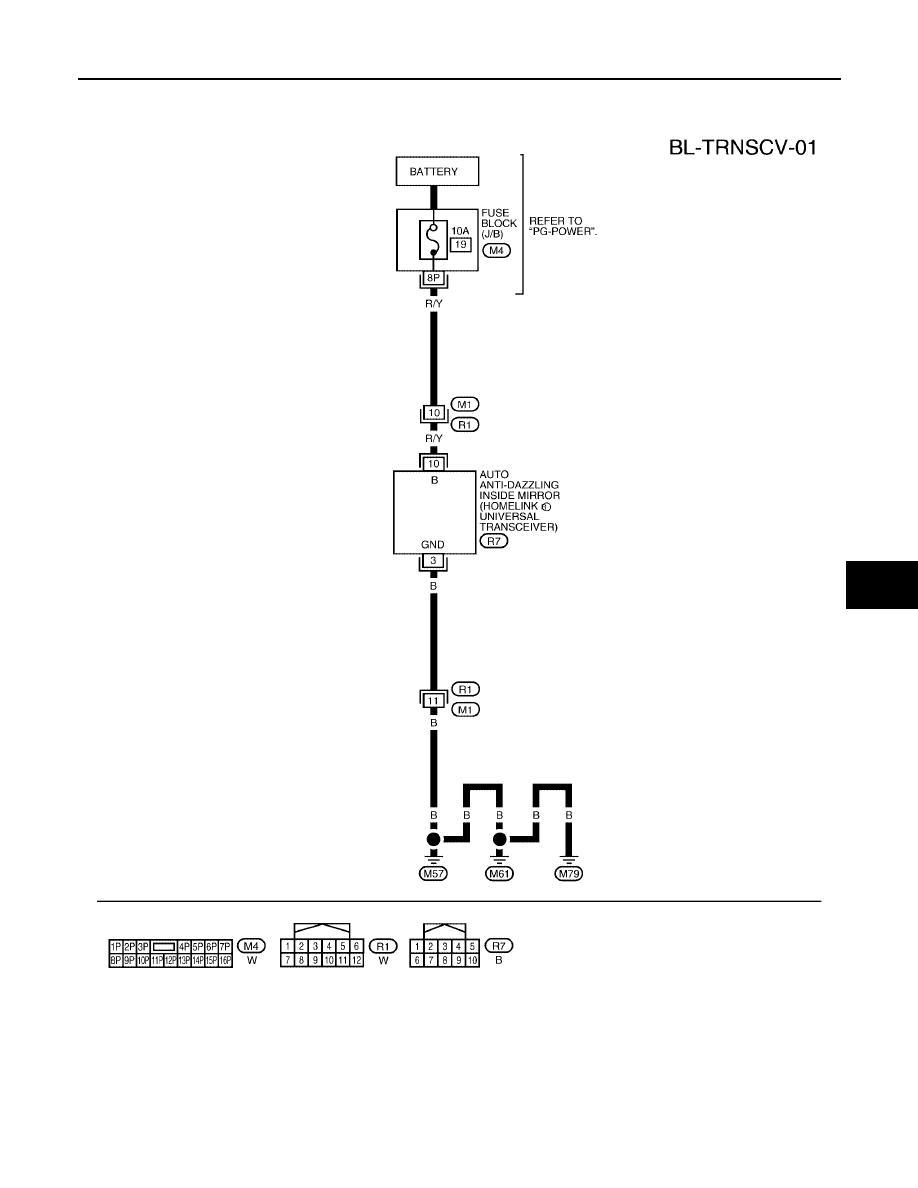

Wiring Diagram — TRNSCV —

EIS007QP

WIWA1621E

BL-120

HOMELINK UNIVERSAL TRANSCEIVER

2006 Pathfinder

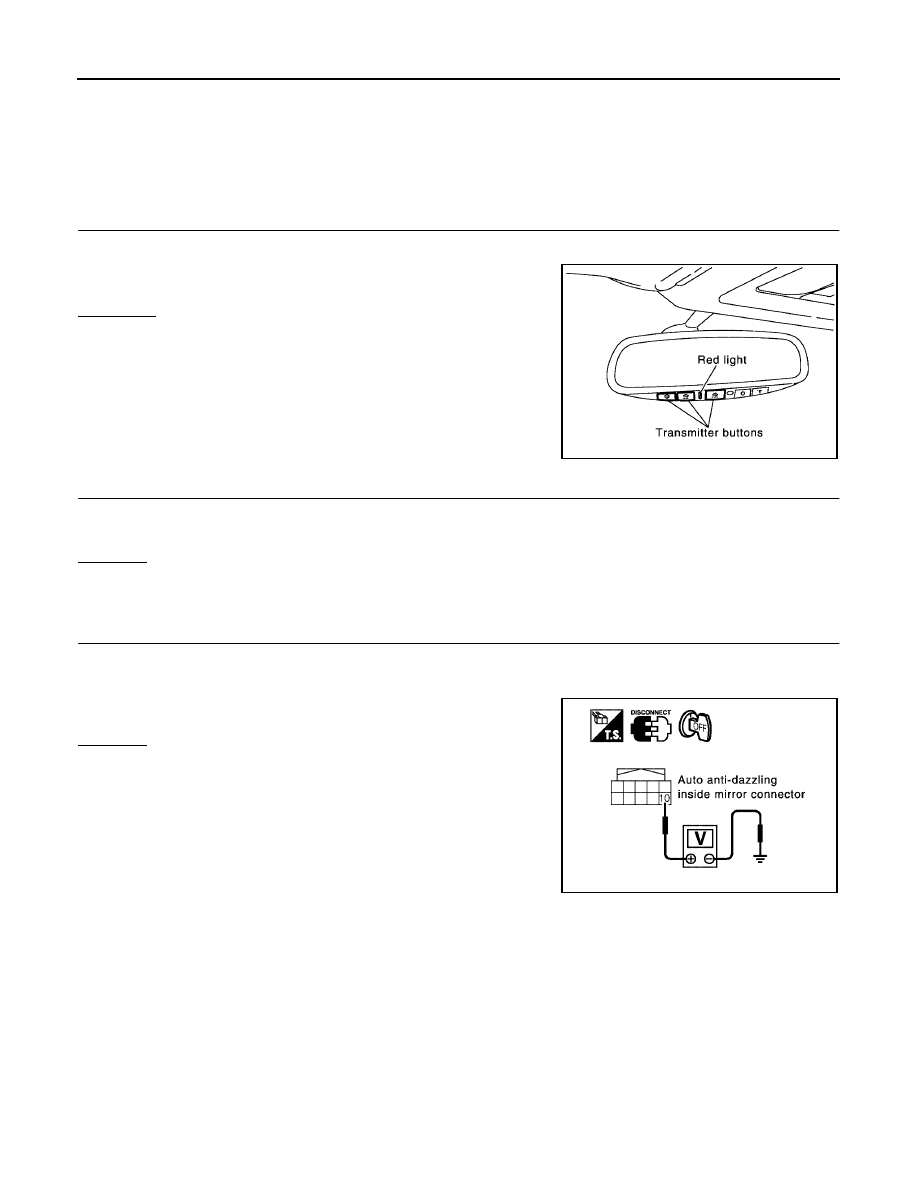

Trouble Diagnoses

EIS007QQ

DIAGNOSTIC PROCEDURE
SYMPTOM: Transmitter does not activate receiver.

Before conducting the procedure given below, make sure that system receiver (garage door opener, etc.)
operates with original, hand-held transmitter. If NG, receiver or hand-held transmitter is at fault, not vehicle
related.

1.

ILLUMINATION CHECK

1.

Turn ignition switch OFF.

2.

Does red light (LED) of transmitter illuminate when any button is
pressed?

YES or NO

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

TRANSMITTER CHECK

Check transmitter with Tool*.
*:For details, refer to Technical Service Bulletin.

OK or NG

OK

>> Receiver or hand-held transmitter malfunction, not vehicle related.

NG

>> Replace transmitter.

3.

POWER SUPPLY CHECK

1.

Disconnect transmitter.

2.

Check voltage between auto anti-dazzling inside mirror connector R7 terminal 10 and ground.

OK or NG

OK

>> GO TO 4.

NG

>> Repair or replace fuse or harness.

PIIA4815E

10 - Ground

: Battery voltage

LIIA0839E

HOMELINK UNIVERSAL TRANSCEIVER

BL-121

C

D

E

F

G

H

J

K

L

M

A

B

BL

2006 Pathfinder

4.

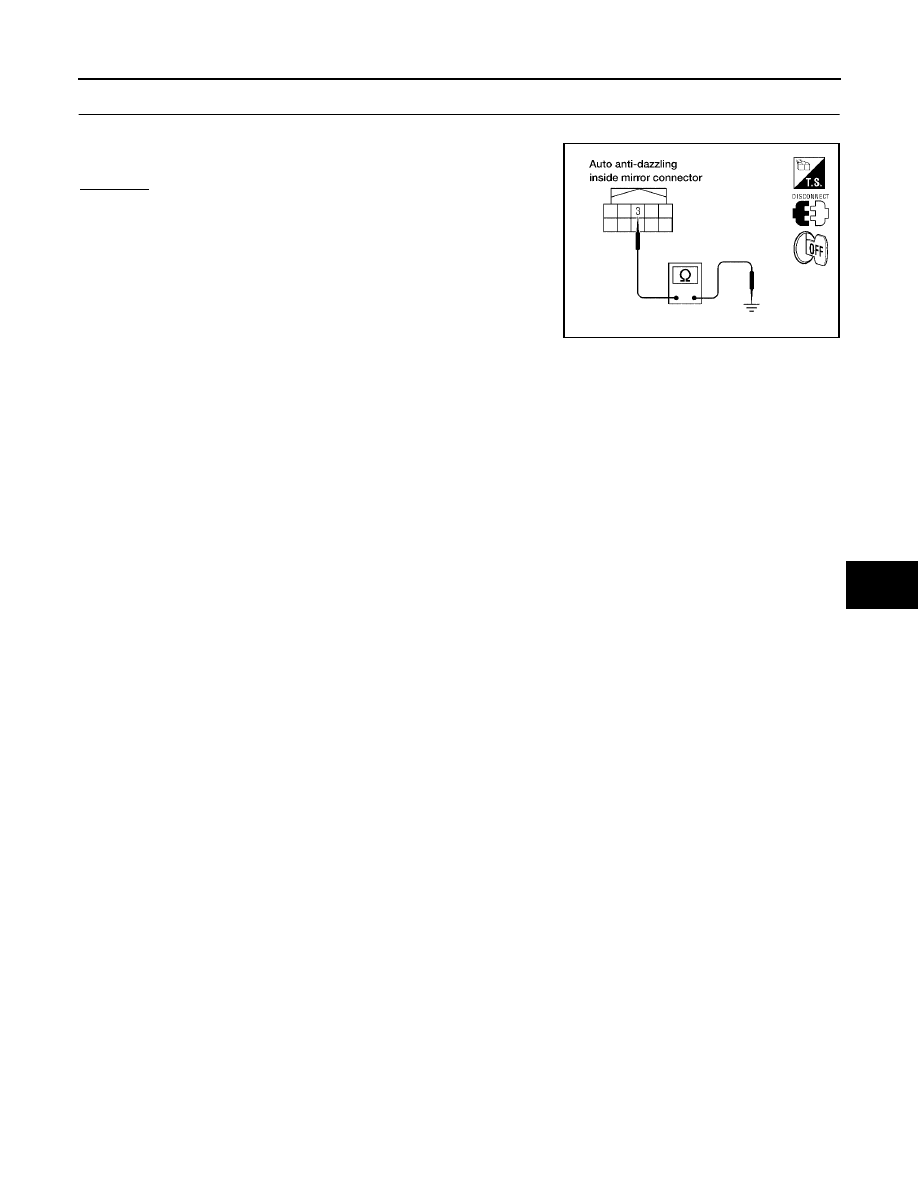

GROUND CIRCUIT CHECK

Check continuity between auto anti-dazzling inside mirror connector R7 terminal 3 and body ground.

OK or NG

OK

>> Replace auto anti-dazzling inside mirror assembly.

NG

>> Repair or replace harness.

3 - Ground

: Continuity should exist.

WIIA0464E

BL-122

CAB AND REAR BODY

2006 Pathfinder

CAB AND REAR BODY

PFP:93020

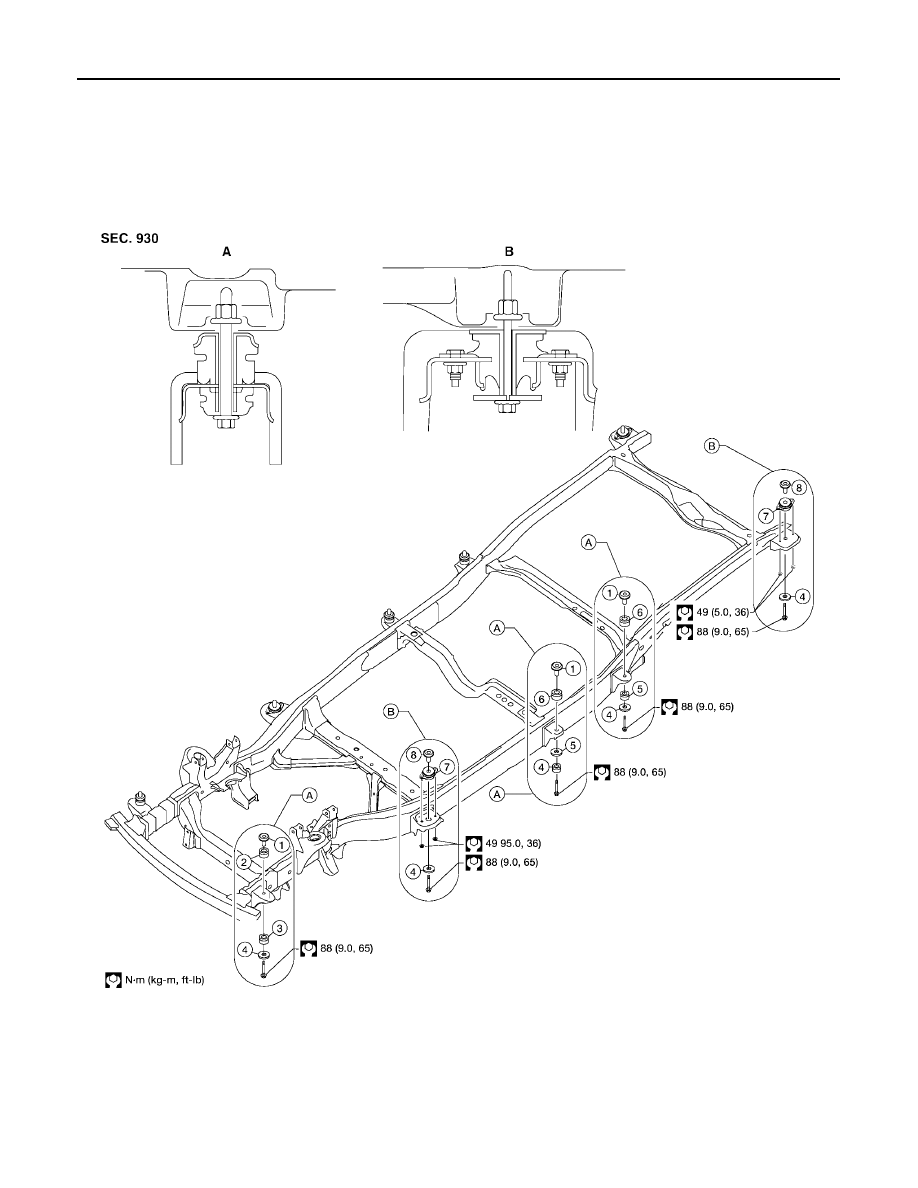

Body Mounting

EIS007QR

●

When removing, be sure to replace bolts and nuts (sealant applied bolts or self-lock nuts are used for all
mounting).

●

Unless otherwise noted, the bushings and insulators have paint marks that are to be installed facing out-
ward.

1.

Gold washer

2.

Upper bushing

3.

Lower bushing

4.

Black washer

5.

Lower bushing without paint mark

6.

Upper bushing without paint mark

7.

Body mount insulator

8.

Body washer

LIIA1734E

BODY REPAIR

BL-123

C

D

E

F

G

H

J

K

L

M

A

B

BL

2006 Pathfinder

BODY REPAIR

PFP:60100

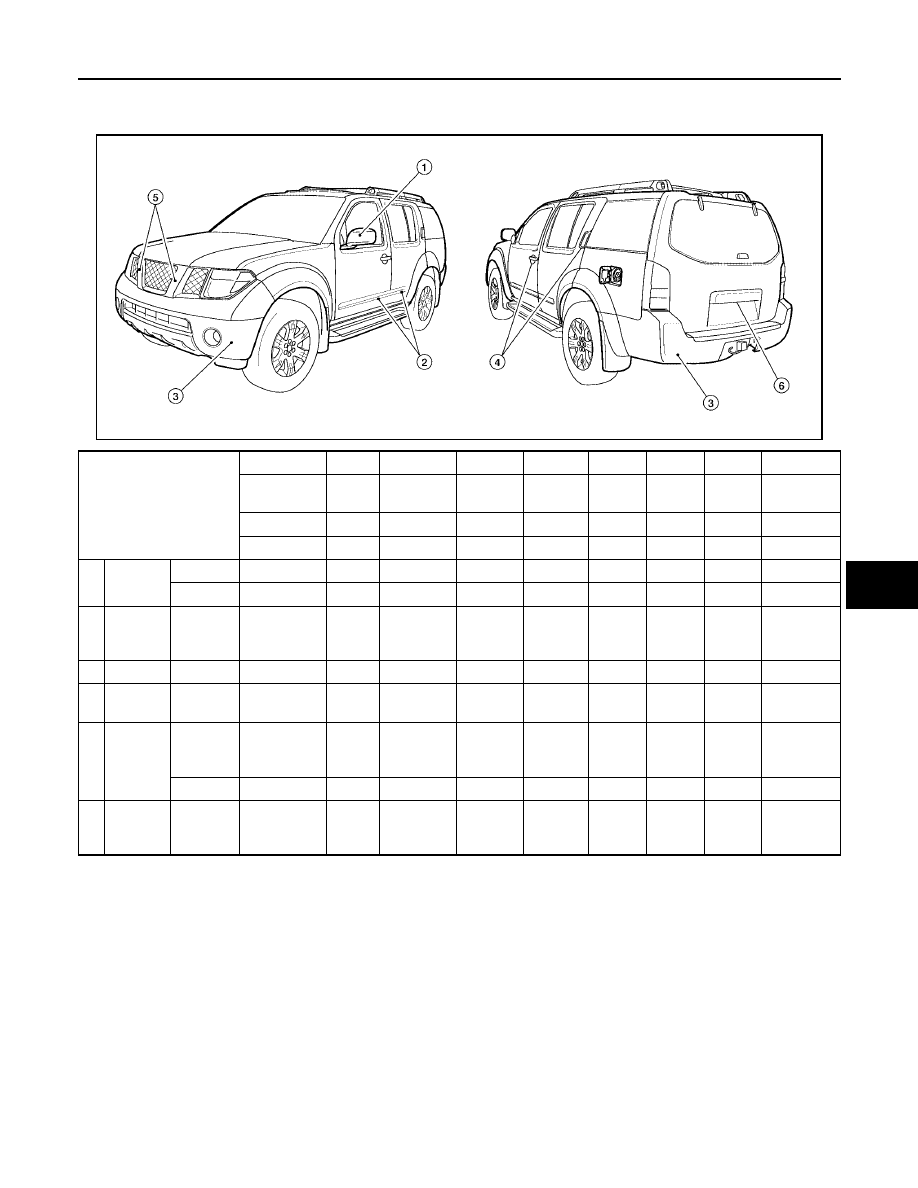

Body Exterior Paint Color

EIS007QS

M: Metallic; S: 1-Coat Solid; 2S: 2-Coat Solid, 2P: 2-Coat Pearl; PM: Pearl + Metallic

LIIA1735E

Component

Color code

A15

B25

BW9

K12

K27

KH3

KY2

QM1

Description

Red

Brawn

Silverton

Blue

Majestic

Blue

Silver

Lightning

Storm

Gray

Super

Black

Granite

Avalanche

Paint type

PM

PM

PM

M

M

2S

M

S

Clear coat

t

t

t

t

t

t

t

t

1

Outside
mirror

Body color

A15

B25

BW9

K12

K27

KH3

KY2

QM1

XE

Black

KH3

KH3

KH3

KH3

KH3

KH3

KH3

KH3

2

Side
Guard
Molding

Body color

A15

B25

BW9

K12

K27

KH3

KY2

QM1

3

Bumpers

Fascias

Body color

A15

B25

BW9

K12

K27

KH3

KY2

QM1

4

Outside
handles

Body color

A15

B25

BW9

K12

K27

KH3

KY2

QM1

5

Radiator
grille

Center
and
emblem

Chromium
plate

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

Center

Black

KH3

KH3

KH3

KH3

KH3

KH3

KH3

KH3

6

License
Lamp
Finisher

Chromium
plate

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

BL-124

BODY REPAIR

2006 Pathfinder

Body Component Parts

EIS007QT

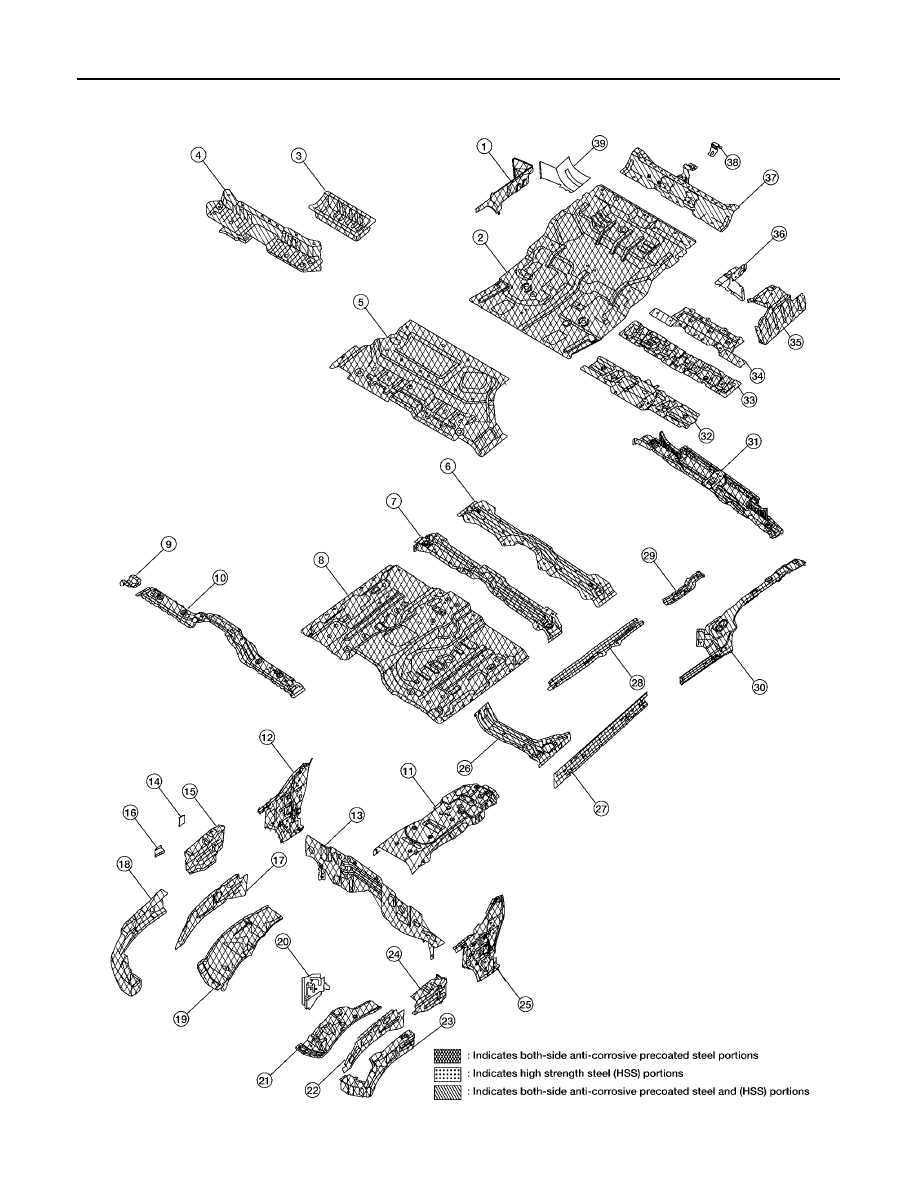

UNDERBODY COMPONENT PARTS

LIIA1787E
