Nissan Pathfinder (2006 year). Manual - part 96





VEHICLE SECURITY (THEFT WARNING) SYSTEM

BL-69

C

D

E

F

G

H

J

K

L

M

A

B

BL

2006 Pathfinder

System Description

EIS007PL

DESCRIPTION

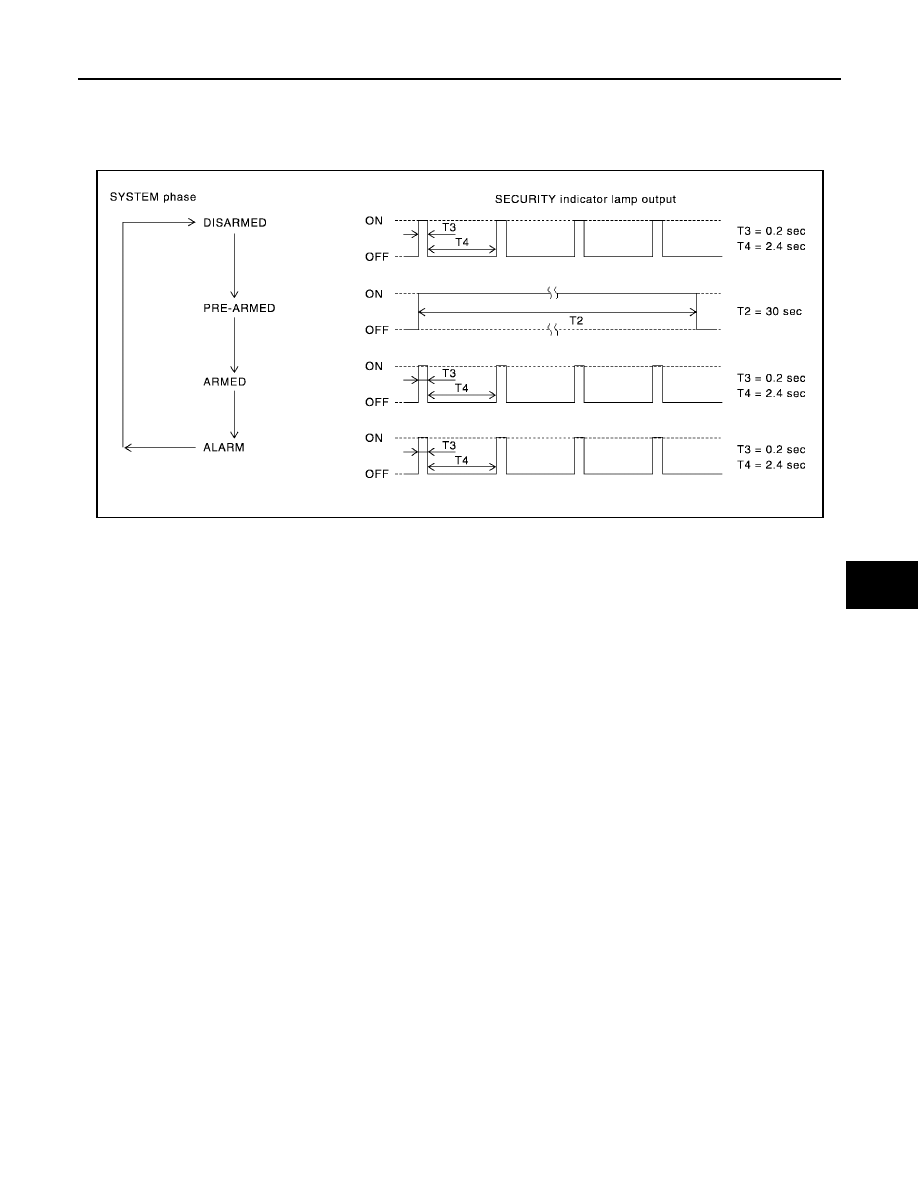

Operation Flow



Setting the vehicle security system

Initial condition

Ignition switch is in OFF position.

Disarmed phase

When the vehicle is being driven or when doors are open, the vehicle security system is set in the dis-
armed phase on the assumption that the owner is inside or near the vehicle.

Pre-armed phase and armed phase

The vehicle security system turns into the "pre-armed" phase when all doors and glass hatch are closed
and locked. The security indicator lamp illuminates for 30 seconds. Then, the system automatically shifts
into the "armed" phase.

Canceling the set vehicle security system

When one of the following operations is performed, the armed phase is canceled.
1.

Unlock the doors with the key.

2.

Unlock the doors with the keyfob.

Activating the alarm operation of the vehicle security system

Make sure the system is in the armed phase.
When one of the following operations is performed, the system sounds the horns and flashes the headlamps
for about 50 seconds.

1.

Any door is opened before unlocking door with key or keyfob.

2.

Door is unlocked without using key or keyfob.

POWER SUPPLY AND GROUND CIRCUIT

Power is supplied at all times

through 10A fuse [No.19, located in the fuse block (J/B)]

to combination meter (security indicator lamp) terminal 3.

through 50A fusible link (letter g , located in the fuse and fusible link box)

to BCM (body control module) terminal 70.

through 10A fuse [No. 18, located in the fuse block (J/B)]

to BCM terminal 57.

through 15A fuse (No. 30, located in the fuse and fusible link box)

PIIA1367E

BL-70

VEHICLE SECURITY (THEFT WARNING) SYSTEM

2006 Pathfinder

to horn relay terminal 2.

through 20A fuse (No. 52, located in the IPDM E/R) and

through 20A fuse (No. 53, located in the IPDM E/R),

to IPDM E/R internal CPU.

With the ignition switch in the ACC or ON position, power is supplied

through 10A fuse [No. 4, located in the fuse block (J/B)]

to BCM terminal 11.

Ground is supplied

to BCM terminal 67

through body grounds M57, M61 and M79 and

to IPDM E/R terminals 38 and 59

through body ground E9, E15 and E24.

INITIAL CONDITION TO ACTIVATE THE SYSTEM

The operation of the vehicle security system is controlled by the doors and glass hatch.
To activate the vehicle security system, BCM must receive signals indicating the doors are closed and locked.
When a door is open, BCM terminal 12, 13, 47 or 48 receives a ground signal from each door switch.
When the glass hatch is open, BCM terminal 42 receives a ground signal from glass hatch ajar switch.
When front door LH or RH is unlocked, BCM terminal 46 receives a signal from terminal 11 of main power win-
dow and door lock/unlock switch or terminal 2 of power window and door lock/unlock switch RH.
When the back door is open, BCM terminal 43 receives a ground signal

from terminal 3 of the back door switch

through terminal 1 of the back door switch

through body grounds D406 and D504.

VEHICLE SECURITY SYSTEM ALARM OPERATION

The vehicle security system is triggered by

opening a door

unlocking door without using the key or keyfob.

The vehicle security system will be triggered once the system is in armed phase,

when BCM receives a ground signal at terminals 12, 13, 47, 48 (door switch), terminal 43 (back door
switch), or terminal 42 (glass hatch ajar switch).

When the vehicle security system is triggered, ground is supplied intermittently

from IPDM E/R CPU

to headlamp high relay and

from IPDM E/R terminal 45

to horn relay terminal 1.

The headlamps flash and the horn sounds intermittently.
The alarm automatically turns off after 50 seconds, but will reactivate if the vehicle is tampered with again.

VEHICLE SECURITY SYSTEM DEACTIVATION

To deactivate the vehicle security system, a door must be unlocked with the key or keyfob.
When the key is used to unlock a door, BCM terminal 7 receives signal

from terminal 3 of front door lock assembly LH (key cylinder switch).

When the BCM receives either one of these signals or unlock signal from keyfob or key cylinder switch, the
vehicle security system is deactivated. (Disarmed phase)

PANIC ALARM OPERATION

Remote keyless entry system can operate vehicle security system (horn and headlamps) as required.
When the remote keyless entry system is triggered, ground is supplied intermittently

from IPDM E/R CPU

to headlamp high relay and

from IPDM E/R terminal 45

to horn relay terminal 1.

VEHICLE SECURITY (THEFT WARNING) SYSTEM

BL-71

C

D

E

F

G

H

J

K

L

M

A

B

BL

2006 Pathfinder

The headlamp flashes and the horn sounds intermittently.
The alarm automatically turns off after 25 seconds or when BCM receives any signal from keyfob.

CAN Communication System Description

EIS007PM

Refer to

LAN-25, "CAN COMMUNICATION"

 .

BL-72

VEHICLE SECURITY (THEFT WARNING) SYSTEM

2006 Pathfinder

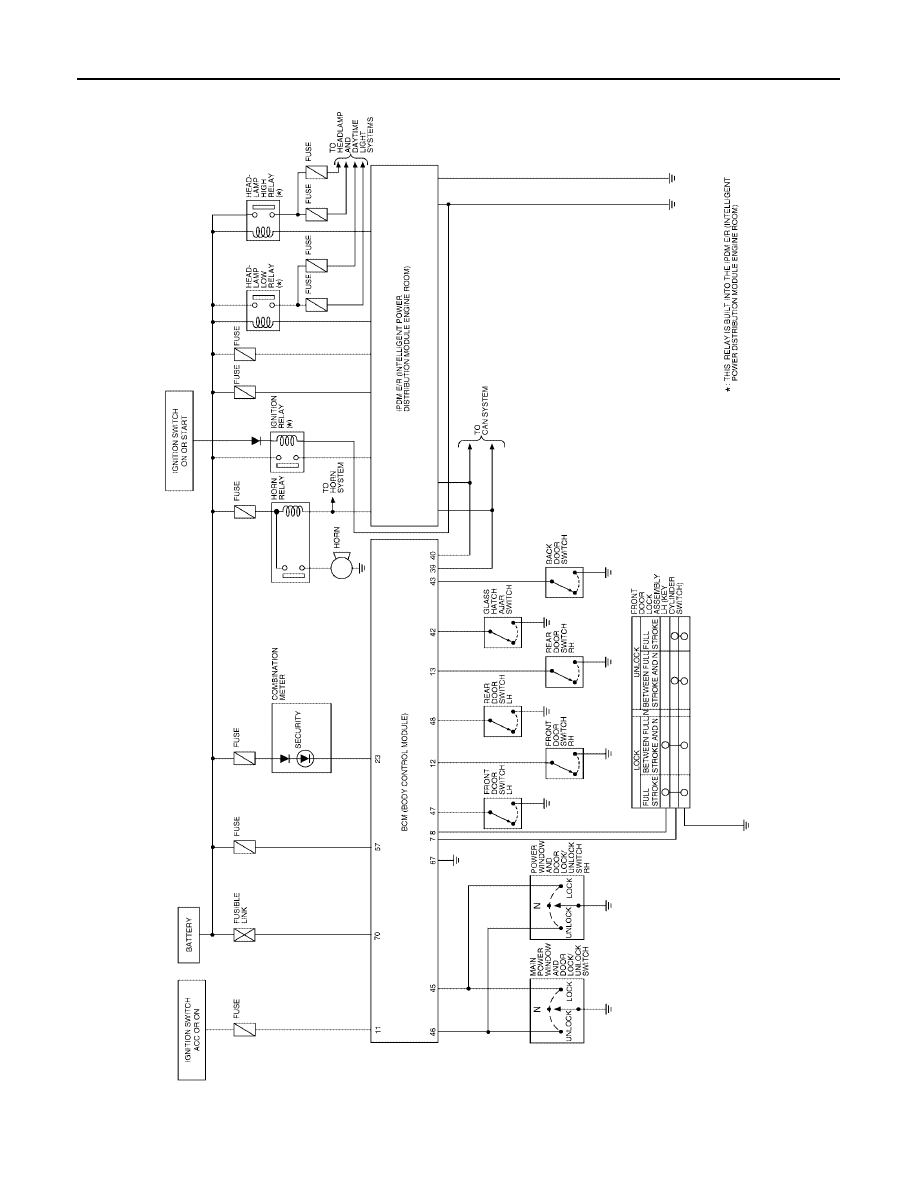

Schematic

EIS007PN

WIWA1615E

VEHICLE SECURITY (THEFT WARNING) SYSTEM

BL-73

C

D

E

F

G

H

J

K

L

M

A

B

BL

2006 Pathfinder

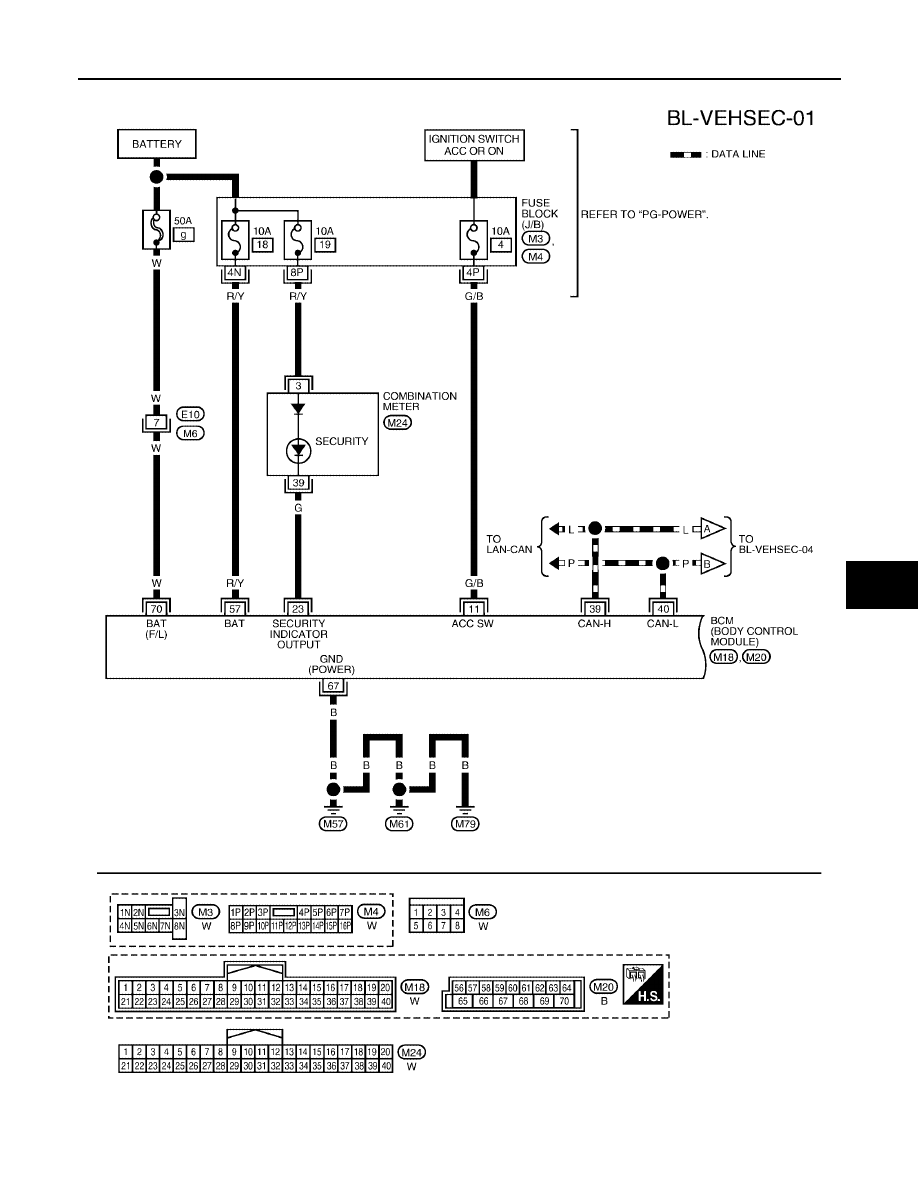

Wiring Diagram — VEHSEC —

EIS007PO

WIWA1616E

BL-74

VEHICLE SECURITY (THEFT WARNING) SYSTEM

2006 Pathfinder

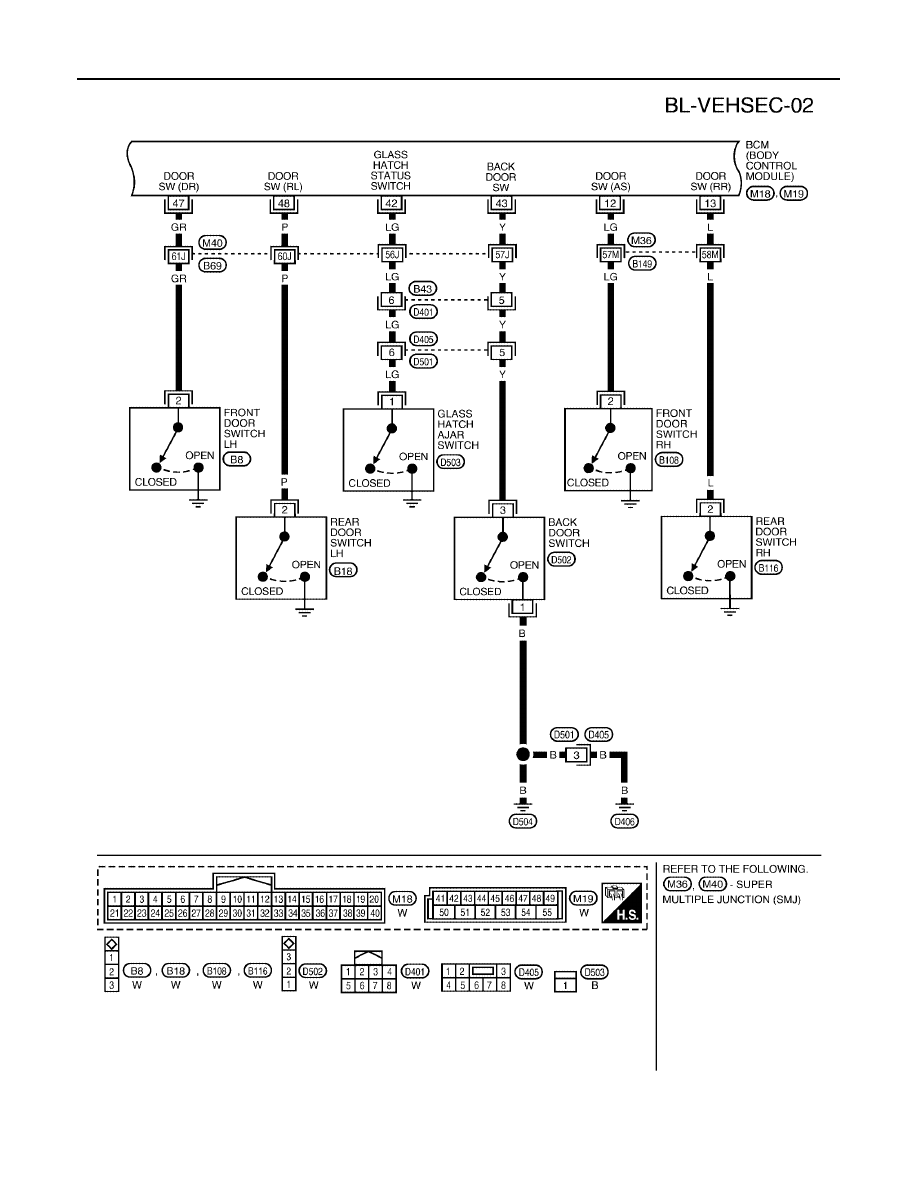

WIWA1624E

VEHICLE SECURITY (THEFT WARNING) SYSTEM

BL-75

C

D

E

F

G

H

J

K

L

M

A

B

BL

2006 Pathfinder

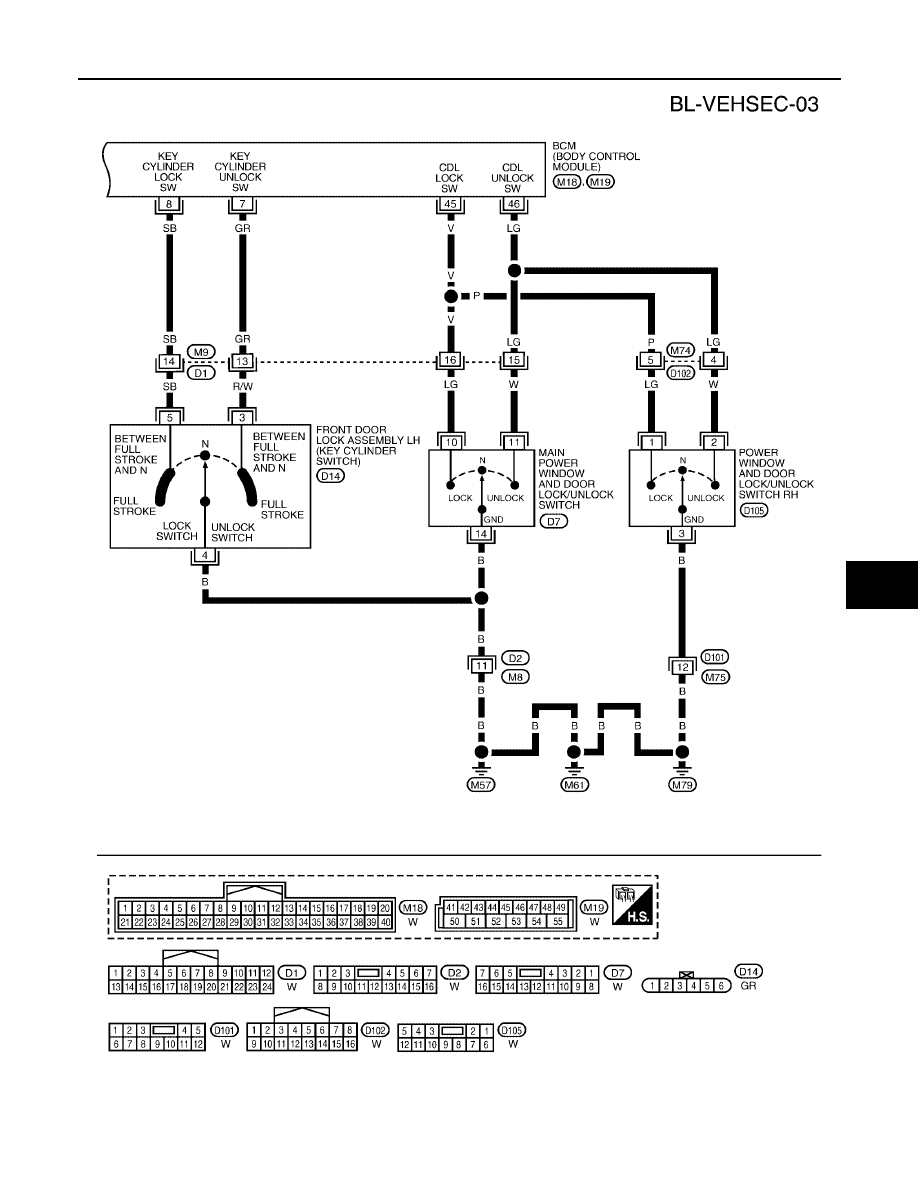

WIWA1617E

BL-76

VEHICLE SECURITY (THEFT WARNING) SYSTEM

2006 Pathfinder

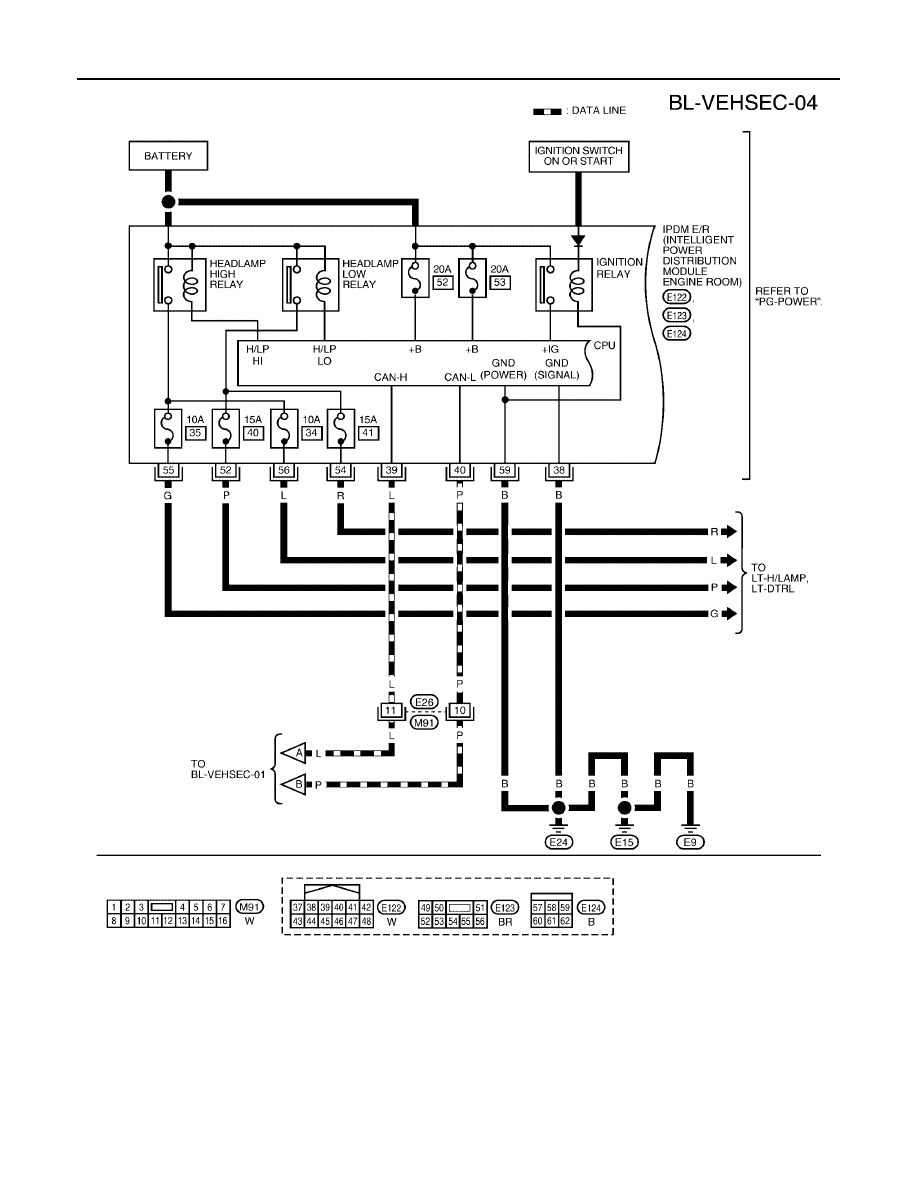

WIWA1618E
