Nissan Pathfinder (2006 year). Manual - part 93





REMOTE KEYLESS ENTRY SYSTEM

BL-45

C

D

E

F

G

H

J

K

L

M

A

B

BL

2006 Pathfinder

Schematic

EIS007OY

WIWA1623E

BL-46

REMOTE KEYLESS ENTRY SYSTEM

2006 Pathfinder

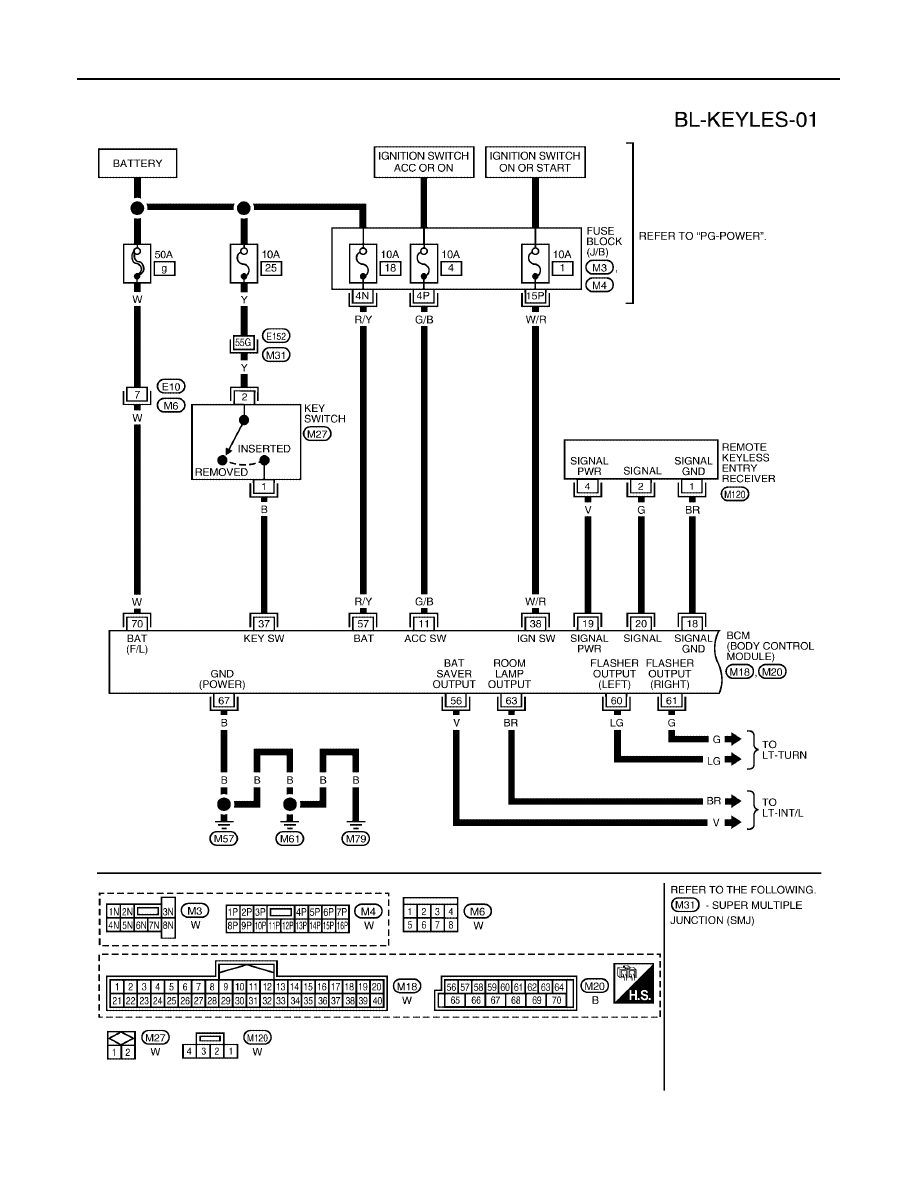

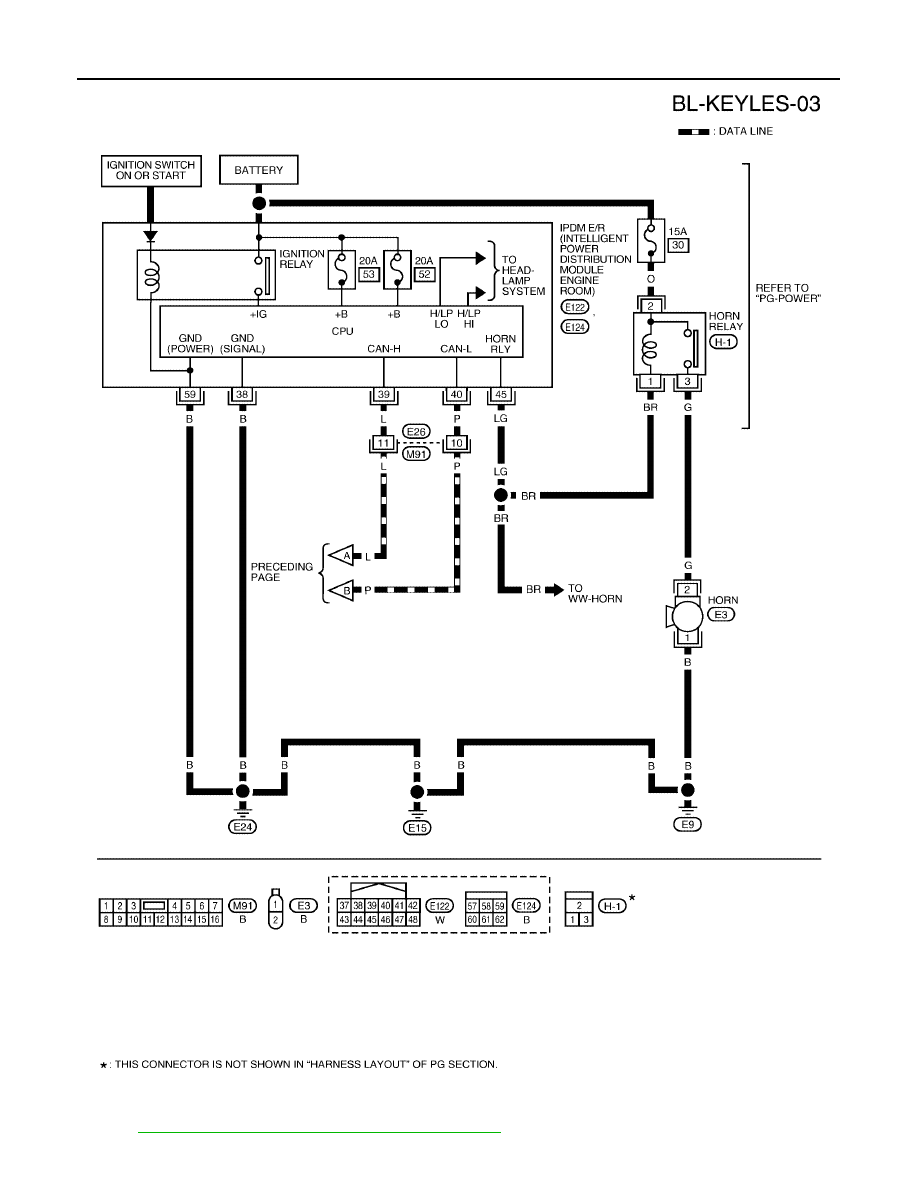

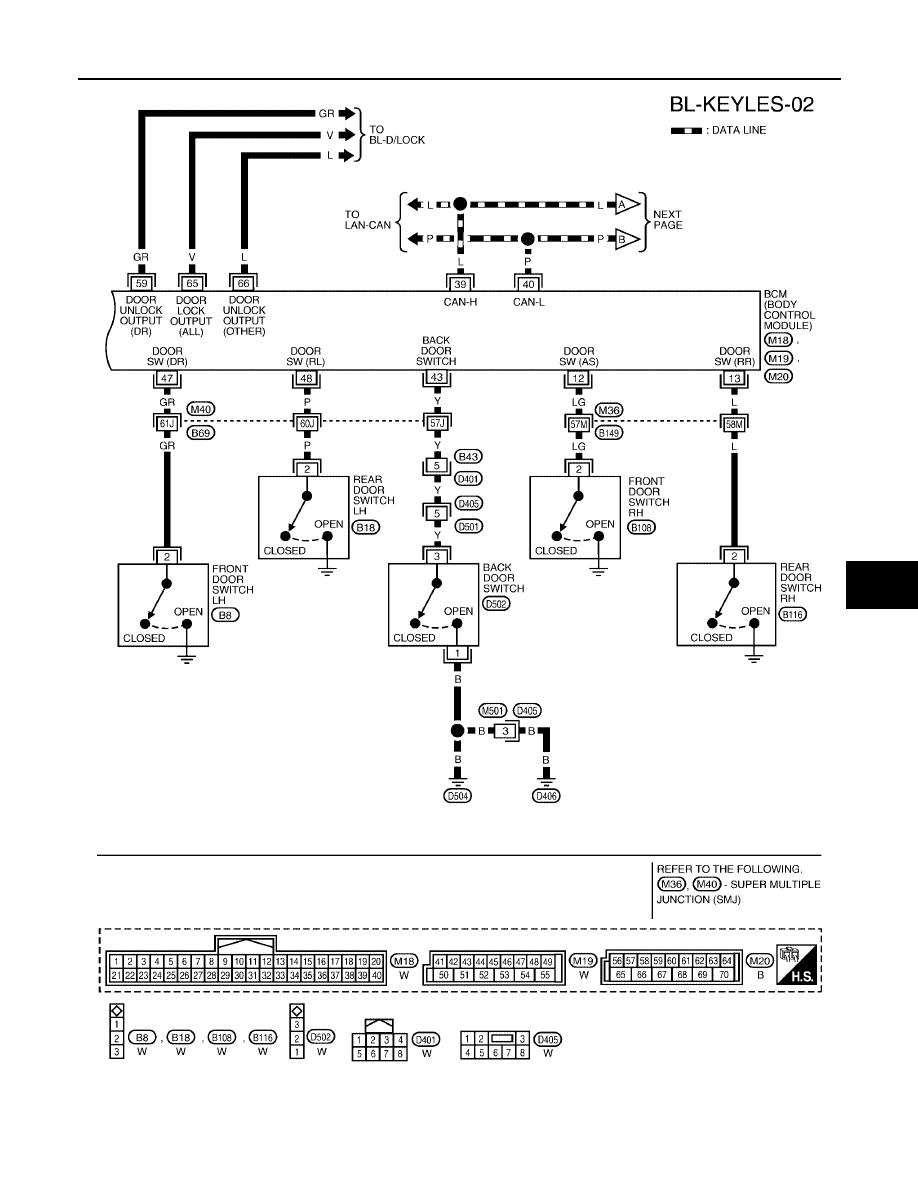

Wiring Diagram — KEYLES —

EIS007OZ

WIWA1613E

REMOTE KEYLESS ENTRY SYSTEM

BL-47

C

D

E

F

G

H

J

K

L

M

A

B

BL

2006 Pathfinder

WIWA1628E

BL-48

REMOTE KEYLESS ENTRY SYSTEM

2006 Pathfinder

Terminals and Reference Value for BCM

EIS007P0

Refer to

BCS-12, "Terminals and Reference Values for BCM"

 .

WIWA1614E

REMOTE KEYLESS ENTRY SYSTEM

BL-49

C

D

E

F

G

H

J

K

L

M

A

B

BL

2006 Pathfinder

Terminals and Reference Value for IPDM E/R

EIS007P1

Refer to

PG-28, "Terminals and Reference Values for IPDM E/R"

 .

BL-50

REMOTE KEYLESS ENTRY SYSTEM

2006 Pathfinder

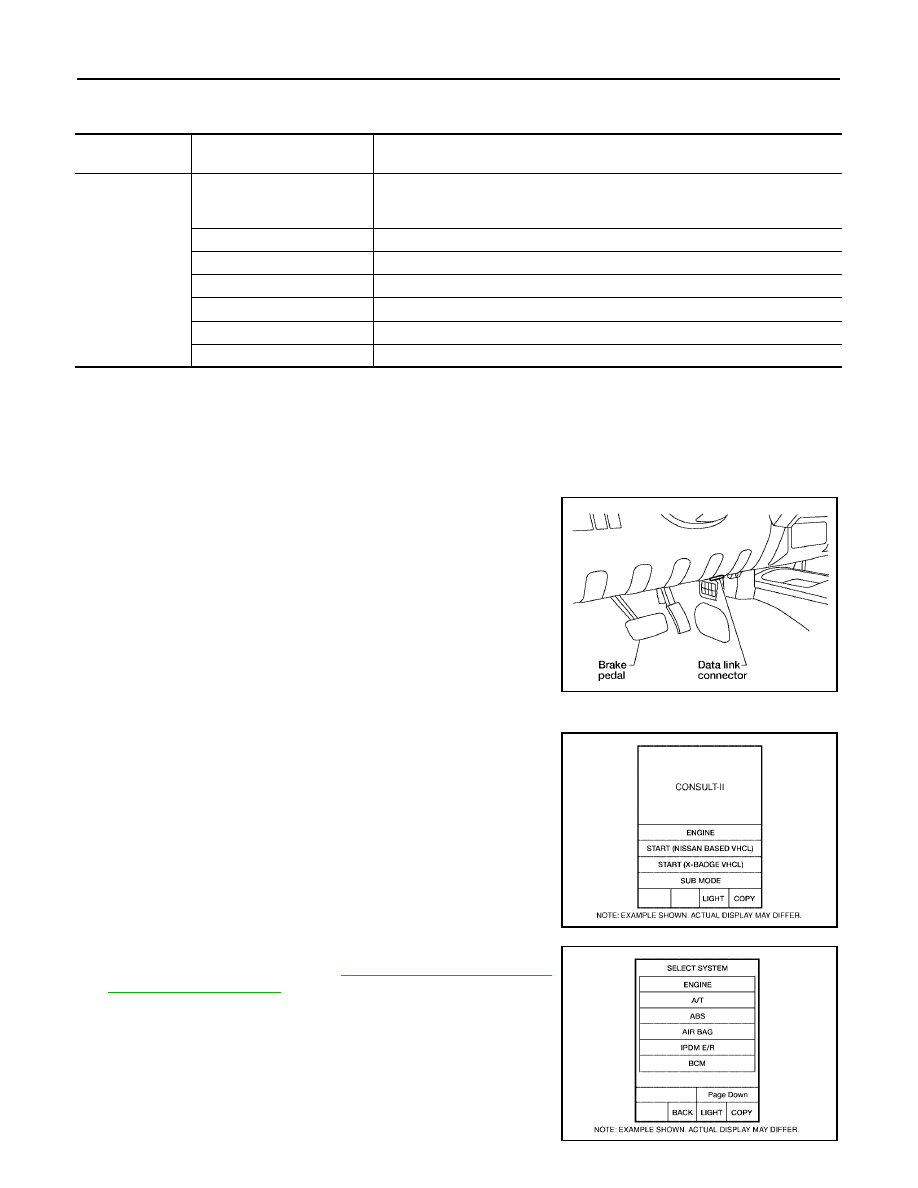

CONSULT-II Function (BCM)

EIS007P2

CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.

CONSULT-II Inspection Procedure

EIS007P3

“MULTI REMOTE ENT”

CAUTION:

If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carries out CAN communication.

1.

Turn ignition switch OFF.

2.

Connect CONSULT-II and CONSULT-II CONVERTER to the
data link connector.

3.

Turn ignition switch ON.

4.

Touch “START (NISSAN BASED VHCL)".

5.

Touch “BCM”.
If "BCM" is not indicated, refer to

GI-40, "CONSULT-II Data Link

Connector (DLC) Circuit"

 .

BCM diagnostic

test item

Diagnostic mode

Description

Inspection by part

WORK SUPPORT

Supports inspections and adjustments. Commands are transmitted to the BCM
for setting the status suitable for required operation, input/output signals are
received from the BCM and received data is displayed.

DATA MONITOR

Displays BCM input/output data in real time.

ACTIVE TEST

Operation of electrical loads can be checked by sending drive signal to them.

SELF-DIAG RESULTS

Displays BCM self-diagnosis results.

CAN DIAG SUPPORT MNTR

The result of transmit/receive diagnosis of CAN communication can be read.

ECU PART NUMBER

BCM part number can be read.

CONFIGURATION

Performs BCM configuration read/write functions.

BBIA0538E

BCIA0029E

BCIA0030E

REMOTE KEYLESS ENTRY SYSTEM

BL-51

C

D

E

F

G

H

J

K

L

M

A

B

BL

2006 Pathfinder

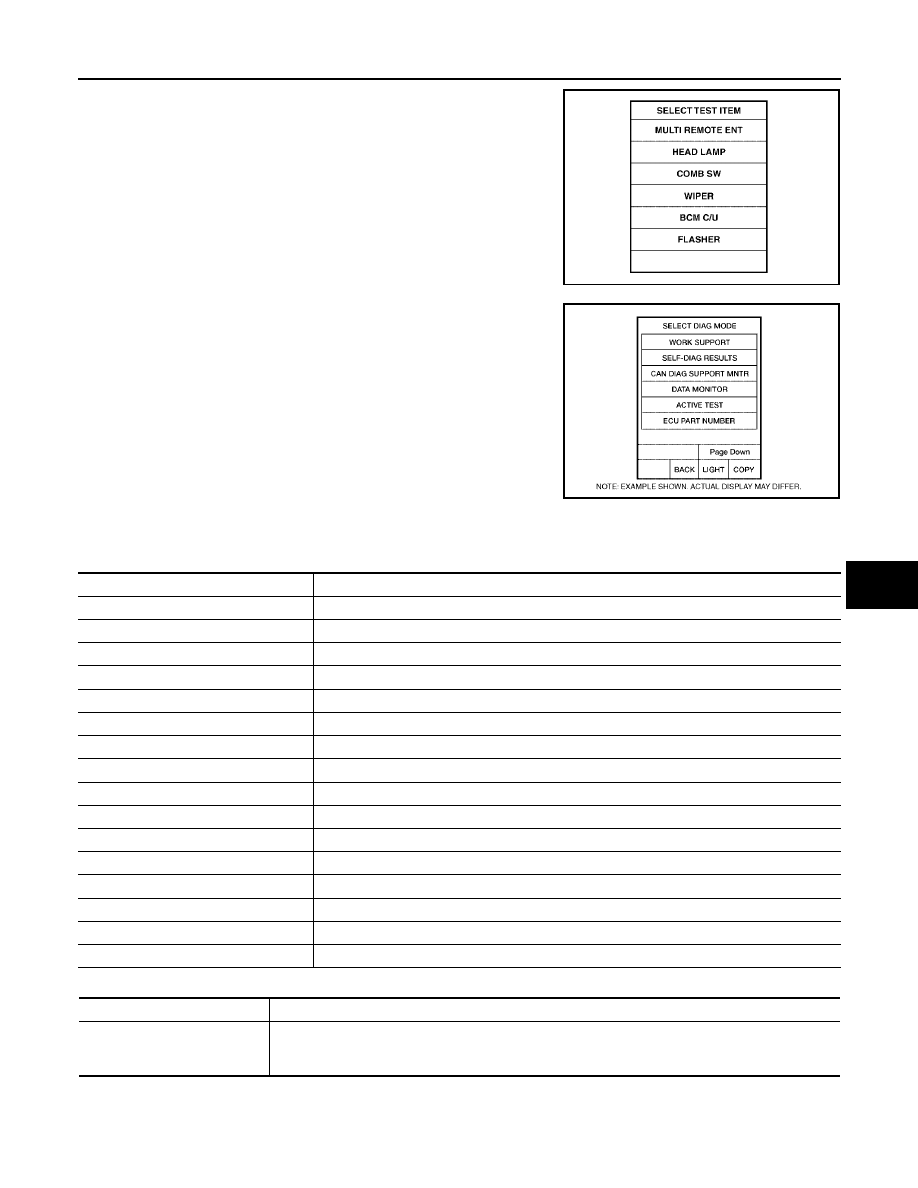

6.

Touch “MULTI REMOTE ENT”.

7.

Select diagnosis mode.
“DATA MONITOR”, “ACTIVE TEST” and “WORK SUPPORT”
are available.

CONSULT-II Application Items

EIS007P4

“MULTI REMOTE ENT”
Data Monitor

Active Test

LIIA0194E

BCIA0031E

Monitored Item

Description

DOOR SW-AS

Indicates [ON/OFF] condition of front door switch RH.

DOOR SW-RR

Indicates [ON/OFF] condition of rear door switch RH.

DOOR SW-RL

Indicates [ON/OFF] condition of rear door switch LH.

DOOR SW-DR

Indicates [ON/OFF] condition of front door switch LH.

BACK DOOR SW

Indicates [ON/OFF] condition of back door switch.

KEY ON SW

Indicates [ON/OFF] condition of key switch.

ACC ON SW

Indicates [ON/OFF] condition of ignition switch in ACC position.

IGN ON SW

Indicates [ON/OFF] condition of ignition switch in ON position.

KEYLESS PANIC

Indicates [ON/OFF] condition of panic signal from keyfob.

KEYLESS UNLOCK

Indicates [ON/OFF] condition of unlock signal from keyfob.

KEYLESS LOCK

Indicates [ON/OFF] condition of lock signal from keyfob.

KEY CYL LK-SW

Indicates [ON/OFF] condition of lock signal from door key cylinder switch.

CDL UNLOCK SW

Indicates [ON/OFF] condition of unlock signal from lock/unlock switch.

CDL LOCK SW

Indicates [ON/OFF] condition of lock signal from lock/unlock switch.

RKE LCK-UNLCK

Indicates [ON/OFF] condition of lock/unlock signal at the same time from keyfob.

RKE KEEP UNLK

Indicates [ON/OFF] condition of unlock signal from keyfob.

Test Item

Description

FLASHER

This test is able to check right and left hazard reminder operation. The right hazard lamp turns on
when “RH” on CONSULT-II screen is touched and the left hazard lamp turns on when "LH" on CON-
SULT-II screen is touched.

BL-52

REMOTE KEYLESS ENTRY SYSTEM

2006 Pathfinder

Work Support

*: Perform this mode always in the state of C mode. Refer to

BL-43, "Hazard and Horn Reminder"

 .

HORN CHIRP SET*

*: Perform this mode always in the state of C mode. Refer to

BL-43, "Hazard and Horn Reminder"

 .

HAZARD LAMP BACK SET*

*: Perform this mode always in the state of C mode. Refer to

BL-43, "Hazard and Horn Reminder"

 .

MULTI ANSWER BACK SET

AUTO LOCK SET

PANIC ALARM SET

HORN

This test is able to check panic alarm and horn reminder operations. The alarm activate for 0.5 sec-
onds after “ON” on CONSULT-II screen is touched.

DOOR LOCK

This test is able to check door lock operation. The doors lock and unlock based on the item on CON-
SULT-II screen touched.

Test Item

Description

Test Item

Description

REMO CONT ID REGIST

Keyfob ID code can be registered.

REMO CONT ID ERASUR

Keyfob ID code can be erased.

REMO CONT ID CONFIR

It can be checked whether keyfob ID code is registered or not in this mode.

HORN CHIRP SET*

Horn chirp function mode can be changed in this mode. The function mode will be changed when
"CHANG SETT" on CONSULT-II screen is touched.

HAZARD LAMP SET*

Hazard lamp function mode can be changed in this mode. The function mode will be changed when
"CHANG SETT" on CONSULT-II screen is touched.

MULTI ANSWER BACK SET

Hazard and horn reminder mode can be changed in this mode. The reminder mode will be changed
when “CHANG SETT” on CONSULT-II screen is touched.

AUTO LOCK SET

Auto locking function mode can be changed in this mode. The function mode will be changed when
"CHANG SETT" on CONSULT-II screen is touched.

PANIC ALRM SET

Panic alarm operation mode can be changed in this mode. The operation mode will be changed
when "CHANG SETT" on CONSULT-II screen is touched.

Horn chirp function

ON

OFF

MODE1

MODE2

MODE3

MODE4

Hazard lamp operation mode

Nothing

Unlock only

Lock only

Lock and Unlock

MODE 1

(C mode)

MODE 2

(S mode)

Keyfob operation

Lock

Unlock

Lock

Unlock

Hazard warning lamp flash

Twice

Once

Twice

Horn sound

Once

MODE 1

MODE 2

MODE 3

Auto locking function

1 minutes

Nothing

5 minutes

MODE 1

MODE 2

MODE 3

Keyfob operation

0.5 seconds

Nothing

1.5 seconds
