AUDIO ANTENNA

AV-67

C

D

E

F

G

H

I

J

L

M

A

B

AV

2006 Pathfinder

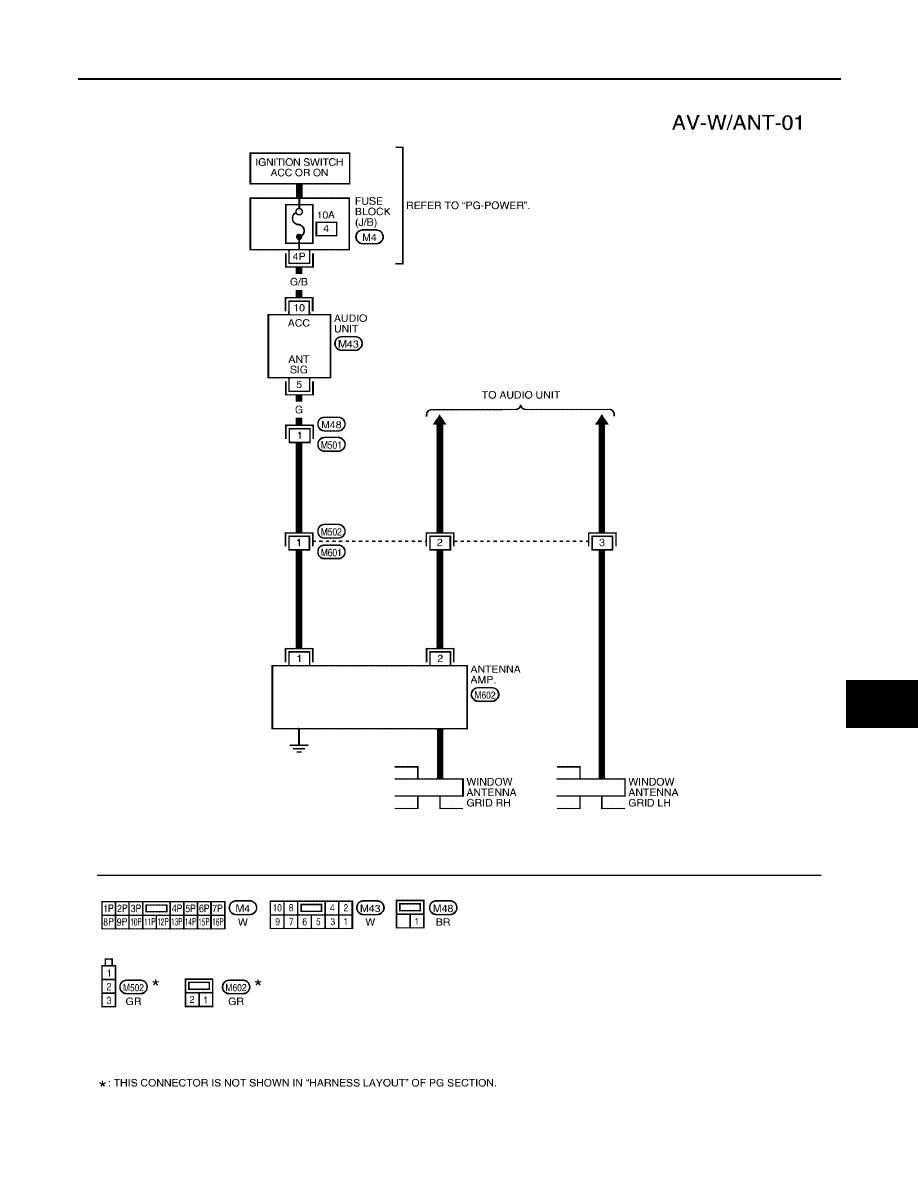

Wiring Diagram — W/ANT —

EKS00G62

WKWA4207E

AV-68

AUDIO ANTENNA

2006 Pathfinder

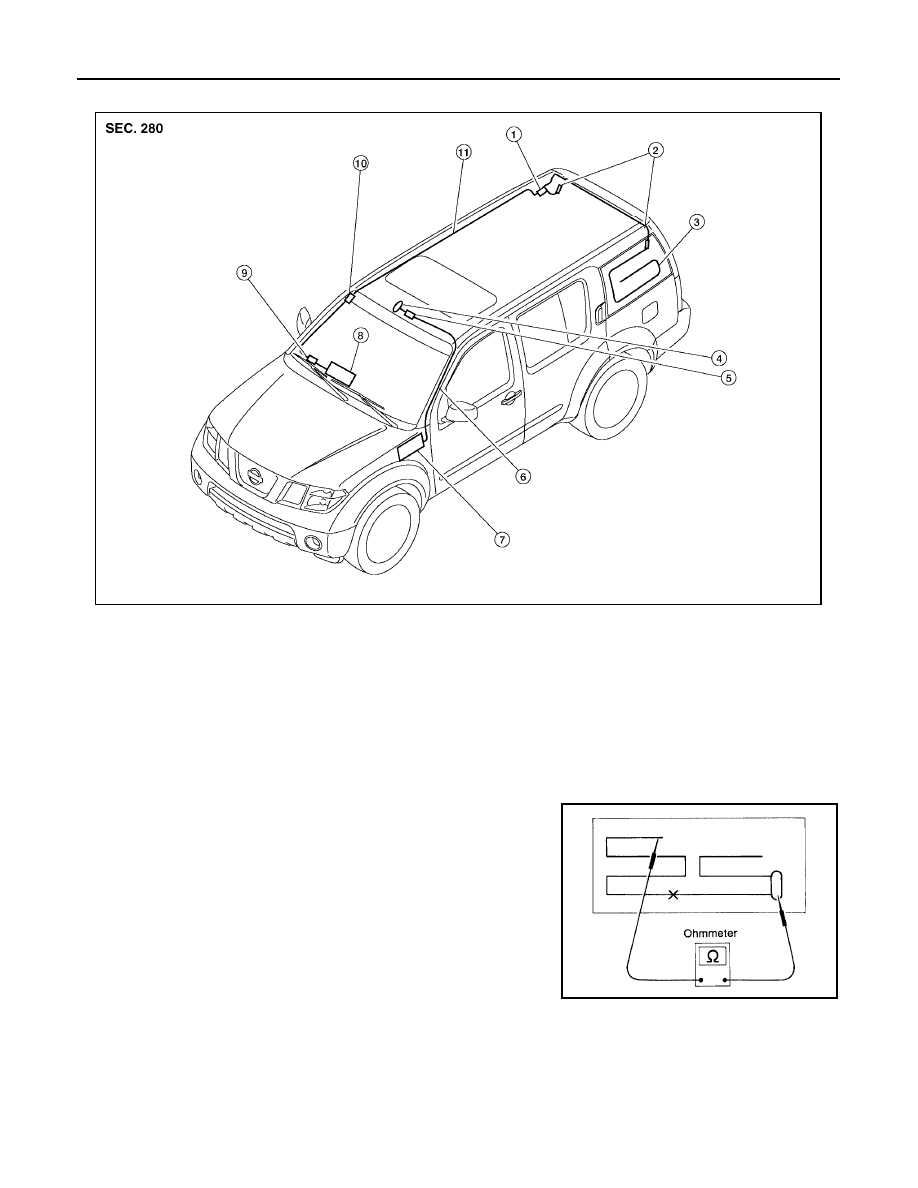

Location of Antenna

EKS00G63

Window Antenna Repair

EKS00G64

ELEMENT CHECK

1.

Attach probe circuit tester (ohm setting) to antenna terminal on
each side.

1.

Antenna amp.
M602

2.

Window antenna grid connector bracket

3.

Window antenna grid

4.

Satellite antenna
M351

5.

Harness connector
M70, M350

6.

Satellite antenna feeder

7.

Satellite radio tuner
M41, M129

8.

Audio unit M43

9.

Harness connector
M48, M501

10. Harness connector

M502, M601

11.

Antenna feeder

WKIA4984E

SEL250I

AUDIO ANTENNA

AV-69

C

D

E

F

G

H

I

J

L

M

A

B

AV

2006 Pathfinder

●

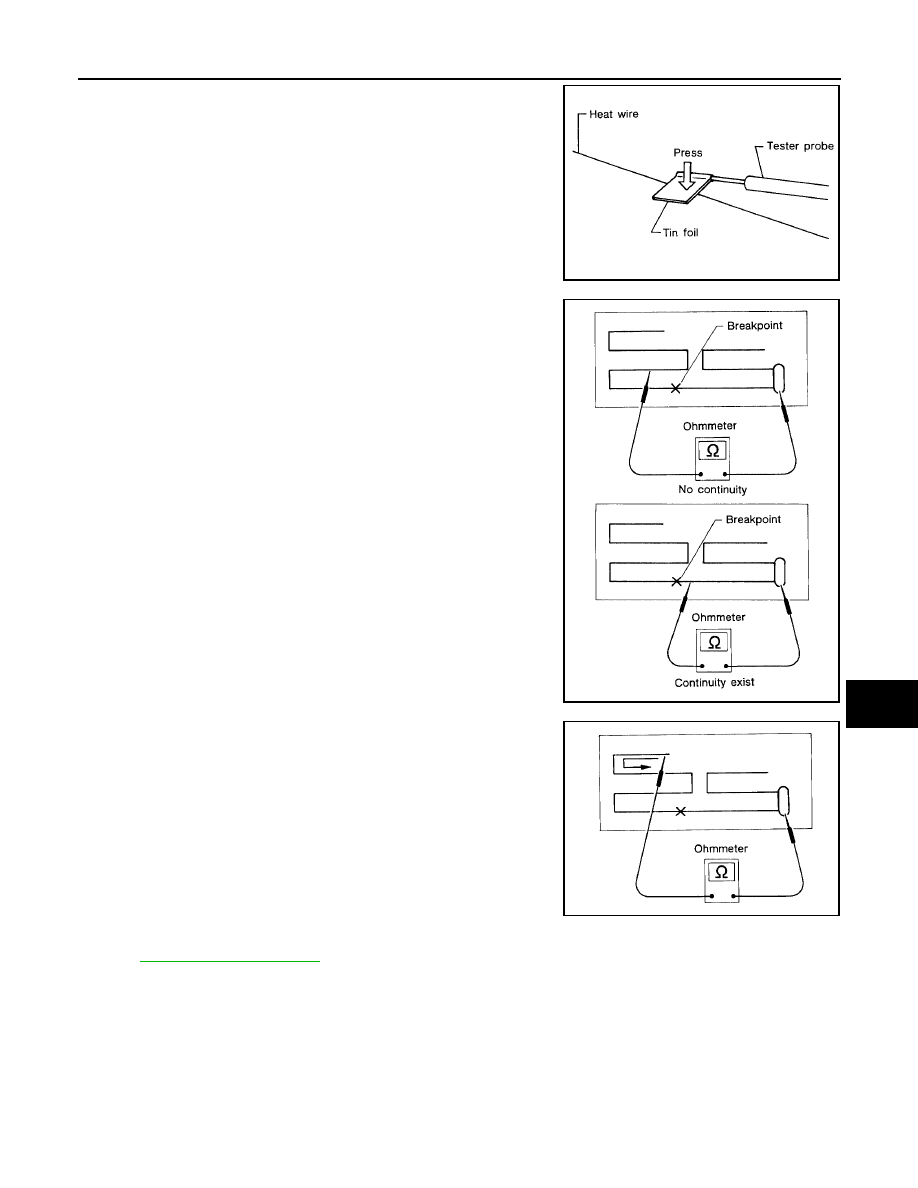

When measuring continuity, wrap tin foil around the top
of probe. Then, press the foil against the wire with your
finger.

2.

If an element is broken, no continuity will exist.

3.

To locate a break, move probe along element. Tester indication
will change abruptly when probe passes the broken point.

ELEMENT REPAIR

Refer to

GW-86, "Filament Repair"

 .

SEL122R

SEL252I

SEL253I

AV-70

DVD ENTERTAINMENT SYSTEM

2006 Pathfinder

DVD ENTERTAINMENT SYSTEM

PFP:28184

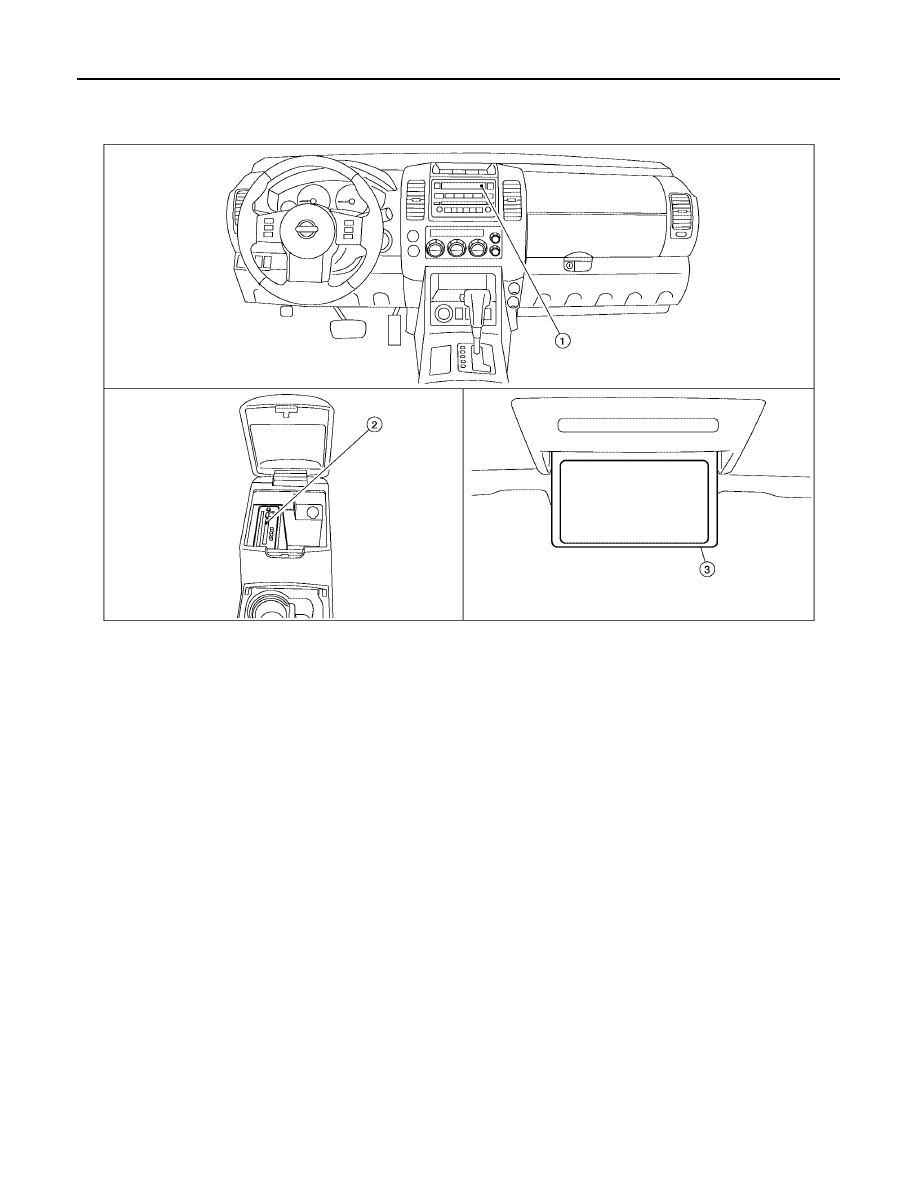

Component Parts and Harness Connector Location

EKS00G65

System Description

EKS00G66

Refer to Owner's Manual for DVD entertainment system operating instructions.
Power is supplied at all times

●

through 20A fuse (No. 29, located in the fuse and fusible link box)

●

to DVD player terminal 16.

With the ignition switch in the ACC or ON position, power is supplied

●

through 10A fuse [No. 4, located in the fuse block (J/B)]

●

to DVD player terminal 15.

Power is also supplied

●

from DVD player terminals 31 and 32

●

to video monitor terminals 15 and 16.

Ground is supplied

●

to DVD player terminal 22

●

through body grounds B7 and B19.

Audio signals are supplied

●

through DVD player terminals 1, 2, 3 and 4

●

to audio unit terminals 34, 35, 36 and 37.

Video signals are supplied

●

through DVD player terminals 23, 24, 29 and 30

●

to video monitor terminals 7, 8, 13 and 14.

WKIA4985E

1.

Audio unit
M46

2.

DVD player M205, M206

3.

Video monitor
B76

DVD ENTERTAINMENT SYSTEM

AV-71

C

D

E

F

G

H

I

J

L

M

A

B

AV

2006 Pathfinder

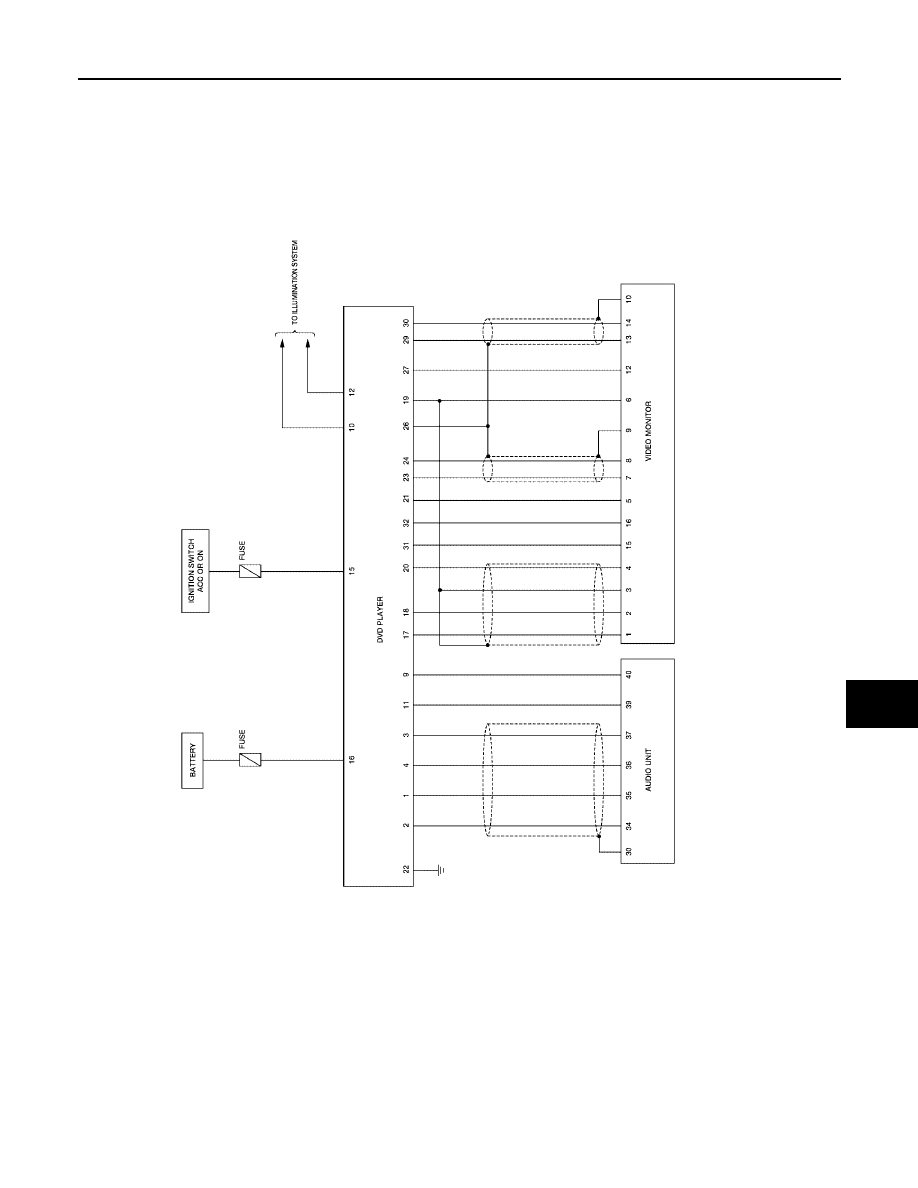

Schematic

EKS00G67

WKWA3037E

AV-72

DVD ENTERTAINMENT SYSTEM

2006 Pathfinder

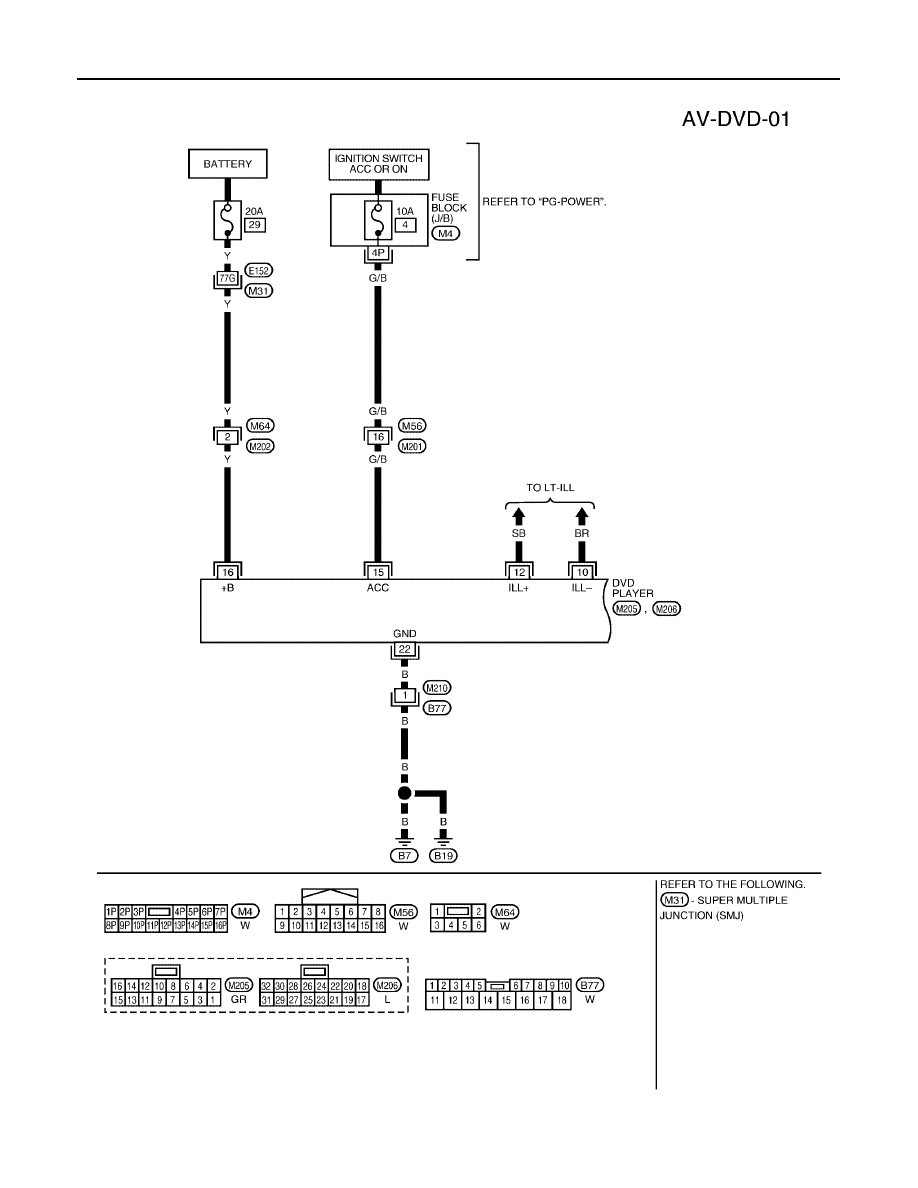

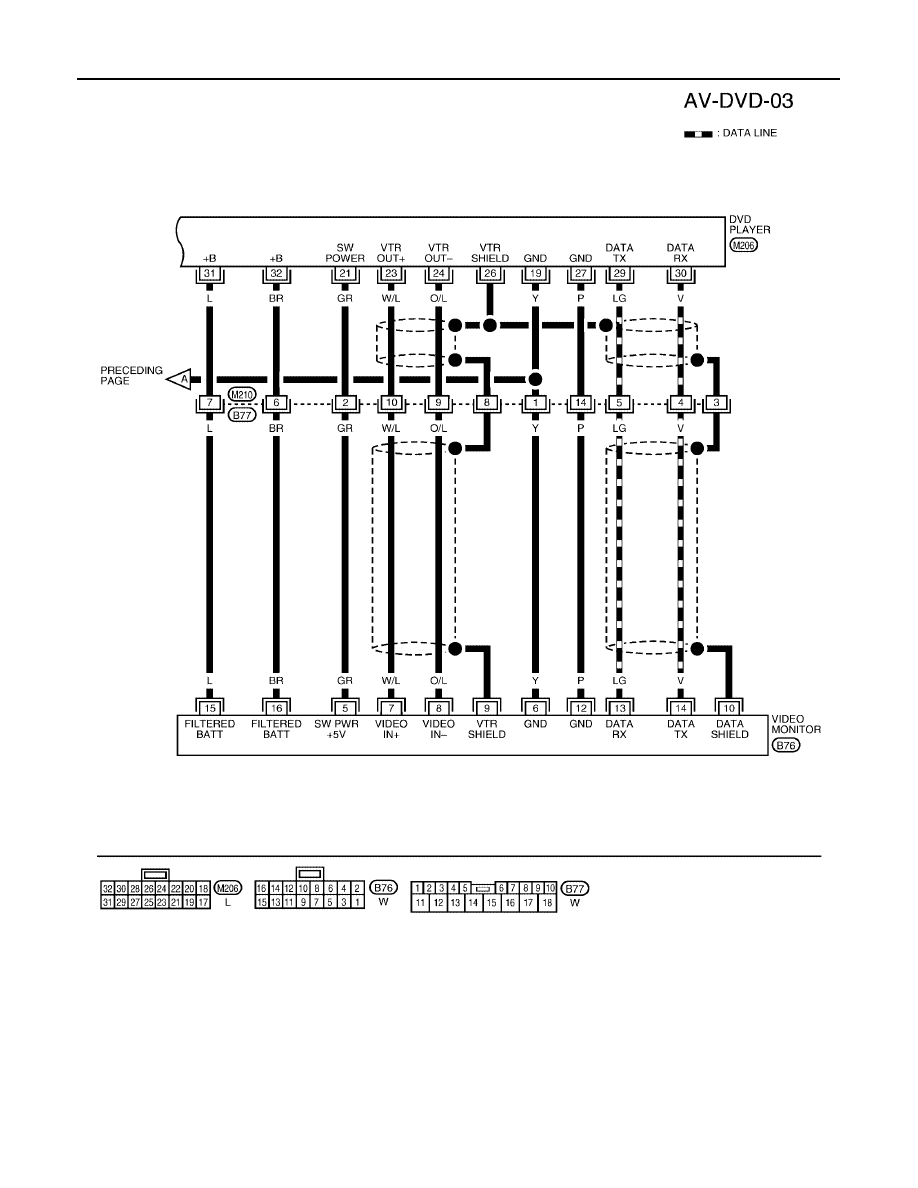

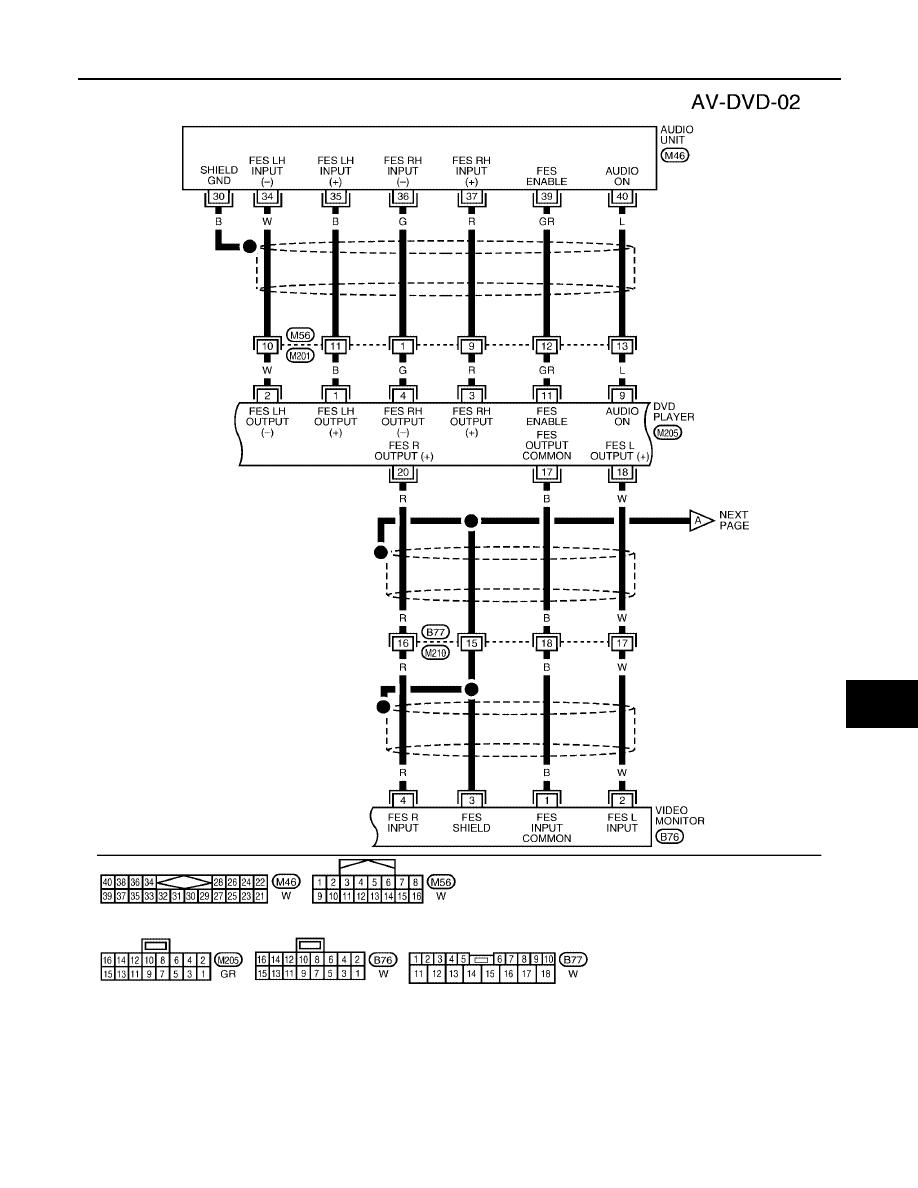

Wiring Diagram — DVD —

EKS00G68

WKWA2001E

DVD ENTERTAINMENT SYSTEM

AV-73

C

D

E

F

G

H

I

J

L

M

A

B

AV

2006 Pathfinder

WKWA2002E

AV-74

DVD ENTERTAINMENT SYSTEM

2006 Pathfinder

WKWA3038E
