Nissan Pathfinder (2006 year). Manual - part 66





AUDIO

AV-19

C

D

E

F

G

H

I

J

L

M

A

B

AV

2006 Pathfinder

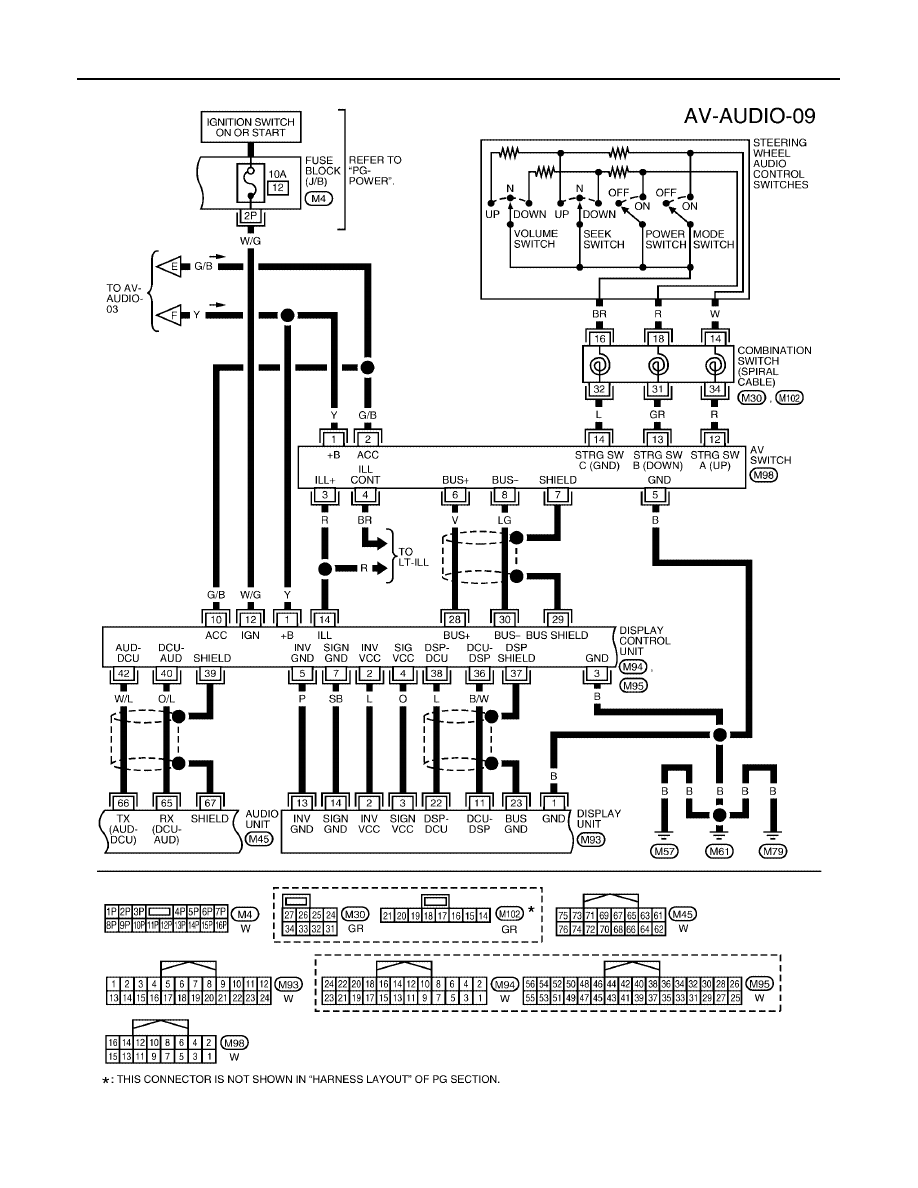

WITHOUT NAVI

WKWA4204E

AV-20

AUDIO

2006 Pathfinder

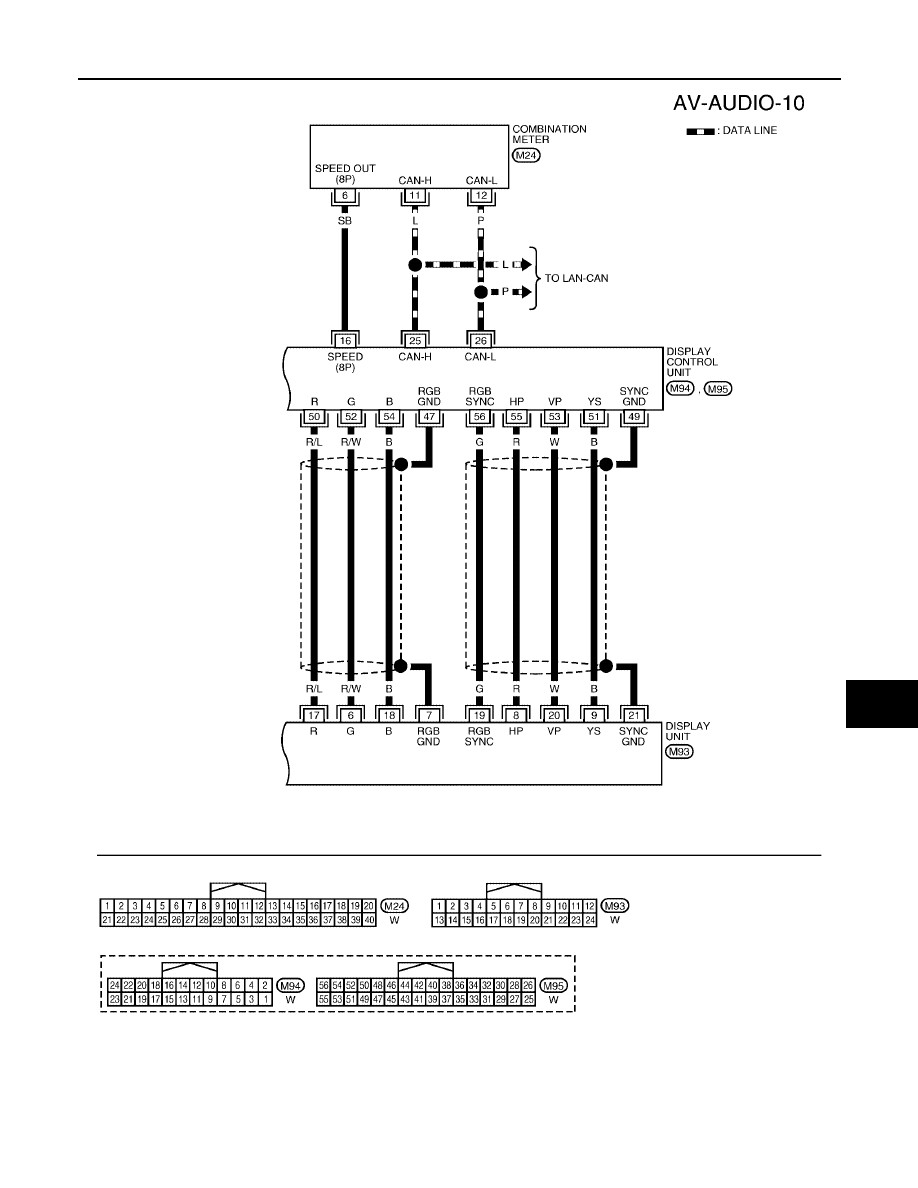

WITH NAVI

WKWA4205E

AUDIO

AV-21

C

D

E

F

G

H

I

J

L

M

A

B

AV

2006 Pathfinder

WKWA1997E

AV-22

AUDIO

2006 Pathfinder

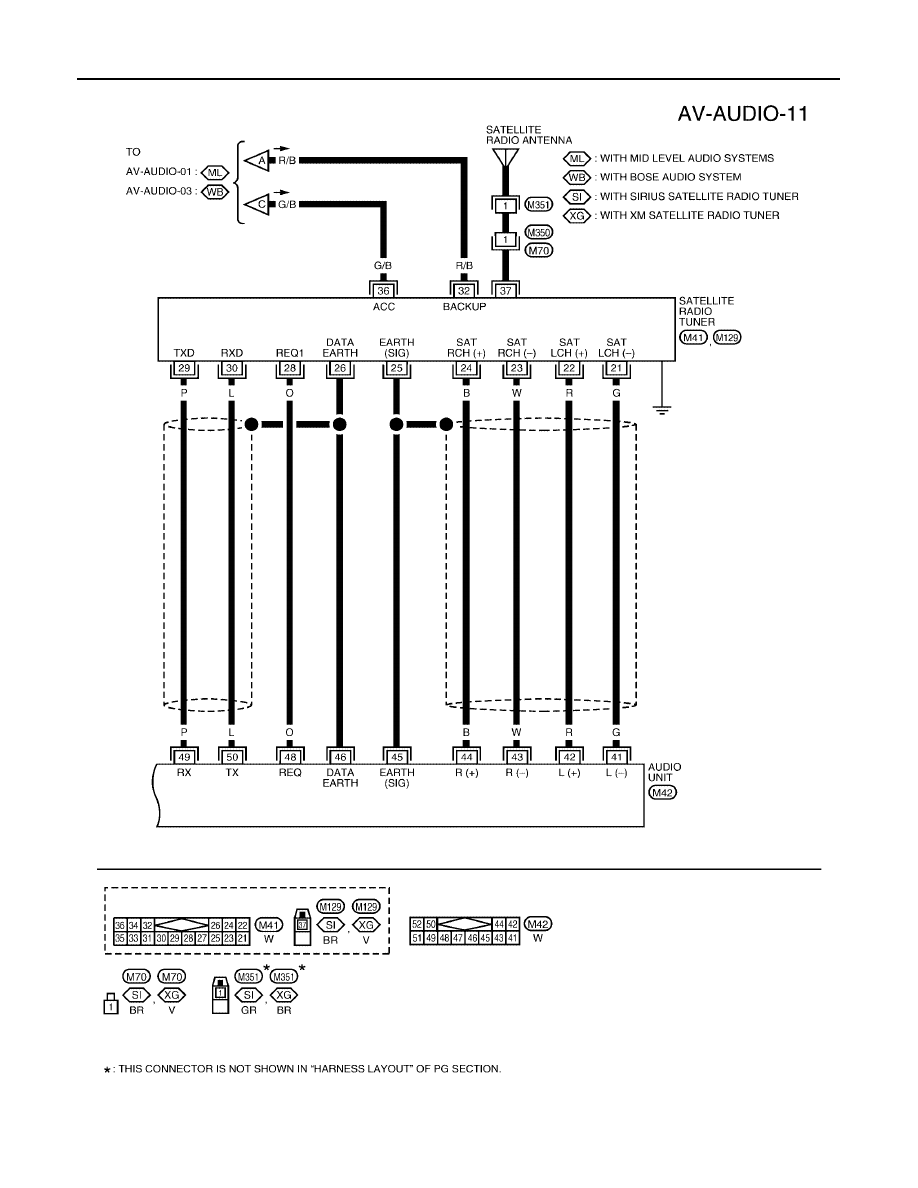

SATELLITE RADIO TUNER (FACTORY INSTALLED)

WKWA4191E

AUDIO

AV-23

C

D

E

F

G

H

I

J

L

M

A

B

AV

2006 Pathfinder

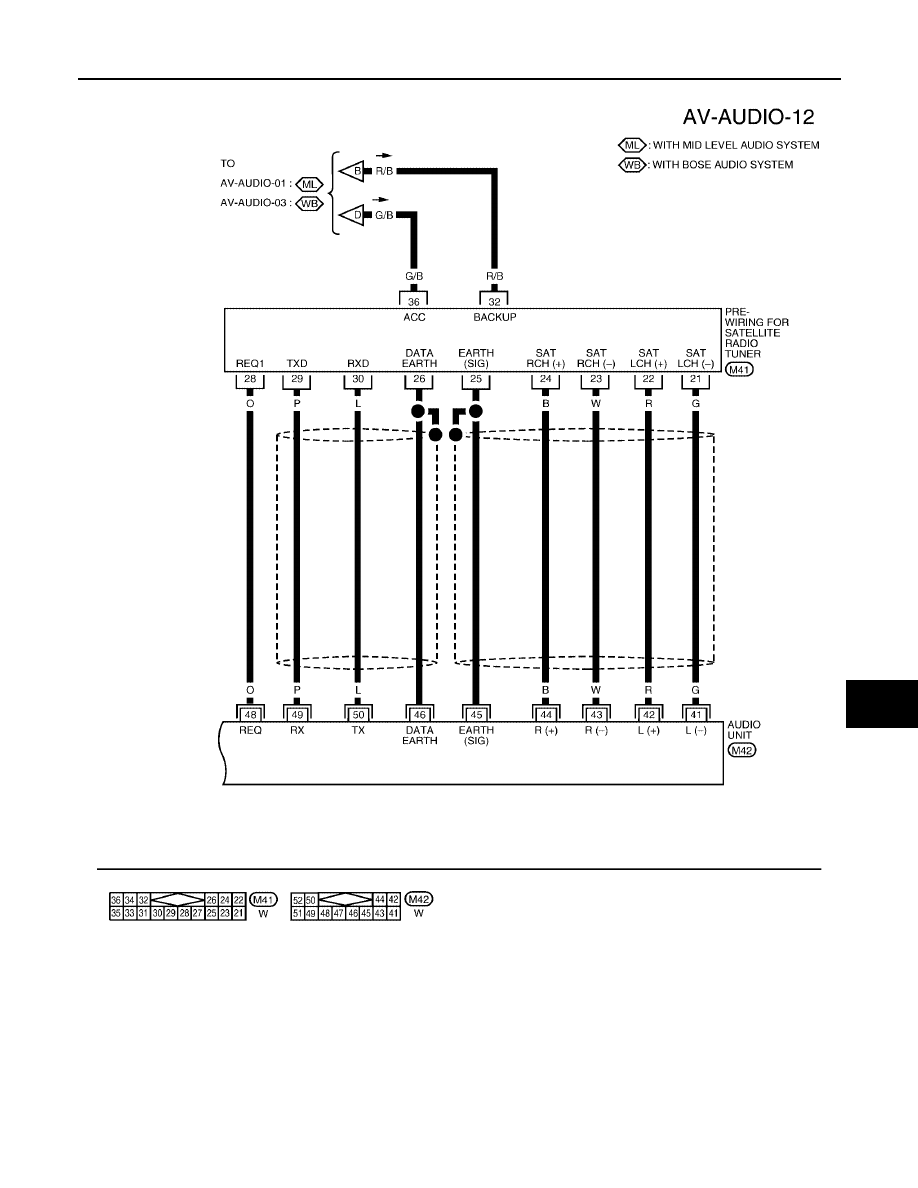

SATELLITE RADIO TUNER (PRE-WIRING)

WKWA4206E

AV-24

AUDIO

2006 Pathfinder

Terminals and Reference Value for Audio Unit (Base and Mid Level System)

EKS00G5F

Terminal

(Wire color)

Item

Signal

input/

output

Condition

Reference value

(Approx.)

Example of symptom

+

Ignition

switch

Operation

2 (BR)

1 (L)

Audio sound
signal front
LH

Output

ON

Receive audio
signal

No sound from front
door speaker LH or
tweeter LH.

4 (LG)

3 (R)

Audio sound
signal front
RH

Output

ON

Receive audio
signal

No sound from front
door speaker RH or
tweeter RH.

5 (G)

Ground

Antenna
signal

Output

ON

More than 10V

Poor radio reception.

6 (Y)

Ground

Battery
power

Input

Battery voltage

System does not
work properly.

7 (GR)

Ground

Illumination
control sig-
nal

Input

ON

Illumination
control switch
is operated by
lighting switch
in 1st position.

Changes between 0 and 12V

Audio unit illumina-
tion cannot be con-
trolled.

8 (R)

Ground

Illumination
signal

Input

OFF

Lighting switch
is in 1st posi-
tion.

Battery voltage

Audio unit illumina-
tion does not come
on when lighting
switch is in 1st posi-
tion.

Lighting switch
is OFF.

3V or less

10 (G/B)

Ground

ACC power

Input

ACC

Ignition switch
ACC or ON

Battery voltage

System does not
work properly.

14 (G)

13 (B)

Audio sound
signal rear
LH

Output

ON

Receive audio
signal

No sound from rear
door speaker LH or
rear door tweeter
LH.*

16 (GR)

15 (O)

Audio sound
signal rear
RH

Output

ON

Receive audio
signal

No sound from rear
door speaker RH or
rear door tweeter
RH.*

SKIA0177E

SKIA0177E

SKIA0177E

SKIA0177E

AUDIO

AV-25

C

D

E

F

G

H

I

J

L

M

A

B

AV

2006 Pathfinder

*: With mid level system

Terminals and Reference Value for Audio Unit (BOSE System)

EKS00G5G

74 (R)*

Ground

Remote
control A

Input

ON

Press MODE

switch

0V

Steering wheel audio
controls do not func-
tion.

Press SEEK

UP switch

0.75V

Press VOL UP

switch

2V

Except for

above

5V

75 (GR)*

Ground

Remote
control B

Input

ON

Press POWER

switch

0V

Steering wheel audio
controls do not func-
tion.

Press SEEK

DOWN switch

0.75V

Press VOL

DOWN switch

2V

Except for

above

5V

76 (L)*

Remote
control
ground

Steering wheel audio

controls do not func-

tion.

Terminal

(Wire color)

Item

Signal

input/

output

Condition

Reference value

(Approx.)

Example of symptom

+

Ignition

switch

Operation

Terminal

 (Wire color)

Item

Signal

input/

output

Condition

Reference value

(Approx.)

Example of symp-

tom

+

Ignition

switch

Operation

2 (W)

1 (B)

Audio sound
signal front
LH

Output

ON

Receive audio
signal

No sound from front
door speaker LH or
tweeter LH.

4 (Y)

3 (BR)

Audio sound
signal front
RH

Output

ON

Receive audio
signal

No sound from front
door speaker RH or
tweeter RH.

5 (G)

Ground

Antenna
signal

Output

ON

More than 10V

Poor radio recep-
tion.

6 (Y)

Ground

Battery
power

Input

Battery voltage

System does not
work properly.

7 (GR)

Ground

Illumination
control sig-
nal

Input

ON

Illumination con-
trol switch is
operated by
lighting switch in
1st position.

Changes between 0 and 12V

Audio unit illumina-
tion cannot be con-
trolled.

SKIA0177E

SKIA0177E

AV-26

AUDIO

2006 Pathfinder

8 (R)

Ground

Illumination
signal

Input

OFF

Lighting switch
is in 1st posi-
tion.

Battery voltage

Audio unit illumina-
tion does not come
on when lighting
switch is in 1st posi-
tion.

Lighting switch
is OFF.

3V or less

9 (SB)

Ground

Vehicle
speed sig-
nal

Input

ON

Refer to

AV-8, "SPEED SENSI-

TIVE VOLUME SYSTEM"

Speed sensitive
volume inoperative.

10 (G/B)

Ground

ACC power

Input

ACC

Battery voltage

System does not
work properly.

11

Shield

ground

12 (G)

Ground

Amp. ON
signal

Output

ON

More than 6.5V

Amp. does not work
properly.

14 (BR)

13 (B/R)

Audio sound
signal rear
LH

Output

ON

Receive audio
signal

No sound from rear
door speaker LH or
rear door tweeter
LH.

16 (L)

15 (B/W)

Audio sound
signal rear
RH

Output

ON

Receive audio
signal

No sound from rear
door speaker RH or
rear door tweeter
RH.

42 (R)

41 (G)

Audio left
channel
sound sig-
nal from sat-
ellite radio
tuner

Input

ON

Receive audio
signal

No sound from sat-
ellite radio tuner left
channel.

44 (B)

43 (W)

Audio right
channel
sound sig-
nal from sat-
ellite radio
tuner

Input

ON

Receive audio
signal

No sound from sat-
ellite radio tuner
right channel.

45

Shield
ground
(audio sig-
nal)

Terminal

 (Wire color)

Item

Signal

input/

output

Condition

Reference value

(Approx.)

Example of symp-

tom

+

Ignition

switch

Operation

SKIA0177E

SKIA0177E

SKIA0177E

SKIA0177E
