TRANSMISSION ASSEMBLY

AT-247

D

E

F

G

H

I

J

K

L

M

A

B

AT

2006 Pathfinder

4.

Remove the crankshaft position sensor (POS) from the A/T
assembly.

CAUTION:

●

Do not subject it to impact by dropping or hitting it.

●

Do not disassemble.

●

Do not allow metal filings or foreign material to get on the
sensor front edge magnetic area.

●

Do not place in an area affected by magnetism.

5.

Remove the undercovers using power tool.

6.

Partially drain the A/T fluid. Refer to

AT-13, "A/T FLUID"

 .

7.

Remove the front crossmember using power tool.

8.

Remove the starter motor.

9.

Remove the rear propeller shaft. Refer to

PR-10, "Removal and Installation"

 .

10. Remove the left and right front exhaust tubes. Refer to

EX-3, "Removal and Installation"

 .

11. Remove the A/T selector control cable and bracket from the A/T.

12. Disconnect the A/T fluid cooler tubes from the A/T assembly.

13. Remove the dust cover from the converter housing.

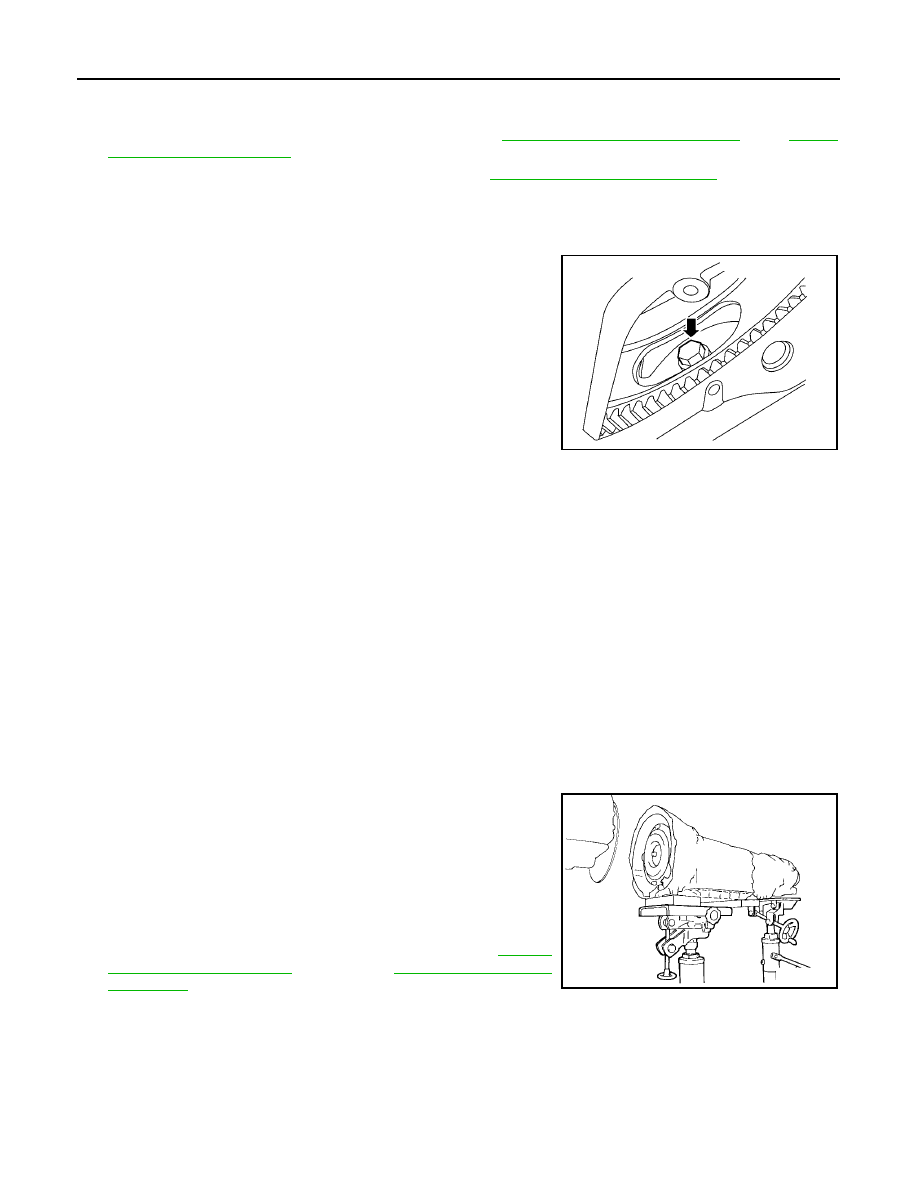

14. Turn the crankshaft to access and remove the four bolts for the

drive plate and torque converter.

CAUTION:

When turning the crankshaft, turn it clockwise as viewed
from the front of the engine.

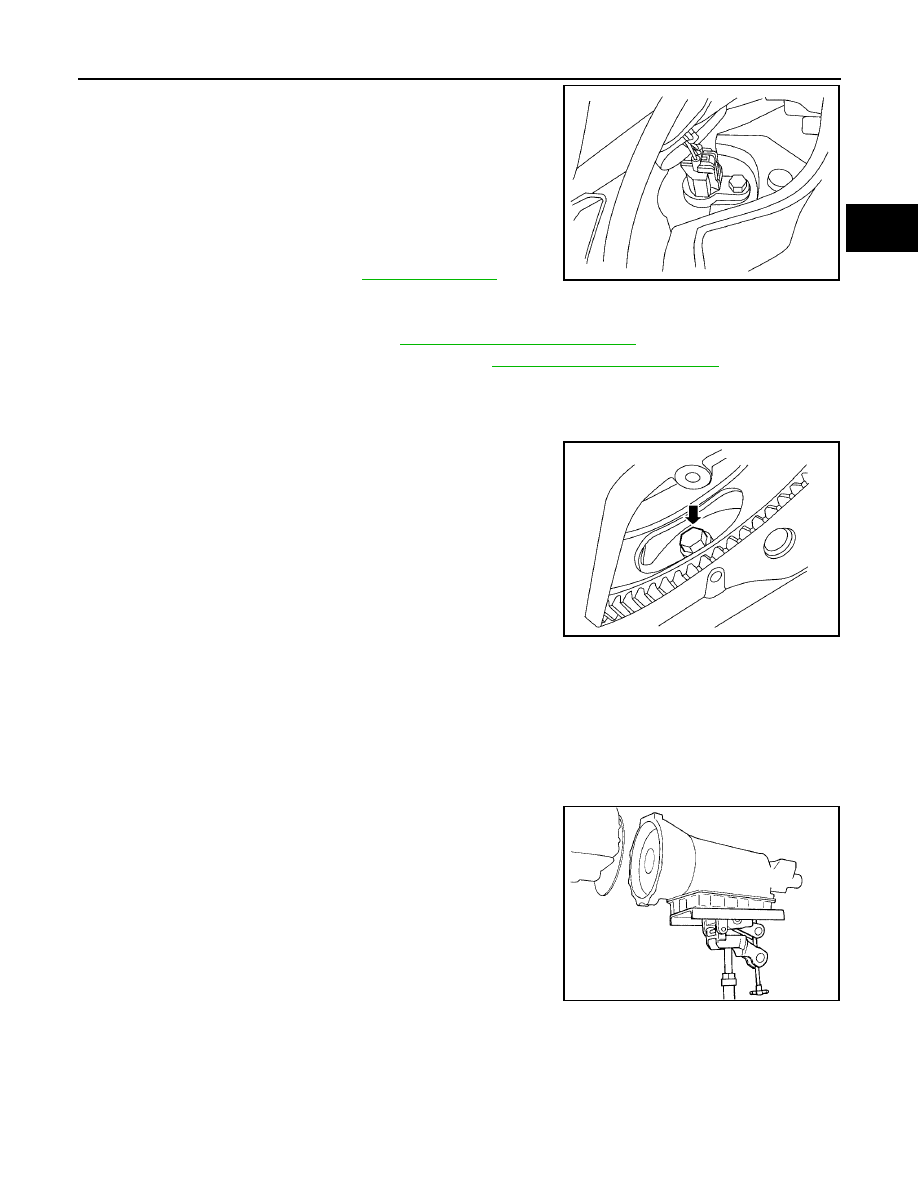

15. Support the A/T assembly using a transmission jack.

CAUTION:

When setting the transmission jack, be careful not to allow
it to collide against the drain plug.

16. Remove the nuts securing the insulator to the crossmember.

17. Remove the crossmember using power tool.

18. Tilt the transmission slightly to gain clearance between the body and the transmission, then disconnect

the air breather hose.

19. Disconnect the A/T assembly harness connector.

20. Remove the wiring harness from the retainers.
21. Remove the A/T fluid indicator pipe.

22. Plug any openings such as the A/T fluid indicator pipe hole.

23. Remove the A/T assembly to engine bolts using power tool.

24. Remove A/T assembly from the vehicle using Tool.

CAUTION:

●

Secure the torque converter to prevent it from dropping.

●

Secure the A/T assembly the transmission jack.

NOTE:
The actual special service Tool may differ from Tool shown.

Tool number

:

—

 (J-47002)

LCIA0367E

LCIA0335E

SCIA0499E

AT-248

TRANSMISSION ASSEMBLY

2006 Pathfinder

INSPECTION
Installation and Inspection of Torque Converter

●

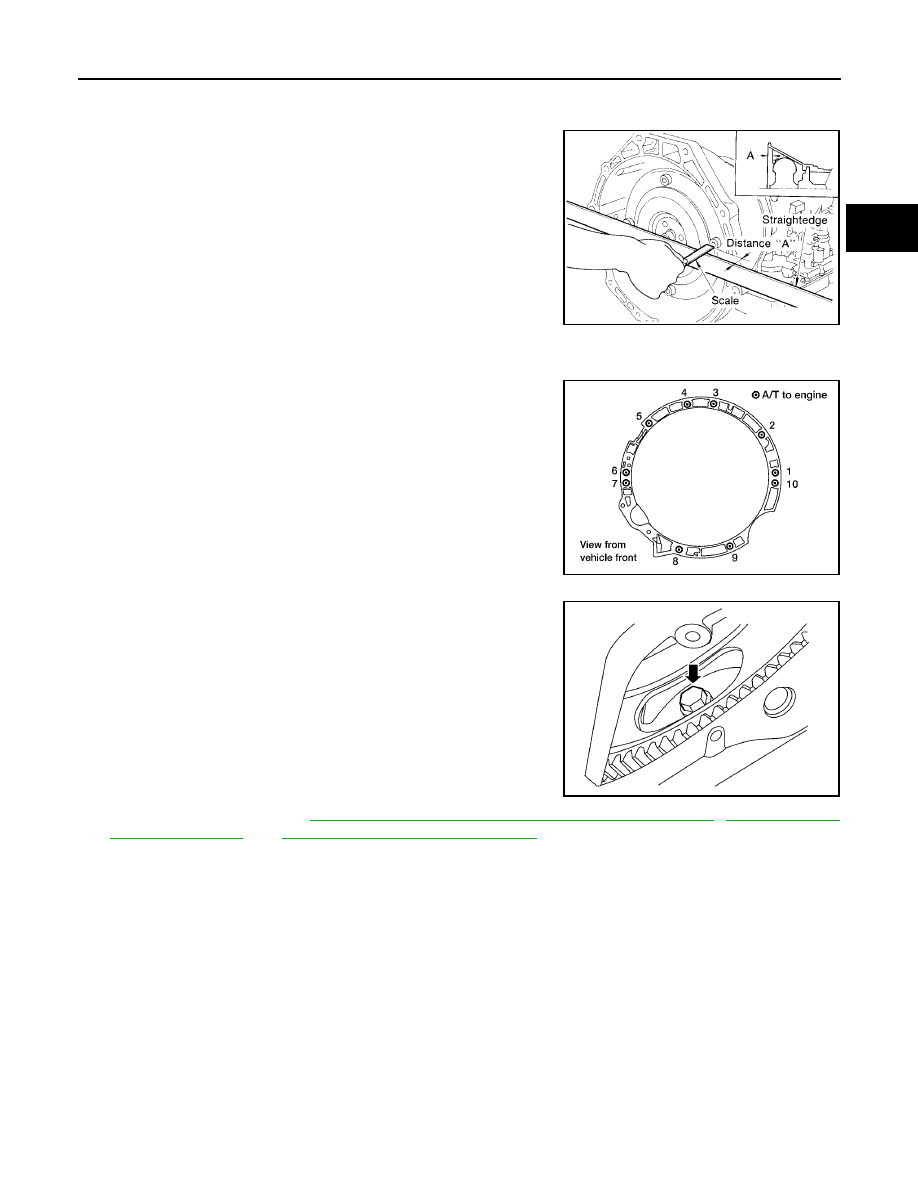

After inserting the torque converter to the transmission, check
dimension "A" to ensure it is within the reference value limit.

INSTALLATION

Installation is in the reverse order of the removal.

●

When installing transmission to the engine, tighten the bolts to
the specified torque using sequence shown.

CAUTION:

●

When replacing an engine or transmission you must
make sure the dowels are installed correctly during re-
assembly.

●

Improper alignment caused by missing dowels may
cause vibration, oil leaks or breakage of drivetrain com-
ponents.

●

Align the positions of bolts for drive plate with those of the torque
converter, and temporarily tighten the bolts. Then, tighten the
bolts with the specified torque.

CAUTION:

●

When turning crankshaft, turn it clockwise as viewed from
the front of the engine.

●

After converter is installed to drive plate, rotate crankshaft
several turns and check to be sure that transmission
rotates freely without binding.

●

Install crankshaft position sensor (POS).

●

After completing installation, check fluid leakage, fluid level, and
the positions of A/T. Refer to

MA-22, "Checking the Automatic Transmission Fluid (ATF)"

 ,

AT-222,

"Checking of A/T Position"

  and

AT-222, "Adjustment of A/T Position"

 .

Dimension "A"

: 25.0 mm (0.98 in) or more

SAT017B

Transmission bolts

: 74 N·m (7.5 kg-m, 55 ft-lb)

LCIA0370E

LCIA0335E

TRANSMISSION ASSEMBLY

AT-249

D

E

F

G

H

I

J

K

L

M

A

B

AT

2006 Pathfinder

Removal and Installation (4WD)

ECS00ELY

COMPONENTS

REMOVAL

CAUTION:

When removing the A/T assembly from engine, first remove the crankshaft position sensor (POS) from
the A/T assembly.

1.

Disconnect the negative battery terminal.

2.

Remove the A/T fluid indicator.

3.

Remove the LH fender protector.

4.

Remove the crankshaft position sensor (POS) from the A/T
assembly.

CAUTION:

●

Do not subject it to impact by dropping or hitting it.

●

Do not disassemble.

●

Do not allow metal filings or foreign material to get on the
sensor's front edge magnetic area.

●

Do not place in an area affected by magnetism.

5.

Remove the undercovers using power tool.

6.

Partially drain the A/T fluid. Refer to

AT-13, "A/T FLUID"

 .

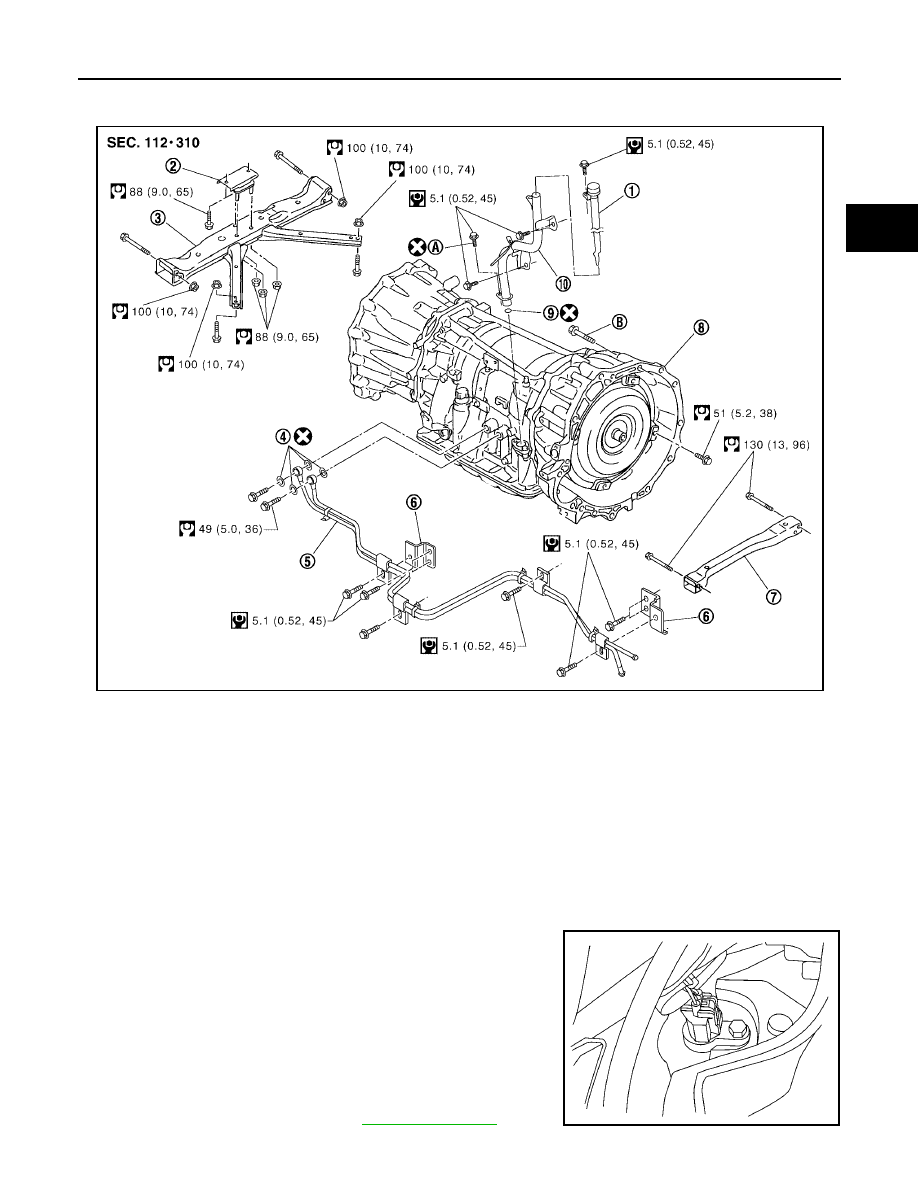

1.

A/T fluid indicator

2.

Insulator

3.

A/T crossmember

4.

Copper washers

5.

A/T fluid cooler tube

6.

Bracket

7.

Front crossmember

8.

Transmission assembly

9.

O-ring

10.

A/T fluid indicator pipe

A.

Self-sealing bolt

B.

Refer to installation.

WCIA0574E

LCIA0367E

AT-250

TRANSMISSION ASSEMBLY

2006 Pathfinder

7.

Remove the front crossmember using power tool.

8.

Remove the starter motor.

9.

Remove the front and rear propeller shafts. Refer to

PR-5, "Removal and Installation"

  and

PR-10,

"Removal and Installation"

 .

10. Remove the left and right front exhaust tubes. Refer to

EX-3, "Removal and Installation"

 .

11. Remove the A/T selector control cable and bracket from the A/T.

12. Disconnect the fluid cooler tubes from the A/T assembly.
13. Remove the dust cover from the converter housing.

14. Turn the crankshaft to access and remove the four bolts for the

drive plate and torque converter.

CAUTION:

When turning the crankshaft, turn it clockwise as viewed
from the front of the engine.

15. Support the A/T assembly using a transmission jack.

CAUTION:

When setting the transmission jack, be careful not to allow
it to collide against the drain plug.

16. Remove the nuts securing the insulator to the crossmember.

17. Remove the crossmember using power tool.
18. Tilt the transmission slightly to gain clearance between the body and the transmission, then disconnect

the air breather hose.

19. Disconnect the following:

●

A/T assembly harness connector

●

Neutral-4LO switch connector (ATX14B only)

●

4LO switch connector (TX15B only)

●

Wait detection switch connector

●

ATP switch connector

●

Transfer motor connector (ATX14B only)

●

Control valve assembly connector (ATX14B only)

●

Transfer control device connector

20. Remove the wiring harness from the retainers.

21. Remove the A/T fluid indicator pipe.
22. Plug any openings such as the fluid charging pipe hole.

23. Remove the A/T assembly to engine bolts using power tool.

24. Remove A/T assembly with transfer from the vehicle using Tool.

CAUTION:

●

Secure the torque converter to prevent it from dropping.

●

Secure the A/T assembly to the transmission jack.

NOTE:
The actual special service Tool may differ from Tool shown.

25. Remove the transfer from the A/T assembly. Refer to

TF-145,

"Removal and Installation"

  (ATX14B) or

TF-277, "Removal and

Installation"

  (TX15B).

Tool number

:

—

 (J-47002)

LCIA0335E

SCIA2203E

TRANSMISSION ASSEMBLY

AT-251

D

E

F

G

H

I

J

K

L

M

A

B

AT

2006 Pathfinder

INSPECTION
Installation and Inspection of Torque Converter

●

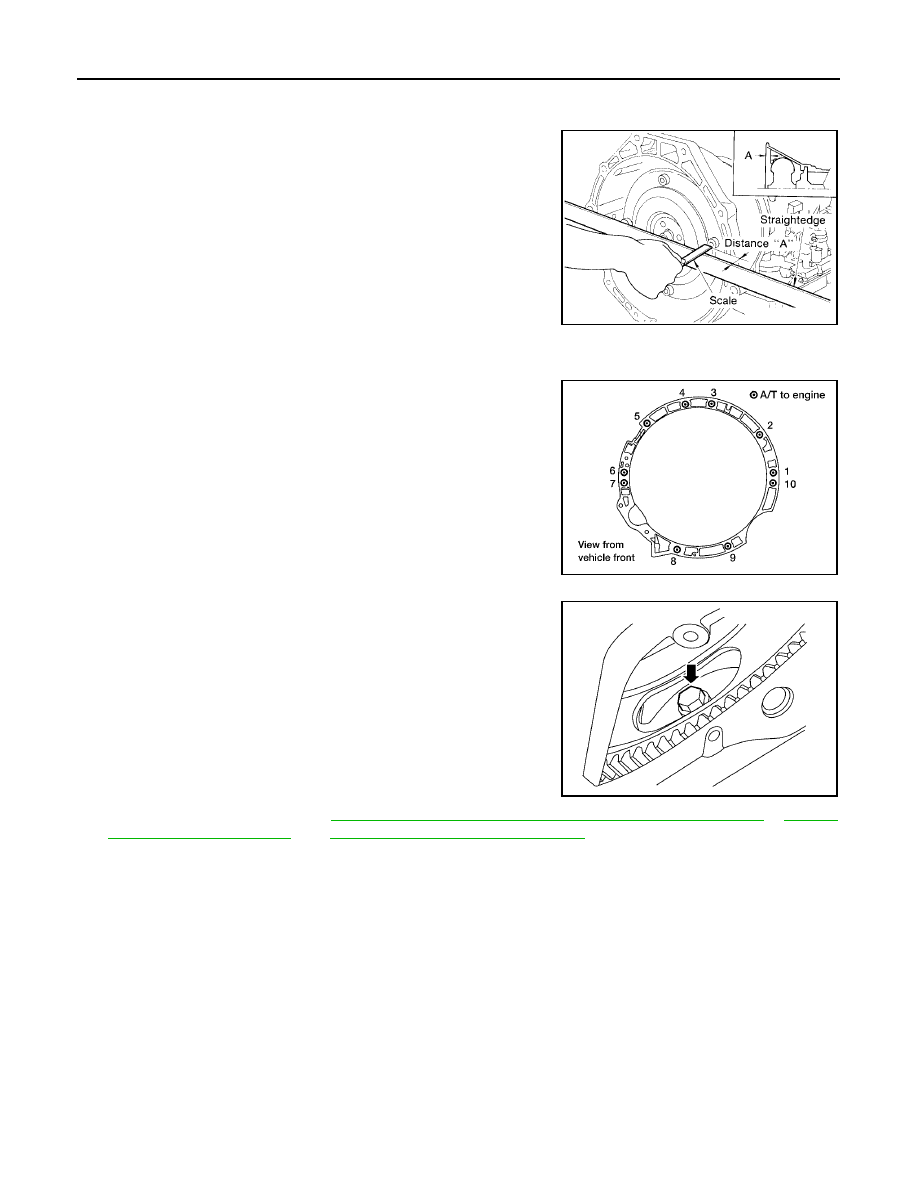

After inserting the torque converter to the transmission, be sure
to check dimension "A" to ensure it is within the reference value
limit.

INSTALLATION

Installation is in the reverse order of removal.

●

When installing transmission to the engine, tighten the bolts to
the specified torque using sequence shown.

CAUTION:

●

When replacing an engine or transmission you must
make sure the dowels are installed correctly during re-
assembly.

●

Improper alignment caused by missing dowels may
cause vibration, oil leaks or breakage of drivetrain com-
ponents.

●

Align the positions of bolts for drive plate with those of the torque
converter, and temporarily tighten the bolts. Then, tighten the
bolts with the specified torque.

CAUTION:

●

When turning crankshaft, turn it clockwise as viewed from
the front of the engine.

●

After converter is installed to drive plate, rotate crankshaft
several turns and check to be sure that transmission
rotates freely without binding.

●

Install crankshaft position sensor (POS).

●

After completing installation, check fluid leakage, fluid level, and
the positions of A/T. Refer to

AT-13, "Checking the Automatic Transmission Fluid (ATF)"

 ,

AT-222, "Check-

ing of A/T Position"

  and

AT-222, "Adjustment of A/T Position"

 .

Dimension "A"

: 25.0 mm (0.98 in) or more

SAT017B

Transmission bolts

: 74 N·m (7.5 kg-m, 55 ft-lb)

LCIA0370E

LCIA0335E

AT-252

OVERHAUL

2006 Pathfinder

OVERHAUL

PFP:00000

Components

ECS00ELZ

SCIA7040E

OVERHAUL

AT-253

D

E

F

G

H

I

J

K

L

M

A

B

AT

2006 Pathfinder

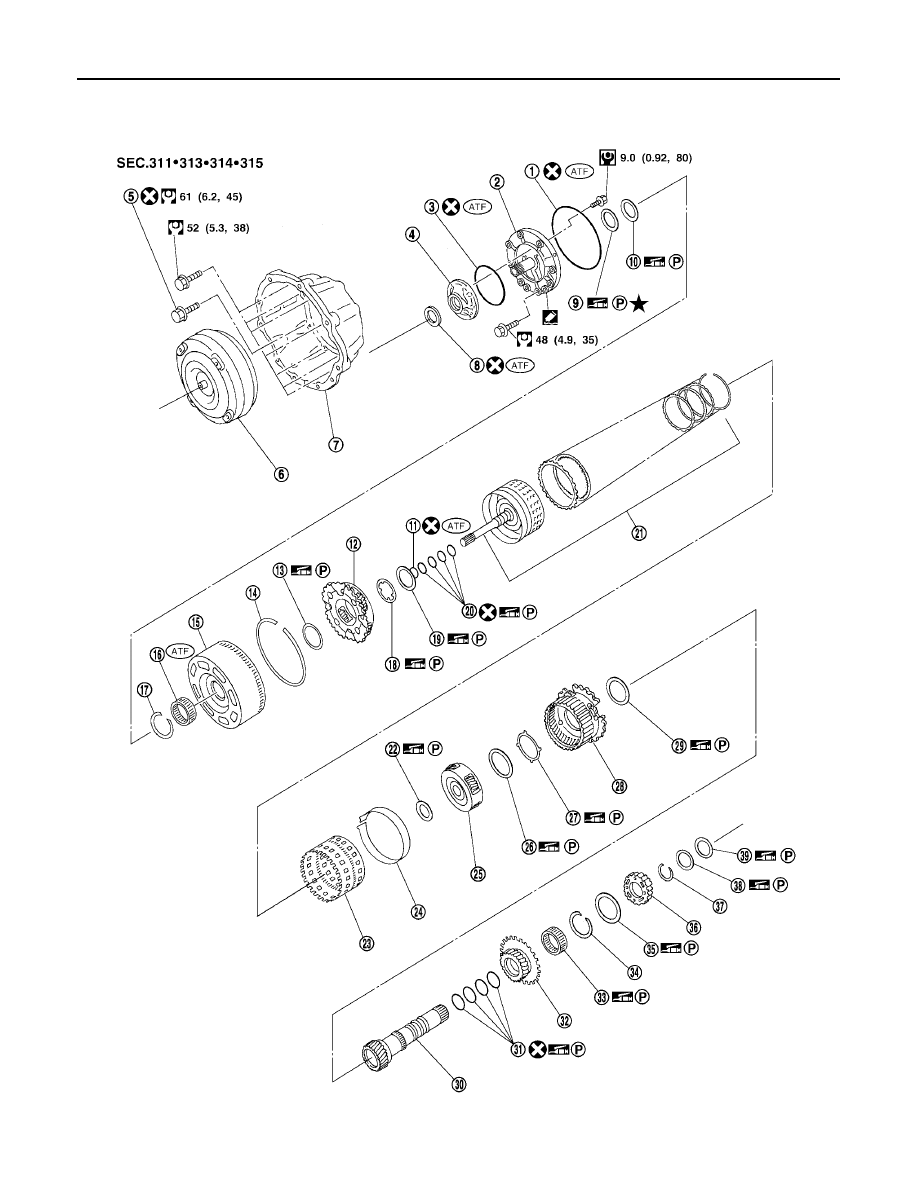

1.

O-ring

2.

Oil pump cover

3.

O-ring

4.

Oil pump housing

5.

Self-sealing bolt

6.

Torque converter

7.

Converter housing

8.

Oil pump housing oil seal

9.

Bearing race

10. Needle bearing

11.

O-ring

12. Front carrier assembly

13. Needle bearing

14. Snap ring

15. Front sun gear

16. 3rd one-way clutch

17. Snap ring

18. Bearing race

19. Needle bearing

20. Seal ring

21. Input clutch assembly

22. Needle bearing

23. Rear internal gear

24. Brake band

25. Mid carrier assembly

26. Needle bearing

27. Bearing race

28. Rear carrier assembly

29. Needle bearing

30. Mid sun gear

31. Seal ring

32. Rear sun gear

33. 1st one-way clutch

34. Snap ring

35. Needle bearing

36. High and low reverse clutch hub

37. Snap ring

38. Bearing race

39. Needle bearing

AT-254

OVERHAUL

2006 Pathfinder

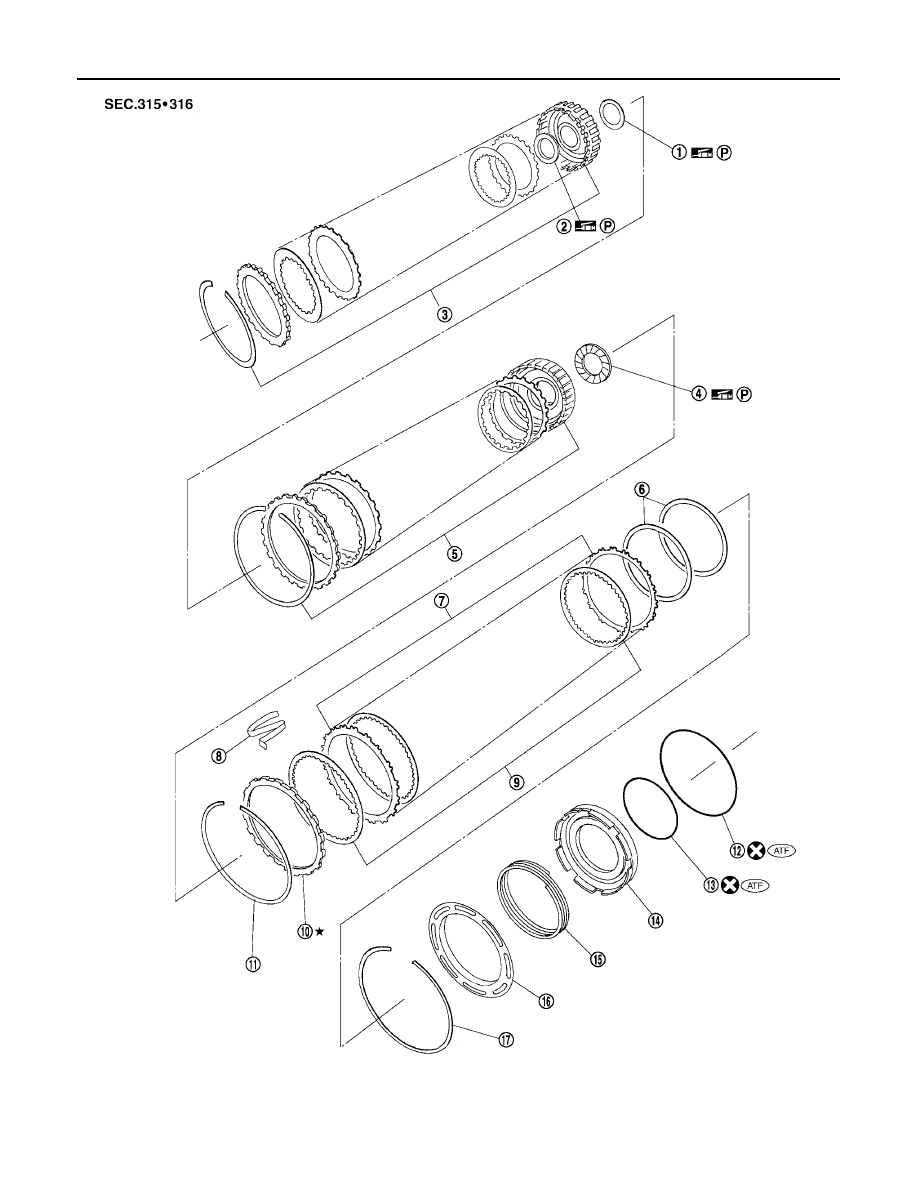

1.

Needle bearing

2.

Bearing race

3.

High and low reverse clutch assembly

4.

Needle bearing

5.

Direct clutch assembly

6.

Reverse brake dish plate

7.

Reverse brake driven plate

8.

N-spring

9.

Reverse brake drive plate

WCIA0575E
