Nissan Pathfinder (2005 year). Manual - part 424





PREPARATION

TF-11

[ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

TF

2005 Pathfinder

Commercial Service Tools

EDS001IS

Tool name

Description

Puller

Removing companion flange

Pin punch

Removing retainer pin

Installing retainer pin

a: 6 mm (0.24 in) dia.

Power tool

Removing transfer case assembly

NT077

NT410

PBIC0190E

TF-12

[ATX14B]

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

2005 Pathfinder

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

PFP:00003

NVH Troubleshooting Chart

EDS001IT

Use the chart below to help you find the cause of the symptom. The numbers indicate the order of the inspec-
tion. If necessary, repair or replace these parts.

Reference page

TF-

13

TF-

146

TF-

1

6

3

TF-

1

6

3

TF-

1

6

3

SUSPECTED PARTS
(Possible cause)

TRANSFER

F

L

UI

D

(L

e

vel

lo

w

)

TRANSFER

F

L

UI

D

(W

ro

n

g)

T

R

A

N

S

F

E

R

FL

U

ID

(Le

v

e

l

too

hi

gh

)

LI

Q

U

ID

G

ASK

ET

(D

am

age

d)

O

-R

IN

G

(W

or

n

o

r

dam

ag

ed)

O

IL

SEAL

(W

or

n

o

r

d

am

ag

ed)

SH

IF

T

F

O

R

K

(Wor

n

or

dam

aged

)

G

E

A

R

(W

or

n

o

r

d

am

ag

ed)

BEARI

N

G

(W

o

rn

or

dam

age

d)

Symptom

Noise

1

2

3

3

Transfer fluid leakage

3

1

2

2

2

Hard to shift or will not shift

1

1

2

TRANSFER FLUID

TF-13

[ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

TF

2005 Pathfinder

TRANSFER FLUID

PFP:31001

Replacement

EDS001IU

DRAINING

1.

Stop engine.

2.

Remove the drain plug and gasket and drain the fluid.

3.

Install the drain plug with a new gasket to the transfer. Tighten to
the specified torque. Refer to

TF-146, "COMPONENTS"

.

CAUTION:

Do not reuse gasket.

FILLING

1.

Remove the filler plug and gasket.

2.

Fill the transfer with new fluid until the fluid level reaches the
specified limit near the filler plug hole.

CAUTION:

Carefully fill fluid. (Fill up for approx. 3 minutes.)

3.

Leave the vehicle for 3 minutes, and check fluid level again.

4.

Install the filler plug with a new gasket to the transfer. Tighten to the specified torque. Refer to

TF-146,

"COMPONENTS"

.

CAUTION:

Do not reuse gasket.

Inspection

EDS001IV

FLUID LEAKAGE AND FLUID LEVEL

1.

Make sure that fluid is not leaking from the transfer assembly or around it.

2.

Check fluid level from the filler plug hole as shown.

CAUTION:

Do not start engine while checking fluid level.

3.

Install the filler plug with a new gasket to the transfer. Tighten to
the specified torque. Refer to

TF-146, "COMPONENTS"

.

CAUTION:

Do not reuse gasket.

SMA444B

Fluid grade:

Refer to

MA-11, "Fluids and Lubricants"

.

Fluid capacity:

Approx. 3.0

(3 1/8 US pt, 2 5/8 Imp pt)

WDIA0211E

WDIA0211E

TF-14

[ATX14B]

ALL-MODE 4WD SYSTEM

2005 Pathfinder

ALL-MODE 4WD SYSTEM

PFP:00000

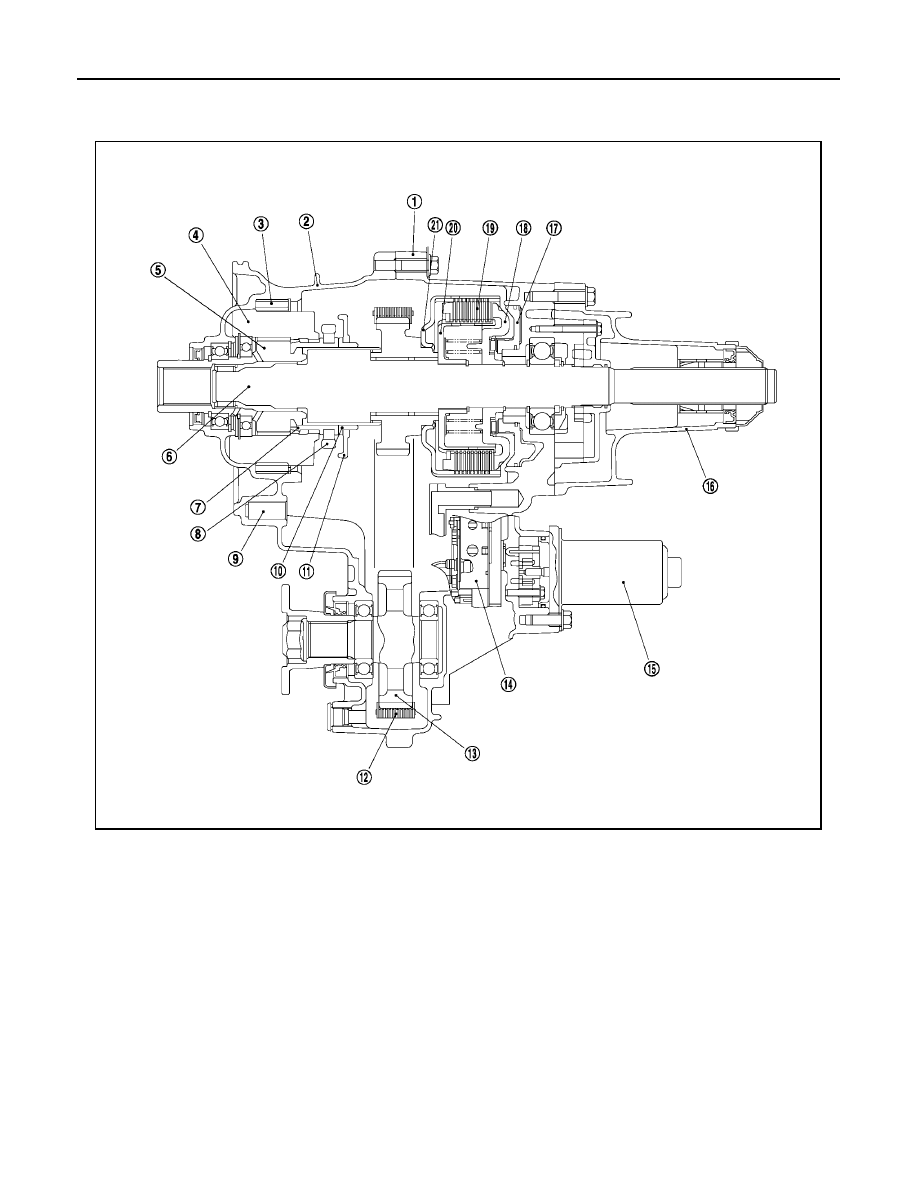

Cross-section View

EDS001IW

1.

Center case

2.

Front case

3.

Internal gear

4.

Planetary carrier assembly

5.

Sun gear assembly

6.

Main shaft

7.

L-H sleeve

8.

L-H fork

9.

Shift rod

10. 2-4 sleeve

11.

2-4 fork

12. Drive chain

13. Front drive shaft

14. Control valve assembly

15. Transfer motor

16. Rear case

17. Clutch piston

18. Press flange

19. Multiple disc clutch

20. Clutch hub assembly

21. Clutch drum assembly

WDIA0202E

ALL-MODE 4WD SYSTEM

TF-15

[ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

TF

2005 Pathfinder

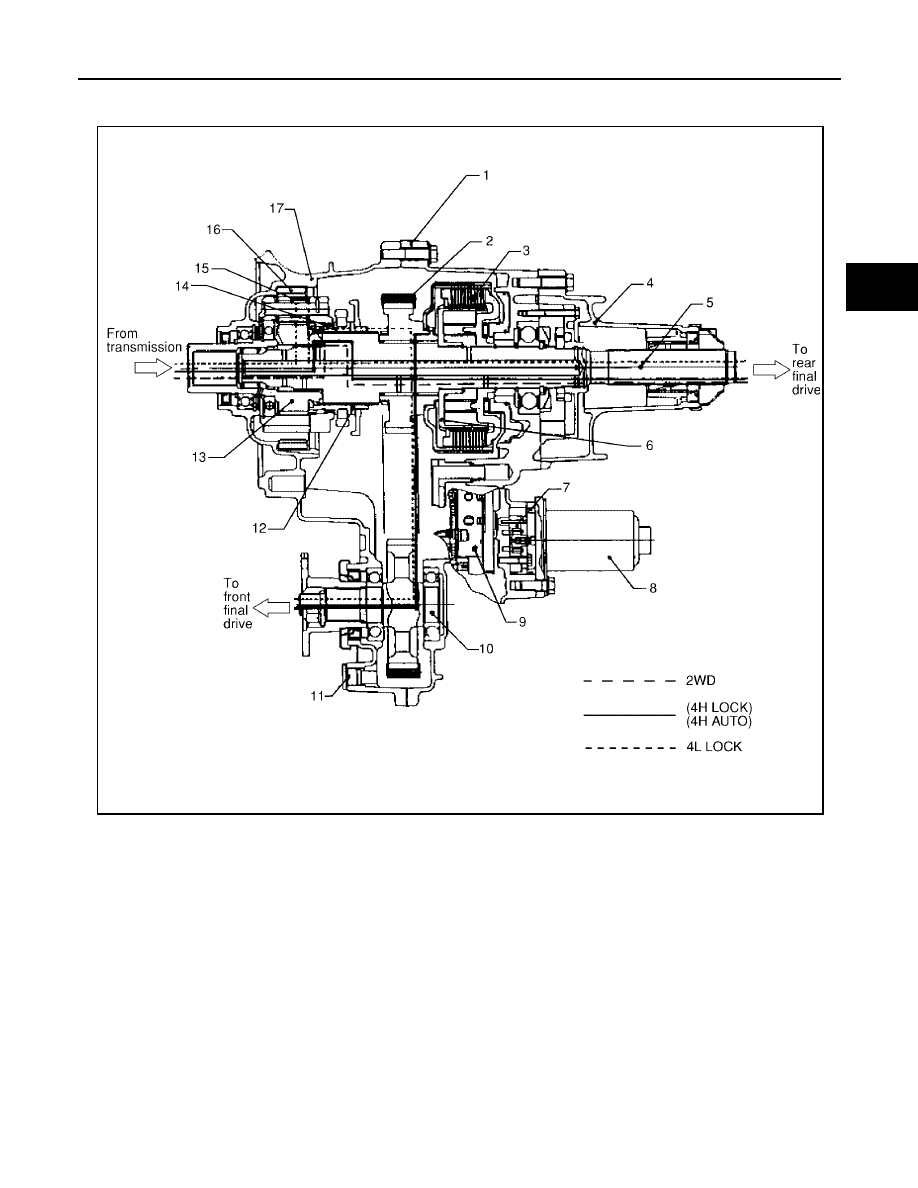

Power Transfer

EDS001IX

POWER TRANSFER DIAGRAM

1.

Center case

2.

Chain

3.

Multiple disc clutch

4.

Rear case

5.

Mainshaft

6.

Clutch hub assembly

7.

Sub oil pump

8.

Transfer motor

9.

Control valve

10. Front drive shaft

11.

Drain plug

12. 2-4 sleeve

13. Sun gear assembly

14. L-H sleeve

15. Planetary carrier assembly

16. Internal gear

17. Front case

LDIA0053E

TF-16

[ATX14B]

ALL-MODE 4WD SYSTEM

2005 Pathfinder

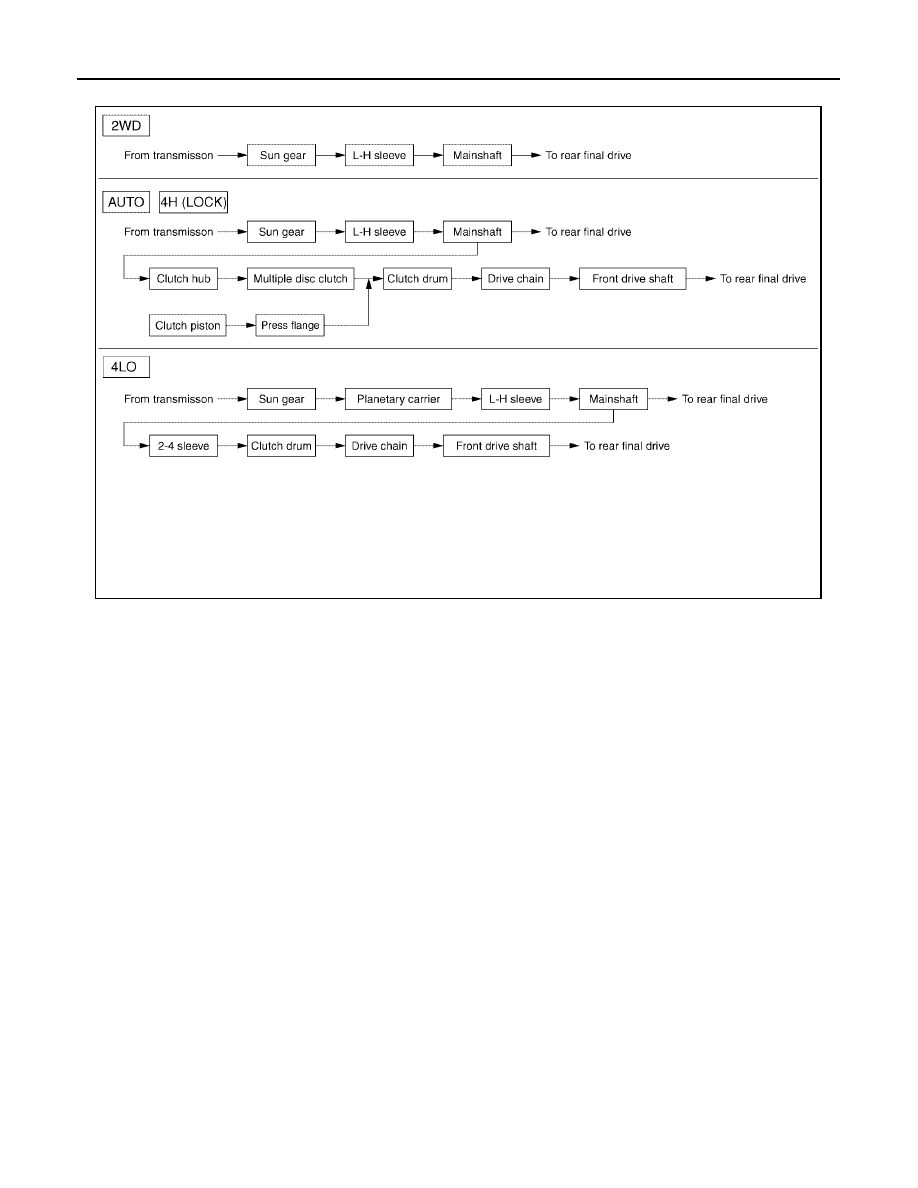

POWER TRANSFER FLOW

WDIA0201E

ALL-MODE 4WD SYSTEM

TF-17

[ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

TF

2005 Pathfinder

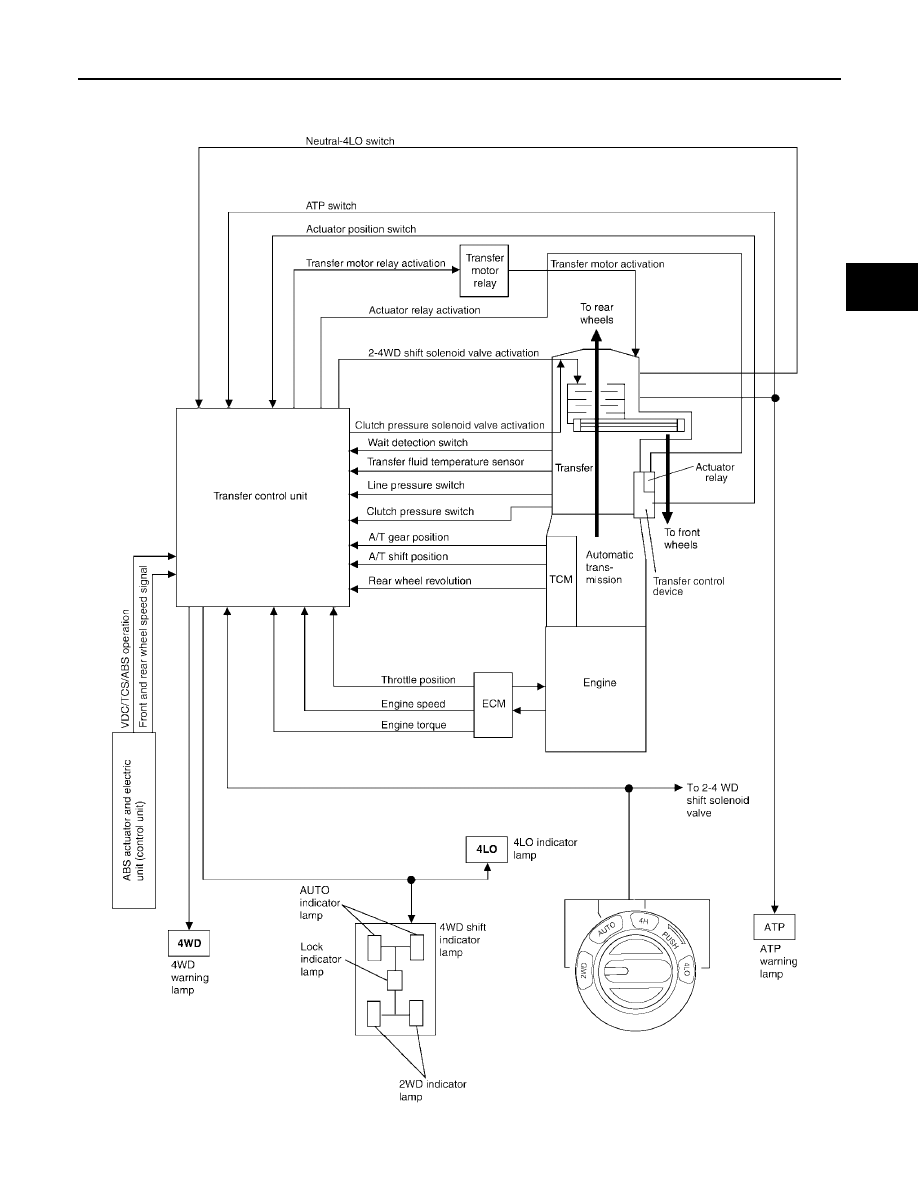

System Description

EDS001IY

CONTROL SYSTEM

WDIA0162E

TF-18

[ATX14B]

ALL-MODE 4WD SYSTEM

2005 Pathfinder

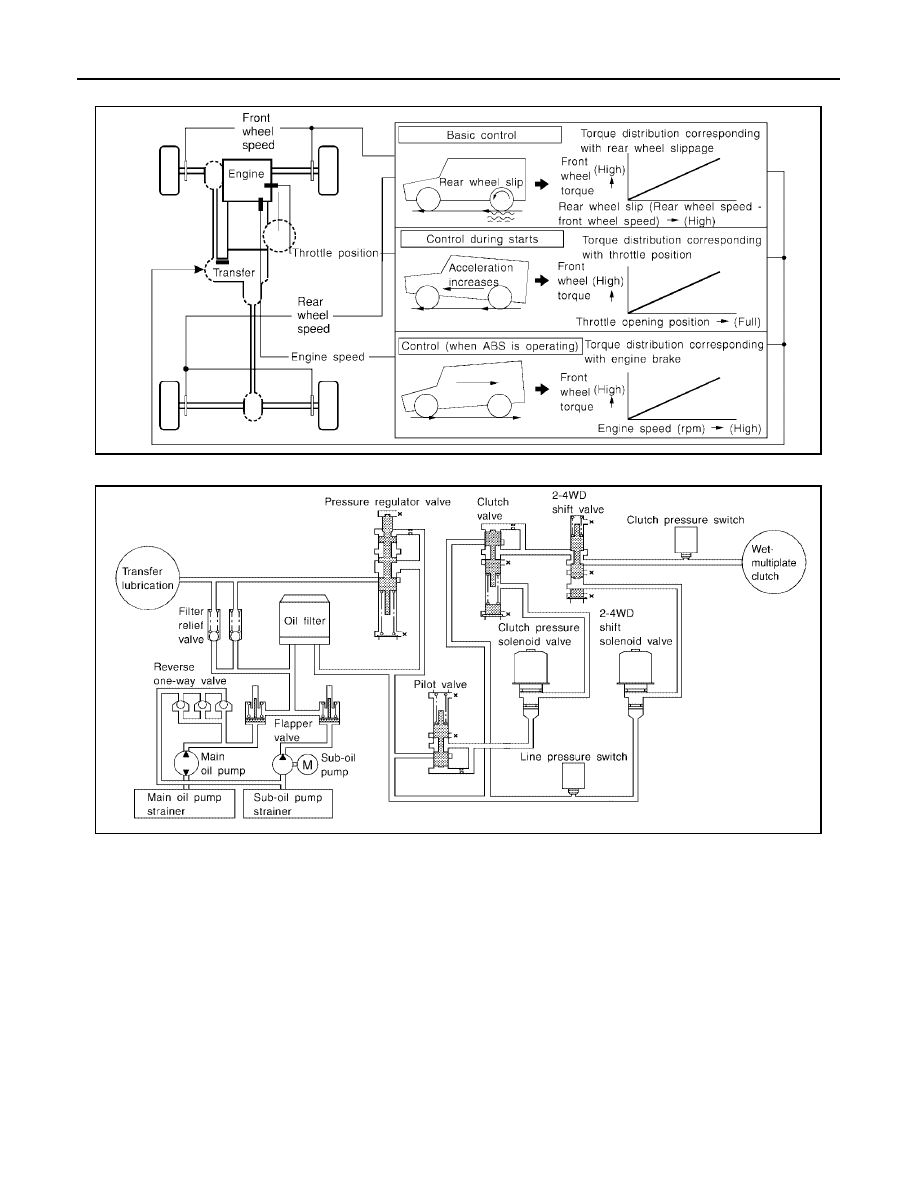

ALL-MODE 4WD Transfer Basic Control

Hydraulic Control Circuits

TRANSFER MOTOR

The transfer motor drives the sub-oil pump to provide proper lubrication and oil pressure control when the
vehicle is at standstill, during low-speed operations or is being driven in reverse.

The main oil pump is operated by the driving force of the mainshaft. In other words, sufficient oil pressure
buildup does not occur when the vehicle is at standstill or during low-speed operations. While the vehicle
is being driven in reverse, the main oil pump rotates in the reverse direction. Therefore the main oil pump
does not discharge oil pressure. During any of the above vehicle operations, the transfer motor drives the
sub-oil pump to compensate for insufficient oil pressure.

The transfer motor operates as follows.

The motor relay turns OFF in the 2WD mode.

The motor relay operates as described in the table below in modes other than the 2WD mode.

LDIA0055E

WDIA0163E
