DISPOSAL OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER

SRS-67

SRS

2005 Pathfinder

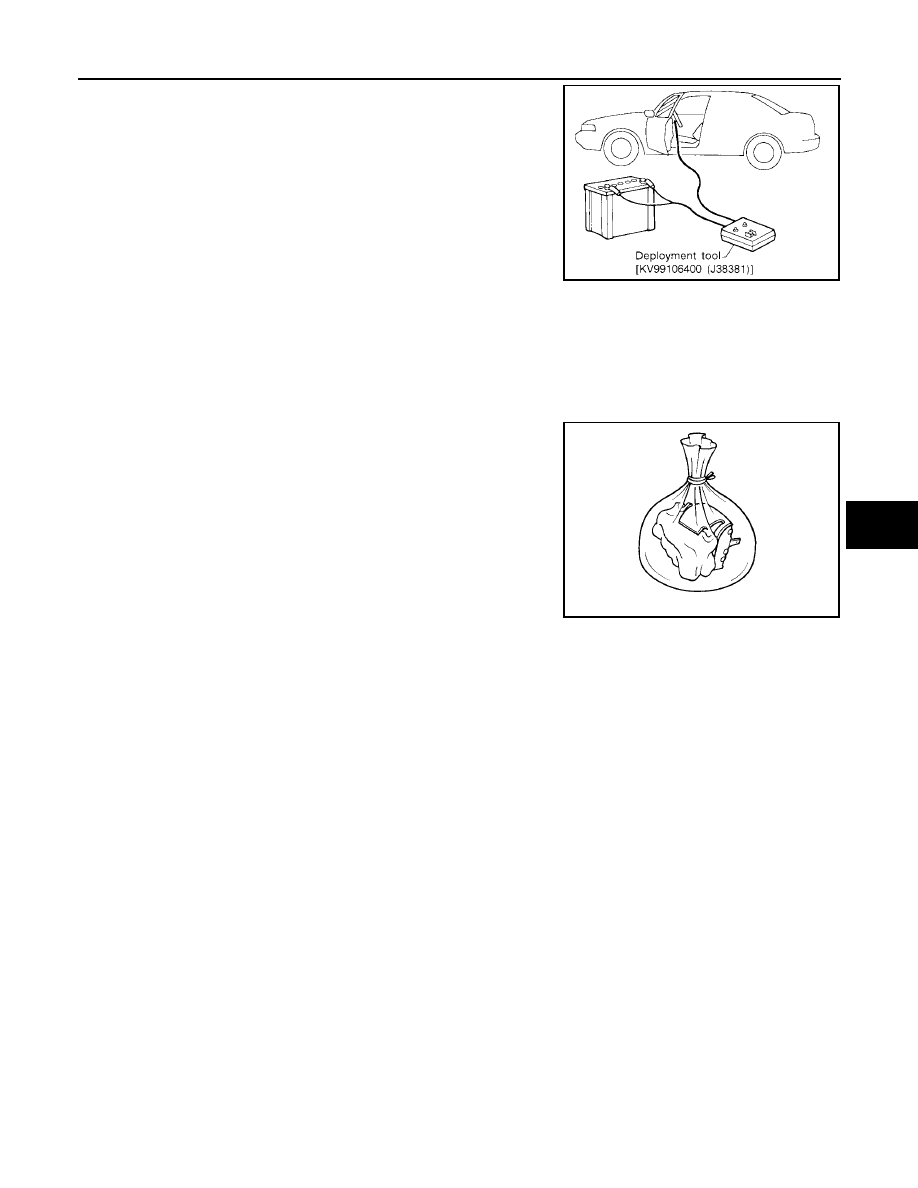

Connect red clip of deployment tool to battery positive terminal
and black clip to negative terminal.

The lamp on the right side of the tool, marked “deployment tool
power”, should glow green, not red.

Press the button on the deployment tool. The left side lamp on
the tool, marked “air bag connector voltage”, will illuminate and
the air bag module or seat belt pre-tensioner will deploy.

CAUTION:

Deploy only one air bag module or seat belt pre-tensioner at
a time.

DISPOSING OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER

Deployed air bag modules and seat belt pre-tensioners are very hot. Before disposing of air bag module or
seat belt pre-tensioner, wait at least 30 minutes or 10 minutes, respectively. Seal them in a plastic bag before
disposal.

CAUTION:

●

Never apply water to a deployed air bag module or seat belt
pre-tensioner.

●

Be sure to wear gloves when handling a deployed air bag
module or seat belt pre-tensioner.

●

No poisonous gas is produced upon air bag module
deployment. However, be careful not to inhale gas since it
irritates the throat and can cause choking.

●

Do not disassemble air bag module or seat belt pre-ten-
sioner.

●

Air bag modules and seat belt pre-tensioners cannot be
reused.

●

Wash your hands thoroughly after finishing work.

SRS006-C

SBF276H

SRS-68

COLLISION DIAGNOSIS

2005 Pathfinder

COLLISION DIAGNOSIS

PFP:00015

For Frontal Collision

EHS0013A

Check the SRS components using the following table.

●

After the work is completed, perform self-diagnosis to check that no malfunction is detected. Refer to

SRS-21, "SRS Operation Check"

SRS INSPECTION (FOR FRONTAL COLLISION)

Part

SRS is activated

SRS is NOT activated

Air bag module
(driver and front pas-
senger air bag mod-
ule)

REPLACE
Install with new fas-
teners.

1. Remove air bag module. Check harness cover and connectors for damage, termi-

nals for deformities, and harness for binding.

2. Install driver air bag module into the steering wheel to check fit and alignment with

the wheel.

3. Install passenger air bag module into the instrument panel to check fit with the

instrument panel.

4. If no damage is found, reinstall with new fasteners.

5. If damaged—REPLACE. Install air bag modules with new fasteners.

Air bag modules must be deployed before disposal.

Crash zone sensor

REPLACE the crash
zone sensor and
bracket with new fas-
teners.

1. Remove the crash zone sensor. Check harness connectors for damage, terminals

for deformities, and harness for binding.

2. Check for visible signs of damage (dents, cracks, deformation) of the crash zone

sensor and bracket.

3. Install the crash zone sensor to check fit.

4. If no damage is found, reinstall with new fasteners.

5. If damaged—REPLACE the crash zone sensor and bracket with new fasteners.

Seat belt pre-ten-
sioner assemblies

REPLACE
Install seat belt pre-
tensioner with new
fasteners.

1. Remove seat belt pre-tensioners.

Check harness cover and connectors for damage, terminals for deformities, and
harness for binding.

2. Check belts for damage and anchors for loose mounting.

3. Check retractor for smooth operation.

4. Check seat belt adjuster for damage.

5. If no damage is found, reinstall seat belt pre-tensioner assembly.

6. If damaged—REPLACE. Install the seat belt pre-tensioners with new fasteners.

Seat belt pre-tensioners must be deployed before disposal.

Diagnosis sensor unit

REPLACE
Install with new fas-
teners.

1. Check case for dents, cracks or deformities.

2. Check connectors for damage, and terminals for deformities.

3. If no damage is found, reinstall with new fasteners.

4. If damaged—REPLACE. Install diagnosis sensor unit with new fasteners.

Steering wheel

1. Visually check steering wheel for deformities.

2. Check harness (built into steering wheel) and connectors for damage, and terminals for deformities.

3. Install driver air bag module into the steering wheel to check fit and alignment with the wheel.

4. Check steering wheel for excessive free play.

5. If no damage is found, reinstall.

6. If damaged—REPLACE.

Spiral cable

REPLACE the spiral
cable.

1. Visually check spiral cable and combination switch for damage.

2. Check connectors and protective tape for damage.

3. Check steering wheel for noise, binding or heavy operation.

4. If no damage is found, reinstall.

5. If damaged—REPLACE.

COLLISION DIAGNOSIS

SRS-69

SRS

2005 Pathfinder

For Side Collision

EHS0013B

Check the SRS components using the following table.

●

After the work is completed, perform self-diagnosis to check that no malfunction is detected. Refer to

SRS-21, "SRS Operation Check"

WHEN SRS IS ACTIVATED IN THE SIDE COLLISION

Replace the following components:

–

Front seat back assembly (on the side on which side air bag is activated)

–

Diagnosis sensor unit

–

(LH or RH) side air bag (satellite) sensor (on the side on which side air bag is activated)

Check the SRS components and the related parts using the following table.

–

Replace any SRS components and the related parts showing visible signs of damage (dents, cracks,
deformation).

Conduct self-diagnosis using CONSULT-II and “AIR BAG” warning lamp. Refer to

SRS-21, "SRS Opera-

tion Check"

for details. Ensure entire SRS operates properly.

WHEN SRS IS NOT ACTIVATED IN THE SIDE COLLISION

Check the SRS components and the related parts using the following table.

–

If the front seat back assembly is damaged, the front seat back assembly must be replaced.

Conduct self-diagnosis using CONSULT-II and “AIR BAG” warning lamp. Refer to

SRS-21, "SRS Opera-

tion Check"

for details. Ensure entire SRS operates properly.

SRS INSPECTION (FOR SIDE COLLISION)

Occupant classifica-
tion system (Passen-
ger seat)

1. Remove passenger seat.

2. Check control unit case for dents, cracks of deformities.

3. Check connectors and pressure sensor tube for damage, and terminals for deformities.

4. Check the seat cushion frame and pan for any deformation, dents, cracks, or rust. Replace damaged com-

ponents as necessary. (The occupant classification system will not function as designed with deformities in
any of it's components.)

5. If no damage is found, reinstall seat with new fasteners.

6. If damaged — REPLACE seat cushion assembly with new fasteners.

Harness and connec-
tors

1. Check connectors for poor connection, damage, and terminals for deformities.

2. Check harness for binding, chafing, cuts, or deformities.

3. If no damage is found, reinstall the harness and connectors.

4. If damaged—REPLACE the damaged harness. Do not attempt to repair, splice or modify any SRS harness.

Instrument panel

REPLACE the instru-
ment panel assembly.

1. Visually check instrument panel for damage.

2. If no damage is found, reinstall the instrument panel.

3. If damaged—REPLACE the instrument panel.

Part

SRS is activated

SRS is NOT activated

Part

SRS is activated

SRS is NOT activated

(LH or RH) side cur-
tain air bag module

Replace the side cur-
tain air bag module.
(Repair the center pil-
lar inner, etc. before
installing new one if
damaged.)

1. Check for visible signs of damage (dents, tears, deformation) of the center pillar on

the collision side.

2. If damaged—Remove the side curtain air bag module.

3. Check for visible signs of damaged (tears etc.) of the side curtain air bag module.

4. Check harness and connectors for damage, and terminals for deformities.

5. If no damage is found, reinstall the side curtain air bag module with new fasteners.

6. If damaged—REPLACE the side curtain air bag module with new fasteners.

Air bag modules must be deployed before disposal.

Front (LH or RH) side
air bag module

REPLACE front seat-
back assembly.

1. Check for visible signs of damage (dents, tears, deformation) of the seat back on

the collision side.

2. Check harness and connectors for damage, and terminals for deformities.

3. If damaged—REPLACE the front seatback assembly.

SRS-70

COLLISION DIAGNOSIS

2005 Pathfinder

For Rollover

EHS001DG

Check the SRS components using the following table.

●

After the work is completed, perform self-diagnosis to check that no malfunction is detected. Refer to

SRS-21, "SRS Operation Check"

WHEN SRS IS ACTIVATED IN THE ROLLOVER

Replace the following components:

–

Diagnosis sensor unit

–

(LH or RH) side air bag (satellite) sensor (on the side on which side air bag is activated)

Check the SRS components and the related parts using the following table.

–

Replace any SRS components and the related parts showing visible signs of damage (dents, cracks,
deformation).

Conduct self-diagnosis using CONSULT-II and “AIR BAG” warning lamp. Refer to

SRS-21, "SRS Opera-

tion Check"

for details. Ensure entire SRS operates properly.

WHEN SRS IS NOT ACTIVATED IN THE ROLLOVER

Check the SRS components and the related parts using the following table.

(LH or RH) side air
bag (satellite) sensor

REPLACE the side
air bag (satellite) sen-
sor on the collision
side with new fasten-
ers.
(Repair the center pil-
lar inner, etc. before
installing new one if
damaged.)

1. Remove the side air bag (satellite) sensor on the collision side. Check harness

connectors for damage, terminals for deformities, and harness for binding.

2. Check for visible signs of damage (dents, cracks, deformation) of the side air bag

(satellite) sensor.

3. Install the side air bag (satellite) sensor to check fit.

4. If no damage is found, reinstall the side sir bag (satellite) sensor with new fasten-

ers.

5. If damaged—REPLACE the side air bag (satellite) sensor with new fasteners.

Diagnosis sensor unit

REPLACE the diag-
nosis sensor unit with
new fasteners.

1. Check case and bracket for dents, cracks or deformities.

2. Check connectors for damage, and terminals for deformities.

3. If no damage is found, reinstall the diagnosis sensor unit with new fasteners.

4. If damaged—REPLACE the diagnosis sensor unit with new fasteners.

Seat belt pre-ten-
sioner assembly

1. Check if the seat belt can be extended smoothly.

If the seat belt cannot be extended smoothly,

–

Check for deformities of the center pillar inner.

–

If the center pillar inner has no damage, REPLACE the seat belt pre-tensioner assembly.

2. Remove the seat belt pre-tensioner assembly on the collision side. Check harness cover and connectors

for damage, terminals for deformities, and harness for binding.

3. Check for visible signs of damage (dents, cracks, deformation) of the seat belt pre-tensioner assembly.

4. Check seat belt adjuster for damage.

5. If no damage is found, reinstall the seat belt pre-tensioner assembly.

6. If damaged—REPLACE the seat belt pre-tensioner assembly with new fasteners.

Seat belt pre-tensioners must be deployed before disposal.

Seat (with front side
air bag)

REPLACE front seat-
back assembly.

1. Visually check the seat on the collision side.

2. Remove the seat on the collision side and check the following for damage and

deformities.

–

Harness, connectors and terminals

–

Frame and recliner (for front and rear seat), and also adjuster and slides (for front
seat)

3. If no damage is found, reinstall the seat.

4. If damaged—REPLACE the damaged seat parts using new fasteners. If the front

seat back is damaged, the front seat back assembly must be replaced.

Center inner pillar

1. Check the center inner pillar on the collision side for damage (dents, cracks, deformation).

2. If damaged—REPAIR the center inner pillar.

Trim/headlining

1. Check for visible signs of damage (dents, cracks, deformation) of the interior trim on the collision side.

2. If damaged—REPLACE the damaged trim parts.

Part

SRS is activated

SRS is NOT activated

COLLISION DIAGNOSIS

SRS-71

SRS

2005 Pathfinder

–

If the front seat back assembly is damaged, the front seat back assembly must be replaced.

Conduct self-diagnosis using CONSULT-II and “AIR BAG” warning lamp. Refer to

SRS-21, "SRS Opera-

tion Check"

for details. Ensure entire SRS operates properly.

SRS INSPECTION (FOR ROLLOVER)

Part

SRS is activated

SRS is NOT activated

(LH or RH) side cur-
tain air bag module

Replace the side cur-
tain air bag module.
(Repair the center pil-
lar inner, etc. before
installing new one if
damaged.)

1. Check for visible signs of damage (dents, tears, deformation) of the center pillar on

the collision side.

2. If damaged—Remove the side curtain air bag module.

3. Check for visible signs of damaged (tears etc.) of the side curtain air bag module.

4. Check harness and connectors for damage, and terminals for deformities.

5. If no damage is found, reinstall the side curtain air bag module with new fasteners.

6. If damaged—REPLACE the side curtain air bag module with new fasteners.

Air bag modules must be deployed before disposal.

Front (LH or RH) side
air bag module

REPLACE front seat-
back assembly.

1. Check for visible signs of damage (dents, tears, deformation) of the seat back on

the collision side.

2. Check harness and connectors for damage, and terminals for deformities.

3. If damaged—REPLACE the front seatback assembly.

(LH or RH) side air
bag (satellite) sensor

REPLACE the side
air bag (satellite) sen-
sor on the collision
side with new fasten-
ers.
(Repair the center pil-
lar inner, etc. before
installing new one if
damaged.)

1. Remove the side air bag (satellite) sensor on the collision side. Check harness

connectors for damage, terminals for deformities, and harness for binding.

2. Check for visible signs of damage (dents, cracks, deformation) of the side air bag

(satellite) sensor.

3. Install the side air bag (satellite) sensor to check fit.

4. If no damage is found, reinstall the side sir bag (satellite) sensor with new fasten-

ers.

5. If damaged—REPLACE the side air bag (satellite) sensor with new fasteners.

Diagnosis sensor unit

REPLACE the diag-
nosis sensor unit with
new fasteners.

1. Check case and bracket for dents, cracks or deformities.

2. Check connectors for damage, and terminals for deformities.

3. If no damage is found, reinstall the diagnosis sensor unit with new fasteners.

4. If damaged—REPLACE the diagnosis sensor unit with new fasteners.

Seat belt pre-ten-
sioner assembly

1. Check if the seat belt can be extended smoothly.

If the seat belt cannot be extended smoothly,

–

Check for deformities of the center pillar inner.

–

If the center pillar inner has no damage, REPLACE the seat belt pre-tensioner assembly.

2. Remove the seat belt pre-tensioner assembly on the collision side. Check harness cover and connectors

for damage, terminals for deformities, and harness for binding.

3. Check for visible signs of damage (dents, cracks, deformation) of the seat belt pre-tensioner assembly.

4. Check seat belt adjuster for damage.

5. If no damage is found, reinstall the seat belt pre-tensioner assembly.

6. If damaged—REPLACE the seat belt pre-tensioner assembly with new fasteners.

The seat belt pre-tensioners must be deployed before disposal.

Seat (with front side
air bag)

REPLACE front seat-
back assembly.

1. Visually check the seat on the collision side.

2. Remove the seat on the collision side and check the following for damage and

deformities.

–

Harness, connectors and terminals

–

Frame and recliner (for front and rear seat), and also adjuster and slides (for front
seat)

3. If no damage is found, reinstall the seat.

4. If damaged—REPLACE the damaged seat parts using new fasteners. If the front

seat back is damaged, the front seat back assembly must be replaced.

Center inner pillar

1. Check the center inner pillar on the collision side for damage (dents, cracks, deformation).

2. If damaged—REPAIR the center inner pillar.

Trim/headlining

1. Check for visible signs of damage (dents, cracks, deformation) of the interior trim on the collision side.

2. If damaged—REPLACE the damaged trim parts.

SRS-72

COLLISION DIAGNOSIS

2005 Pathfinder

TF-1

TRANSFER

D DRIVELINE/AXLE

CONTENTS

SECTION

2005 Pathfinder

ATX14B

PRECAUTIONS .......................................................... 6

Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 6
Precautions for Transfer Assembly and Transfer
Control Unit Replacement ........................................ 6

METHOD FOR POSITION ADJUSTMENT ........... 6

Precautions .............................................................. 6
Service Notice .......................................................... 7
Wiring Diagrams and Trouble Diagnosis .................. 7

PREPARATION ........................................................... 8

Special Service Tools ............................................... 8
Commercial Service Tools .......................................11

NOISE, VIBRATION AND HARSHNESS (NVH)
TROUBLESHOOTING .............................................. 12

NVH Troubleshooting Chart ................................... 12

TRANSFER FLUID ................................................... 13

Replacement .......................................................... 13

DRAINING ........................................................... 13
FILLING ............................................................... 13

Inspection ............................................................... 13

FLUID LEAKAGE AND FLUID LEVEL ................ 13

ALL-MODE 4WD SYSTEM ...................................... 14

Cross-section View ................................................ 14
Power Transfer ....................................................... 15

POWER TRANSFER DIAGRAM ........................ 15
POWER TRANSFER FLOW ............................... 16

System Description ................................................ 17

TRANSFER CONTROL DEVICE ........................ 20
4WD SHIFT SWITCH AND INDICATOR LAMPS... 20
4WD WARNING LAMP ....................................... 21
ATP WARNING LAMP ......................................... 21

System Diagram ..................................................... 21

COMPONENTS FUNCTION ............................... 22

CAN Communication .............................................. 22

SYSTEM DESCRIPTION .................................... 22

TROUBLE DIAGNOSIS ............................................ 23

How to Perform Trouble Diagnosis ......................... 23

BASIC CONCEPT ............................................... 23

Location of Electrical Parts ..................................... 24
Circuit Diagram ....................................................... 25
Wiring Diagram — T/F — ....................................... 26
Inspections Before Trouble Diagnosis .................... 34

TRANSFER FLUID CHECK ................................ 34
PREPARATION FOR ROAD TEST ..................... 34
CHECK BEFORE ENGINE IS STARTED ........... 34
CHECK AT IDLE .................................................. 34
CRUISE TEST ..................................................... 36

Trouble Diagnosis Chart for Symptoms .................. 36
Transfer Control Unit Input/Output Signal Refer-
ence Values ............................................................ 38

TRANSFER CONTROL UNIT INSPECTION
TABLE ................................................................. 38

CONSULT-II Function (ALL MODE AWD/4WD) ..... 47

FUNCTION .......................................................... 47
CONSULT-II SETTING PROCEDURE ................ 47
SELF-DIAG RESULT MODE ............................... 48
DATA MONITOR MODE ...................................... 50
WORK SUPPORT ............................................... 52

Self-diagnostic Procedure ...................................... 53

SELF-DIAGNOSTIC PROCEDURE (WITH
CONSULT-II) ....................................................... 53
SELF-DIAGNOSTIC PROCEDURE (WITHOUT
CONSULT-II) ....................................................... 53
ERASE SELF-DIAGNOSIS ................................. 56

TROUBLE DIAGNOSIS FOR SYSTEM .................... 57

Power Supply Circuit For Transfer Control Unit ...... 57

CONSULT-II REFERENCE VALUE IN DATA

TF-2

2005 Pathfinder

MONITOR MODE ................................................ 57
TRANSFER CONTROL UNIT TERMINALS AND
REFERENCE VALUE .......................................... 57
DIAGNOSTIC PROCEDURE .............................. 58
COMPONENT INSPECTION .............................. 60

Transfer Control Unit .............................................. 60

DIAGNOSTIC PROCEDURE .............................. 60

Output Shaft Revolution Signal (TCM) ................... 61

DIAGNOSTIC PROCEDURE .............................. 61

Vehicle Speed Sensor (ABS) .................................. 61

DIAGNOSTIC PROCEDURE .............................. 61

Neutral-4LO Switch ................................................ 62

CONSULT-II REFERENCE VALUE IN DATA
MONITOR MODE ................................................ 62
TRANSFER CONTROL UNIT TERMINALS AND
REFERENCE VALUE .......................................... 62
DIAGNOSTIC PROCEDURE .............................. 63
COMPONENT INSPECTION .............................. 65

4WD Shift Switch .................................................... 65

CONSULT-II REFERENCE VALUE IN DATA
MONITOR MODE ................................................ 65
TRANSFER CONTROL UNIT TERMINALS AND
REFERENCE VALUE .......................................... 65
DIAGNOSTIC PROCEDURE .............................. 66
COMPONENT INSPECTION .............................. 69

Wait Detection Switch ............................................. 69

CONSULT-II REFERENCE VALUE IN DATA
MONITOR MODE ................................................ 69
TRANSFER CONTROL UNIT TERMINALS AND
REFERENCE VALUE .......................................... 69
DIAGNOSTIC PROCEDURE .............................. 70
COMPONENT INSPECTION .............................. 72

PNP Switch Signal (TCM) ...................................... 72

DIAGNOSTIC PROCEDURE .............................. 72

Actuator Motor ........................................................ 73

CONSULT-II REFERENCE VALUE IN DATA
MONITOR MODE ................................................ 73
TRANSFER CONTROL UNIT TERMINALS AND
REFERENCE VALUE .......................................... 73
DIAGNOSTIC PROCEDURE .............................. 74
COMPONENT INSPECTION .............................. 79

Actuator Position Switch ......................................... 80

CONSULT-II REFERENCE VALUE IN DATA
MONITOR MODE ................................................ 80
TRANSFER CONTROL UNIT TERMINALS AND
REFERENCE VALUE .......................................... 80
DIAGNOSTIC PROCEDURE .............................. 81
COMPONENT INSPECTION .............................. 83

Transfer Control Device .......................................... 84

CONSULT-II REFERENCE VALUE IN DATA
MONITOR MODE ................................................ 84
TRANSFER CONTROL UNIT TERMINALS AND
REFERENCE VALUE .......................................... 84
DIAGNOSTIC PROCEDURE .............................. 85

Engine Speed Signal (ECM) ................................... 88

DIAGNOSTIC PROCEDURE .............................. 88

Clutch Pressure Solenoid ....................................... 88

CONSULT-II REFERENCE VALUE IN DATA
MONITOR MODE ................................................ 88

TRANSFER CONTROL UNIT TERMINALS AND
REFERENCE VALUE ..........................................88
DIAGNOSTIC PROCEDURE ...............................89
COMPONENT INSPECTION ...............................92

2-4WD Solenoid ......................................................93

CONSULT-II REFERENCE VALUE IN DATA
MONITOR MODE ................................................93
TRANSFER CONTROL UNIT TERMINALS AND
REFERENCE VALUE ..........................................93
DIAGNOSTIC PROCEDURE ...............................93
COMPONENT INSPECTION ...............................96

Transfer Motor .........................................................97

CONSULT-II REFERENCE VALUE IN DATA
MONITOR MODE ................................................97
TRANSFER CONTROL UNIT TERMINALS AND
REFERENCE VALUE ..........................................98
DIAGNOSTIC PROCEDURE ...............................99
COMPONENT INSPECTION .............................104

Transfer Fluid Temperature ...................................104

CONSULT-II REFERENCE VALUE IN DATA
MONITOR MODE ..............................................104
TRANSFER CONTROL UNIT TERMINALS AND
REFERENCE VALUE ........................................104
DIAGNOSTIC PROCEDURE .............................105
COMPONENT INSPECTION .............................106

Clutch Pressure Switch .........................................107

CONSULT-II REFERENCE VALUE IN DATA
MONITOR MODE ..............................................107
TRANSFER CONTROL UNIT TERMINALS AND
REFERENCE VALUE ........................................107
DIAGNOSTIC PROCEDURE .............................108
COMPONENT INSPECTION .............................109

Line Pressure Switch ............................................ 110

CONSULT-II REFERENCE VALUE IN DATA
MONITOR MODE .............................................. 110
TRANSFER CONTROL UNIT TERMINALS AND
REFERENCE VALUE ........................................ 110
DIAGNOSTIC PROCEDURE ............................. 111
COMPONENT INSPECTION ............................. 113

Throttle Position Signal (ECM) .............................. 113

DIAGNOSTIC PROCEDURE ............................. 113

ABS Operation Signal (ABS) ................................ 113

DIAGNOSTIC PROCEDURE ............................. 113

VDC Operation Signal (ABS) ................................ 114

DIAGNOSTIC PROCEDURE ............................. 114

TCS Operation Signal (ABS) ................................ 114

DIAGNOSTIC PROCEDURE ............................. 114

CAN Communication Line ..................................... 116

DIAGNOSTIC PROCEDURE ............................. 116

ATP Switch ............................................................ 116

CONSULT-II REFERENCE VALUE IN DATA
MONITOR MODE .............................................. 116
TRANSFER CONTROL UNIT TERMINALS AND
REFERENCE VALUE ........................................ 116
DIAGNOSTIC PROCEDURE ............................. 117
COMPONENT INSPECTION ............................. 118

TROUBLE DIAGNOSIS FOR SYMPTOMS ............120

4WD Shift Indicator Lamp and 4LO Indicator Lamp
Do Not Turn ON ....................................................120

Content .. 420 421 422 423 ..
