Nissan Pathfinder (2005 year). Manual - part 392





SERVICE DATA AND SPECIFICATIONS (SDS)

RFD-37

C

E

F

G

H

I

J

K

L

M

A

B

RFD

2005 Pathfinder

Pinion Height Adjusting Washer

Unit: mm (in)

*: Always check with the Parts Department for the latest parts information.

Side Bearing Adjusting Washer

Unit: mm (in)

*: Always check with the Parts Department for the latest parts information.

Thickness

Part number*

Thickness

Part number*

3.05 (0.1201)
3.08 (0.1213)

3.11 (0.1224)

3.14 (0.1236)

38154 0C000
38154 0C001
38154 0C002
38154 0C003

3.17 (0.1248)
3.20 (0.1260)
3.23 (0.1272)
3.26 (0.1283)

38154 0C004
38154 0C005
38154 0C006
38154 0C007

Thickness

Part number*

Thickness

Part number*

2.00 (0.0787)
2.05 (0.0807)
2.10 (0.0827)
2.15 (0.0846)
2.20 (0.0866)
2.25 (0.0886)
2.30 (0.0906)

38453 N3100
38453 N3101
38453 N3102
38453 N3103
38453 N3104
38453 N3105
38453 N3106

2.35 (0.0925)
2.40 (0.0945)
2.45 (0.0965)
2.50 (0.0984)
2.55 (0.1004)
2.60 (0.1024)
2.65 (0.1043)

38453 N3107
38453 N3108
38453 N3109
38453 N3110

38453 N3111

38453 N3112
38453 N3113

RFD-38

SERVICE DATA AND SPECIFICATIONS (SDS)

2005 Pathfinder

RSU-1

REAR SUSPENSION

E SUSPENSION

CONTENTS

C

D

F

G

H

I

J

K

L

M

SECTION

A

B

RSU

2005 Pathfinder

PRECAUTIONS .......................................................... 2

Precautions for Rear Suspension ............................ 2

PREPARATION ........................................................... 3

Commercial Service Tools ........................................ 3

NOISE, VIBRATION, AND HARSHNESS (NVH)
TROUBLESHOOTING ................................................ 4

NVH Troubleshooting Chart ..................................... 4

REAR SUSPENSION ASSEMBLY ............................. 5

Components ............................................................. 5
On-Vehicle Inspection .............................................. 5
Wheel Alignment Inspection ..................................... 6

PRELIMINARY INSPECTION ............................... 6
CAMBER ............................................................... 7
TOE-IN .................................................................. 7

REAR SUSPENSION MEMBER ................................. 9

Removal and Installation .......................................... 9

COMPONENTS .................................................... 9
REMOVAL ............................................................. 9
INSPECTION AFTER REMOVAL ........................11
INSTALLATION ................................................... 12

SHOCK ABSORBER ................................................ 13

Removal and Installation ........................................ 13

REMOVAL ........................................................... 13
INSTALLATION ................................................... 13

Inspection ............................................................... 13

SUSPENSION ARM .................................................. 14

Removal and Installation ........................................ 14

REMOVAL ........................................................... 14
INSTALLATION ................................................... 14

Inspection ............................................................... 15

FRONT LOWER LINK .............................................. 16

Removal and Installation ........................................ 16

REMOVAL ........................................................... 16
INSPECTION AFTER REMOVAL ....................... 16
INSTALLATION ................................................... 17

Inspection ............................................................... 17

REAR LOWER LINK & COIL SPRING ..................... 18

Removal and Installation ........................................ 18

REMOVAL ........................................................... 18
INSTALLATION ................................................... 18

Inspection ............................................................... 19

STABILIZER BAR ..................................................... 20

Removal and Installation ........................................ 20

REMOVAL ........................................................... 20
INSTALLATION ................................................... 20

Inspection ............................................................... 20

SERVICE DATA AND SPECIFICATIONS (SDS) ...... 21

Wheel Alignment .................................................... 21
Ball Joint ................................................................. 22
Wheelarch Height (Unladen* ) ................................ 22

RSU-2

PRECAUTIONS

2005 Pathfinder

PRECAUTIONS

PFP:00001

Precautions for Rear Suspension

EES001A5

When installing the rubber bushings, the final tightening must be done under unladen condition and with
the tires on level ground. Oil will shorten the life of the rubber bushings, so wipe off any spilled oil immedi-
ately.

Unladen condition means the fuel tank, engine coolant and lubricants are at the full specification. The
spare tire, jack, hand tools, and mats are in their designated positions. There are no passengers in the
vehicle.

After installing suspension components, check the wheel alignment.

Caulking nuts are not reusable. Always use new caulking nuts for installation. New caulking nuts are pre-
oiled, do not apply any additional lubrication.

PREPARATION

RSU-3

C

D

F

G

H

I

J

K

L

M

A

B

RSU

2005 Pathfinder

PREPARATION

PFP:00002

Commercial Service Tools

EES001A7

Tool name

Description

Power tool

Removing bolts and nuts

PBIC0190E

RSU-4

NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTING

2005 Pathfinder

NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTING

PFP:00003

NVH Troubleshooting Chart

EES001A8

Use chart below to help you find the cause of the symptom. If necessary, repair or replace these parts.

×

: Applicable

Reference page

RSU-

5

RSU-1

3

RSU-

5

RSU-

5

RSU-2

2

RSU-

5

RSU-

6

RSU-2

0

PR

-3

,

"N

V

H

T

ro

ub

le

s

h

oo

ti

n

g

C

h

ar

t"

RFD-

7

,

"N

V

H

T

ro

ubl

e

s

hoot

ing

C

har

t"

FSU-

4,

"N

V

H

T

ro

ubl

e

s

hoot

in

g

C

har

t"

F

AX-

4,

"N

V

H

T

roub

le

s

hoot

in

g

C

har

t"

WT

-3

,

"N

V

H

T

ro

u

b

le

shoo

ti

ng

C

h

a

rt

"

WT

-3

,

"N

V

H

T

ro

u

b

le

shoo

ti

ng

C

h

a

rt

"

RAX-

4,

"N

V

H

T

ro

ubl

e

s

hoot

ing

C

har

t"

PS

-5

,

"NVH

T

ro

u

b

le

s

h

o

o

ti

n

g

Ch

a

rt

"

BR

-5

,

"N

V

H

T

ro

ub

le

s

h

oo

ti

n

g

C

h

ar

t"

Possible cause and SUSPECTED PARTS

Im

p

rop

er

in

st

al

la

ti

on,

lo

o

s

en

ess

Sho

c

k

abso

rbe

r

def

or

m

a

ti

on,

dam

age

o

r

def

le

ct

io

n

Bus

h

in

g

o

r

m

ount

in

g

det

er

io

ra

ti

on

Par

ts

int

er

fe

renc

e

Spr

in

g

fa

ti

gue

Sus

pens

io

n

loos

enes

s

In

cor

re

c

t

w

he

el

al

ignm

ent

S

tab

ili

z

e

r

ba

r

fa

ti

g

ue

PROPELL

E

R

S

HAFT

DIFFERENTIAL

FRONT

S

USPENSIO

N

FRONT

AXLE

TIRES

ROAD

W

H

EEL

DRI

V

E

SHAFT

BRAKES

STEERING

Symptom

Noise

×

×

×

×

×

×

×

×

×

×

×

×

×

×

Shake

×

×

×

×

×

×

×

×

×

×

×

×

Vibration

×

×

×

×

×

×

×

×

×

×

Shimmy

×

×

×

×

×

×

×

×

×

×

Shudder

×

×

×

×

×

×

×

×

Poor quality ride or handling

×

×

×

×

×

×

×

×

×

×

REAR SUSPENSION ASSEMBLY

RSU-5

C

D

F

G

H

I

J

K

L

M

A

B

RSU

2005 Pathfinder

REAR SUSPENSION ASSEMBLY

PFP:55020

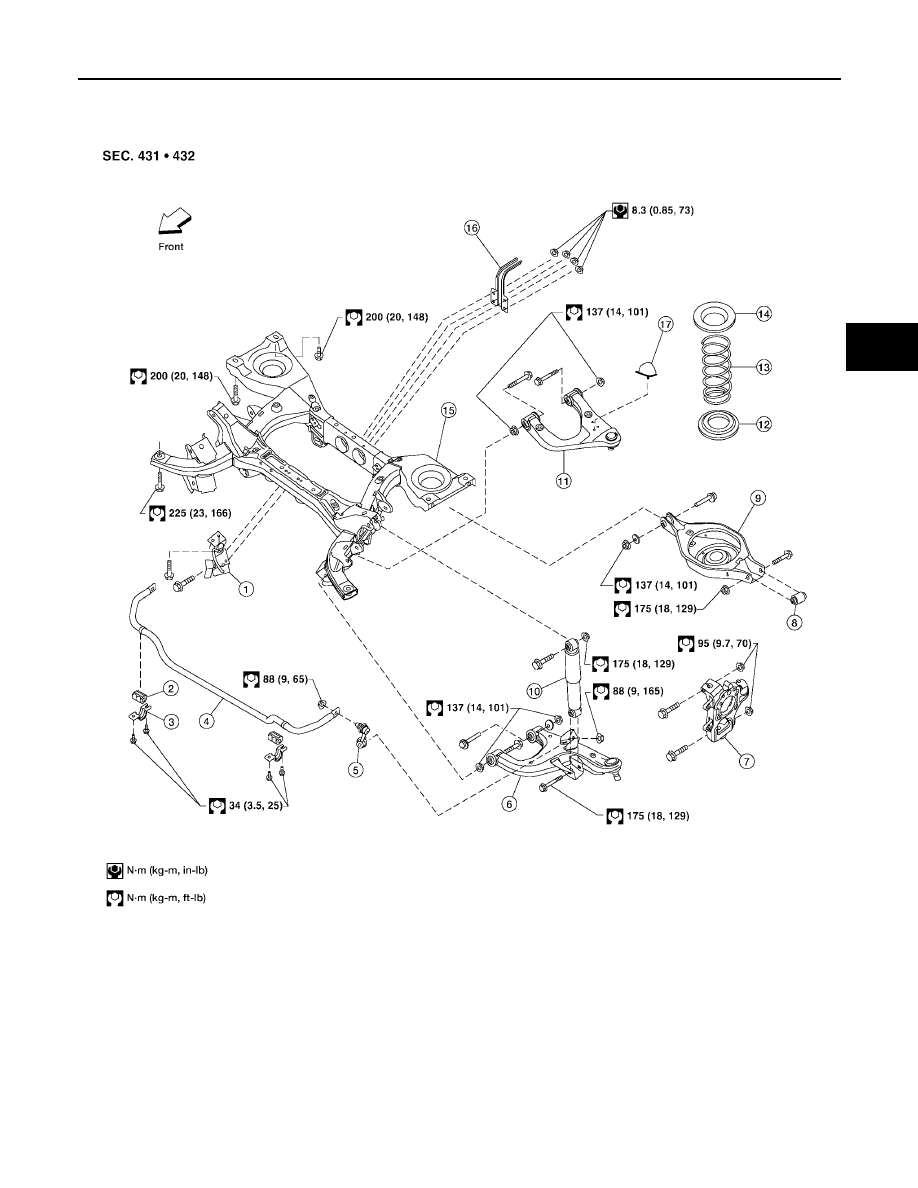

Components

EES001AM

On-Vehicle Inspection

EES001AN

Check all of the component mountings for any excessive looseness, or backlash. Repair or replace the
components as necessary.

1.

Seat belt latch anchor

2.

Stabilizer bar bushing

3.

Stabilizer bar clamp

4.

Stabilizer bar

5.

Connecting rod

6.

Front lower link

7.

Knuckle

8.

Bushing

9.

Rear lower link

10. Shock absorber

11.

Suspension arm

12. Lower rubber seat

13. Coil spring

14. Upper rubber seat

15. Rear suspension member

16. Spare tire bracket

17. Bound bumper

WEIA0130E

RSU-6

REAR SUSPENSION ASSEMBLY

2005 Pathfinder

Check the components for any excessive wear, damage, or abnormal conditions. Repair or replace the
components as necessary.

Check the shock absorbers for any oil leaks or damage, and replace as necessary.

Wheel Alignment Inspection

EES001AO

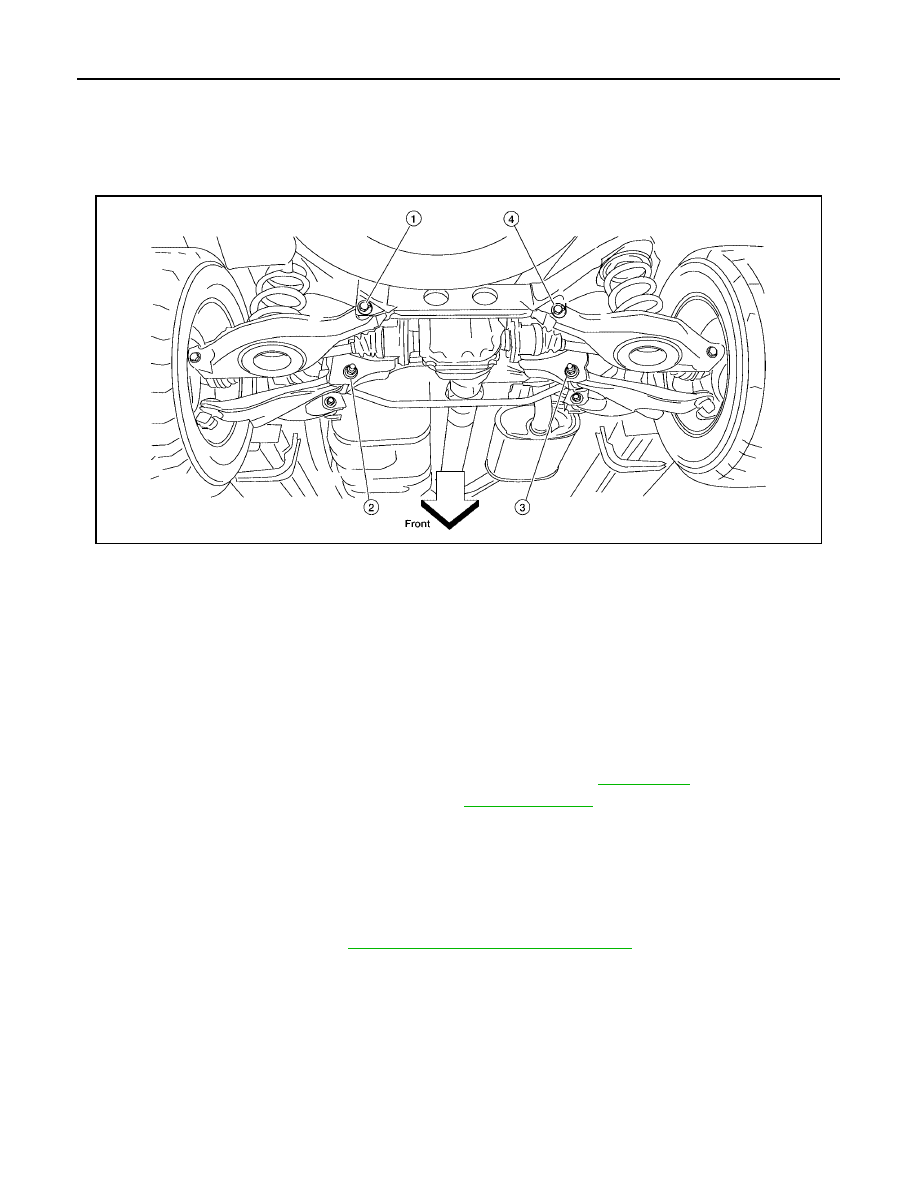

Rear Wheel Alignment Adjusting Bolts

PRELIMINARY INSPECTION

WARNING:

Always adjust the alignment with the vehicle on a flat surface.
NOTE:
If alignment is out of specification, inspect and replace any damaged or worn rear suspension parts before
making any adjustments.

1.

Check and adjust the wheel alignment with the vehicle under unladen conditions. “Unladen conditions”
means that the fuel, coolant, and lubricants are all full, and that the spare tire, jack, hand tools and mats
are in their designated positions, and there are no passengers in the vehicle.

2.

Check the tires for incorrect air pressure and excessive wear. Refer to

WT-32, "Tire"

.

3.

Check the wheels for runout and damage. Refer to

WT-4, "Inspection"

.

4.

Check the wheel bearing axial end play.

5.

Check the shock absorbers for any oil leaks or damage.

6.

Check each mounting point of the suspension components for any excessive looseness or damage.

7.

Check each link, arm, and the rear suspension member for any damage.

8.

Check the vehicle height. Refer to

RSU-22, "Wheelarch Height (Unladen* )"

.

WEIA0102E

1.

Rear lower link adjusting bolt, LH

2.

Front lower link adjusting bolt, LH

3.

Front lower link adjusting bolt, RH

4.

Rear lower link adjusting bolt, RH

Axial end play

: 0 mm (0 in)
