STEERING COLUMN

PS-11

C

D

E

F

H

I

J

K

L

M

A

B

PS

2005 Pathfinder

5.

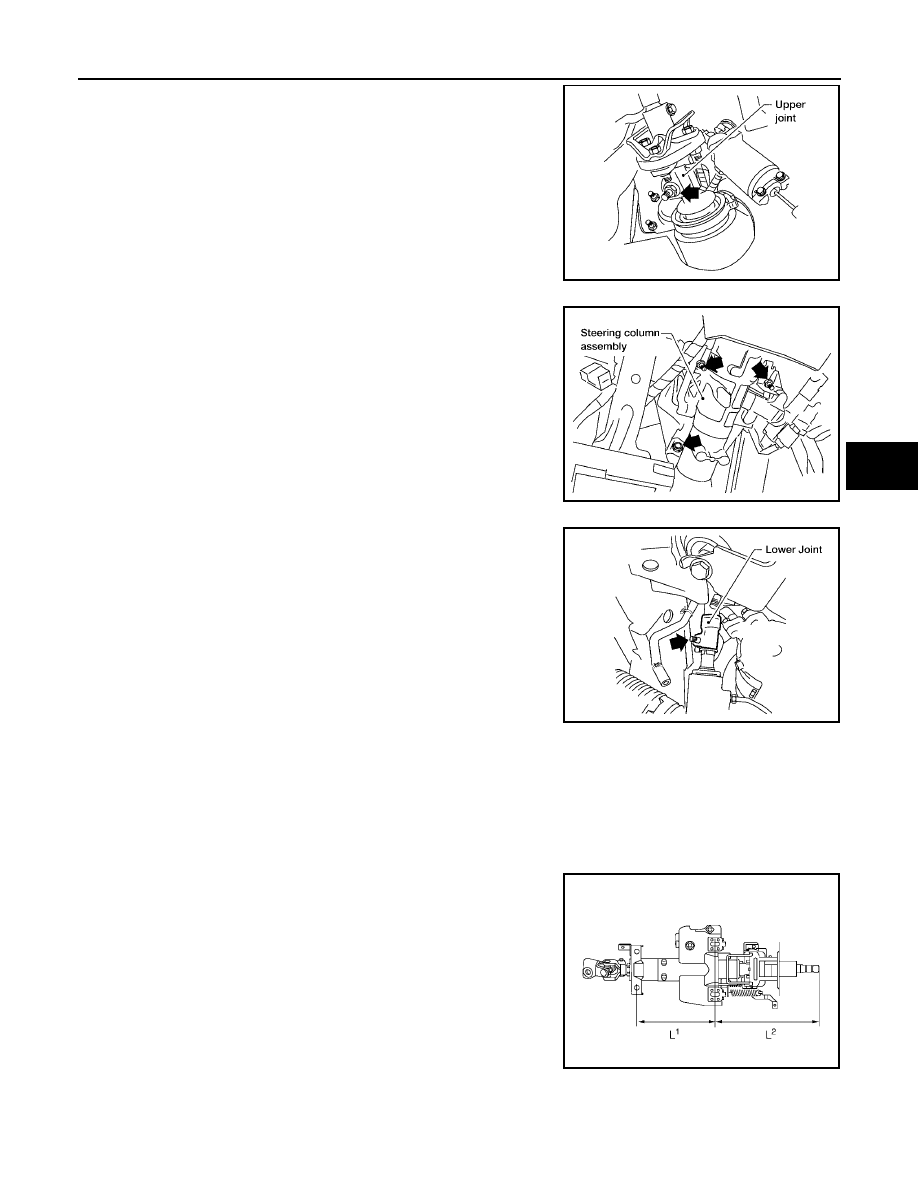

Remove the lock nut and bolt from the upper joint, then separate
the upper joint from the upper shaft.

CAUTION:

Do not reuse the lock nut.

6.

Remove the three nuts and bolt from the steering column
assembly, then remove the steering column assembly from the
steering member.

7.

Remove the hole cover seal and clamp.

8.

Remove the hole cover nuts, then remove the hole cover from
the dash panel.

9.

Remove the bolt from the lower joint of the lower joint shaft, then
remove the lower joint shaft from the vehicle.

CAUTION:

Do not damage the lower joint.

INSPECTION AFTER REMOVAL

Check for damage to the steering column jacket tube. If damage is found, replace the steering column
with a new one.

CAUTION:

Do not exert any axial load or impact to the steering column.

Replace the column if it is depleted of grease, worn, damaged, or if any scratches or coating
separation is present on the shaft seal area.

If the vehicle has been in a collision, or if noises are heard com-
ing from the steering column, check column length “L1” and “L2”
as shown. If out of specification, replace the steering column as
an assembly.

INSTALLATION

Installation is in the reverse order of removal.

LGIA0027E

LGIA0028E

LGIA0029E

Steering column length

L1

: 165.1 mm (6.500 in)

L2

: 258.0 mm (10.16 in)

SGIA0475E

PS-12

STEERING COLUMN

2005 Pathfinder

CAUTION:

When installing the steering column, finger-tighten all of the lower bracket and joint bolts; then tighten
them to specification. Do not apply undue stress to the steering column.

NOTE:

With the wheels in the straight ahead position, align the slit of
the lower joint with the projection on the dust cover. Insert the
joint until surface "A" contacts surface "B".

After installation, inspect the steering column for proper opera-
tion. Refer to

PS-13, "INSPECTION AFTER INSTALLATION"

.

SST491C

STEERING COLUMN

PS-13

C

D

E

F

H

I

J

K

L

M

A

B

PS

2005 Pathfinder

INSPECTION AFTER INSTALLATION

Check the tilt device for proper tilt range.

Check that the steering wheel turns smoothly to the left and right
locks.

Check that the number of turns are the same from the straight-
forward position to the left and right locks.

Check that the steering wheel is in the neutral position when
driving straight ahead.

Disassembly and Assembly

EGS000SF

DISASSEMBLY

1.

Remove the bolt from the upper joint, then remove the upper joint from the steering column assembly.

2.

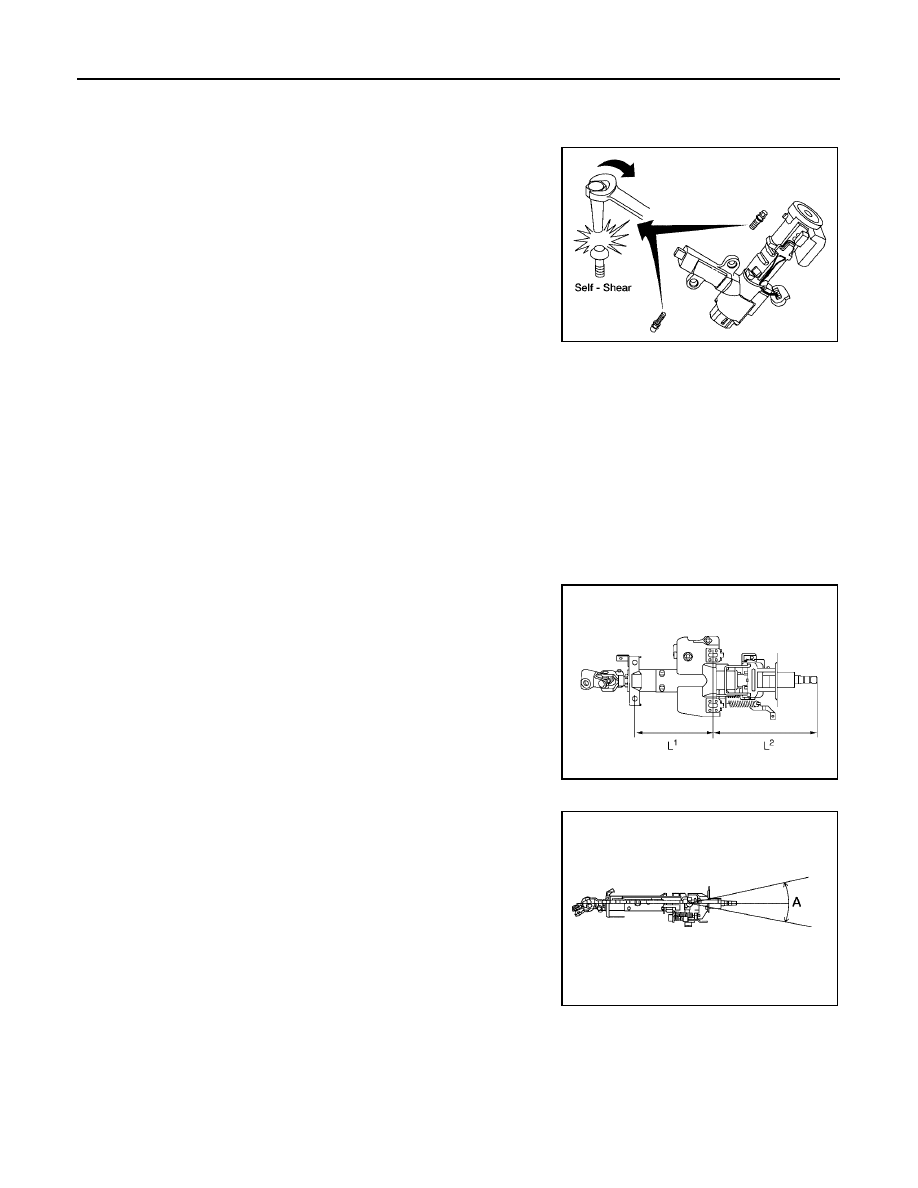

Remove the ignition switch tamper resistant self-shear screws, using a drill.

3.

Remove the ignition switch from the steering column.

Tilt range "A"

: 73.8 mm (2.906 in)

WGIA0083E

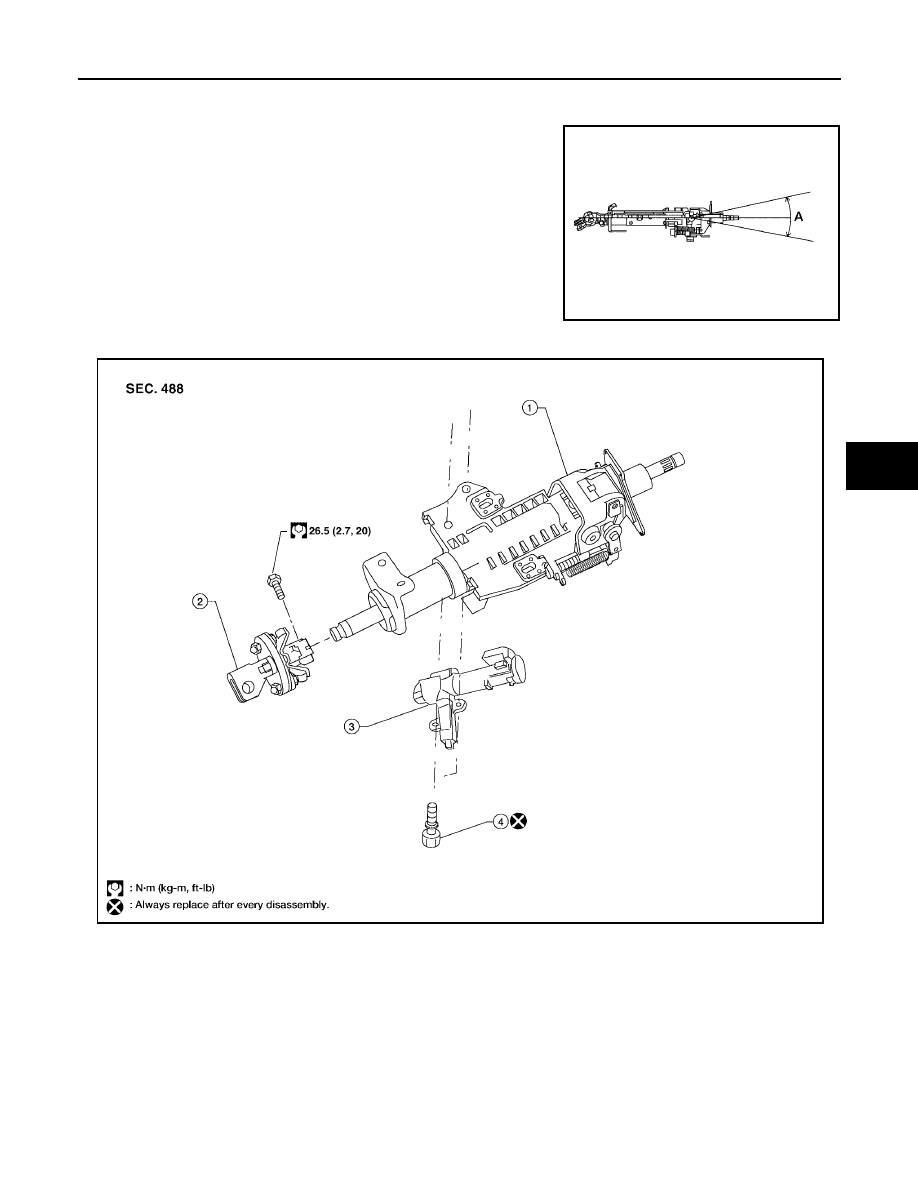

1.

Steering column assembly

2.

Upper joint

3.

Ignition switch

4.

Self-shear screw

WGIA0126E

PS-14

STEERING COLUMN

2005 Pathfinder

ASSEMBLY

Assembly is in the reverse order of disassembly.

NOTE:
Install new tamper resistant self-shear screws.

INSPECTION AFTER ASSEMBLY

When the steering wheel does not turn smoothly, check as follows:

1.

Check the steering column for the following:

Damage to the column tube or bearings

Wear around the seal edges

Corrosion or pitting around the seal sliding area

Replace the steering column as an assembly, if necessary.

CAUTION:

Do not exert any axial load or impact to the steering column.

Replace the column if it is depleted of grease, worn, damaged, or if any scratches or coating
separation is present on the shaft seal area.

2.

If the vehicle has been in a collision, or if noises are heard com-
ing from the steering column, check column length “L1” and “L2”
as shown. If out of specification, replace the steering column as
an assembly.

3.

Check the tilt device for proper operation range.

WGIA0009E

Steering column length

L1

: 165.1 mm (6.500 in)

L2

: 258.0 mm (10.16 in)

SGIA0475E

Range "A"

: 73.8 mm (2.906 in)

WGIA0083E

POWER STEERING GEAR AND LINKAGE

PS-15

C

D

E

F

H

I

J

K

L

M

A

B

PS

2005 Pathfinder

POWER STEERING GEAR AND LINKAGE

PFP:49001

Removal and Installation

EGS000SG

CAUTION:

Spiral cable may snap due to steering operation if the steering column is separated from the steering
gear assembly. Therefore secure the steering wheel to avoid turning.

REMOVAL

1.

Set front wheels in the straight-ahead position.

2.

Remove the front tires from the vehicle, using power tool.

3.

Remove the undercover, using power tool.

4.

On 4x4 models, remove the front final drive, then support the drive shafts, using suitable wire. Refer to

FFD-14, "Removal and Installation"

.

5.

Remove the stabilizer bar brackets and reposition the stabilizer bar.

6.

Remove the cotter pins at the steering outer sockets.

CAUTION:

Do not reuse the cotter pins.

7.

Remove the outer socket nuts.

8.

Remove the steering outer sockets from the steering knuckles,
using Tool.

CAUTION:

Do not damage the ball joint boots.

Do not damage the ball joint threads. Thread the ball joint
nut onto the end of the ball joint during removal.

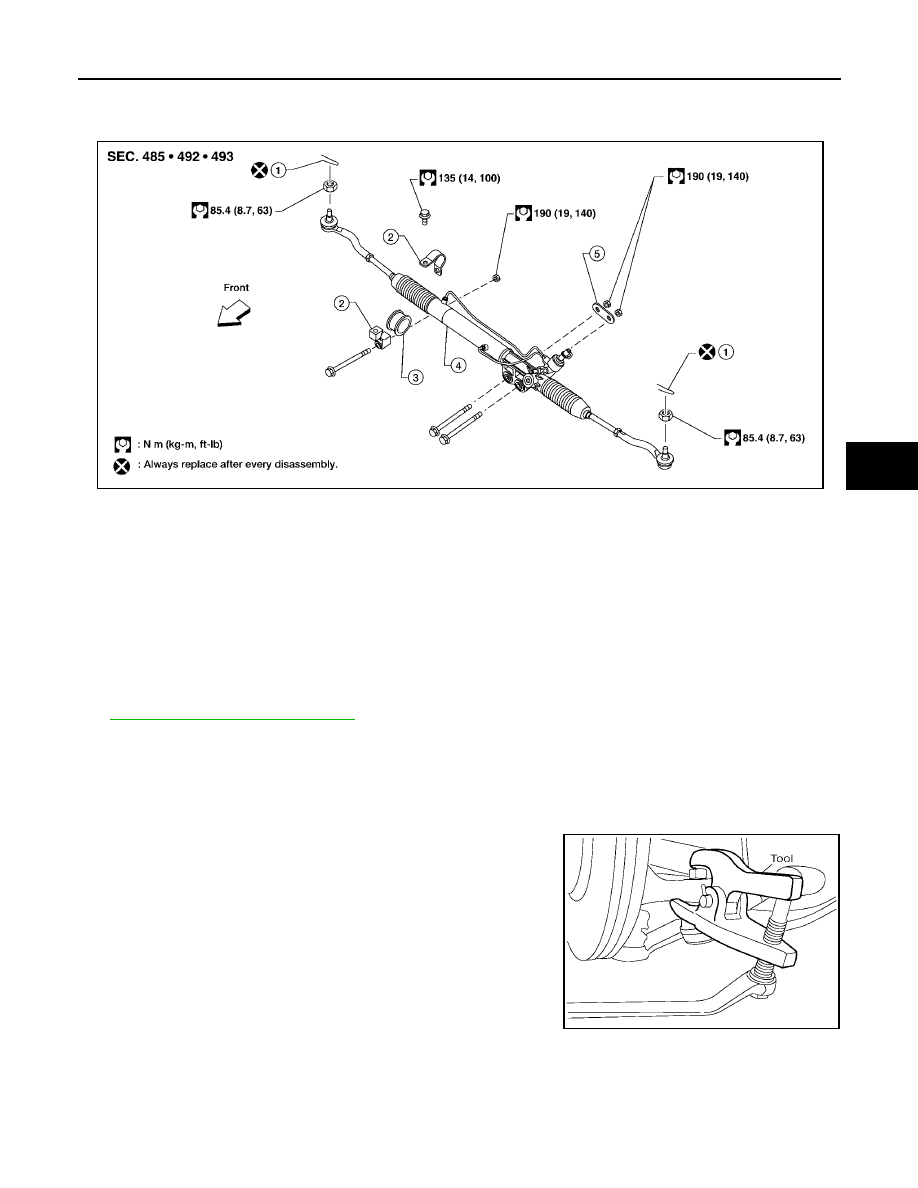

1.

Cotter pin

2.

Mounting bracket

3.

Mounting insulator

4.

Steering gear assembly

5.

Washer

WGIA0127E

Tool number

: HT72520000 (J-25730-A)

WGIA0130E

PS-16

POWER STEERING GEAR AND LINKAGE

2005 Pathfinder

9.

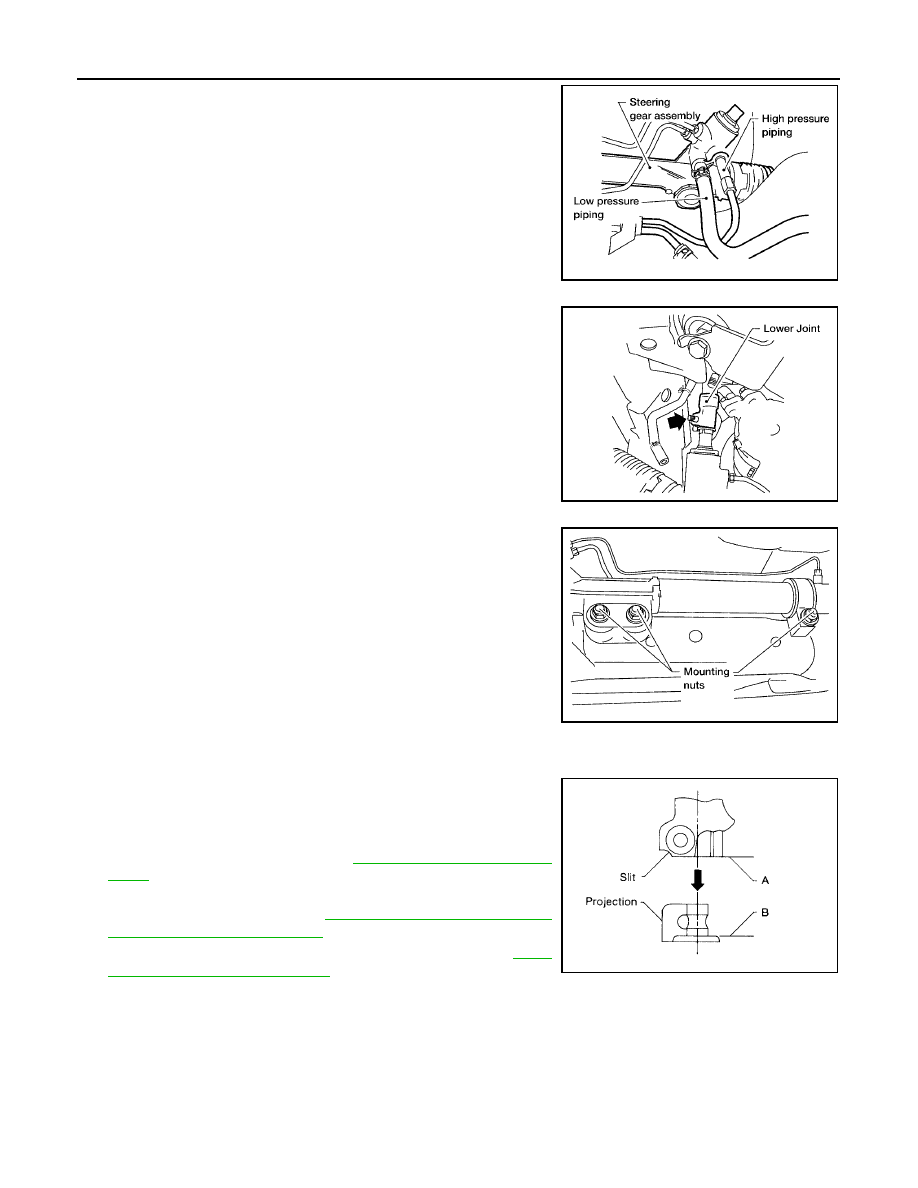

Remove the high pressure and low pressure piping from the
steering gear assembly, then drain the fluid from the piping.

10. Remove the bolt from the lower joint of the lower joint shaft, then

separate the lower joint from the steering gear assembly.

CAUTION:

Do not damage the lower joint.

11. Remove the nuts and bolts of the steering gear assembly, using

power tool, then remove the steering gear assembly from the
vehicle.

INSTALLATION

Installation is in the reverse order of removal.

With the steering wheel in the straight ahead position, align the
slit of the lower joint with the projection on the dust cover. Insert
the joint until surface "A" contacts surface "B".

After removing/installing or replacing steering components,
check wheel alignment. Refer to

FSU-6, "Front Wheel Align-

ment"

.

After adjusting wheel alignment, adjust neutral position of the
steering angle sensor. Refer to

BRC-57, "Adjustment of Steering

Angle Sensor Neutral Position"

.

Bleed the air from the steering hydraulic system. Refer to

PS-6,

"Air Bleeding Hydraulic System"

.

INSPECTION AFTER INSTALLATION

Check that the steering wheel turns smoothly to the left and right locks.

Check that the number of turns are the same from the straight-forward position to the left and right locks.

Check that the steering wheel is in the neutral position when driving straight ahead.

LGIA0032E

LGIA0029E

LGIA0024E

SST491C

POWER STEERING GEAR AND LINKAGE

PS-17

C

D

E

F

H

I

J

K

L

M

A

B

PS

2005 Pathfinder

Disassembly and Assembly

EGS000SH

CAUTION:

Secure the gear housing assembly with a vise. Use copper plates or equivalent to prevent it from
being damaged. Do not grip the cylinder with a vise.

Before performing disassembly, clean the gear housing assembly. Be careful not to allow any
cleaner to contact the discharge and return port connectors.

DISASSEMBLY

1.

Remove the cylinder tubes from the gear housing assembly.

2.

Loosen the lock nuts of the outer sockets, then remove the outer sockets from the inner sockets.

3.

Remove the boot clamps from the boots, then remove the boots from the inner sockets and gear housing
assembly.

CAUTION:

Do not reuse the large-diameter boot clamps.

Do not damage the boots, inner socket or gear housing assembly. If they are damaged, replace
them.

4.

Remove the inner sockets.

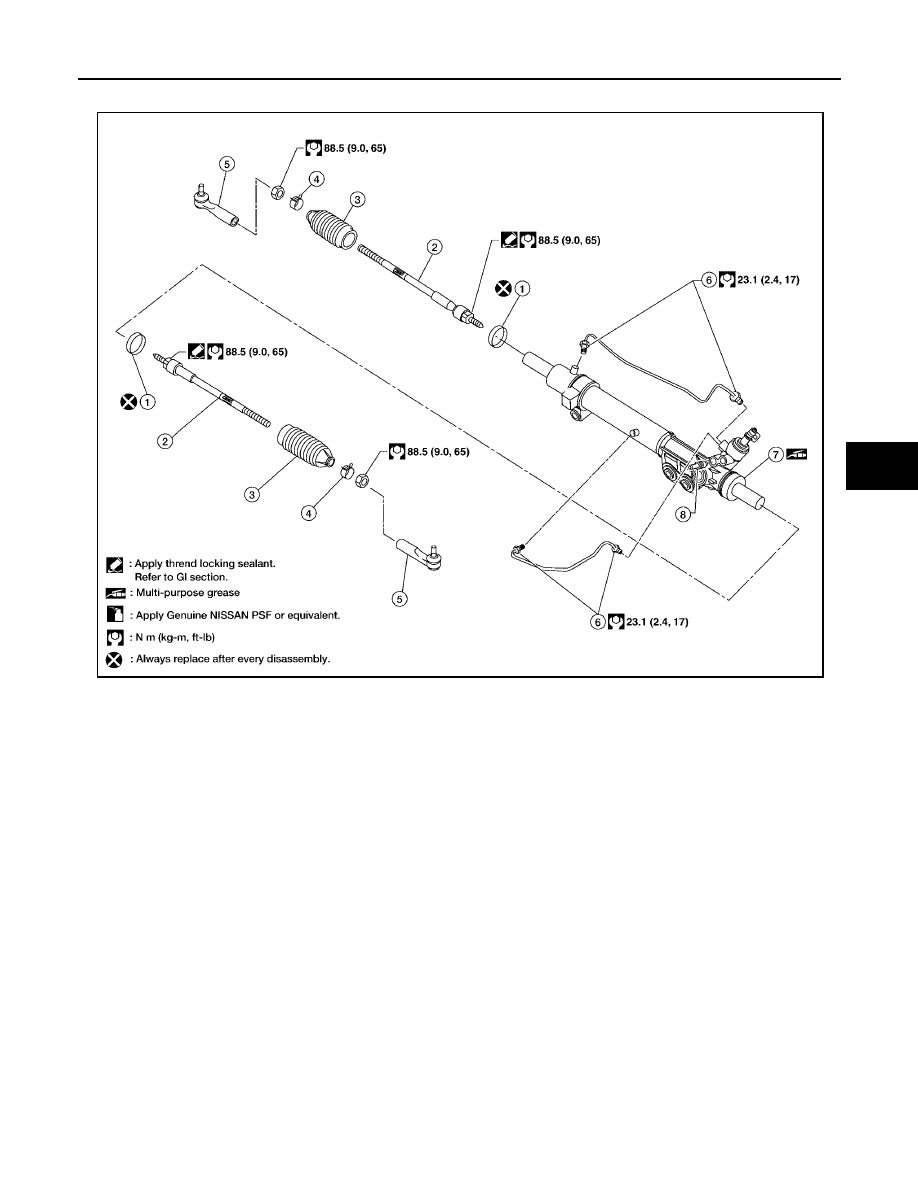

1.

Boot clamp

2.

Inner socket

3.

Boot

4.

Boot clamp

5.

Outer socket

6.

Cylinder tubes

7.

Gear housing assembly

8.

Connector

WGIA0128E

PS-18

POWER STEERING GEAR AND LINKAGE

2005 Pathfinder

INSPECTION AFTER DISASSEMBLY
Boot

Check boot for tears, cracks and deformation. Replace if necessary.

Gear Housing Assembly

Check gear housing assembly for dents, cracks or damage. Replace as an assembly if necessary.

Outer Socket and Inner Socket

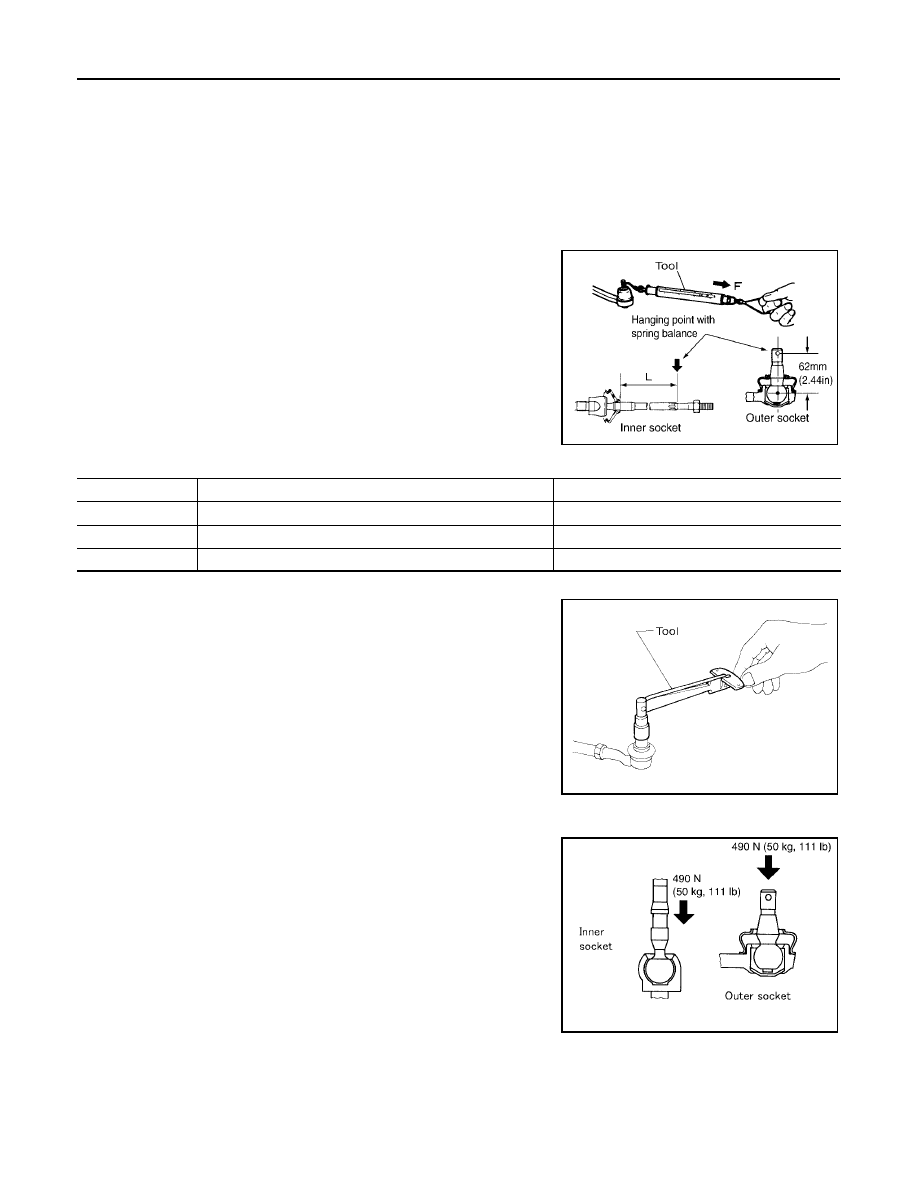

Swing Torque

Measure the swing torque, using Tool. When ball stud and inner
socket start moving the measured value must be within the
specification. If the reading is outside the specification, replace
the socket.

Rotating Torque

Measure the rotating torque, using Tool. If the value is outside
the specification, replace the outer sockets.

Axial End Play

Apply a load of 490 N (50 kg, 110 lb) to the ball stud axially. Use
a dial gauge to measure the amount of the movement that the
stud makes. If the value is outside the specification, replace the
sockets.

ASSEMBLY

1.

Install the inner sockets.

WGIA0131E

Item

Outer socket

Inner socket

Measuring point

Cotter pin hole of stud

Shown as L: 83.2 mm (3.276 in)

Swing torque

0.3

2.9 N·m (0.03

0.29 kg-m, 3

25 in-lb)

1.0

7.8 N·m (0.11

0.79 kg-m, 9

69 in-lb)

Measuring value

4.84

46.7 N (0.50

4.7 kg, 4 - 34 lb)

12.1

93.7 N (1.3

9.5 kg, 9

69 lb)

Tool number

: ST3127S000 (J-25765-A)

Rotating torque

: 0.3

2.9 N·m (0.03

0.29 kg-m,

3

25 in-lb)

WGIA0132E

Outer socket

: 0.5 mm (0.020 in) or less

Inner socket

: 0.2 mm (0.008 in) or less

SGIA0057E
