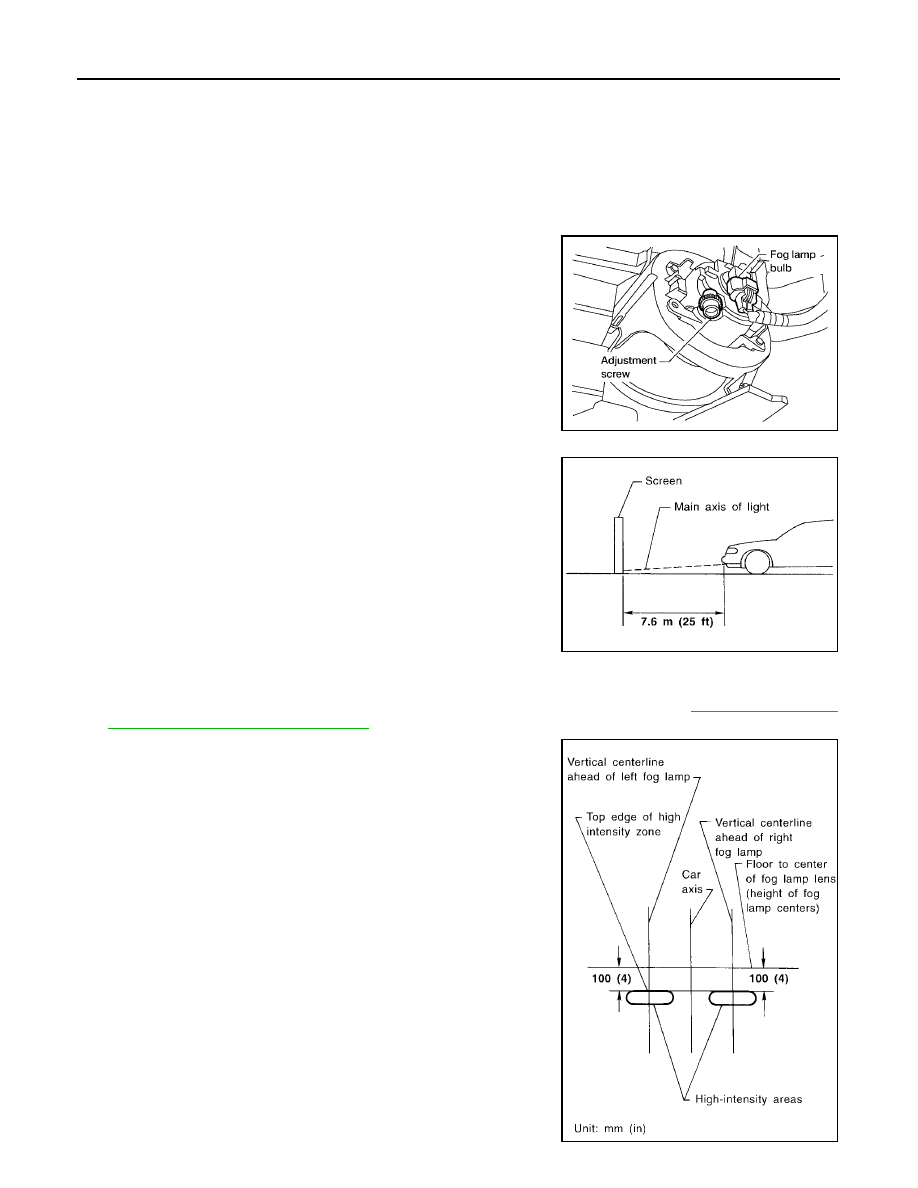

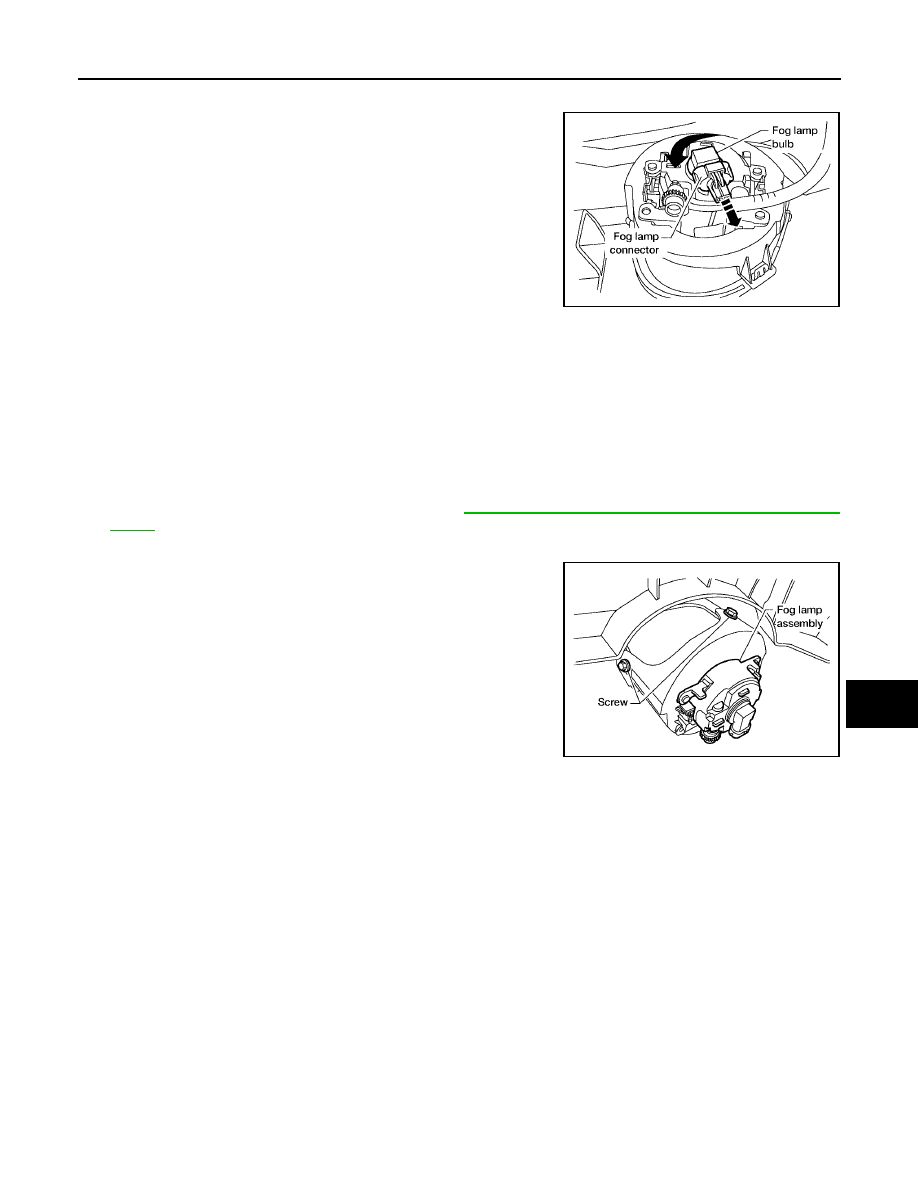

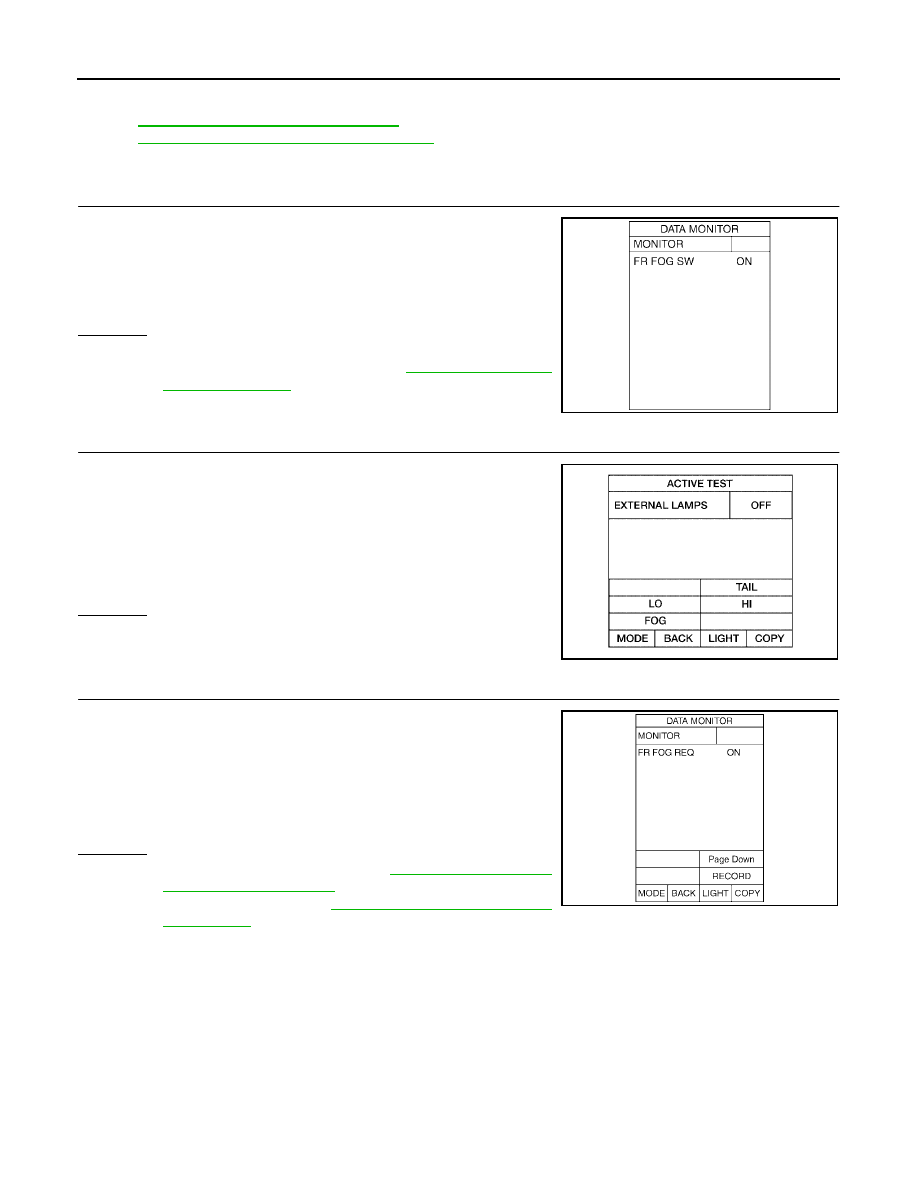

FRONT FOG LAMP LT-69 C D E F G H I J L M A B LT

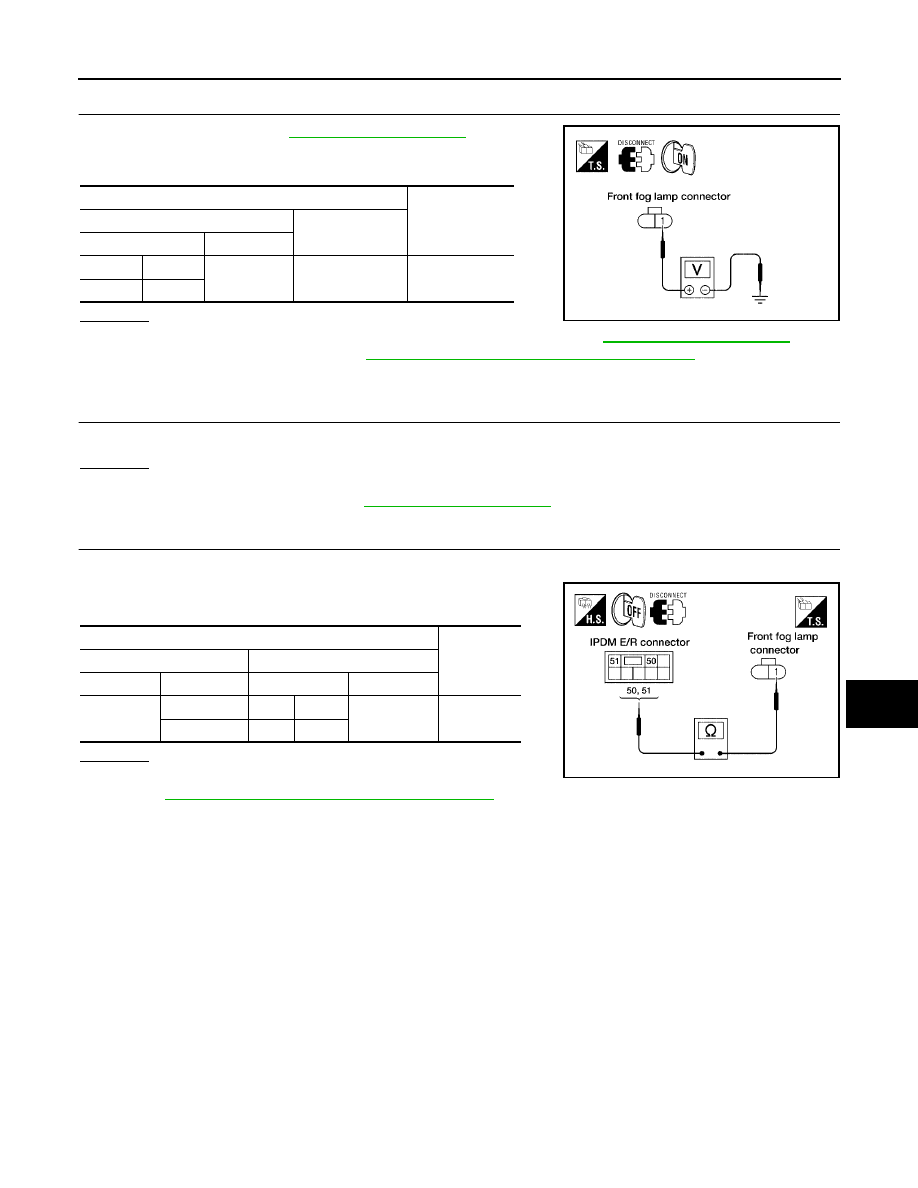

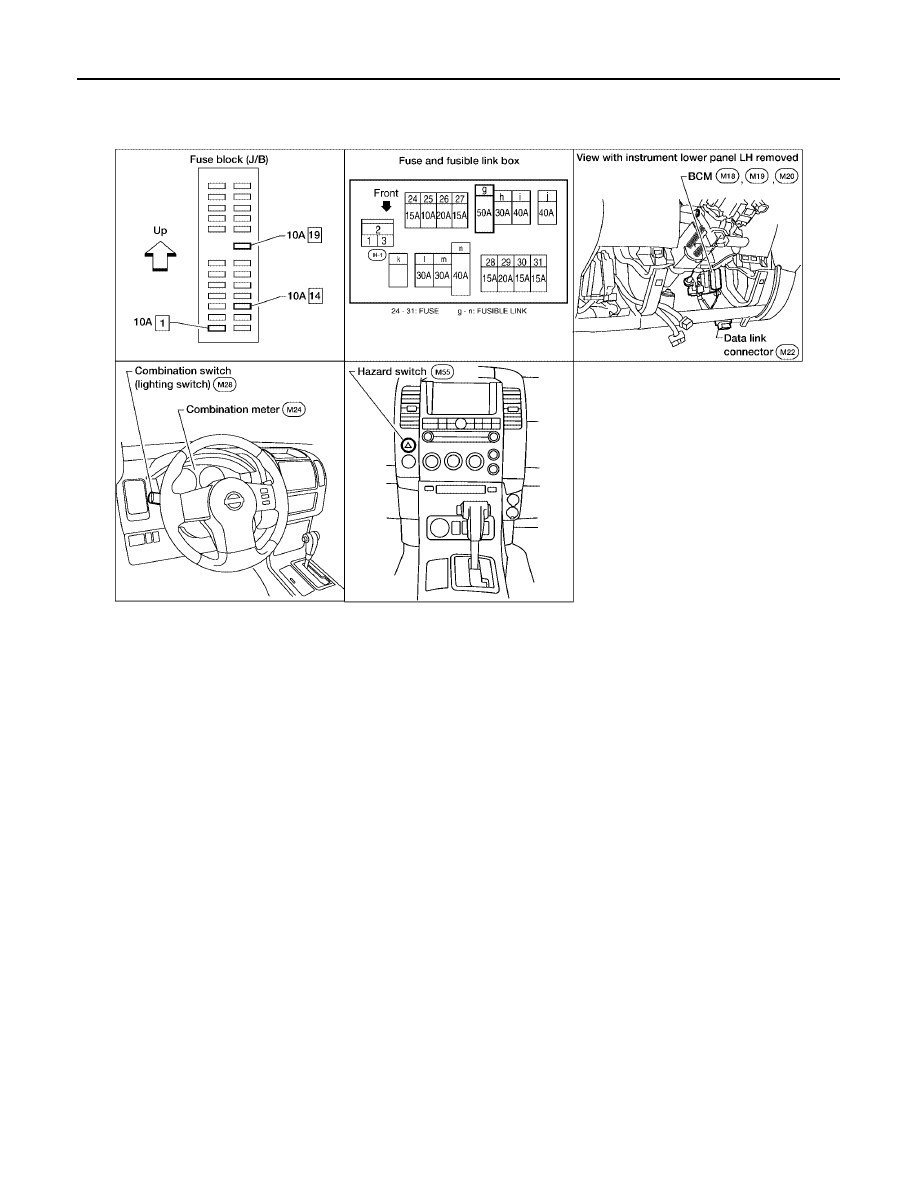

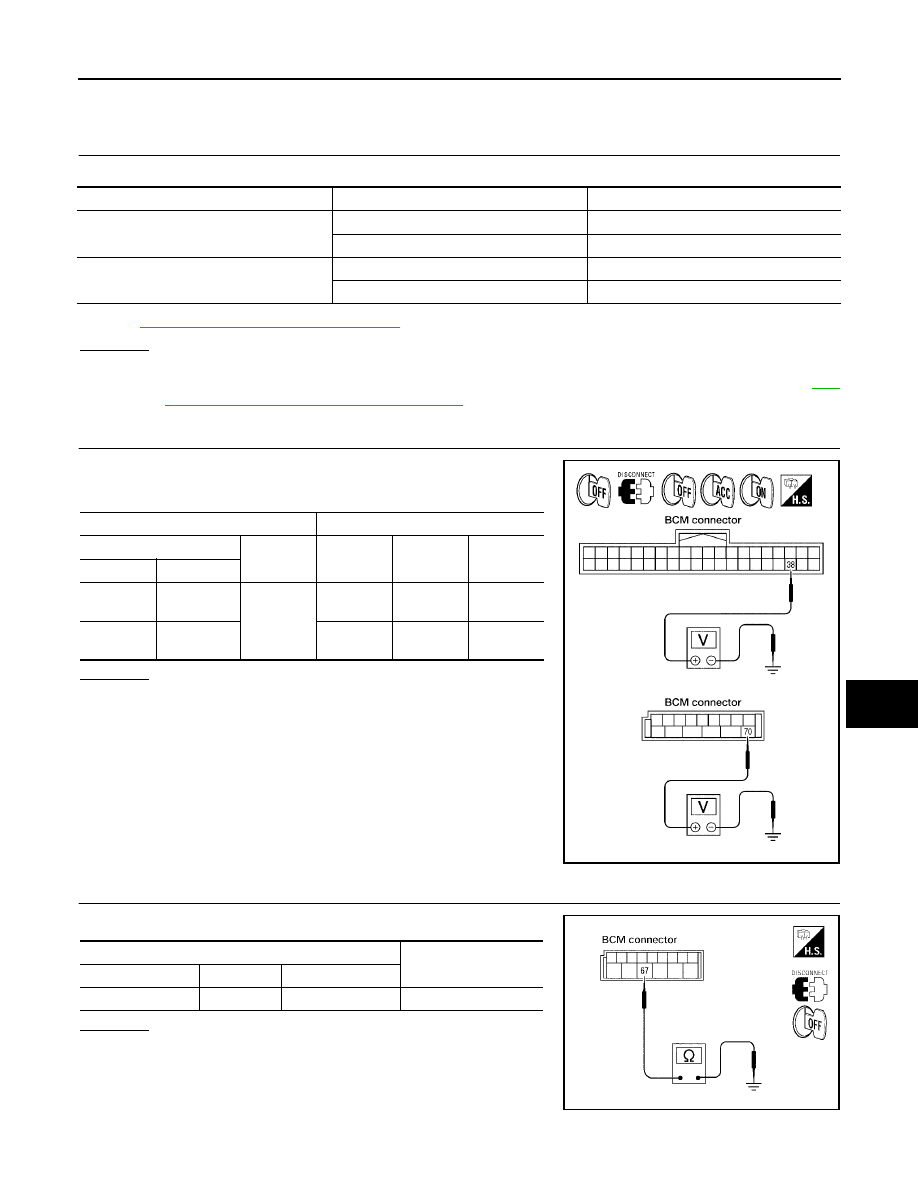

2005 Pathfinder Preliminary Check EKS009KZ CHECK POWER SUPPLY AND GROUND CIRCUIT 1. CHECK FUSES OR FUSIBLE LINK Check for blown fuses or fusible link. Refer to LT-65, "Wiring Diagram — F/FOG —" . OK or NG OK >> GO TO 2. NG >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to 4, "POWER SUPPLY ROUTING CIRCUIT" . 2. CHECK POWER SUPPLY CIRCUIT 1. Disconnect BCM connectors. 2. Check voltage between BCM harness connector and ground. OK or NG OK >> GO TO 3. NG >> Check harness for open between BCM and fuse. 3. CHECK GROUND CIRCUIT Check continuity between BCM harness connector and ground. OK or NG OK >> Inspection End. NG >> Check ground circuit harness. Unit Power source Fuse No. BCM Battery g Ignition switch ON or START position 1 IPDM E/R Battery 53 Battery (Fog lamps ON) 56 Terminals Ignition switch position (+) (–) OFF ACC ON Connector Terminal M18 38 Ground 0V 0V Battery M20 70 Battery Battery Battery WKIA1436E Terminals Continuity Connector Terminal M20 67 Ground Yes LIIA0915E |
