CAN SYSTEM (TYPE 2)

LAN-67

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2005 Pathfinder

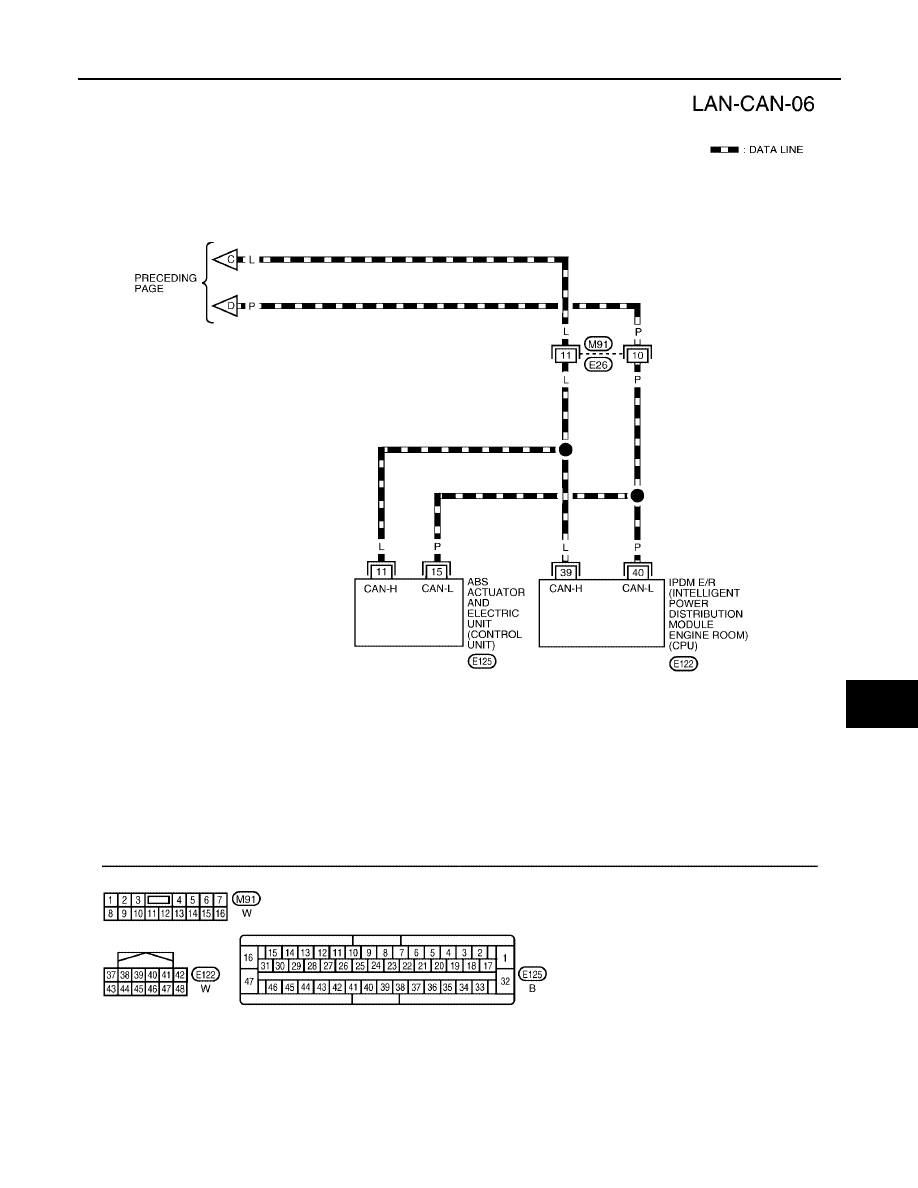

BKWA0374E

LAN-68

[CAN]

CAN SYSTEM (TYPE 2)

2005 Pathfinder

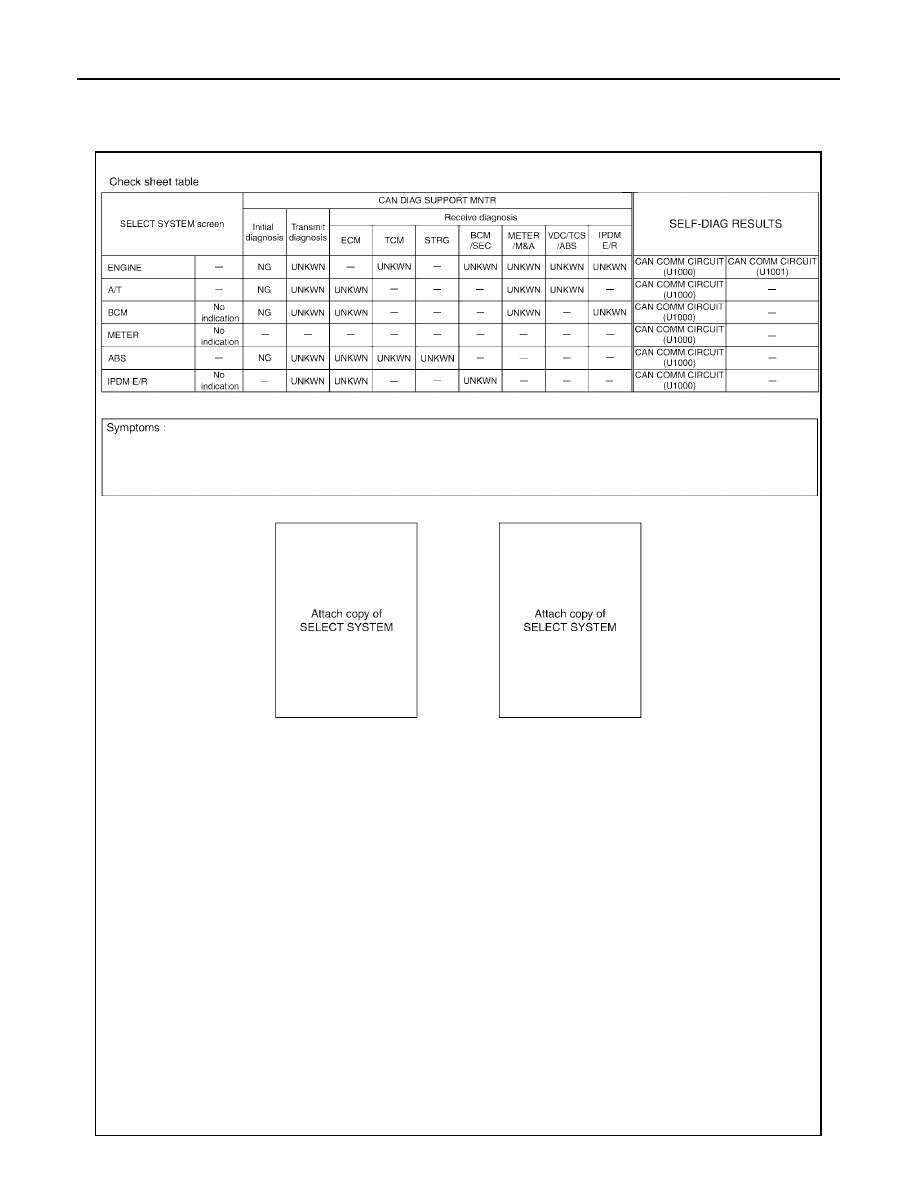

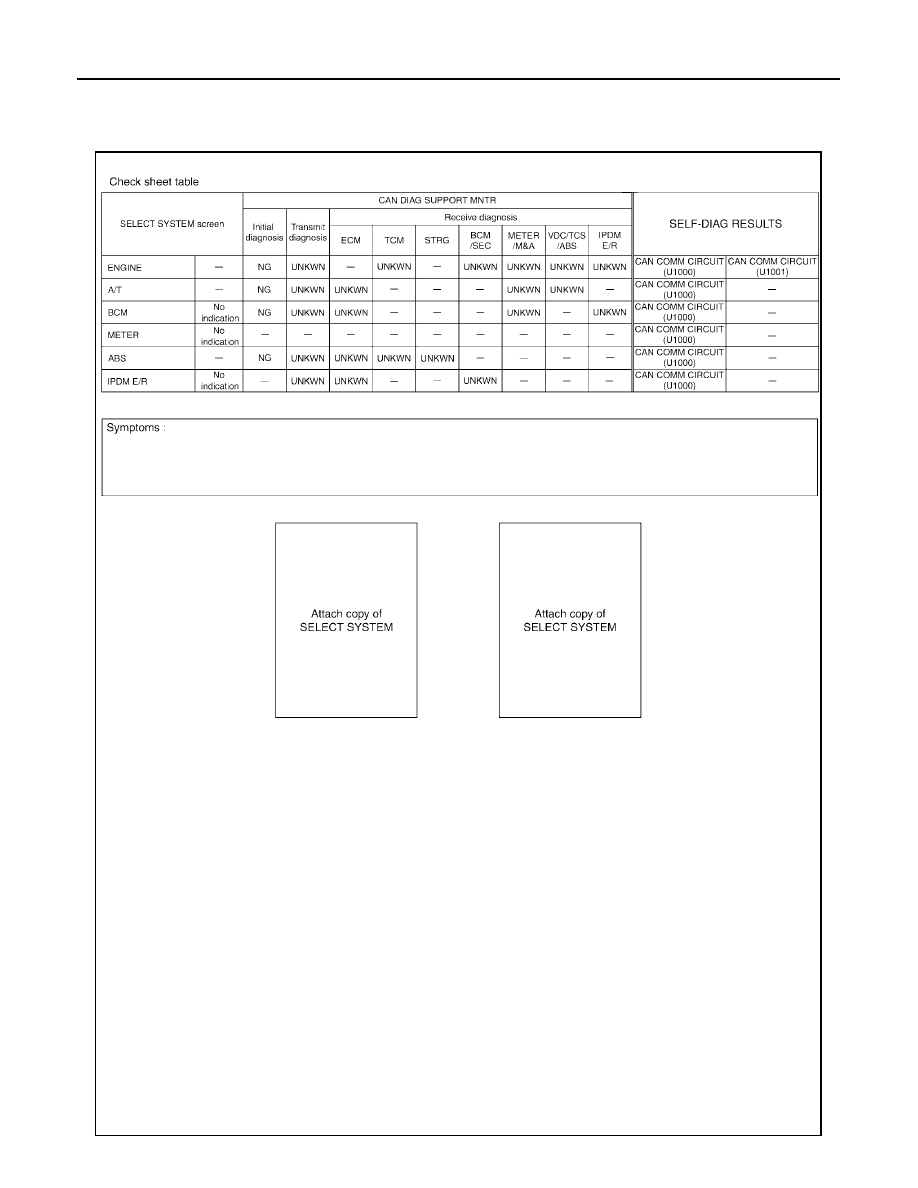

CHECK SHEET

UKS003FN

NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.

PKIB5016E

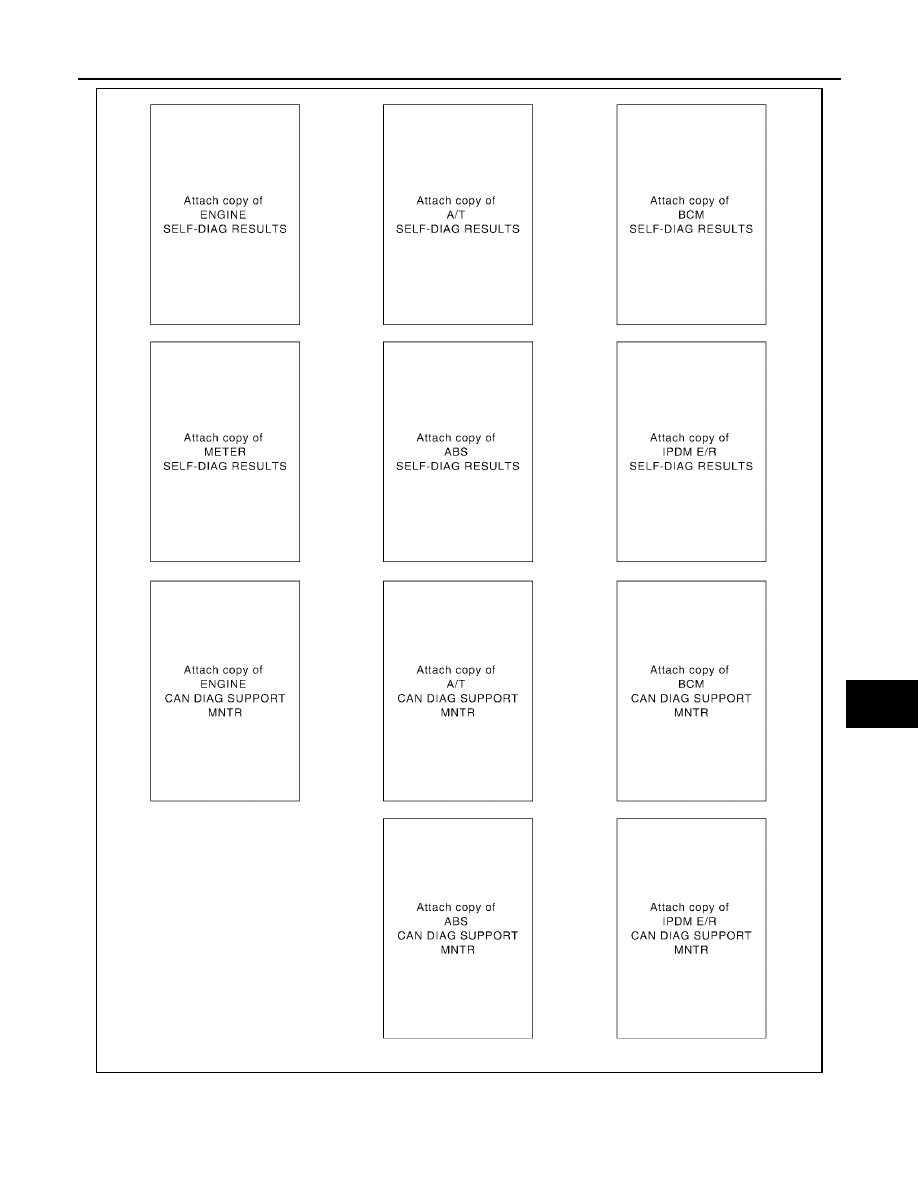

CAN SYSTEM (TYPE 2)

LAN-69

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2005 Pathfinder

PKIB5017E

LAN-70

[CAN]

CAN SYSTEM (TYPE 2)

2005 Pathfinder

CHECK SHEET RESULTS (EXAMPLE)

NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.

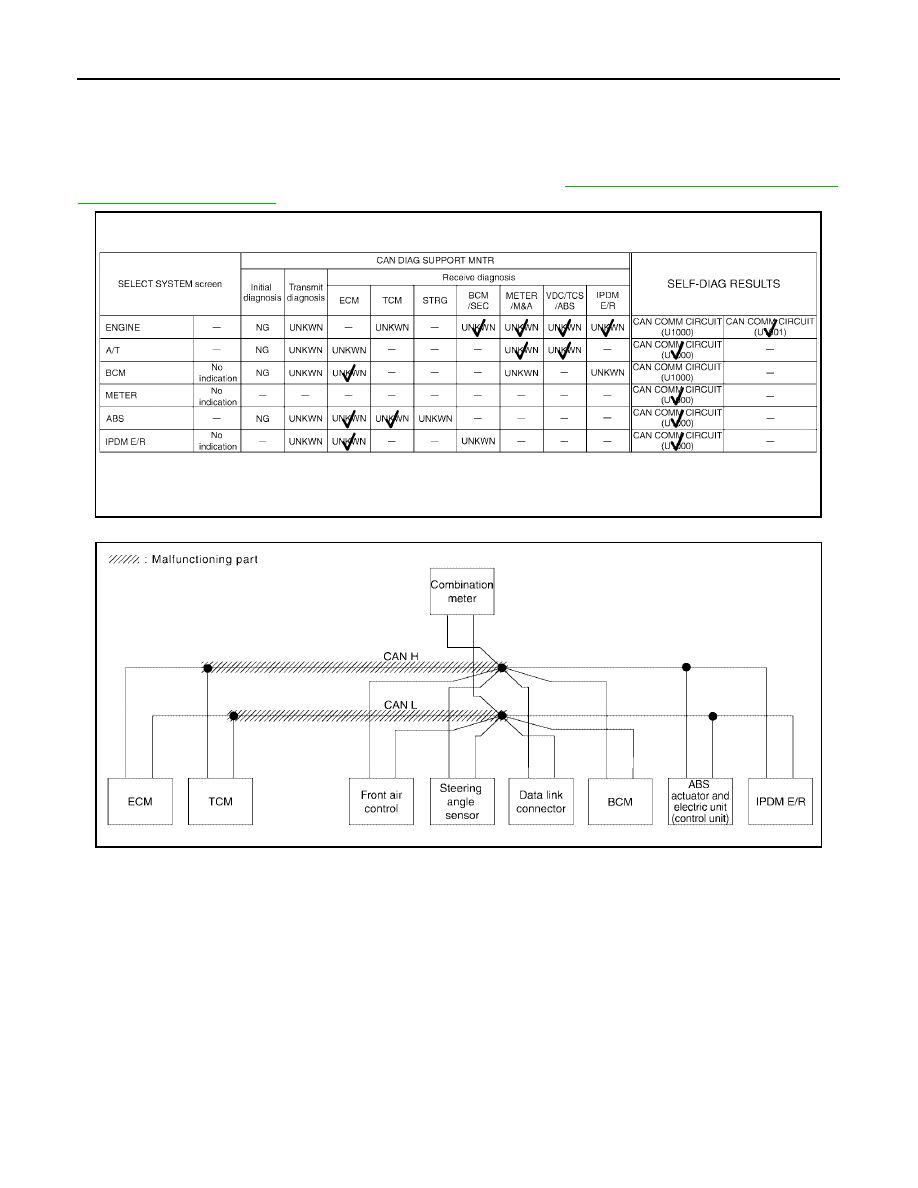

Case 1

Check harness between TCM and data link connector circuit. Refer to

LAN-80, "Inspection Between TCM and

Data Link Connector Circuit"

.

PKIB5083E

PKIB5210E

CAN SYSTEM (TYPE 2)

LAN-71

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2005 Pathfinder

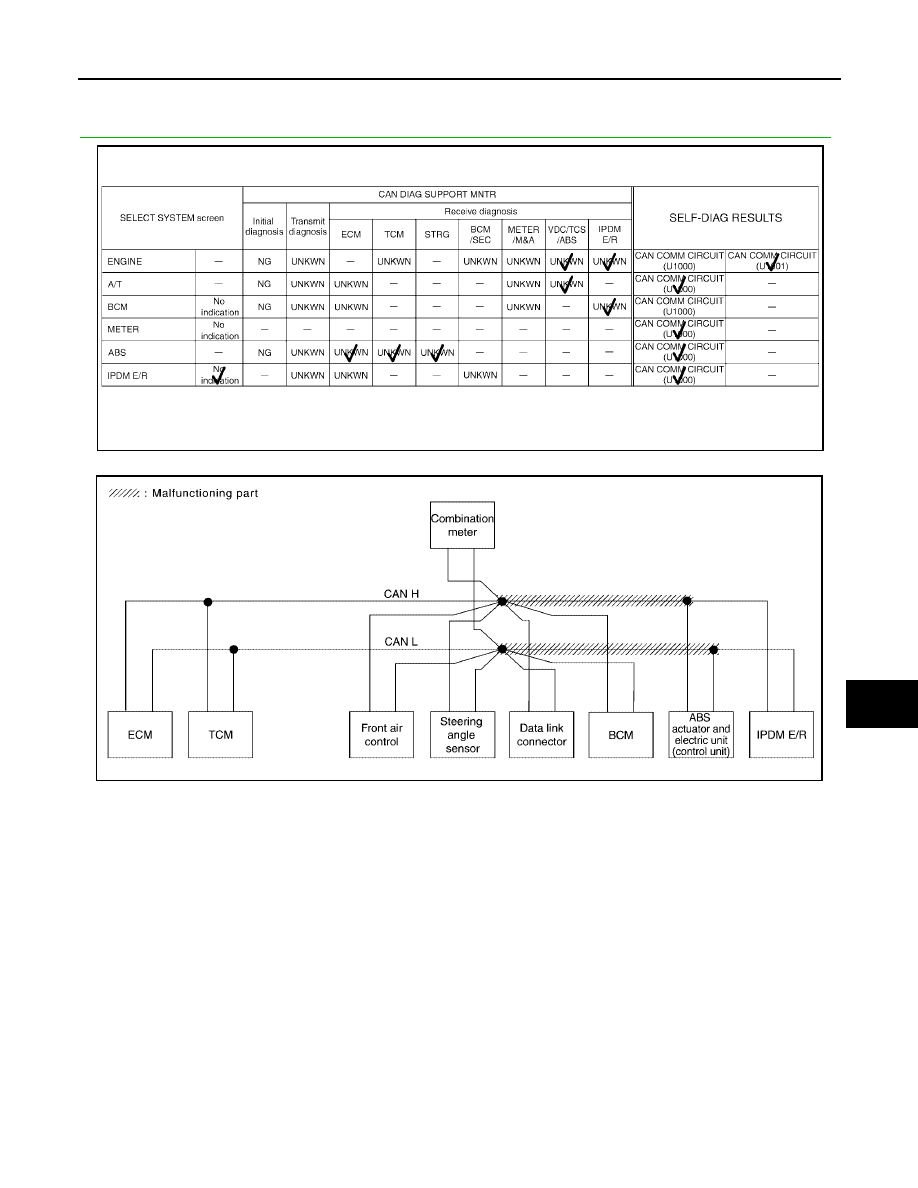

Case 2

Check harness between data link connector and ABS actuator and electric unit (control unit) circuit. Refer to

LAN-81, "Inspection Between Data Link Connector and ABS Actuator and Electric Unit (Control Unit) Circuit"

.

PKIB5084E

PKIB5211E

LAN-72

[CAN]

CAN SYSTEM (TYPE 2)

2005 Pathfinder

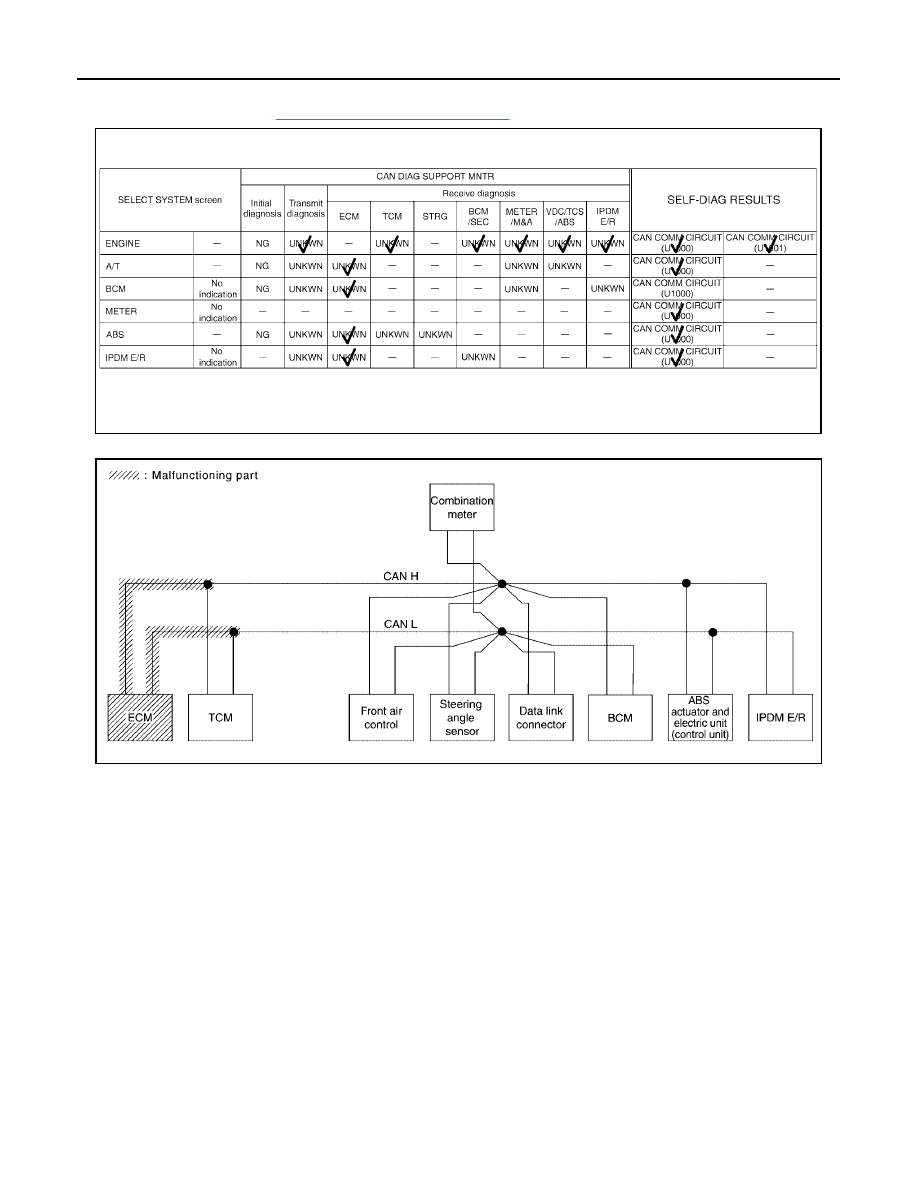

Case 3

Check ECM circuit. Refer to

LAN-82, "ECM Circuit Inspection"

.

PKIB5085E

PKIB5212E

CAN SYSTEM (TYPE 2)

LAN-73

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2005 Pathfinder

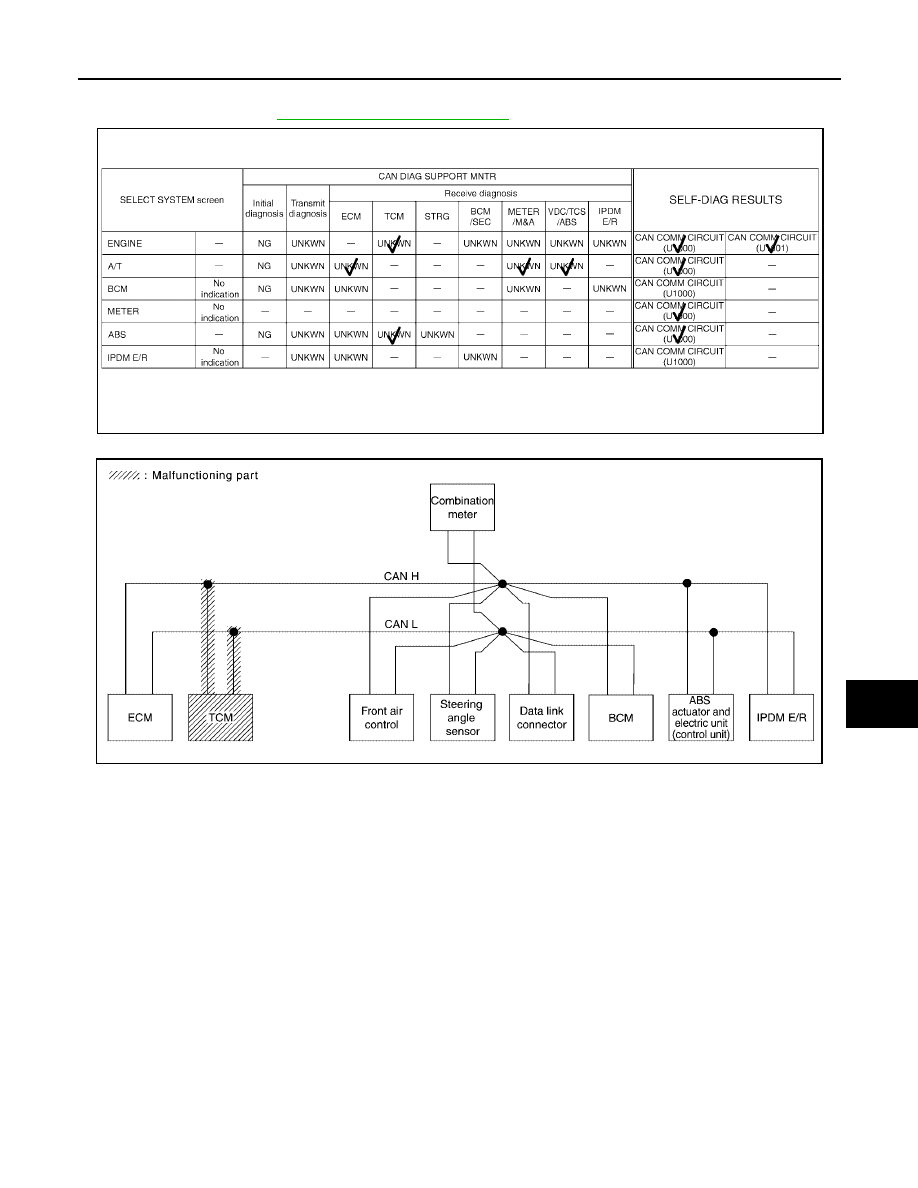

Case 4

Check TCM circuit. Refer to

LAN-83, "TCM Circuit Inspection"

.

PKIB5086E

PKIB5213E

LAN-74

[CAN]

CAN SYSTEM (TYPE 2)

2005 Pathfinder

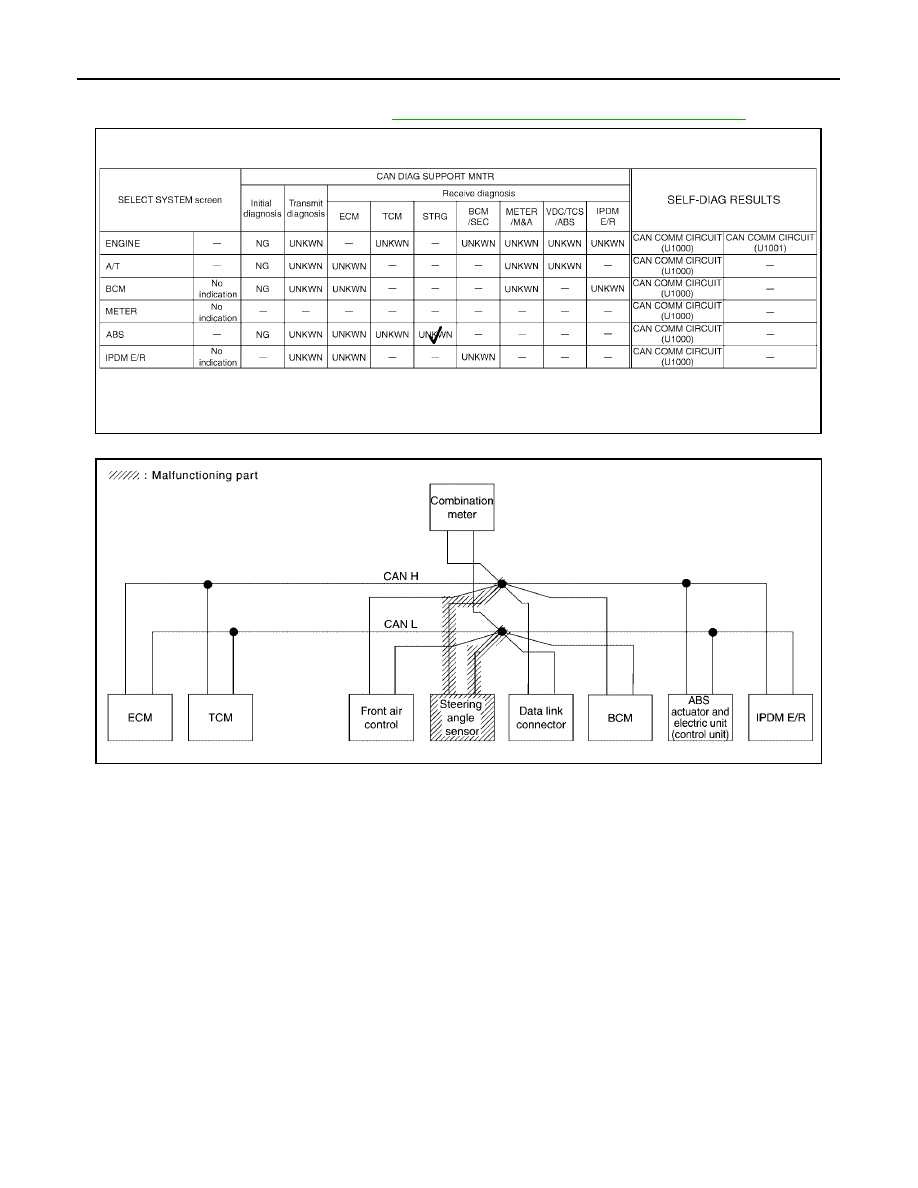

Case 5

Check steering angle sensor circuit. Refer to

LAN-83, "Steering Angle Sensor Circuit Inspection"

.

PKIB5087E

PKIB5214E
