Nissan Pathfinder (2005 year). Manual - part 292





CAN SYSTEM (TYPE 1)

LAN-35

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2005 Pathfinder

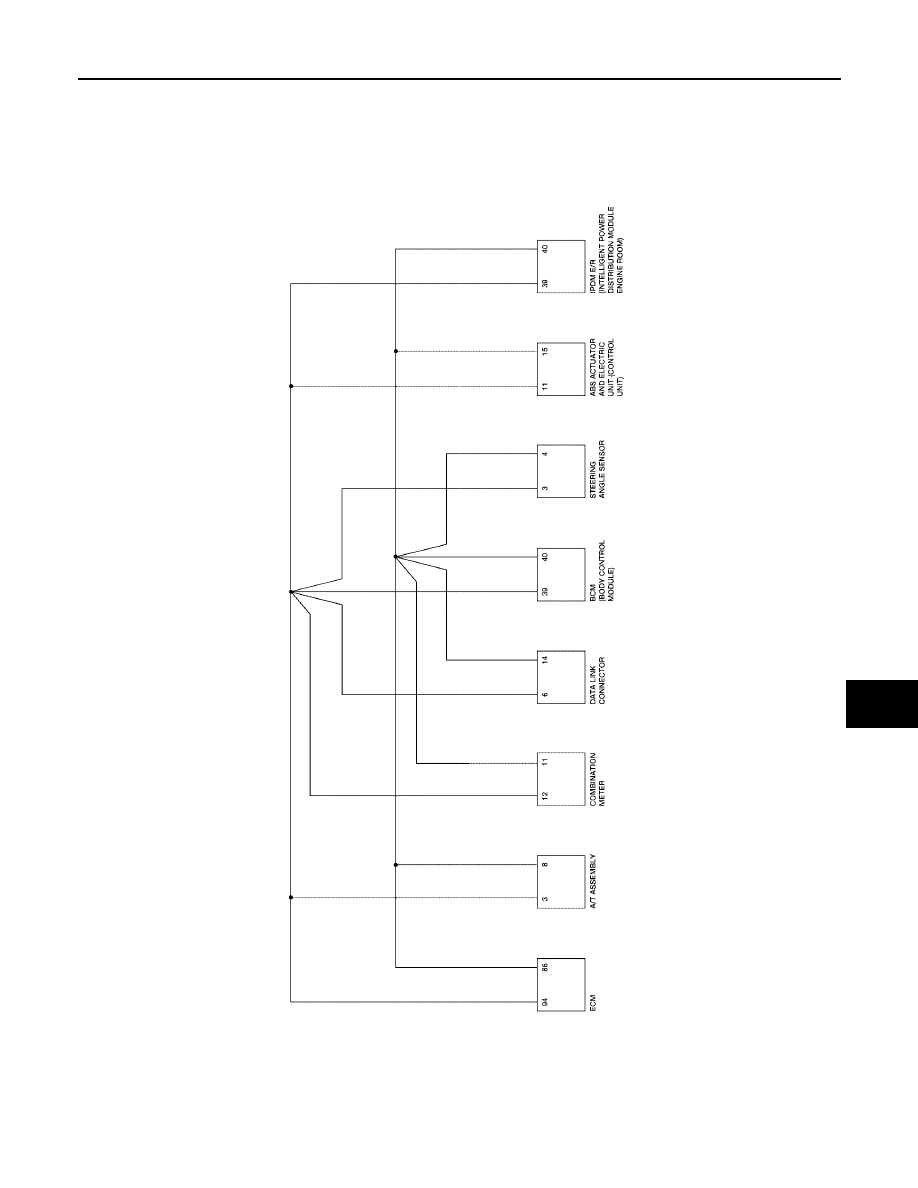

Schematic

UKS003G2

BKWA0367E

LAN-36

[CAN]

CAN SYSTEM (TYPE 1)

2005 Pathfinder

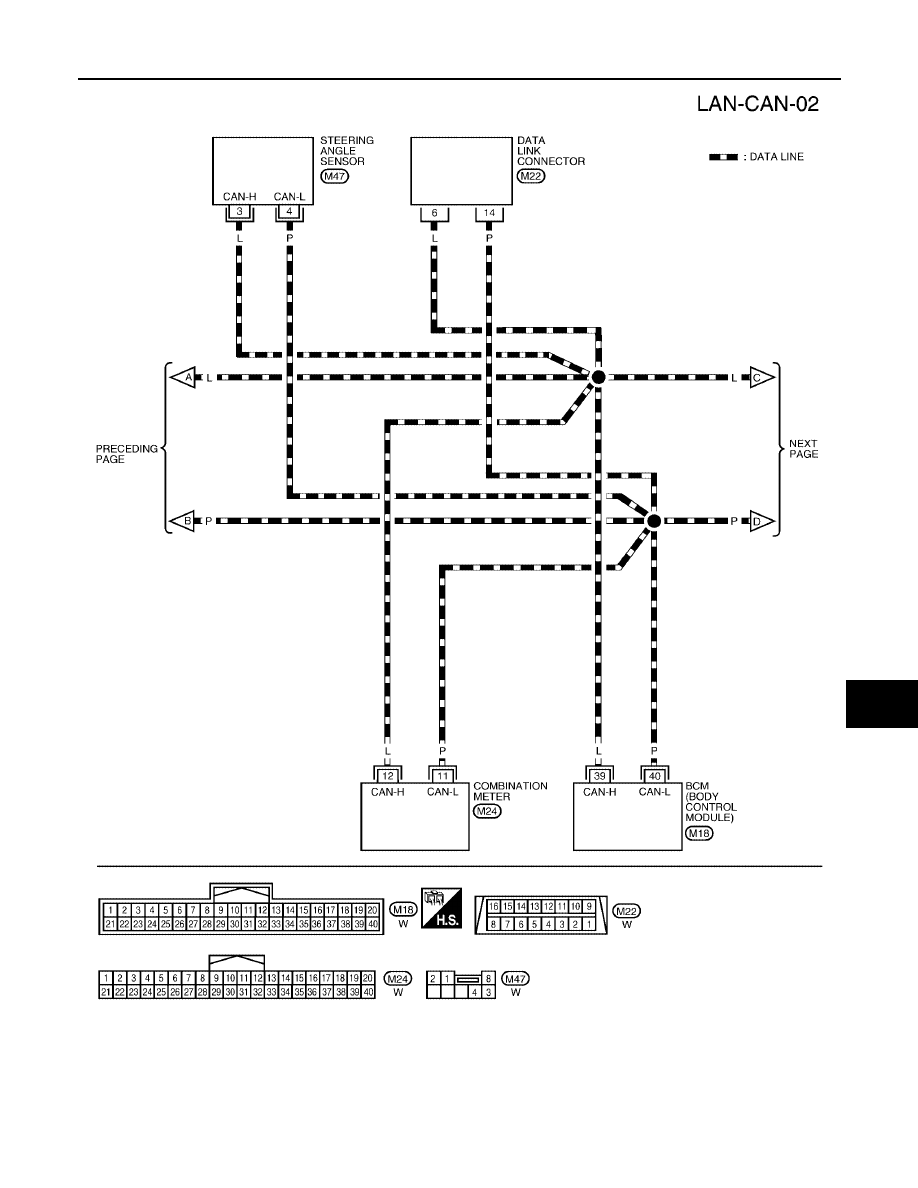

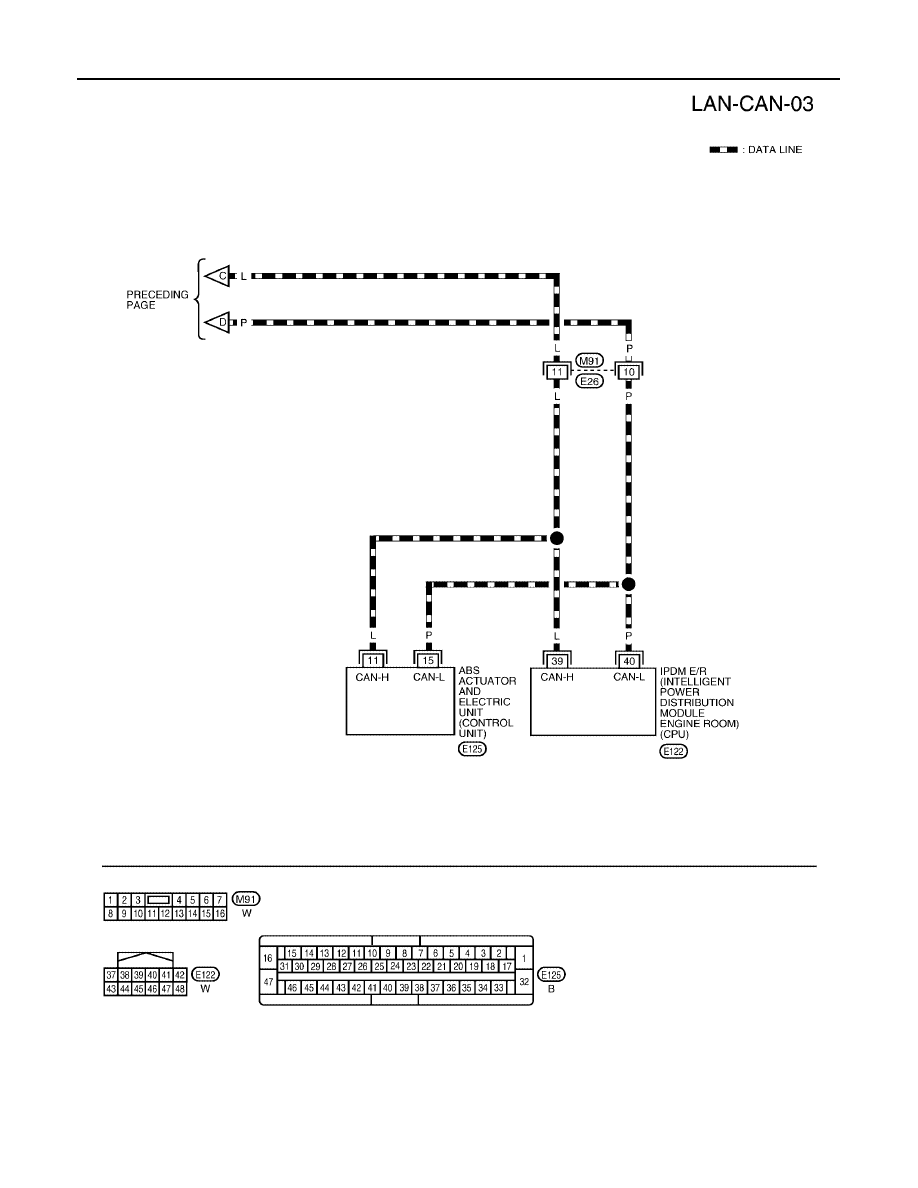

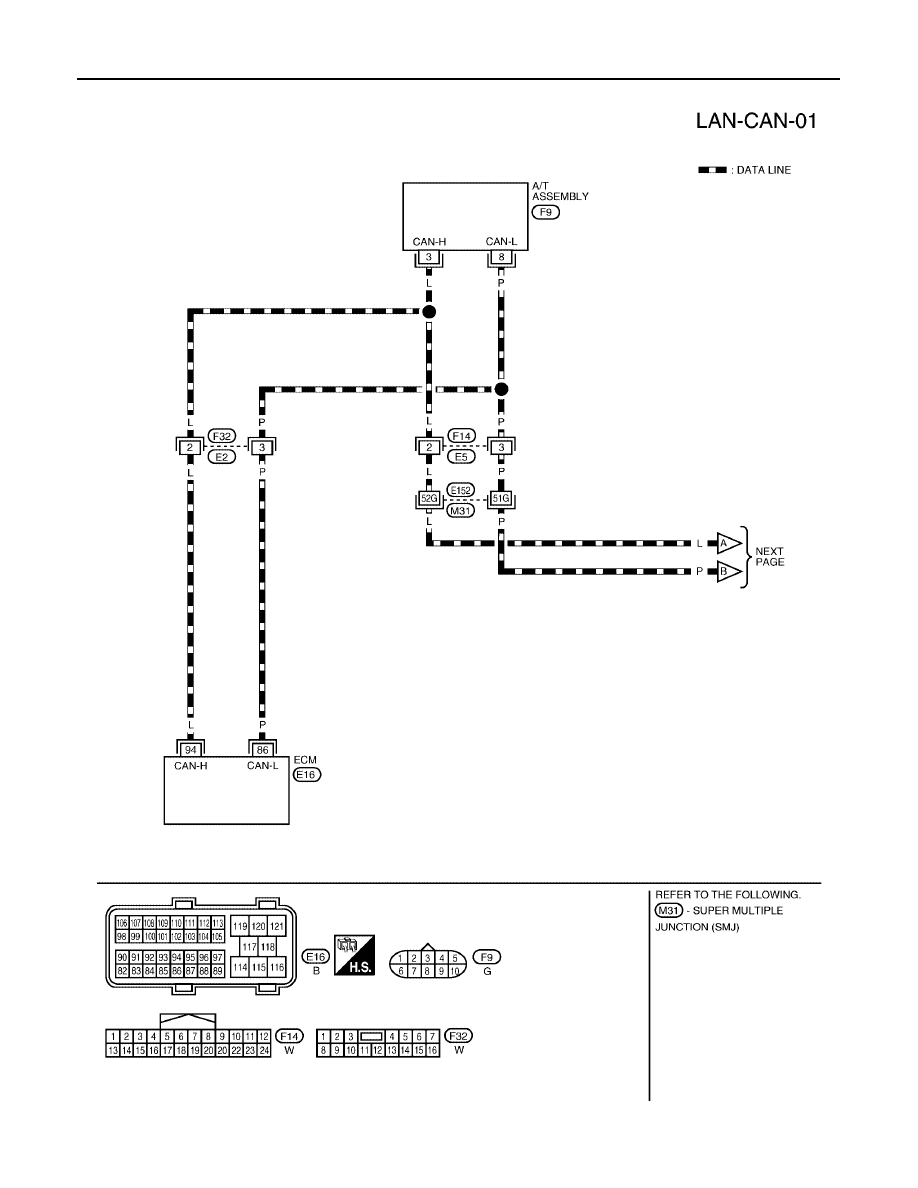

Wiring Diagram - CAN -

UKS003G3

BKWA0368E

CAN SYSTEM (TYPE 1)

LAN-37

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2005 Pathfinder

BKWA0369E

LAN-38

[CAN]

CAN SYSTEM (TYPE 1)

2005 Pathfinder

BKWA0370E

CAN SYSTEM (TYPE 1)

LAN-39

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2005 Pathfinder

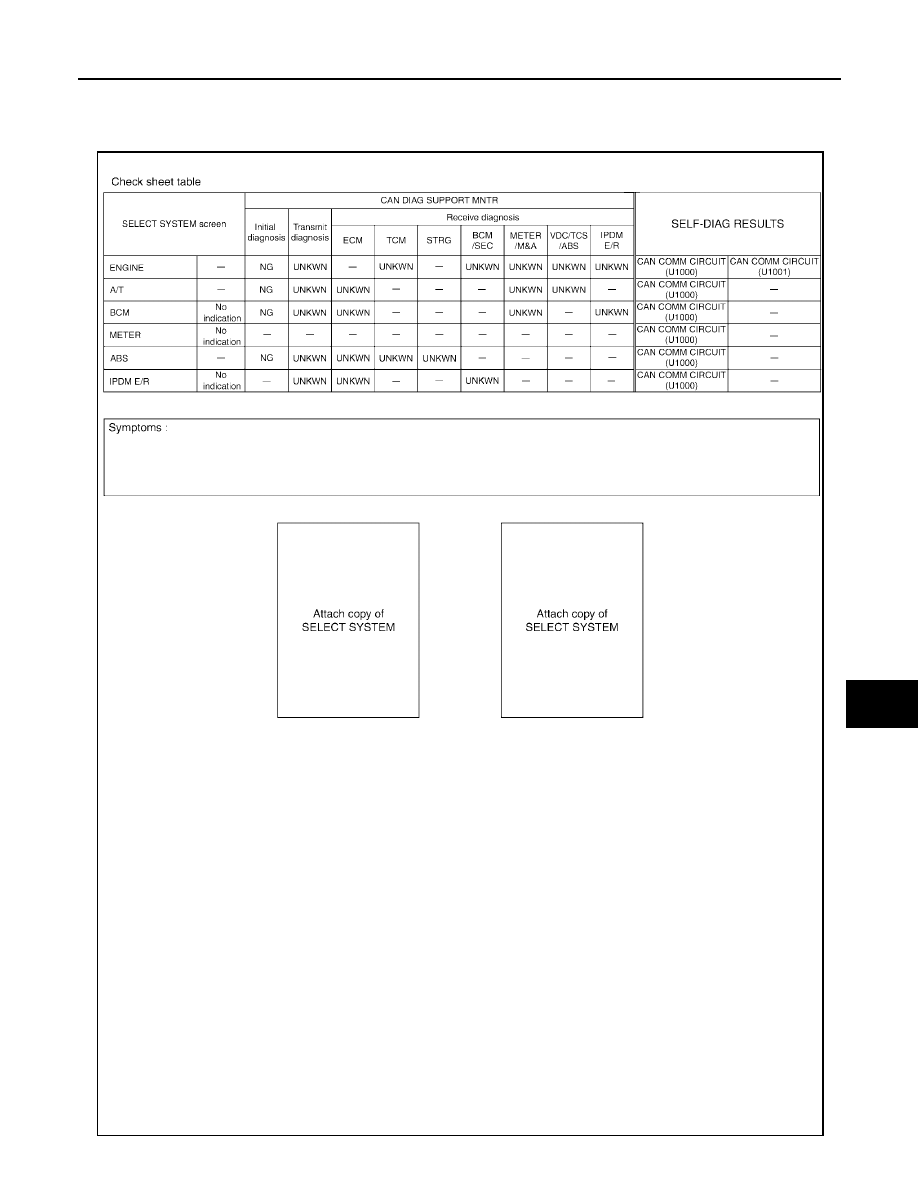

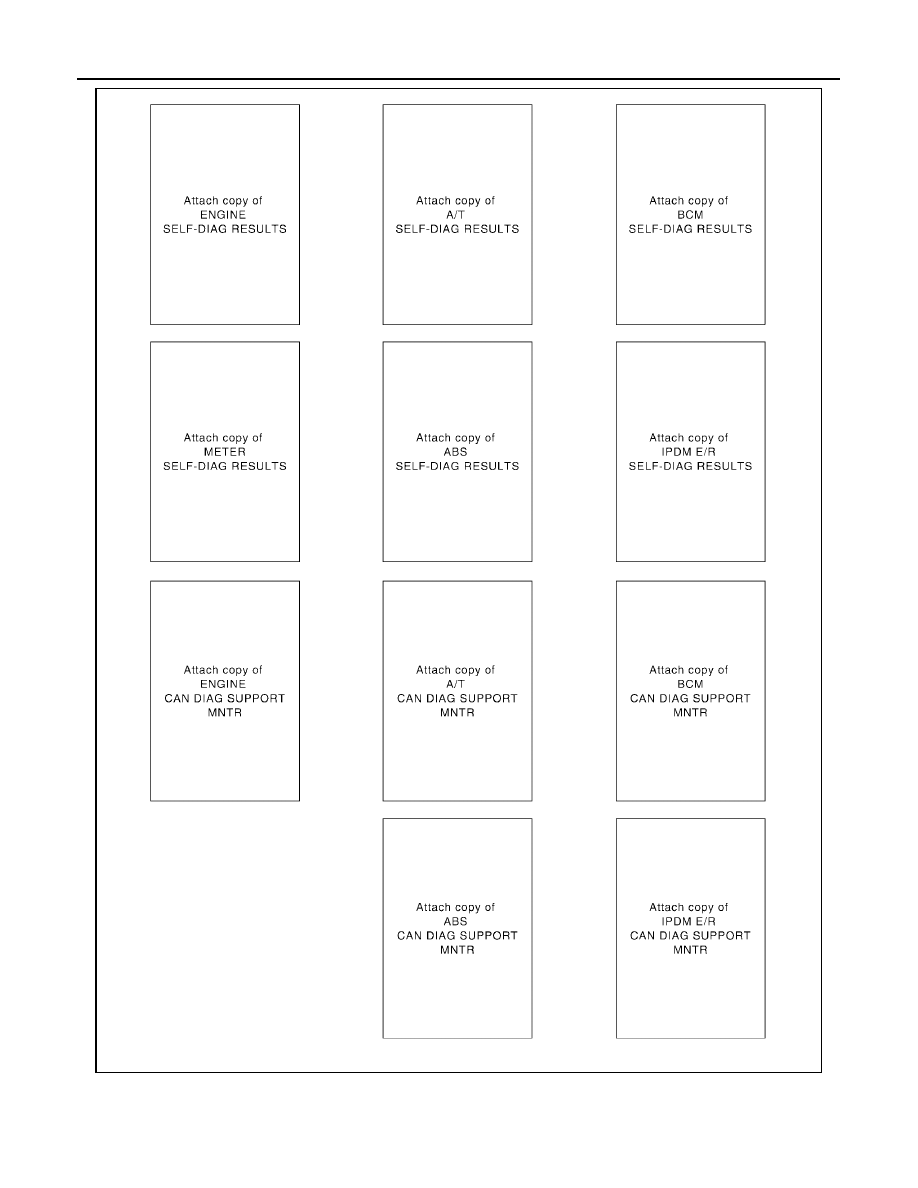

CHECK SHEET

UKS003G4

NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.

PKIB5016E

LAN-40

[CAN]

CAN SYSTEM (TYPE 1)

2005 Pathfinder

PKIB5017E

CAN SYSTEM (TYPE 1)

LAN-41

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2005 Pathfinder

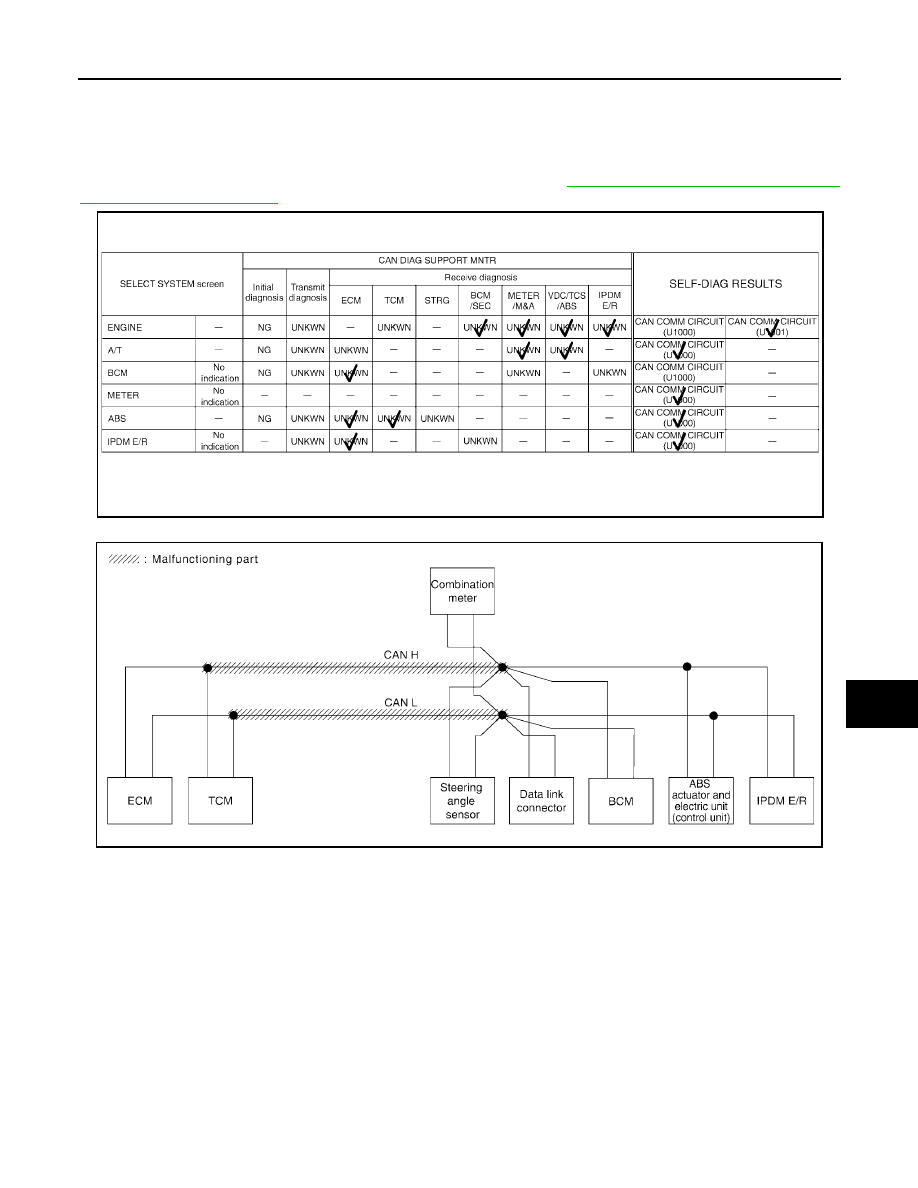

CHECK SHEET RESULTS (EXAMPLE)

NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.

Case 1

Check harness between TCM and data link connector circuit. Refer to

LAN-51, "Inspection Between TCM and

Data Link Connector Circuit"

.

PKIB5083E

PKIB5200E

LAN-42

[CAN]

CAN SYSTEM (TYPE 1)

2005 Pathfinder

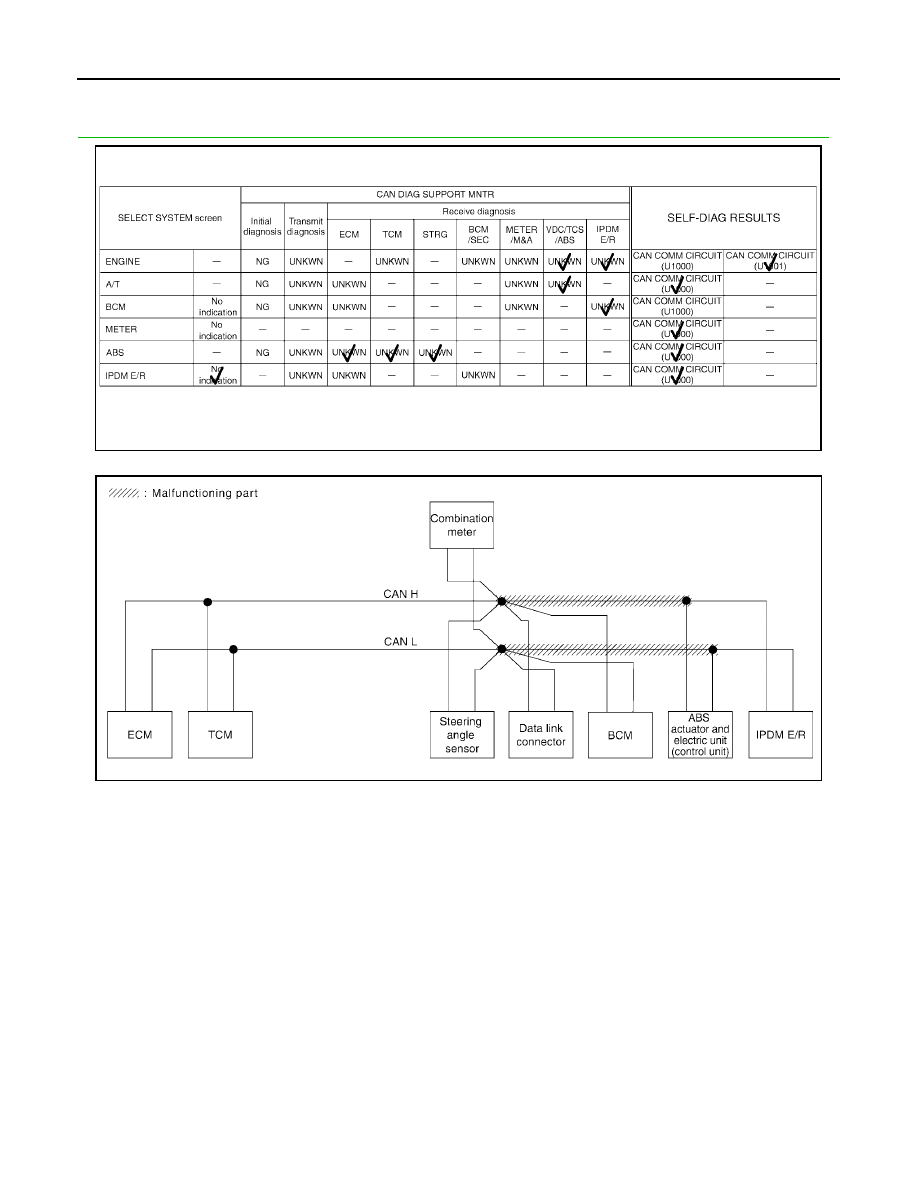

Case 2

Check harness between data link connector and ABS actuator and electric unit (control unit) circuit. Refer to

LAN-52, "Inspection Between Data Link Connector and ABS Actuator and Electric Unit (Control Unit) Circuit"

.

PKIB5084E

PKIB5201E
