TROUBLE DIAGNOSES WORK FLOW
LAN-19
[CAN]
C
D
E
F
G
H
I
J
L
M
A
B
LAN
2005 Pathfinder

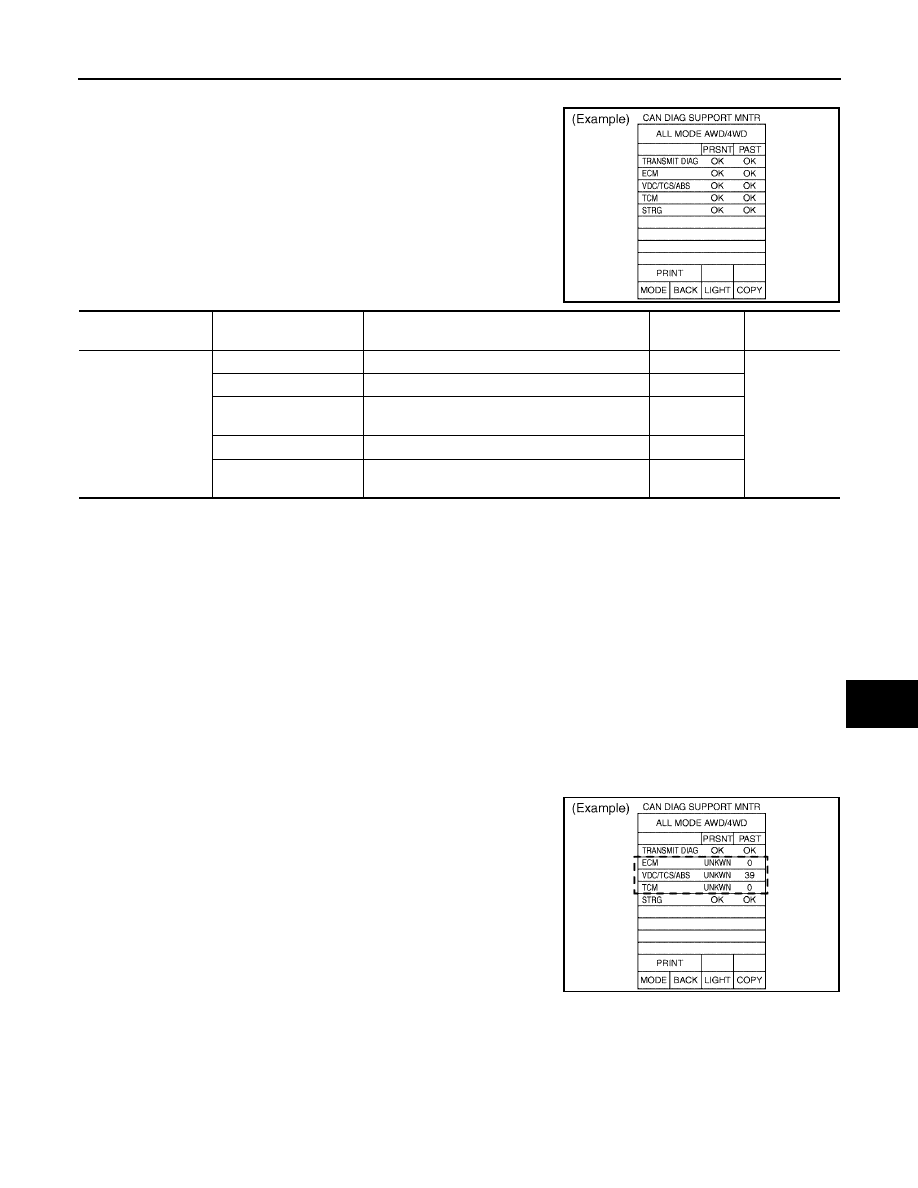

DESCRIPTION OF “CAN DIAG SUPPORT MNTR” SCREEN FOR TRANSFER CONTROL UNIT
All-mode 4WD models
Display Results (Present)
●
OK : Normal
●
UNKWN : The diagnosed unit does not transmit or receive the applicable data normally.
CAUTION:
“UNKWN” is indicated by erasing the self-diagnosis result when any malfunction was detected in past.
●
– : There is no received unit or the unit is not in the condition that reception diagnosis is performed.
Display Results (Past)
●
OK : Normal
●
0 : There is malfunction now.
●
1 ~ 39 : Displays when it is normal at present and finds malfunction in the past. It increases like 0
→
1
→
2...38
→
39 after returning to
the normal condition whenever IGN OFF
→
ON. If it is over 39, it is fixed to 39 until the self-diagnostic results are erased. It returns to
0 when malfunction is detected again in the process.
●
– : Undiagnosed
CAUTION:
●
“UNKWN” is indicated in “Present” and “0” is indicated in
“Past” when any malfunction is detected at present.
●
“UNKWN” is indicated in “Present” and “1~39” is indicated
in “Past” when any malfunction was detected in past.
PKIB5220E

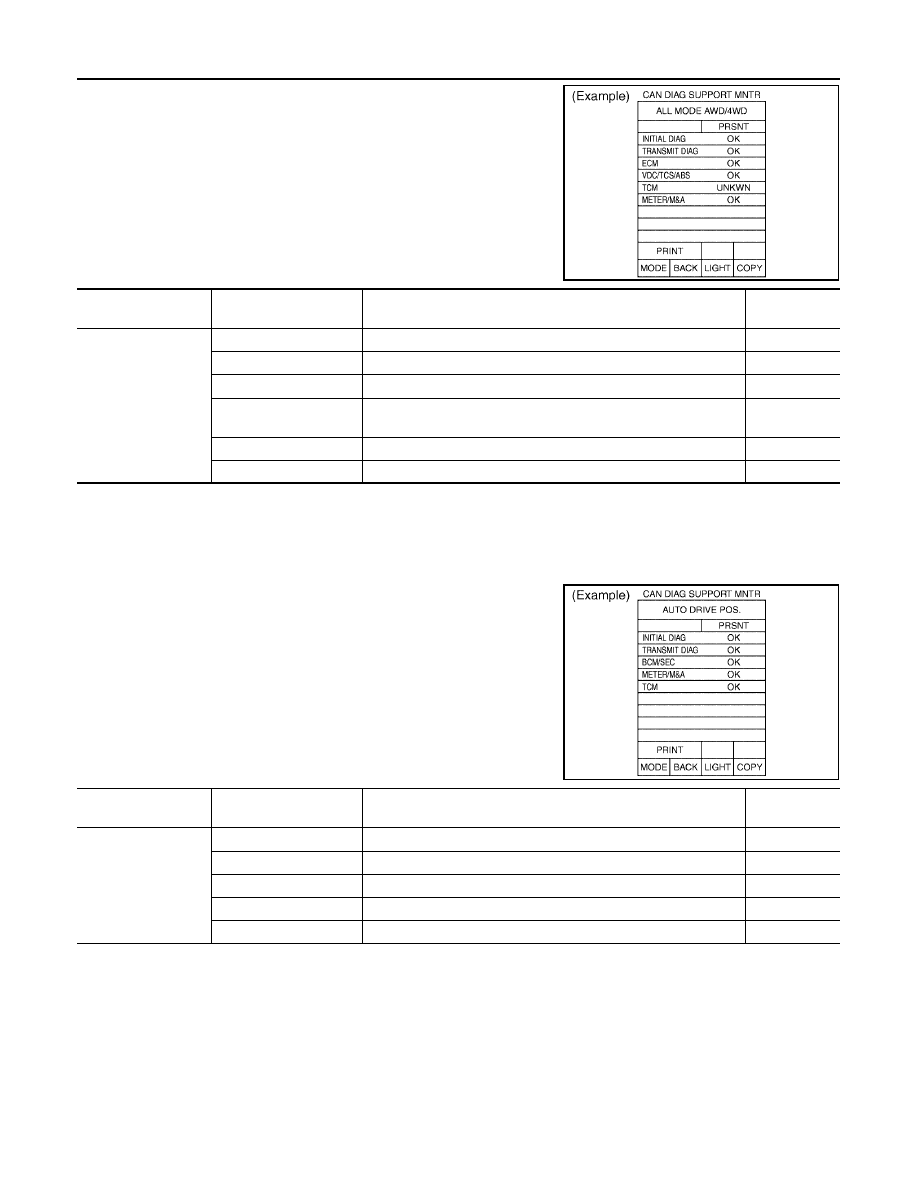

“SELECT SYSTEM”
screen
“CAN DIAG SUPPORT
MNTR” screen
Description
Present
Past
ALL MODE AWD/
4WD
TRANSMIT DIAG
Make sure of normal transmission.
OK/UNKWN/–
OK/0/1~39/–
ECM
Make sure of normal reception from ECM.
OK/UNKWN/–
VDC/TCS/ABS
Make sure of normal reception from ABS actua-
tor and electric unit (control unit).
OK/UNKWN/–
TCM
Make sure of normal reception from TCM.
OK/UNKWN/–
STRG
Make sure of normal reception from steering
angle sensor.
OK/UNKWN/–
SKIB3246E
