Nissan Pathfinder (2005 year). Manual - part 284





DOOR MIRROR

GW-79

C

D

E

F

G

H

J

K

L

M

A

B

GW

2005 Pathfinder

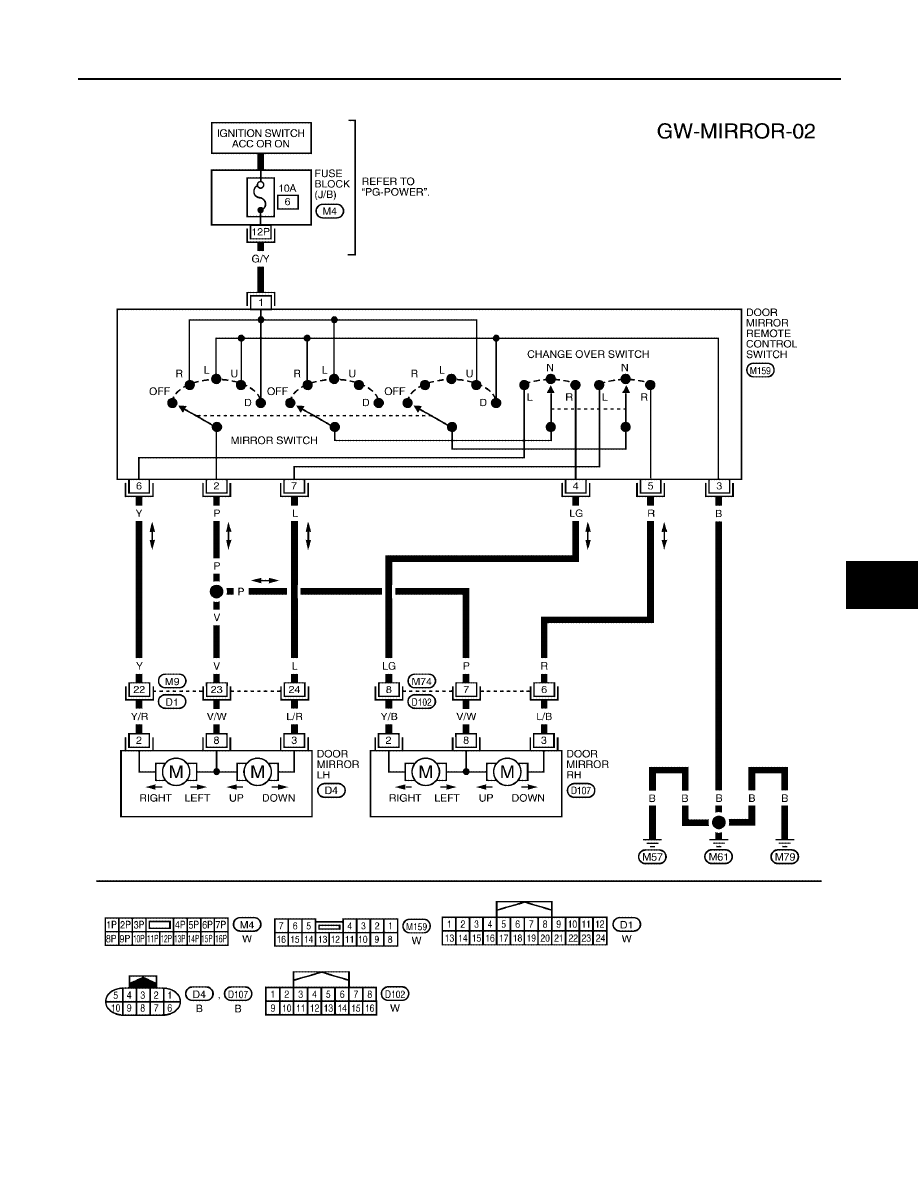

WITH HEATED MIRRORS

WIWA0535E

GW-80

DOOR MIRROR

2005 Pathfinder

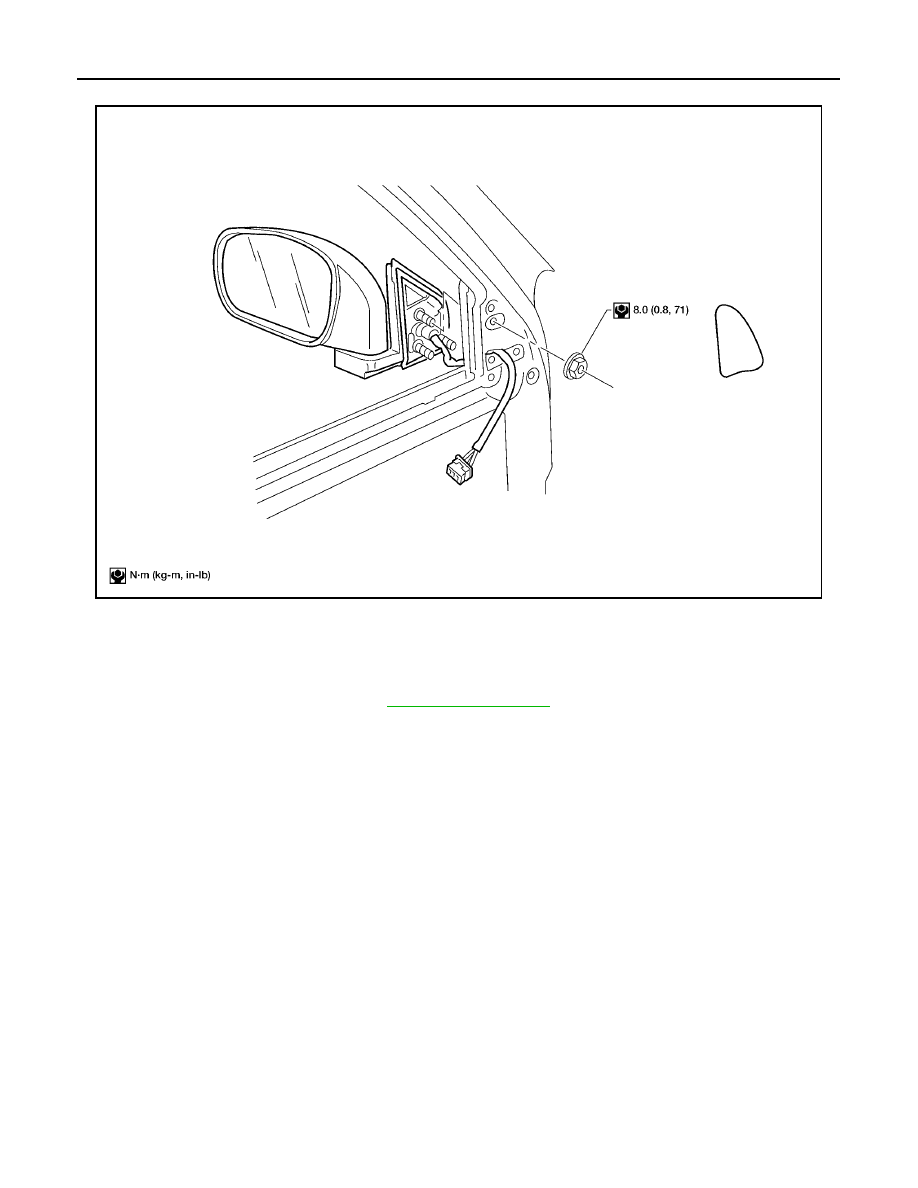

Door Mirror Assembly

EIS00434

REMOVAL

NOTE:
Be careful not to damage the mirror bodies.

1.

Remove the adhesive front door sash cover.

2.

Remove the front door finisher. Refer to

EI-25, "FRONT DOOR"

.

3.

Position the front door seal aside.

4.

Disconnect the door mirror harness connector.

5.

Remove the nuts and the door mirror assembly.

INSTALLATION

Installation is in the reverse order of removal.

LIIA1693E

DOOR MIRROR

GW-81

C

D

E

F

G

H

J

K

L

M

A

B

GW

2005 Pathfinder

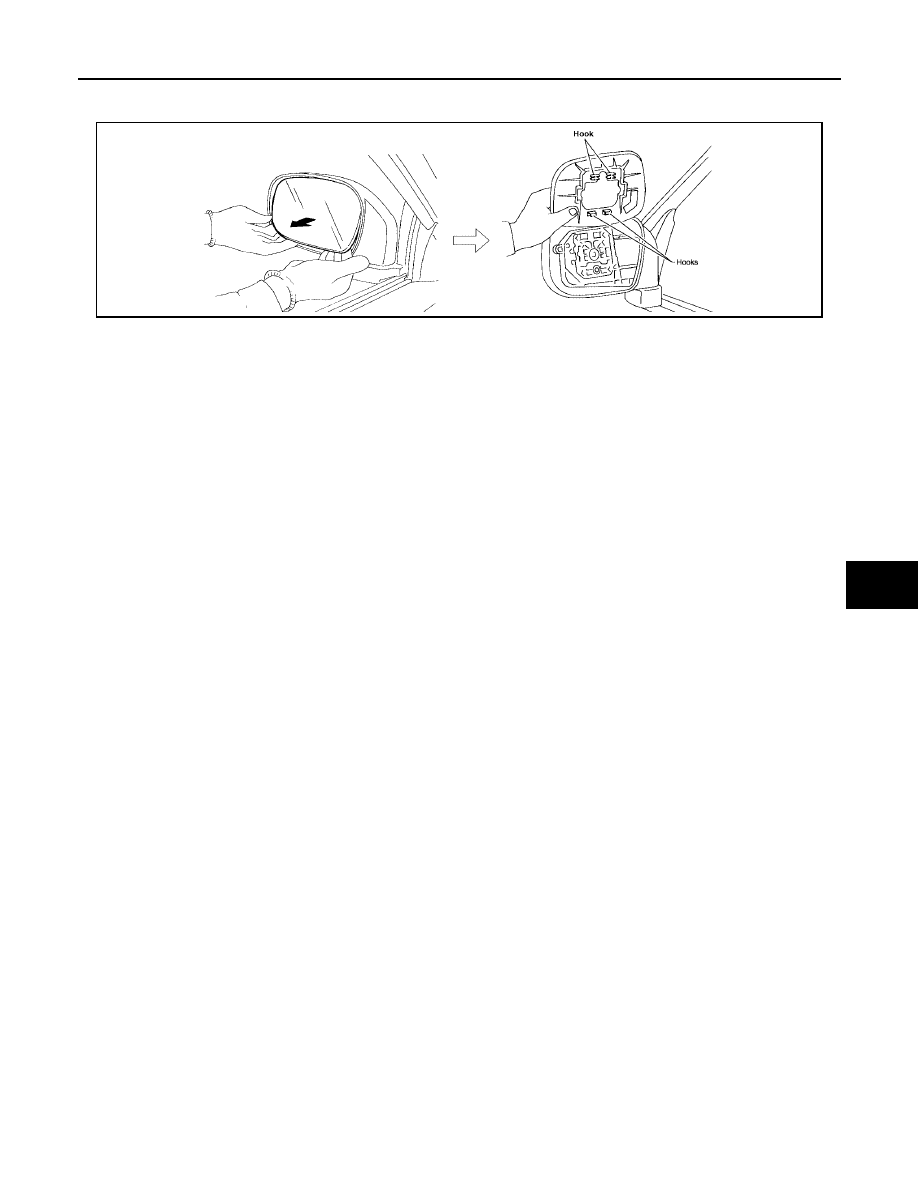

Door Mirror Glass

EIS00435

REMOVAL AND INSTALLATION

1.

Angle the mirror fully up.

2.

Remove the mirror.

Pull from the bottom to disengage the clips.

Continue to pivot the mirror upward from the bottom to separate the hooks.

Installation is in the reverse order of removal.

LIIA1694E

GW-82

DOOR MIRROR

2005 Pathfinder

IDX-1

A

C

D

E

F

G

H

I

J

K

L

B

IDX

ALPHABETICAL INDEX

M  INDEX

SECTION

IDX-2

ALPHABETICAL INDEX

Numerics

2-4WD shift solenoid valve ...................

TF-96

,

TF-167

4LO switch .......................................................

TF-229

4WD - Wiring diagram ..........................

TF-26

,

TF-204

4WD shift switch ...................................

TF-69

,

TF-233

4WD solenoid valve ..............................

TF-92

,

TF-167

4WD system description .......................

TF-17

,

TF-196

4WD system diagram ...........................

TF-21

,

TF-199

A

A/C air flow .......................................

ATC-29

,

MTC-25

A/C compressor clutch removal and installation ..

ATC-

156

,

MTC-101

A/C compressor mounting ............

ATC-155

,

MTC-100

A/C compressor precaution ................

ATC-11

,

MTC-9

A/C compressor special service tool .

ATC-14

,

MTC-12

A/C control operation (auto A/C) .......

ATC-26

,

MTC-23

A/C diagnostic work flow (auto A/C) ..............

ATC-111

A/C evaporator ..............................

ATC-163

,

MTC-107

A/C HFC134a (R134a) system identification ....

ATC-7

,

MTC-6

A/C HFC134a (R134a) system precaution .......

ATC-5

,

MTC-4

A/C HFC134a (R134a) system service procedure

ATC-

151

,

MTC-97

A/C HFC134a (R134a) system service tools ..

ATC-14

,

MTC-12

A/C HFC134a system service equipment precaution ...

ATC-11

,

MTC-9

A/C lubricant (R134a) .......................

ATC-22

,

MTC-19

A/C lubrication oil ..............................

ATC-22

,

MTC-19

A/C operational check ........

ATC-52

,

ATC-55

,

MTC-40

A/C self-diagnoses (auto A/C) ........

ATC-50

,

ATC-111

A/C service data specification .......

ATC-171

,

MTC-112

A/C trouble diagnoses (auto A/C) .....

ATC-33

,

MTC-28

A/C, A - Wiring diagram ....................

ATC-40

,

MTC-34

A/T fluid checking ......................

AT-13

,

AT-50

,

MA-22

A/T fluid cooler cleaning ....................................

AT-13

A/T fluid replacement .............................

AT-13

,

MA-24

A/T fluid temperature sensor ...........................

AT-130

A/T IND - Wiring diagram ....................................

DI-44

A/T indicator ........................................................

DI-44

A/T self-diagnoses .............................................

AT-98

A/T shift lock system ........................................

AT-223

A/T trouble diagnoses ........................................

AT-41

A/T Wiring diagram AT - CAN ..........................

AT-101

A/T Wiring diagram AT - FTS ..........................

AT-131

A/T Wiring diagram AT - MAIN ........................

AT-172

A/T Wiring diagram AT - NONDTC ..................

AT-180

A/T Wiring diagram AT - PNP/SW ...................

AT-109

A/T Wiring diagram AT - STSIG ......................

AT-104

A/T Wiring diagram AT - VSS A/T ...................

AT-114

ABS - Wiring diagram ......................

BRC-17

,

BRC-79

ABS (anti-lock brake system) ............

BRC-8

,

BRC-69

Accelerator control system ...............................

ACC-2

Accelerator pedal position (APP) sensor .

EC-630

,

EC-

636

,

EC-650

Accelerator pedal released position learning ....

EC-88

AF1B1-Wiring diagram

EC-485

,

EC-494

,

EC-503

,

EC-

513

,

EC-524

,

EC-534

,

EC-546

AF1B2-Wiring diagram

EC-487

,

EC-496

,

EC-505

,

EC-

515

,

EC-526

,

EC-536

,

EC-548

AF1HB1-Wiring diagram .................................

EC-401

AF1HB2-Wiring diagram .................................

EC-403

Aiming adjustment ..................................

LT-27

,

LT-72

Air bag ...............................................................

SRS-3

Air bag disposal ..............................................

SRS-61

Air bag precautions ..............................................

AP-2

Air cleaner and air duct .....................................

EM-15

Air cleaner filter .................................................

EM-15

Air cleaner filter replacement ............................

MA-17

Air conditioner cut control .................................

EC-29

Air flow meter - See Mass air flow sensor

EC-183

,

EC-

192

Air fuel ratio sensor 1 ..

EC-483

,

EC-492

,

EC-501

,

EC-

511

,

EC-521

,

EC-531

,

EC-543

Air fuel ratio sensor 1 heater ...........................

EC-399

Air mix. door motor ...........................

ATC-63

,

MTC-49

Ambient sensor .............................

ATC-113

,

ATC-125

Angular tightening application .............................

EM-4

APPS1 - Wiring diagram .................................

EC-632

APPS2 - Wiring diagram .................................

EC-638

APPS3 - Wiring diagram .................................

EC-652

ASC/BS - Wiring diagram ...............................

EC-606

ASC/SW - Wiring diagram ..............................

EC-599

ASCBOF - Wiring diagram ..............................

EC-698

ASCD ................................................................

EC-30

ASCD (automatic speed control device) ...........

ACS-2

ASCIND - Wiring diagram ...............................

EC-705

ATP switch ..........................................

TF-118

,

TF-254

Audio ....................................................................

AV-6

AUDIO - Wiring diagram ....................................

AV-11

AUT/DP - Wiring diagram ..................................

SE-19

Auto air conditioner - Wiring diagram

ATC-40

,

MTC-34

Auto anti-dazzling inside mirror ........................

GW-57

Autolamp ............................................................

LT-45

Automatic amplifier ..........................

ATC-56

,

MTC-42

Automatic drive positioner ..................................

SE-11

Automatic transmission number ..........................

GI-48

AV and NAVI control unit ...................................

AV-71

AV communication line ......................................

AV-95

B

B/COMP - Wiring diagram ..................................

DI-64

Back door trim .....................................................

EI-25

BACK/L - Wiring diagram .................................

LT-100

Back-up lamp ...................................................

LT-100

Ball joint (front) ................................................

FSU-14

Basic inspection ................................................

EC-71

Battery .................................................................

SC-4

Battery/Starting/Charging System Tester

SC-6

,

SC-13

,

SC-22

BCM (Body control module) ..............................

BCS-3

Block heater ....................................................

EM-106

Blower motor .....

ATC-75

,

ATC-129

,

MTC-56

,

MTC-83

IDX-3

A

C

D

E

F

G

H

I

J

K

L

B

IDX

ALPHABETICAL INDEX

Body alignment ................................................

BL-136

Body component parts .....................................

BL-123

Body construction .............................................

BL-135

Body exterior paint color ..................................

BL-122

Body mounting .................................................

BL-121

Body repair .......................................................

BL-122

Body sealing .....................................................

BL-132

Boring/horning cylinder block ..........................

EM-127

Bose speaker amp. .............................................

AV-7

Brake booster ....................................................

BR-18

Brake fluid level .................................................

MA-29

Brake hydraulic line ...........................................

BR-13

Brake inspection ................................................

MA-30

Brake lines and cables inspection .....................

MA-30

Brake master cylinder .......................................

BR-16

Brake switch ....................................................

EC-625

BRK/SW - Wiring diagram ...............................

EC-626

Bulb specifications ...........................................

LT-163

Bumper, front ......................................................

EI-14

Bumper, rear .......................................................

EI-15

C

Camshaft ...........................................................

EM-74

Camshaft inspection ..........................................

EM-76

Camshaft position sensor (PHASE) ................

EC-305

CAN - Wiring diagram

EC-168

,

LAN-36

,

LAN-65

,

LAN-

94

,

LAN-126

,

LAN-163

,

LAN-193

,

LAN-224

,

LAN-258

CAN (Controller Area Network) .

WT-9

,

BRC-11

,

BRC-

73

,

SE-16

,

LAN-34

,

LAN-63

,

LAN-92

,

LAN-124

,

LAN-

161

,

LAN-191

,

LAN-222

,

LAN-256

CAN communication

EC-167

,

AT-100

,

TF-22

,

TF-116

,

TF-200

,

TF-251

,

WT-9

,

BRC-11

,

BRC-73

,

SE-16

,

LAN-

34

,

LAN-63

,

LAN-92

,

LAN-124

,

LAN-161

,

LAN-191

,

LAN-222

,

LAN-256

Canister-See EVAP canister .............................

EC-36

Center case (Transfer) .....................................

TF-167

CHARGE - Wiring diagram ...............................

SC-21

Charging system ...............................................

SC-19

Chassis and body maintenance ........................

MA-21

Chassis and body maintenanceSchedule 1 ........

MA-8

Chassis and body maintenanceSchedule 2 ......

MA-10

CHIME - Wiring diagram .....................................

DI-49

Circuit breaker ...................................................

PG-70

Closed loop control ...........................................

EC-26

Clutch drum (Transfer) .....................................

TF-167

Clutch pressure switch (Transfer) ....................

TF-167

Coil spring (front) ...............................................

FSU-9

Collision diagnosis ..........................................

SRS-68

Combination lamp, rear, removal and installation ..

LT-

120

Combination meter ................................................

DI-4

Combination switch ............................................

LT-91

COMBSW - Wiring diagram ...............................

LT-91

COMM - Wiring diagram ...................................

AV-95

COMPAS - Wiring diagram .................................

DI-28

Compass .............................................................

DI-27

Component Location (auto A/C) .......

ATC-36

,

MTC-31

Compression pressure ......................................

EM-91

Compressor clutch removal and installation .

ATC-156

,

MTC-101

Compressor mounting ..................

ATC-155

,

MTC-100

Compressor precaution ......................

ATC-11

,

MTC-9

Compressor special service tool .......

ATC-14

,

MTC-12

Condenser ....................................

ATC-162

,

MTC-105

Connecting rod ................................................

EM-124

Connecting rod bearing clearance ...................

EM-128

Connecting rod bushing clearance ..................

EM-124

Console box - See Instrument panel ...................

IP-10

CONSULT for VDC ...........................

BRC-29

,

BRC-92

Control units (terminal arrangement) .................

PG-74

Control valve (A/T) .............................................

AT-35

Control valve (Transfer) ....................................

TF-167

Controller Area Network (CAN) .

WT-9

,

BRC-11

,

BRC-

73

,

SE-16

,

LAN-34

,

LAN-63

,

LAN-92

,

LAN-124

,

LAN-

161

,

LAN-191

,

LAN-222

,

LAN-256

Converter housing installation ............

AT-248

,

AT-251

COOL/F - Wiring diagram ................................

EC-467

Coolant mixture ratio .........................................

MA-12

Coolant replacement .........................................

MA-13

Cooling circuit (engine) ........................................

CO-7

Cooling fan ........................................................

CO-14

Cooling fan motor ............................................

EC-473

Cooling unit (A/C evaporator) ......

ATC-133

,

ATC-163

,

MTC-86

,

MTC-107

Corrosion protection .........................................

BL-129

Crankcase ventilation system - See Positive crankcase
ventilation ..........................................................

EC-45

Crankshaft .......................................................

EM-128

Crankshaft position sensor (POS) ...................

EC-298

Crash zone sensor ..........................................

SRS-56

CVT shift lock system - Wiring diagram ...........

AT-224

Cylinder block ..................................................

EM-106

Cylinder head ....................................................

EM-91

Cylinder head bolt tightening .............................

EM-94

D

Daytime light system ..........................................

LT-31

Daytime running light - See Daytime light system ..

LT-

31

DEF - Wiring diagram .......................................

GW-61

Diagnosis sensor unit ......................................

SRS-59

Diagnostic trouble code (DTC) for OBD system ..

EC-9

Diagnostic trouble code (DTC) inspection priority chart

EC-99

Differential gear oil replacement ...........

MA-27

,

MA-28

Dimensions .........................................................

GI-49

Direct clutch solenoid valve ................

AT-152

,

AT-154

Display and amp.assembly ...............

ATC-56

,

MTC-42

Display Control Unit .........................................

AV-166

Dome light - See Interior lamp ..........................

LT-129

Door glass ..........................................

GW-44

,

GW-48

Door lock ............................................................

BL-94

Door mirror lamp ...............................................

LT-129

Door trim ..............................................................

EI-25

Door, front .............................................

BL-89

,

GW-44

Door, rear .............................................

BL-89

,

GW-48

IDX-4

ALPHABETICAL INDEX

Drive belt ...........................................................

EM-13

Drive chain (Transfer) ....

TF-149

,

TF-176

,

TF-276

,

TF-

278

,

TF-284

Drive shaft (rear) ...............................................

RAX-7

Driver air bag ..................................................

SRS-45

DTC work support ............................................

EC-137

DTRL - Wiring diagram .......................................

LT-35

Duct and grilles ...............................

ATC-146

,

MTC-93

DVD - Wiring Diagram .......................................

AV-63

DVD Player ........................................................

AV-68

E

ECM input/output signal ...................................

EC-116

ECM power supply .............................

EC-159

,

EC-407

ECM/PW - Wiring diagram ...............................

EC-408

ECTS - Wiring diagram ....................................

EC-206

Electric sunroof ..................................................

RF-10

Electric throttle control actuator ..

EM-18

,

EC-418

,

EC-

420

Electrical load signal circuit ..............................

EC-696

Electrical units location ......................................

PG-67

Electronic ignition (EI) system ...........................

EC-27

Engine control circuit diagram .........................

EC-114

Engine control component parts location .........

EC-106

Engine control module (ECM) ..........................

EC-396

Engine coolant temperature sensor (ECTS) ...

EC-204

,

EC-216

Engine fail-safe system ....................................

EC-101

Engine oil .............................................................

LU-6

Engine oil filter replacement .............................

MA-18

Engine oil precautions ..........................................

GI-6

Engine oil replacement .....................................

MA-17

Engine removal ...............................................

EM-103

Engine room cover ............................................

EM-12

Engine serial number ..........................................

GI-48

ETC1 - Wiring diagram ....................................

EC-421

ETC2 - Wiring diagram ....................................

EC-428

ETC3 - Wiring diagram ....................................

EC-432

EVAP canister ....................................................

EC-36

EVAP canister purge volume control solenoid valve ....

EC-332

EVAP canister vent control valve .......

EC-339

,

EC-563

EVAP control system (small leak) diagnosis ..

EC-324

,

EC-363

EVAP control system pressure sensor ....

EC-346

,

EC-

349

,

EC-355

EVAP control system purge flow monitoring diagnosis

EC-319

EVAP vapor lines inspection .............................

MA-20

Evaporative emission (EVAP) system ...............

EC-33

Evaporator ....................................

ATC-163

,

MTC-107

Exhaust manifold ..............................................

EM-21

Exhaust system ...................................................

EX-3

Exhaust system inspection ..................................

EX-3

Expansion valve ............................

ATC-166

,

MTC-108

F

F/FOG - Wiring diagram .....................................

LT-65

F/PUMP - Wiring diagram ...............................

EC-687

Final drive pre-inspection ..................

FFD-17

,

RFD-17

Final drive removal and installation .................

RFD-13

Flow charts ..........................................................

GI-27

Fluid temperature sensor (A/T) ........................

AT-130

Fluids ................................................................

MA-11

Fluorescent leak detector .............

ATC-167

,

MTC-108

Fog lamp, front ...................................................

LT-63

Foot lamp .........................................................

LT-130

Freeze frame data .............................................

EC-53

Front brake solenoid valve .................

AT-148

,

AT-150

Front bumper ......................................................

EI-14

Front case (Transfer)

TF-149

,

TF-176

,

TF-276

,

TF-278

,

TF-284

Front door .................................

BL-89

,

BL-94

,

GW-44

Front Door Trim ...................................................

EI-25

Front drive shaft (Transfer) ..

TF-149

,

TF-176

,

TF-276

,

TF-278

,

TF-284

,

TF-296

Front final drive removal and installation (4WD) .

FFD-

14

Front fog lamp ....................................................

LT-63

Front passenger air bag ..................................

SRS-49

Front seat ...........................................................

SE-90

Front seat belt ......................................................

SB-3

Front seat belt pre-tensioner ...............

SRS-3

,

SRS-58

Front side air bag ............................................

SRS-53

Front washer ......................................................

WW-4

Front wiper .........................................................

WW-4

FTTS - Wiring diagram ......................

EC-268

,

EC-273

Fuel cut control (at no load high engine speed)

EC-28

Fuel filter replacement .........................................

FL-5

Fuel gauge ............................................................

DI-4

Fuel injection system (Bank 1) ..........

EC-246

,

EC-256

Fuel injection system (Bank 2) ..........

EC-246

,

EC-256

Fuel injector and fuel tube .................................

EM-34

Fuel level sensor .................

EC-379

,

EC-381

,

EC-383

Fuel line inspection ..............................................

FL-3

Fuel precautions ...................................................

GI-5

Fuel pressure check ..........................................

EC-91

Fuel pressure release .......................................

EC-91

Fuel pump .......................................................

EC-686

Fuel pump and gauge ..........................................

FL-5

Fuel system ..........................................................

FL-3

Fuel tank ............................................................

FL-10

Fuel tank temperature sensor ...........

EC-266

,

EC-272

Fuel tank vacuum relief valve ...........................

EC-36

FUELB1 - Wiring diagram .................

EC-248

,

EC-258

FUELB2 - Wiring diagram .................

EC-249

,

EC-259

Fuse ......................................................

PG-70

,

PG-80

Fuse and fusible link box ..................................

PG-80

Fuse block .........................................................

PG-79

Fusible link ............................................

PG-70

,

PG-80

G

Garage jack and safety stand .............................

GI-40















Content      ..     282      283      284      285     ..
