CAMSHAFT EM-81 C D E F G H I J K L M A EM

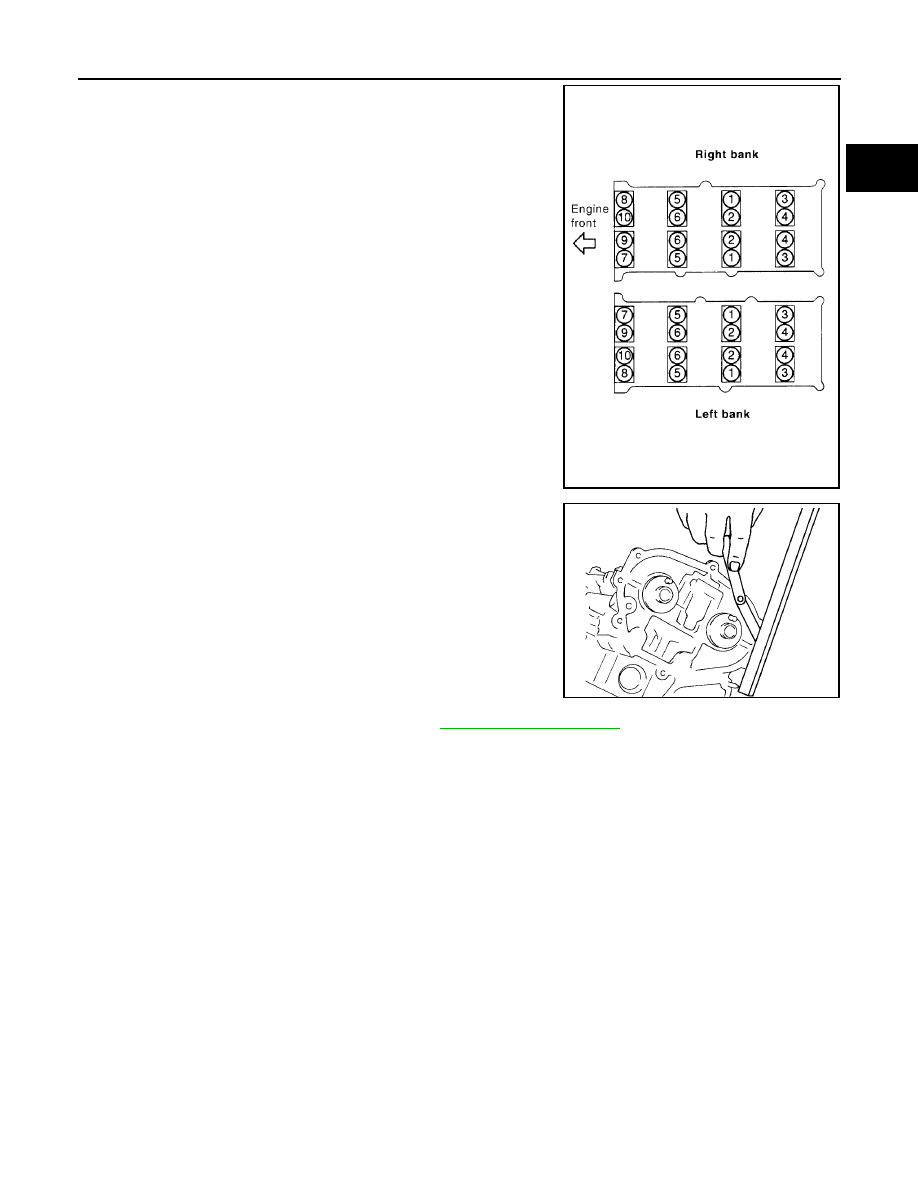

2005 Pathfinder 5. Tighten camshaft bracket bolts in the following steps, in numeri- 6. Measure the difference in levels between front end faces of ● Measure two positions (both intake and exhaust side) for a ● If the measured value is out of the standard, re-install cam- 7. Check and adjust the valve clearance. Refer to . 8. Installation of the remaining components is in the reverse order of removal. Camshaft bracket bolts Step 1 (bolts 7 - 10) : 1.96 N·m (0.2 kg-m, 17 in-lb) Step 2 (bolts 1 - 6) : 1.96 N·m (0.2 kg-m, 17 in-lb) Step 3 : 5.88 N·m (0.6 kg-m, 52 in-lb) Step 4 : 10.4 N·m (1.1 kg-m, 92 in-lb) PBIC2050E Standard : –0.14 to 0.14 mm (–0.0055 to 0.0055 in) EMQ0044D |
