DTC P1276, P1286 A/F SENSOR 1

EC-523

C

D

E

F

G

H

I

J

K

L

M

A

EC

2005 Pathfinder

8.

Stop the vehicle and connect GST to the vehicle.

9.

Make sure that no DTC is displayed.
If the DTC is displayed, go to

EC-527, "Diagnostic Procedure"

.

EC-524

DTC P1276, P1286 A/F SENSOR 1

2005 Pathfinder

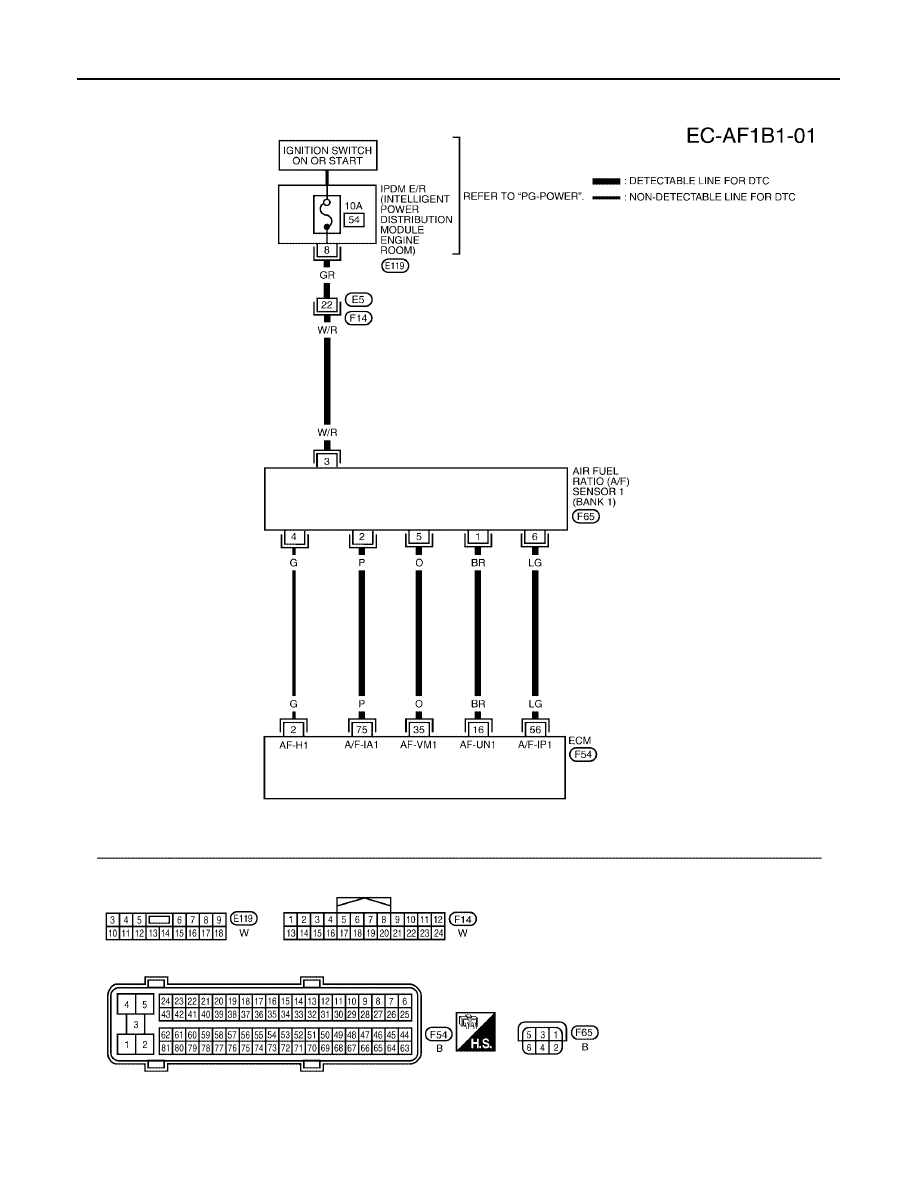

Wiring Diagram

UBS00KEZ

BANK 1

BBWA1730E

DTC P1276, P1286 A/F SENSOR 1

EC-525

C

D

E

F

G

H

I

J

K

L

M

A

EC

2005 Pathfinder

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

16

BR

A/F sensor 1 (Bank 1)

[Engine is running]

Warm-up condition

Idle speed

Approximately 3.1V

35

O

Approximately 2.6V

56

LG

Approximately 2.3V

75

P

Approximately 2.3V

EC-526

DTC P1276, P1286 A/F SENSOR 1

2005 Pathfinder

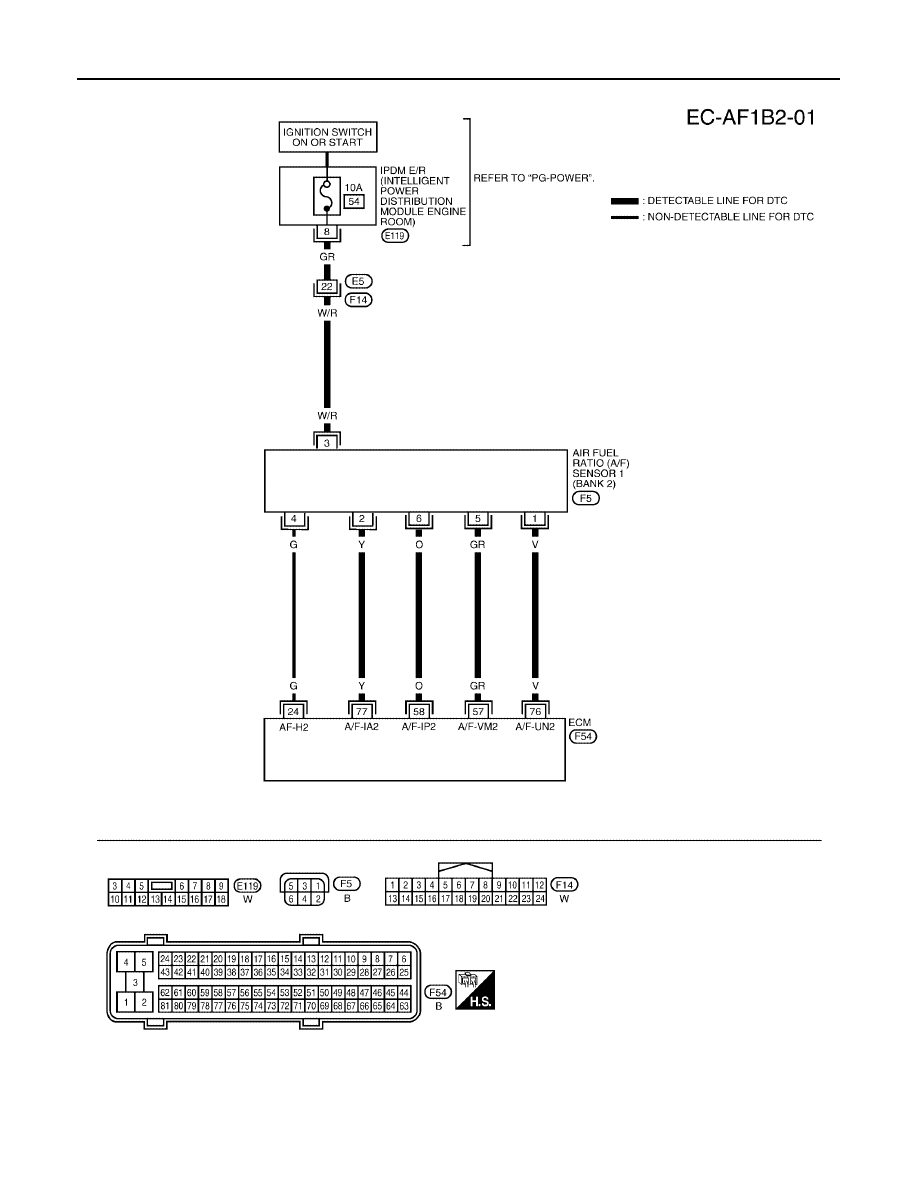

BANK 2

BBWA1731E

DTC P1276, P1286 A/F SENSOR 1

EC-527

C

D

E

F

G

H

I

J

K

L

M

A

EC

2005 Pathfinder

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

Diagnostic Procedure

UBS00KF0

1.

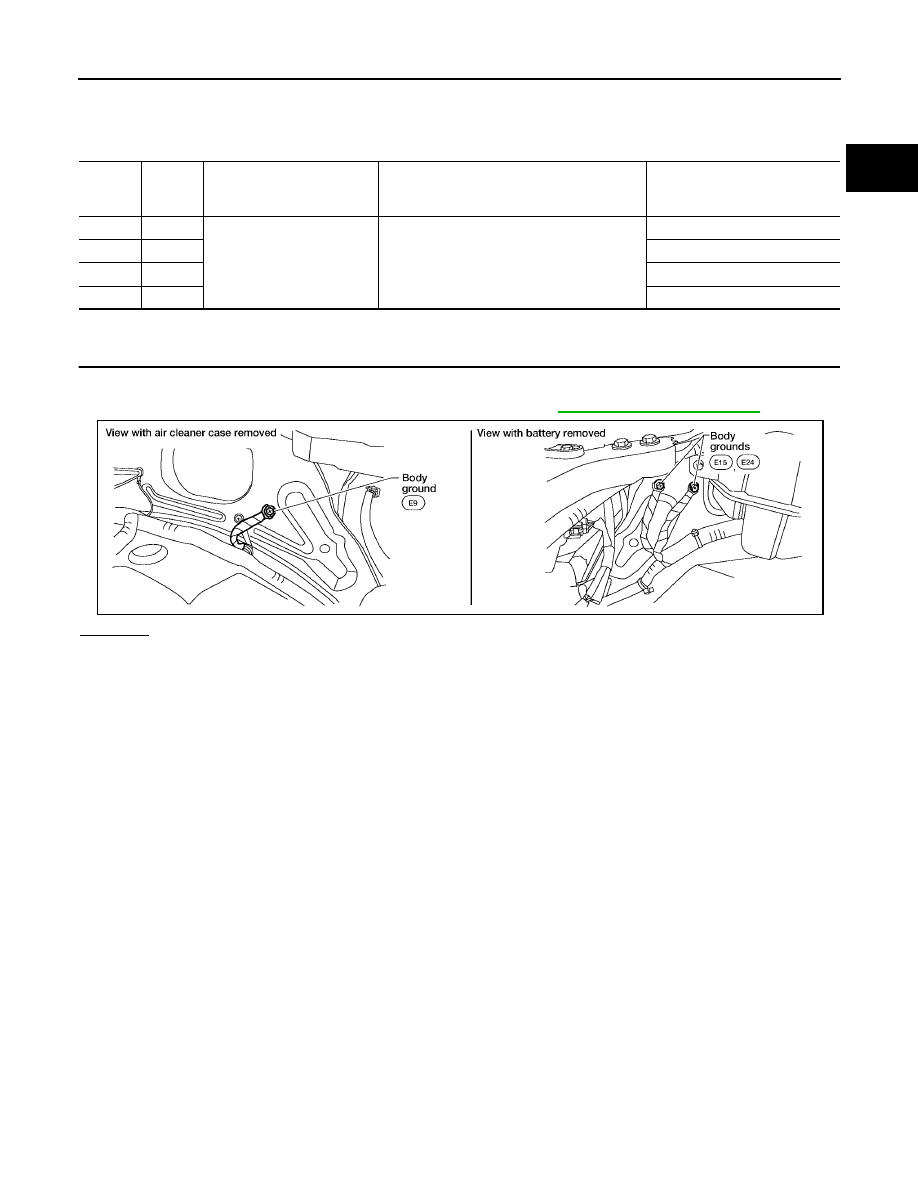

CHECK GROUND CONNECTIONS

1.

Turn ignition switch OFF.

2.

Loosen and retighten three ground screws on the body. Refer to

EC-165, "Ground Inspection"

.

OK or NG

OK

>> GO TO 2.

NG

>> Repair or replace ground connections.

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

57

GR

A/F sensor 1 (Bank 2)

[Engine is running]

Warm-up condition

Idle speed

Approximately 2.6V

58

O

Approximately 2.3V

76

V

Approximately 3.1V

77

Y

Approximately 2.3V

BBIA0539E

EC-528

DTC P1276, P1286 A/F SENSOR 1

2005 Pathfinder

2.

CHECK AIR FUEL RATIO (A/F) SENSOR 1 POWER SUPPLY CIRCUIT

1.

Disconnect air fuel ratio (A/F) sensor 1 harness connector.

2.

Turn ignition switch ON.

3.

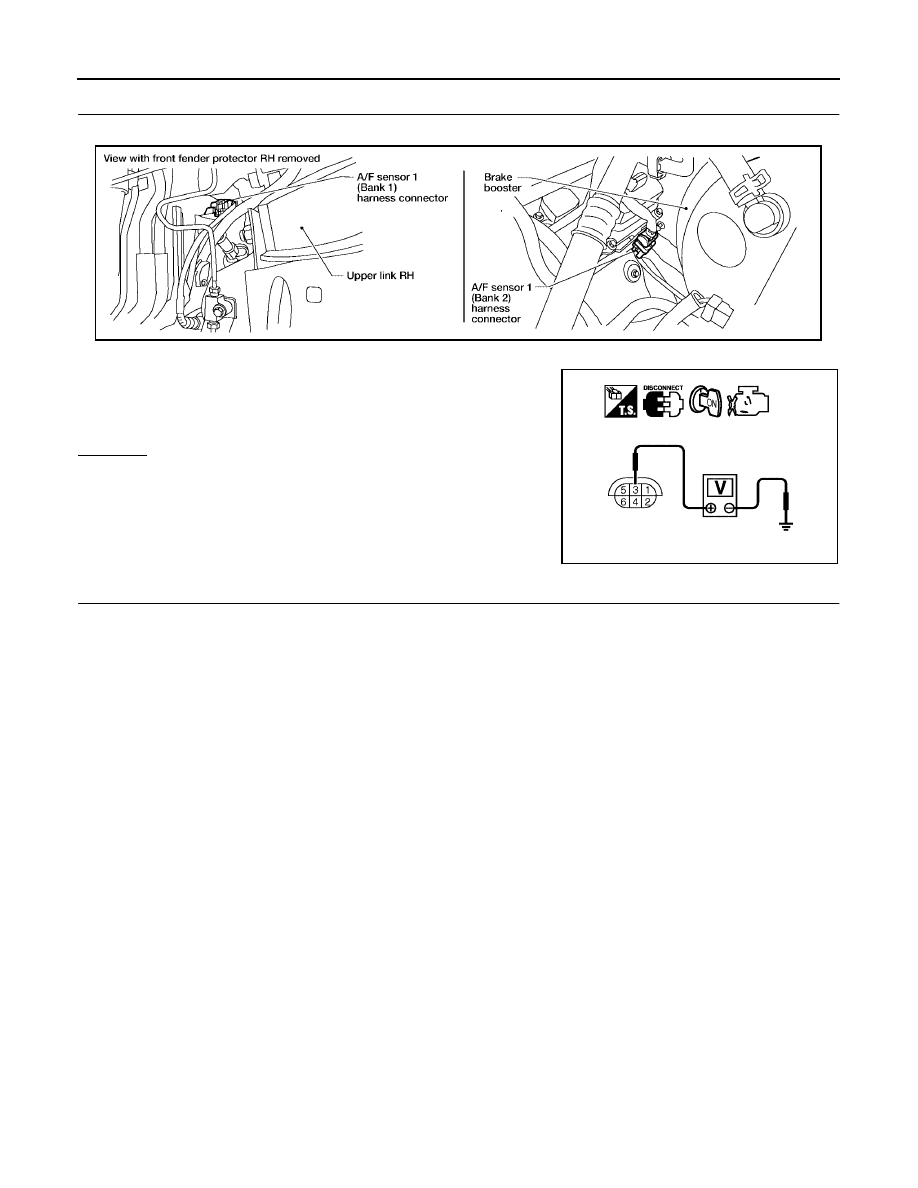

Check voltage between air fuel ratio (A/F) sensor 1 terminal 3
and ground with CONSULT-II or tester.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 3.

3.

DETECT MALFUNCTIONING PART

Check the following.

Harness connectors E5, F14

IPDM E/R connector E119

10A fuse

Harness for open or short between air fuel ratio (A/F) sensor 1 and fuse

>> Repair or replace harness or connectors.

Voltage: Battery voltage

BBIA0544E

PBIB1683E

DTC P1276, P1286 A/F SENSOR 1

EC-529

C

D

E

F

G

H

I

J

K

L

M

A

EC

2005 Pathfinder

4.

CHECK AIR FUEL RATIO (A/F) SENSOR 1 INPUT SIGNAL CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check harness continuity between the following terminals.
Refer to Wiring Diagram.

4.

Check harness continuity between the following terminals and ground.
Refer to Wiring Diagram.

5.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 5.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

5.

CHECK INTERMITTENT INCIDENT

Perform

EC-158, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

.

OK or NG

OK

>> GO TO 6.

NG

>> Repair or replace.

6.

REPLACE AIR FUEL RATIO (A/F) SENSOR 1

Replace air fuel ratio (A/F) sensor 1.

CAUTION:

Discard any air fuel ratio (A/F) sensor which has been dropped from a height of more than 0.5 m
(19.7 in) onto a hard surface such as a concrete floor; use a new one.

Before installing new air fuel ratio (A/F) sensor, clean exhaust system threads using Heated Oxy-
gen Sensor Thread Cleaner tool J-43897-18 or J-43897-12 and approved anti-seize lubricant.

>> INSPECTION END

A/F sensor 1 terminal

ECM terminal

Bank1

1

16

2

75

5

35

6

56

Bank 2

1

76

2

77

5

57

6

58

Continuity should exist.

Bank 1

Bank 2

A/F sensor 1 terminal

ECM terminal

A/F sensor 1 terminal

ECM terminal

1

16

1

76

2

75

2

77

5

35

5

57

6

56

6

58

Continuity should not exist.

EC-530

DTC P1276, P1286 A/F SENSOR 1

2005 Pathfinder

Removal and Installation

UBS00KF1

AIR FUEL RATIO (A/F) SENSOR 1

Refer to

EM-21, "EXHAUST MANIFOLD AND THREE WAY CATALYST"

.
