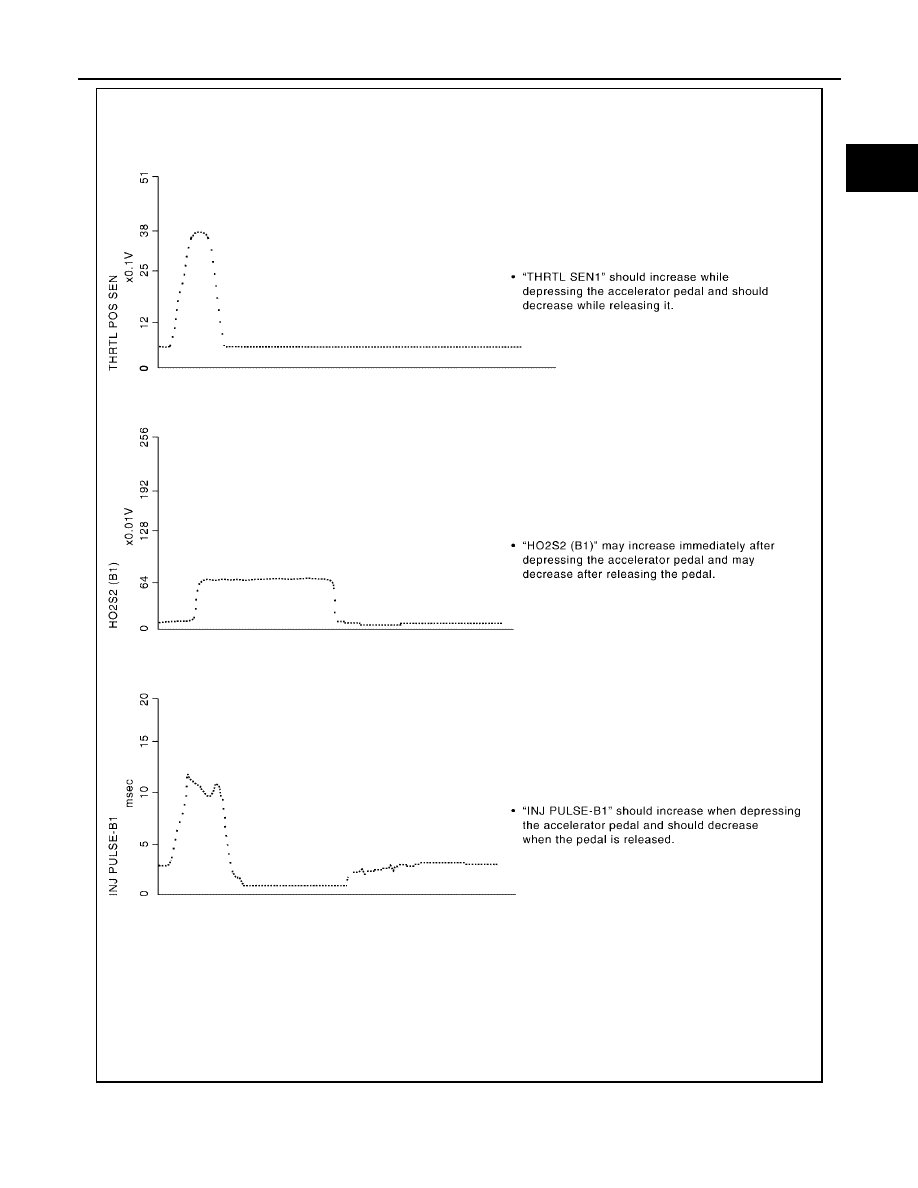

TROUBLE DIAGNOSIS

EC-147

C

D

E

F

G

H

I

J

K

L

M

A

EC

2005 Pathfinder

PBIB1594E

EC-148

TROUBLE DIAGNOSIS - SPECIFICATION VALUE

2005 Pathfinder

TROUBLE DIAGNOSIS - SPECIFICATION VALUE

PFP:00031

Description

UBS00K4G

The specification (SP) value indicates the tolerance of the value that is displayed in “DATA MONITOR (SPEC)”
mode of CONSULT-II during normal operation of the Engine Control System. When the value in “DATA MONI-
TOR (SPEC)” mode is within the SP value, the Engine Control System is confirmed OK. When the value in
“DATA MONITOR (SPEC)” mode is NOT within the SP value, the Engine Control System may have one or
more malfunctions.
The SP value is used to detect malfunctions that may affect the Engine Control System, but will not light the
MIL.
The SP value will be displayed for the following three items:

B/FUEL SCHDL (The fuel injection pulse width programmed into ECM prior to any learned on board cor-
rection)

A/F ALPHA-B1/B2 (The mean value of air-fuel ratio feedback correction factor per cycle)

MAS A/F SE-B1 (The signal voltage of the mass air flow sensor)

Testing Condition

UBS00K4H

Vehicle driven distance: More than 5,000 km (3,017 miles)

Barometric pressure: 98.3 - 104.3 kPa (1.003 - 1.064 kg/cm

2

, 14.25 - 15.12 psi)

Atmospheric temperature: 20 - 30

°

C (68 - 86

°

F)

Engine coolant temperature: 75 - 95

°

C (167 - 203

°

F)

Transmission: Warmed-up*

1

Electrical load: Not applied*

2

Engine speed: Idle

*1: After the engine is warmed up to normal operating temperature, drive vehicle until “FLUID TEMP SE” (A/T
fluid temperature sensor signal) indicates more than 60

°

C (140

°

F).

*2: Rear window defogger switch, air conditioner switch, lighting switch are OFF. Steering wheel is straight
ahead.

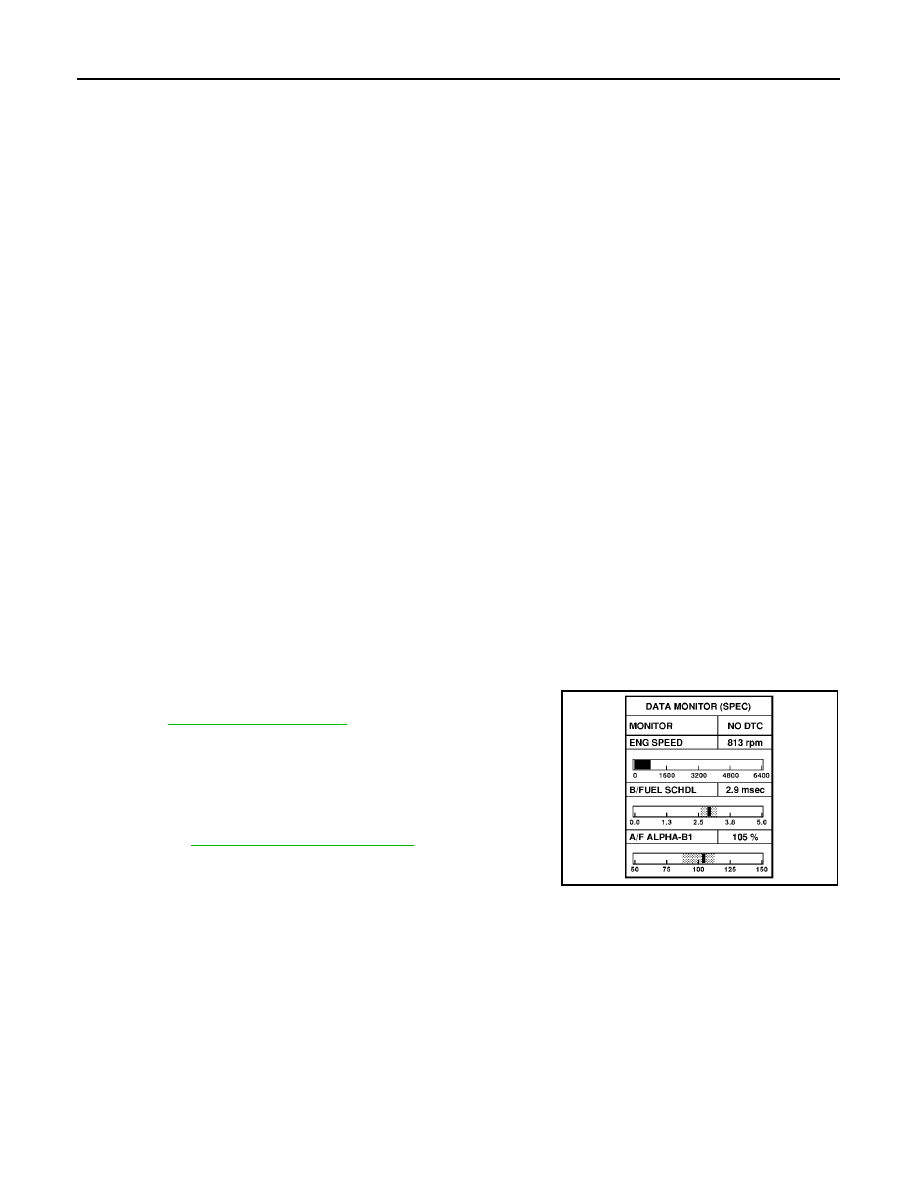

Inspection Procedure

UBS00K4I

NOTE:
Perform “DATA MONITOR (SPEC)” mode in maximum scale display.

1.

Perform

EC-71, "Basic Inspection"

.

2.

Confirm that the testing conditions indicated above are met.

3.

Select “B/FUEL SCHDL”, “A/F ALPHA-B1”, “A/F ALPHA-B2”
and “MAS A/F SE-B1” in “DATA MONITOR (SPEC)” mode with
CONSULT-II.

4.

Make sure that monitor items are within the SP value.

5.

If NG, go to

EC-149, "Diagnostic Procedure"

.

SEF601Z

TROUBLE DIAGNOSIS - SPECIFICATION VALUE

EC-149

C

D

E

F

G

H

I

J

K

L

M

A

EC

2005 Pathfinder

Diagnostic Procedure

UBS00K4J

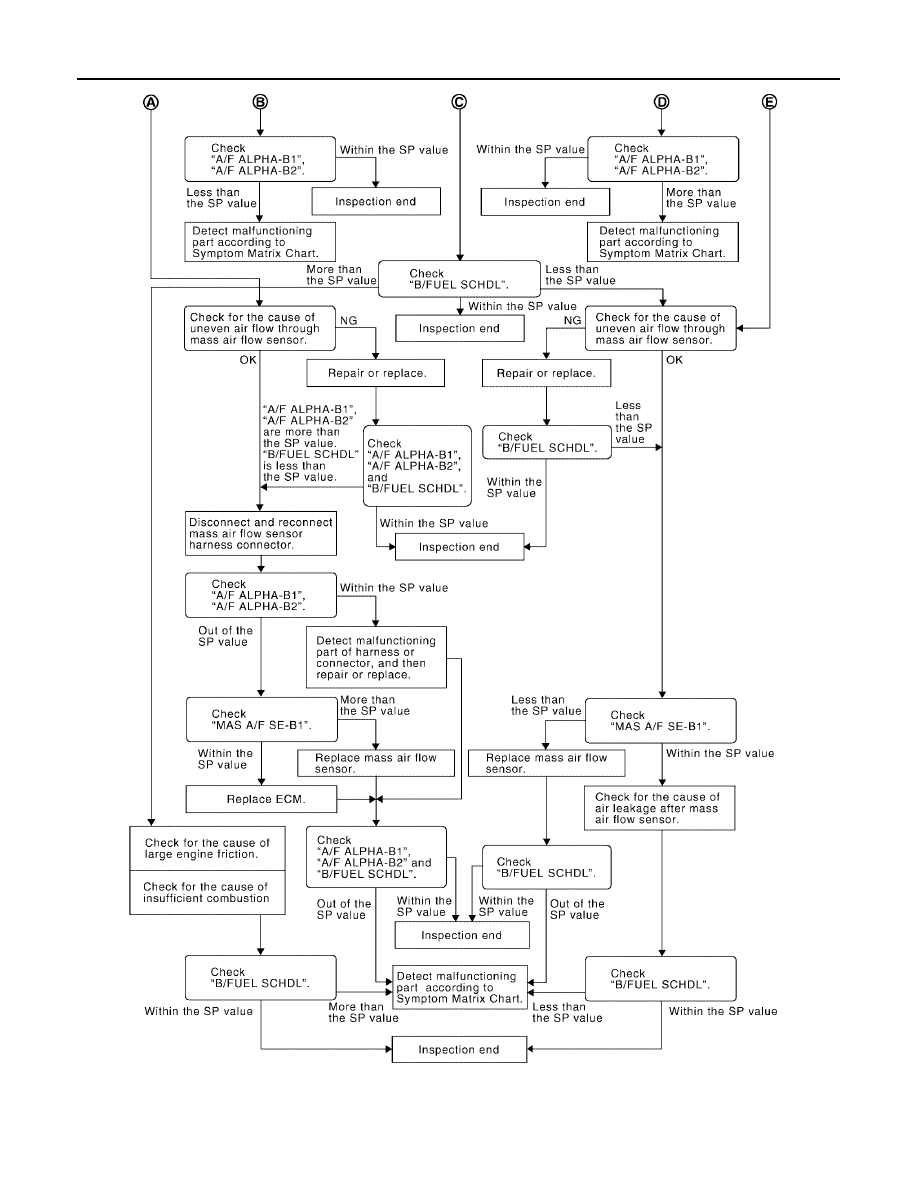

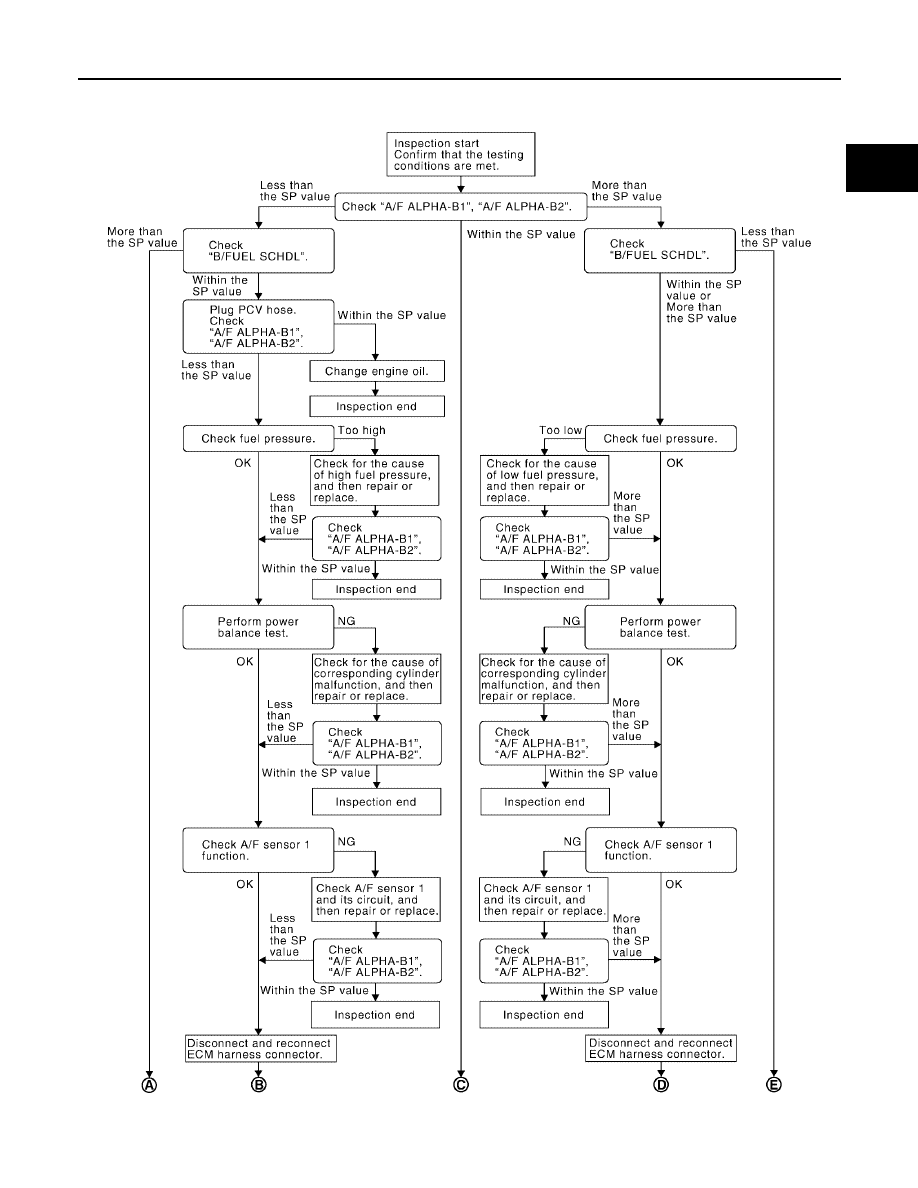

OVERALL SEQUENCE

PBIB2268E

EC-150

TROUBLE DIAGNOSIS - SPECIFICATION VALUE

2005 Pathfinder

PBIB2548E

TROUBLE DIAGNOSIS - SPECIFICATION VALUE

EC-151

C

D

E

F

G

H

I

J

K

L

M

A

EC

2005 Pathfinder

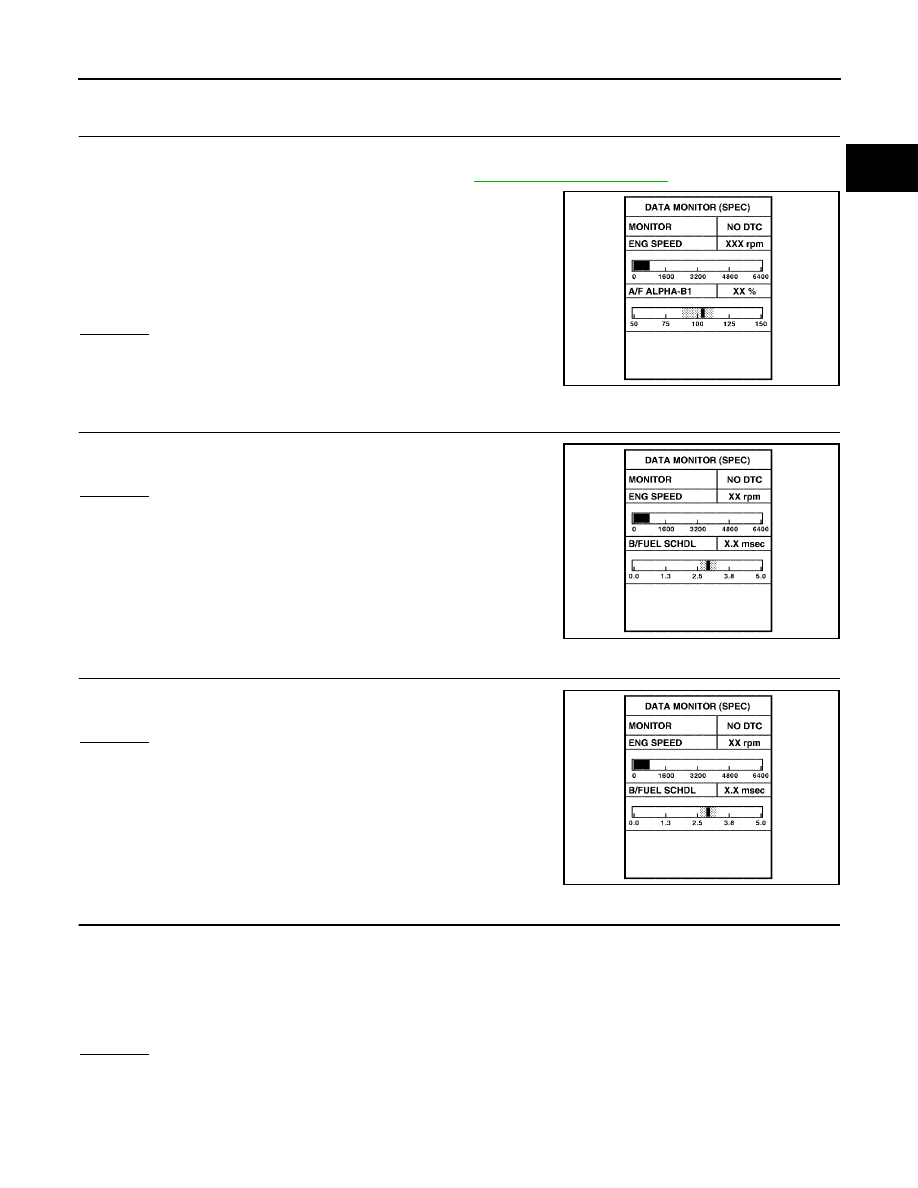

DETAILED PROCEDURE

1.

CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”

1.

Start engine.

2.

Confirm that the testing conditions are met. Refer to

EC-148, "Testing Condition"

.

3.

Select “A/F ALPHA-B1”, “A/F ALPHA-B2” in “DATA MONITOR
(SPEC)” mode, and make sure that the each indication is within
the SP value.

NOTE:
Check “A/F ALPHA-B1”, “A/F ALPHA-B2” for approximately 1
minute because they may fluctuate. It is NG if the indication is
out of the SP value even a little.

OK or NG

OK

>> GO TO 17.

NG (Less than the SP value)>>GO TO 2.
NG (More than the SP value)>>GO TO 3.

2.

CHECK “B/FUEL SCHDL”

Select “B/FUEL SCHDL” in “DATA MONITOR (SPEC)” mode, and
make sure that the indication is within the SP value.

OK or NG

OK

>> GO TO 4.

NG (More than the SP value)>>GO TO 19.

3.

CHECK “B/FUEL SCHDL”

Select “B/FUEL SCHDL” in “DATA MONITOR (SPEC)” mode, and
make sure that the indication is within the SP value.

OK or NG

OK

>> GO TO 6.

NG (More than the SP value)>>GO TO 6.
NG (Less than the SP value)>>GO TO 25.

4.

CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”

1.

Stop the engine.

2.

Disconnect PCV hose, and then plug it.

3.

Start engine.

4.

Select “A/F ALPHA-B1”, “A/F ALPHA-B2” in “DATA MONITOR (SPEC)” mode, and make sure that the
each indication is within the SP value.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 6.

PBIB2369E

PBIB2332E

PBIB2332E

EC-152

TROUBLE DIAGNOSIS - SPECIFICATION VALUE

2005 Pathfinder

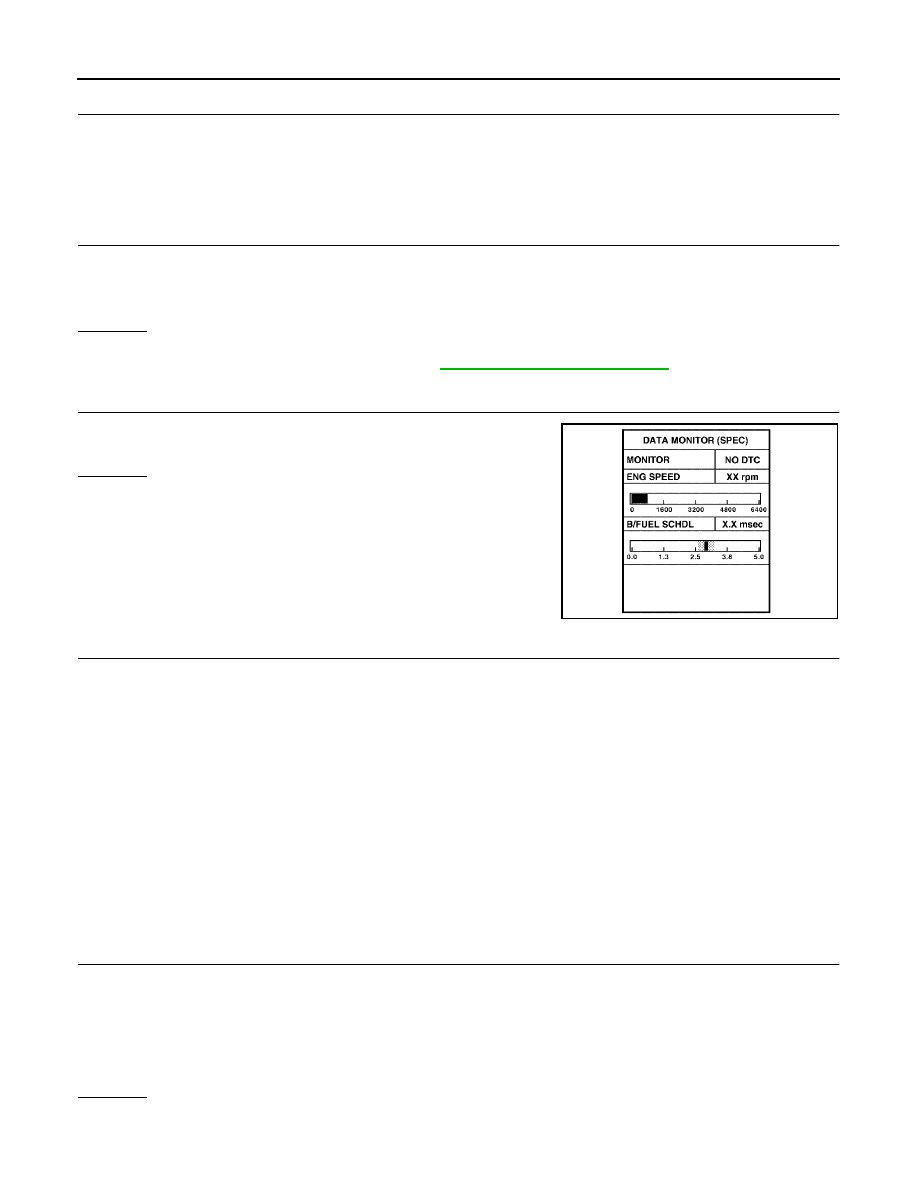

5.

CHANGE ENGINE OIL

1.

Stop the engine.

2.

Change engine oil.

NOTE:
This symptom may occur when a large amount of gasoline is mixed with engine oil because of driving
conditions (such as when engine oil temperature does not rise enough since a journey distance is too
short during winter). The symptom will not be detected after changing engine oil or changing driving con-
dition.

>> INSPECTION END

6.

CHECK FUEL PRESSURE

Check fuel pressure. (Refer to

EC-91, "Fuel Pressure Check"

.)

OK or NG

OK

>> GO TO 9.

NG (Fuel pressure is too high)>>Replace fuel pressure regulator, refer to

EC-91

. GO TO 8.

NG (Fuel pressure is too low)>>GO TO 7.

7.

DETECT MALFUNCTIONING PART

1.

Check the following.

Clogged and bent fuel hose and fuel tube

Clogged fuel filter

Fuel pump and its circuit (Refer to

EC-686

.)

2.

If NG, repair or replace the malfunctioning part. (Refer to

EC-91

.)

If OK, replace fuel pressure regulator.

>> GO TO 8.

8.

CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”

1.

Start engine.

2.

Select “A/F ALPHA-B1”, “A/F ALPHA-B2” in “DATA MONITOR (SPEC)” mode, and make sure that the
each indication is within the SP value.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 9.

9.

PERFORM POWER BALANCE TEST

1.

Perform “POWER BALANCE” in “ACTIVE TEST” mode.

2.

Make sure that the each cylinder produces a momentary engine
speed drop.

OK or NG

OK

>> GO TO 12.

NG

>> GO TO 10.

PBIB0133E

TROUBLE DIAGNOSIS - SPECIFICATION VALUE

EC-153

C

D

E

F

G

H

I

J

K

L

M

A

EC

2005 Pathfinder

10.

DETECT MALFUNCTIONING PART

1.

Check the following.

Ignition coil and its circuit (Refer to

EC-657

.)

Fuel injector and its circuit (Refer to

EC-679

.)

Intake air leakage

Low compression pressure (Refer to

EM-91, "CHECKING COMPRESSION PRESSURE"

.)

2.

If NG, repair or replace the malfunctioning part.
If OK, replace fuel injector. (It may be caused by leakage from fuel injector or clogging.)

>> GO TO 11.

11.

CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”

1.

Start engine.

2.

Select “A/F ALPHA-B1”, “A/F ALPHA-B2” in “DATA MONITOR (SPEC)” mode, and make sure that the
each indication is within the SP value.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 12.

12.

CHECK A/F SENSOR 1 FUNCTION

Perform all DTC Confirmation Procedure related with A/F sensor 1.

For DTC P1271, P1281, refer to

EC-483, "DTC Confirmation Procedure"

.

For DTC P1272, P1282, refer to

EC-492, "DTC Confirmation Procedure"

.

For DTC P1273, P1283, refer to

EC-501, "DTC Confirmation Procedure"

.

For DTC P1274, P1284, refer to

EC-511, "DTC Confirmation Procedure"

.

For DTC P1276, P1286, refer to

EC-521, "DTC Confirmation Procedure"

.

For DTC P1278, P1288, refer to

EC-532, "DTC Confirmation Procedure"

.

For DTC P1279, P1289, refer to

EC-544, "DTC Confirmation Procedure"

.

OK or NG

OK

>> GO TO 15.

NG

>> GO TO 13.

13.

CHECK A/F SENSOR 1 CIRCUIT

Perform Diagnostic Procedure according to corresponding DTC.

>> GO TO 14.

14.

CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”

1.

Start engine.

2.

Select “A/F ALPHA-B1”, “A/F ALPHA-B2” in “DATA MONITOR (SPEC)” mode, and make sure that the
each indication is within the SP value.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 15.

EC-154

TROUBLE DIAGNOSIS - SPECIFICATION VALUE

2005 Pathfinder

15.

DISCONNECT AND RECONNECT ECM HARNESS CONNECTOR

1.

Stop the engine.

2.

Disconnect ECM harness connector. Check pin terminal and connector for damage, and then reconnect it.

>> GO TO 16.

16.

CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”

1.

Start engine.

2.

Select “A/F ALPHA-B1”, “A/F ALPHA-B2” in “DATA MONITOR (SPEC)” mode, and make sure that the
each indication is within the SP value.

OK or NG

OK

>> INSPECTION END

NG

>> Detect malfunctioning part according to

EC-102, "Symptom Matrix Chart"

.

17.

CHECK “B/FUEL SCHDL”

Select “B/FUEL SCHDL” in “DATA MONITOR (SPEC)” mode, and
make sure that the indication is within the SP value.

OK or NG

OK

>> INSPECTION END

NG (More than the SP value)>>GO TO 18.
NG (Less than the SP value)>>GO TO 25.

18.

DETECT MALFUNCTIONING PART

1.

Check for the cause of large engine friction. Refer to the following.

Engine oil level is too high

Engine oil viscosity

Belt tension of power steering, alternator, A/C compressor, etc. is excessive

Noise from engine

Noise from transmission, etc.

2.

Check for the cause of insufficient combustion. Refer to the following.

Valve clearance malfunction

Intake valve timing control function malfunction

Camshaft sprocket installation malfunction, etc.

>> Repair or replace malfunctioning part, and then GO TO 30.

19.

CHECK INTAKE SYSTEM

Check for the cause of uneven air flow through mass air flow sensor. Refer to the following.

Crushed air ducts

Malfunctioning seal of air cleaner element

Uneven dirt of air cleaner element

Improper specification of intake air system

OK or NG

OK

>> GO TO 21.

NG

>> Repair or replace malfunctioning part, and then GO TO 20.

PBIB2332E
