POWER DOOR LOCK SYSTEM BL-39 C D E F G H J K L M A B BL

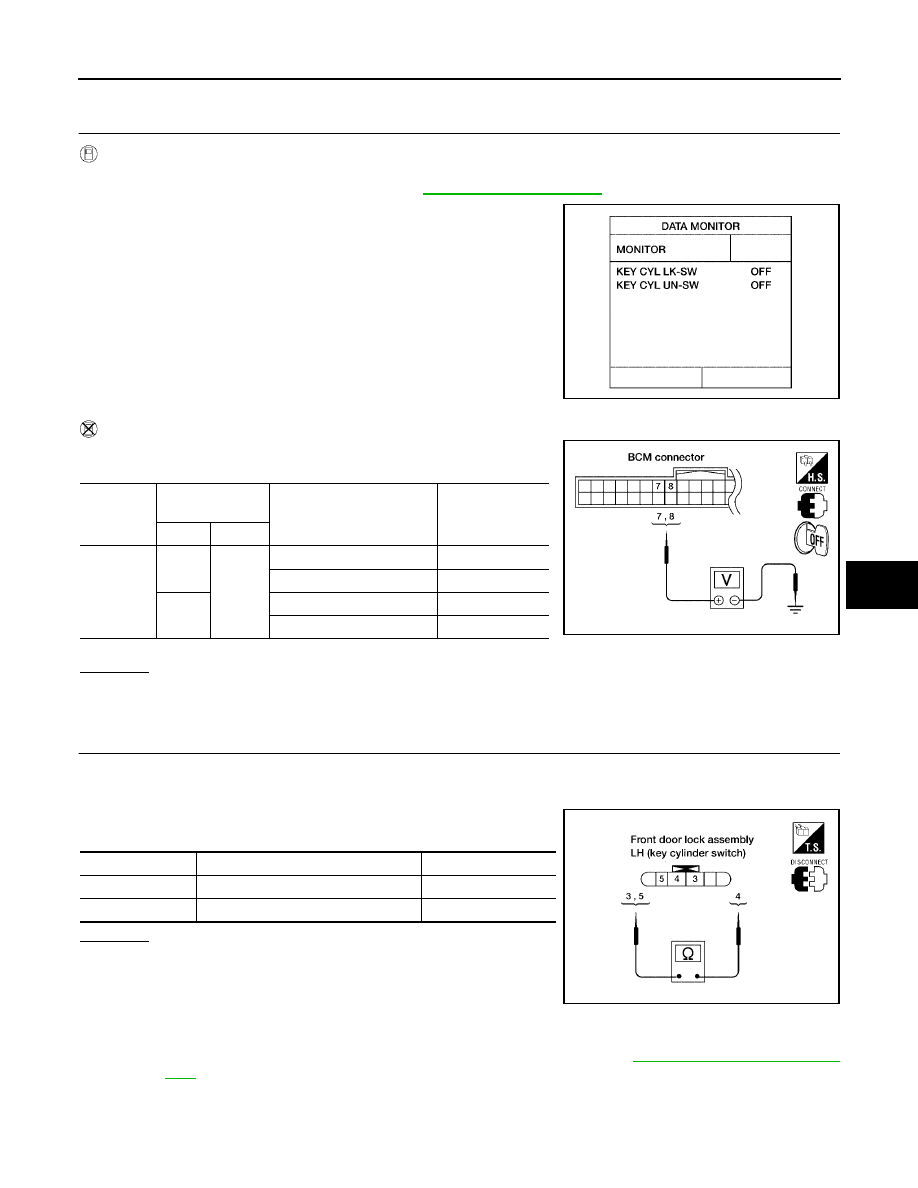

2005 Pathfinder Front Door Lock Assembly LH (Key Cylinder Switch) Check EIS003YF 1. CHECK DOOR KEY CYLINDER SWITCH LH With CONSULT-II Check front door lock assembly LH (key cylinder switch) ("KEY CYL LK-SW") and ("KEY CYL UN-SW) in . ● When key inserted in front key cylinder is turned to LOCK: ● When key inserted in front key cylinder is turned to UNLOCK: Without CONSULT-II Check voltage between BCM connector M18 terminals 7, 8 and OK or NG OK >> Front door lock assembly LH (key cylinder switch) signal is OK. NG >> GO TO 2. 2. CHECK FRONT DOOR LOCK ASSEMBLY LH (KEY CYLINDER SWITCH) CIRCUIT 1. Turn ignition switch off. 2. Disconnect front door lock assembly LH (key cylinder switch). 3. Check continuity between front door lock assembly LH (key cyl- OK or NG OK >> Check the following. ● Front door lock assembly LH (key cylinder switch) ● Harness for open or short between BCM and front NG >> Replace front door lock assembly LH (key cylinder switch). Refer to . KEY CYL LK-SW : ON KEY CYL UN-SW : ON LIIA0188E Connector Terminals (Wire color) Condition Voltage (V) (Approx.) (+) (–) M18 7 Ground Neutral/Lock 5 Unlock 0 8 Neutral/Unlock 5 Lock 0 WIIA0457E Terminals Condition Continuity 4 – 5 Key is turned to LOCK. Yes 3 – 4 Key is turned to UNLOCK. Yes WIIA0458E |
