BCM (BODY CONTROL MODULE)

BCS-3

C

D

E

F

G

H

I

J

L

M

A

B

BCS

2005 Pathfinder

BCM (BODY CONTROL MODULE)

PFP:284B2

System Description

EKS009Q3

BCM (Body Control Module) controls the operation of various electrical units installed on the vehicle.

BCM FUNCTION

BCM has a combination switch reading function for reading the operation of combination switches (light, wiper
washer, turn signal) in addition to the function for controlling the operation of various electrical components.
Also, it functions as an interface that receives signals from the A/C control unit, and sends signals to ECM
using CAN communication.

COMBINATION SWITCH READING FUNCTION

1.

Description

BCM reads combination switch (light, wiper) status, and controls various electrical components accord-
ing to the results.

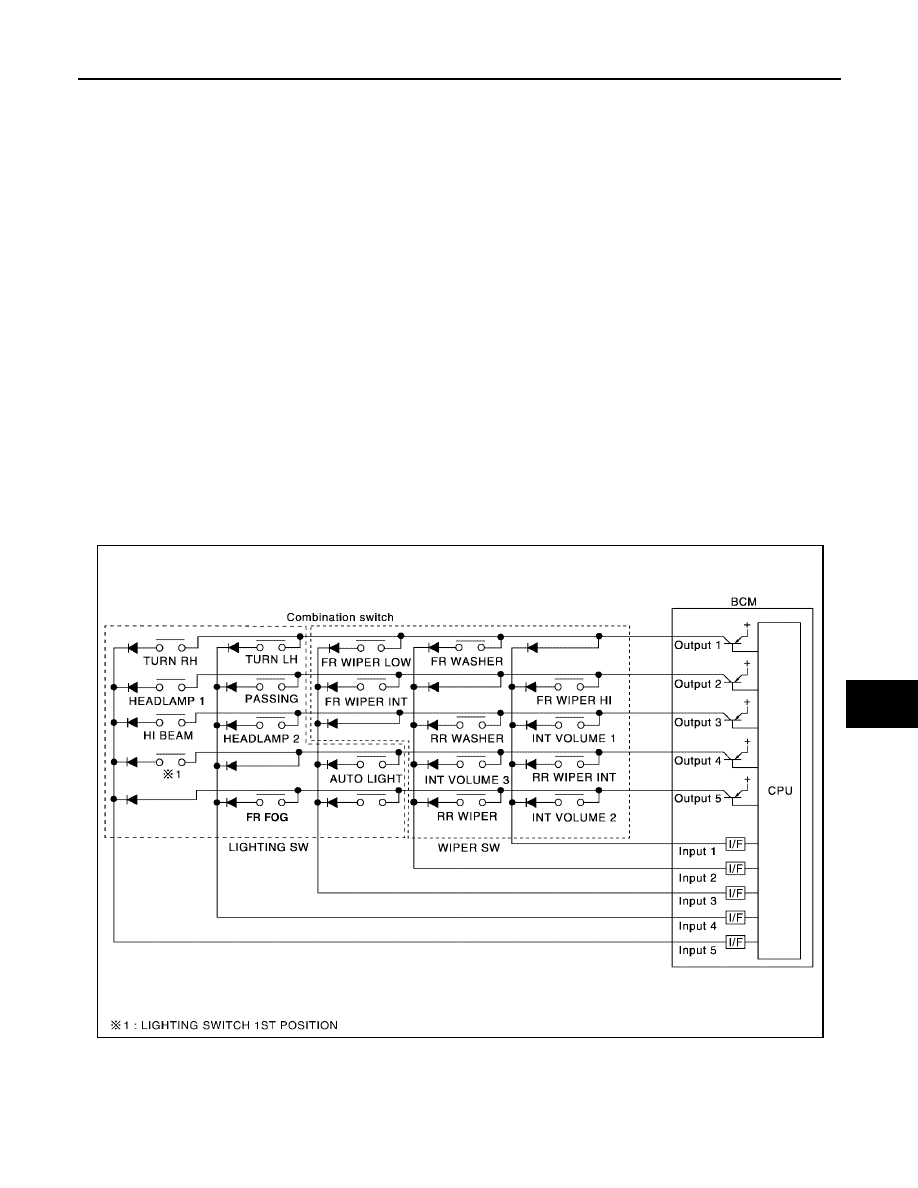

BCM reads information of a maximum of 20 switches by combining five output terminals (OUTPUT 1-5)
and five input terminals (INPUT 1-5).

2.

Operation description

BCM activates transistors of output terminals (OUTPUT 1-5) periodically and allows current to flow in
turn.

If any (1 or more) of the switches are turned ON, circuit of output terminals (OUTPUT 1-5) and input ter-
minals (INPUT 1-5) becomes active.

At this time, transistors of output terminals (OUTPUT 1-5) are activated to allow current to flow. When
voltage of input terminals (INPUT 1-5) corresponding to that switch changes, interface in BCM detects
voltage change and BCM determines that switch is ON.

3.

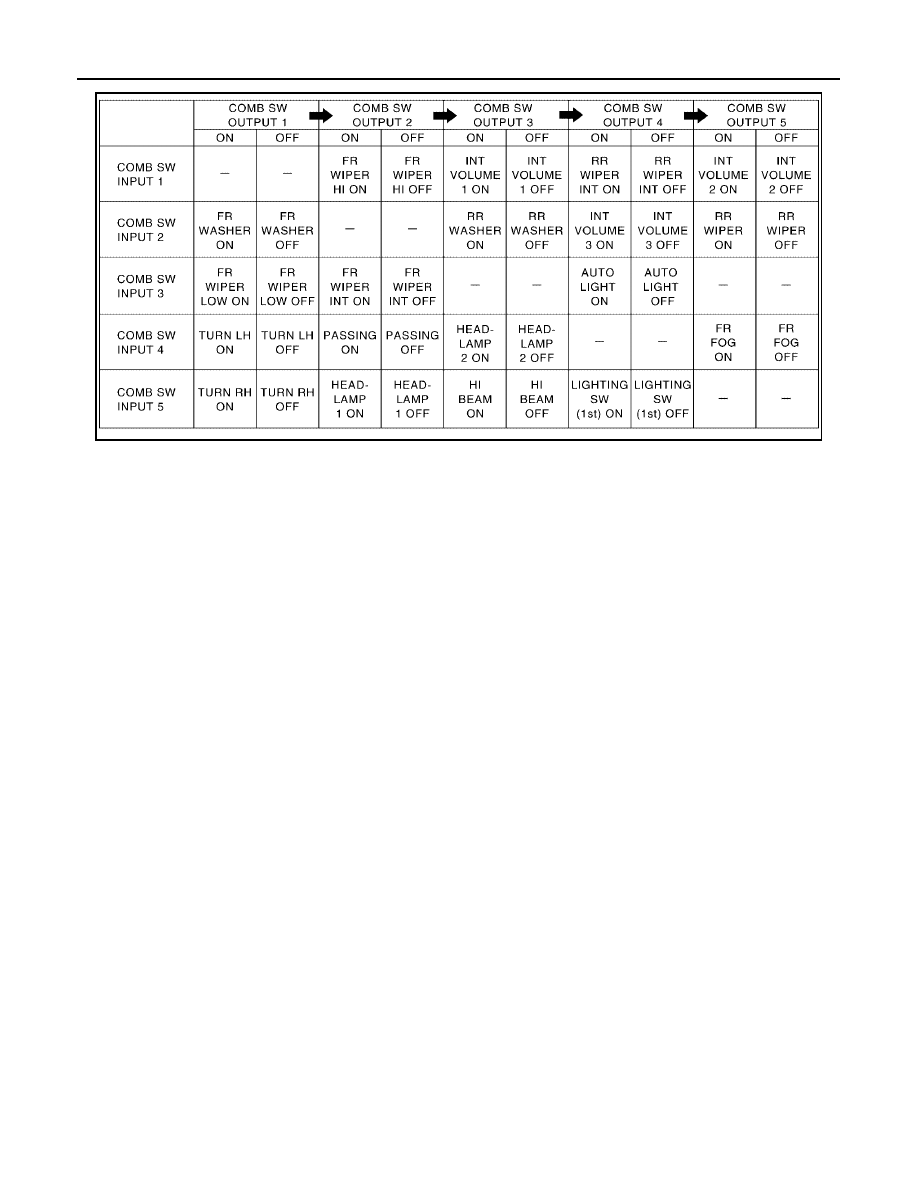

BCM - Operation table of combination switch

BCM reads operation status of combination switch by the combination shown in the following table.

LIIA0757E

BCS-4

BCM (BODY CONTROL MODULE)

2005 Pathfinder

NOTE:
Headlamp has a dual system switch.

4.

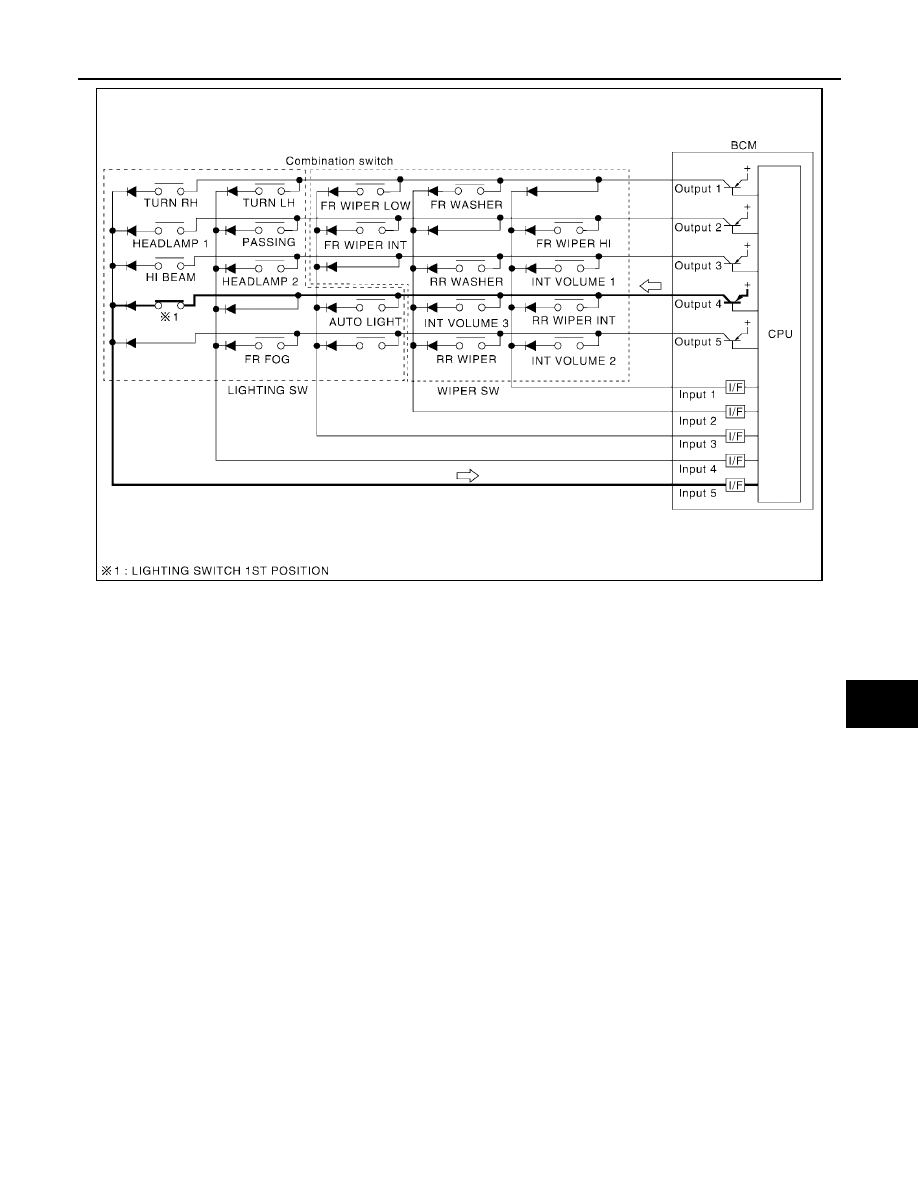

Example operation: (When lighting switch 1st position turned ON)

When lighting switch 1st position is turned ON, contact in combination switch turns ON. At this time if
OUTPUT 4 transistor is activated, BCM detects that voltage changes in INPUT 5.

When OUTPUT 4 transistor is ON, BCM detects that voltage changes in INPUT 5, and judges lighting
switch 1st position is ON. Then BCM sends tail lamp ON signal to IPDM E/R using CAN communica-
tion.

When OUTPUT 4 transistor is activated again, BCM detects that voltage changes in INPUT 5 and rec-
ognizes that lighting switch 1st position is continuously ON.

SKIA4959E

BCM (BODY CONTROL MODULE)

BCS-5

C

D

E

F

G

H

I

J

L

M

A

B

BCS

2005 Pathfinder

NOTE:
Each OUTPUT terminal transistor is activated at 10ms intervals. Therefore, after a switch is turned ON,
electrical loads are activated with a time delay. But this time delay is so short that it cannot be noticed.

5.

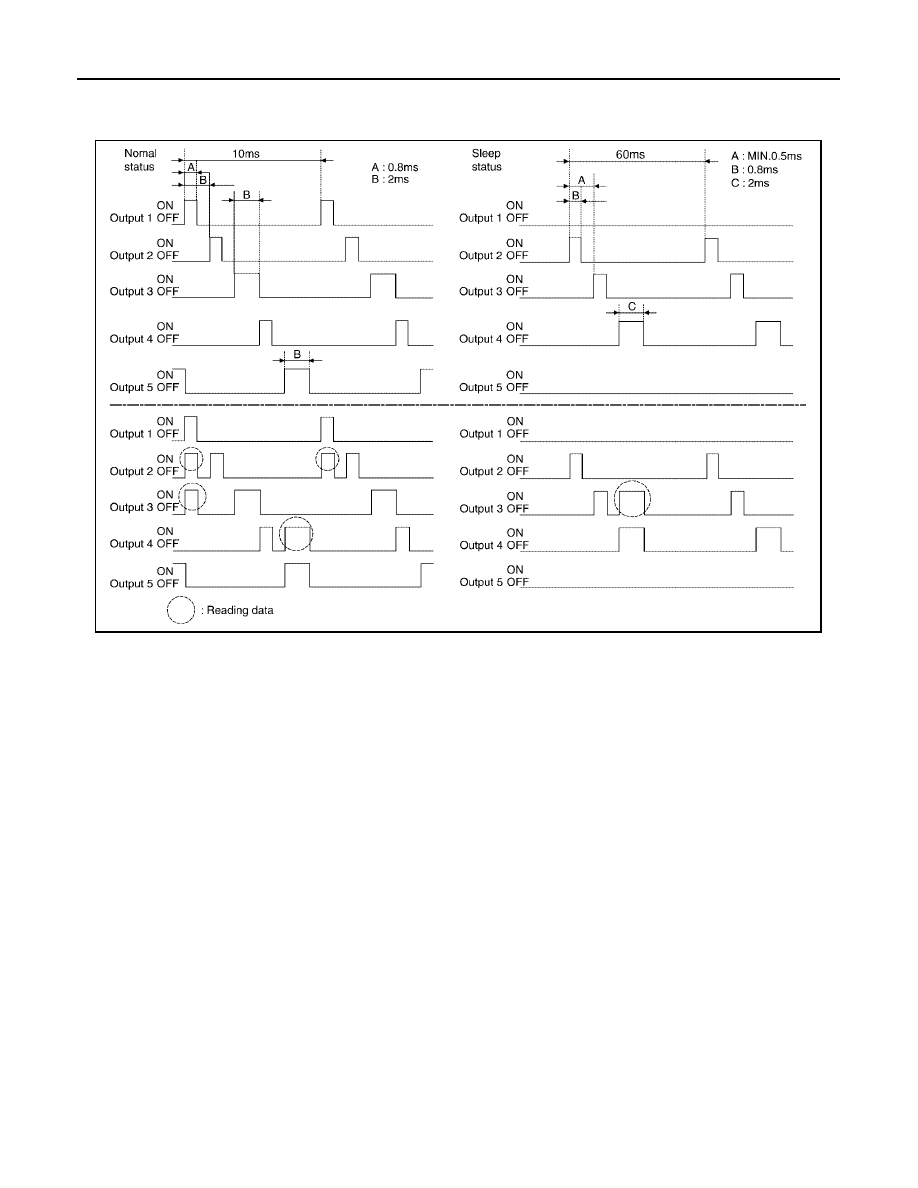

Operation mode

Combination switch reading function has operation modes as follows:

Normal status

When BCM is not in sleep status, OUTPUT terminals (1-5) each turn ON-OFF every 10 ms.

Sleep status

LIIA0760E

BCS-6

BCM (BODY CONTROL MODULE)

2005 Pathfinder

When BCM is in sleep mode, transistors of OUTPUT 1 and 5 stop the output, and BCM enters low-cur-
rent-consumption mode. OUTPUTS (2, 3, and 4) turn ON-OFF at 60ms intervals, and receives lighting
switch input only.

CAN COMMUNICATION CONTROL

CAN communication allows a high rate of information through the two communication lines (CAN-L, CAN-H)
connecting the various control units in the system. Each control unit transmits/receives data, but selectively
reads required data only.

BCM STATUS CONTROL

BCM changes its status depending on the operation status in order to save power consumption.

1.

CAN communication status

With ignition switch ON, CAN communicates with other control units normally.

Control by BCM is being operated properly.

When ignition switch is OFF, switching to sleep mode is possible.

Even when ignition switch is OFF, if CAN communication with IPDM E/R and combination meter is
active, CAN communication status is active.

2.

Sleep transient status

This status shuts down CAN communication when ignition switch is turned OFF.

It transmits sleep request signal to IPDM E/R and combination meter.

Two seconds after CAN communication of all control units stops, CAN communication switches to inac-
tive status.

3.

CAN communication inactive status

With ignition switch OFF, CAN communication is not active.

With ignition switch OFF, control performed only by BCM is active.

Three seconds after CAN communication of all control units stops, CAN communication switches to
inactive status.

4.

Sleep status

LIIA1994E

BCM (BODY CONTROL MODULE)

BCS-7

C

D

E

F

G

H

I

J

L

M

A

B

BCS

2005 Pathfinder

BCM is activated with low current consumption mode.

CAN communication is not active.

When CAN communication operation is detected, it switches to CAN communication status.

When a state of the following switches changes, it switches to CAN communication state:

Key switch

Hazard switch

Door lock/unlock switch

Front door switch (LH, RH)

Rear door switch (LH, RH)

Back door switch

Combination switch (passing, lighting switch 1st position, front fog lamp)

Keyfob (lock/unlock signal)

Door lock assembly LH (key cylinder switch)

When control performed only by BCM is required by switch, it shifts to CAN communication inactive
mode.

Status of combination switch reading function is changed.

SYSTEMS CONTROLLED BY BCM DIRECTLY

Power door lock system. Refer to

BL-16, "POWER DOOR LOCK SYSTEM"

.

Remote keyless entry system. Refer to

BL-40, "REMOTE KEYLESS ENTRY SYSTEM"

.

Power window system. Refer to

GW-15, "POWER WINDOW SYSTEM"

.

NOTE

Sunroof system. Refer to

RF-10, "SUNROOF"

.

NOTE

Room lamp timer. Refer to

LT-129, "INTERIOR ROOM LAMP"

.

Warning chime system. Refer to

DI-46, "WARNING CHIME"

.

Turn signal and hazard warning lamps system. Refer to

LT-74, "TURN SIGNAL AND HAZARD WARNING

LAMPS"

.

Rear wiper and washer system. Refer to

WW-37, "REAR WIPER AND WASHER SYSTEM"

.

NOTE:
Power supply only. No system control.

SYSTEMS CONTROLLED BY BCM AND IPDM E/R

Panic system. Refer to

BL-40, "REMOTE KEYLESS ENTRY SYSTEM"

.

NVIS (NATS) system. Refer to

BL-99, "NVIS(NISSAN Vehicle Immobilizer System-NATS)"

.

Headlamp, tail lamp, auto light and battery saver control systems. Refer to

LT-102, "PARKING, LICENSE

PLATE AND TAIL LAMPS"

,

LT-5, "HEADLAMP (FOR USA)"

or

LT-31, "HEADLAMP (FOR CANADA) -

DAYTIME LIGHT SYSTEM -"

.

Front wiper and washer system. Refer to

WW-4, "FRONT WIPER AND WASHER SYSTEM"

.

Rear window defogger system. Refer to

GW-58, "REAR WINDOW DEFOGGER"

.

MAJOR COMPONENTS AND CONTROL SYSTEM

System

Input

Output

Remote keyless entry system

Keyfob

All door locking actuator

Back door opener actuator

Turn signal lamp (LH, RH)

Power door lock system

Front power door lock/unlock
switch (LH, RH)

All door locking actuator

Power supply (IGN) to power window
and sunroof

Ignition power supply

Power supply to power window and sunroof system

Power supply (BAT) to power window
and sunroof

Battery power supply

Power supply to power window and sunroof system

Panic alarm

Key switch

Keyfob

IPDM E/R

BCS-8

BCM (BODY CONTROL MODULE)

2005 Pathfinder

CAN Communication System Description

EKS009Q4

Refer to

LAN-24, "CAN COMMUNICATION"

.

Auto light system

Optical sensor

Combination switch

IPDM E/R

Battery saver control

Ignition switch

Combination switch

IPDM E/R

Headlamp

Combination switch

IPDM E/R

Tail lamp

Combination switch

IPDM E/R

Fog lamp

Combination switch

IPDM E/R

Turn signal lamp

Combination switch

Turn signal lamp

Combination meter

Hazard lamp

Hazard switch

Turn signal lamp

Combination meter

Room lamp timer

Key switch

Keyfob

Main power window and door
lock/unlock switch

Front door switch LH

All door switch

Interior room lamp

Key warning chime

Key switch

Front door switch LH

Combination meter (warning buzzer)

Light warning chime

Combination switch

Key switch

Front door switch LH

Combination meter (warning buzzer)

Vehicle-speed-sensing intermittent
wiper

Combination switch

Combination meter

IPDM E/R

Rear window defogger

Rear window defogger switch

IPDM E/R

Air conditioner switch signal

Front air control

ECM

Blower fan switch signal

Front air control

ECM

System

Input

Output

BCM (BODY CONTROL MODULE)

BCS-9

C

D

E

F

G

H

I

J

L

M

A

B

BCS

2005 Pathfinder

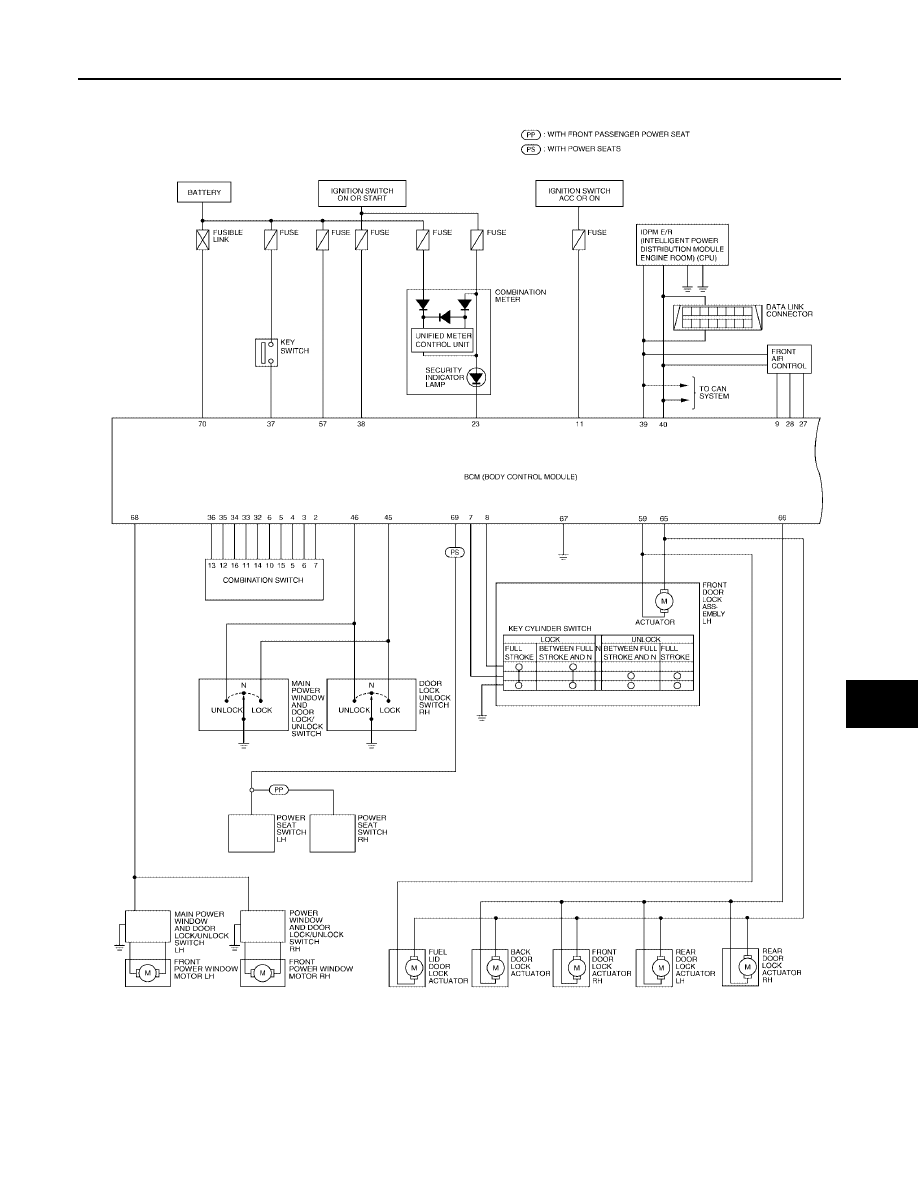

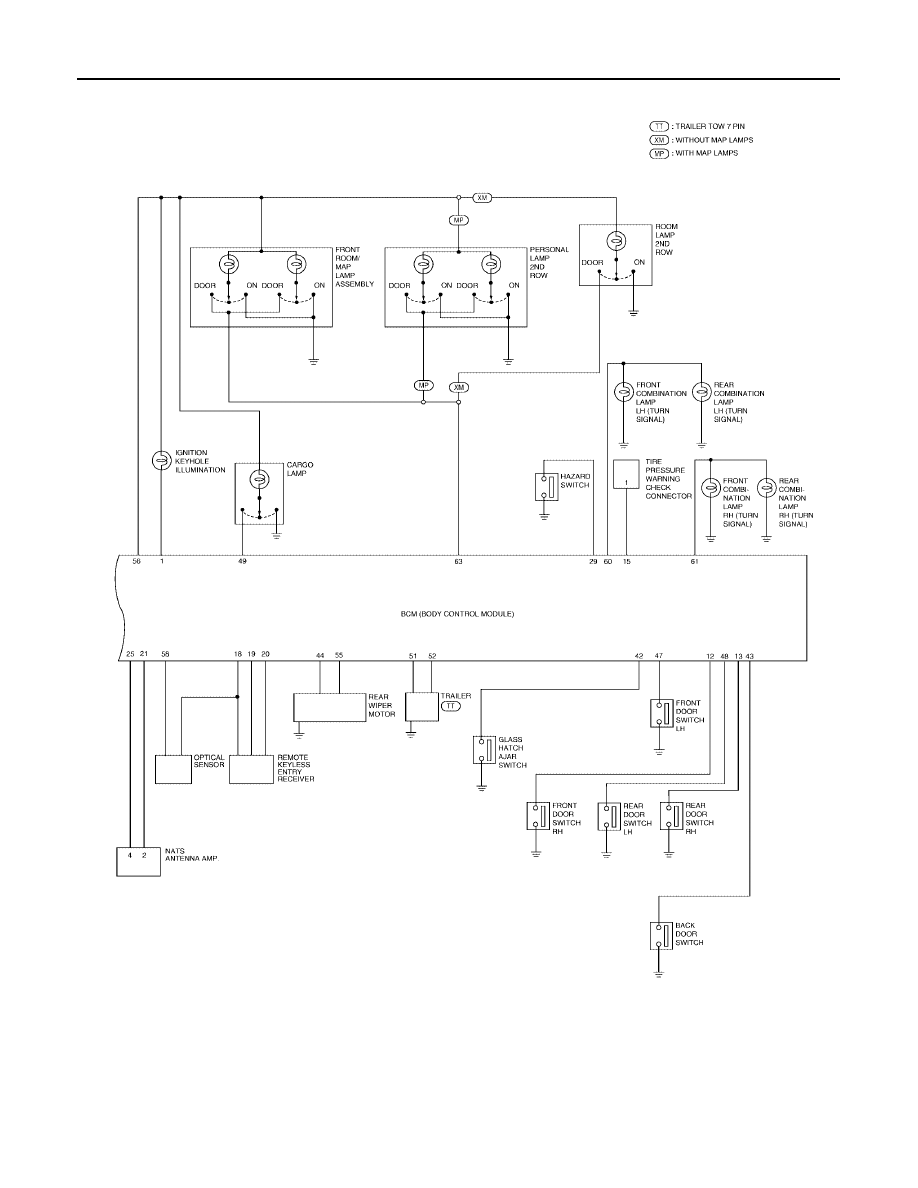

Schematic

EKS009Q5

WIWA0572E

BCS-10

BCM (BODY CONTROL MODULE)

2005 Pathfinder

WIWA0573E
