Nissan Pathfinder (2005 year). Manual - part 68

AUDIO

AV-19

C

D

E

F

G

H

I

J

L

M

A

B

AV

2005 Pathfinder

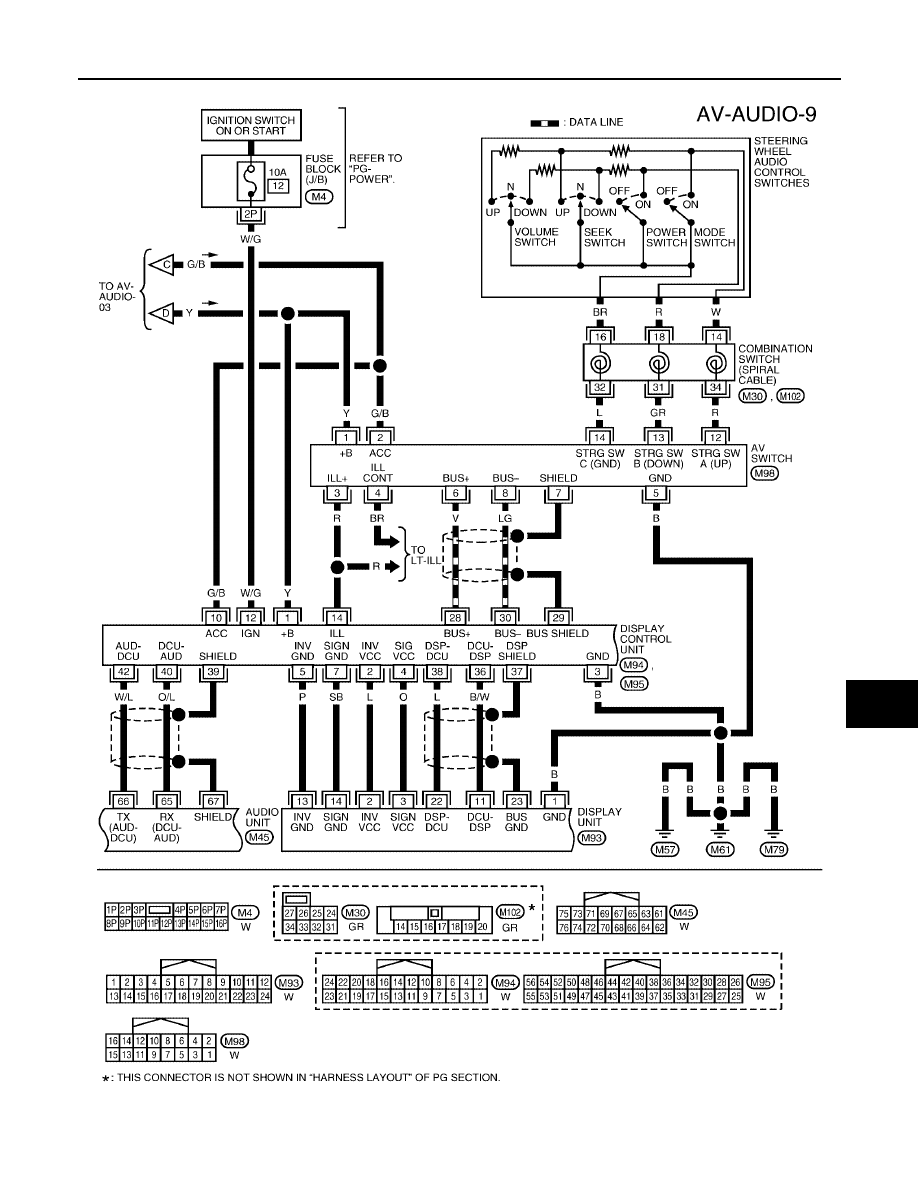

WITH NAVI

WKWA1996E

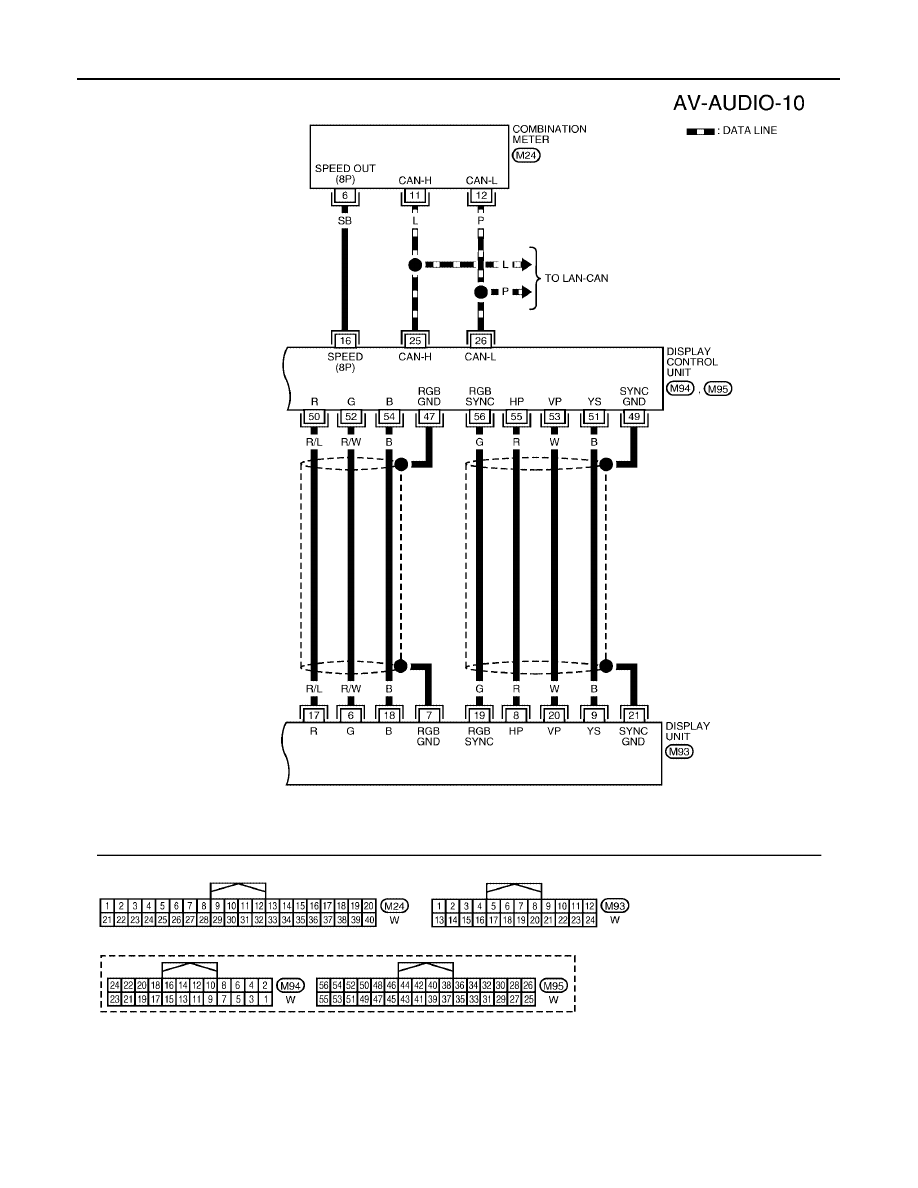

AV-20

AUDIO

2005 Pathfinder

WKWA1997E

AUDIO

AV-21

C

D

E

F

G

H

I

J

L

M

A

B

AV

2005 Pathfinder

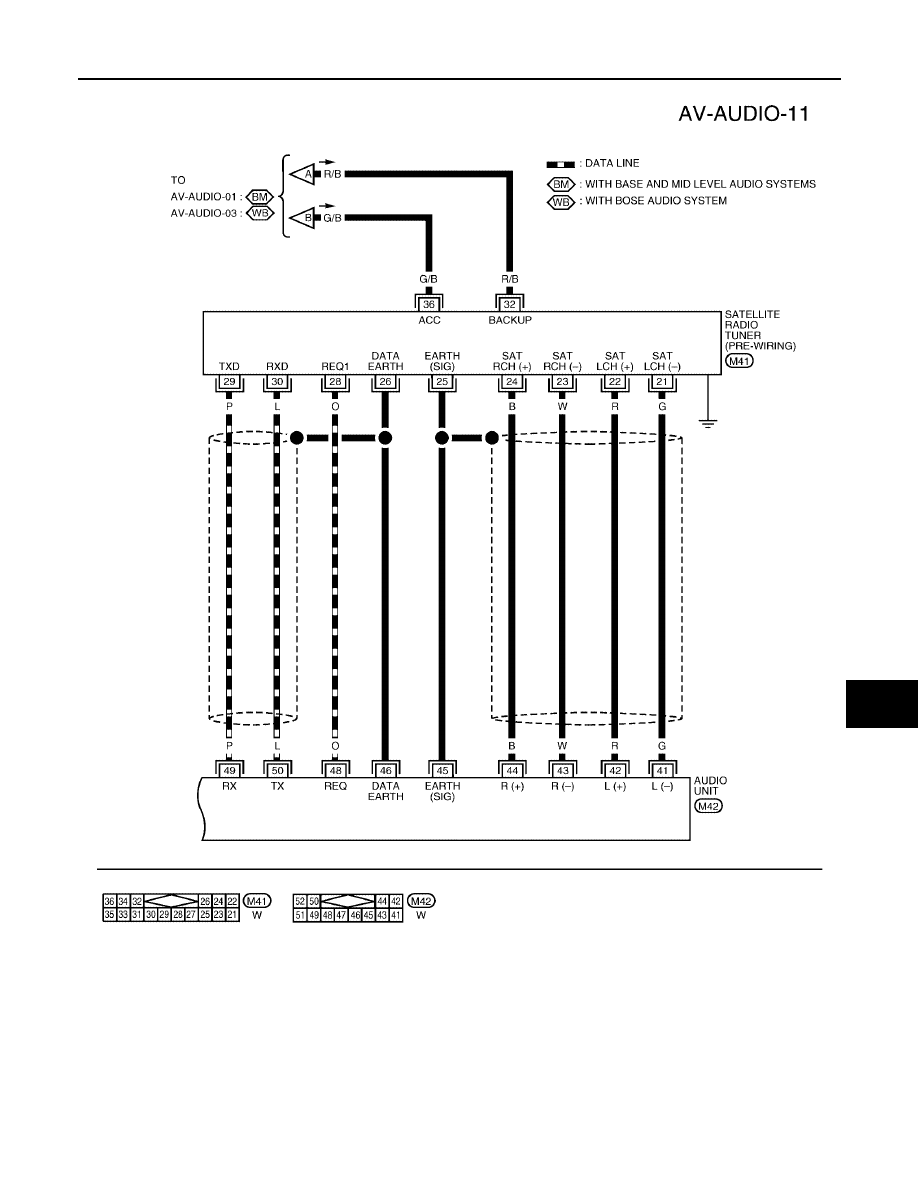

SATELLITE RADIO TUNER (PRE-WIRING)

WKWA1998E

AV-22

AUDIO

2005 Pathfinder

Terminals and Reference Value for Audio Unit (Base and Mid Level System)

EKS009U2

Terminal

(Wire color)

Item

Signal

input/

output

Condition

Reference value

(Approx.)

Example of symptom

+

–

Ignition

switch

Operation

2 (BR)

1 (L)

Audio sound
signal front
LH

Output

ON

Receive audio
signal

No sound from front
door speaker LH or
tweeter LH.

4 (LG)

3 (R)

Audio sound
signal front
RH

Output

ON

Receive audio
signal

No sound from front
door speaker RH or
tweeter RH.

5 (G)

Ground

Antenna
signal

Output

ON

–

More than 10V

Poor radio reception.

6 (Y)

Ground

Battery
power

Input

–

–

Battery voltage

System does not
work properly.

7 (GR)

Ground

Illumination
control sig-
nal

Input

ON

Illumination
control switch
is operated by
lighting switch
in 1st position.

Changes between 0 and 12V

Audio unit illumina-
tion cannot be con-
trolled.

8 (R)

Ground

Illumination
signal

Input

OFF

Lighting switch
is in 1st posi-
tion.

Battery voltage

Audio unit illumina-
tion does not come
on when lighting
switch is in 1st posi-
tion.

Lighting switch
is OFF.

3V or less

9 (SB)

Ground

Vehicle
speed signal

Input

ON

–

Refer to

AV-61, "System Descrip-

tion"

(without NAVI) or

AV-69,

"System Description"

(with

NAVI).

Speed sensitive vol-
ume inoperative.

10 (G/B)

Ground

ACC power

Input

ACC

Ignition switch
ACC or ON

Battery voltage

System does not
work properly.

14 (G)

13 (B)

Audio sound
signal rear
LH

Output

ON

Receive audio
signal

No sound from rear
door speaker LH or
rear door tweeter
LH.*

16 (GR)

15 (O)

Audio sound
signal rear
RH

Output

ON

Receive audio
signal

No sound from rear
door speaker RH or
rear door tweeter
RH.*

SKIA0177E

SKIA0177E

SKIA0177E

SKIA0177E

AUDIO

AV-23

C

D

E

F

G

H

I

J

L

M

A

B

AV

2005 Pathfinder

*: With mid level system

Terminals and Reference Value for Audio Unit (BOSE System)

EKS009U3

74 (R)*

Ground

Remote
control A

Input

ON

Press MODE

switch

0V

Steering wheel audio
controls do not func-
tion.

Press SEEK

UP switch

0.75V

Press VOL UP

switch

2V

Except for

above

5V

75 (GR)*

Ground

Remote
control B

Input

ON

Press POWER

switch

0V

Steering wheel audio
controls do not func-
tion.

Press SEEK

DOWN switch

0.75V

Press VOL

DOWN switch

2V

Except for

above

5V

76 (L)*

–

Remote
control
ground

–

–

–

–

Steering wheel audio

controls do not func-

tion.

Terminal

(Wire color)

Item

Signal

input/

output

Condition

Reference value

(Approx.)

Example of symptom

+

–

Ignition

switch

Operation

Terminal

(Wire color)

Item

Signal

input/

output

Condition

Reference value

(Approx.)

Example of symptom

+

–

Ignition

switch

Operation

2 (W)

1 (B)

Audio sound
signal front
LH

Output

ON

Receive audio
signal

No sound from front
door speaker LH or
tweeter LH.

4 (Y)

3 (BR)

Audio sound
signal front
RH

Output

ON

Receive audio
signal

No sound from front
door speaker RH or
tweeter RH.

5 (G)

Ground

Antenna
signal

Output

ON

–

More than 10V

Poor radio reception.

6 (Y)

Ground

Battery
power

Input

–

–

Battery voltage

System does not
work properly.

7 (GR)

Ground

Illumination
control sig-
nal

Input

ON

Illumination con-
trol switch is
operated by light-
ing switch in 1st
position.

Changes between 0 and 12V

Audio unit illumina-
tion cannot be con-
trolled.

SKIA0177E

SKIA0177E

AV-24

AUDIO

2005 Pathfinder

8 (R)

Ground

Illumination
signal

Input

OFF

Lighting switch is
in 1st position.

Battery voltage

Audio unit illumina-
tion does not come
on when lighting
switch is in 1st posi-
tion.

Lighting switch is
OFF.

3V or less

9 (SB)

Ground

Vehicle
speed sig-
nal

Input

ON

–

Refer to

AV-61, "System Descrip-

tion"

(without NAVI) or

AV-69,

"System Description"

(with

NAVI).

Speed sensitive vol-
ume inoperative.

10 (G/B)

Ground

ACC power

Input

ACC

–

Battery voltage

System does not
work properly.

11

–

Shield

ground

–

–

–

–

–

12 (G)

Ground

Amp. ON
signal

Output

ON

–

More than 6.5V

Amp. does not work
properly.

14 (BR)

13 (B/R)

Audio sound
signal rear
LH

Output

ON

Receive audio
signal

No sound from rear
door speaker LH or
rear door tweeter LH.

16 (L)

15 (B/W)

Audio sound
signal rear
RH

Output

ON

Receive audio
signal

No sound from rear
door speaker RH or
rear door tweeter
RH.

42 (R)

41 (G)

Audio left
channel
sound sig-
nal from sat-
ellite radio
tuner

Input

ON

Receive audio
signal

No sound from satel-
lite radio tuner left
channel.

44 (B)

43 (W)

Audio right
channel
sound sig-
nal from sat-
ellite radio
tuner

Input

ON

Receive audio
signal

No sound from satel-
lite radio tuner right
channel.

45

–

Shield
ground
(audio sig-
nal)

–

–

–

–

–

Terminal

(Wire color)

Item

Signal

input/

output

Condition

Reference value

(Approx.)

Example of symptom

+

–

Ignition

switch

Operation

SKIA0177E

SKIA0177E

SKIA0177E

SKIA0177E

AUDIO

AV-25

C

D

E

F

G

H

I

J

L

M

A

B

AV

2005 Pathfinder

46

–

Shield
ground
(data)

–

–

–

–

–

48 (O)

Ground

Satellite
radio tuner
request to
audio unit

Input

ON

Turn audio unit

ON

5V

Satellite radio tuner
does not operate
properly.

49 (P)

Ground

Audio RX

Input

ON

Operate audio

volume

Satellite radio tuner
audio information
does not display
properly.

50 (L)

Ground

Audio TX

Output

ON

Operate audio

volume

Satellite radio tuner
audio information
does not display
properly.

65 (O/L)

Ground

Audio RX

Input

ON

Operate audio

volume

Audio does not oper-
ate properly.

66 (W/L)

Ground

Audio TX

Output

ON

Operate audio

volume

Audio does not oper-
ate properly.

67

–

Shield

–

ON

–

0V

Interference and dis-
tortion heard from
speakers.

74 (R)*

Ground

Remote
control A

Input

ON

Press MODE

switch

0V

Steering wheel audio
controls do not func-
tion.

Press SEEK UP

switch

0.75V

Press VOL UP

switch

2V

Except for above

5V

Terminal

(Wire color)

Item

Signal

input/

output

Condition

Reference value

(Approx.)

Example of symptom

+

–

Ignition

switch

Operation

SKIA4403E

SKIA4402E

SKIA4403E

SKIA4402E

AV-26

AUDIO

2005 Pathfinder

*: Without NAVI.

Terminals and Reference Value for BOSE Speaker Amp.

EKS009U4

75 (GR)*

Ground

Remote
control B

Input

ON

Press POWER

switch

0V

Steering wheel audio
controls do not func-
tion.

Press SEEK

DOWN switch

0.75V

Press VOL

DOWN switch

2V

Except for above

5V

76 (L)*

–

Remote
control
ground

–

–

–

–

Steering wheel audio

controls do not func-

tion.

Terminal

(Wire color)

Item

Signal

input/

output

Condition

Reference value

(Approx.)

Example of symptom

+

–

Ignition

switch

Operation

Terminal

(wire color)

Item

Signal

input/

output

Condition

Reference value

(Approx.)

Example of

symptom

+

–

Ignition

switch

Operation

1 (Y)

Ground

Battery power

Input

–

–

Battery voltage

System does not
work properly.

9 (G)

10 (B)

Rear door
speaker LH
and rear door
tweeter LH

Output

ON

Receive audio
signal

No sound from
rear door speaker
LH or rear door
tweeter LH.

11 (GR)

12 (O)

Rear door
speaker RH
and rear door
tweeter RH

Output

ON

Receive audio
signal

No sound from
rear door speaker
RH or rear door
tweeter RH.

13 (BR)

14 (L)

Front door
speaker LH
and front
tweeter LH

Output

ON

Receive audio
signal

No sound from
front door speaker
LH or front tweeter
LH.

15 (LG)

16 (R)

Front door
speaker RH
and front
tweeter RH

Output

ON

Receive audio
signal

No sound from
front door speaker
RH or front tweeter
RH.

17 (B)

Ground

Ground

–

ON

–

–

–

SKIA0177E

SKIA0177E

SKIA0177E

SKIA0177E
