2005 Pathfinder

If NAVI Control Unit Detects That Inserted DVD-
ROM Map is Malfunctioning or If It is Impossible to
Load Data from DVD-ROM Map .......................... 139
If Connection Between NAVI Control Unit and GPS
Antenna is Malfunctioning .................................... 140
Operating Screen for Audio and A/C is Not Dis-
played When Showing NAVI Screen .................... 140
Color of RGB Image is Not Proper (Only NAVI
Screen Looks Bluish) ........................................... 142
Color of RGB Image is Not Proper (Only NAVI
Screen Looks Reddish) ........................................ 143
Color of RGB Image is Not Proper (Only NAVI
Screen Looks Yellowish) ...................................... 144
Color of RGB Image is Not Proper (All Screens Look
Bluish) .................................................................. 145
Color of RGB Image is Not Proper (All Screens Look
Reddish) ............................................................... 146
Color of RGB Image is Not Proper (All Screens Look
Yellowish) ............................................................. 147
NAVI Screen is Rolling ......................................... 148
Guide Sound is Not Heard ................................... 150
Screen is Not Shown ............................................ 151
A/C Screen is Not Shown (NAVI Screen is Shown). 151
FUEL ECONOMY Screen is Not Shown .............. 151
Average Fuel Economy Displayed is Not Shown (“
*** ” is Shown) ...................................................... 152
Distance to Empty Displayed is Not Shown (“ *** ”
is Shown) ............................................................. 152
Driving Distance or Average Speed Displayed is Not
Shown (“ *** ” is Shown) ....................................... 152
WARNING DOOR OPEN Screen is Not Shown .. 153
Unable to Operate All of AV Switches (Unable to
Start Self-Diagnosis) ............................................ 153
Audio Does Not Work ........................................... 153
Navigation System Does Not Activate ................. 154
Previous NAVI Conditions are Not Stored ............ 154
Previous Vehicle Conditions are Not Stored ........ 154
Position of Current Location Mark is Not Correct . 154
Radio Wave From GPS Satellite is Not Received. 154
Driving Test .......................................................... 155

Example of Symptoms Judged Not Malfunction ... 156

BASIC OPERATION .......................................... 156
VEHICLE MARK ................................................ 156
DESTINATION, PASSING POINTS, AND MENU
ITEMS CANNOT BE SELECTED/SET .............. 157
VOICE GUIDE ................................................... 158
ROUTE SEARCH .............................................. 158
EXAMPLES OF CURRENT-LOCATION MARK
DISPLACEMENT .............................................. 159
CURRENT-LOCATION MARK SHOWS A POSI-
TION WHICH IS COMPLETELY WRONG ........ 162
CURRENT-LOCATION MARK JUMPS ............. 162
CURRENT-LOCATION MARK IS IN A RIVER OR
SEA ................................................................... 163
WHEN DRIVING ON SAME ROAD, SOME-
TIMES CURRENT-LOCATION MARK IS IN
RIGHT PLACE AND SOMETIMES IT IS WRONG
PLACE ............................................................... 163
LOCATION CORRECTION BY MAP-MATCH-
ING IS SLOW .................................................... 163
ALTHOUGH GPS RECEIVING DISPLAY IS
GREEN, VEHICLE MARK DOES NOT RETURN
TO CORRECT LOCATION ................................ 163
NAME OF CURRENT PLACE IS NOT DIS-
PLAYED ............................................................. 163
CONTENTS OF DISPLAY DIFFER FOR BIRD-
VIEW™ AND THE (FLAT) MAP SCREEN ........ 163

Program Loading of NAVI Control Unit ................. 164
Removal and Installation of NAVI Control Unit ..... 165

REMOVAL ......................................................... 165
INSTALLATION ................................................. 165

Removal and Installation of GPS Antenna ........... 166

REMOVAL ......................................................... 166
INSTALLATION ................................................. 166

Removal and Installation of Display Unit .............. 166

REMOVAL ......................................................... 166
INSTALLATION ................................................. 166

Removal and Installation of Display Control Unit . 166

REMOVAL ......................................................... 166
INSTALLATION ................................................. 167

AV-4

PRECAUTIONS

2005 Pathfinder

PRECAUTIONS

PFP:00001

Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”

EKS009TV

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.

WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.

Wiring Diagrams and Trouble Diagnosis

EKS009TW

When you read wiring diagrams, refer to the following:

GI-15, "How to Read Wiring Diagrams"

.

PG-4, "POWER SUPPLY ROUTING CIRCUIT"

.

When you perform trouble diagnosis, refer to the following:

GI-11, "HOW TO FOLLOW TEST GROUPS IN TROUBLE DIAGNOSES"

.

GI-27, "How to Perform Efficient Diagnosis for an Electrical Incident"

.

PREPARATION

AV-5

C

D

E

F

G

H

I

J

L

M

A

B

AV

2005 Pathfinder

PREPARATION

PFP:00002

Commercial Service Tool

EKS009TX

Tool name

Description

Power tool

Loosening bolts and nuts

PBIC0191E

AV-6

AUDIO

2005 Pathfinder

AUDIO

PFP:28111

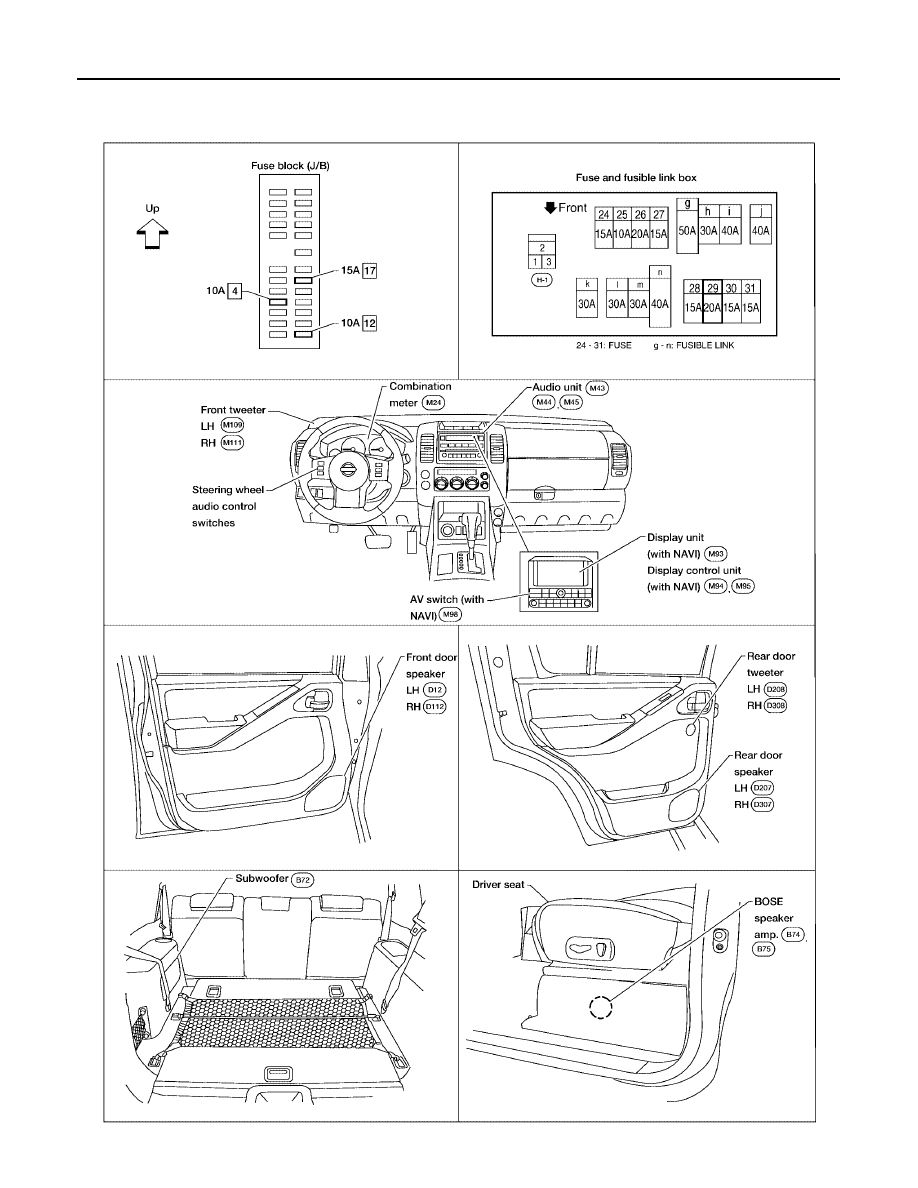

Component Parts and Harness Connector Location

EKS009TY

WKIA3225E

AUDIO

AV-7

C

D

E

F

G

H

I

J

L

M

A

B

AV

2005 Pathfinder

System Description

EKS009TZ

BASE AND MID LEVEL SYSTEM

Refer to Owner's Manual for audio system operating instructions.
Power is supplied at all times

through 20A fuse [No. 29, located in the fuse and fusible link box]

to audio unit terminal 6.

With the ignition switch in the ACC or ON position, power is supplied

through 10A fuse [No. 4, located in the fuse block (J/B)]

to audio unit terminal 10.

Ground is supplied through the case of the audio unit.
Then audio signals are supplied

through audio unit terminals 1, 2, 3, 4, 13, 14, 15 and 16

to terminals + and - of front door speaker LH and RH

to terminals + and - of front tweeter LH and RH

to terminals + and - of rear door speaker LH and RH

to terminals + and - of rear door tweeter LH and RH (with mid level system).

When one of the steering wheel audio control switches (with mid level system) is pushed, the resistance in
steering switch circuit changes depending on which button is pushed.

BOSE

®

SYSTEM

Refer to Owner's Manual for audio system operating instructions.
Power is supplied at all times

through 15A fuse [No. 17, located in the fuse block (J/B)]

to subwoofer terminal 6

through 20A fuse [No. 29, located in the fuse and fusible link box]

to audio unit terminal 6

to BOSE speaker amp. terminal 1

to AV switch terminal 1 (with NAVI)

to display control unit terminal 1 (with NAVI).

With the ignition switch in the ACC or ON position, power is supplied

through 10A fuse [No. 4, located in the fuse block (J/B)]

to audio unit terminal 10

to AV switch terminal 2 (with NAVI)

to display control unit terminal 10 (with NAVI).

With the ignition switch in the ON or START position, power is supplied

through 10A fuse [No. 12, located in the fuse block (J/B)]

to display control unit terminal 12 (with NAVI).

Ground is supplied through the case of the audio unit.
Ground is also supplied

to subwoofer terminal 5

to BOSE speaker amp. terminal 17

through body grounds B7 and B19 and

to AV switch terminal 5 (with NAVI)

to display unit terminal 1 (with NAVI)

to display control unit terminal 3 (with NAVI)

through body grounds M57, M61 and M79.

Then audio signals are supplied

through audio unit terminals 1, 2, 3, 4, 13, 14, 15 and 16

to BOSE speaker amp. terminals 23, 24, 25, 26, 27, 28, 29 and 30.

Audio signals are amplified by the BOSE speaker amp.

AV-8

AUDIO

2005 Pathfinder

The amplified audio signals are supplied

through BOSE speaker amp. terminals 5, 9,10,11,12, 13, 14, 15, 16 and 21

to terminals + and - of front door speaker LH and RH

to terminals + and - of front tweeter LH and RH

to terminals + and - of rear door speaker LH and RH

to terminals + and - of rear door tweeter LH and RH

to terminals 1 and 2 of subwoofer.

When one of steering wheel audio control switches is pushed, the resistance in steering switch circuit changes
depending on which button is pushed.

Satellite Radio Tuner (Pre-wiring)

The satellite radio tuner pre-wiring allows connection of a satellite radio tuner.
Power is supplied at all times

through 15A fuse [No. 17, located in the fuse block (J/B)]

to satellite radio tuner pre-wiring terminal 32.

With the ignition switch in the ACC or ON position, power is supplied

through 10A fuse [No. 4, located in the fuse block (J/B)]

to satellite radio tuner pre-wiring terminal 36.

Ground is supplied through the case of the satellite radio tuner.
Then audio signals are supplied

through satellite radio tuner pre-wiring terminals 21, 22, 23 and 24

to audio unit terminals 41, 42, 43 and 44.

SPEED SENSITIVE VOLUME SYSTEM

Volume level of this system goes up and down automatically in proportion to the vehicle speed. The control
level can be selected by the customer. Refer to Owner's Manual for operating instructions.

AUDIO

AV-9

C

D

E

F

G

H

I

J

L

M

A

B

AV

2005 Pathfinder

Schematic

EKS009U0

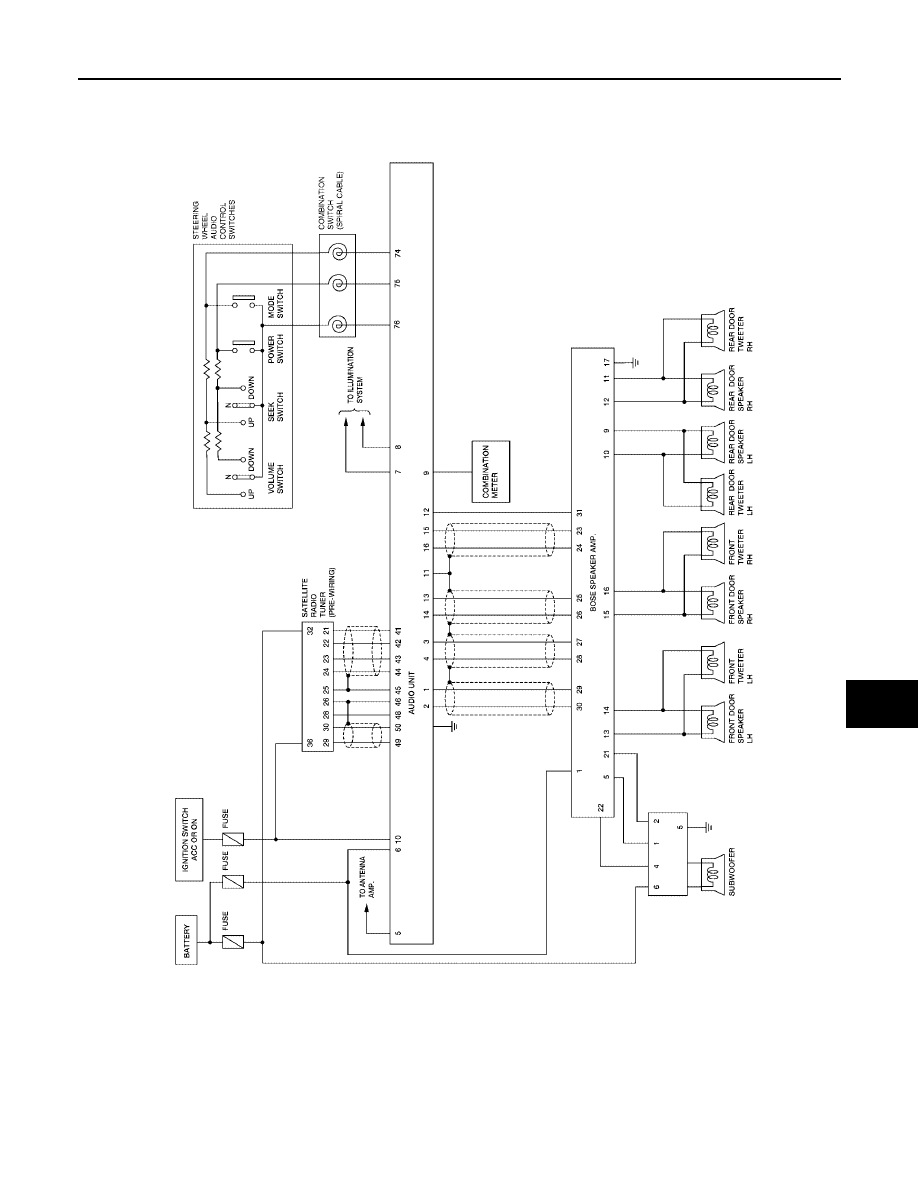

BOSE SYSTEM (WITHOUT NAVI)

WKWA1988E

AV-10

AUDIO

2005 Pathfinder

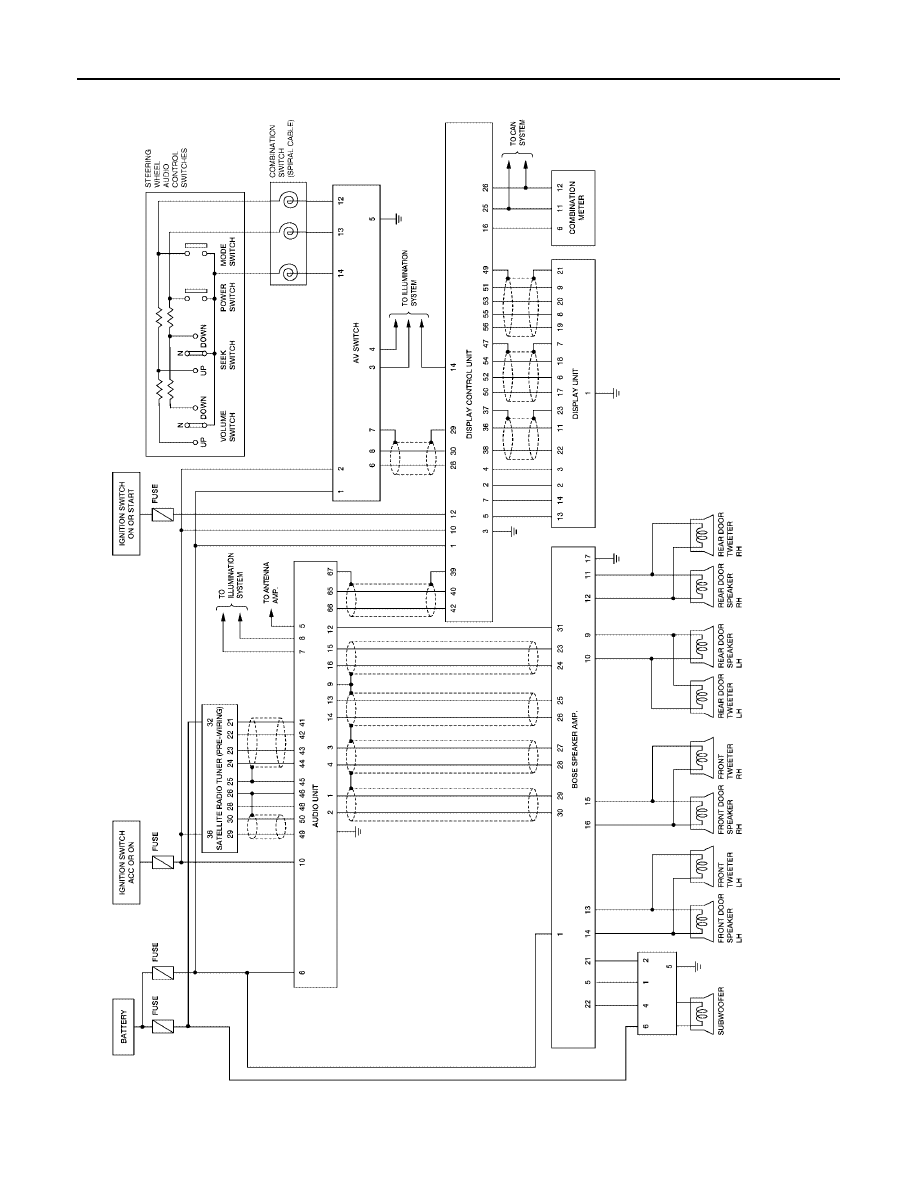

BOSE SYSTEM (WITH NAVI)

WKWA1989E
