POWER SEAT

SE-109

< FUNCTION DIAGNOSIS >

[WITHOUT VENTILATION SEAT]

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

Sliding motor

With the power supplied from power seat switch, operates forward and backward slide of seat

Lifting motor (front/rear)

With the power supplied from power seat switch, operates up and down movement of seat cushion

Item

Function

SE-110

< FUNCTION DIAGNOSIS >

[WITHOUT VENTILATION SEAT]

HEATED SEAT

HEATED SEAT

System Description

INFOID:0000000003839949

Heated seat is a system that operates when ignition switch is in the ON position.

HEATER OPERATION

• While operating the heated seat switch, seat cushion heater and seatback heater operate.
• Temperature of seat can be adjusted by operating the heated seat switch.

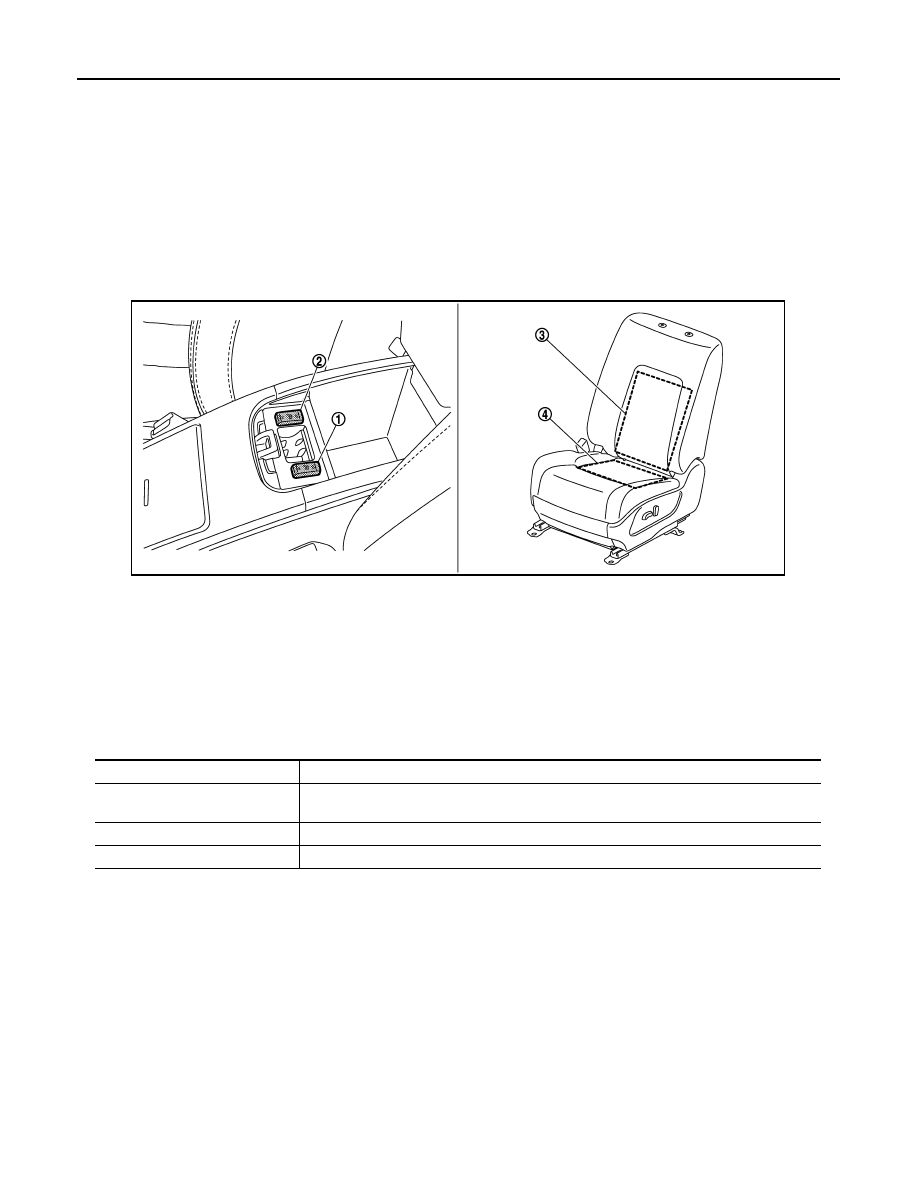

Component Parts Location

INFOID:0000000003839950

Component Description

INFOID:0000000003839951

1.

Front heated seat switch (driver
side) M202

2.

Front heated seat switch (passenger
side) M203

3.

Seatback heater
• Driver side B464
• Passenger side B433

4.

Seat cushion heater
• Driver side B463
• Passenger side B432

JMJIA1839ZZ

Item

Function

Heated seat switch

• Power is supplied to each heater
• Depending on LO/HI position of switch, the temperature is changeable

Seat cushion heater

Built-in seat cushion, heater operates with the power supplied from heater seat switch

Seatback heater

Built-in seatback, heater operates with the power supplied from heater seat switch

POWER SEAT

SE-111

< COMPONENT DIAGNOSIS >

[WITHOUT VENTILATION SEAT]

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

COMPONENT DIAGNOSIS

POWER SEAT

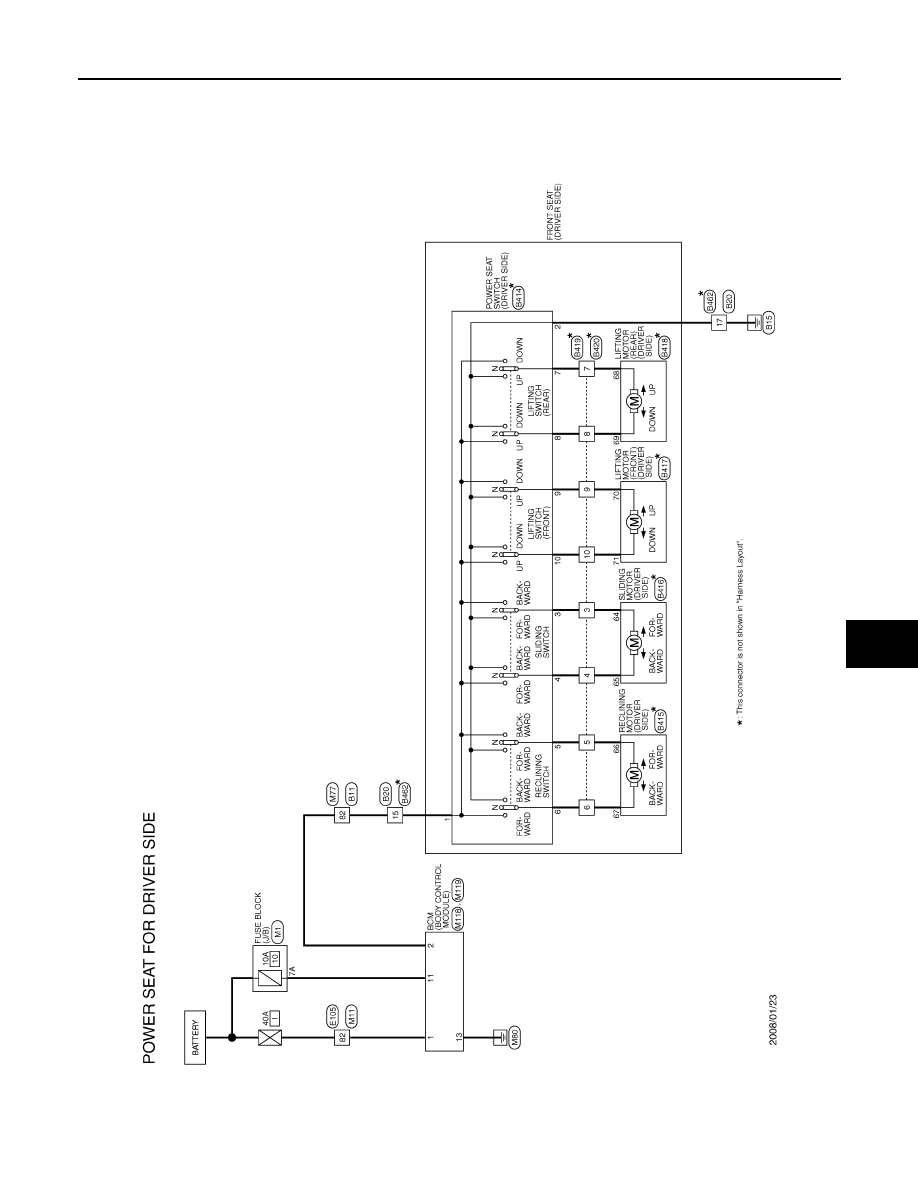

Wiring Diagram - POWER SEAT FOR DRIVER SIDE -

INFOID:0000000003941312

JCJWM0281GB

SE-112

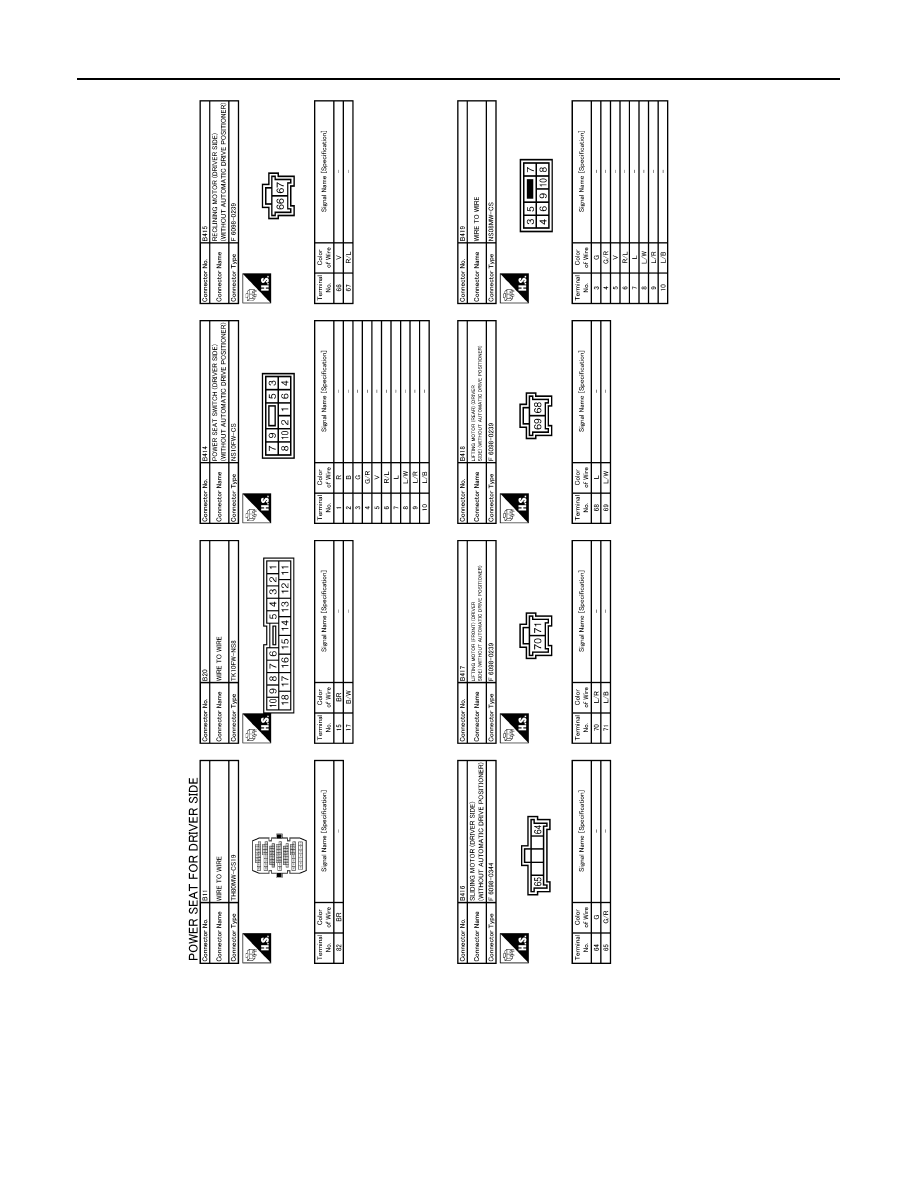

< COMPONENT DIAGNOSIS >

[WITHOUT VENTILATION SEAT]

POWER SEAT

JCJWM0282GB
