Nissan Teana J32. Manual - part 992





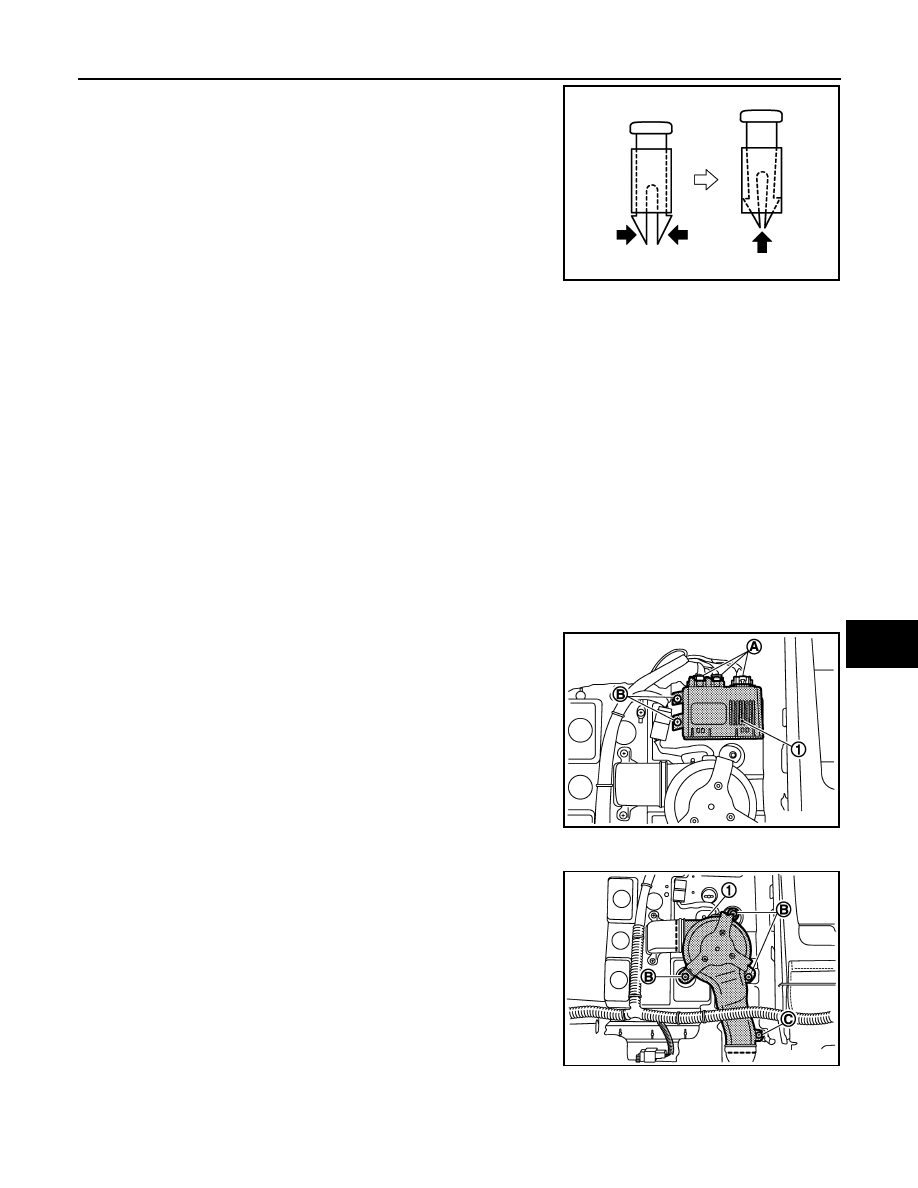

REAR SEAT

SE-101

< ON-VEHICLE REPAIR >

[WITH VENTILATION SEAT]

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

• Remove the headrest holder.

CAUTION:

Before installing headrest holder, check its orientation
(front/rear and right/left).

• Remove the hog rings, and then remove seatback center pad.
• Remove the hog rings to separate the seatback trim and seatback pad.
• Remove the seatback heater unit.

Assembly

Assemble in the reverse order of disassembly.

SEAT CUSHION

Disassembly

Remove the seat cushion trim.
• Remove the hog rings, and separate the seat cushion trim and seat cushion pad.
• Remove the seat cushion heater unit.

Assembly

Assemble in the reverse order of disassembly.

VENTILATION UNIT

Disassembly

1.

Remove the ventilation seat control unit.
• Disconnect the harness connectors (A).
• Remove the screws (B), and then remove ventilation seat con-

trol unit (1).

2.

Remove the seatback duct A.
Remove the nuts (B) and screw (C), and then remove seatback
duct A (1).

3.

Remove the seatback duct B ventilation motor (seatback).

PIIB4084J

JMJIA1940ZZ

JMJIA1941ZZ

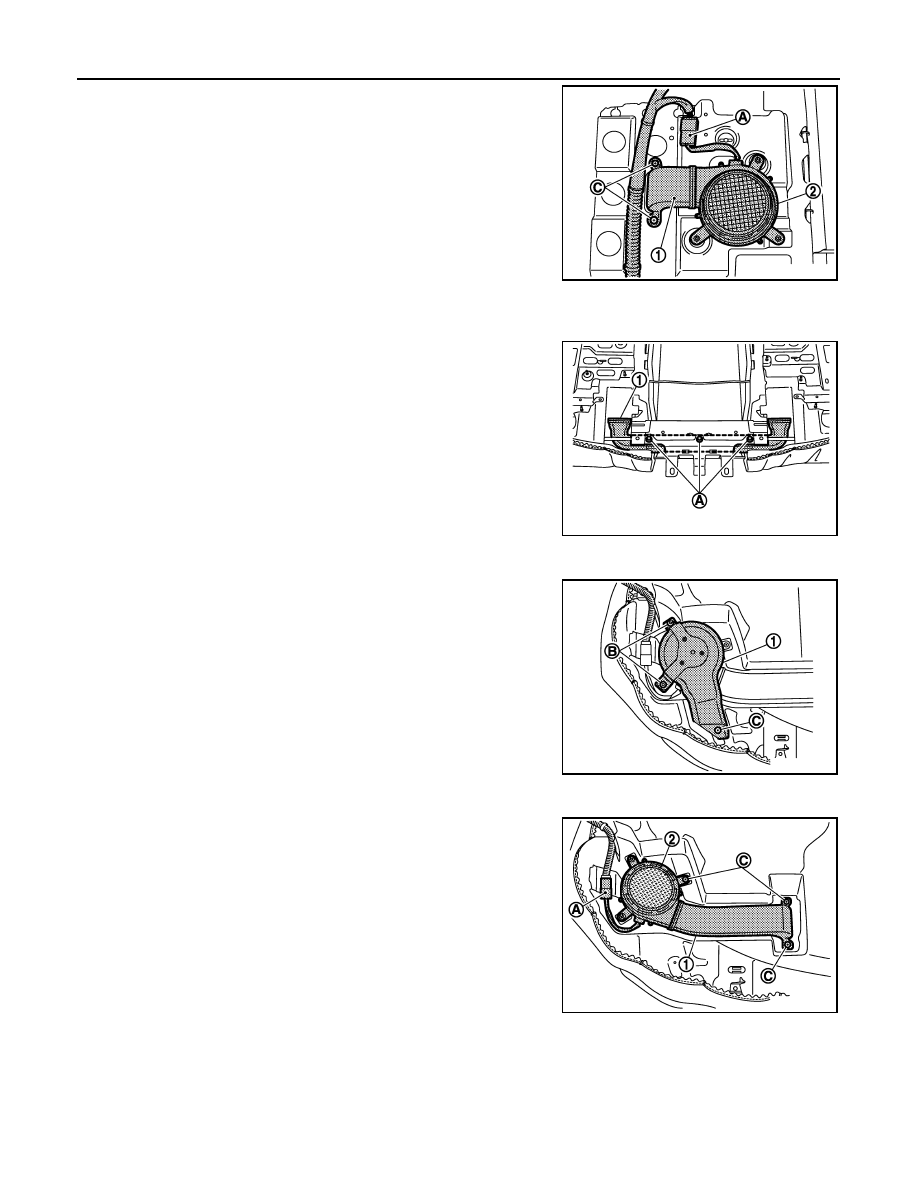

SE-102

< ON-VEHICLE REPAIR >

[WITH VENTILATION SEAT]

REAR SEAT

• Disconnect the harness connector (A).
• Remove the screws (C), and then remove seatback duct B (1)

and ventilation motor (seatback) (2).

4.

Remove the seatback duct C.
• Remove the hob rings, and then remove seatback center pad.
• Remove the nuts (A), and then remove seatback duct C (1).

5.

Remove the seat cushion duct A.
Remove the nuts (B) and screw (C), and then seat cushion duct
A (1).

6.

Remove the seat cushion duct B and ventilation motor (seat cushion).
• Disconnect the harness connector (A).
• Remove the screws (C), and then remove seat cushion duct B

(1) and ventilation motor (seat cushion) (2).

Assembly

Assemble in the reverse order of disassembly.

JMJIA1942ZZ

JMJIA1943ZZ

JMJIA1944ZZ

JMJIA1945ZZ

POWER SEAT SWITCH

SE-103

< ON-VEHICLE REPAIR >

[WITH VENTILATION SEAT]

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

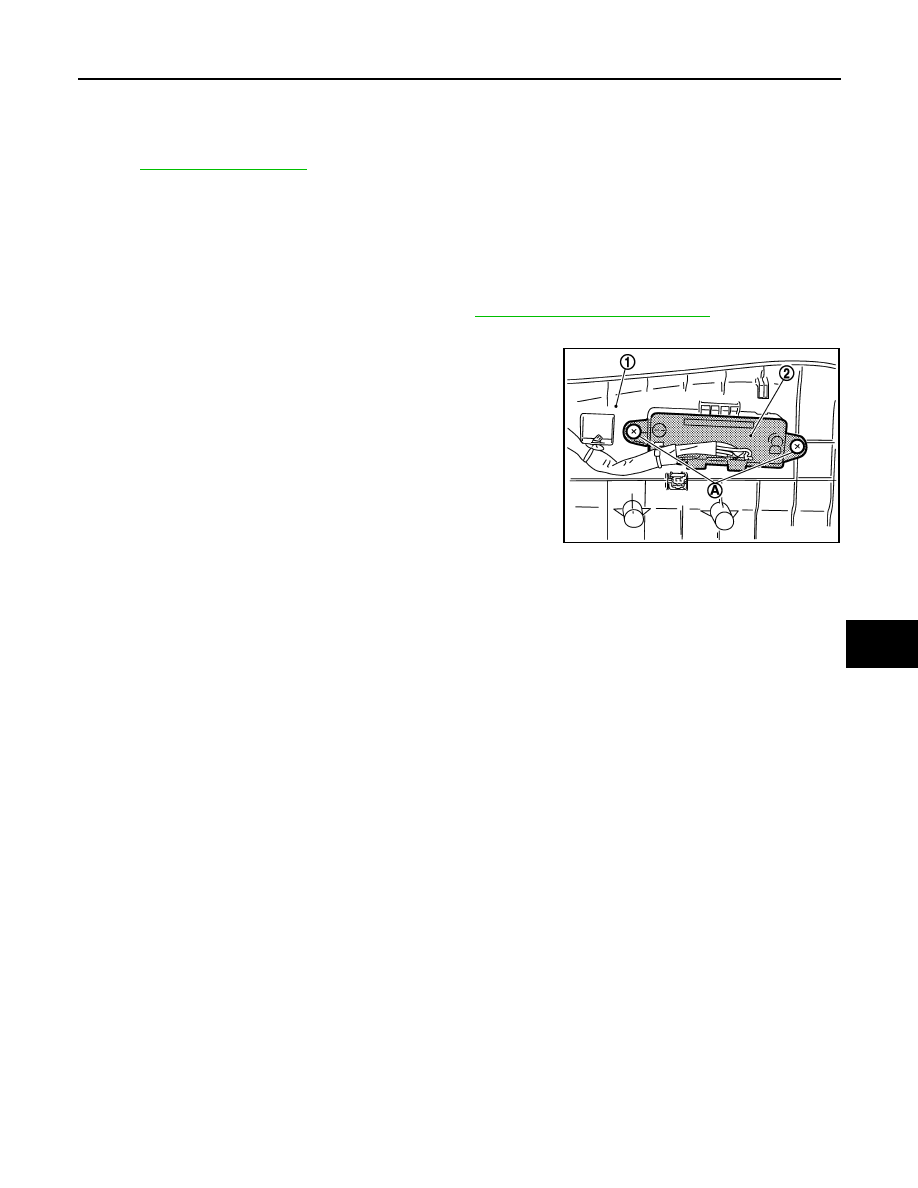

POWER SEAT SWITCH

Exploded View

INFOID:0000000003849136

Refer to

SE-89, "Exploded View"

.

Removal and Installation

INFOID:0000000003849137

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

1.

Remove the seat cushion outer finisher (1). Refer to

SE-92, "Removal and Installation"

.

2.

Remove switch knob.

3.

Remove screws (A).

4.

Remove the power seat switch (2) from the seat cushion outer
finisher.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Be sure to clump the harness to the right place.

JMJIA1952ZZ

SE-104

< ON-VEHICLE REPAIR >

[WITH VENTILATION SEAT]

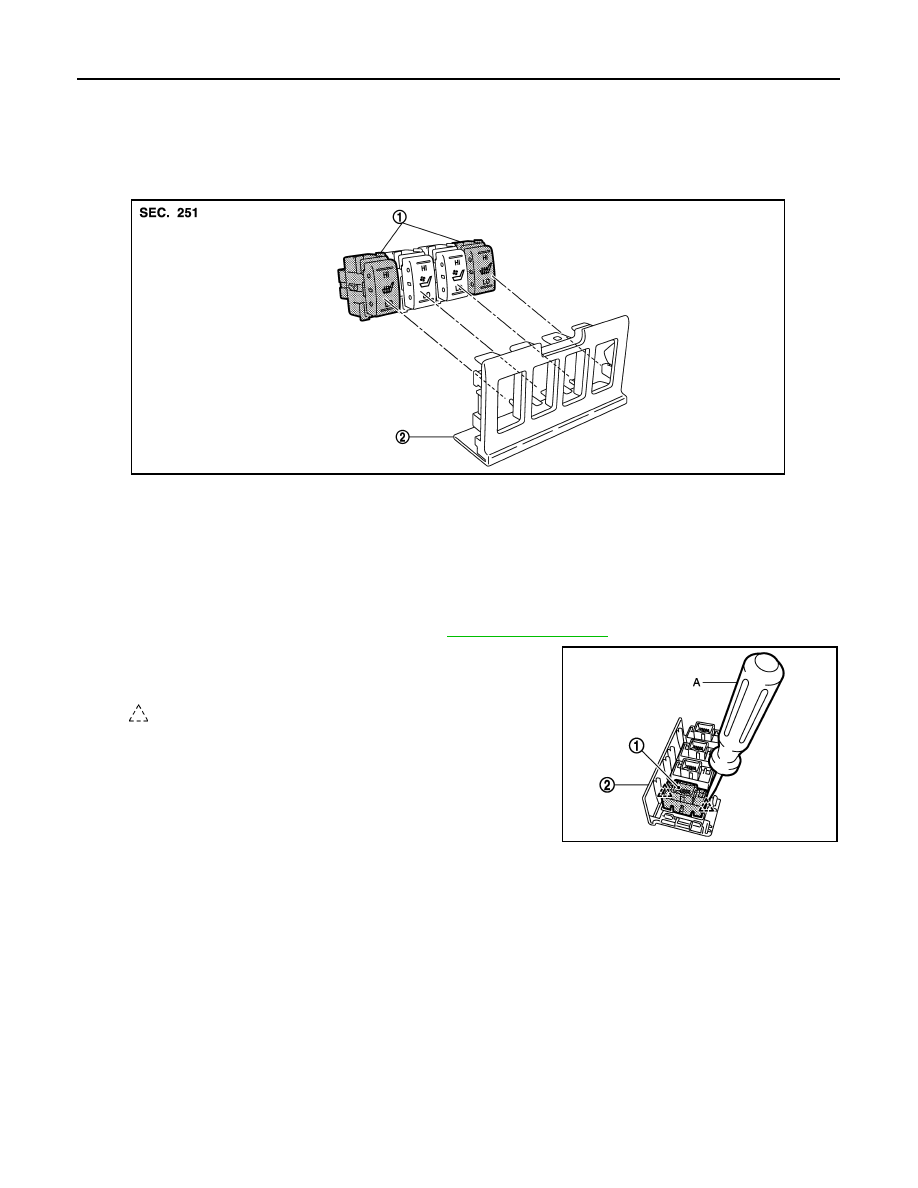

HEATED SEAT SWITCH

HEATED SEAT SWITCH

FRONT SEAT

FRONT SEAT : Exploded View

INFOID:0000000003849128

FRONT SEAT : Removal and Installation

INFOID:0000000003849129

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect from damage.

1.

Remove the console switch finisher (2). Refer to

IP-22, "Exploded View"

2.

Remove heated seat switch (driver side) (1) from console switch
finisher, with flat- bladed screw driver (A).

NOTE:
The same procedure is also performed for passenger side.

INSTALLATION

Install in the reverse order of removal.

REAR SEAT

1.

Heated seat switch (front seat)

2.

Console switch finisher

JMJIA1842ZZ

: Pawl

JMJIA1846ZZ
