Disassembly and Assembly

INFOID:0000000003812467

SEATBACK

Disassembly

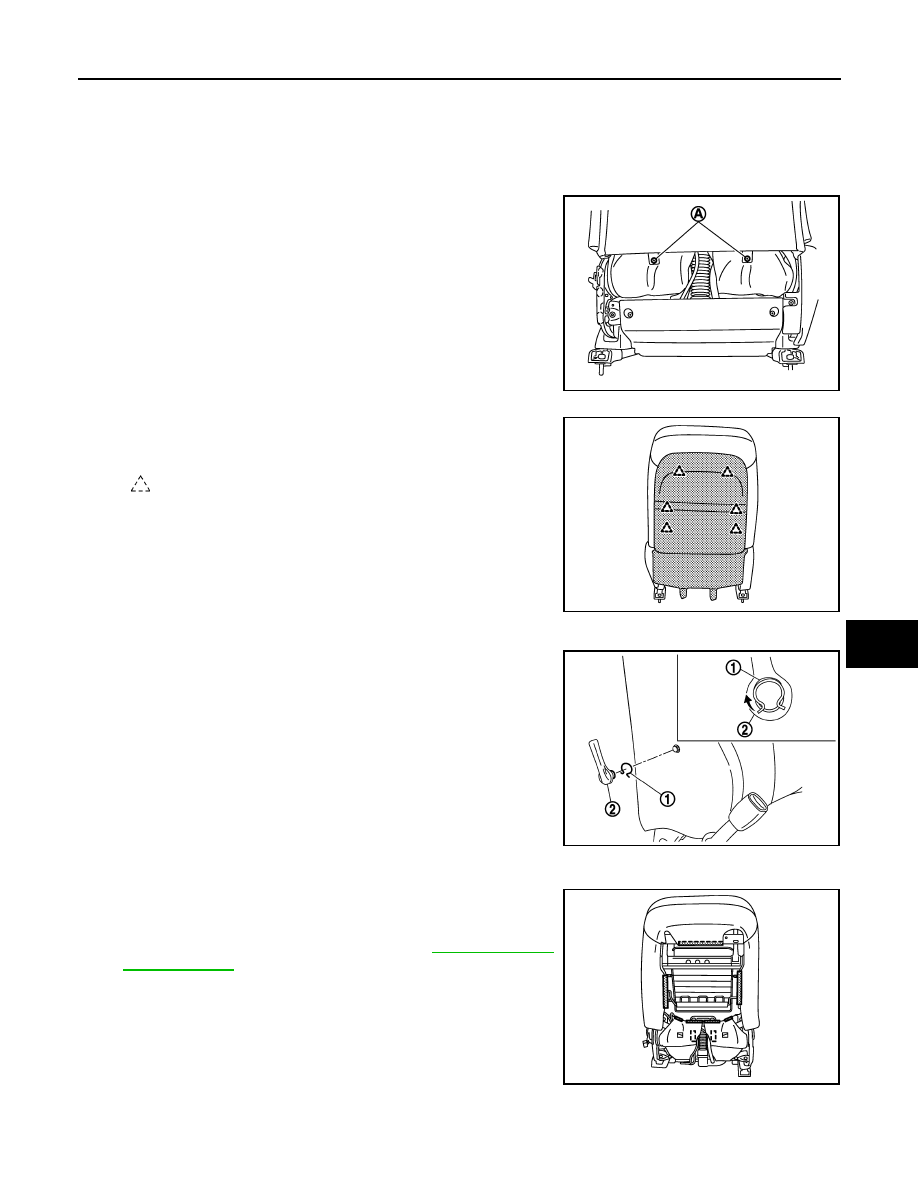

1.

Remove the seatback board.
• Remove the hook, and then remove screws (A).

• Remove the pawls, and then pull out seatback board.
• Pull down the seatback board to release the upper pawls.

2.

Remove the lumbar support lever knob.
Pull snap pin (1) upward, and remove lumbar support lever knob
(2) from seatback using hook and pick tool.

3.

Remove the seatback pad and seatback trim.
• Remove the seatback retainer on the back side of the seat-

back.

• Remove the screws, and then remove seatback finisher.
• Remove the side air bag module. Refer to

SR-16, "Removal

and Installation"

.

JMJIA1864ZZ

: Pawl

JMJIA1865ZZ

JMJIA0252ZZ

JMJIA1867ZZ

SE-94

< ON-VEHICLE REPAIR >

[WITH VENTILATION SEAT]

FRONT SEAT

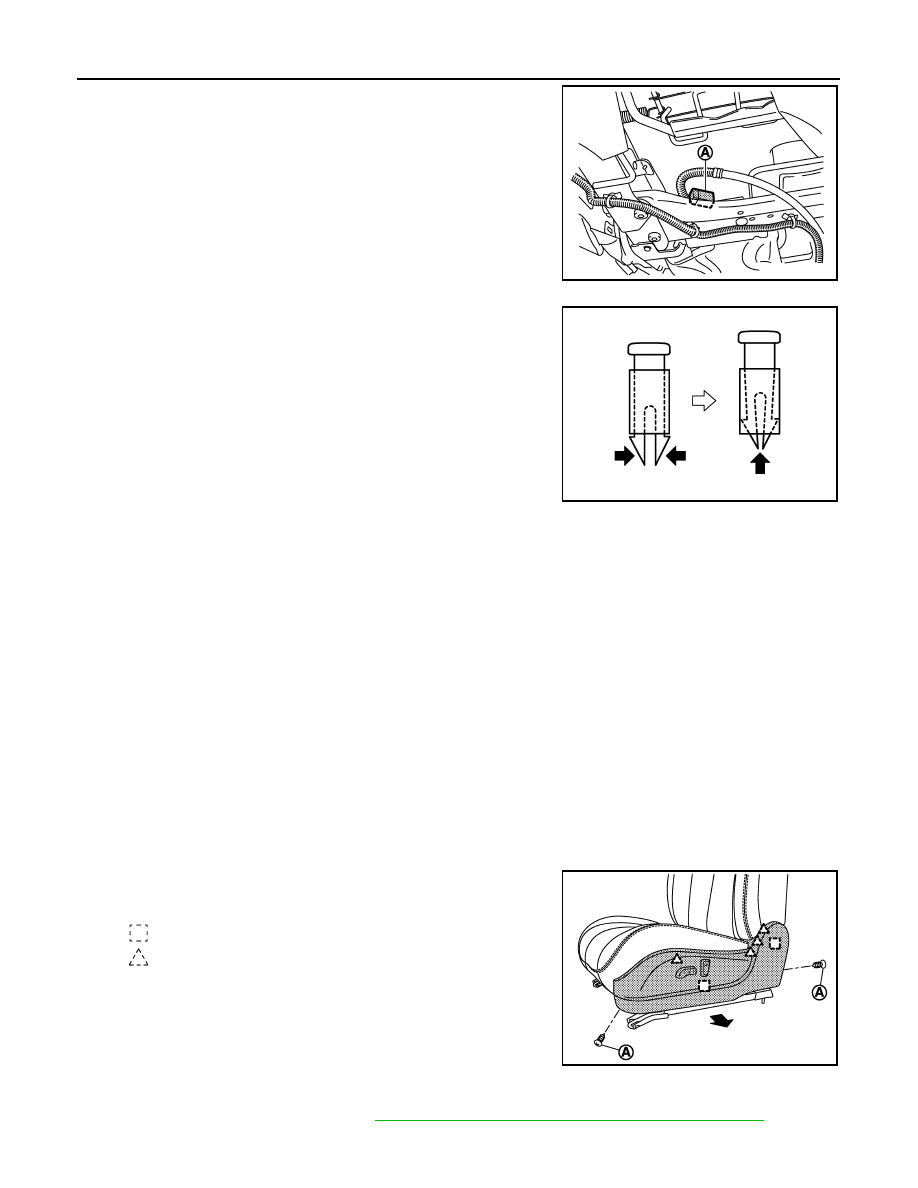

• Disconnect the seatback heater unit harness connector (A).

• Remove the headrest holder.

CAUTION:

Before installing headrest holder, check its orientation
(front/rear and right/left).

• Remove the seatback trim and seatback pad from the seat frame assembly.
• Remove the hog rings to separate the seatback trim and seatback pad.

4.

Remove the seatback silencer.

5.

Remove the lumbar support unit.
• Remove the screws.
• Remove the lumbar support unit while pulling the seatback spring.

6.

Remove the reclining device outer and inner cover.
Remove the screws, and then remove reclining device outer and inner cover.

Assembly

Assemble in the reverse order of disassembly.

CAUTION:

Install the hog rings of seatback trim in position, and then securely connect the trim or trim cord with
the pad side wire.

SEAT CUSHION

Disassembly

1.

Remove the seat cushion outer finisher.
• Remove the screws (A).
• Remove the metal clips and pawls, and then pull out seat

cushion outer finisher.

• Disconnect the harness connector and remove harness clamp.

2.

Remove the seat belt buckle. Refer to

SB-7, "SEAT BELT BUCKLE : Removal and Installation"

.

3.

Remove the seat cushion inner finisher.

JMJIA1868ZZ

PIIB4084J

: Metal clip

: Pawl

JMJIA1871ZZ

FRONT SEAT

SE-95

< ON-VEHICLE REPAIR >

[WITH VENTILATION SEAT]

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

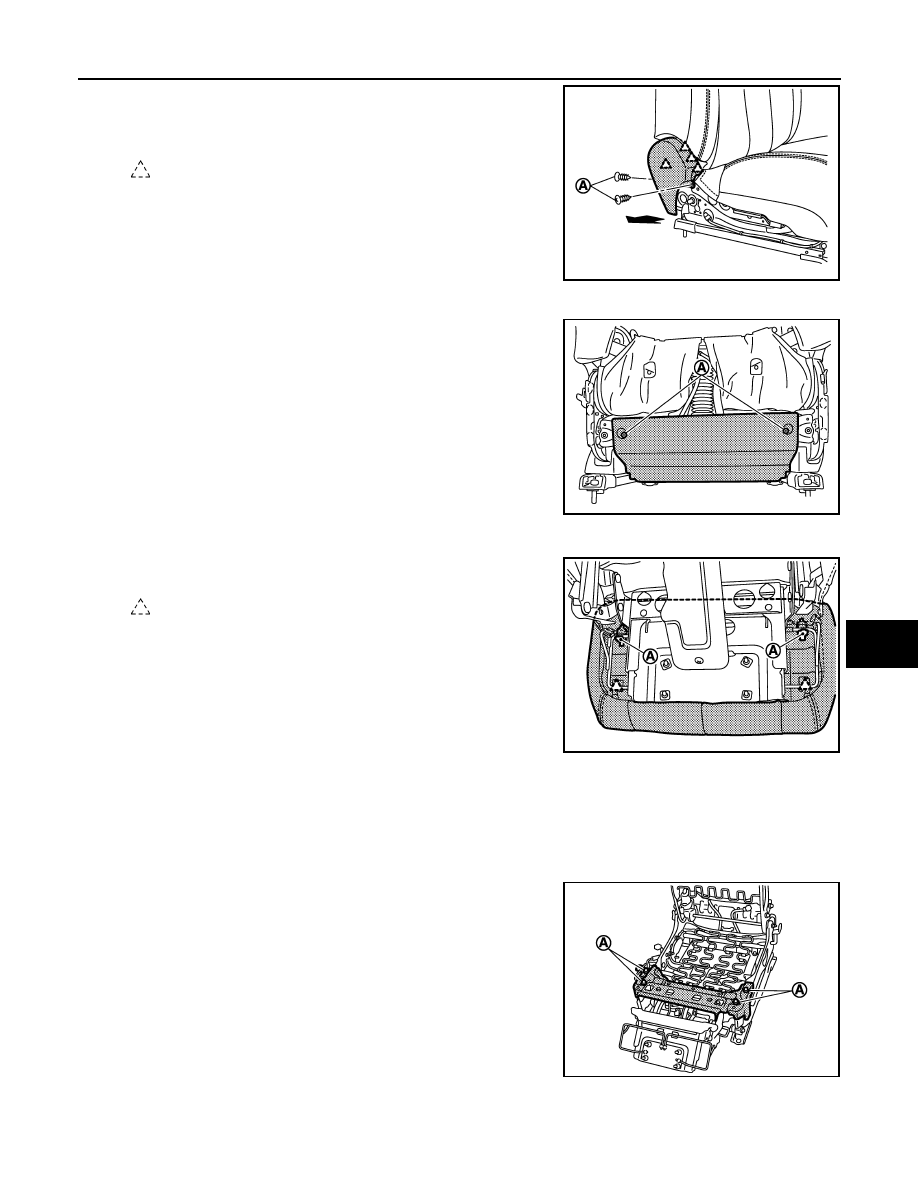

• Remove the screws (A).
• Remove the pawls, and then pull out seat cushion inner fin-

isher.

4.

Remove the seat cushion rear finisher.
Remove the screws (A), and then pull out seat cushion rear fin-
isher.

5.

Remove the ottoman pad. (With ottoman model)
Remove the clips (A), and then side forward and remove pawl.

6.

Remove the seat cushion trim and seat cushion pad.
• Remove the seat cushion retainer.
• Disconnect the seat cushion heater unit harness connector.
• Remove the seat cushion trim and seat cushion pad from the seat frame assembly.
• Remove the hog rings, and separate the seat cushion trim and seat cushion pad.

7.

Remove the ottoman frame. (With ottoman model)
• Remove the bolts (A), and then lift the seat cushion plate.

: Pawl

JMJIA1872ZZ

JMJIA1866ZZ

: Pawl

JMJIA1958ZZ

JMJIA1959ZZ

SE-96

< ON-VEHICLE REPAIR >

[WITH VENTILATION SEAT]

FRONT SEAT

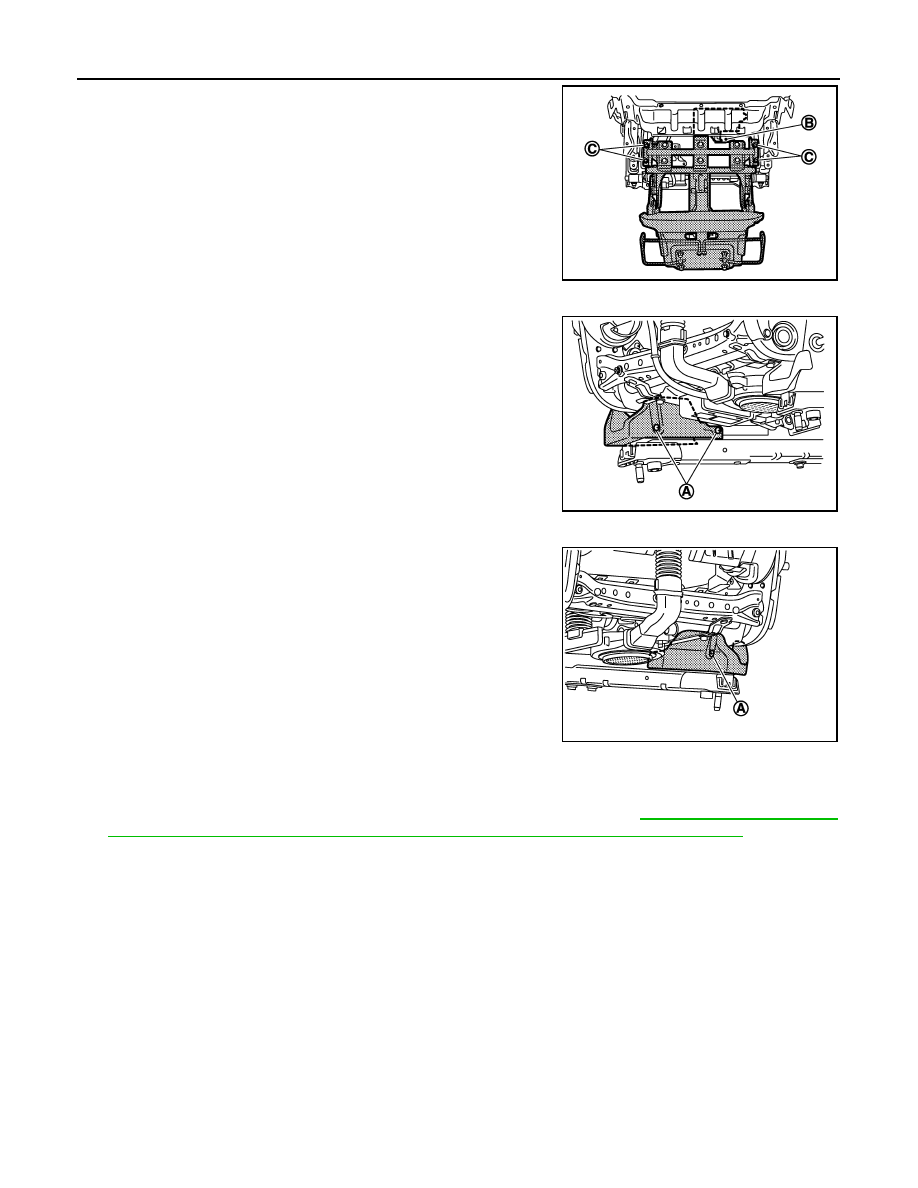

• Disconnect the harness connector (B).
• Remove the bolts (C), and then remove the ottoman frame.

8.

Remove the seat slide outer cover.
Remove the screws (A), and then remove seat slide outer cover.

9.

Remove seat slide inner cover.
Remove the screw (A), and then remove seat slide inner cover.

10. Remove the seat cushion outer and inner finisher inside.

Remove the screw, and then remove the seat cushion outer and inner finisher inside.

11. Remove the driver seat control unit. (Automatic drive positioner model only)

ADP-7, "ADDITIONAL SER-

VICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : Special Repair Requirement"

.

Assembly

Assemble in the reverse order of disassembly.

CAUTION:

Install the hog rings of seat cushion trim in position, and then securely connect the trim or trim cord
with the pad side wire.

VENTILATION UNIT

Disassembly

1.

Remove the seat cushion duct A and B.

JMJIA1960ZZ

JMJIA1874ZZ

JMJIA1873ZZ
