FRONT SEAT

SE-89

< ON-VEHICLE REPAIR >

[WITH VENTILATION SEAT]

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

ON-VEHICLE REPAIR

FRONT SEAT

Exploded View

INFOID:0000000003812465

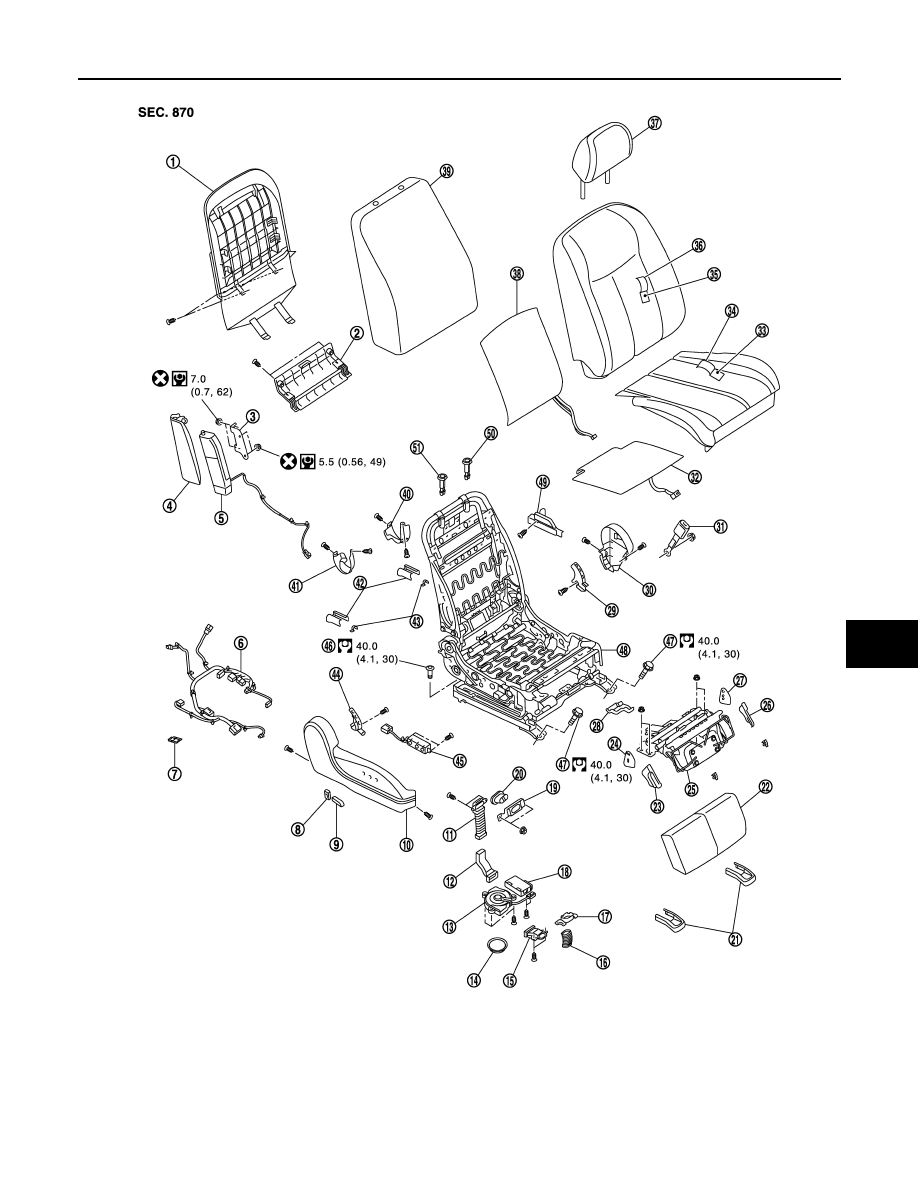

DRIVER'S POWER SEAT

JMJIA1714GB

SE-90

< ON-VEHICLE REPAIR >

[WITH VENTILATION SEAT]

FRONT SEAT

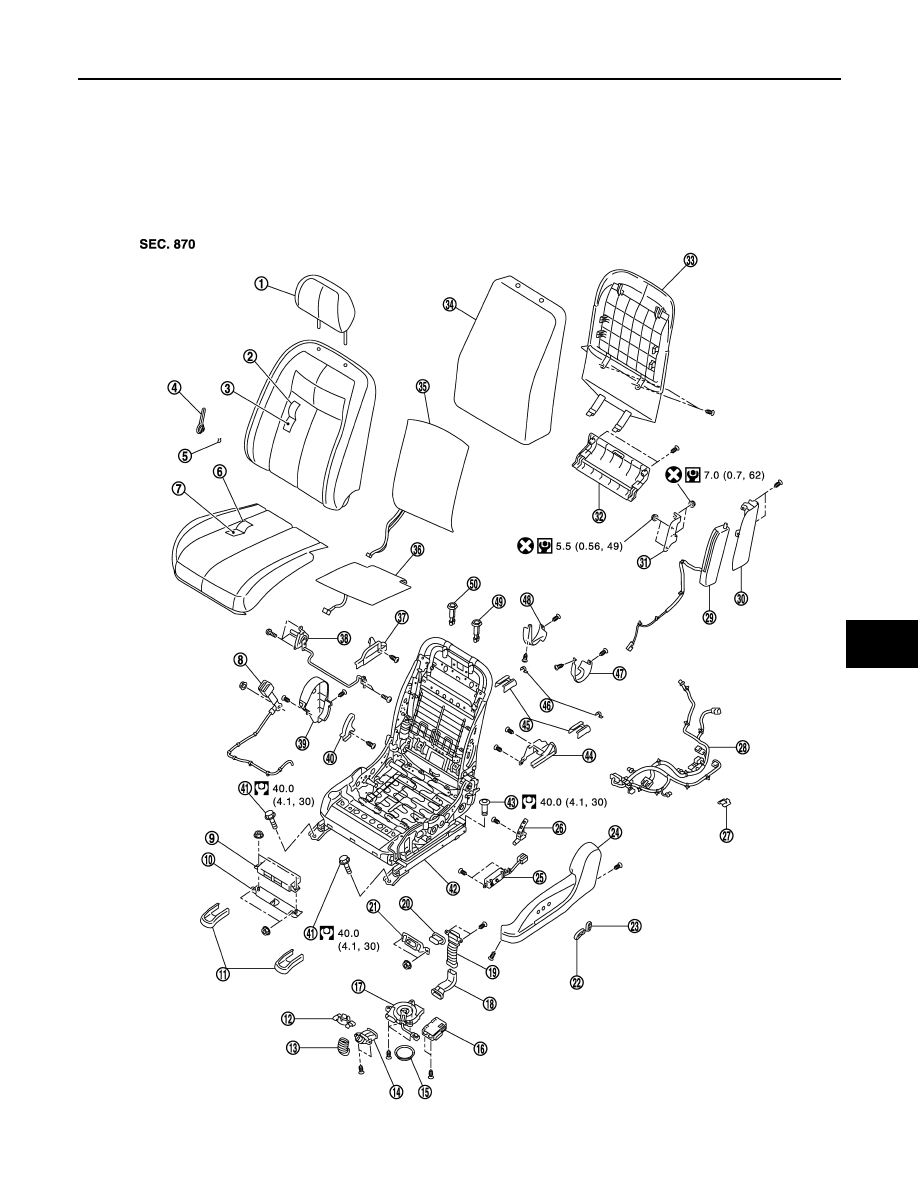

PASSENGER'S POWER SEAT

1.

Headrest

2.

Seatback trim

3.

Seatback pad

4.

Lumbar support lever knob

5.

Snap pin

6.

Seat cushion trim

7.

Seat cushion pad

8.

Seat belt buckle

9.

Seat control unit

10. Seat cushion frame bracket

11.

Front slide cover

12. Clip

13. Seat cushion duct B

14. Seat cushion duct A

15. Blower filter

16. Ventilation seat control unit

17. Ventilation motor

18. Seatback duct A

19. Seatback duct B

20. Seatback duct C

21. Clip

22. Seat slide and lifter switch knob

23. Reclining switch knob

24. Seat cushion outer finisher

25. Seat control switch

26. Seat cushion outer finisher inside

27. Seat harness clamp

28. Seat harness

29. Side air bag module

30. Seatback finisher

31. Side air bag module bracket

32. Seat cushion rear finisher

33. Seatback board

34. Seatback silencer

35. Seatback heater unit

36. Seat cushion heater unit

37. Seat slide inner cover

38. Lumbar support unit

39. Seat cushion inner finisher

40. Seat cushion inner finisher inside

41. TORX bolt

42. Seat frame assembly

43. TORX bolt

44. Seat slide outer cover

45. Rear slide cover

46. End cap

47. Reclining device outer cover

48. Reclining device inner cover

49. Headrest holder (locked)

50. Headrest holder (free)

Refer to

GI-4, "Components"

 for symbols in the figure.

FRONT SEAT

SE-91

< ON-VEHICLE REPAIR >

[WITH VENTILATION SEAT]

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

1.

Seatback board

2.

Seat cushion rear finisher

3.

Side air bag module bracket

4.

Seatback finisher

5.

Side air bag module

6.

Seat harness

7.

Seat harness clamp

8.

Reclining switch knob

9.

Seat slide and lifter switch knob

10. Seat cushion outer finisher

11.

Seatback duct B

12. Seatback duct A

13. Ventilation motor

14. Blower filter

15. Seat cushion duct A

16. Seat cushion duct B

17. Clip

18. Ventilation seat control unit

JMJIA1715GB

SE-92

< ON-VEHICLE REPAIR >

[WITH VENTILATION SEAT]

FRONT SEAT

Removal and Installation

INFOID:0000000003812466

REMOVAL

CAUTION:

• When removing and installing, use shop cloths to protect parts from damage.
• Before removal, turn ignition switch OFF, disconnect battery negative terminal and then wait for at

least 3 minutes.

NOTE:
Confirm the position of connector before starting work.

1.

Remove the headrest.

2.

Slide the seat to the frontmost position.

3.

Remove the rear outer mounting TORX bolt.

4.

Remove the rear inner mounting TORX bolt.

5.

Slide the seat to the rearmost position.

6.

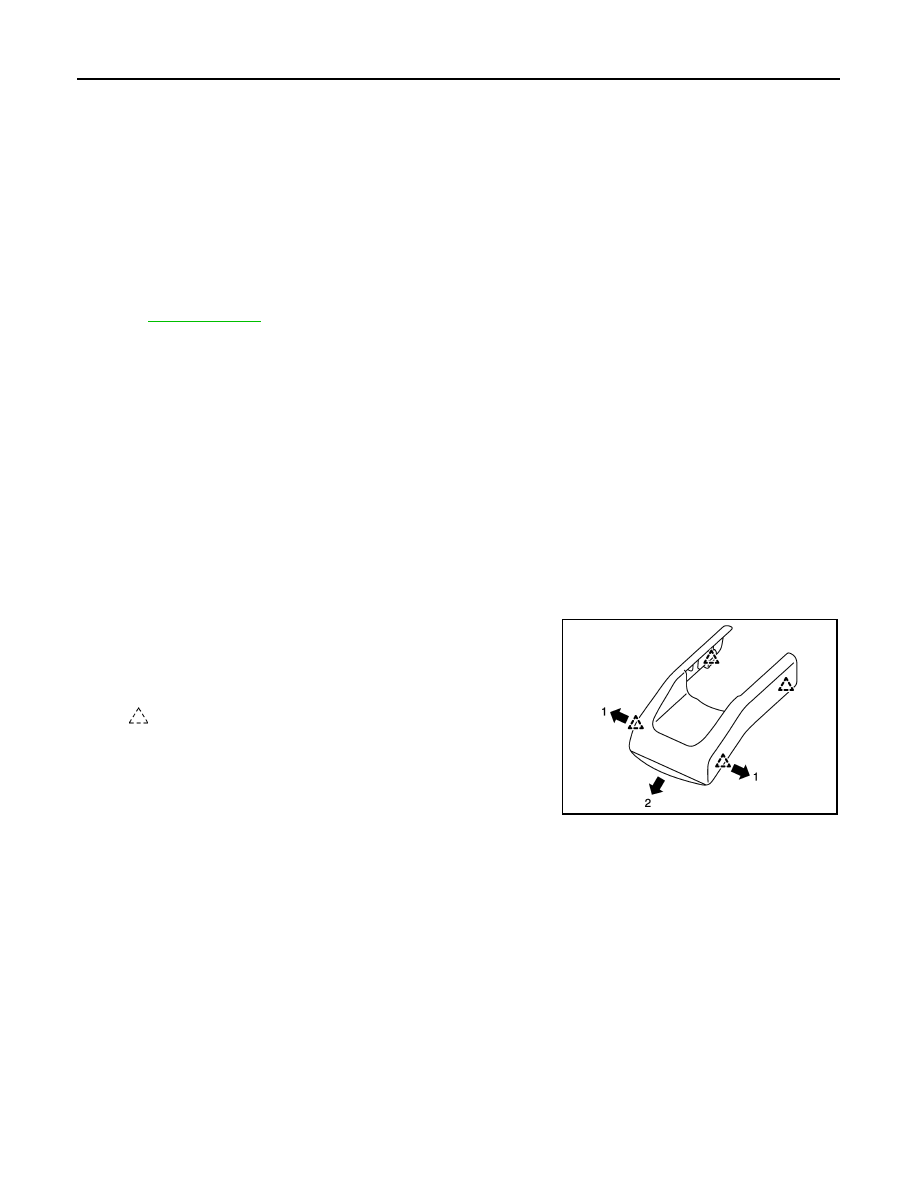

Remove the front slide cover.
• Open the front end of the front slide cover to release the

pawls.

• Slide the front slide cover forward to release the pawls.

7.

Remove the front outer mounting TORX bolt.

8.

Remove the front inner mounting TORX bolt.

9.

Set seatback in a standing position.

10. Lift the seat to the uppermost position.
11. Lift the ottoman to the uppermost position. (With ottoman model)

12. Disconnect harness connector under the seat and remove harness clamps.

13. Remove seat from the vehicle.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Before installation, turn ignition switch OFF, disconnect battery negative terminal, and then wait for

at least 3 minutes.

• Clamp the harness in position.

19. Clip

20. Seatback duct C

21. Front slide cover

22. Ottoman trim and pad

23. Front outer link cover

24. Rear outer link cover

25. Ottoman unit assembly

26. Front inner link cover

27. Rear inner link cover

28. Ottoman protector

29. Seat cushion inner finisher inside

30. Seat cushion inner finisher

31. Seat belt buckle

32. Seat cushion heater unit

33. Seat cushion pad

34. Seat cushion trim

35. Seatback pad

36. Seatback trim

37. Headrest

38. Seatback heater unit

39. Seatback silencer

40. Reclining device inner cover

41. Reclining device outer cover

42. Rear slide cover

43. End cap

44. Seat cushion outer finisher inside

45. Seat control switch

46. TORX bolt

47. TORX bolt

48. Seat frame assembly

49. Seat slide inner cover

50. Headrest holder (locked)

51. Headrest holder (free)

Refer to

GI-4, "Components"

 for symbols in the figure.

: Pawl

JMJIA1863ZZ
