SUNROOF SYSTEM

Before Operation

Switch condition

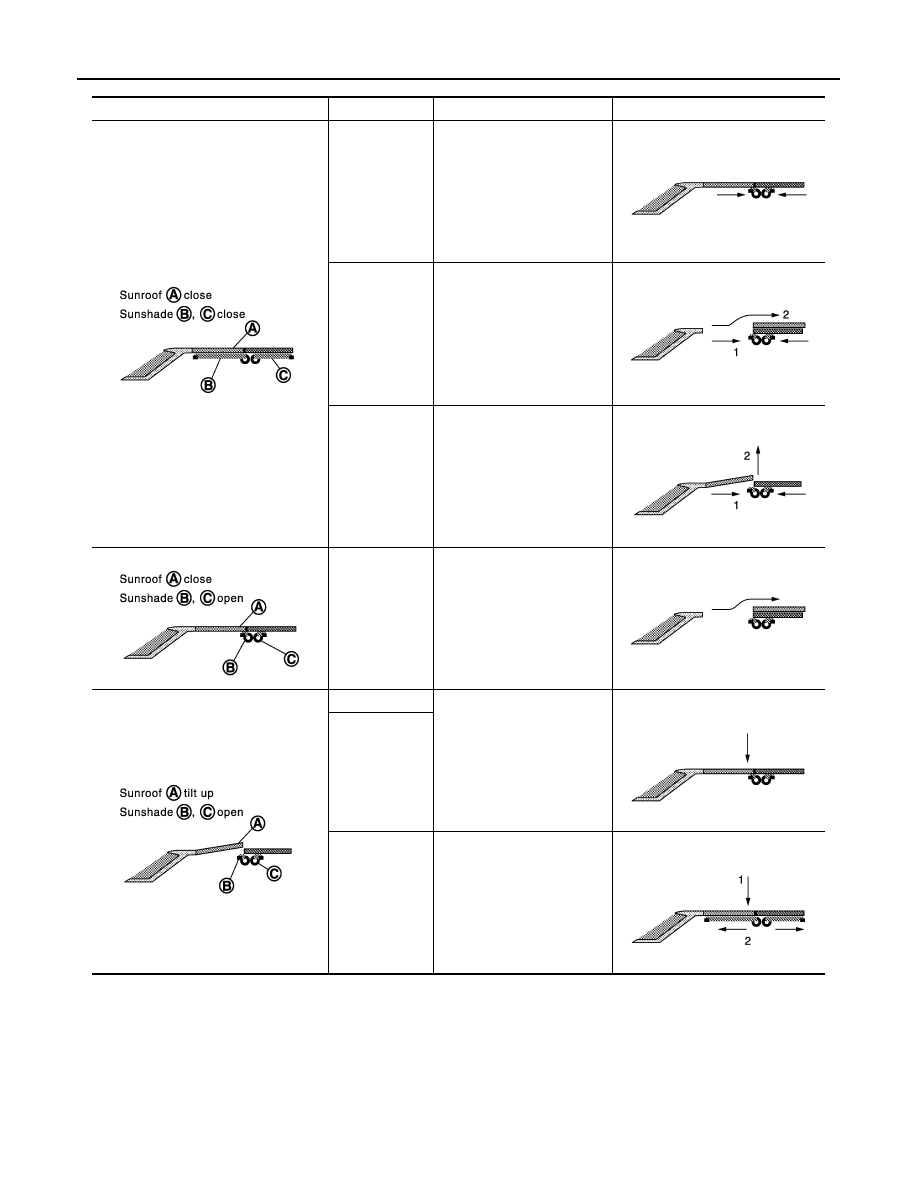

Roof and sunshade operation

After Operation

OPEN: 1st

Opens the sunshade

OPEN: 2nd

The sunshade opens, and
then the sunroof opens.

PUSH

The sunshade opens, and
then the sunroof tilts up.

OPEN: 1st

Opens the sunroof

PUSH

Tilts down

CLOSE: 1st

CLOSE: 2nd

The sunroof tilts down, and
then sunshade closes.

JMKIA2617GB

JMKIA2619ZZ

JMKIA2620ZZ

JMKIA2621ZZ

JMKIA2627GB

JMKIA2628ZZ

JMKIA2618GB

JMKIA2622ZZ

JMKIA2623ZZ

SUNROOF SYSTEM

RF-7

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

AUTO OPERATION

The sunroof or sunshade operates automatically to the fully-open or fully-closes position by operating the sun-
roof switch to the OPEN (2nd) or CLOSE (2nd) position.

RETAINED POWER OPERATION

Retained power operation is an additional power supply function that enables sunroof system to operate for 45
seconds after ignition switch is turned OFF.

RETAINED POWER FUNCTION CANCEL CONDITIONS

• Front door CLOSE (door switch OFF)

→

OPEN (door switch ON)

• Ignition switch is ON again.
• Timer passed. (45 seconds)

ANTI-PINCH FUNCTION

CAUTION:

There are some small distances immediately before the closed position which cannot be detected.
• The CPU of sunroof motor assembly monitors the sunroof condition using the signals from sunroof motor.

When sunroof motor assembly detects an interruption during auto operation (close or tilt down operation),
sunroof motor will tilt up or open [150 mm (5.91 in) or more] sunroof.

• The CPU of sunshade motor assembly monitors the sunshade condition using the signals from sunshade

motor. When sunshade motor assembly detects an interruption during auto close operation, sunshade motor
will open [150 mm (5.91 in) or more] sunshade.

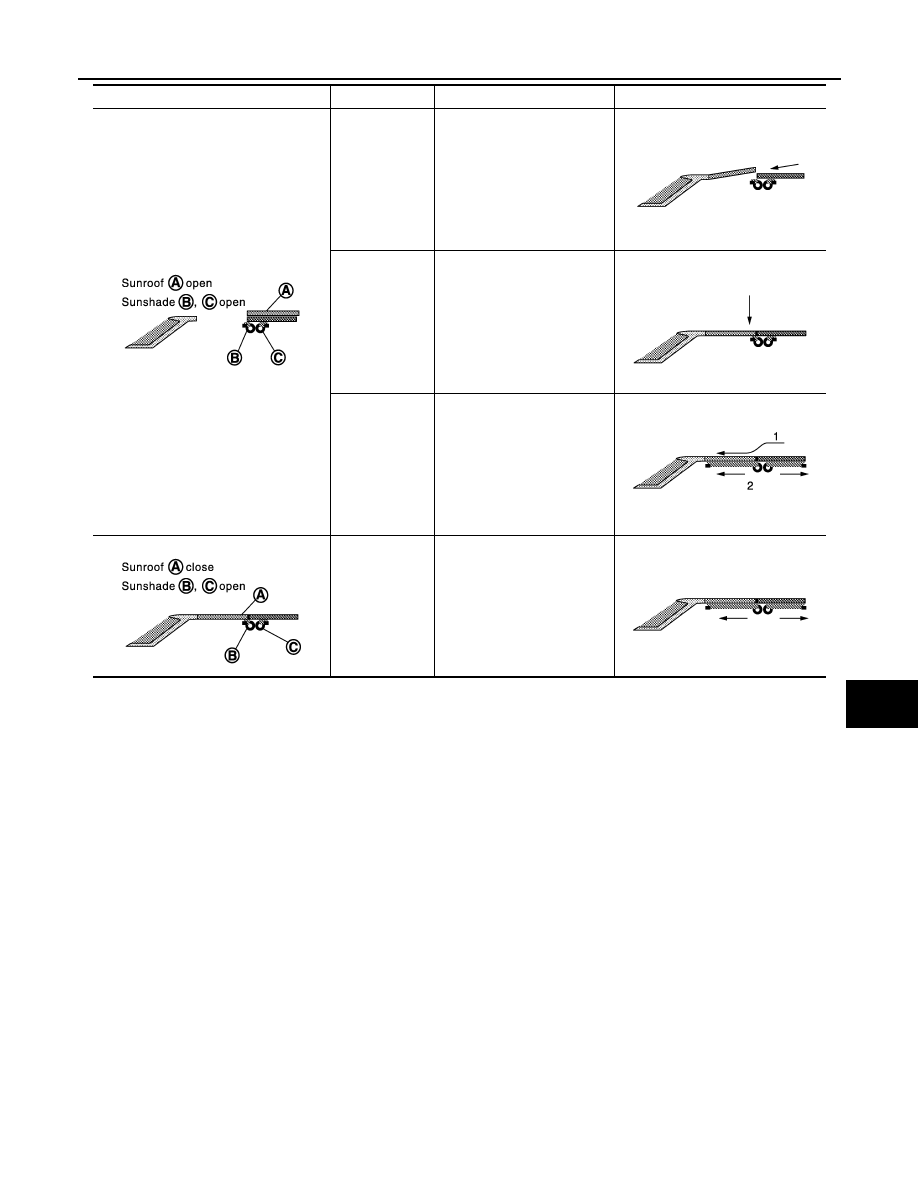

PUSH

Tilts up

CLOSE: 1st

Closes the sunroof

CLOSE: 2nd

The sunroof closes, and then
the sunshade closes.

CLOSE: 1st

Closes the sunshade

Before Operation

Switch condition

Roof and sunshade operation

After Operation

JMKIA2624GB

JMKIA2625ZZ

JMKIA2622ZZ

JMKIA2626ZZ

JMKIA2627GB

JMKIA2629ZZ

RF-8

< FUNCTION DIAGNOSIS >

SUNROOF SYSTEM

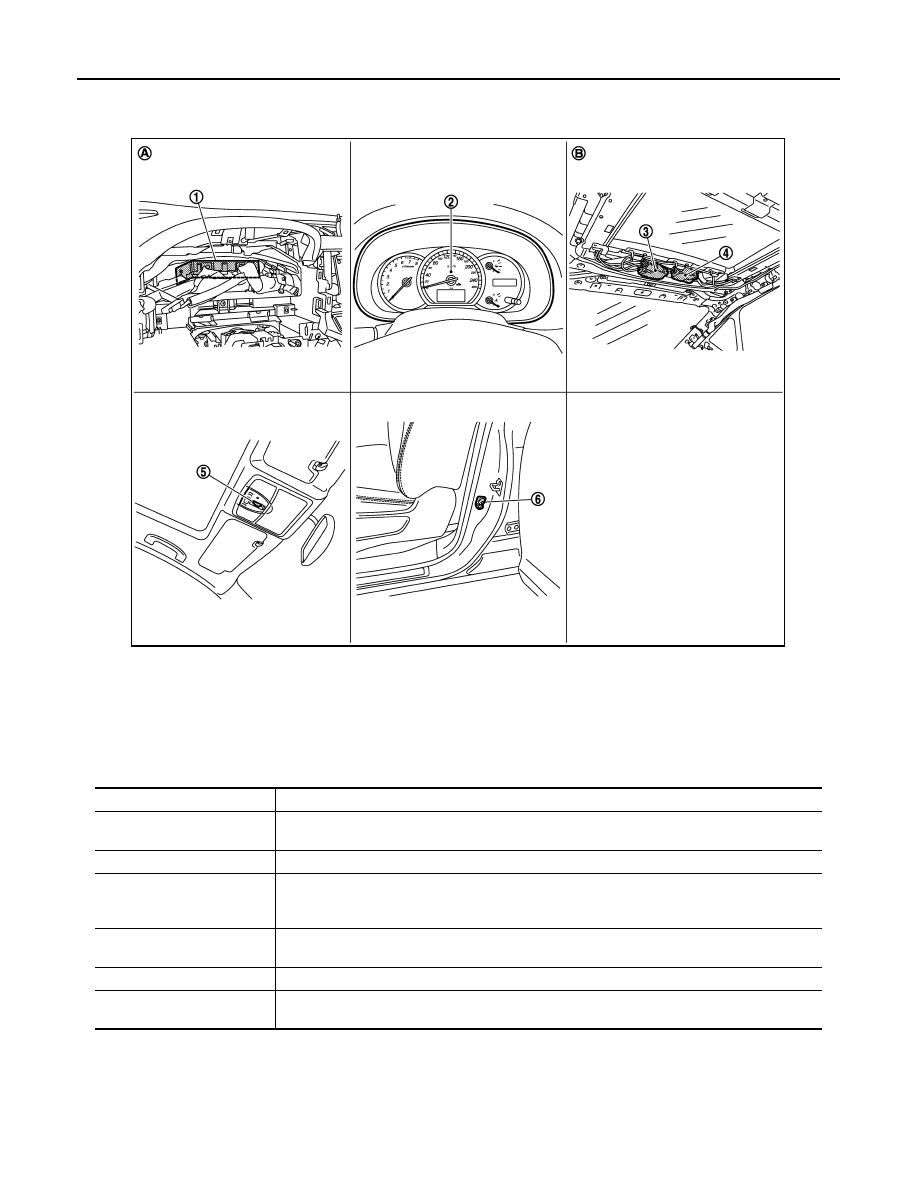

Component Parts Location

INFOID:0000000003812846

Component Description

INFOID:0000000003812847

1.

BCM M118, M119, M123

2.

 Combination meter M34

3.

Sunroof motor assembly R101

4.

Sunshade motor assembly R102

5.

Sunroof switch R6

6.

Front door switch (driver side) B34

A.

Behind the combination meter

B.

Behind headlining

JMKIA2348ZZ

Component

Function

BCM

• Supplies power to sunroof motor assembly and sunshade motor assembly.
• Controls retained power function.

Combination meter

Transmits vehicle speed signal to sunroof motor assembly and sunshade motor assembly.

Sunroof motor assembly

The sunroof motor and CPU integrated type enable tilt up/down and slide open/close sunroof op-
eration by sunroof switch operation. And sends sunroof switch operation signal to sunshade mo-
tor assembly via communication line.

Sunshade motor assembly

The sunshade motor and CPU integrated type enable open/close sunshade operation by sunroof
switch operation.

Sunroof switch

Transmits switch operation signal to sunroof motor assembly.

Front door switch
(driver side/passenger side)

Detects door open/close condition and transmits to BCM.

DIAGNOSIS SYSTEM (BCM)
