Nissan Teana J32. Manual - part 933





RAX-4

< ON-VEHICLE REPAIR >

REAR WHEEL HUB AND HOUSING

ON-VEHICLE REPAIR

REAR WHEEL HUB AND HOUSING

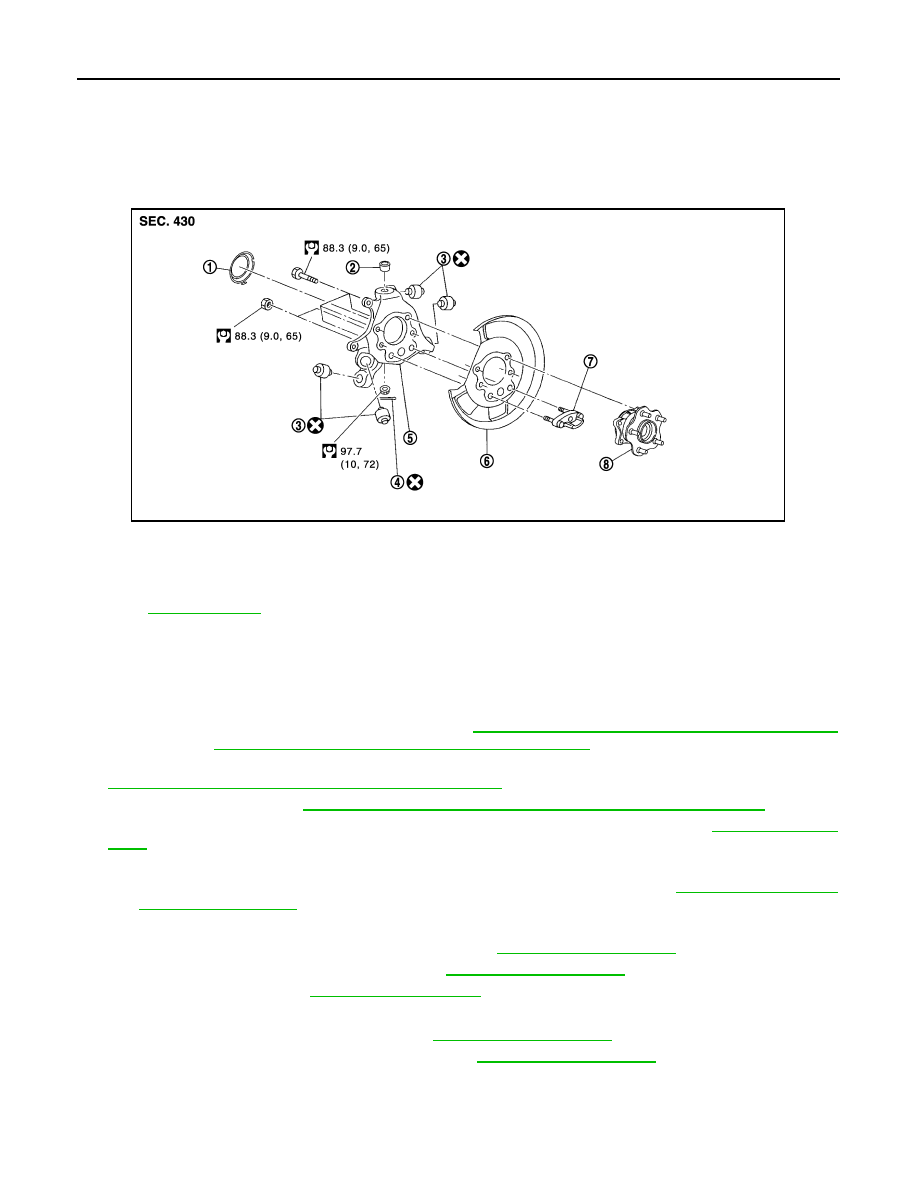

Exploded View

INFOID:0000000003811099

Removal and Installation

INFOID:0000000003811100

REMOVAL

1.

Remove tire.

2.

Remove wheel sensor and sensor harness. Refer to

BRC-58, "REAR WHEEL SENSOR : Exploded View"

(without VDC),

BRC-152, "REAR WHEEL SENSOR : Exploded View"

 (with VDC).

3.

Remove caliper assembly. Hang caliper assembly in a place where it will not interfere with work. Refer to

BR-40, "BRAKE CALIPER ASSEMBLY : Exploded View"

.

4.

Remove disc rotor. Refer to

BR-41, "BRAKE CALIPER ASSEMBLY : Removal and Installation"

.

5.

Remove cotter pin, then loosen suspension arm mounting nut of axle housing. Refer to

RAX-4, "Exploded

View"

.

6.

Remove wheel hub and bearing assembly.

7.

Remove parking brake shoe and parking brake cable from back plate. Refer to

PB-7, "Exploded View"

and

PB-5, "Exploded View"

.

8.

Remove anchor block mounting nuts, and then remove anchor block and back plate from axle housing.

9.

Remove stabilizer connecting rod (upper side). Refer to

RSU-15, "Exploded View"

.

10. Remove radius rod (axle housing side). Refer to

RSU-12, "Exploded View"

.

11. Remove coil spring. Refer to

RSU-8, "Exploded View"

.

12. Set suitable jack under axle housing.

13. Remove shock absorber (lower side). Refer to

RSU-10, "Exploded View"

.

14. Remove front lower link (axle housing side). Refer to

RSU-14, "Exploded View"

.

15. Separate suspension arm from axle housing so as not to damage ball joint boot using ball joint remover,

and then remove axle housing from the vehicle.

CAUTION:

1.

Hub cap

2.

Ball seat

3.

Bushing

4.

Cotter pin

5.

Axle housing

6.

Back plate

7.

Anchor block

8.

Wheel hub and bearing assembly

Refer to

GI-4, "Components"

 for symbols in the figure.

JPDIG0104GB

REAR WHEEL HUB AND HOUSING

RAX-5

< ON-VEHICLE REPAIR >

C

E

F

G

H

I

J

K

L

M

A

B

RAX

N

O

P

Temporarily tighten nuts to prevent damage to threads and to prevent the ball joint remover from
coming off.

16. Remove hub cap.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Perform the final tightening of each of parts under unladen conditions, which were removed when removing

wheel hub and bearing assembly and steering knuckle.

• Never reuse cotter pin.

Inspection

INFOID:0000000003811101

INSPECTION AFTER REMOVAL

Wheel Hub and Bearing Assembly

Check the wheel hub and bearing assembly for wear, cracks, and damage. Replace if necessary.

Axle Housing

Check the axle housing for wear, cracks, and damage. Replace if necessary.

Ball Joint Inspection

Check for boot breakage, axial looseness, and torque of suspension arm ball joint. Refer to

RSU-16, "Inspec-

tion"

.

INSPECTION AFTER INSTALLATION

1.

Check wheel sensor harness for proper connection. Refer to

BRC-58, "REAR WHEEL SENSOR :

Exploded View"

 (without VDC),

BRC-152, "REAR WHEEL SENSOR : Exploded View"

 (with VDC).

2.

Adjust parking brake operation (stroke). Refer to

PB-2, "Inspection and Adjustment"

.

3.

Check wheel alignment. Refer to

RSU-6, "Inspection"

.

4.

Adjust neutral position of steering angle sensor (with VDC). Refer to

BRC-66, "ADJUSTMENT OF

STEERING ANGLE SENSOR NEUTRAL POSITION : Special Repair Requirement"

.

RAX-6

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Wheel Bearing

INFOID:0000000003811102

Item

Standard

Axial end play

0.05 mm (0.002 in) or less

RF-1
