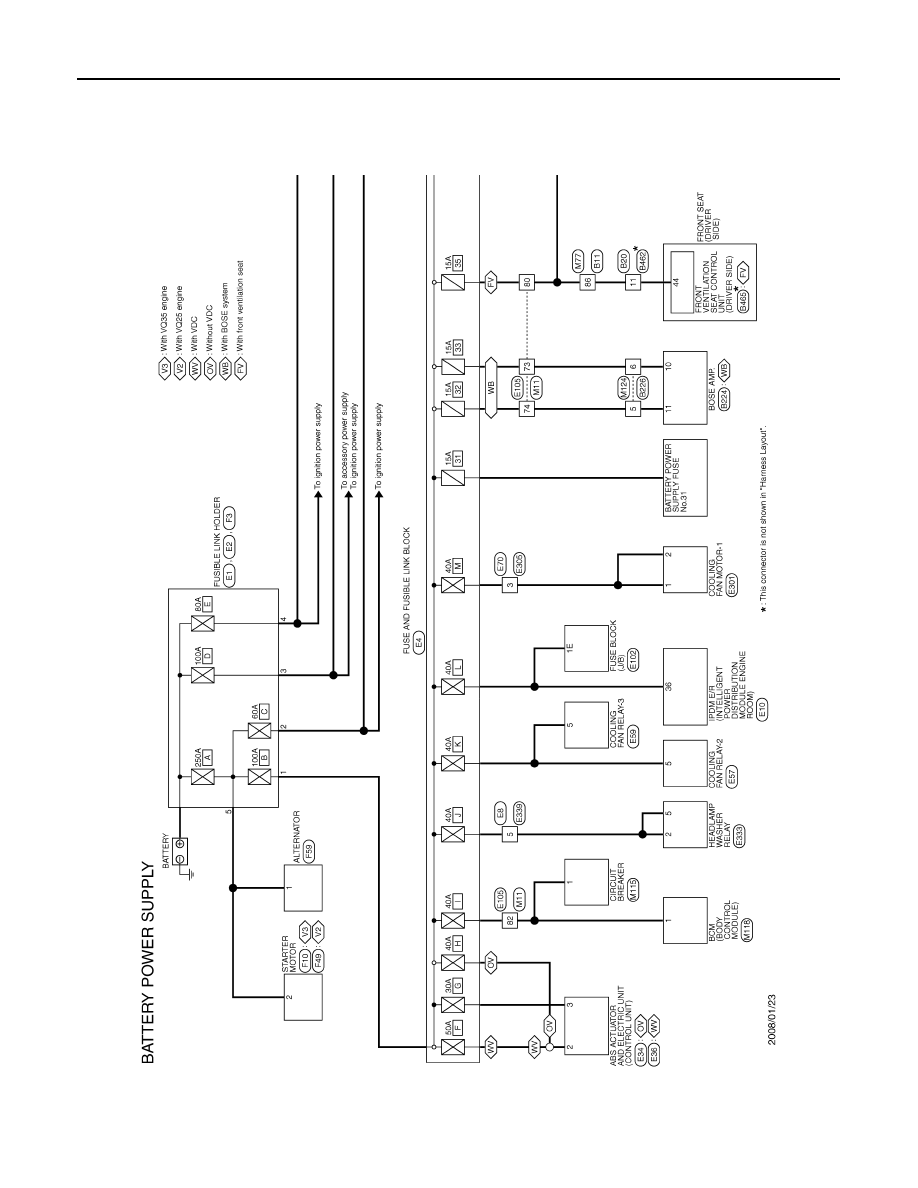

PG BATTERY PG-7 < BASIC INSPECTION > [POWER SUPPLY&GROUND CIRCUIT] C D E F G H I J K L B A O P N Is the voltage 9.6 V or more? YES >> Ready for use. NO >> GO TO 6. 6. QUICK CHARGE 1. Perform quick charge. Time required: 45 min. Refer to 2. Test using load tester. Is the voltage 9.6 V or more? YES >> Ready for use. NO >> Replace battery. 7. QUICK CHARGE 1. Perform quick charge. Refer to . 2. Perform capacity test. Test using battery checker.>>GO TO 8. 8. CAPACITY TEST Test using battery checker. YES >> Ready for use. NO >> GO TO 9. 9. CHECKING SPECIFIC GRAVITY 1. Check specific gravity. Refer to . 2. Perform recharge. Refer to NOTE: ° C (131 ° F), stop charging. Always charge battery when its tempera- ture is below 55 ° C (131 ° F). 3. Test using battery checker. Is the battery usable, according to the manufacturer’s instructions? YES >> Ready for use. NO >> Replace battery. 10. CAPACITY TEST 1. Test using load tester. 2. Check battery type and determine the specified current using the table. Discharging Current (Load Tester) Type Current (A) 28B19R(L) 90 34B19R(L) 99 46B24R(L) 135 55B24R(L) 50D23R(L) 150 55D23R(L) 180 80D23R(L) 195 65D26R(L) 80D26R(L) 75D31R(L) 210 95D31R(L) 240 115D31R(L) 025 [YUASA type code] |
