PCS-74

< ECU DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

BCM (BODY CONTROL MODULE)

DOOR SW-RL

Rear LH door closed

Off

Rear LH door opened

On

DOOR SW-BK

NOTE:
The item is indicated, but not monitored.

Off

CDL LOCK SW

Other than power door lock switch LOCK

Off

Power door lock switch LOCK

On

CDL UNLOCK SW

Other than power door lock switch UNLOCK

Off

Power door lock switch UNLOCK

On

KEY CYL LK-SW

NOTE:
The item is indicated, but not monitored.

Off

KEY CYL UN-SW

NOTE:
The item is indicated, but not monitored.

Off

KEY CYL SW-TR

NOTE:
The item is indicated, but not monitored.

Off

HAZARD SW

Hazard switch is OFF

Off

Hazard switch is ON

On

REAR DEF SW
NOTE:
At model with BOSE au-
dio system this item is in-
dicated, but is not
monitored.

Rear window defogger switch is OFF

Off

Rear window defogger switch is ON

On

TR CANCEL SW

NOTE:
The item is indicated, but not monitored.

Off

TR/BD OPEN SW

Trunk lid opener switch OFF

Off

While the trunk lid opener switch is turned ON

On

TRNK/HAT MNTR

Trunk lid closed

Off

Trunk lid opened

On

RKE-LOCK

LOCK button of the key is not pressed

Off

LOCK button of the key is pressed

On

RKE-UNLOCK

UNLOCK button of the key is not pressed

Off

UNLOCK button of the key is pressed

On

RKE-TR/BD

TRUNK OPEN button of the key is not pressed

Off

TRUNK OPEN button of the key is pressed

On

RKE-PANIC

NOTE:
The item is indicated, but not monitored.

Off

RKE-P/W OPEN

NOTE:
The item is indicated, but not monitored.

Off

RKE-MODE CHG

LOCK/UNLOCK button of the key is not pressed and held simulta-
neously

Off

LOCK/UNLOCK button of the key is pressed and held simulta-
neously

On

OPTICAL SENSOR

Bright outside of the vehicle

Close to 5 V

Dark outside of the vehicle

Close to 0 V

REQ SW -DR

Driver door request switch is not pressed

Off

Driver door request switch is pressed

On

REQ SW -AS

Passenger door request switch is not pressed

Off

Passenger door request switch is pressed

On

Monitor Item

Condition

Value/Status

PCS

BCM (BODY CONTROL MODULE)

PCS-75

< ECU DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

REQ SW -RR

NOTE:
The item is indicated, but not monitored.

Off

REQ SW -RR

NOTE:
The item is indicated, but not monitored.

Off

REQ SW -BD/TR

Trunk lid opener request switch is not pressed

Off

Trunk lid opener request switch is pressed

On

PUSH SW

Push-button ignition switch (push switch) is not pressed

Off

Push-button ignition switch (push switch) is pressed

On

IGN RLY2 -F/B

Ignition switch in OFF or ACC position

Off

Ignition switch in ON position

On

CLUCH SW

NOTE:
The item is indicated, but not monitored.

Off

BRAKE SW 1

The brake pedal is not depressed

On

The brake pedal is depressed

Off

DETE/CANCL SW

Selector lever in P position

Off

Selector lever in any position other than P

On

SFT PN/N SW

Selector lever in any position other than P and N

Off

Selector lever in P or N position

On

S/L -LOCK

Steering is locked

Off

Steering is unlocked

On

S/L -UNLOCK

Steering is unlocked

Off

Steering is locked

On

S/L RELAY-F/B

Ignition switch in OFF or ACC position

Off

Ignition switch in ON position

On

UNLK SEN -DR

Driver door is unlocked

Off

Driver door is locked

On

PUSH SW -IPDM

Push-button ignition switch (push-switch) is not pressed

Off

Push-button ignition switch (push-switch) is pressed

On

IGN RLY1 -F/B

Ignition switch in OFF or ACC position

Off

Ignition switch in ON position

On

DETE SW -IPDM

Selector lever in P position

Off

Selector lever in any position other than P

On

SFT PN -IPDM

Selector lever in any position other than P and N

Off

Selector lever in P or N position

On

SFT P -MET

Selector lever in any position other than P

Off

Selector lever in P position

On

SFT N -MET

Selector lever in any position other than N

Off

Selector lever in N position

On

ENGINE STATE

Engine stopped

Stop

While the engine stalls

Stall

At engine cranking

Crank

Engine running

Run

S/L LOCK-IPDM

Steering is locked

Off

Steering is unlocked

On

Monitor Item

Condition

Value/Status

PCS-76

< ECU DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

BCM (BODY CONTROL MODULE)

S/L UNLK-IPDM

Steering is unlocked

Off

Steering is locked

On

S/L RELAY-REQ

Ignition switch in OFF or ACC position

Off

Ignition switch in ON position

On

VEH SPEED 1

While driving

Equivalent to speedometer reading

VEH SPEED 2

While driving

Equivalent to speedometer reading

DOOR STAT-DR

Driver door is locked

LOCK

Wait with selective UNLOCK operation (5 seconds)

READY

Driver door is unlocked

UNLOCK

DOOR STAT-AS

Passenger door is locked

LOCK

Wait with selective UNLOCK operation (5 seconds)

READY

Passenger door is unlocked

UNLOCK

ID OK FLAG

Ignition switch in ACC or ON position

Reset

Ignition switch in OFF position

Set

PRMT ENG STRT

The engine start is prohibited

Reset

The engine start is permitted

Set

PRMT RKE STRT

NOTE:
The item is indicated, but not monitored.

Reset

KEY SW -SLOT

The key is not inserted into key slot

Off

The key is inserted into key slot

On

RKE OPE COUN1

During the operation of the key

Operation frequency of the key

RKE OPE COUN2

NOTE:
The item is indicated, but not monitored.

—

CONFRM ID ALL

The key ID that the key slot receives does not accord with any key
ID registered to BCM.

Yet

The key ID that the key slot receives accords with any key ID regis-
tered to BCM.

Done

CONFIRM ID4

The key ID that the key slot receives does not accord with the fourth
key ID registered to BCM.

Yet

The key ID that the key slot receives accords with the fourth key ID
registered to BCM.

Done

CONFIRM ID3

The key ID that the key slot receives does not accord with the third
key ID registered to BCM.

Yet

The key ID that the key slot receives accords with the third key ID
registered to BCM.

Done

CONFIRM ID2

The key ID that the key slot receives does not accord with the sec-
ond key ID registered to BCM.

Yet

The key ID that the key slot receives accords with the second key
ID registered to BCM.

Done

CONFIRM ID1

The key ID that the key slot receives does not accord with the first
key ID registered to BCM.

Yet

The key ID that the key slot receives accords with the first key ID
registered to BCM.

Done

TP 4

The ID of fourth key is not registered to BCM

Yet

The ID of fourth key is registered to BCM

Done

TP 3

The ID of third key is not registered to BCM

Yet

The ID of third key is registered to BCM

Done

Monitor Item

Condition

Value/Status

PCS

BCM (BODY CONTROL MODULE)

PCS-77

< ECU DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

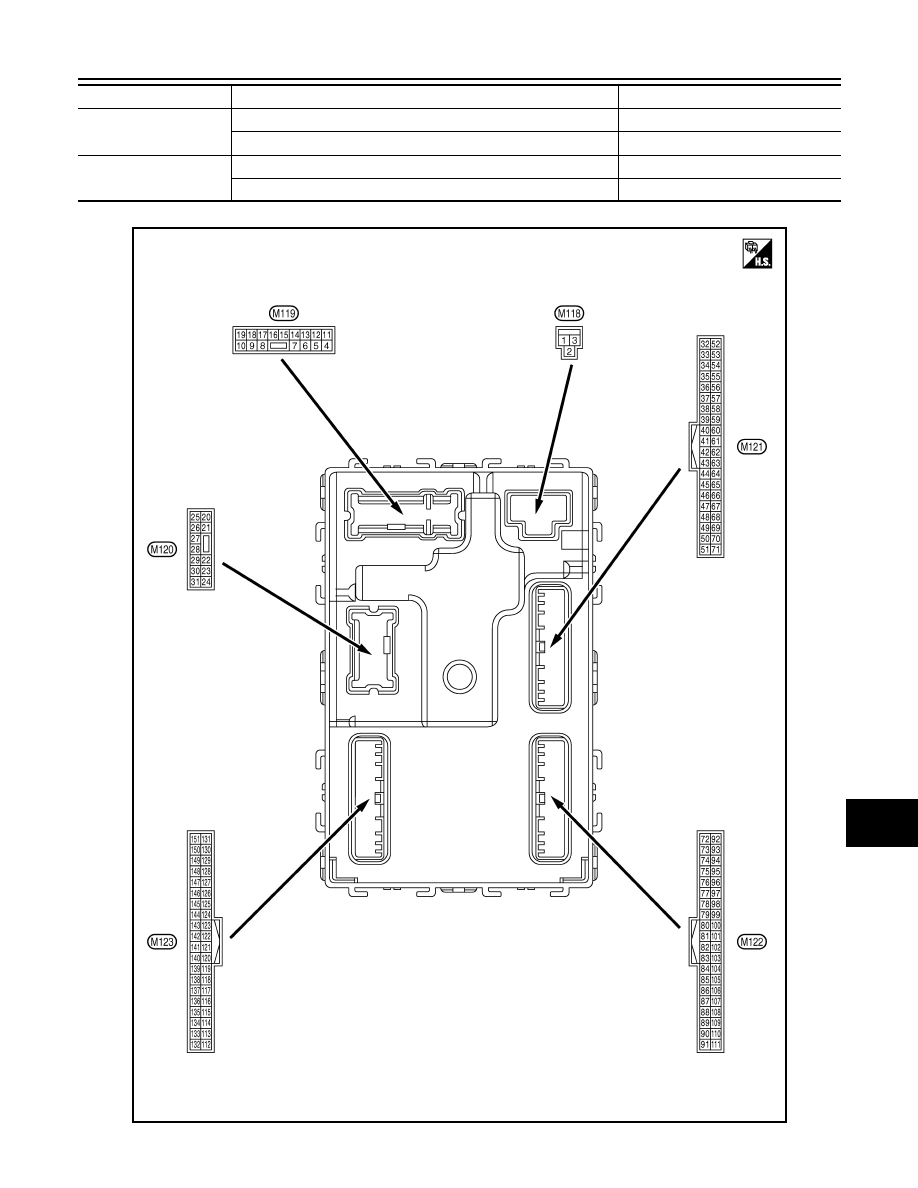

TERMINAL LAYOUT

TP 2

The ID of second key is not registered to BCM

Yet

The ID of second key is registered to BCM

Done

TP 1

The ID of first key is not registered to BCM

Yet

The ID of first key is registered to BCM

Done

Monitor Item

Condition

Value/Status

JPMIA0062ZZ
