COMBINATION METER

MWI-55

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

NOTE:

Some items are not available according to vehicle specification.

M RANGE SW

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

On

NM RANGE SW

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

AT SFT UP SW

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

On

AT SFT DWN SW

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

On

ST SFT UP SW

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

ST SFT DWN SW

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

PKB SW

Ignition switch
ON

Parking brake switch ON

On

Parking brake switch OFF

Off

BUCKLE SW

Ignition switch
ON

Seat belt not fastened

On

Seat belt fastened

Off

BRAKE OIL SW

Ignition switch
ON

Brake fluid level switch ON

On

Brake fluid level switch OFF

Off

DISTANCE
[km]

Ignition switch
ON

—

Possible driving distance calculated by
combination meter

A/C AMP CONN

Ignition switch
ON

Receives A/C auto amp. connection recog-
nition signal

On

Other than the above

Off

ENTER SW

Ignition switch
ON

When

is

pressed

On

Other than the above

Off

SELECT SW

Ignition switch
ON

When

is

pressed

On

Other than the above

Off

OUTSIDE TEMP
[

°

C] or [

°

F]

Ignition switch
ON

—

Equivalent to ambient temperature
NOTE:
This may not match the indicated value
on the information display.

FUEL LOW SIG

Ignition switch
ON

Low fuel warning signal output

On

Low fuel warning signal not output

Off

BUZZER

Ignition switch
ON

Buzzer ON

On

Buzzer OFF

Off

Monitor Item

Condition

Value/Status

MWI-56

< ECU DIAGNOSIS >

COMBINATION METER

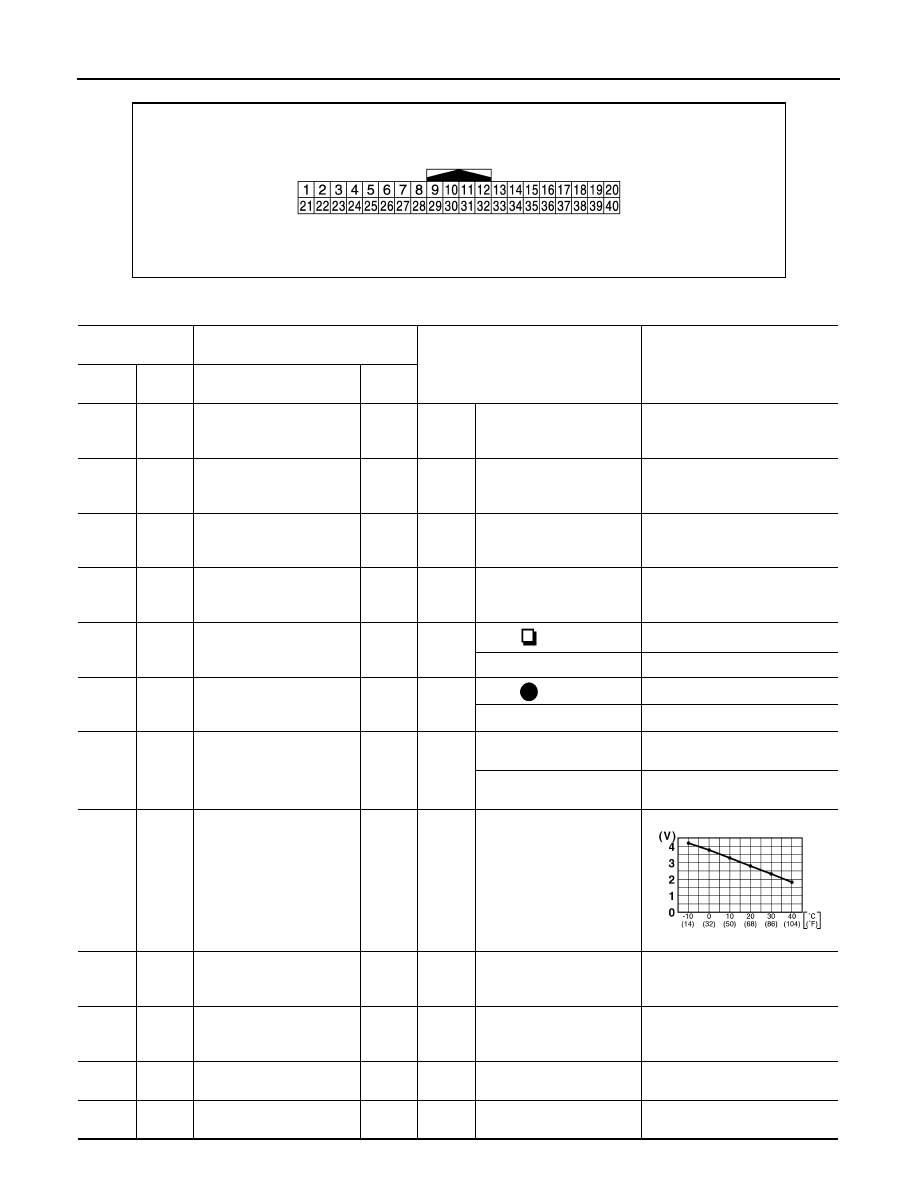

TERMINAL LAYOUT

PHYSICAL VALUES

JPNIA0968GB

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

–

Signal name

Input/

Output

1

(W/L)

Ground

Battery power supply

Input

Ignition
switch
OFF

—

Battery voltage

2

(O)

Ground

IGN signal

Input

Ignition
switch
ON

—

Battery voltage

3

(B)

Ground

Ground

—

Ignition
switch
ON

—

0  V

10

(O/L)

Ground

Meter control switch ground

—

Ignition
switch
ON

—

0  V

11

(L/R)

10

(O/L)

Enter switch signal

Input

Ignition
switch
ON

When

is

pressed.

0 V

Other than the above

5 V

12

(B/R)

10

(O/L)

Select switch signal

Input

Ignition
switch
ON

When

 is pressed.

0 V

Other than the above

5 V

15

(BR/W)

Ground

Air bag signal

Input

Ignition
switch
ON

Air bag warning lamp
ON

4 V

Air bag warning lamp
OFF

0 V

18

(O/B)

Ground

Ambient sensor signal

Input

Ignition
switch
ON

Changes depending to am-
bient temperature.

19

(P)

Ground

A/C auto amp. connection
recognition signal

Input

Ignition
switch
ON

—

5  V

20

(B/Y)

Ground

Ambient sensor ground

Input

Ignition
switch
ON

—

0  V

21

(L)

—

CAN-H

—

—

—

—

22

(P)

—

CAN-L

—

—

—

—

JSNIA0014GB

MWI

COMBINATION METER

MWI-57

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

23

(B)

Ground

Ground

—

Ignition
switch
ON

—

0  V

24

(B/W)

Ground

Fuel level sensor signal
ground

—

Ignition
switch
ON

—

0  V

25

(BR)

Ground

Alternator signal

Input

Ignition
switch
ON

Charge warning lamp ON

2 V

Charge warning lamp OFF

12 V

26

(G/R)

Ground

Parking brake switch signal

Input

Ignition
switch
ON

When parking brake is ap-
plied

0 V

When parking brake is re-
leased

5 V

27

(V)

Ground

Brake fluid level switch sig-
nal

Input

Ignition
switch
ON

Brake fluid level is normal

12 V

Brake fluid level is less than
low level

0 V

28

(L/O)

Ground

Security signal

Input

Ignition

switch

ON

Security warning lamp OFF

12 V

Security warning lamp ON

0 V

30

(L/B)

Ground

Vehicle speed signal output
(2-pulse)

Output

Ignition
switch
ON

Speedometer operated
[When vehicle speed is ap-
prox. 40 km/h (25 MPH)]

NOTE:
The maximum voltage varies de-
pending on the specification
(destination unit).

31

(V/W)

Ground

Vehicle speed signal output
(8-pulse)

Output

Ignition
switch
ON

Speedometer operated
[When vehicle speed is ap-
prox. 40 km/h (25 MPH)]

NOTE:
The maximum voltage varies de-
pending on the specification
(destination unit).

32

(LG/R)

Ground

Sport mode switch signal

Input

Ignition
switch
ON

Sport mode switch pressed.

0 V

Sport mode switch not
pressed.

5 V

34

(G/B)

Ground

Fuel level sensor signal

Input

Ignition
switch
ON

—

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

–

Signal name

Input/

Output

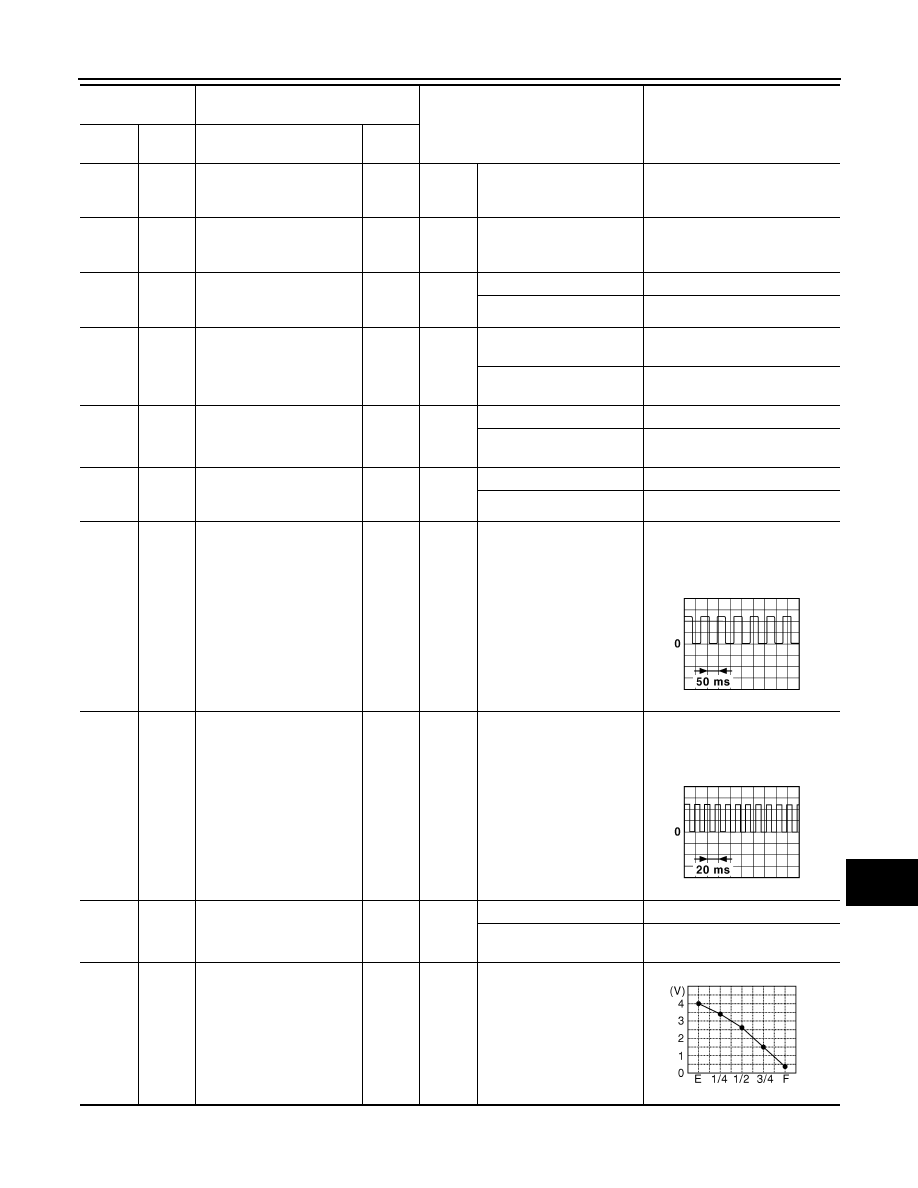

JSNIA0015GB

JSNIA0012GB

JPNIA0740ZZ

MWI-58

< ECU DIAGNOSIS >

COMBINATION METER

35

(W/B)

Ground

Seat belt buckle switch sig-
nal (driver side)

Input

Ignition
switch
ON

When driver seat belt is fas-
tened.

12 V

When driver seat belt is un-
fastened.

0 V

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

–

Signal name

Input/

Output
