MWI

OIL PRESSURE SWITCH SIGNAL CIRCUIT

MWI-51

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

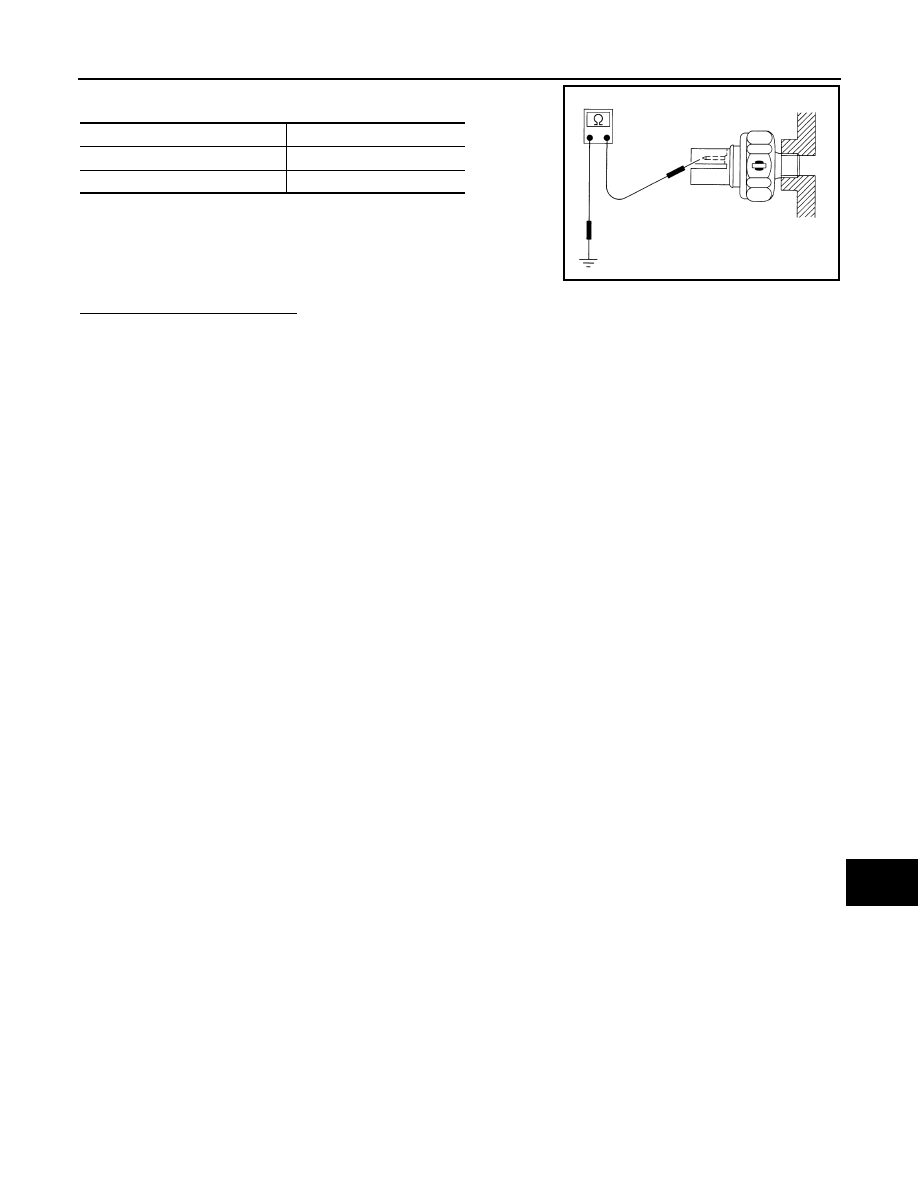

Check continuity between oil pressure switch and ground.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace the oil pressure switch.

Condition

Continuity

Engine stopped

Existed

Engine running

Not existed

ELF0044D

MWI-52

< COMPONENT DIAGNOSIS >

PARKING BRAKE SWITCH SIGNAL CIRCUIT

PARKING BRAKE SWITCH SIGNAL CIRCUIT

Description

INFOID:0000000003792581

Transmits the parking brake switch signal to the combination meter.

Diagnosis Procedure

INFOID:0000000003792582

1.

CHECK COMBINATION METER INPUT SIGNAL

1.

Turn ignition switch ON.

2.

Check the voltage and waveform between combination meter harness connector terminal and ground.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 2.

2.

CHECK PARKING BRAKE SWITCH SIGNAL CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect combination meter connector and parking brake switch connector.

3.

Check continuity between combination meter harness connector terminal and parking brake switch har-
ness connector terminal.

4.

Check continuity between combination meter harness connector terminal and ground.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Repair harness or connector.

Component Inspection

INFOID:0000000003792583

1.

CHECK PARKING BRAKE SWITCH

Check parking brake switch. Refer to

BRC-124, "Component Inspection"

.

Is the inspection result normal?

YES

>> INSPECTION END.

NO

>> Replace parking brake switch.

Terminals

Condition

Voltage

(Approx.)

(+)

(-)

Combination meter

Ground

Connector

Terminal

M34

26

When parking brake is applied

0 V

When parking brake is released

5 V

Terminals

Continuity

(+)

(-)

Combination meter

Parking brake switch

Connector

Terminal

Connector

Terminal

M34

26

E27

1

Existed

Terminals

Continuity

(+)

(-)

Combination meter

Ground

Connector

Terminal

M34

26

Not existed

MWI

COMBINATION METER

MWI-53

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ECU DIAGNOSIS

COMBINATION METER

Reference Value

INFOID:0000000003792588

VALUES ON THE DIAGNOSIS TOOL

Monitor Item

Condition

Value/Status

SPEED METER
[km/h]

Ignition switch
ON

While driving

Equivalent to speedometer reading
NOTE:
655.35 is displayed when the malfunc-
tion signal is received

SPEED OUTPUT
[km/h]

Ignition switch
ON

While driving

Equivalent to speedometer reading
NOTE:
655.35 is displayed when the malfunc-
tion signal is received

ODO OUTPUT
[km/h or mph]

Ignition switch
ON

Equivalent to odometer reading in
combination meter

TACHO METER
[rpm]

Ignition switch
ON

While driving

Equivalent to tachometer reading
NOTE:
8191.875 is displayed when the mal-
function signal is received

FUEL METER
[lit]

Ignition switch
ON

Values according to fuel level

W TEMP METER
[

°

C]

Ignition switch
ON

Values according to engine coolant
temperature
NOTE:
215 is displayed when the malfunction
signal is input

ABS W/L

Ignition switch
ON

ABS warning lamp ON

On

ABS warning lamp OFF

Off

VDC/TCS IND

Ignition switch
ON

VDC OFF indicator lamp ON

On

VDC OFF indicator lamp OFF

Off

SLIP IND

Ignition switch
ON

SLIP Indicator lamp ON

On

SLIP indicator lamp OFF

Off

BRAKE W/L

Ignition switch
ON

Brake warning lamp ON

On

Brake warning lamp OFF

Off

DOOR W/L

Ignition switch
ON

Door warning ON

On

Door warning OFF

Off

TRUNK/GLAS-H

Ignition switch
ON

Trunk warning ON

On

Trunk warning OFF

Off

HI-BEAM IND

Ignition switch
ON

High-beam indicator lamp ON

On

High-beam indicator lamp OFF

Off

TURN IND

Ignition switch
ON

Turn signal indicator lamp ON

On

Turn signal indicator lamp OFF

Off

FR FOG IND

Ignition switch
ON

Front fog light indicator lamp ON

On

Front fog light indicator lamp OFF

Off

RR FOG IND

Ignition switch
ON

Rear fog light indicator lamp ON

On

Rear fog light indicator lamp OFF

Off

LIGHT IND

Ignition switch
ON

Tail lamp indicator lamp ON

On

Tail lamp indicator lamp OFF

Off

MWI-54

< ECU DIAGNOSIS >

COMBINATION METER

OIL W/L

Ignition switch
ON

Oil pressure warning lamp ON

On

Oil pressure warning lamp OFF

Off

MIL

Ignition switch
ON

Malfunction indicator lamp ON

On

Malfunction indicator lamp OFF

Off

CRUISE IND

Ignition switch
ON

Cruise indicator lamp ON

On

Cruise indicator lamp OFF

Off

SPORT IND

Ignition switch
ON

SPORT indicator lamp ON

On

SPORT indicator lamp OFF

Off

4WD W/L

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

4WD LOCK IND

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

FUEL W/L

Ignition switch
ON

Low-fuel warning lamp ON

On

Low-fuel warning lamp OFF

Off

WASHER W/L

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

KEY G/Y W/L

Ignition switch
ON

KEY warning lamp (green/yellow) ON

On

KEY warning lamp (green/yellow) OFF

Off

LCD

Ignition switch
ON

Engine start information display

B&P I

Ignition switch
ACC

Engine start information display

B&P N

Ignition switch
LOCK

Key ID warning display

ID NG

Ignition switch
LOCK

Steering lock information display

ROTAT

Ignition switch
LOCK

P position warning display

SFT P

Ignition switch
LOCK

Intelligent Key insert information display

INSRT

Ignition switch
LOCK

Intelligent Key low battery warning display

BATT

Ignition switch
ON

Take away warning display

NO KY

Ignition switch
LOCK

Key warning display

OUTKY

Ignition switch
ON

ACC warning display

LK WN

SHIFT IND

Ignition switch
ON

Shift position indicator P display

P

Shift position indicator R display

R

Shift position indicator N display

N

Shift position indicator D display

D

Shift position indicator L display

L

O/D OFF SW

Ignition switch
ON

Sport mode switch pressed

On

Other than the above

Off

Monitor Item

Condition

Value/Status
