Nissan Teana J32. Manual - part 819

MWI

METER SYSTEM

MWI-19

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

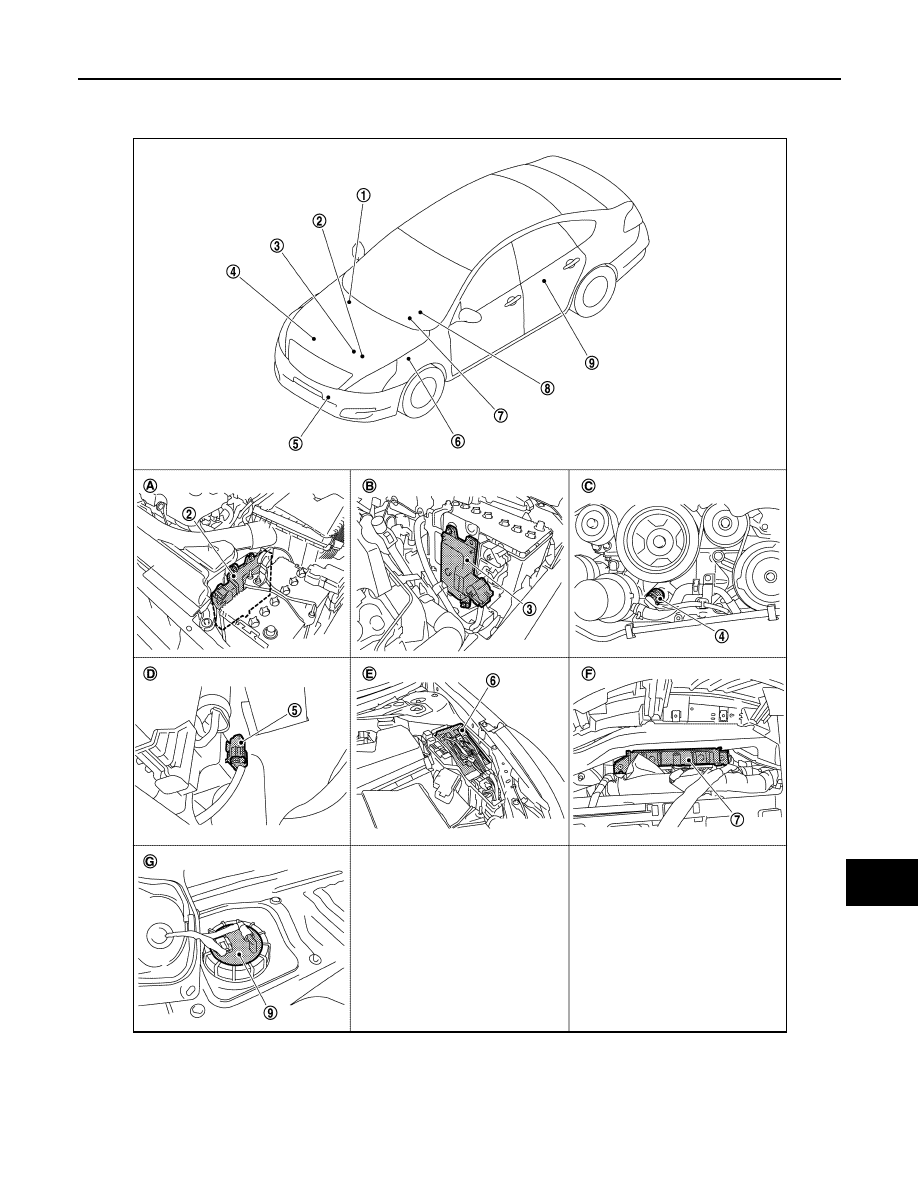

ODO/TRIP METER : Component Parts Location

INFOID:0000000003879660

1.

ABS actuator and electric unit (con-
trol unit)

2.

ECM

3.

TCM

4.

Oil pressure switch

5.

Ambient sensor

6.

IPDM E/R

7.

BCM

8.

Combination meter

9.

Fuel level sensor unit and fuel pump

A.

Engine room (LH)

B.

Engine room (LH)

C.

Engine front side

JPNIA1025ZZ

MWI-20

< FUNCTION DIAGNOSIS >

METER SYSTEM

ODO/TRIP METER : Component Description

INFOID:0000000003792530

SHIFT POSITION INDICATOR

SHIFT POSITION INDICATOR : System Diagram

INFOID:0000000003792531

SHIFT POSITION INDICATOR : System Description

INFOID:0000000003792532

• Shift position is displayed in the information display LCD in the combination meter.
• TCM transmits the shift position signal to the combination meter via CAN communication.
• The combination meter indicates shift position according to the shift position signal received via CAN com-

munication.

D.

Front bumper (left back)

E.

Engine room (LH)

F.

Behind the combination meter

G.

Lower left side of rear seat

Unit

Description

Combination meter

Converts the vehicle speed signal received from the ABS actuator and electric unit (control unit) via
CAN communication to mileage, and it displays the accumulated mileage to the odo/trip meter.

ABS actuator and electric unit
(control unit)

Transmits the vehicle speed signal to the combination meter via CAN communication.

JPNIA0745GB

MWI

METER SYSTEM

MWI-21

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SHIFT POSITION INDICATOR : Component Parts Location

INFOID:0000000003879661

1.

ABS actuator and electric unit (con-
trol unit)

2.

ECM

3.

TCM

4.

Oil pressure switch

5.

Ambient sensor

6.

IPDM E/R

7.

BCM

8.

Combination meter

9.

Fuel level sensor unit and fuel pump

A.

Engine room (LH)

B.

Engine room (LH)

C.

Engine front side

JPNIA1025ZZ

MWI-22

< FUNCTION DIAGNOSIS >

METER SYSTEM

SHIFT POSITION INDICATOR : Component Description

INFOID:0000000003792534

WARNING LAMPS/INDICATOR LAMPS

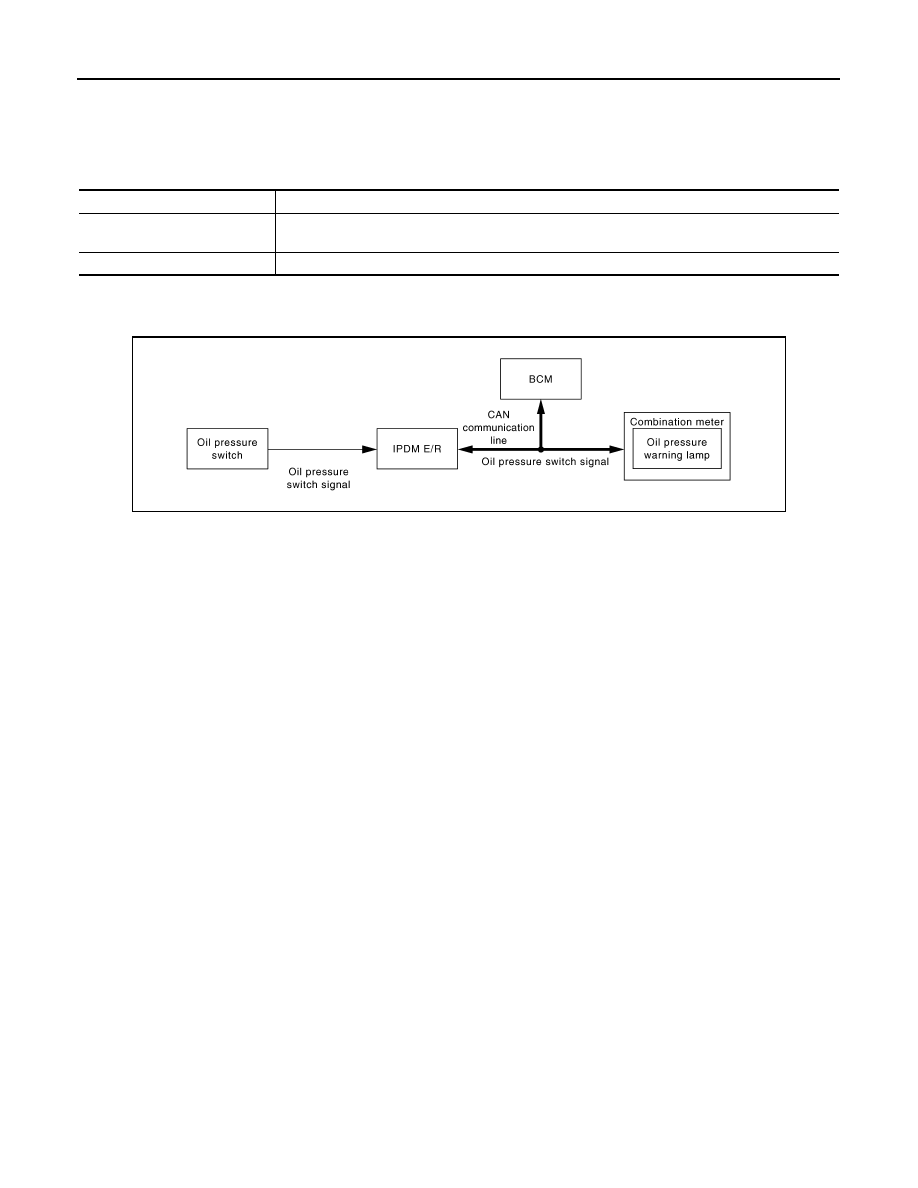

WARNING LAMPS/INDICATOR LAMPS : System Diagram

INFOID:0000000003792535

WARNING LAMPS/INDICATOR LAMPS : System Description

INFOID:0000000003792536

OIL PRESSURE WARNING LAMP

• IPDM E/R reads the ON/OFF signals from the oil pressure switch and transmits the oil pressure switch sig-

nal to the combination meter via BCM with the CAN communication line.

• The combination meter turns the oil pressure warning lamp ON/OFF according to the oil pressure switch sig-

nal received via CAN communication.

D.

Front bumper (left back)

E.

Engine room (LH)

F.

Behind the combination meter

G.

Lower left side of rear seat

Unit

Description

Combination meter

Displays the shift position on the information display with shift position signal received from TCM via
CAN communication.

TCM

Transmits shift position signal to the combination meter with CAN communication.

JSNIA0449GB
