Nissan Teana J32. Manual - part 816

MWI

METER SYSTEM

MWI-7

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

System

Description

Signal source

Meter/gauge

Speedometer

Receives vehicle speed signal and indicates vehicle speed.

ABS actuator and elec-
tric unit (control unit)

Tachometer

Receives engine speed signal and indicates engine speed.

ECM

Fuel gauge

Receives fuel level sensor signal and indicates fuel level.

Fuel level sensor unit

Engine coolant tem-
perature gauge

Receives engine coolant temperature signal and indicates coolant
temperature.

ECM

Warning lamp/
indicator lamp

Oil pressure warning
lamp

Receives oil pressure warning lamp signal and illuminates warning
lamp.

IPDM E/R

Master warning

Illuminates according to warning output on information display.

—

Information
display

Door open warning

Receives door switch signals and displays warning.

BCM

Trunk open warning

Receives trunk switch signals and displays warning.

BCM

Parking brake re-
lease warning

Receives parking brake switch signal and vehicle speed signal and
displays warnings.

Parking brake switch

ABS actuator and elec-
tric unit (control unit)

Low fuel warning

Receives fuel gauge signal and displays warning if fuel level de-

creases to 11

 (2-2/5 Imp gal) or less.

Fuel level sensor unit

Low outside tempera-
ture warning

Monitors ambient sensor signal and displays warning if ambient
temperature decreases to 3

°

C (37

°

F) or less. (If enabled)

Ambient sensor

Instantaneous fuel
consumption

Calculates instantaneous fuel consumption based on received ve-
hicle speed signals and fuel consumption monitor signal and dis-
plays it.

ECM

ABS actuator and elec-
tric unit (control unit)

Average fuel con-
sumption

Calculates average fuel consumption in a reset-to-reset interval
based on received vehicle speed signals and fuel consumption
monitor signal and displays it.

ECM

ABS actuator and elec-
tric unit (control unit)

Average vehicle
speed

Calculates average vehicle speed in a reset-to-reset interval based
on received vehicle speed signals and displays it.

ABS actuator and elec-
tric unit (control unit)

Travel time

Displays accumulated key switch ON time from reset to reset.

—

Travel distance

Calculates accumulated travel distance in a reset-to-reset interval
based on received vehicle speed signals and displays it.

ABS actuator and elec-
tric unit (control unit)

Possible driving dis-
tance

Calculates possible driving distance based on received fuel con-
sumption monitor signal, vehicle speed signals and fuel level sen-
sor signal and displays it.

ABS actuator and elec-
tric unit (control unit)

ECM

Fuel level sensor unit

Ambient air tempera-
ture

Corrects ambient air temperature value based on received ambient
sensor signals and displays it.

Ambient sensor

MWI-8

< FUNCTION DIAGNOSIS >

METER SYSTEM

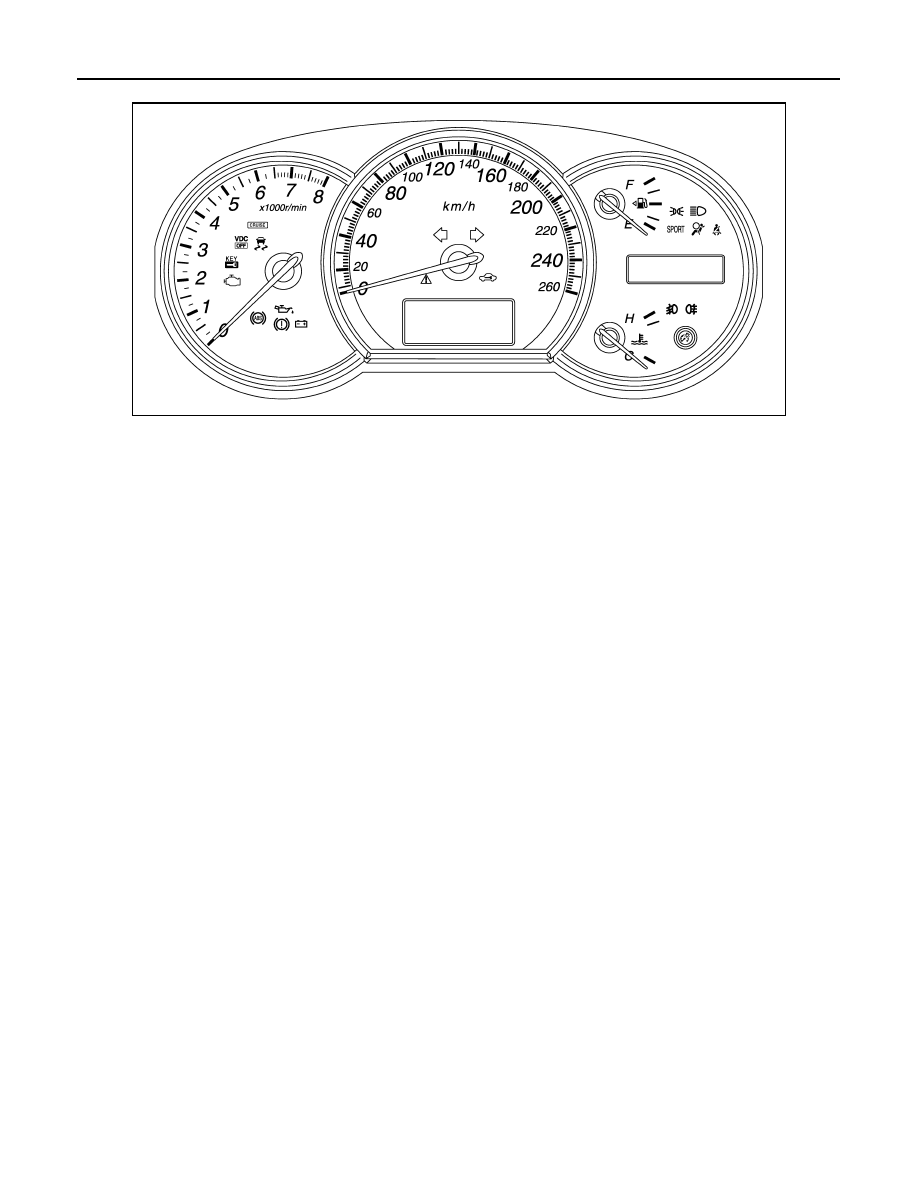

ARRANGEMENT OF COMBINATION METER

JPNIA1009ZZ

MWI

METER SYSTEM

MWI-9

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

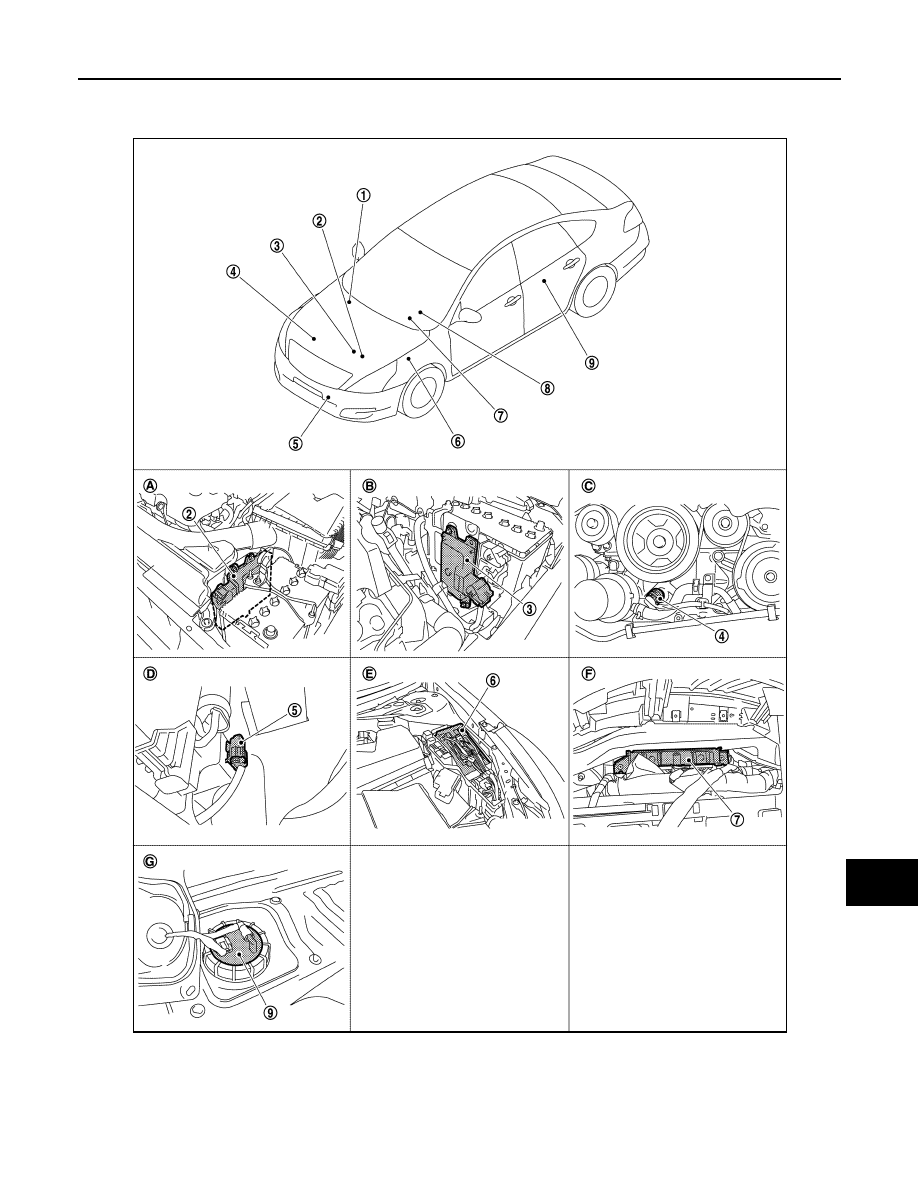

METER SYSTEM : Component Parts Location

INFOID:0000000003792509

1.

ABS actuator and electric unit (con-
trol unit)

2.

ECM

3.

TCM

4.

Oil pressure switch

5.

Ambient sensor

6.

IPDM E/R

7.

BCM

8.

Combination meter

9.

Fuel level sensor unit and fuel pump

A.

Engine room (LH)

B.

Engine room (LH)

C.

Engine front side

JPNIA1025ZZ

MWI-10

< FUNCTION DIAGNOSIS >

METER SYSTEM

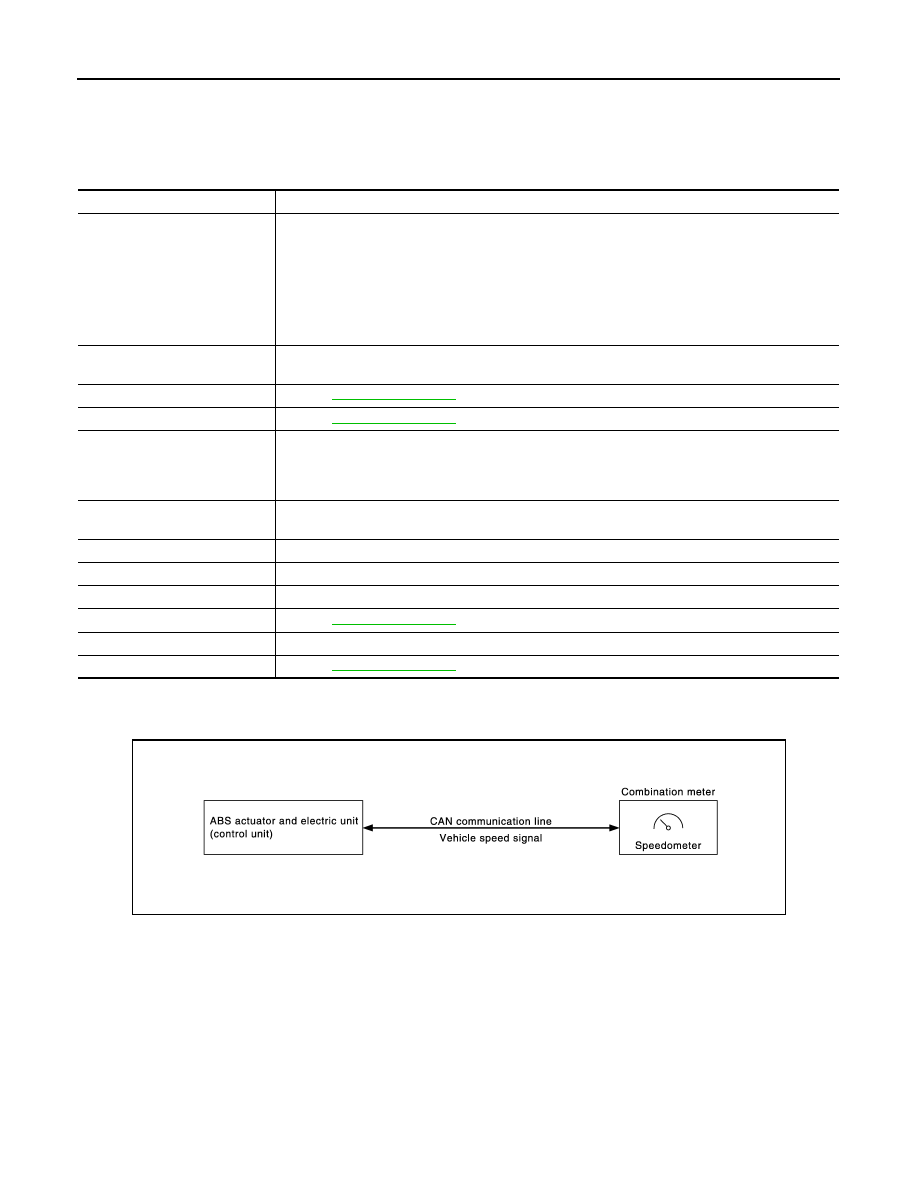

METER SYSTEM : Component Description

INFOID:0000000003792510

SPEEDOMETER

SPEEDOMETER : System Diagram

INFOID:0000000003792511

SPEEDOMETER : System Description

INFOID:0000000003792512

• The ABS actuator and electric unit (control unit) converts the rectangular wave signal provided by the wheel

sensor to a vehicle speed signal and transmits it to the combination meter via CAN communication.

• The combination meter indicates the vehicle speed to the speedometer according to the vehicle speed sig-

nal received via CAN communication.

D.

Front bumper (left back)

E.

Engine room (LH)

F.

Behind the combination meter

G.

Lower left side of rear seat

Unit

Description

Combination meter

Controls the following with the signals received from each unit via CAN communication and the sig-
nals from switches and sensors.

• Speedometer

• Tachometer

• Engine coolant temperature gauge

• Fuel gauge

• Warning lamps

• Indicator lamps

• Information display

IPDM E/R

IPDM E/R reads the ON/OFF signals of the oil pressure switch and transmits the oil pressure switch
signal to the combination meter via BCM with CAN communication line.

Fuel level sensor unit

Refer to

MWI-45, "Description"

.

Oil pressure switch

Refer to

MWI-50, "Description"

.

ECM

Transmits the following signals to the combination meter with CAN communication line.

• Engine speed signal

• Engine coolant temperature signal

• Fuel consumption monitor signal

ABS actuator and electric unit
(control unit)

Transmits the vehicle speed signal to the combination meter with CAN communication line.

BCM

Transmits signals provided by various units to the combination meter with CAN communication line.

Control device

Transmits the sport mode switch signal to the combination meter.

TCM

Transmits the shift position signal to the combination meter with CAN communication line.

Meter control switch

Refer to

MWI-48, "Description"

.

Brake fluid level switch

Transmits the brake fluid level switch signal to the combination meter.

Parking brake switch

Refer to

MWI-52, "Description"

.

JPNIA1012GB
