Diagnosis Procedure .............................................

121

THE TRUNK OPEN WARNING CONTINUES
DISPLAYING, OR DOES NOT DISPLAY  ........

122

Description ............................................................

122

Diagnosis Procedure .............................................

122

THE AMBIENT TEMPERATURE DISPLAY IS
INCORRECT .....................................................

123

Description ............................................................

123

Diagnosis Procedure .............................................

123

NORMAL OPERATING CONDITION ...............

124

INFORMATION DISPLAY  .......................................

124

INFORMATION DISPLAY : Description ................

124

PRECAUTION ............................................

125

PRECAUTIONS ...............................................

125

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...............................................................

125

ON-VEHICLE REPAIR ...............................

126

COMBINATION METER  .................................

126

Exploded View .......................................................

126

Removal and Installation  .......................................

126

Disassembly and Assembly ...................................

126

METER CONTROL SWITCH  ..........................

127

Exploded View .......................................................

127

Removal and Installation  .......................................

127

MWI-4

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work flow

INFOID:0000000003792506

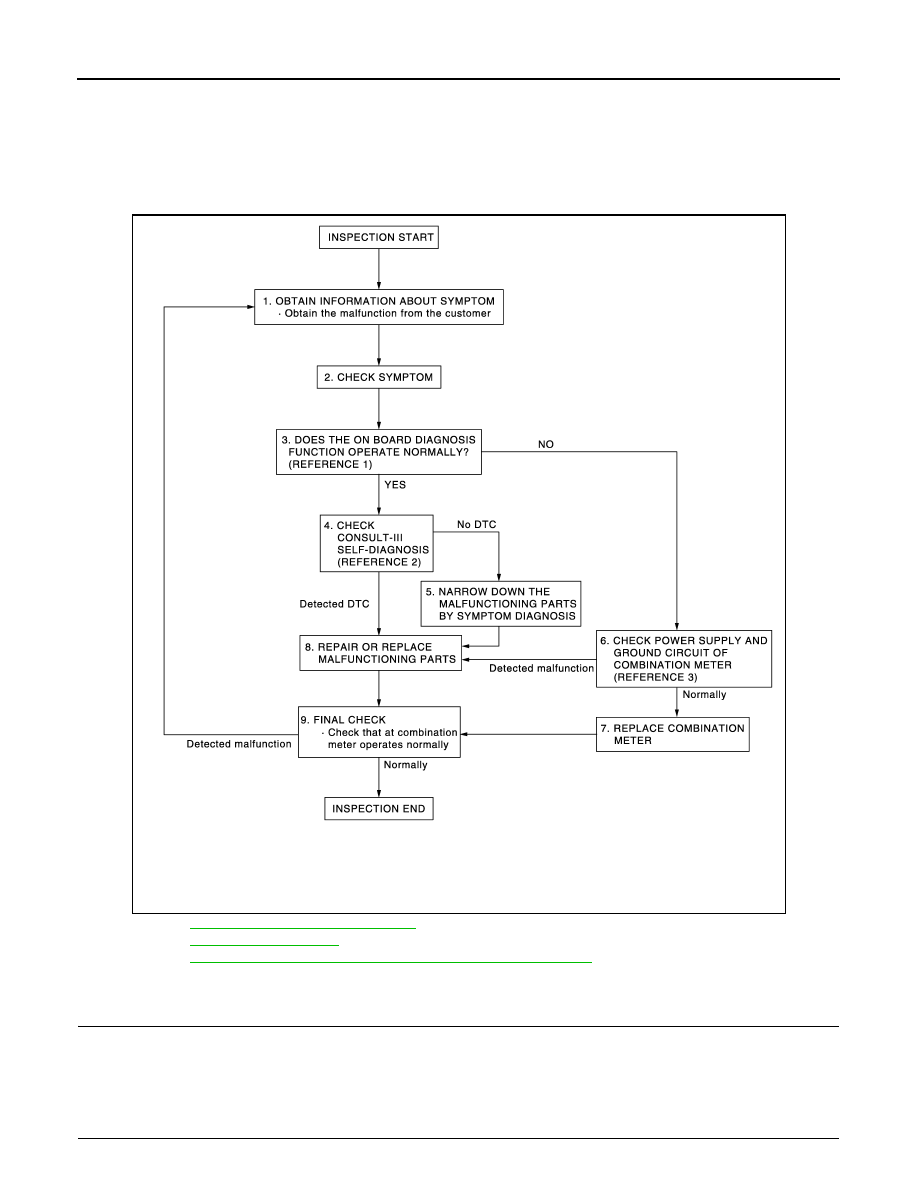

OVERALL SEQUENCE

• Reference 1···

MWI-32, "Diagnosis Description"

.

• Reference 2···

MWI-67, "DTC Index"

.

• Reference 3···

MWI-42, "COMBINATION METER : Diagnosis Procedure"

.

DETAILED FLOW

1.

OBTAIN INFORMATION ABOUT SYMPTOM

Interview the customer to obtain as much information as possible about the conditions and environment under
which the malfunction occurred.

>> GO TO 2.

2.

CHECK SYMPTOM

JSNIA0542GB

MWI

DIAGNOSIS AND REPAIR WORKFLOW

MWI-5

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

• Check the symptom based on the information obtained from the customer.
• Check that any other malfunctions are present.

>> GO TO 3.

3.

CHECK ON BOARD DIAGNOSIS OPERATION

Check that the on board diagnosis function operates. Refer to

MWI-32, "Diagnosis Description"

.

Does the on board diagnosis function operate normally?

YES

>> GO TO 4.

NO

>> GO TO 6.

4.

CHECK CONSULT-III SELF-DIAGNOSIS RESULTS

Connect CONSULT-III and perform self-diagnosis. Refer to

MWI-33, "CONSULT-III Function (METER/M&A)"

.

Are self-diagnosis results normal?

YES

>> GO TO 5.

NO

>> GO TO 8.

5.

NARROW DOWN THE MALFUNCTIONING PARTS BY SYMPTOM DIAGNOSIS

Perform symptom diagnosis and narrow down the malfunctioning parts.

>> GO TO 7.

6.

CHECK COMBINATION METER POWER SUPPLY AND GROUND CIRCUITS

Inspect combination meter power supply and ground circuits. Refer to

MWI-42, "COMBINATION METER :

Diagnosis Procedure"

.

Is inspection result OK?

YES

>> GO TO 7.

NO

>> GO TO 8.

7.

REPLACE COMBINATION METER

Replace combination meter.

>> GO TO 9.

8.

REPAIR OR REPLACE MALFUNCTIONING PARTS

Repair or replace the malfunctioning parts.
NOTE:
If DTC is displayed, erase DTC after repair or replace malfunctioning parts.

>> GO TO 9.

9.

FINAL CHECK

Check that the combination meter operates normally.

Do they operate normally?

YES

>> INSPECTION END

NO

>> GO TO 1.

MWI-6

< FUNCTION DIAGNOSIS >

METER SYSTEM

FUNCTION DIAGNOSIS

METER SYSTEM

METER SYSTEM

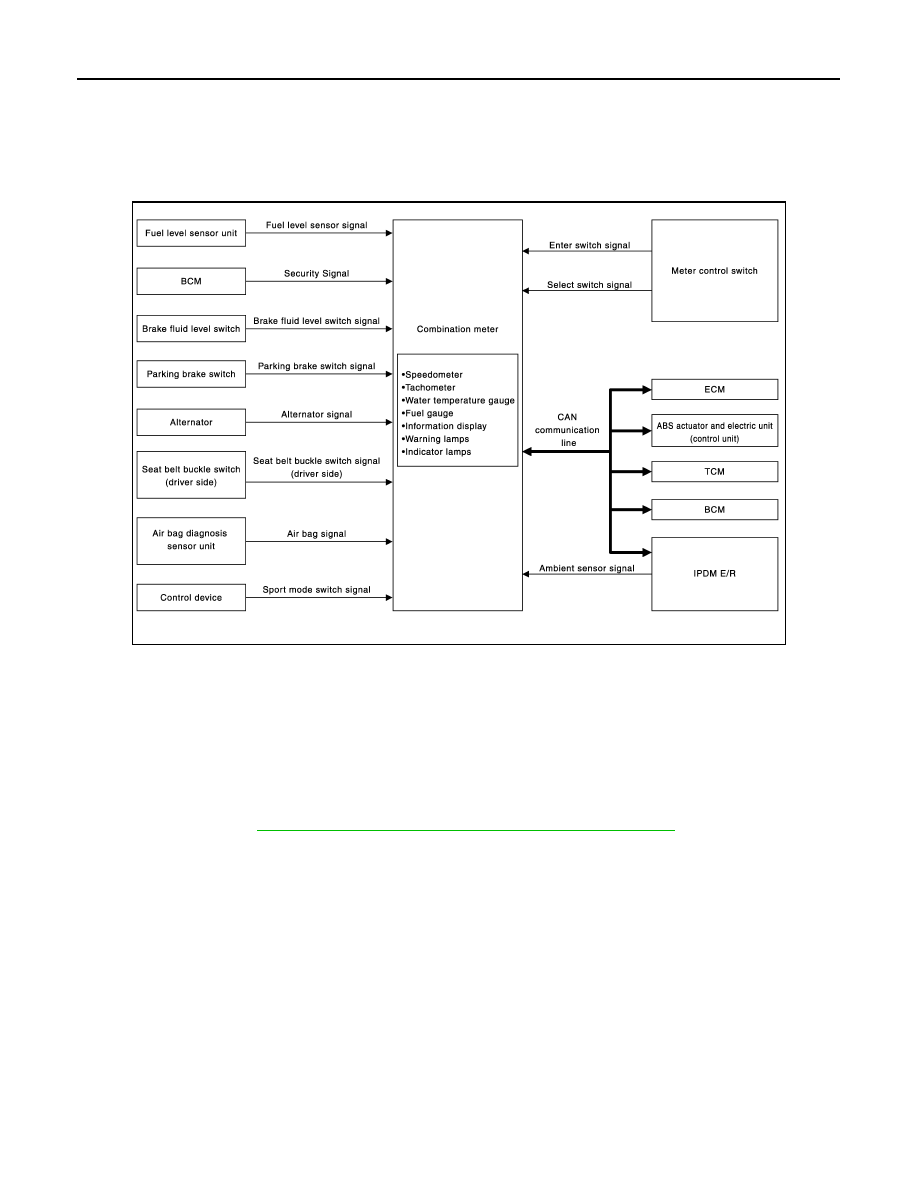

METER SYSTEM : System Diagram

INFOID:0000000003792507

METER SYSTEM : System Description

INFOID:0000000003792508

COMBINATION METER

• The combination meter receives the information required to control the operation of each gauge, indicator/

warning lamp, and information display via CAN communication from each unit, each switch, and sensor.

• The combination meter incorporates a trip computer that displays warnings and messages on the informa-

tion display according to the information received from various units.

• The combination meter incorporates a buzzer function that sounds an audible alarm with the integrated

buzzer device. Refer to

WCS-5, "WARNING CHIME SYSTEM : System Description"

 for further details.

• The combination meter integrates the meter circuit check function and the segment check function that

checks the information display operation.

IPDM E/R

• IPDM E/R reads the ON/OFF signals of the oil pressure switch and transmits the oil pressure switch signal to

the combination meter via BCM with the CAN communication line.

• IPDM E/R is equipped with the diagnosis function. It can perform the operation check of oil pressure warning

lamp with the auto active test and the diagnosis with CONSULT-III.

METER CONTROL FUNCTION LIST

JPNIA1011GB
