Nissan Teana J32. Manual - part 743

INL-90

< ON-VEHICLE REPAIR >

MOOD LAMP

MOOD LAMP

MAP LAMP

MAP LAMP : Exploded View

INFOID:0000000003838126

Mood lamp (map lamp) is integrated into the map lamp assembly. Refer to

INL-89, "Exploded View"

.

FRONT DOOR GRIP

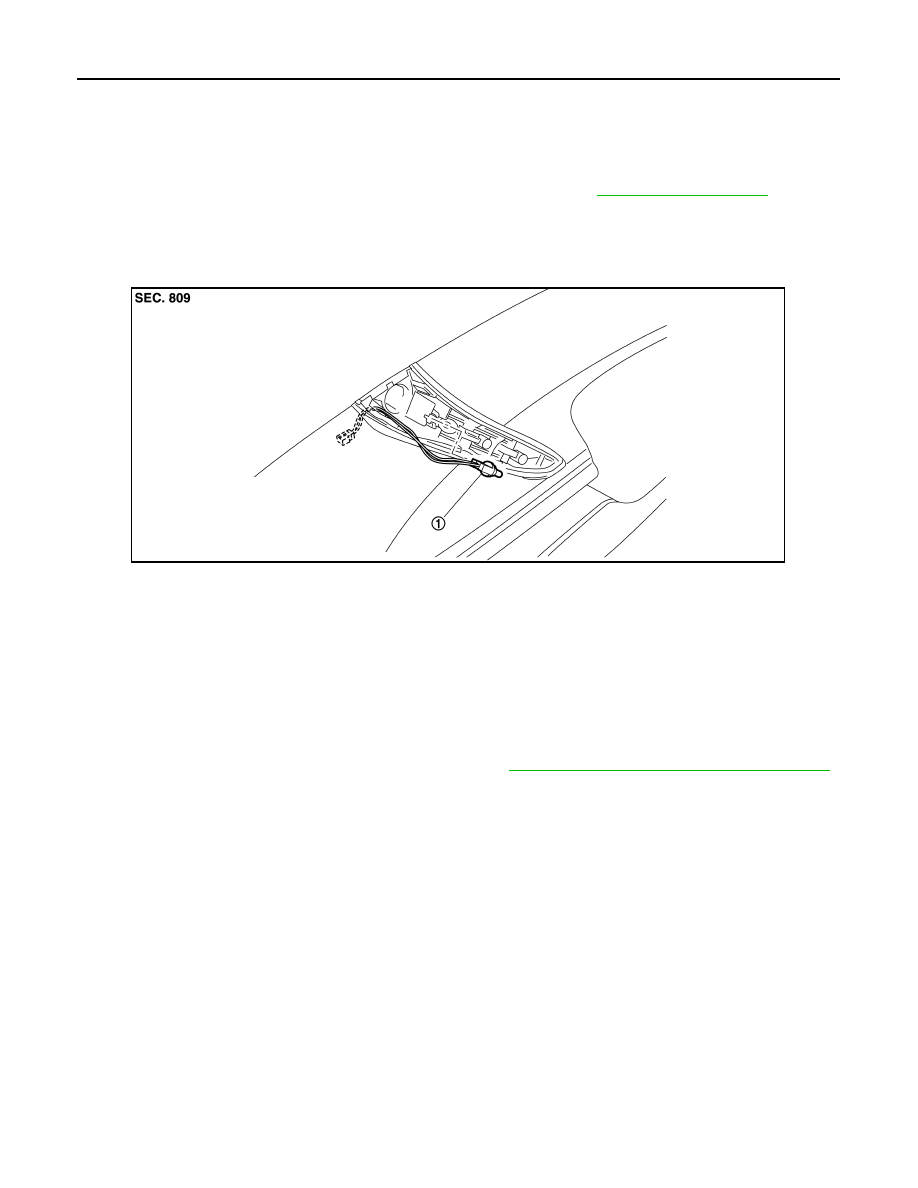

FRONT DOOR GRIP : Exploded View

INFOID:0000000003838122

NOTE:
Only passenger side

FRONT DOOR GRIP : Replacement

INFOID:0000000003838123

CAUTION:

Disconnect the battery negative terminal or remove the fuse.

MOOD LAMP (FRONT DOOR GRIP)

1.

Remove the front door finisher (passenger side). Refer to

INT-33, "PASSENGER SIDE : Exploded View"

.

2.

Remove the mood lamp (front door grip) from the front door finisher (passenger side).

REAR DOOR GRIP

1.

Mood lamp (front door grip)

JPLIA1114ZZ

MOOD LAMP

INL-91

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

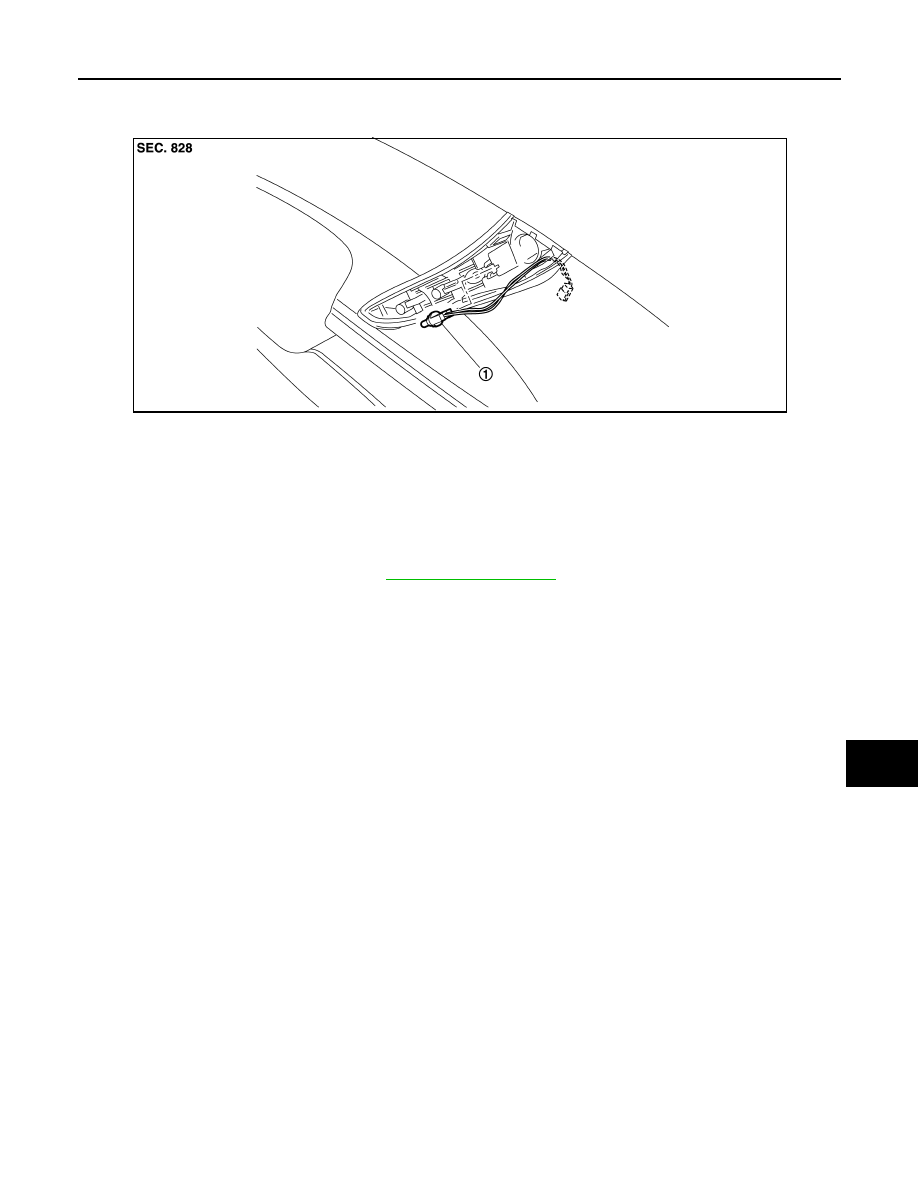

REAR DOOR GRIP : Exploded View

INFOID:0000000003838124

REAR DOOR GRIP : Replacement

INFOID:0000000003838125

CAUTION:

Disconnect the battery negative terminal or remove the fuse.

MOOD LAMP (REAR DOOR GRIP)

1.

Remove the rear door finisher. Refer to

INT-36, "Exploded View"

.

2.

Remove the mood lamp (rear door grip) from the rear door finisher.

1.

Mood lamp (rear door grip)

JPLIA1115ZZ

INL-92

< ON-VEHICLE REPAIR >

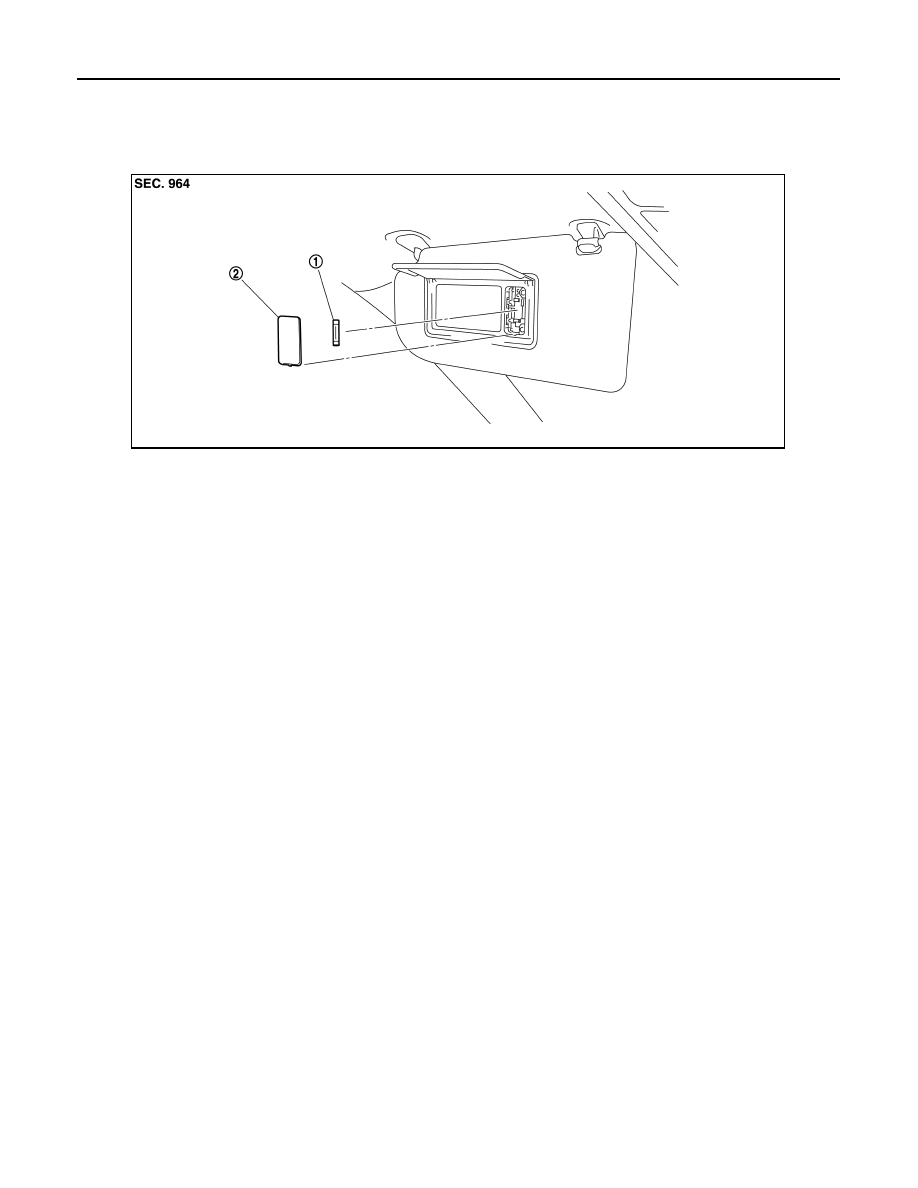

VANITY MIRROR LAMP

VANITY MIRROR LAMP

Exploded View

INFOID:0000000003774587

Replacement

INFOID:0000000003774588

CAUTION:

• Disconnect the battery negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.

Never touch bulb by hand while it is lit or right after being turned off.

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

VANITY MIRROR LAMP BULB

1.

Insert any appropriate tool into the gap between the lens. Remove the lens.

2.

Remove the bulb.

1.

Bulb

2.

Lens

JPLIA1107ZZ

ASHTRAY ILLUMINATION

INL-93

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

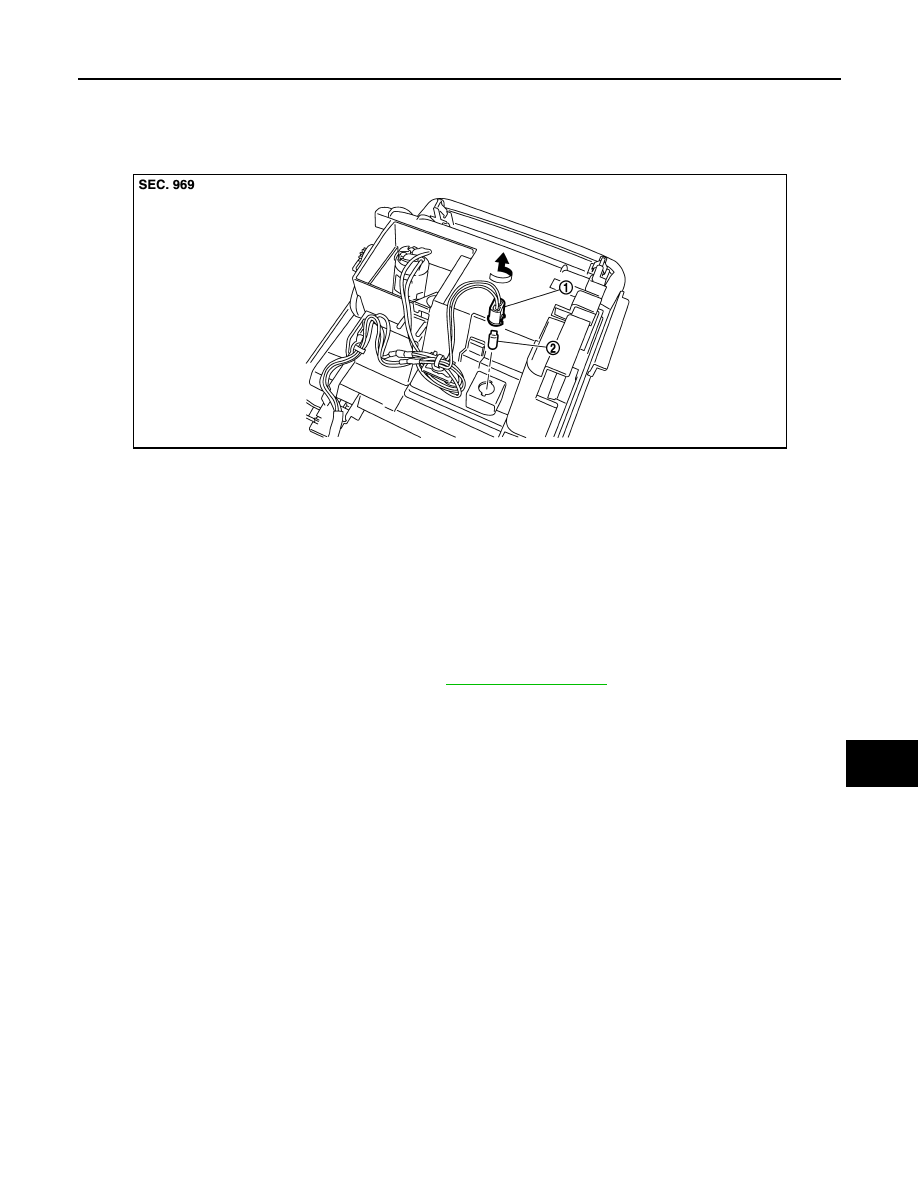

ASHTRAY ILLUMINATION

Exploded View

INFOID:0000000003774591

Replacement

INFOID:0000000003774592

CAUTION:

• Disconnect the battery negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.

Never touch bulb by hand while it is lit or right after being turned off.

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

ASHTRAY ILLUMINATION BULB

1.

Remove the console finisher assembly. Refer to

IP-22, "Exploded View"

.

2.

Rotate the bulb socket counterclockwise and unlock it.

3.

Remove the bulb.

1.

Bulb socket

2.

Bulb

JPLIA1183ZZ
