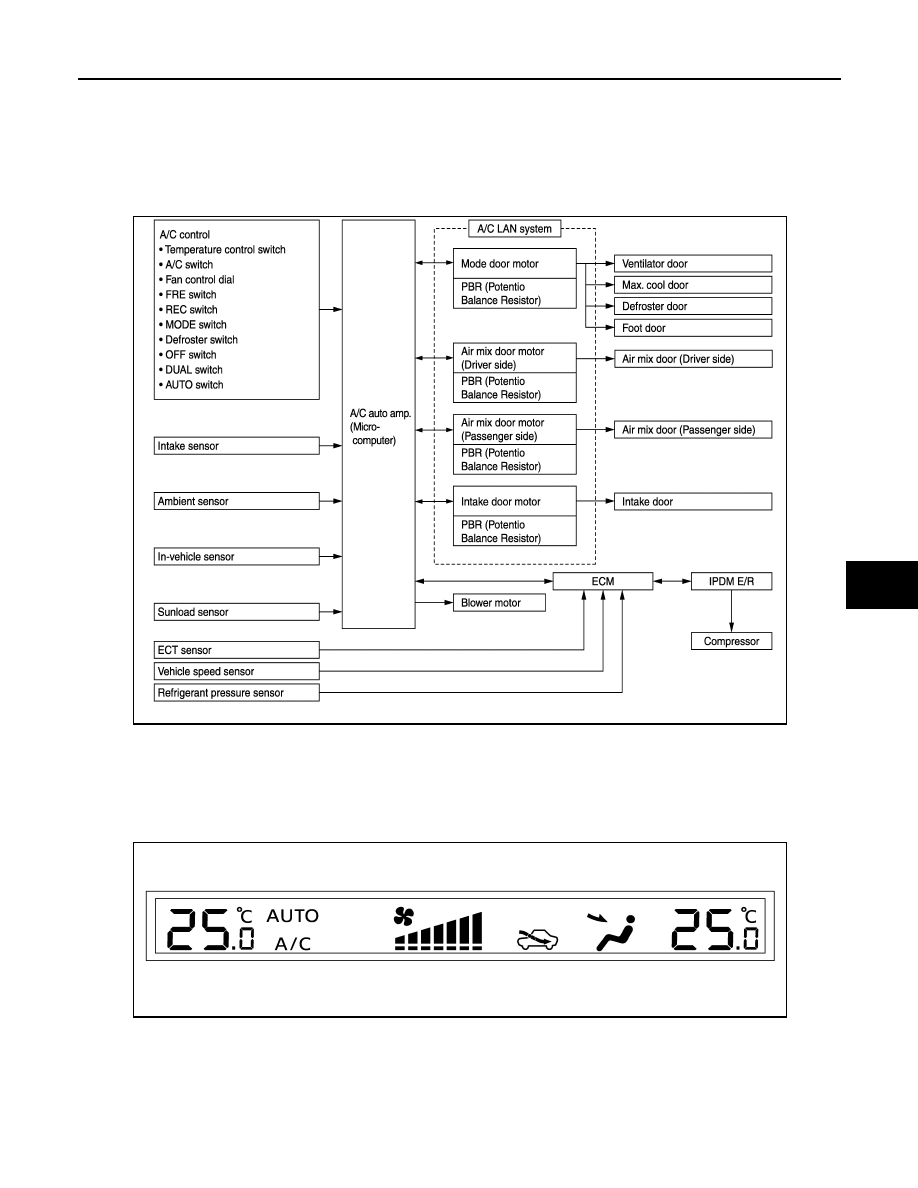

AUTOMATIC AIR CONDITIONER SYSTEM HAC-17 < FUNCTION DIAGNOSIS > [WITHOUT 7 INCH DISPLAY] C D E F G H J K L M A B HAC N O P AUTOMATIC AIR CONDITIONER SYSTEM System Diagram INFOID:0000000003846301 CONTROL SYSTEM The control system consists of input sensors, switches, the A/C auto amp. (microcomputer) and outputs. The System Description INFOID:0000000003846302 CONTROL OPERATION Display The operation status of the system is displayed on the screen. JPIIA0878GB JPIIA0879ZZ |
