Fail-Safe

INFOID:0000000003901219

FAIL-SAFE FUNCTION

If a communication error exists between the A/C auto amp. and A/C control for 30 seconds or longer, air con-
ditioner is controlled under the following conditions:

Component Part Location

INFOID:0000000003846299

ENGINE COMPARTMENT

Compressor

: ON

Air outlet

: AUTO

Air inlet

: FRE (Fresh)

Blower fan speed

: AUTO

Set temperature

: Setting before communication error occurs

HAC-14

< FUNCTION DIAGNOSIS >

[WITHOUT 7 INCH DISPLAY]

COMPRESSOR CONTROL FUNCTION

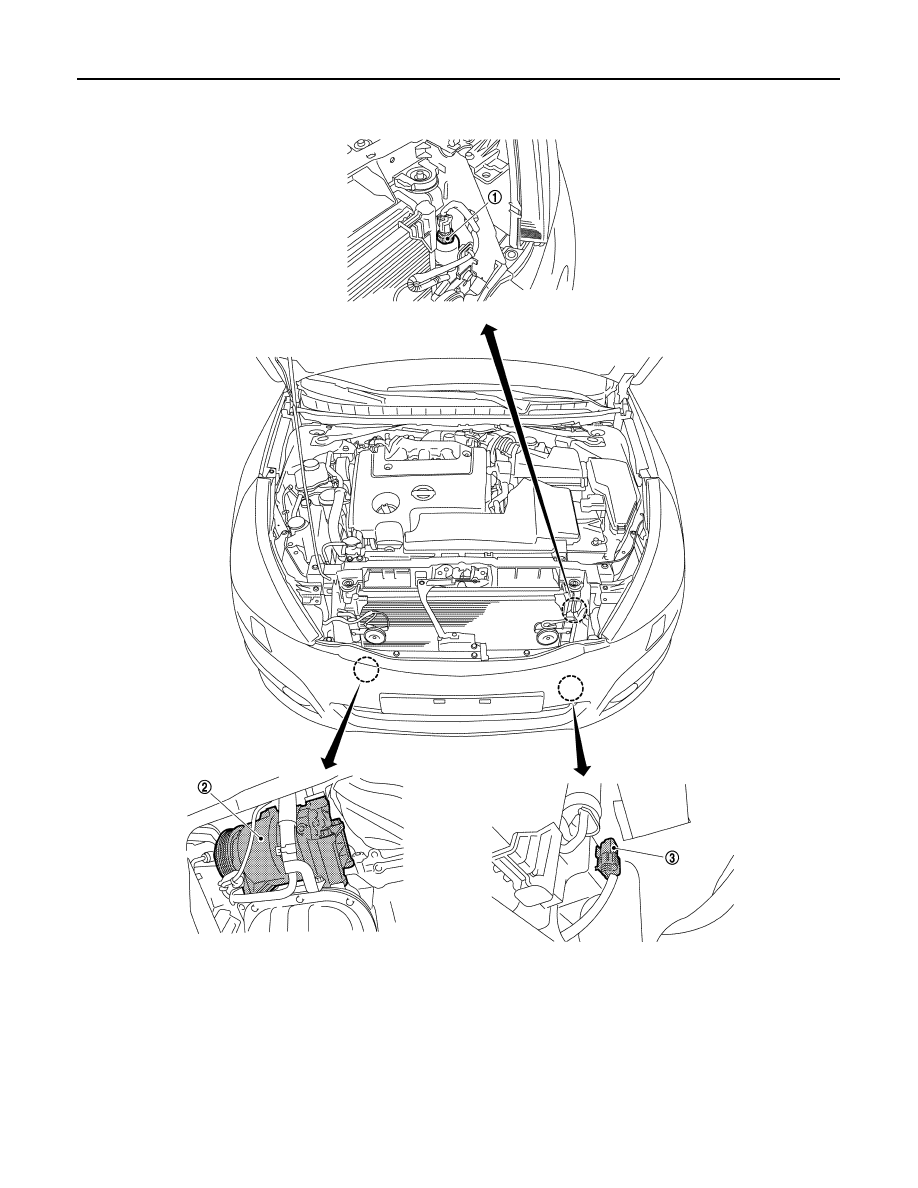

PASSENGER COMPARTMENT

1.

Refrigerant pressure sensor

2.

Compressor (magnet clutch)

3.

Ambient sensor

JPIIA0992ZZ

COMPRESSOR CONTROL FUNCTION

HAC-15

< FUNCTION DIAGNOSIS >

[WITHOUT 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

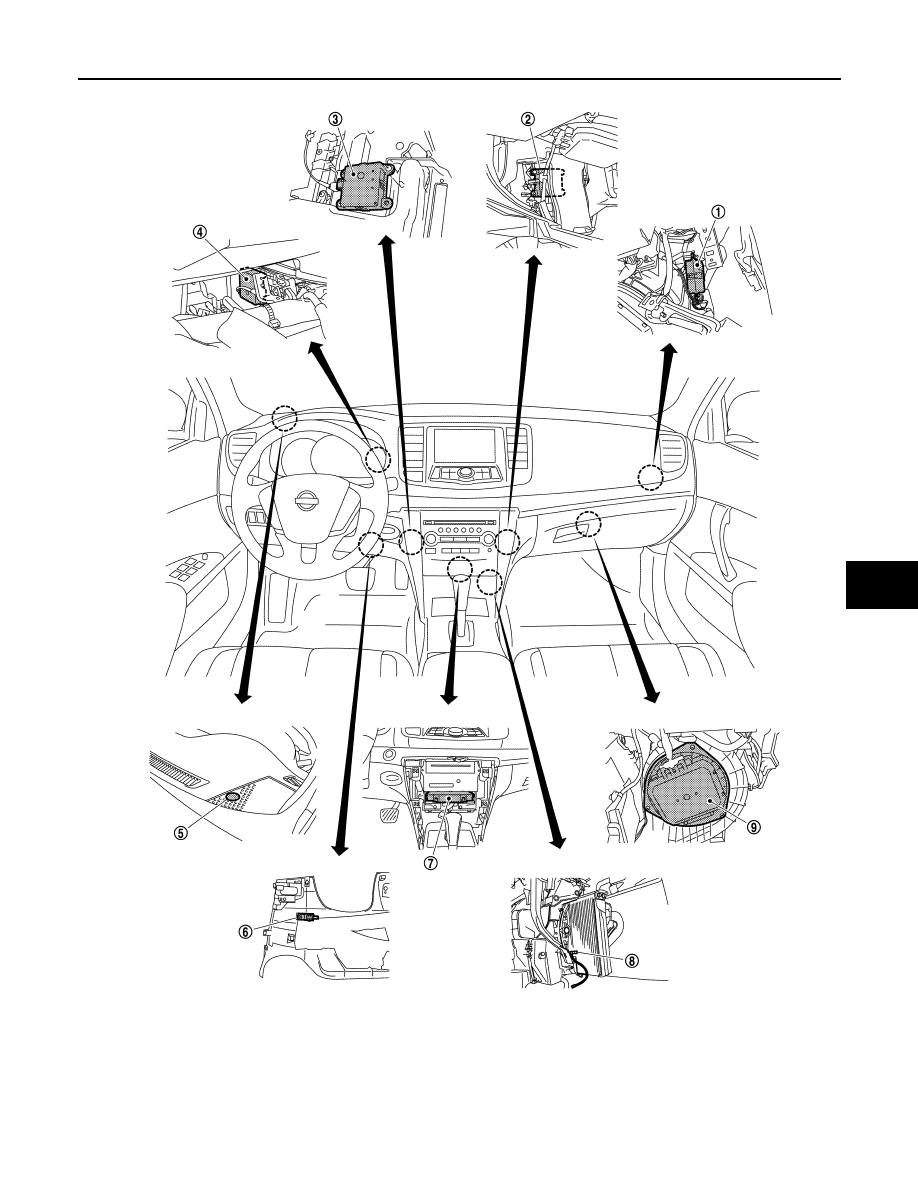

Component’s Role

INFOID:0000000003846300

1.

Intake door motor

2.

Air mix door motor (passenger side)

3.

Air mix door motor (driver side)

4.

Mode door motor

5.

Sunload sensor

6.

In-vehicle sensor

7.

A/C auto amp.

8.

Intake sensor

9.

Blower motor

JPIIA0997ZZ

HAC-16

< FUNCTION DIAGNOSIS >

[WITHOUT 7 INCH DISPLAY]

COMPRESSOR CONTROL FUNCTION

Component

Description

Refrigerant pressure sensor

EC-348, "Description"

Compressor

HAC-72, "Description"

Ambient sensor

HAC-44, "Description"

Intake door motor

HAC-63, "Description"

Air mix door motor (driver side)

HAC-56, "Description"

Air mix door motor (passenger side)

HAC-58, "Description"

Mode door motor

HAC-60, "Description"

Sunload sensor

HAC-53, "Description"

In-vehicle sensor

HAC-47, "Description"

A/C auto amp.

HAC-67, "Description"

Intake sensor

HAC-50, "Description"

Blower motor

HAC-68, "Description"
