GW-10

< ON-VEHICLE REPAIR >

WINDSHIELD GLASS

ON-VEHICLE REPAIR

WINDSHIELD GLASS

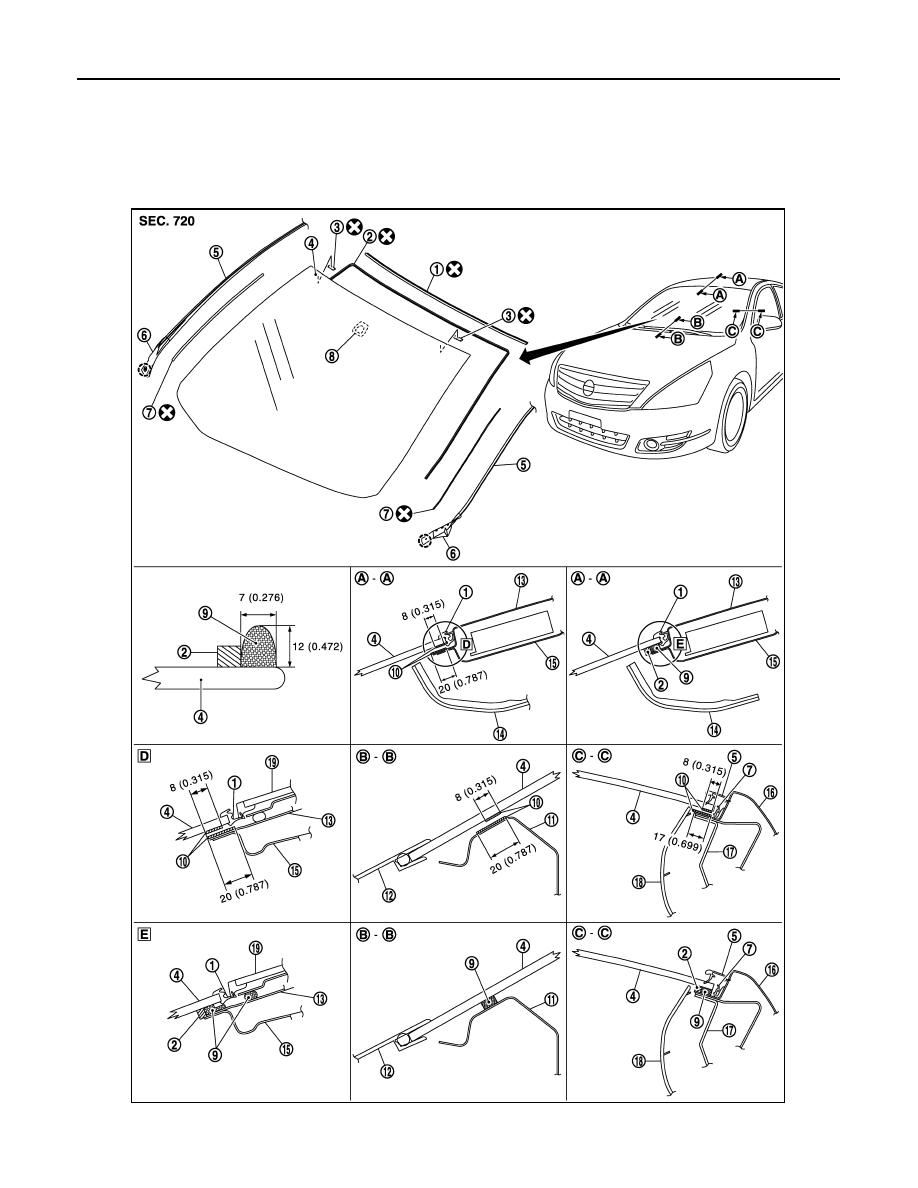

Exploded View

INFOID:0000000003825397

JMKIA2306GB

WINDSHIELD GLASS

GW-11

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

Removal and Installation

INFOID:0000000003825398

REMOVAL

1.

Remove front pillar garnish (LH/RH). Refer to

INT-39, "Removal and Installation"

.

2.

Remove partially headlining (front edge). Refer to

INT-50, "NORMAL ROOF : Removal and Installation"

for normal roof or

INT-54, "SUNROOF : Removal and Installation"

 for sunroof.

3.

Remove front wiper arms (LH/RH). Refer to

WW-105, "Removal and Installation"

.

4.

Remove front fender cover (LH/RH). Refer to

DLK-199, "Exploded View"

.

5.

Remove cowl top cover. Refer to

EXT-20, "Removal and Installation"

.

6.

Remove roof side molding (LH/RH). Refer to

EXT-29, "Removal and Installation"

.

7.

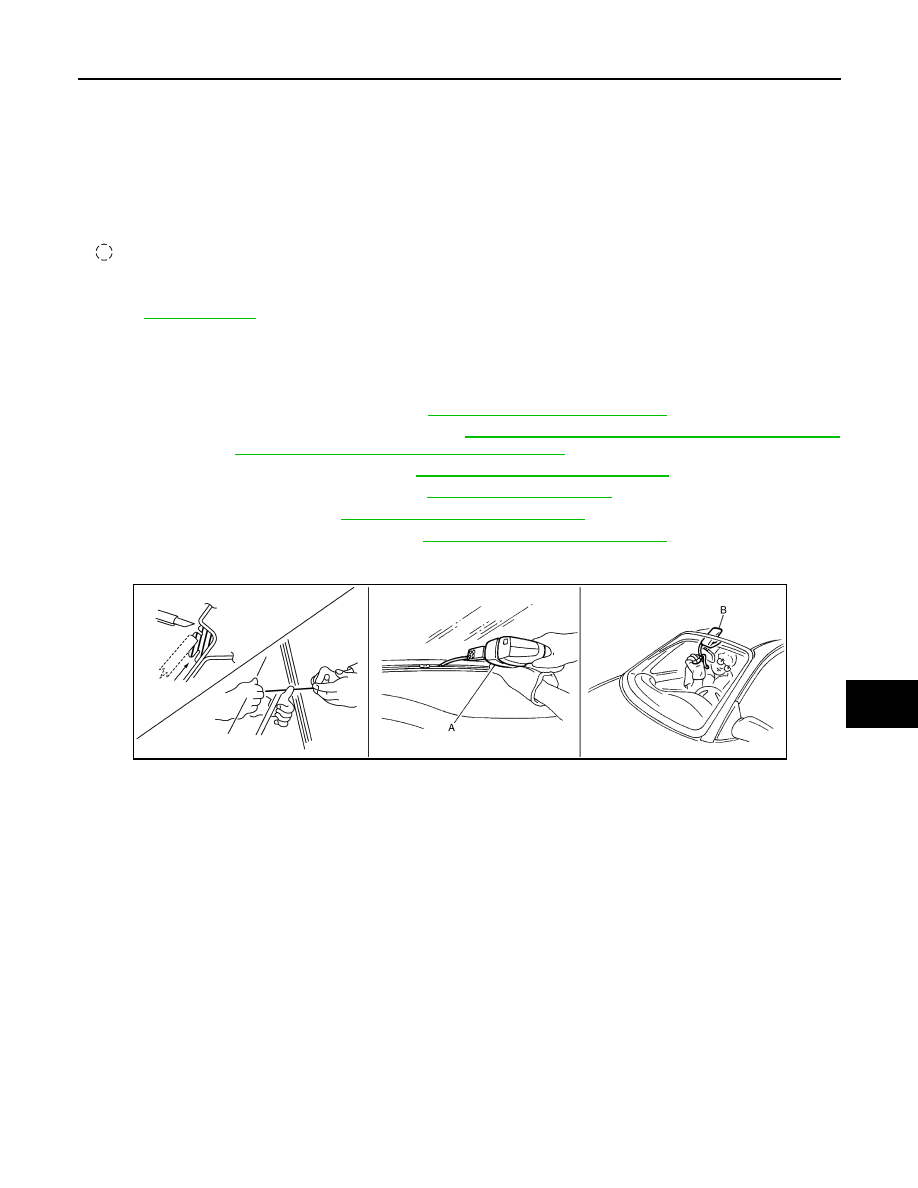

Remove glass using piano wire or power cutting tool (A) and an inflatable pump bag (B) after removing
moldings.

NOTE:
Mark the body and the glass with matching marks if the windshield glass is reused.

WARNING:

Always wear safety glasses and heavy gloves to prevent injury.

CAUTION:

• Never use a cutting knife or power cutting tool when the windshield glass is reused.
• Be careful not to scratch the glass when removing.
• Never set or stand the glass on its edge. Small chips may develop into cracks.

INSTALLATION

• The dam sealant rubber should be installed in position.
• Use a genuine Nissan Urethane Adhesive Kit (if available) or equivalent and follow the instructions provided

with it.

• Open a door window while the urethane adhesive is curing. This prevents the glass from being forced out by

passenger compartment air pressure when all door windows are closed.

• The molding must be installed securely so that it is in position and leaves no clearance.
• Inform the customer that the vehicle should remain stationary until the urethane adhesive has completely

cured (approximately 24 hours). Curing time varies with temperature and humidity.

WARNING:

• Keep heat and open flames away as primers and adhesive are flammable.
• The materials contained in the kit are harmful if swallowed, and may irritate skin and eyes. Never let

them come in contact with skin or eyes.

1.

Windshield molding (upper)

2.

Dam sealant rubber

3.

Spacer (LH/RH)

4.

Windshield glass assembly

5.

Roof side molding (LH/RH)

6.

Front fender cover

7.

Roof side molding fastener

8.

Mirror base

9.

Adhesive

10.

Primer

11.

Cowl top center

12. Cowl top cover

13.

Roof

14. Headlining assembly

15. Front roof rail

16.

Body side outer

17. Front pillar inner upper

18. Front pillar garnish

19.

Front sunroof glass

: Clip

Unit

: mm (in)

Note

: D and E on the exploded view are sections of sunroof models.

Refer to

GI-4, "Components"

 for symbols in the figure.

PIIB5779E

GW-12

< ON-VEHICLE REPAIR >

WINDSHIELD GLASS

• Use in an open, well ventilated location. Never breathe the vapors. They may be harmful if inhaled.

Move immediately to an area with fresh air if affected by vapor inhalation.

• Driving the vehicle before the urethane adhesive has completely cured may affect the performance

of the windshield in case of an accident.

CAUTION:

• Perform adjustment of front wiper arms stop location. Refer to

WW-105, "Adjustment"

.

• Never use an adhesive which is past its usable term. Shelf life of this product is limited to six months

after the date of manufacture. Carefully adhere to the expiration or manufacture date printed on the
box.

• Keep primers and adhesive in a cool, dry place. Ideally, they should be stored in a refrigerator.
• Never leave primers or adhesive cartridge unattended with their caps open or off.
• Never drive the vehicle within 24 hours or until the urethane adhesive has completely cured. Curing

time varies depending on temperature and humidity. The curing time increases under lower temper-
ature and lower humidity.

Inspection

INFOID:0000000003825399

REPAIRING WATER LEAKAGE FOR WINDSHIELD

Leakage can be repaired without removing the glass.
Determine the extent of leakage if water is leaking between the urethane adhesive material and body or glass.
This can be done by applying water to the windshield area while pushing glass outward.
Apply primer (if necessary) and then urethane adhesive to the leakage point to stop the leakage.

SIDE WINDOW GLASS

GW-13

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

SIDE WINDOW GLASS

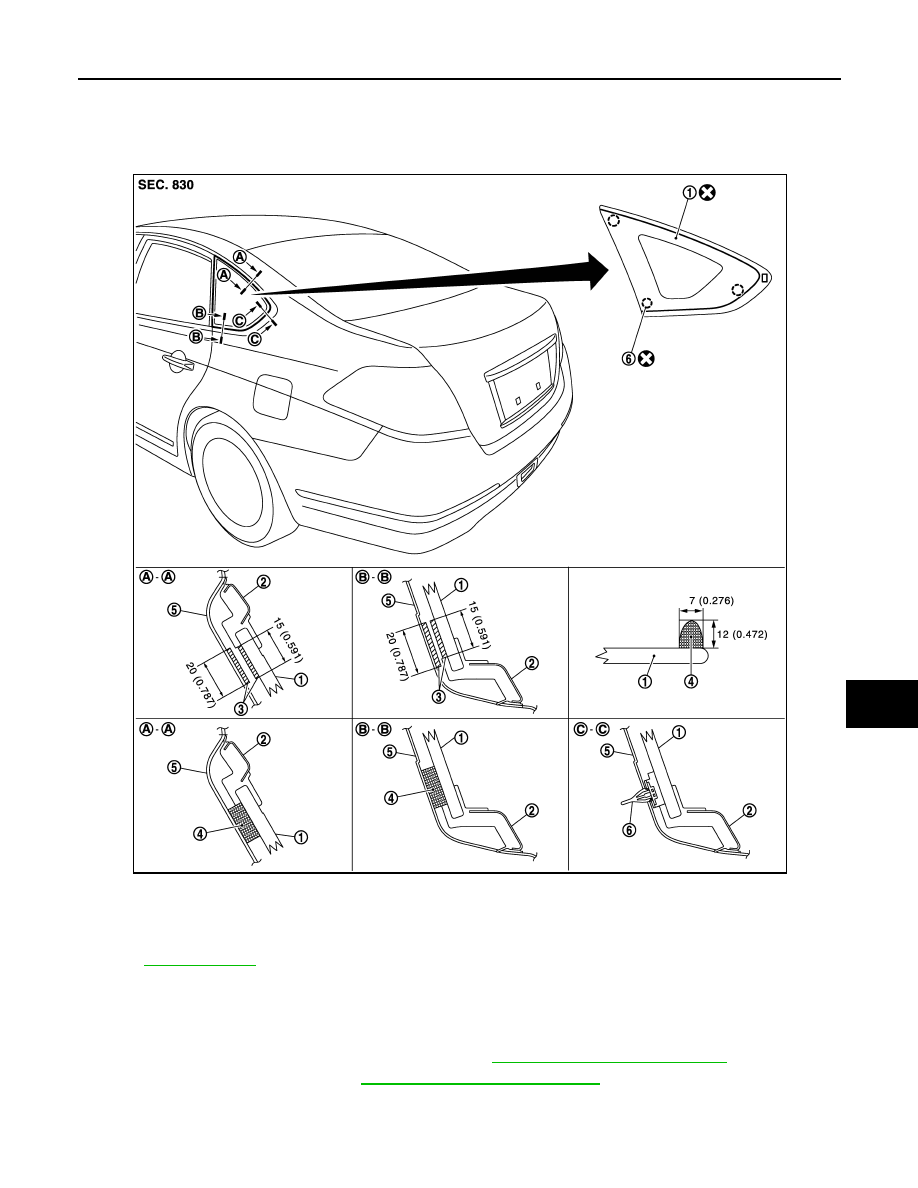

Exploded View

INFOID:0000000003825400

Removal and Installation

INFOID:0000000003825401

REMOVAL

1.

Remove rear seatback and rear seat cushion. Refer to

SE-99, "Removal and Installation"

.

2.

Remove rear pillar finisher. Refer to

INT-39, "Removal and Installation"

.

3.

Apply protective tape around the side window to protect the painted surface from damage.

4.

Remove side window glass using piano wire.

1.

Side window glass

2.

Side window glass assembly

3.

Primer

4.

Adhesive

5.

Body side outer

6.

Clip

Unit

: mm (in)

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA2308GB
