Nissan Teana J32. Manual - part 619





FSU-1

SUSPENSION

C

D

F

G

H

I

J

K

L

M

SECTION

FSU

A

B

FSU

N

O

P

CONTENTS

FRONT SUSPENSION

SYMPTOM DIAGNOSIS  ...............................

2

NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING  .............................

2

NVH Troubleshooting Chart  ......................................

2

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

3

Precaution Necessary for Steering Wheel Rota-
tion after Battery Disconnect  ...................................
..

3

Precaution for Procedure without Cowl Top Cover

......

4

Precautions for Suspension  ......................................

4

PREPARATION ............................................

5

PREPARATION ...................................................

5

Special Service Tool  .................................................

5

Commercial Service Tool  ..........................................

5

ON-VEHICLE MAINTENANCE .....................

6

FRONT SUSPENSION ASSEMBLY  ...................

6

Inspection ..................................................................

6

WHEEL ALIGNMENT ..........................................

7

Wheel Alignment Inspection ......................................

7

ON-VEHICLE REPAIR ..................................

9

FRONT COIL SPRING AND STRUT  .................

9

Exploded View ..........................................................

9

Removal and Installation  ..........................................

9

Disassembly and Assembly .....................................

10

Inspection ................................................................

11

TRANSVERSE LINK .........................................

12

Exploded View .........................................................

12

Removal and Installation  .........................................

12

Inspection ................................................................

12

FRONT STABILIZER  ........................................

14

Exploded View .........................................................

14

Removal and Installation  .........................................

14

Inspection ................................................................

15

REMOVAL AND INSTALLATION  ...............

16

FRONT SUSPENSION MEMBER .....................

16

Exploded View .........................................................

16

Removal and Installation  .........................................

16

Inspection ................................................................

17

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

18

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

18

Wheel Alignment  .....................................................

18

Ball Joint  ..................................................................

18

Wheel Height  ...........................................................

18

FSU-2

< SYMPTOM DIAGNOSIS >

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

SYMPTOM DIAGNOSIS

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting Chart

INFOID:0000000003811107

Use chart below to find the cause of the symptom. If necessary, repair or replace these parts.

×

: Applicable

Reference page

FS

U-

9

FSU-12

FS

U-

1

4

FSU-1

6

FS

U-

1

1

FS

U-

9

FSU-12

FS

U-

1

4

FSU-1

6

FS

U-18

FS

U-15

NVH in

F

AX

and FS

U sections

NVH in

WT section

NVH in

WT section

NVH in F

A

X section

NVH in BR

section

NVH in ST

section

Possible cause and SUSPECTED PARTS

Im

p

rop

er i

n

s

tal

la

tio

n

loo

s

ene

s

s

S

hoc

k

 ab

so

rbe

r d

e

fo

rma

tio

n,

 da

ma

ge

 o

r de

fle

c

ti

on

B

u

s

h

in

or m

o

u

n

ti

ng

 d

e

te

rio

rati

o

n

P

a

rt

s interference

S

p

ri

ng

 fat

ig

u

e

S

u

s

p

e

n

s

ion

 lo

os

en

es

s

In

co

rrec

t wh

ee

l a

lig

nm

en

t

S

ta

b

iliz

er b

a

r f

a

ti

gu

e

F

R

ONT

 AXLE AND FRONT S

U

SPENSION

TI

RE

ROAD

 WHEEL

DRIV

E

 SHAFT

BR

AK

E

S

T

EERING

Symptom

FRONT SUSPENSION

Noise

×

×

×

×

×

×

×

×

×

×

×

×

Shake

×

×

×

×

×

×

×

×

×

×

×

Vibration

×

×

×

×

×

×

×

×

×

Shimmy

×

×

×

×

×

×

×

×

×

×

Judder

×

×

×

×

×

×

×

×

Poor quality ride or
handling

×

×

×

×

×

×

×

×

×

×

PRECAUTIONS

FSU-3

< PRECAUTION >

C

D

F

G

H

I

J

K

L

M

A

B

FSU

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000003890155

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIRBAG” and
“SEAT BELT” of this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the “SRS AIRBAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

Precaution Necessary for Steering Wheel Rotation after Battery Disconnect

INFOID:0000000003890156

NOTE:
• Before removing and installing any control units, first turn the push-button ignition switch to the LOCK posi-

tion, then disconnect both battery cables.

• After finishing work, confirm that all control unit connectors are connected properly, then re-connect both

battery cables.

• Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.

If a DTC is detected, perform trouble diagnosis according to self-diagnosis results.

This vehicle is equipped with a push-button ignition switch and a steering lock unit.
If the battery is disconnected or discharged, the steering wheel will lock and cannot be turned.
If turning the steering wheel is required with the battery disconnected or discharged, follow the procedure
below before starting the repair operation.

OPERATION PROCEDURE

1.

Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.

2.

Turn the push-button ignition switch to ACC position.
(At this time, the steering lock will be released.)

3.

Disconnect both battery cables. The steering lock will remain released with both battery cables discon-
nected and the steering wheel can be turned.

4.

Perform the necessary repair operation.

5.

When the repair work is completed, re-connect both battery cables. With the brake pedal released, turn
the push-button ignition switch from ACC position to ON position, then to LOCK position. (The steering
wheel will lock when the push-button ignition switch is turned to LOCK position.)

6.

Perform self-diagnosis check of all control units using CONSULT-III.

FSU-4

< PRECAUTION >

PRECAUTIONS

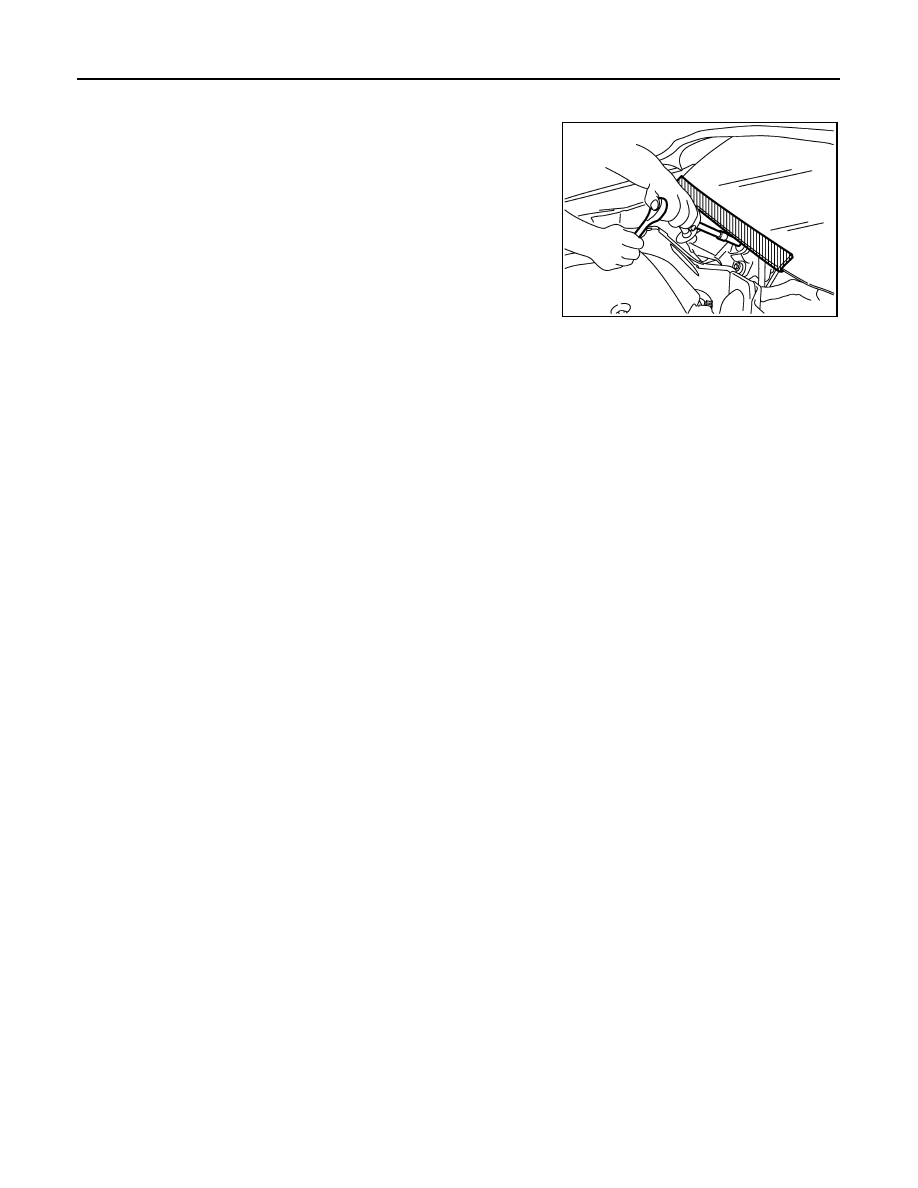

Precaution for Procedure without Cowl Top Cover

INFOID:0000000003890157

When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc.

Precautions for Suspension

INFOID:0000000003811111

CAUTION:

• When installing rubber bushings, the final tightening must be carried out under unladen conditions

with tires on ground. Oil might shorten the life of rubber bushings. Be sure to wipe off any spilled oil.

- Unladen conditions mean that fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools

and mats are in designated positions.

• After servicing suspension parts, be sure to check wheel alignment.
• Self-lock nuts are not reusable. Always use new ones when installing. Since new self-lock nuts are

pre-oiled, tighten as they are.

PIIB3706J
