Nissan Teana J32. Manual - part 596

EXL-354

< ON-VEHICLE REPAIR >

[HALOGEN TYPE]

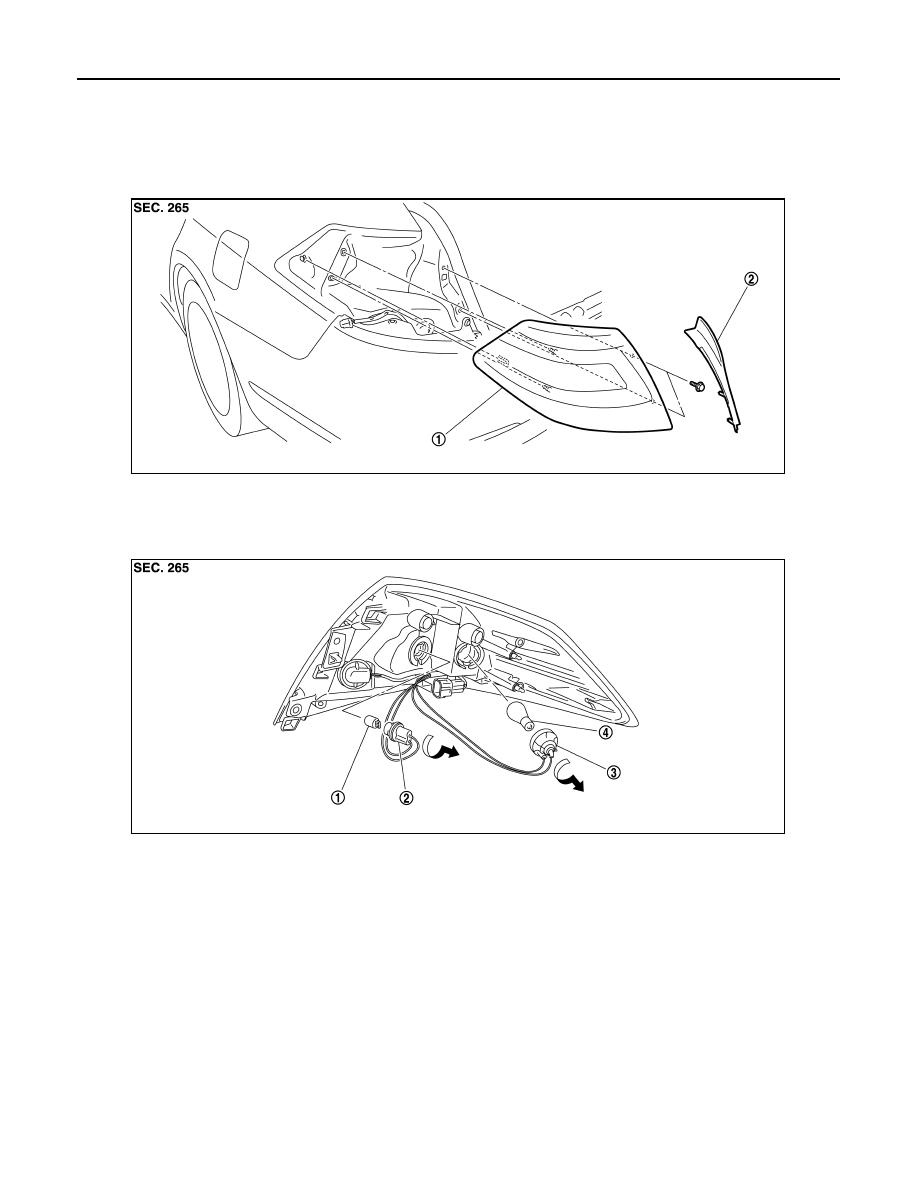

REAR COMBINATION LAMP

REAR COMBINATION LAMP

Exploded View

INFOID:0000000003894373

REMOVAL

DISASSEMBLY

Removal and Installation

INFOID:0000000003894374

CAUTION:

Disconnect the battery negative terminal or remove the fuse.

REMOVAL

1.

Remove the rear combination lamp finisher.

2.

Remove the rear combination lamp mounting bolts.

3.

Pull the rear combination lamp toward outside of the vehicle. And then remove the rear combination lamp.

4.

Disconnect the rear combination lamp connector.

INSTALLATION

Install in the reverse order of removal.

1.

Rear combination lamp

2.

Rear combination lamp finisher

JPLIA1097ZZ

1.

Back-up lamp bulb

2.

Back-up lamp bulb socket

3.

Rear turn signal lamp bulb socket

4.

Rear turn signal lamp bulb

JPLIA1098ZZ

REAR COMBINATION LAMP

EXL-355

< ON-VEHICLE REPAIR >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

Replacement

INFOID:0000000003894375

CAUTION:

• Disconnect the battery negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.

Never touch bulb by hand while it is lit or right after being turned off.

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

STOP/TAIL LAMP

Replacement integral with rear combination lamp. Refer to

EXL-354, "Exploded View"

.

REAR TURN SIGNAL LAMP BULB

1.

Remove the rear combination lamp. Refer to

EXL-354, "Exploded View"

.

2.

Rotate the rear turn signal lamp bulb socket counterclockwise, and unlock it.

3.

Remove the bulb from the rear turn signal lamp bulb socket.

BACK-UP LAMP BULB

1.

Remove the rear combination lamp. Refer to

EXL-354, "Exploded View"

.

2.

Rotate the back-up lamp bulb socket counterclockwise, and unlock it.

3.

Remove the bulb from the back-up lamp bulb socket.

EXL-356

< ON-VEHICLE REPAIR >

[HALOGEN TYPE]

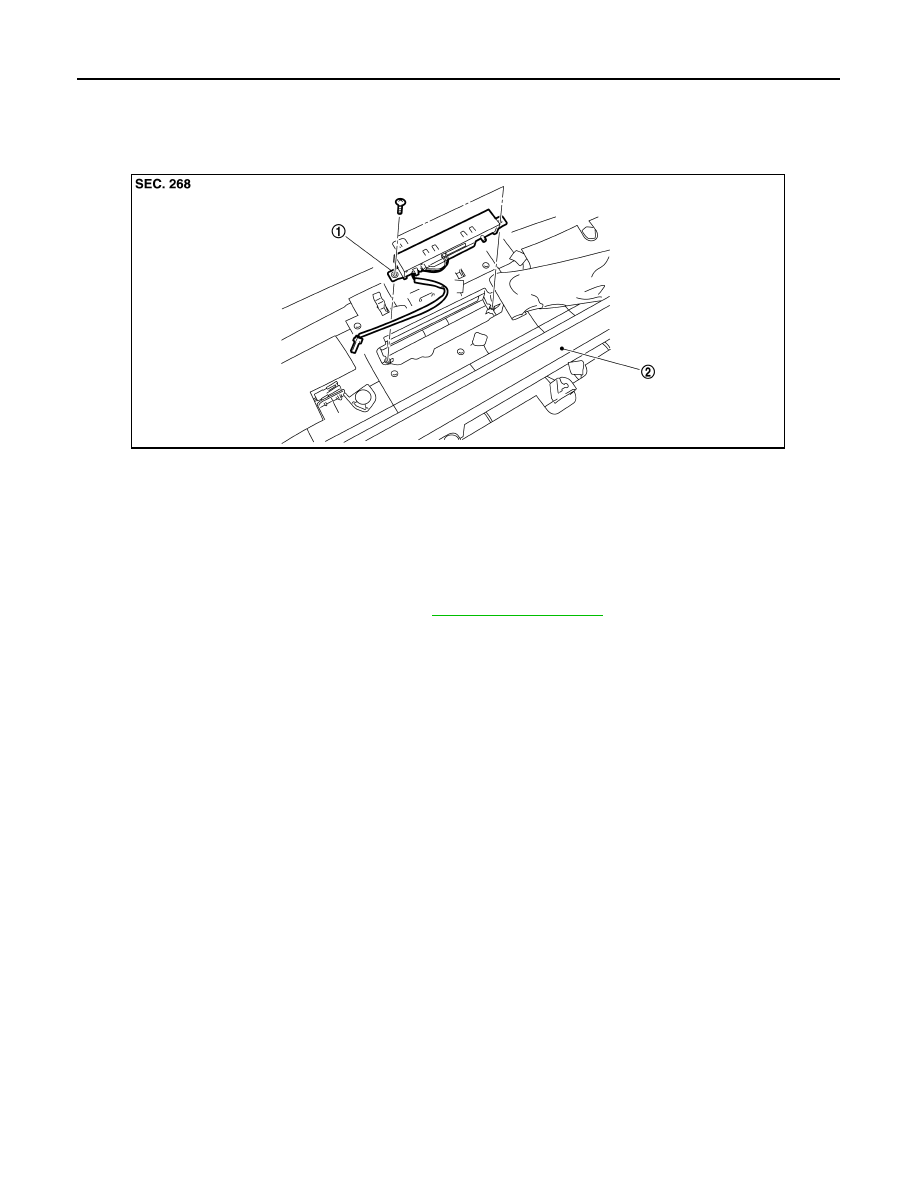

HIGH-MOUNTED STOP LAMP

HIGH-MOUNTED STOP LAMP

Exploded View

INFOID:0000000003894376

Removal and Installation

INFOID:0000000003894377

CAUTION:

Disconnect battery negative terminal or remove the fuse.

REMOVAL

1.

Remove the rear parcel shelf finisher. Refer to

INT-43, "Exploded View"

.

2.

Remove the screw. And then disconnect the connector.

3.

Remove the high-mounted stop lamp.

INSTALLATION

Install in the reverse order of removal.

1.

High-mounted stop lamp

2.

Rear parcel shelf finisher

JPLIA1099ZZ

REAR FOG LAMP

EXL-357

< ON-VEHICLE REPAIR >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

REAR FOG LAMP

Exploded View

INFOID:0000000003894378

Removal and Installation

INFOID:0000000003894379

CAUTION:

Disconnect battery negative terminal or remove the fuse.

REMOVAL

1.

Disconnect the rear fog lamp connector.

2.

Remove the nuts. And then remove the rear fog lamp rim.

3.

Remove the screw. And then remove the rear fog lamp from the rear fog lamp rim.

INSTALLATION

Installation is the reverse order of removal.

Replacement

INFOID:0000000003894380

CAUTION:

• Disconnect the battery negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.

Never touch bulb by hand while it is lit or right after being turned off.

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

REAR FOG LAMP BULB

1.

Turn the bulb socket (1) counterclockwise and unlock it.

2.

Remove the bulb (2) from the rear fog lamp bulb socket.

1.

Rear fog lamp

2.

Rear fog lamp bracket

3.

Rear fog lamp finisher

JPLIA1102ZZ

JPLIA1103ZZ
